Product Details

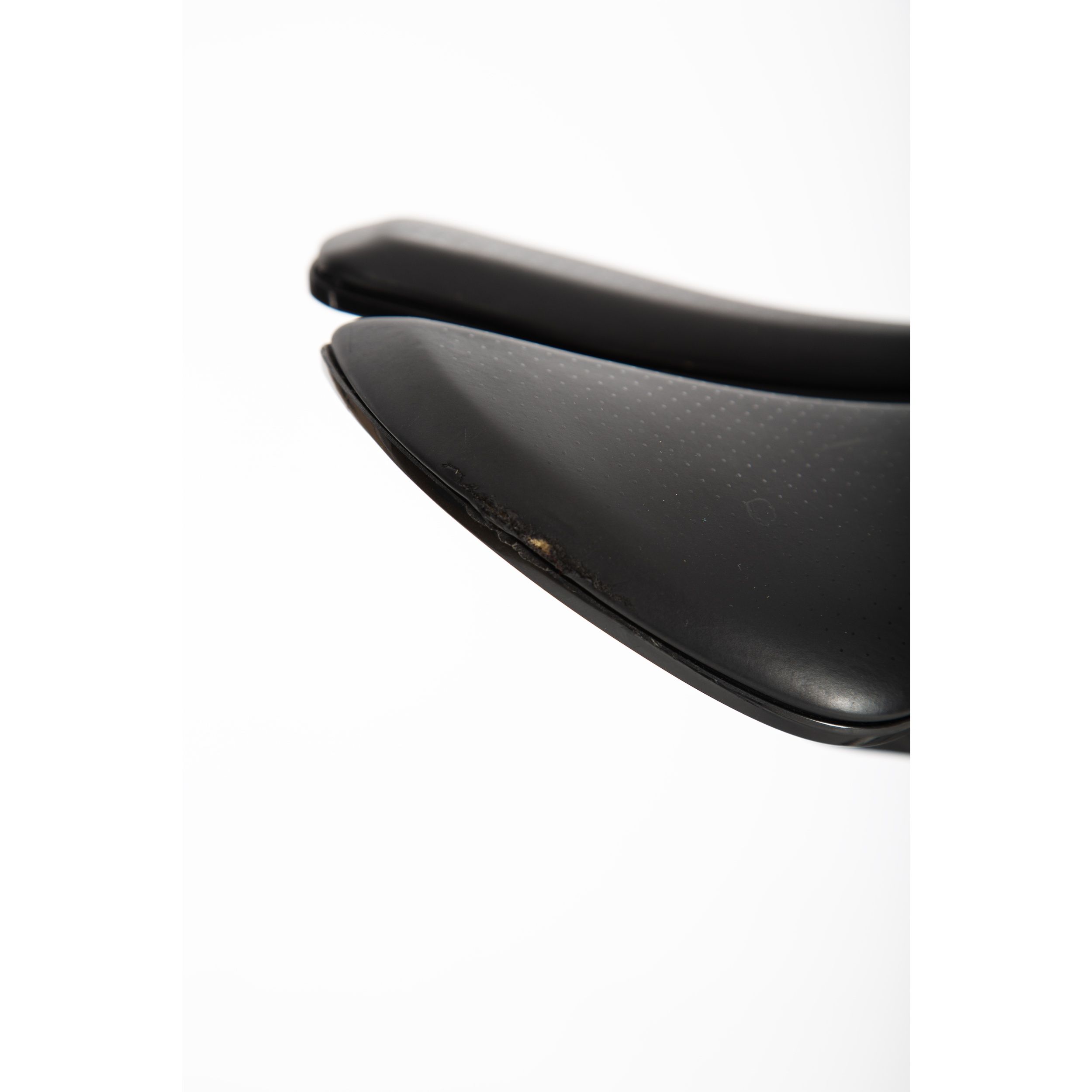

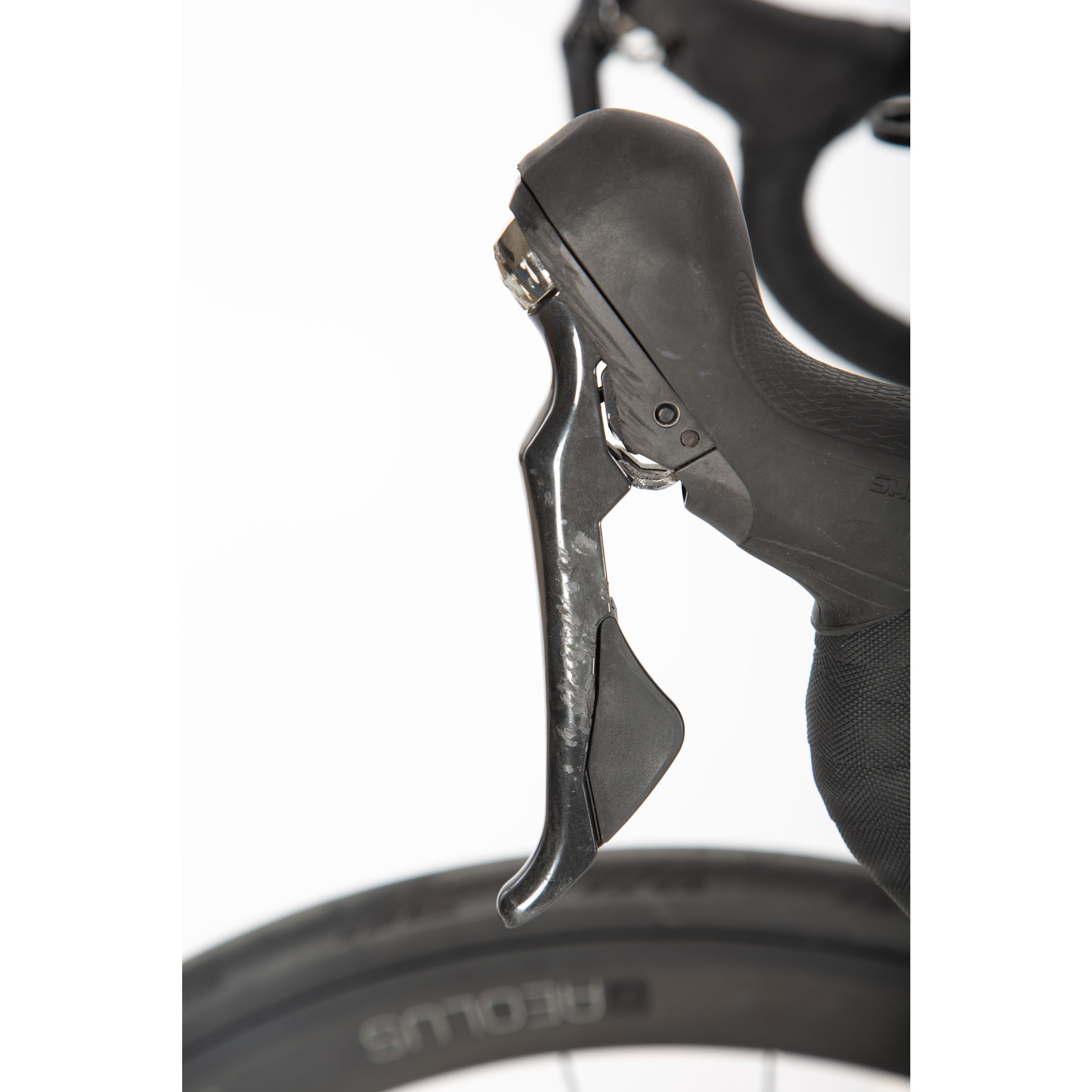

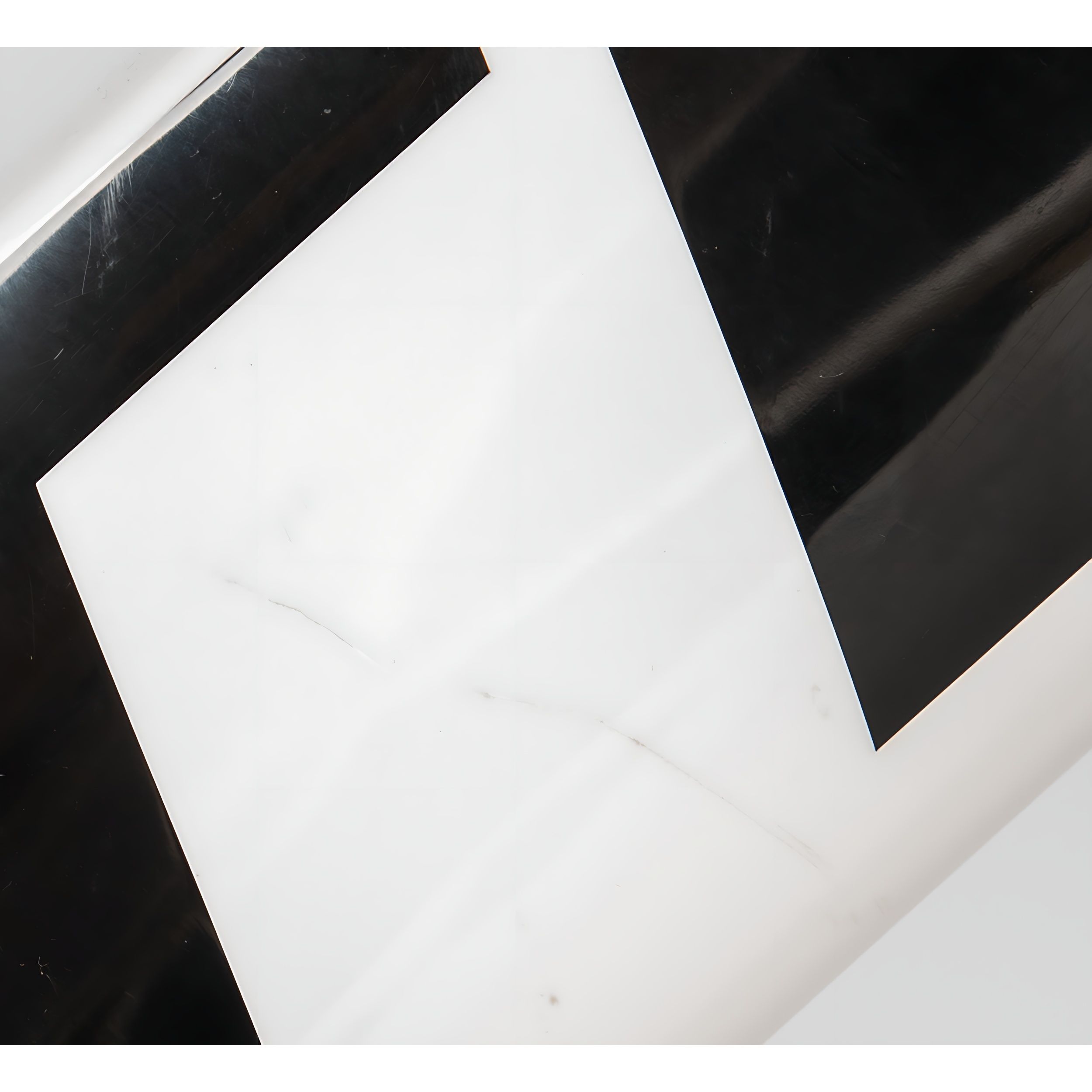

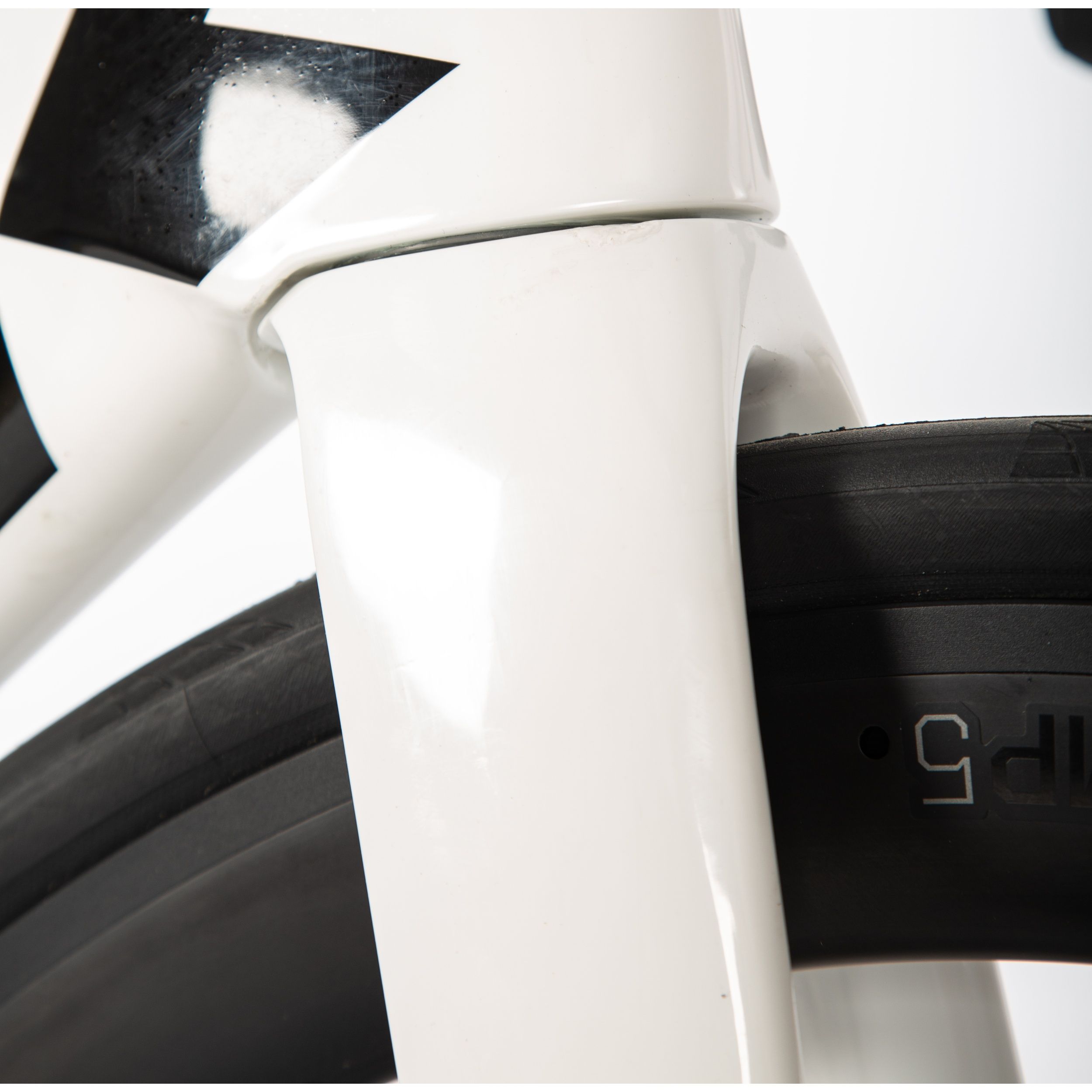

Good condition approved used bike with some cosmetic scuffing to the levers and saddle, as well as paint damage on the fork and downtube

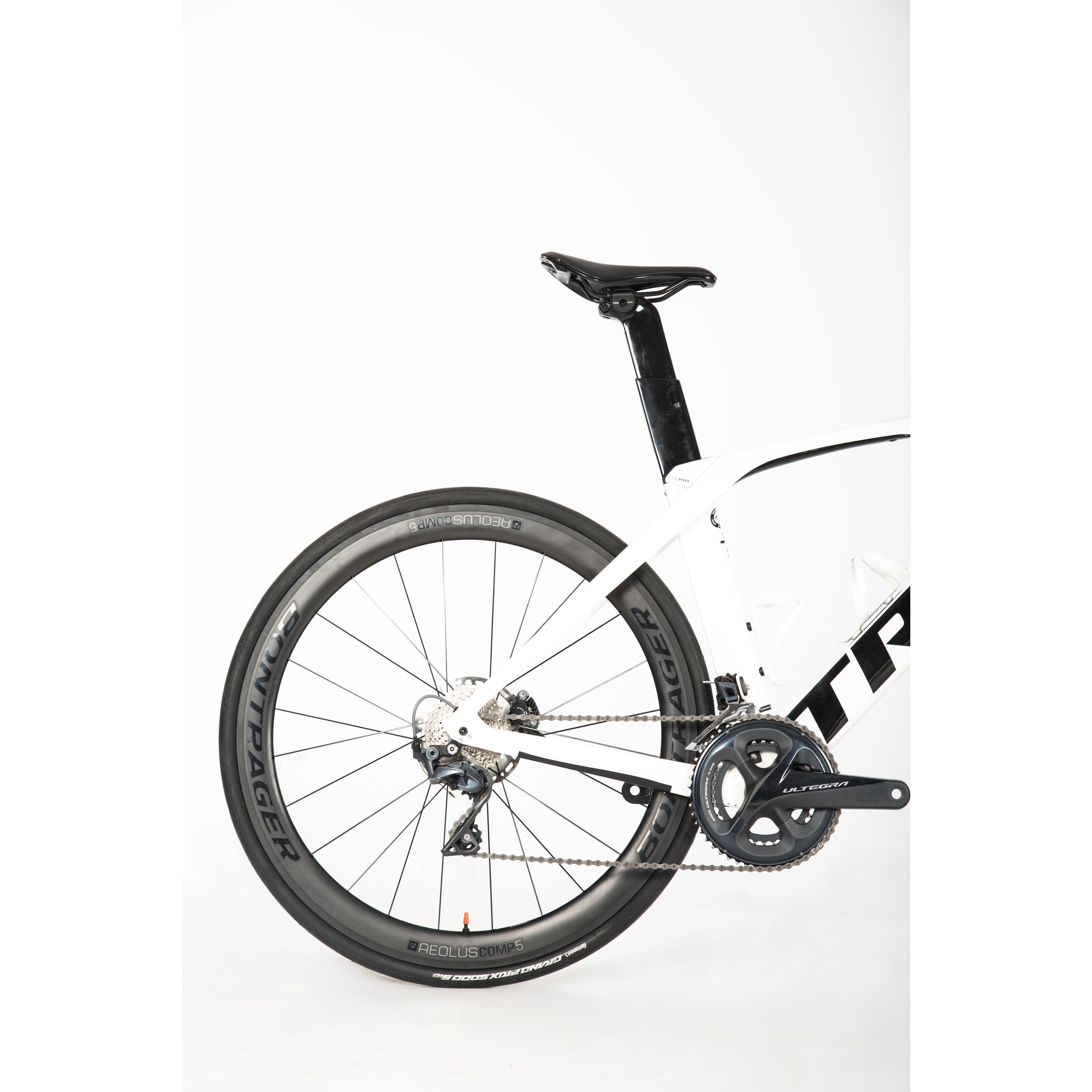

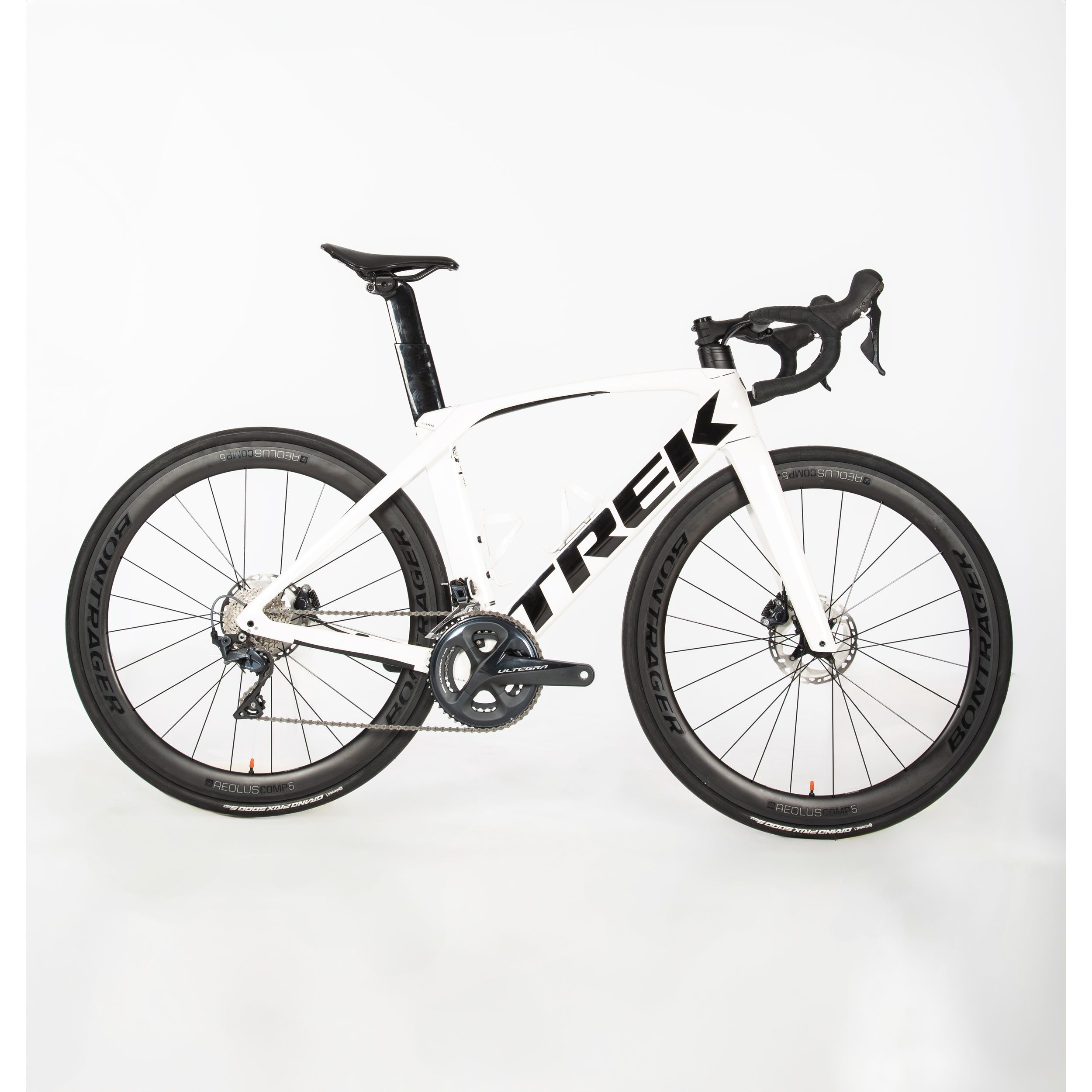

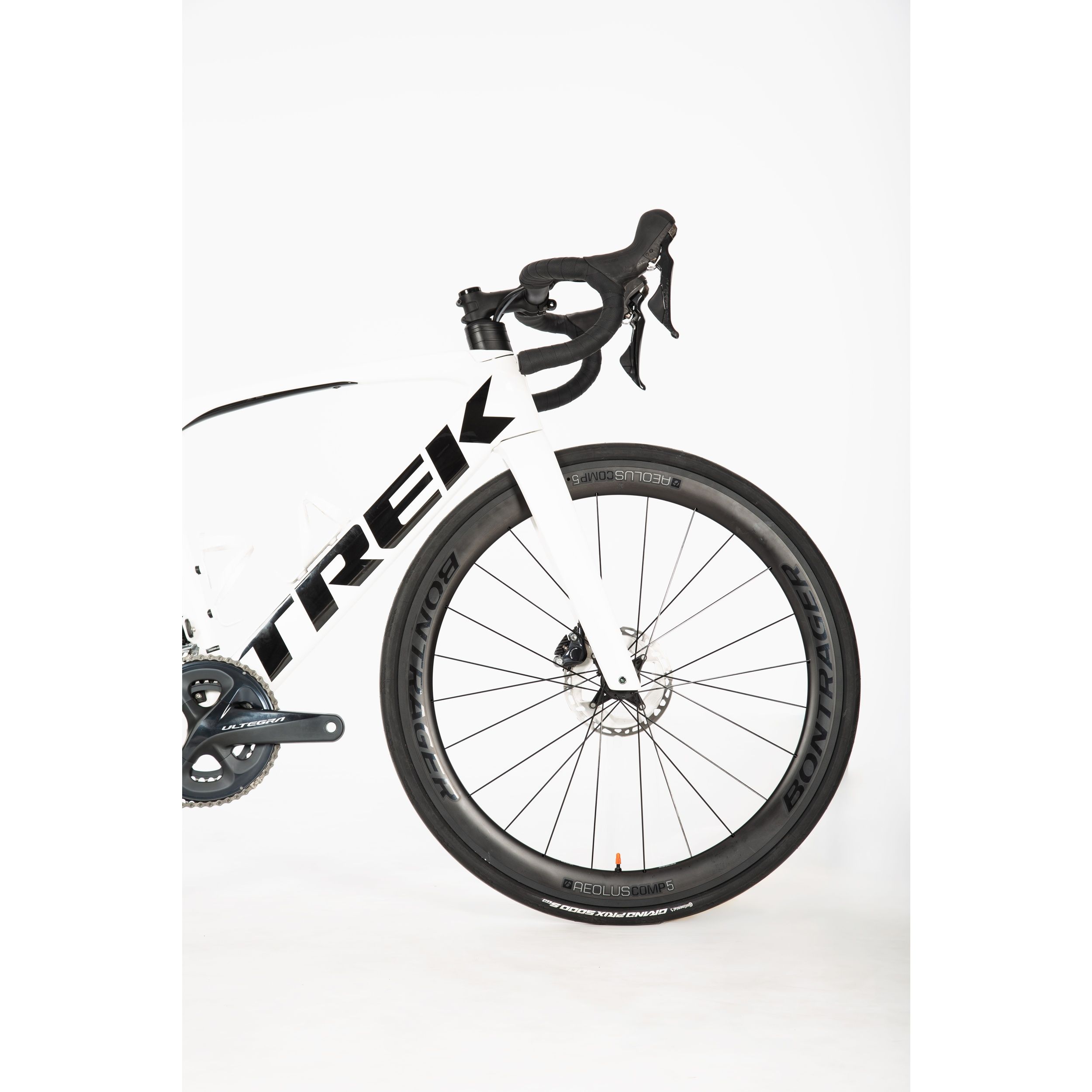

Trek Madone SL 6 Disc Road Bike 2022
With advanced aerodynamics and svelte lines, the Trek Madone SL 6 Disc Road Bike provides style and performance in a race-ready package. The 500 Series OCLV Carbon construction is lightweight and stiff for unrivalled power transfer and features Kammtail Virtual Foil tube shapes to cut drag to a minimum. Adjustable top tube IsoSpeed allows the user to customise the level of compliance on offer, making this far more versatile than its aero tubeset would have you believe.
The tubeless-ready Aeolus Comp wheels feature a modern 18mm rim width with a deep profile to improve their aerodynamic performance. Bontrager R3 Hard-Case Lite tyres roll fast and use an aramid bead, and the Bontrager cockpit offers pinpoint control on the road. A full Shimano Ultegra groupset provides proven, crisp shifting across the wide 11-speed range, and hydraulic disc brakes offer ample stopping power to boost confidence on the descents.
-
Certified Quality & Peace of Mind
Every bike is meticulously inspected to the highest safety standards and comes with a one-year warranty*, ensuring reliability and performance you can trust. -
Premium Bikes, Lower Prices
Own a high-end bike for less – get access to top-tier brands and models at a fraction of the cost, making performance cycling more affordable. -
Sustainable & Eco-Friendly Choice
Choosing a pre-owned bike helps reduce waste and extends the life of quality bicycles, making it a greener way to ride. -
Hassle-Free Trade-In & Upgrade
Easily part-exchange your old bike for an upgrade, making it simple to switch, save, and keep riding the best bike for your needs
Features

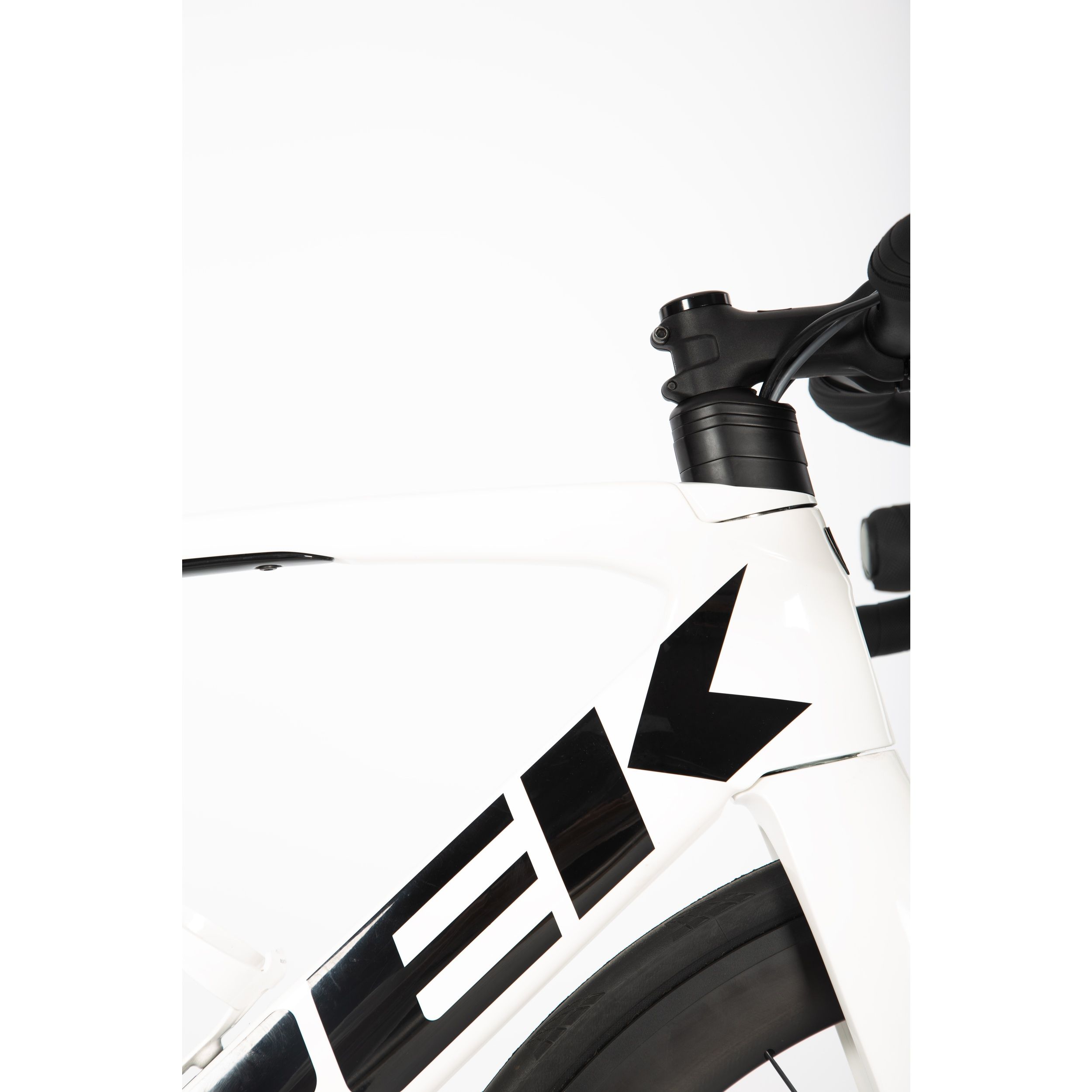

- Frame: Trek Madone SL6 2022, 54cm, 500 series OCLV Carbon

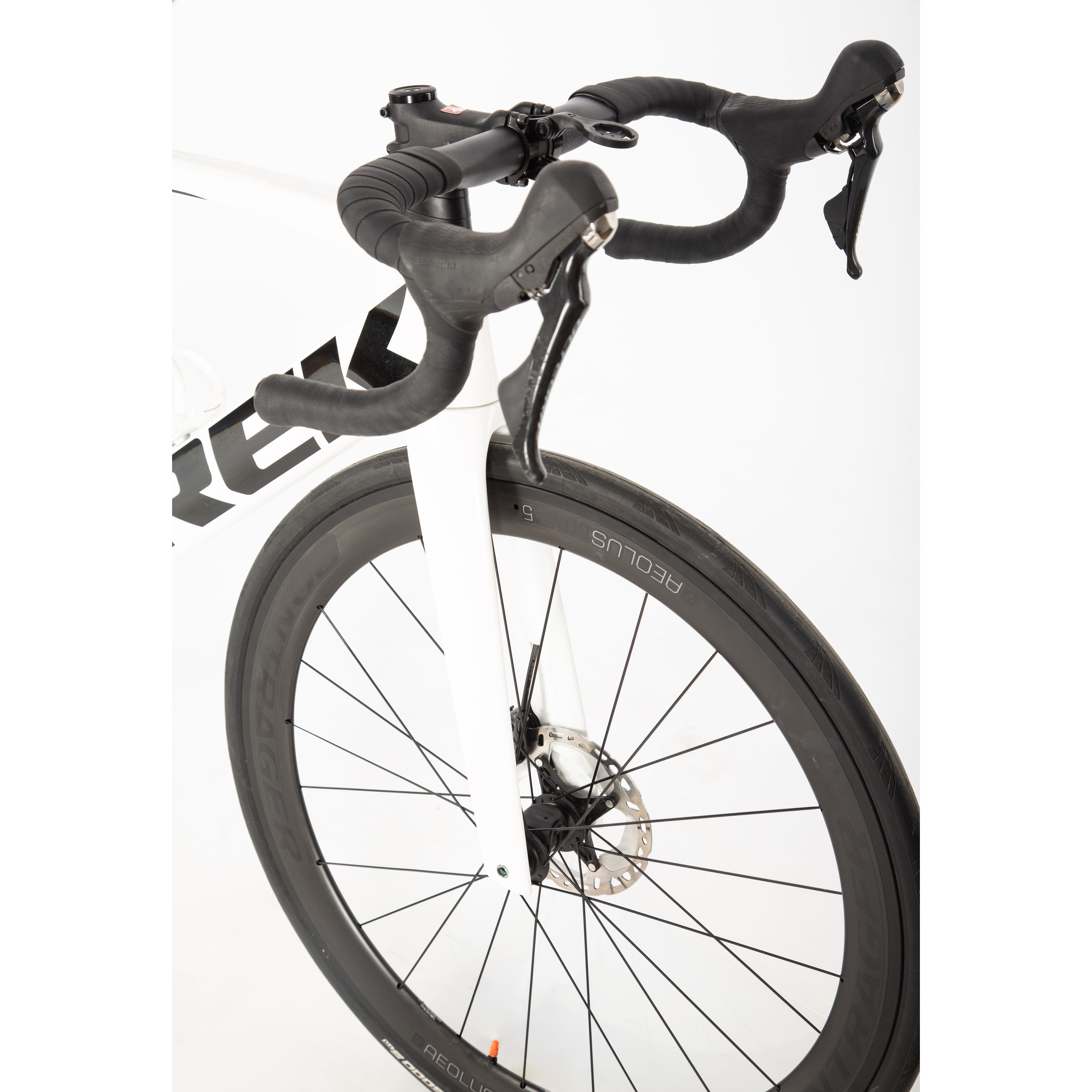

- Fork: Madone Carbon Fork
- Stem: Bontrager Blendr Alloy, 90mm 7°

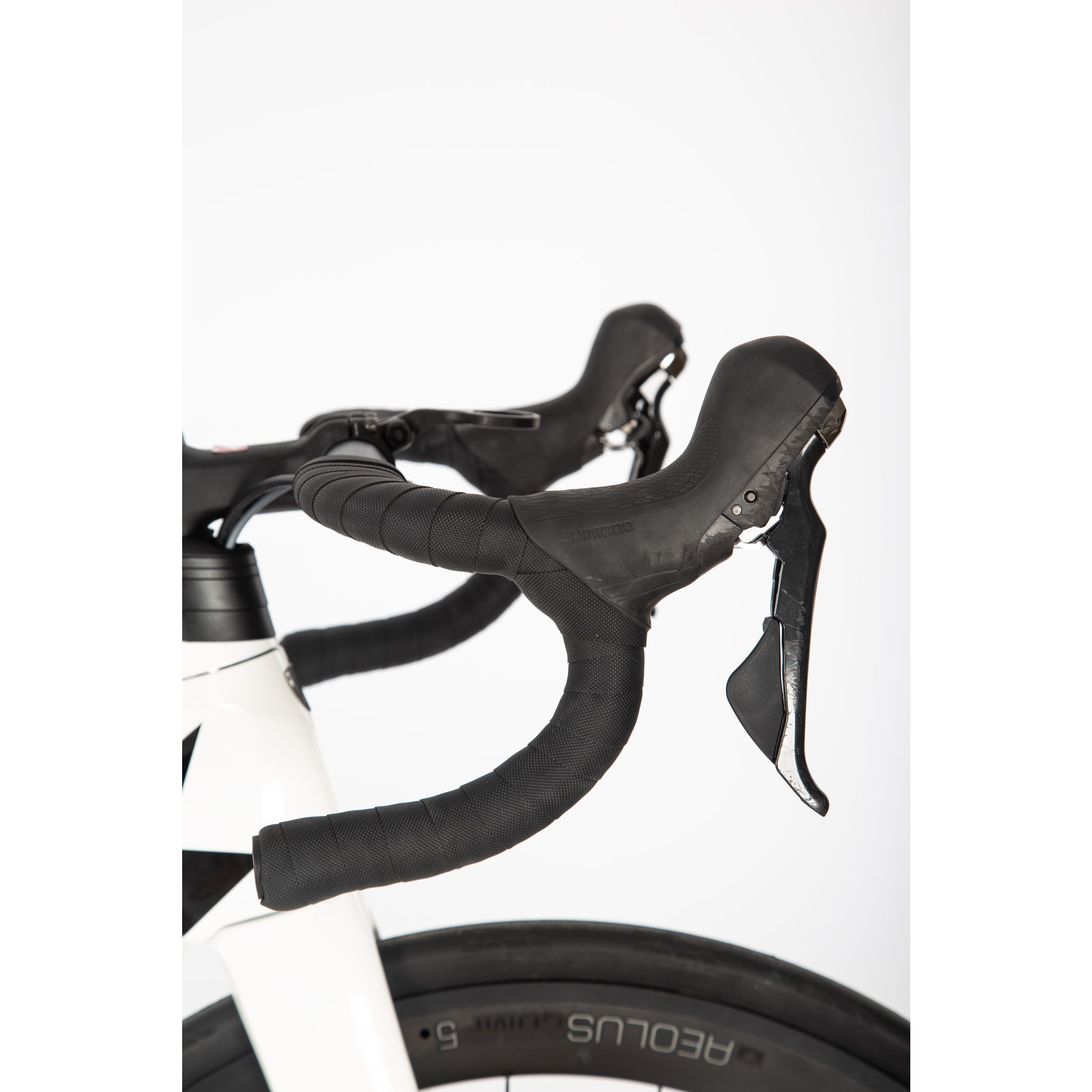

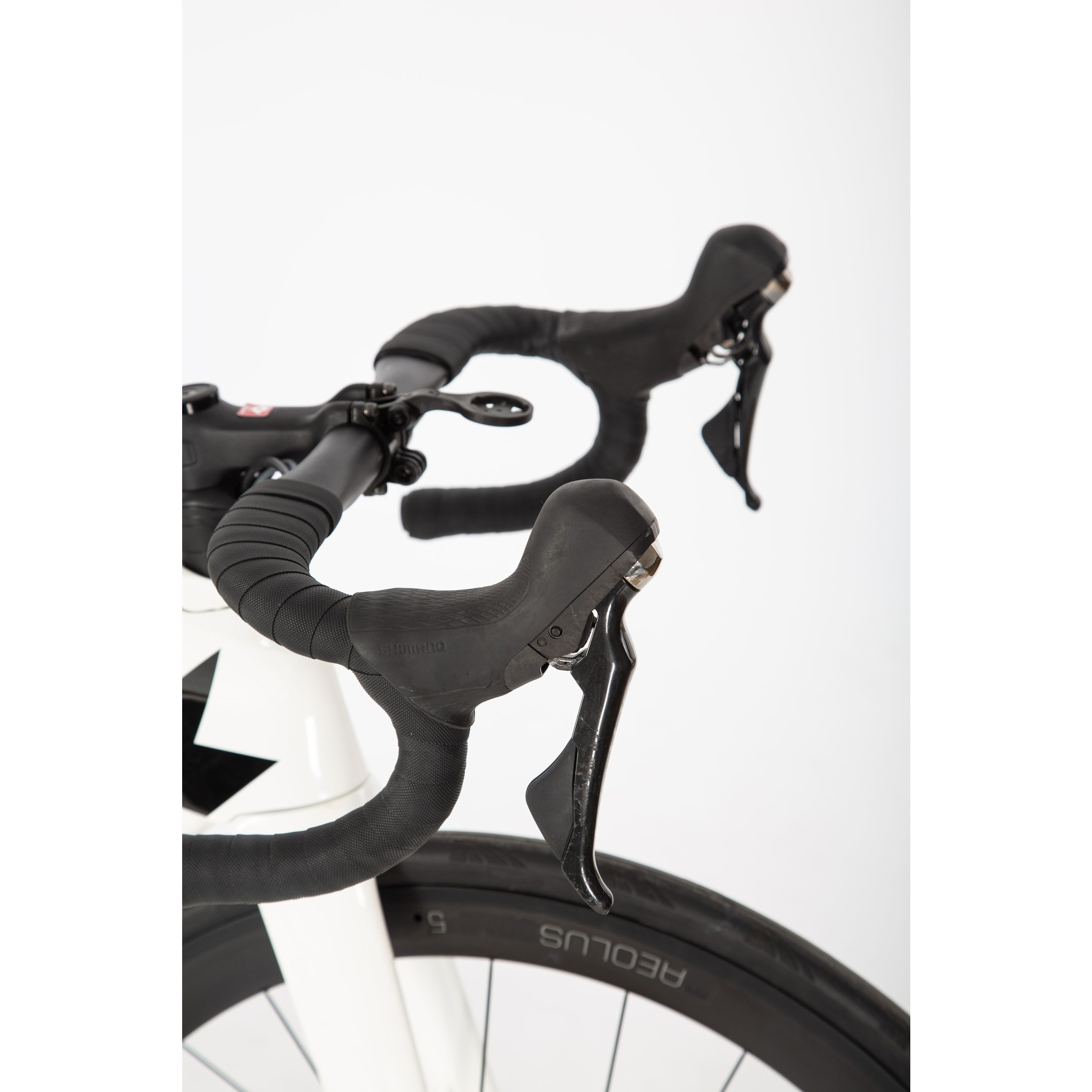

- Handlebar: Bontrager Elite Aero VR-CF, Alu 6066, 42cm width, 93mm reach, 123mm drop

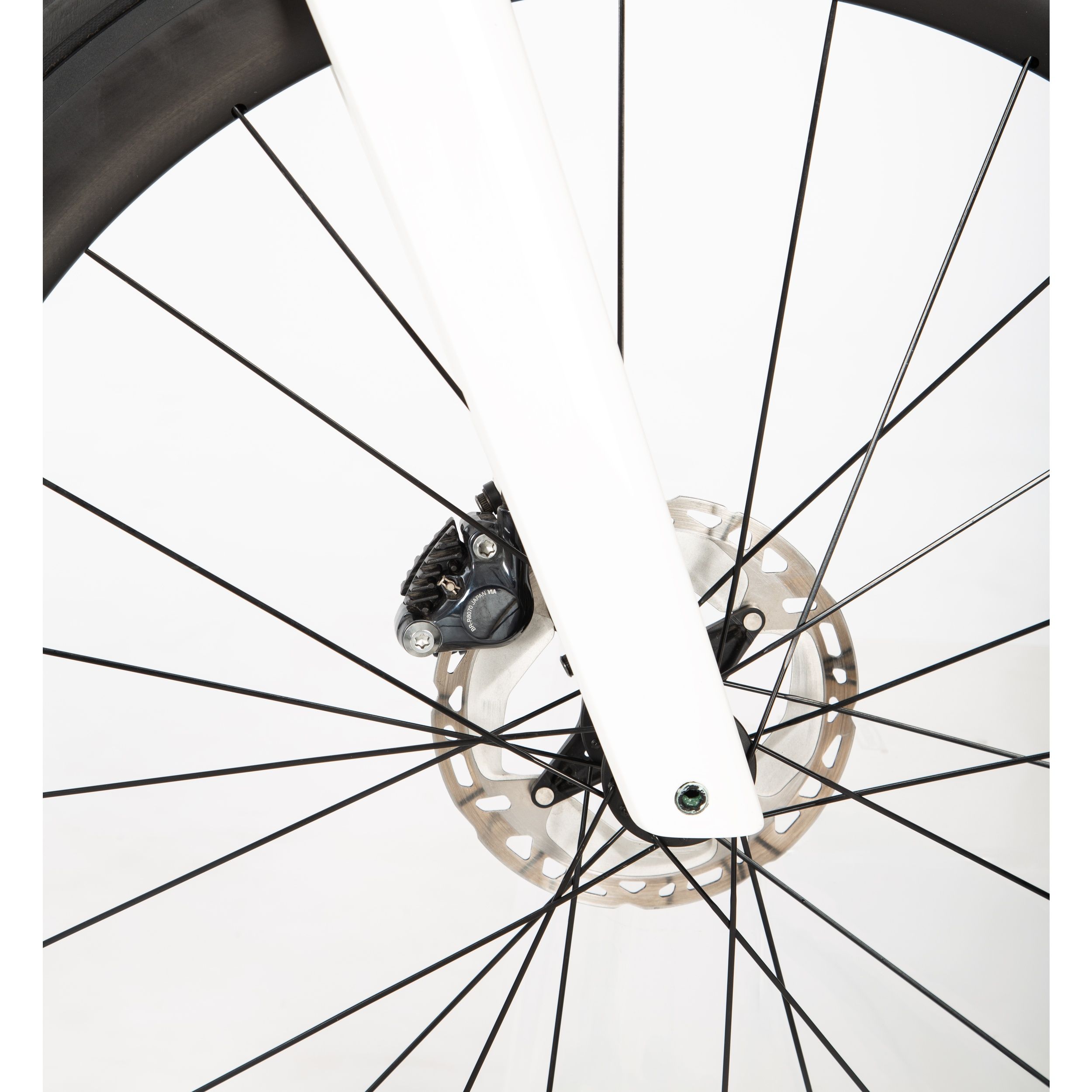

- Levers/Shifters: Shimano Ultegra BR-R8070 Hydraulic, 160mm rotor
- Front Derailleur: Shimano Ultegra FD-R8000 2x11 braze-on Mechanical

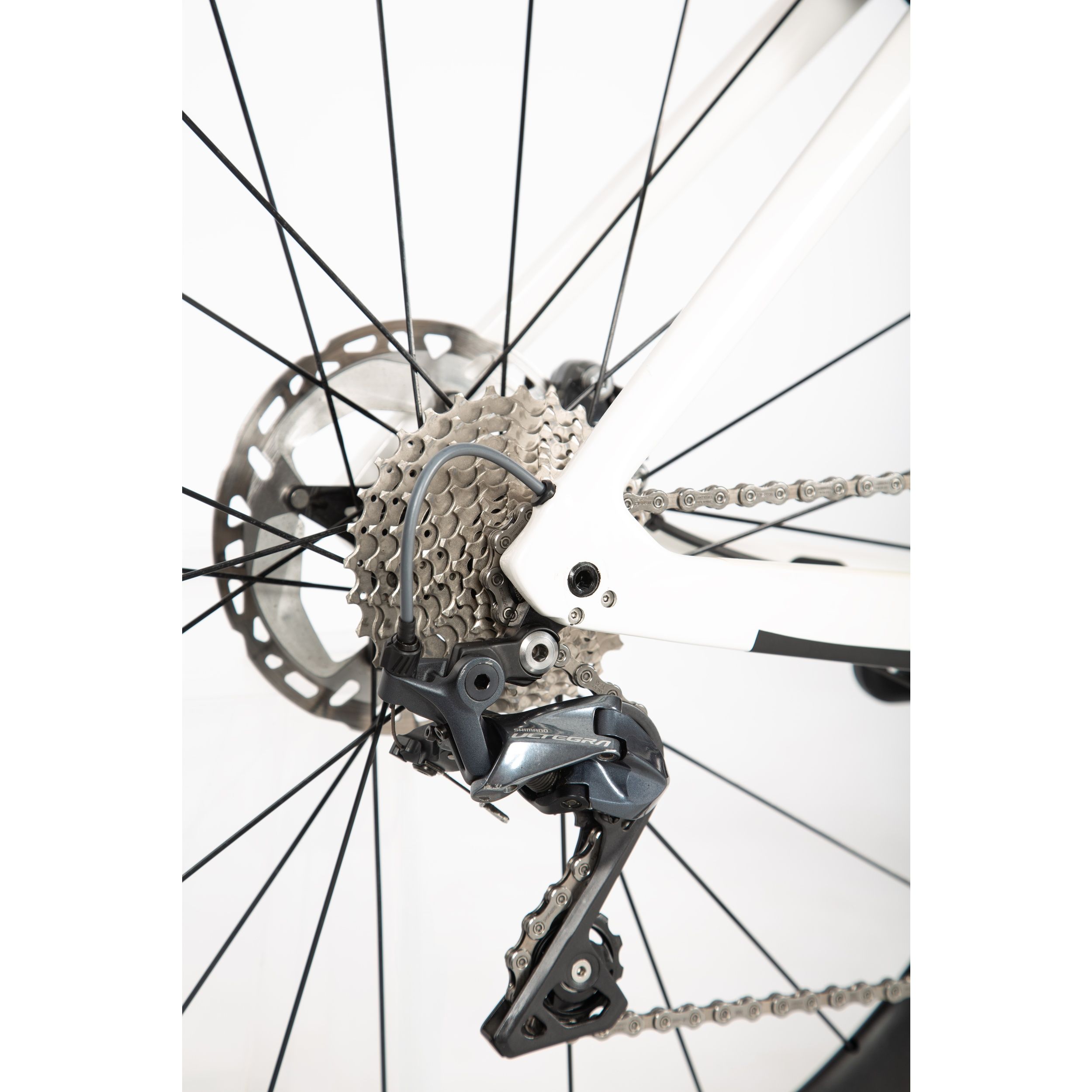

- Rear Derailleur: Shimano Ultegra RD-R8000-SS 11 speed Mechanical
- Cassette: Shimano Ultegra CS-R8000, 11-30T

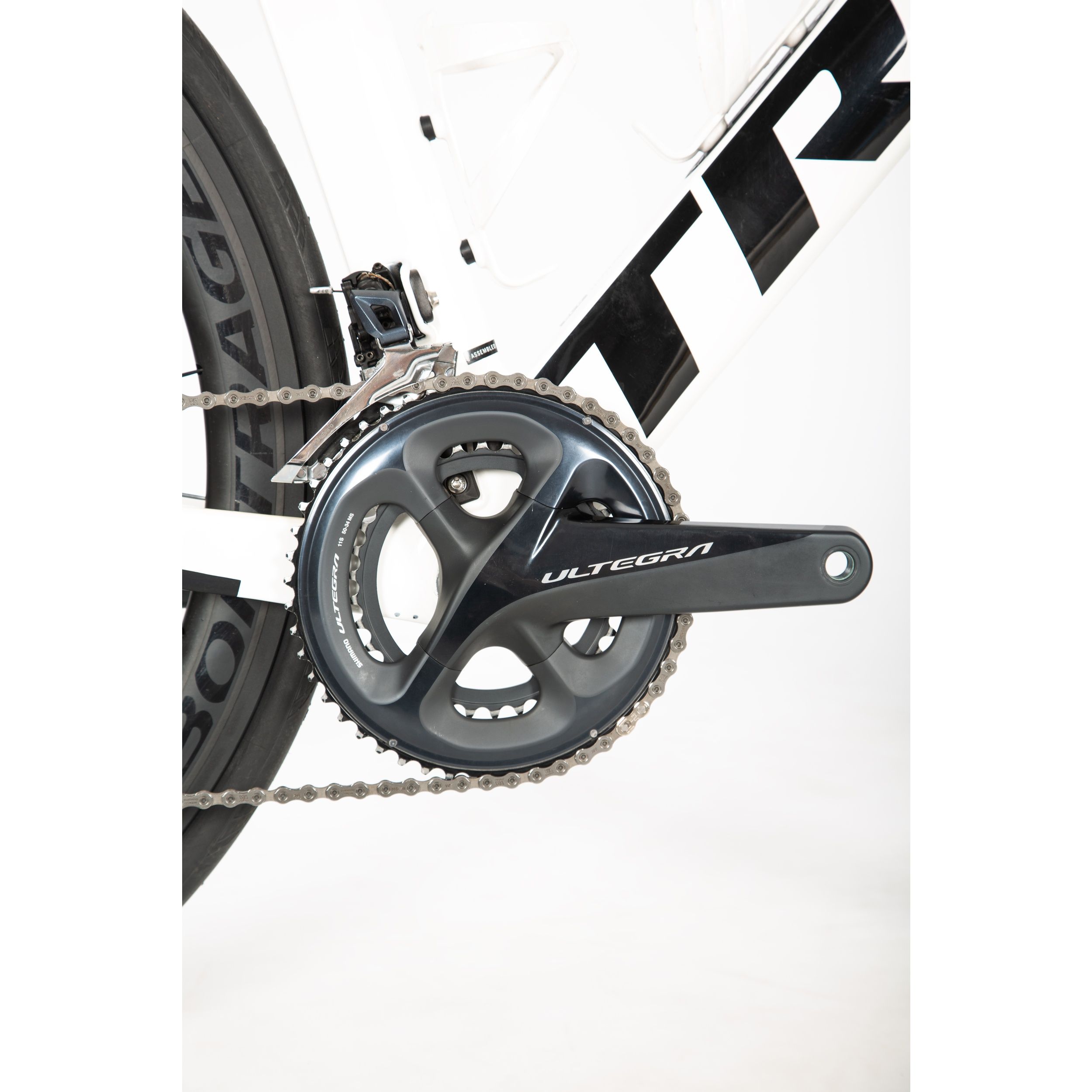

- Crankset: Shimano Ultegra FC-R8000, 2x 50/34T, 172.5mm cranks
- Wheels: Bontrager Aeolus Comp 5 TLR, Alu rim with carbon fairing, 622x17. 50mm rim depth
- Tyres: Continental Grand Prix 5000s TR, 700x28c. sealant installed

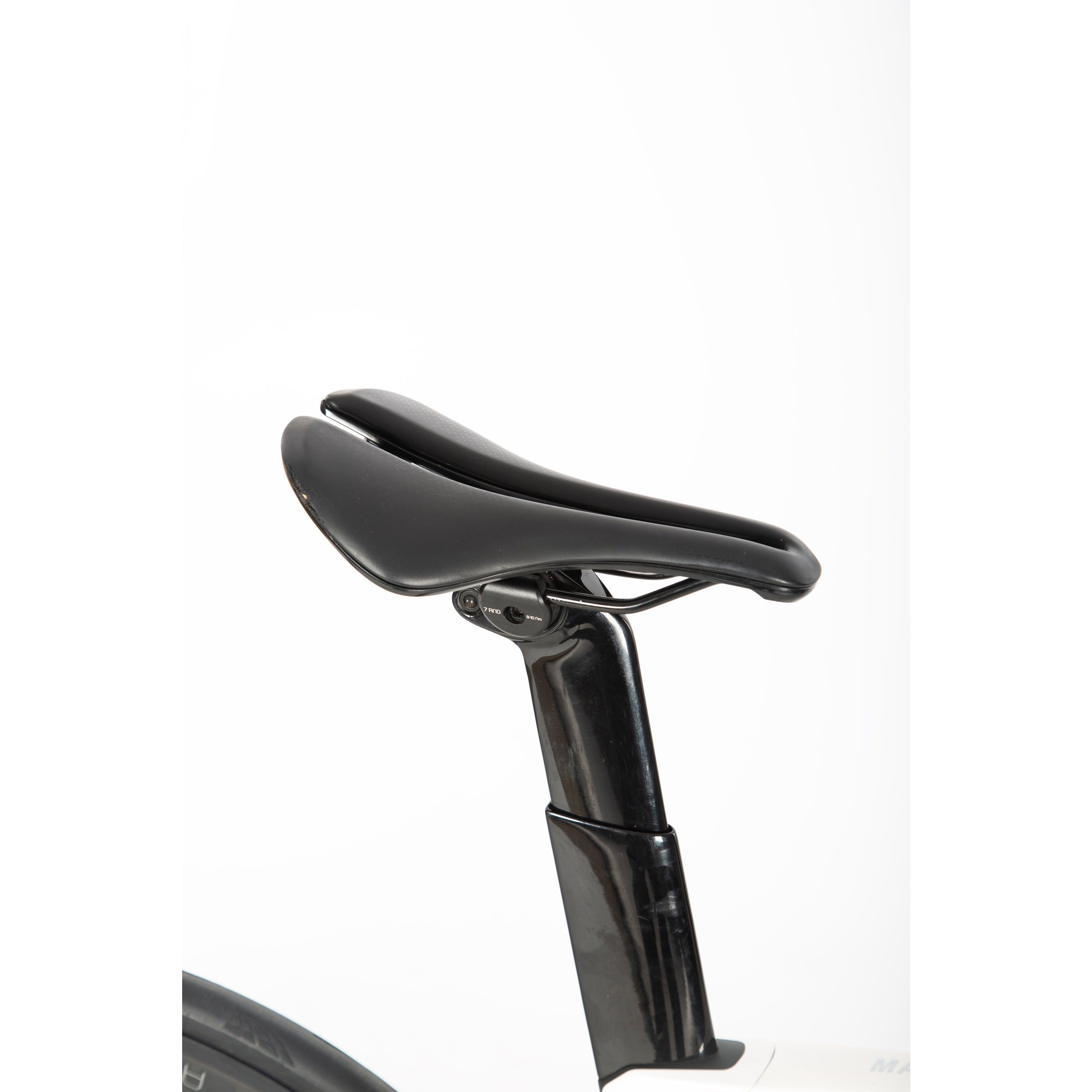

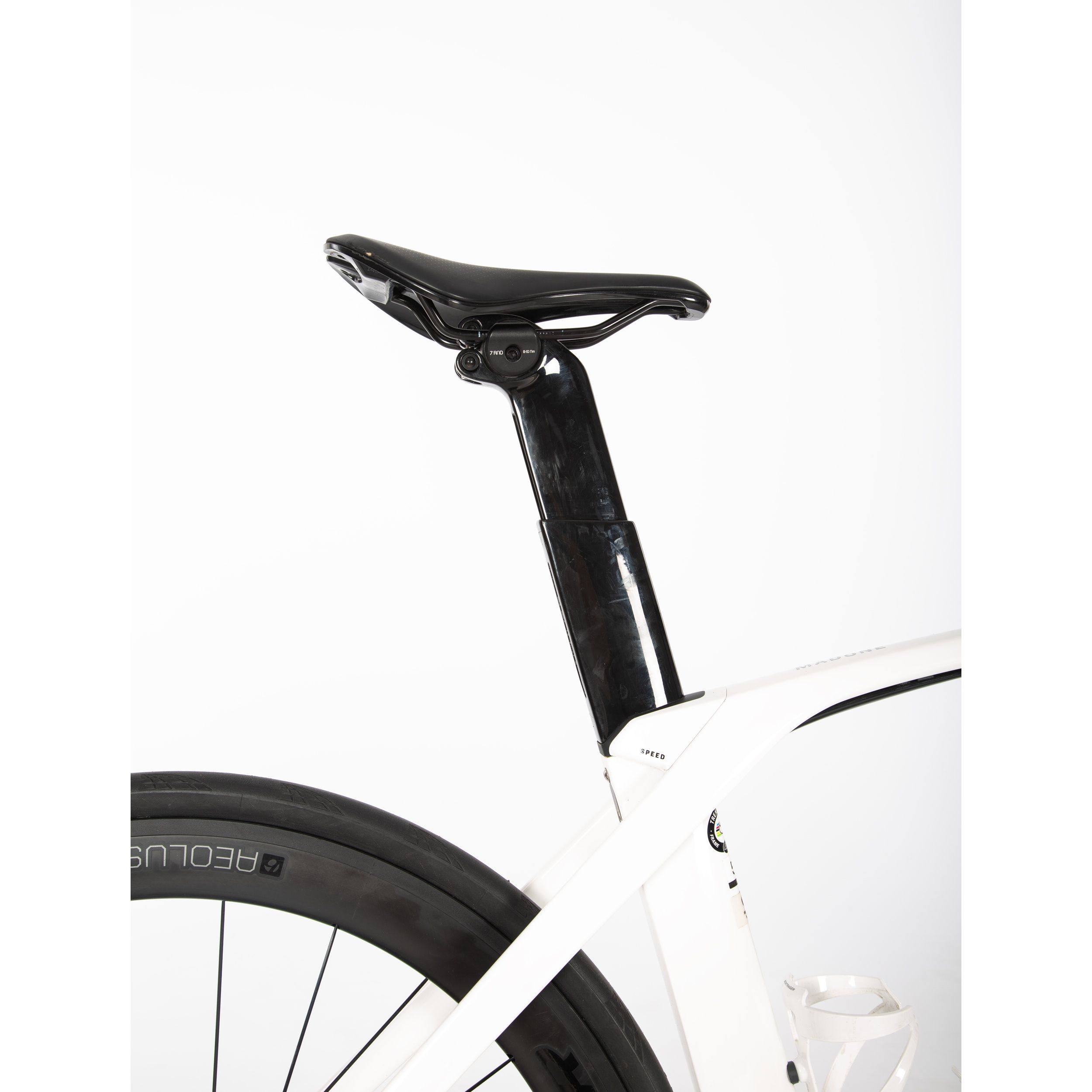

- Saddle: Bontrager Aeolus Comp
- Seatpost:
- Pedals: Available to be purchased separately
Specifications
- Model
- Madone SL6
- Brakes [Kind]
- Hydraulic Disc
- Brakes [Maker]
- Shimano
- Brakes [Model]
- Ultegra BR-R8070
- Cassette [Gearing]
- 11-30
- Cassette [Maker]
- Shimano
- Cassette [Model]
- Ultegra CS-R8000
- Chainring [Gearing]
- 50/34
- Condition Grade
- Good
- Crank [Maker]
- Shimano
- Crank [Model]
- Ultegra FC-R8000
- E-Bike
- No
- Family
- Madone
- FD [Maker]
- Shimano
- FD [Model]
- Ultegra FD-R8000
- Fenders Mounts
- No
- Fork [Brake Type]
- Disc
- Fork [Maker]
- Trek
- Fork [Material]
- Carbon
- Fork [Model]
- Madone Carbon Fork
- Fork [Wheel Size]
- 700c
- Frame [Material]
- Carbon
- Frameset
- No
- Gearing [Configuration]
- 2x
- Gearing [Kind]
- Conventional
- Gender
- Unisex
- Handlebar [Kind]
- Drop
- Handlebar [Maker]
- Bontrager
- Handlebar [Material]
- Aluminium
- Handlebar [Shape]
- Drop bar
- Rack Mounts
- No
- RD [Maker]
- Shimano
- RD [Model]
- Ultegra RD-R8000-SS
- Saddle [Maker]
- Bontrager
- Shifters [Maker]
- Shimano
- Shifters [Model]
- Ultegra BR-R8070
- Shifting
- Mechanical
- Stem [Maker]
- Bontrager
- Stem [Material]
- Aluminium
- Suspension Configuration
- Rigid
- Tires [Maker]
- Continental
- Wheels [Configuration]
- Front+Rear
- Wheels [Kinds]
- Tubeless Ready
- Wheelset [Maker]
- Bontrager
- Wheelset [Material]
- Mixed
- Wheelset [Model]
- Aeolus Comp 5 TLR
- Product code
- 2010219 / 54293353759066
Size Guide
| — | 47 | 50 | 52 | 54 | 56 | 58 | 60 | 62 |
|---|---|---|---|---|---|---|---|---|
| Rider Height (cm) | 152 - 158 | 158 - 163 | 163 - 168 | 168 - 174 | 174 - 180 | 180 - 185 | 185 - 190 | 190 - 195 |
| Rider Height (ft. in) | 5' - 5'2" | 5'2" - 5'4" | 5'4" - 5'6" | 5'6" - 5'9" | 5'9" - 5'11" | 5'11" - 6'1" | 6'1" - 6'3" | 6'3" - 6'5" |
| Seat Tube (ctr-top) | 424 | 453 | 483 | 496 | 525 | 553 | 573 | 593 |
| Seat Tube (ctr-ctr) | - | - | - | - | - | - | - | - |
| Effective Top Tube | 512 | 521 | 534 | 543 | 559 | 574 | 586 | 598 |
| Actual Top Tube | - | - | - | - | - | - | - | - |
| Seat Angle | 74.6° | 74.6° | 74.2° | 73.7° | 73.3° | 73.0° | 72.8° | 72.5° |
| Head Angle | 72.1° | 72.1° | 72.8° | 73.0° | 73.5° | 73.8° | 73.9° | 73.9° |
| Head Tube | 100 | 111 | 121 | 131 | 151 | 171 | 191 | 211 |
| Fork Rake | 68 | 62 | 58 | 56 | 58 | 57 | 56 | 56 |
| Chainstay | 410 | 410 | 410 | 410 | 410 | 411 | 411 | 412 |
| Wheelbase | 972 | 974 | 977 | 981 | 983 | 992 | 1001 | 1010 |
| Stack | 507 | 521 | 533 | 541 | 563 | 581 | 601 | 620 |
| Reach | 373 | 378 | 383 | 386 | 391 | 396 | 399 | 403 |
All measurements in mm unless otherwise stated
The charts show Trek's recommended sizes based on height, but there are some other factors, like arm and leg length, that determine a great fit. That’s why you’ll see some overlap in our recommendations. Not every rider who’s 5´8˝, for example, will fit on the same size bike.
