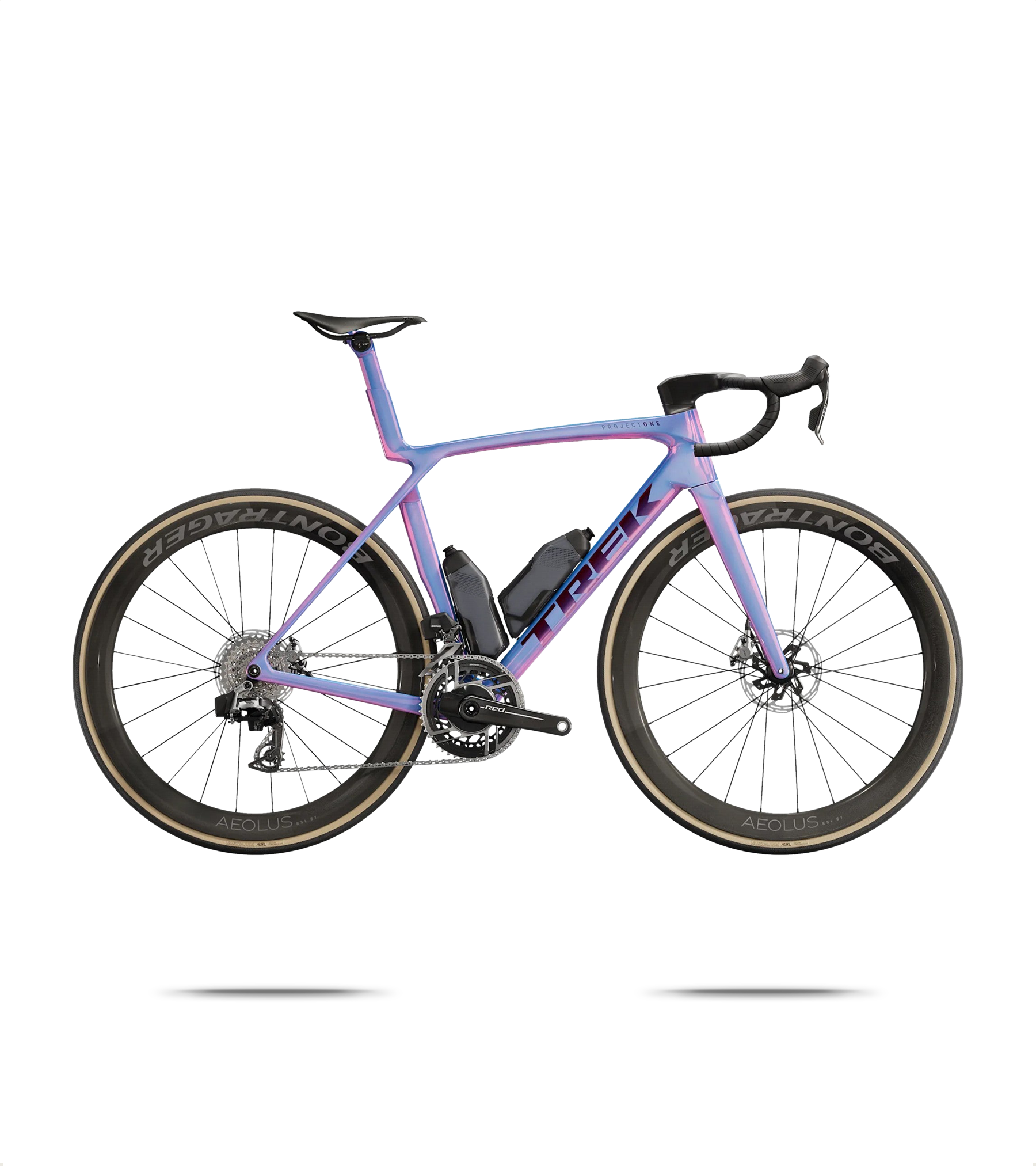

Trek Madone SLR 9 AXS Gen 8 Tête de la Course Road Bike
The Trek Madone SLR 9 AXS Gen 8 Tête de la Course Road Bike is engineered for ultimate road performance, combining lightweight construction with cutting-edge aerodynamics. Crafted from Trek’s premium 900 Series OCLV Carbon, it delivers exceptional weight savings alongside aerodynamic profiles that excel on descents and straightaways.
The lightweight IsoFlow frame technology enhances comfort without compromising speed, ensuring a smooth ride even during intense efforts. This top-tier build features a SRAM RED AXS drivetrain with an integrated power meter for precise performance tracking. Carbon wheels, a Trek Aero RSL one-piece carbon bar and stem, and RSL Aero Bottles and Cages further optimise aerodynamic efficiency.
Designed for riders seeking dominance on the road, the Madone SLR 9 AXS is a race-ready machine built to win.
Technical Specification
| Frame | 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle |
| Fork | Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm chamfered thru axle |
| Claimed Weight | ML - 7.00 kg / 15.44 lbs (with TLR sealant, no tubes, no bottles/cages) |
| Weight limit | Maximum total weight (bicycle, rider, and cargo) |
| Battery | SRAM eTap battery pack (with charger) |
| Shifter | SRAM RED AXS E1 |
| Front Derailleur | SRAM RED AXS E1, braze-on |
| Rear Derailleur | SRAM RED AXS E1, 36T max cog |
| Size XS, S | SRAM RED AXS E1, power meter, 48/35, DUB, 165 mm length |
| Size M | SRAM RED AXS E1, power meter, 48/35, DUB, 170 mm length |
| Size ML, L | SRAM RED AXS E1, power meter, 48/35, DUB, 172.5 mm length |
| Size XL | SRAM RED AXS E1, power meter, 48/35, DUB, 175 mm length |
| Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM RED XG-1290 E1, 10-33, 12-speed |
| Chain | SRAM RED E1, 12-speed |
| Max Chainring Size | 1x |
| Front Wheel | Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, 100x12 mm thru axle |
| Rear Wheel | Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, SRAM XD-R driver, 142x12 mm thru axle |
| Tyres | Bontrager Aeolus RSL RD, Tubeless-Ready, cotton construction, aramid bead, 170 tpi, 700x28 mm |
| Pirelli P Zero Race, 120 tpi, tubeless-compatible, 700x28 mm | |
| Max Tyre Size | 32 mm (as measured, see manual for details) |
| Saddle | Aeolus RSL |
| Seatpost | Madone aero carbon seat post, 0 mm offset, short length |
| Handlebar/Stem (Integrated) | |
| Size XS | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length |
| Size S | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length |
| Size M | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length |
| Size ML, L | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length |
| Size XL | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length |
| Handlebar Tape | Trek EcoTack |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
