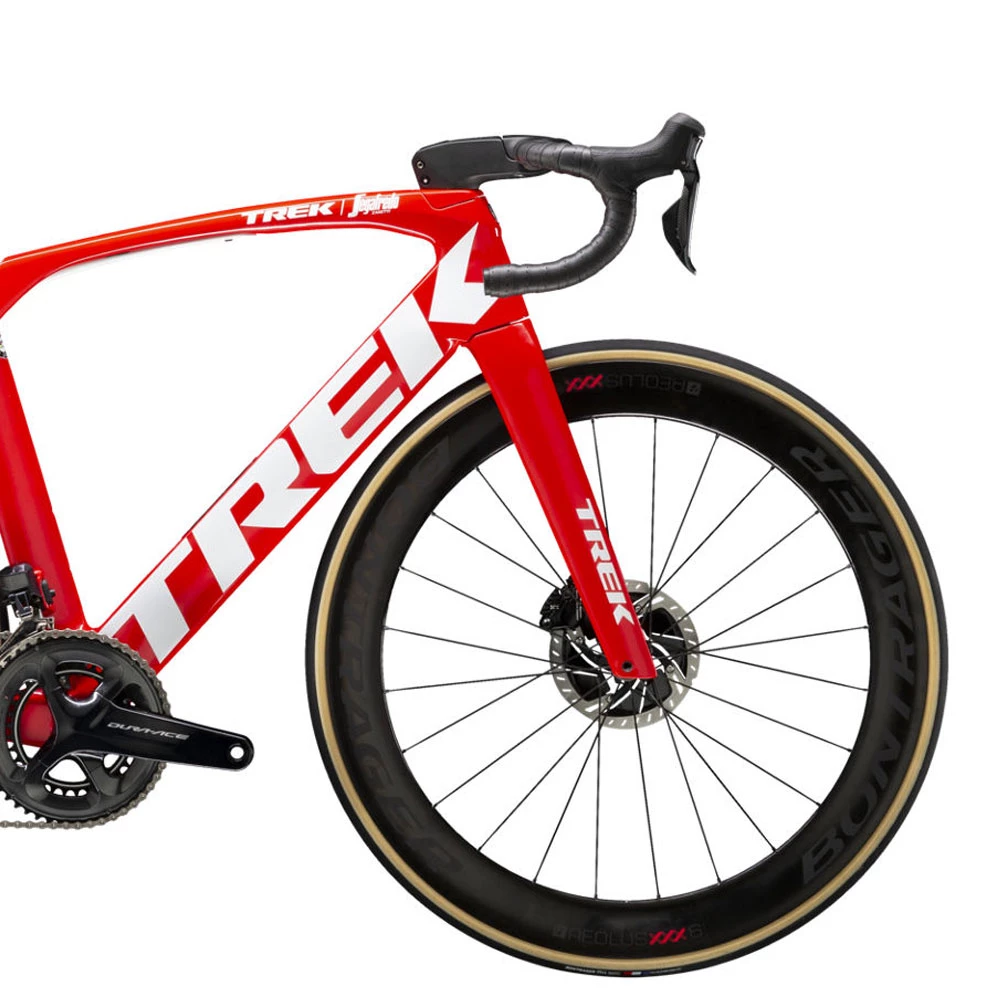

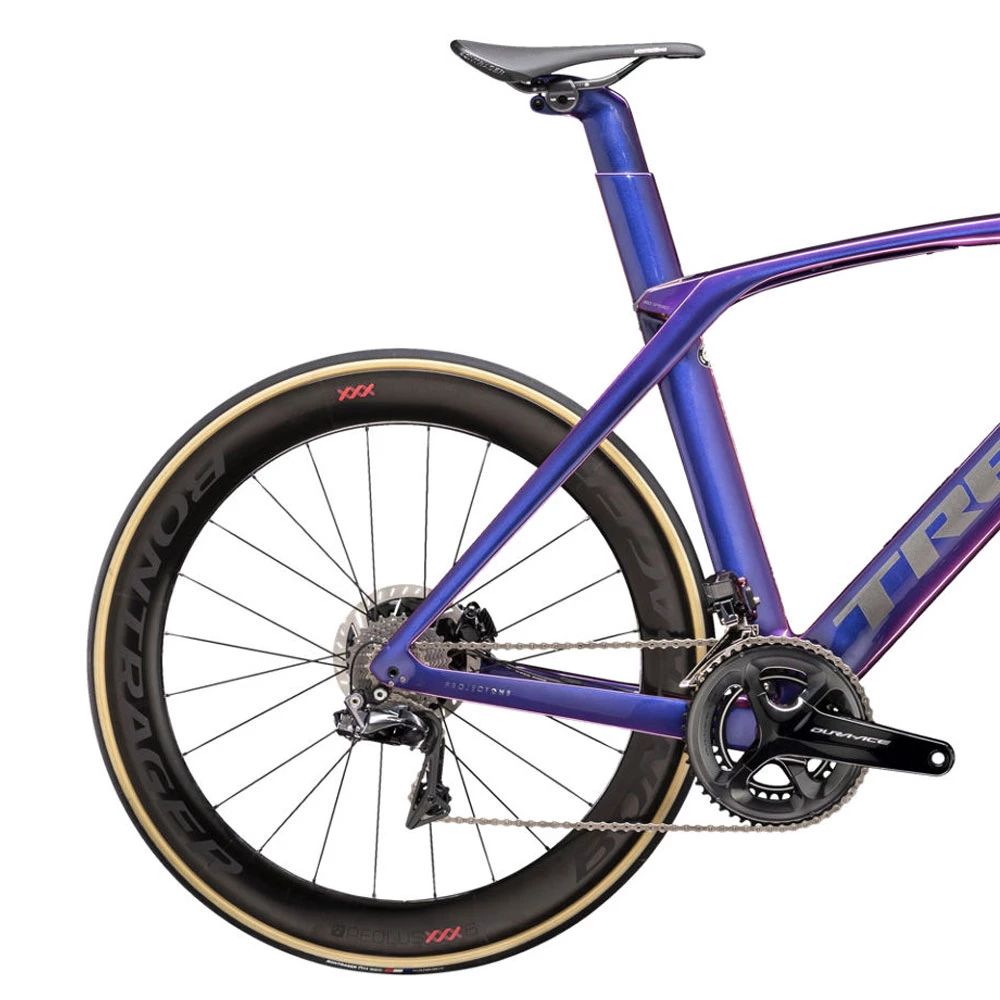

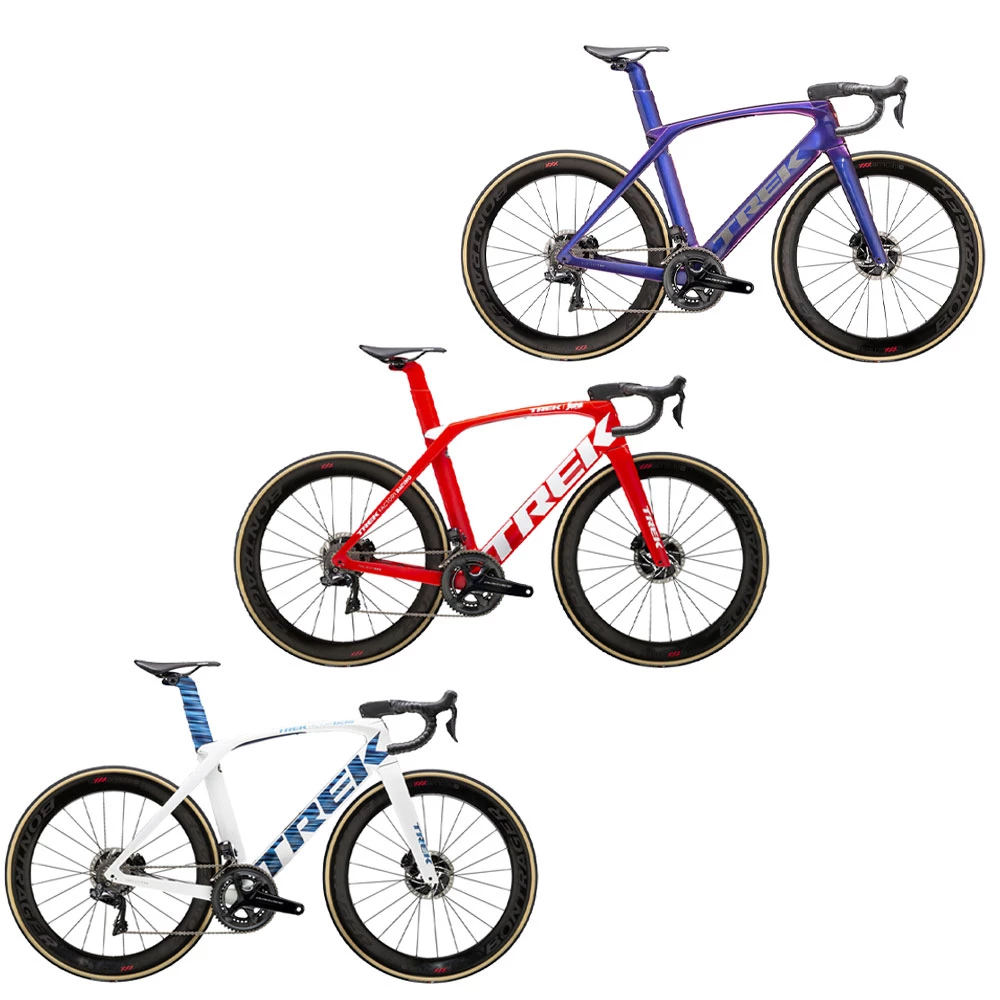

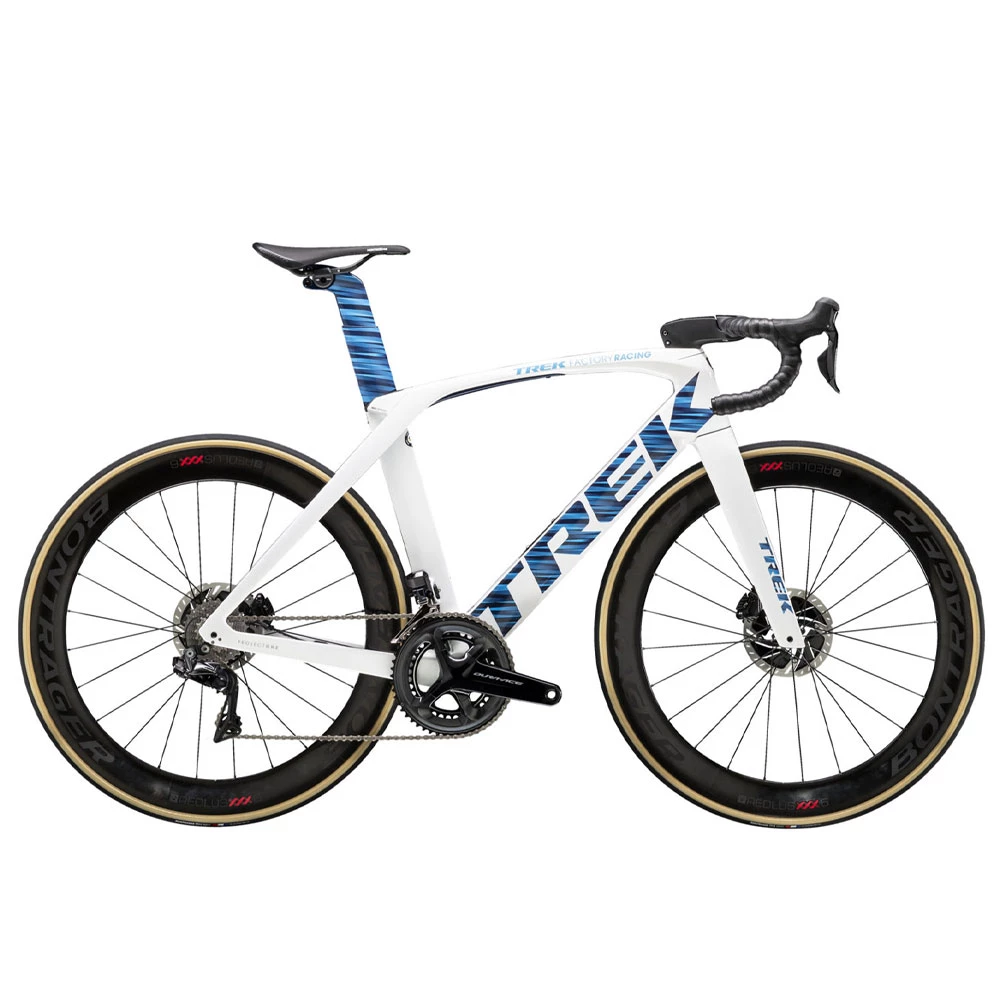

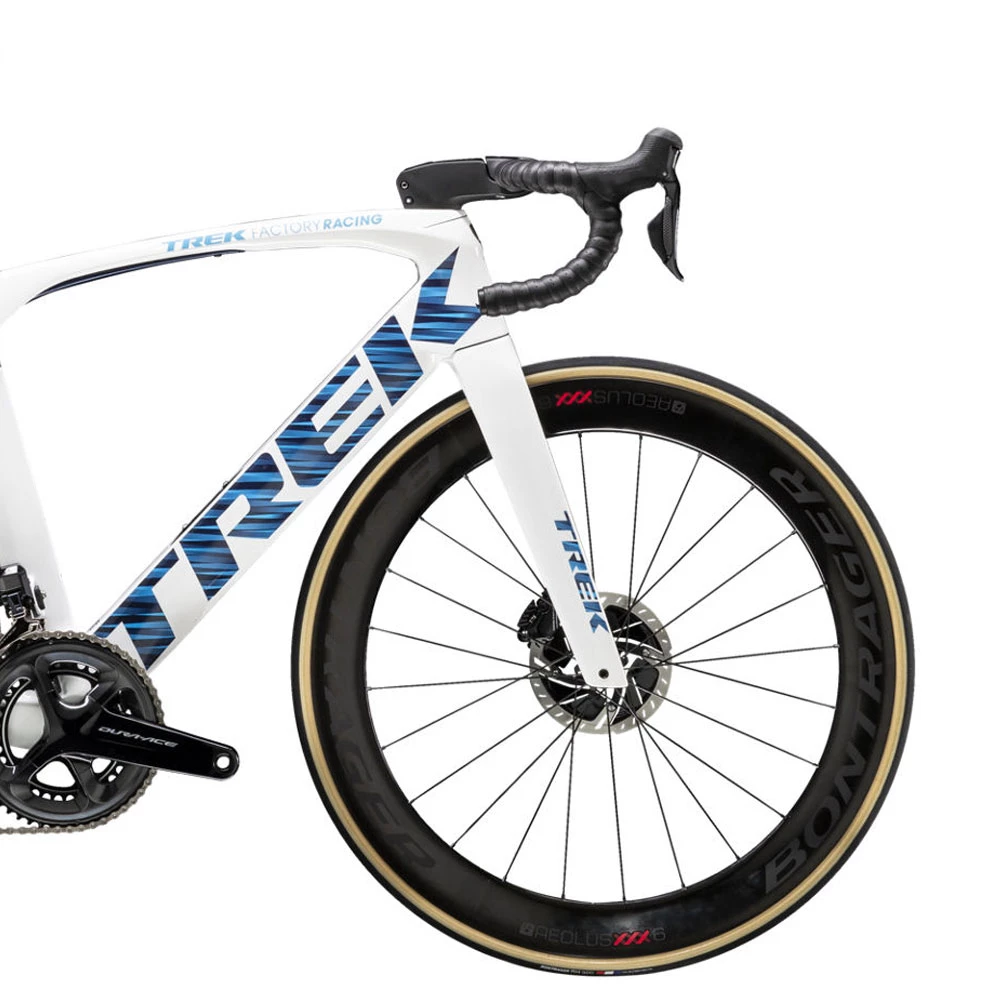

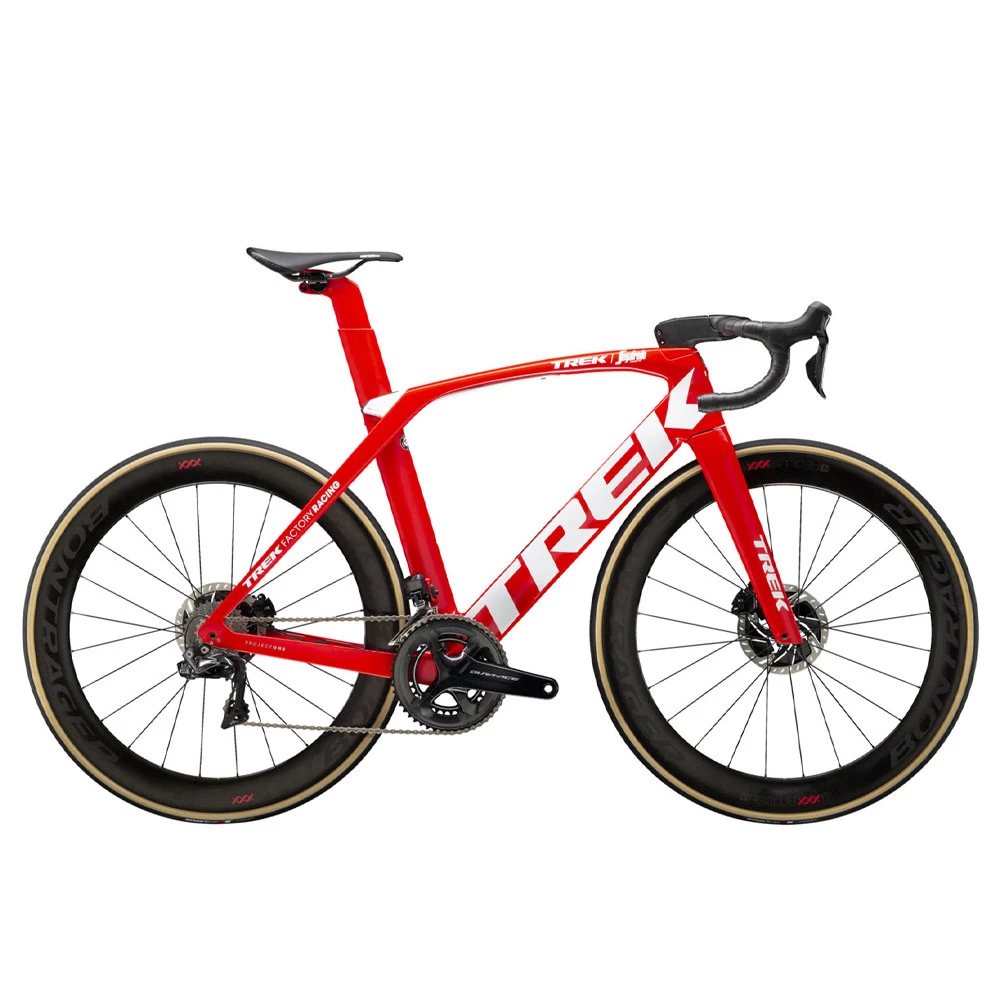

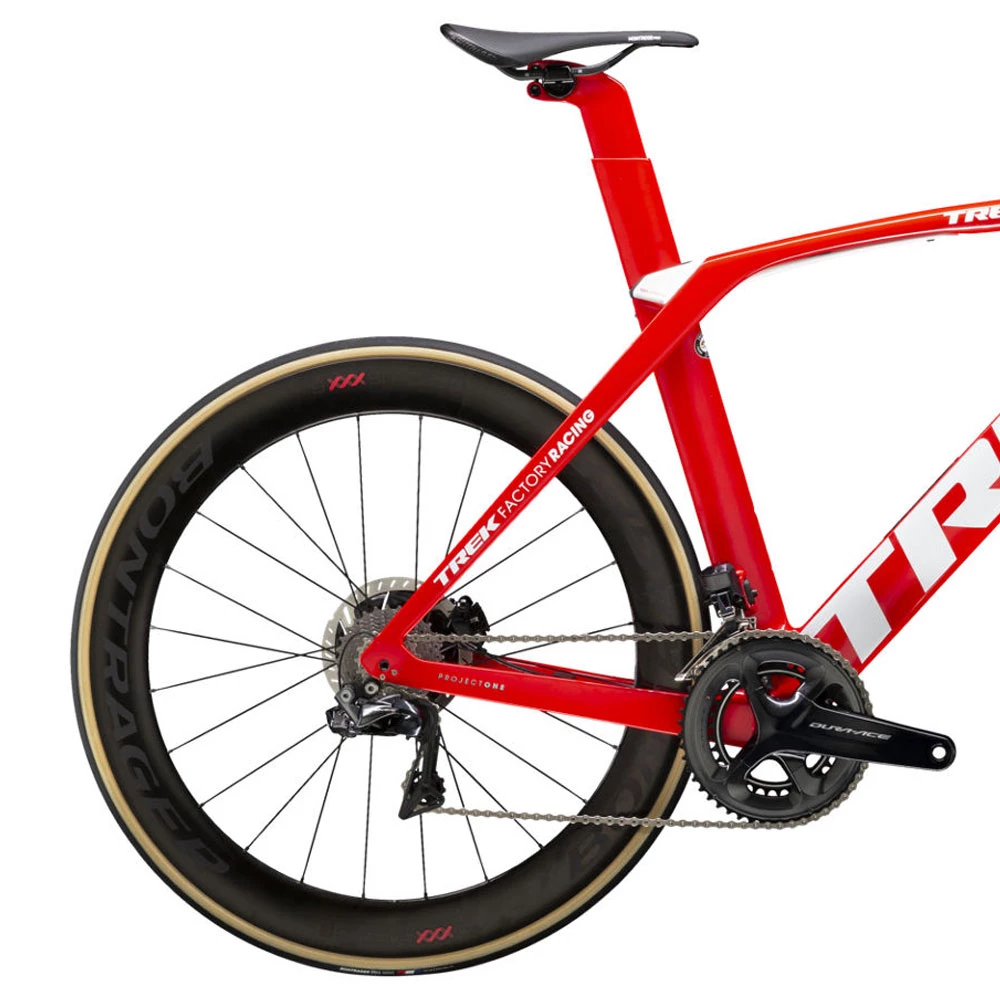

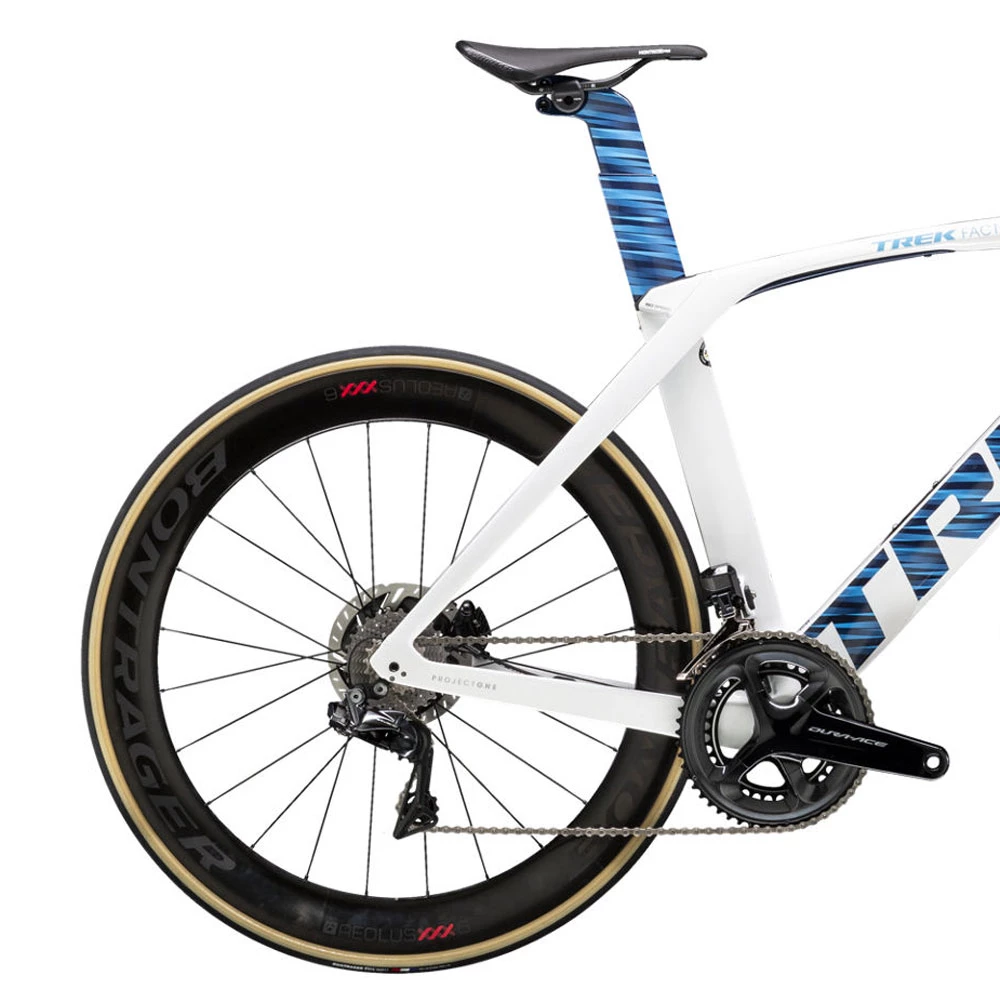

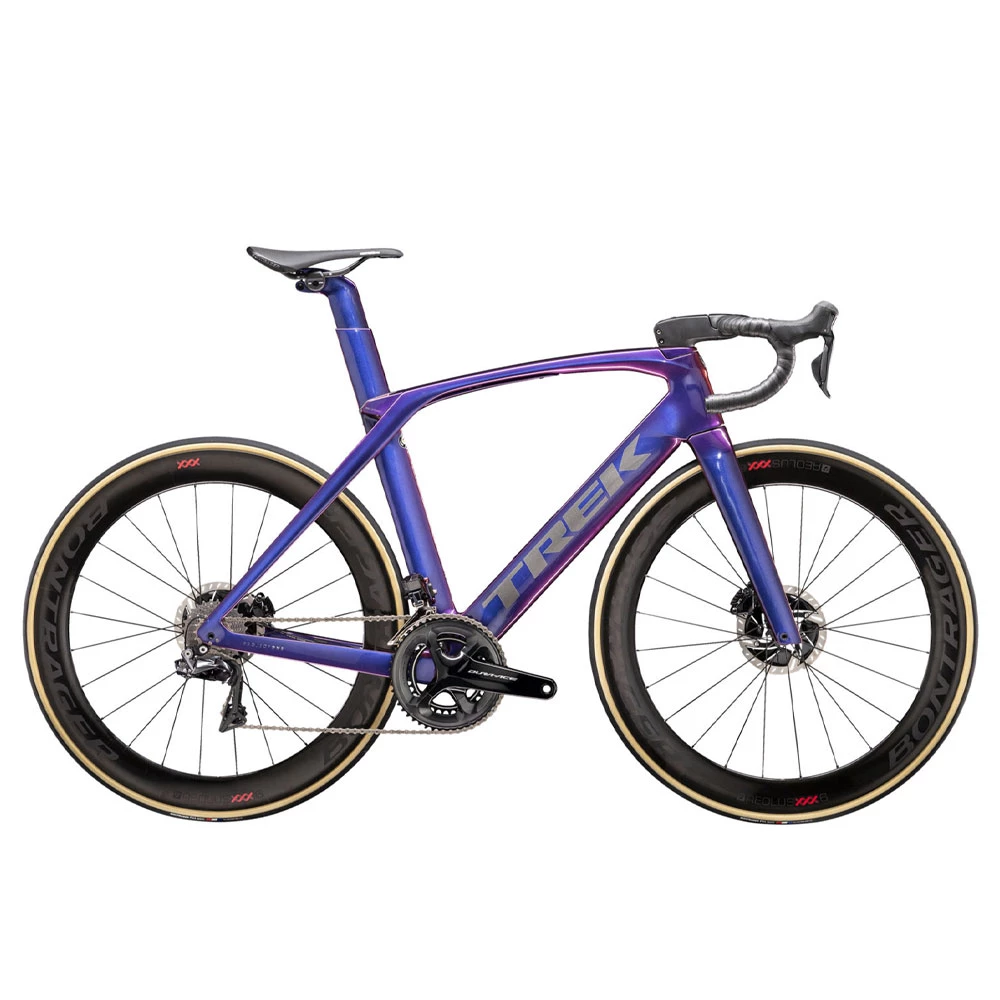

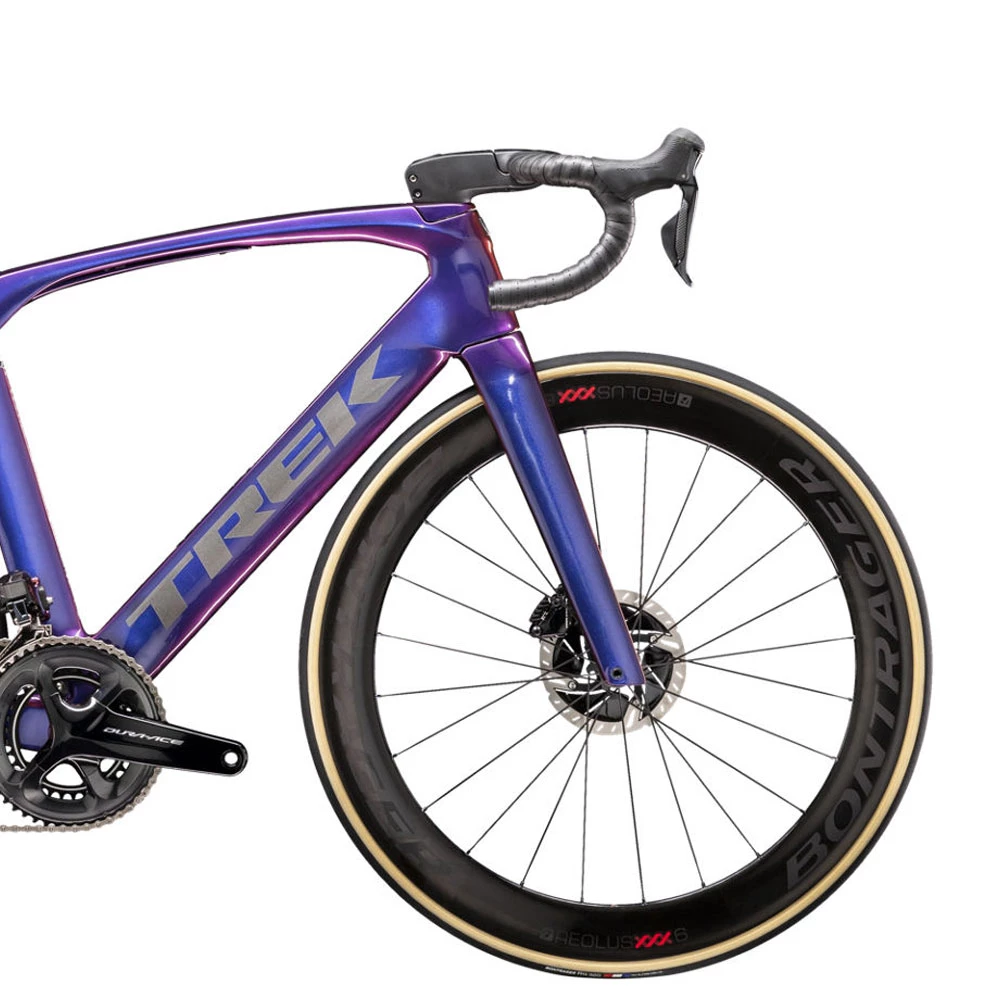

Trek Madone SLR 9 Disc Road Bike 2020

★★★★★ ★★★★★
(0)
£10,950.00
Find My Size
Unfortunately our shop is temporarily closed, Reserve & Collect products cannot be collected at this time. If you're enquiring about a new bike, use the "Book a live video appointment" above.

We're sorry, but unfortunately, we're unable to ship this item to your country

Available to collect from our Hampton Wick shop on an appointment basis only, please contact us for further information.

Product ID: 1086339

Trek’s Madone SLR 9 Disc Road Bike marries outstanding aerodynamic performance with comfort thanks to the clever, elastomer controlled IsoSpeed decoupler provides adjustable frame compliance.

Shimano’s 11-speed Dura-Ace Di2 electronic groupset provides the braking and gear shifting, with both requiring the merest fingertip touch to operate.

Four great reasons to buy your bike from Sigma Sports

sigma sports expert advice and rider id
Expert Advice & Rider ID

Sigma Sports has one objective - to help you find your perfect bike. Our friendly, knowledgeable staff ask you a series of questions to understand what type of rider you are and the type of riding you do. We can then identify the style of bike that best suits your needs.

sigma sports finding the right bike size
Finding the right size

Riding a bike that fits you perfectly will help keep you injury-free and ensure you enjoy riding further for longer in total comfort. We check your measurements on a jig to ensure your optimal set-up.

sigma sports bike handover
Bike Handover

When you collect your new bike we'll double-check your position and make any micro-adjustments if required. We'll also discuss the controls on your bike as well as maintenance tips.

sigma sports first free safety check
First free safety check

We offer a free safety check after six weeks or 200 miles, so you can keep riding in confidence. Visit us now in-store to discuss your new bike.

Trek Madone SLR 9 Disc Road Bike 2020

Fast and comfortable used to be a tall order when it came to road bikes, but Trek’s Madone SLR 9 Disc Road Bike manages both by using a highly aerodynamic carbon frameset that incorporates their innovative IsoSpeed decoupler which allows the seat tube and seatpost to move independently of the frame with that movement controlled by an adjustable damper. Comfort is also potentially improved by the frame now having sufficient clearance for 28mm tyres.

Alongside the aero tube set, drag is also reduced by the addition of 60mm deep Bontrager Aeolus XXX 6 carbon wheels and fully internal cable routing for both the gear and brake cables. The Madone SLR 9 uses Trek’s H1.5 geometry which allows for a low, wind-cheating position without being too uncomfortable for longer rides. The micro-adjust seatpost, stem and handlebar are all easy to personalise for a perfect fit, with the two piece stem/bar combination offering the aero advantages of an integrated system without the fixed position.

Electronic shifting and hydraulic brakes come courtesy of Shimano’s top tier Dura-Ace Di2 groupset for snappy shifting at the touch of a button and easily modulated stopping power.

Features

  • Trek 700 Series OCLV Carbon frame with KVF tube shape, adjustable top tube IsoSpeed, invisible cable routing, control centre, micro-adjust seat mast
  • Shimano Dura-Ace 11-speed Di2 electronic groupset
  • Shimano Dura-Ace hydraulic disc brakes
  • Bontrager Aeolus XXX 6, OCLV Carbon Tubeless Ready wheelset, 60mm deep

Technical Specification

FRAME Trek 700 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, control centre, micro-adjust seat mast, precision water bottle placement, 3S aero chain keeper, DuoTrap S compatible, flat-mount disc, 142x12mm thru-axle
FORK Trek Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat-mount disc, carbon dropouts, 12x100mm thru-axle
STEM Trek Madone aero, invisible cable routing, 7 degree
HANDLEBAR Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop
FRONT BRAKE Shimano Dura-Ace Di2 R9170 hydraulic disc
REAR BRAKE Shimano Dura-Ace Di2 R9170 hydraulic disc
BRAKE LEVERS Shimano Dura-Ace Di2 R9170 hydraulic disc
FRONT DERAILLEUR Shimano Dura-Ace Di2 R9150, braze-on
REAR DERAILLEUR Shimano Dura-Ace Di2 R9150, short cage, 30T max cog
SHIFT LEVERS Shimano Dura-Ace Di2 R9170, 11-speed
CASSETTE Shimano Dura-Ace, 11-28, 11-speed
CRANKSET Shimano Dura-Ace R9100, 52/36 (semi-compact)
FRONT WHEEL Bontrager Aeolus XXX 6, OCLV Carbon, Tubeless Ready, 21 mm rim width, 60mm rim depth, 100x12mm thru-axle
REAR WHEEL Bontrager Aeolus XXX 6, OCLV Carbon, Tubeless Ready, 21 mm rim width, 60mm rim depth, 142x12mm thru-axle
FRONT TYRE Bontrager R4 320 Handmade Clincher, Hard-Case Lite, 320 tpi, 700x25c
REAR TYRE Bontrager R4 320 Handmade Clincher, Hard-Case Lite, 320 tpi, 700x25c
SADDLE Bontrager Montrose Pro, 7x10 mm carbon rails, 138mm width
SEATPOST Madone aero carbon seatmast cap, integrated light mount, 25mm offset
CLAIMED WEIGHT 7.85kg size 56cm
