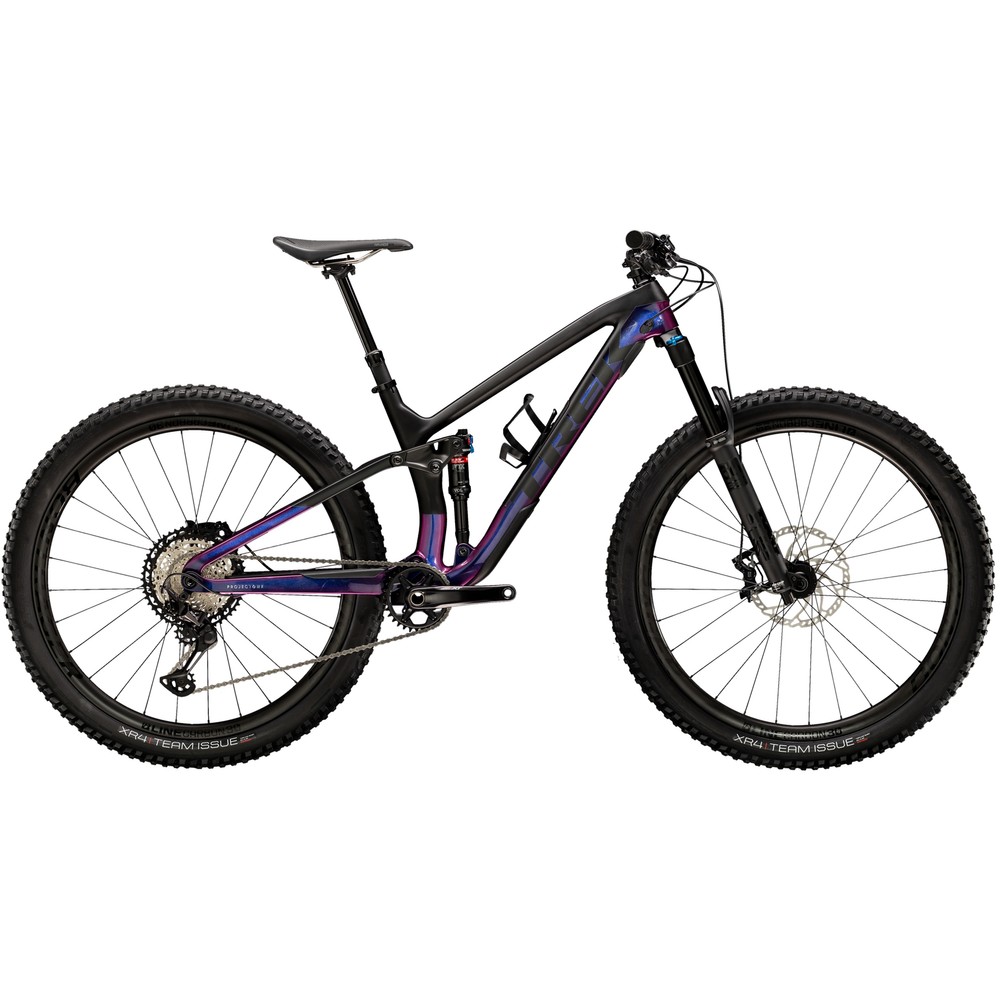

Trek Project One Fuel EX 9.8 XT 29" Mountain Bike 2020
Up, down or along, Trek’s Project One Fuel EX 9.8 XT 29" Mountain Bike can do it all thanks to the combination of FOX equipped mid-travel carbon chassis, 29” wheels and Shimano XT/SLX components.
The frame features Trek’s Mino Link design that means that the geometry can be slackened by simply flipping a chip in the rocker, as well as internal cable routing and Knock Block protection. FOX Performance FLOAT EVOL shocks front and rear provide 130mm and 140mm of travel respectively, with tunable damping for maximum performance benefits.
The Bontrager Line Elite Dropper seatpost means that the saddle can be instantly dropped on the move giving more room to move about on the bike and the 29” Line Carbon 30 Tubeless Ready wheels are fast-rolling and stiff thanks to the Boost hub spacing. Shimano’s XT and SLX components might sit in second and third place in the groupset line-up, but they give little away in terms of performance to the much more expensive XTR, making them an intelligent choice for a machine that is designed to be ridden hard.
Highlights
- Trek OCLV Mountain Carbon frame with internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armour, ISCG 05, magnesium rocker link, Mino Link and Boost
- FOX Performance FLOAT EVOL rear shock with RE:aktiv with Thru Shaft 3-position damper, tuned by Trek Suspension Lab
- FOX Performance 36, FLOAT EVOL air spring fork with GRIP damper, tapered steerer, 44mm offset 140mm travel
- Shimano XT 12-speed groupset
- Shimano SLX 4-piston hydraulic disc brakes
- Bontrager Line Carbon 30, Tubeless Ready wheels
- Bontrager Line Elite Dropper seatpost
Technical Specification
| Frame | Trek OCLV Mountain Carbon main frame and stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armour, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel |
| Fork | FOX Performance 36, FLOAT EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15 mm bolt-on axle, 140mm travel |
| Rear Suspension | FOX Performance FLOAT EVOL, RE |
| Bottom bracket | Shimano MT500, 92 mm, PressFit |
| Stem | Bontrager Line Pro, 35mm, Knock Block, 0 degree |
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise |
| Grips | Bontrager XR Trail Elite, alloy lock-on |
| Brakes | Shimano SLX M7120 4-piston hydraulic disc, 180mm rotor |
| Brake Levers | Shimano SLX M7120 |
| Rear Derailleur | Shimano XT M8100, long cage, 51T max cog, 12-speed |
| Shift Levers | Shimano XT M8100, 12-speed |
| Cassette | Shimano XT M8100, 10-51, 12-speed |
| Chain | Shimano XT M8100, 12-speed |
| Crankset | Shimano XT M8100, 32T alloy ring, Boost |
| Front Wheel | Bontrager Line Carbon 30, Tubeless Ready, 6 bolt, Boost110 |
| Rear Wheel | Bontrager Line Carbon 30, Tubeless Ready, 6 bolt, Boost148 |
| Tyres | Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60" clincher |
| Saddle | Bontrager Arvada, austenite rails, 138mm width |
| Seatpost | Bontrager Line Elite Dropper, internal routing, 31.6mm |
| Weight Limit | 136kg (bike, rider and cargo) |
| Manufacturer claimed weight | M - 13.14 kg / 28.99 lbs (with TLR sealant, no tubes) |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if specified), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. We do not install accessories to bikes, including mudguards.
