ELECTRIC

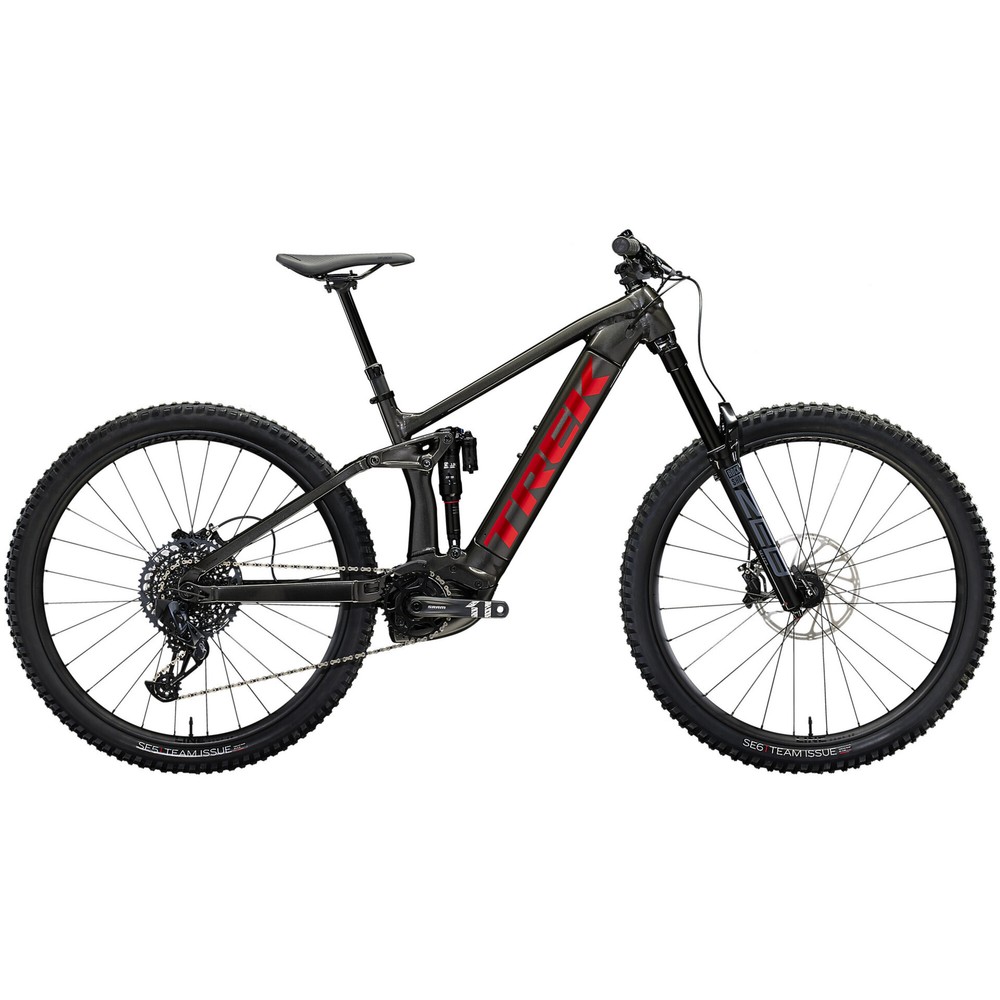

Trek Rail 9 GX AXS Gen 3 Electric Mountain Bike

£5,195.00
RRP £6,950.00 Save 25%

Check to see if we have it in stock - just select your colour and size.

Trek
Rail 9 GX AXS Gen 3 Electric Mountain Bike

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1651138

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports cycle schemes
Cycle to Work Schemes

Save up to 47% with any one of our 11 Cycle to Work partners, and get the health benefits of a new bike in exchange for tax free salary sacrifice. To find out more about our various partners and how to apply click here.

Bike Delivery Options

Choose between Free Bike Delivery - to your home or place of work - or our new Premier Bike Delivery Service £99.99 and have your bike delivered "ready to ride" and set up to your measurements with seatpost and pedals adjusted on arrival by a qualified bike mechanic. Either way, our Customer Care team will be in touch to arrange a delivery date to suit you.

laka insurance
Laka Insurance

We've partnered with Laka to offer you 30 days free bike Insurance on your new bike purchase over £400. Click here for more info and find out how to claim.

Trek Rail 9 GX AXS Gen 3 Electric Mountain Bike

With a burly alloy frame, 160mm and 150mm of travel front and rear respectively, and a powerful Bosch motor and battery system, the Trek Rail 9 GX AXS Gen 3 Electric Mountain Bike is ready to hit the big stuff, and propels you back up too. More power and a bigger battery mean more fun on the trails (adding a pedalling assisted boost up to 15.5mph / 25kph), and the latest smart system with Bluetooth-connected LED remote maximises control and customisation of the system via the eBike Flow app. The Removable Integrated Battery (RIB) system is well hidden within the frame while being easy to remove for charging.

This is Trek's top-of-the-line long-travel alloy electric mountain bike and the frame itself incorporates Mino Link adjustable geometry, a stiff Straight Shot downtube and Active Braking Pivot (ABP), the latter keeping the rear suspension working as you brake to reduce chatter and unintentional skids.

SRAM's GX Eagle AXS wireless electric drivetrain brings precise and instant shifting, and the extra low 52-tooth cog is perfect for getting you up the steepest climbs. SRAM Code R powerful 4-piston hydraulic disc brakes stop you fast in all conditions. Bontrager Line Comp 30 29er wheels fitted with robust Bontrager SE5 Team Issue are a great pairing, made to handle the forces of an electric off-road machine. A dropper post means you'll quickly be able to move the saddle out of the way for big drops and descents.

Browse our range of Trek electric mountain bikes today.

Highlights

  • Trek Alpha Platinum Aluminium frame, 150mm travel
  • RockShox ZEB select+ 160mm travel fork
  • Bosch's new smart system gives you all the same power and responsiveness with a new Bluetooth-connected LED remote and eBike Flow app that puts even more control and customisation at your fingertips
  • The controller has Walk Assist and an intelligent e-MTB mode that automatically delivers the right amount of power based on your terrain
  • Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly - it fully hides the battery in the frame for protection, makes it easy to remove the battery without tools and lets you mount a water bottle cage
  • The bigger battery means you can adventure for longer between charges
  • Made with the same hard-charging frame tech as Slash, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness and Active Braking Pivot (ABP)
  • SRAM's GX Eagle AXS wireless electric drivetrain is incredibly precise and offers a wide gear range
  • SRAM Code R hydraulic disc brakes for all-condition stopping power
  • Bontrager Line Comp 30 29" wheels and Bontrager SE5 Team Issue tubeless-ready tyres

Battery Specification

  • Rider Amplification: 340%
  • Motor Weight: 2.9kg (approximate)
  • Battery Power: 625Wh
  • Charge Time: 5.5 hours

Technical Specification

Frame Trek Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12mm thru-axle, 150mm travel (curved top tube - size small)
Fork RockShox ZEB Select+, DebonAir spring, Charger 3 RC2 damper, eMTB optimised crown, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel
Shock RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230mm x 57.5mm
Stem Bontrager Elite, 35mm, 0°, 45mm length
Handlebar Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width
Grips Bontrager XR Trail Elite, nylon lock-on
Front Brake SRAM Code R 4-piston hydraulic disc / SRAM CenterLine, 6-bolt, round edge, 200mm rotor
Rear Brake SRAM Code R 4-piston hydraulic disc / SRAM CenterLine, 6-bolt, round edge, 200mm rotor
Brake Levers SRAM Code R
Rear Derailleur SRAM GX Eagle AXS, 12-speed
Shift Levers SRAM GX Eagle AXS, 12-speed
Chain SRAM GX Eagle, 12-speed
Cassette SRAM Eagle XG-1275, 10-52t, 12-speed
Crankset SRAM X1 1000, 34t, 165mm length
Front Wheel Rim - Bontrager Line Comp 30, tubeless-ready, 28-hole, Presta valve / hub - Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru-axle
Rear Wheel Rim - Bontrager Line Comp 30, tubeless-ready, 28-hole, Presta valve / hub - Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12mm thru-axle
Front Tyre Bontrager SE5 Team Issue, tubeless-ready, Core Strength sidewalls, aramid bead, 120tpi, 29x2.50"
Rear Tyre Bontrager SE5 Team Issue, tubeless-ready, Core Strength sidewalls, aramid bead, 120tpi, 29x2.50"
Saddle Bontrager Arvada, hollow chromoly rails, 138mm width
Seatpost Bontrager Line Elite Dropper, 100mm travel (S) / 150mm travel (M) / 170mm travel (L-XL), MaxFlow, internal routing, 31.6mm, 340mm length (S) / 440mm (M) / 480mm (L/XL)
Pedals Available to be purchased separately
Motor Bosch Performance Line CX, smart system, magnesium motor body, 85Nm
Remote Bosch Bluetooth LED
Battery Bosch PowerTube 625Wh, smart system
Charger Bosch standard 4A, 230V, smart system
Electric Assisted Speed Limit 15.5mph / 25km/h
Maximum Weight 136kg / 300lb (combined weight of bicycle, rider and cargo)
Manufacturer Claimed Weight 23.60kg / 52.03lbs (excluding battery) (size medium)

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team.


Trek Rail 9 GX AXS Gen 3 Electric Mountain Bike Sizing
