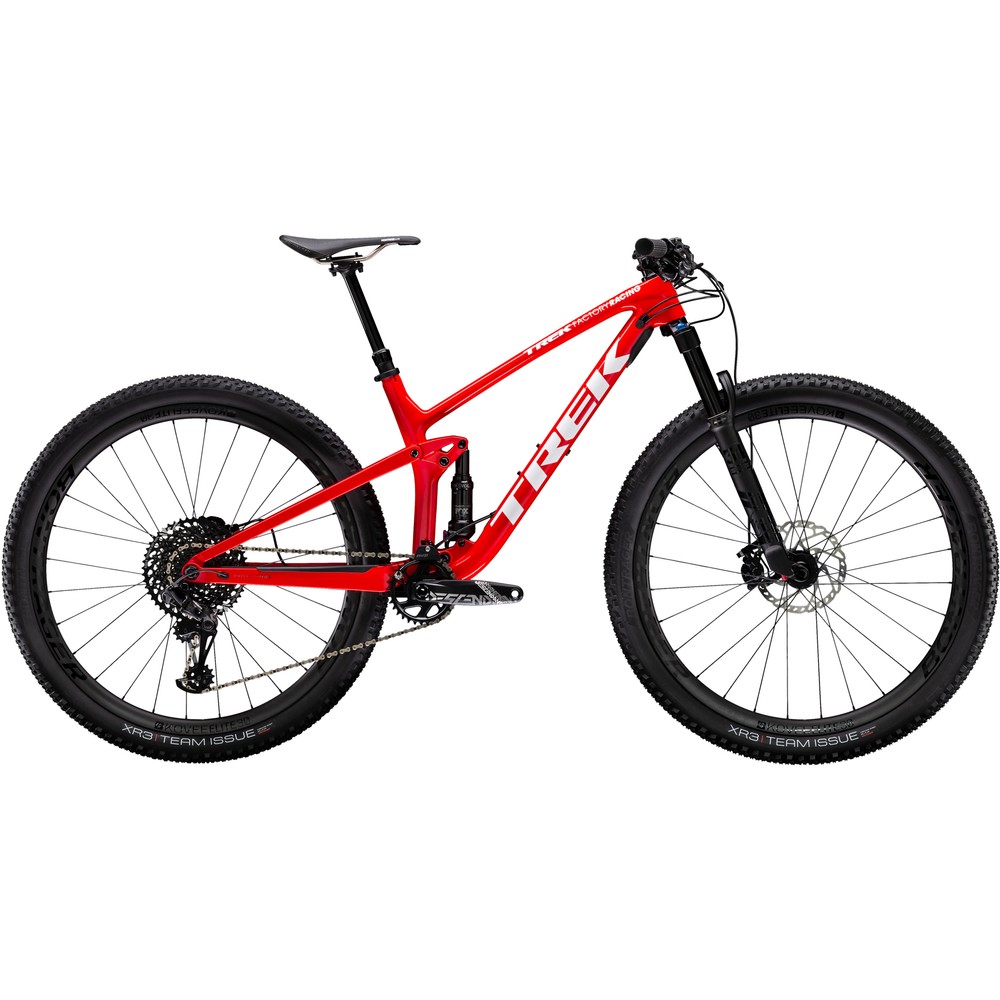

Trek Top Fuel 9.8 GX Team Edition Mountain Bike 2020

★★★★★ ★★★★★
(0)
£5,350.00

From only £133.75 per month

0% APR Representative. T&Cs Apply.

Trek
Top Fuel 9.8 GX Team Edition Mountain Bike 2020

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1171108

Trek’s Top Fuel 9.8 GX Team Edition Mountain Bike is built for efficient speed, with a 115mm carbon frame, 120mm travel FOX Performance 34 Step-Cast fork and 29” Bontrager Kovee Elite 30 carbon wheels that ensure long-distance pace.

SRAM’s GX Eagle drivetrain and Shimano’s SLX M7000 hydraulic disc brakes help make the ride enjoyable and trouble-free hour after hour.

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics. Click here to see how we’ll deliver your bike or collect in-store.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with PedalSure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Click here to learn more and claim.

Trek Top Fuel 9.8 GX Team Edition Mountain Bike 2020

The Trek Top Fuel 9.8 GX Team Edition Mountain Bike is perfect for endurance events such as 24 hour races or multi-day competitions as well as anyone who simply enjoys riding long and hard off-road. The carbon frame is light and efficient with a 115mm FOX Performance FLOAT shock unit that has been tuned by the Trek suspension Lab. It also features a Straight Shot downtube for stiffness, Knock Block frame protection and Trek’s variable geometry Mino Link to switch between a slacker and a steeper option. The FOX Performance 34 Step-Cast provides 120mm of air sprung travel with GRIP 2-position damper, and both the front and rear shocks can be locked out simultaneously with one action via the simple TwistLoc remote.

The 29” carbon Kovee Elite 30 wheels from Bontrager are held securely by Boost spaced dropouts which help them maintain their stiffness, and the carbon theme continues with the OCLV Carbon Kovee Pro handlebar for comfort and lightness. SRAM’s 12-speed GX drivetrain and Shimano’s SLX hydraulic disc brakes are reliable, high-performance fuss-free options that will ensure every gear shift is accurate and each corner is nailed.

Highlights

  • Trek OCLV Mountain Carbon frame with tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, magnesium rocker link, Mino Link and Boost, 115mm travel
  • FOX Performance FLOAT, 2-position DPS damper rear shock with TwistLoc remote
  • FOX Performance 34 Step-Cast, FLOAT EVOL air spring fork with GRIP 2-position damper, TwistLoc remote and 120mm travel
  • SRAM GX Eagle 12-speed drivetrain
  • Shimano SLX M7000 hydraulic disc brakes
  • Bontrager Kovee Elite 30 carbon Tubeless Ready wheels
  • Bontrager Line Elite Dropper seatpost

Technical Specification

Frame Trek OCLV Mountain Carbon main frame and stays, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, magnesium rocker link, Mino Link, ABP, Boost148, 115 mm travel
Fork FOX Performance 34 Step-Cast, FLOAT EVOL air spring, GRIP 2-position damper, TwistLoc remote, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 120mm travel
Rear Suspension FOX Performance FLOAT, 2-position DPS damper, TwistLoc remote, tuned by Trek Suspension Lab, 190x45mm
Bottom bracket SRAM DUB, 92mm, PressFit
Stem Bontrager Kovee Pro, 35mm, Knock Block, Blendr-compatible, 13 degree
Handlebar Bontrager Kovee Pro, OCLV Carbon, 35mm, 15mm rise
Grips SRAM TwistLoc
Brakes Shimano SLX M7000 hydraulic disc
Brake Levers Shimano SLX M7000 hydraulic disc
Rear Derailleur SRAM GX Eagle, 12-speed
Shift Levers SRAM GX Eagle, 12-speed
Cassette SRAM XG-1275 Eagle, 10-50, 12-speed
Chain SRAM GX Eagle, 12-speed
Crankset Truvativ Descendant 7k Eagle DUB, 32T alloy ring, Boost
Front Wheel Bontrager Kovee Elite 30 carbon, Tubeless Ready, 6-bolt, Boost110
Rear Wheel Bontrager Kovee Elite 30 carbon, Tubeless Ready, 6-bolt, Boost148
Tyres Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40" clincher
Saddle Bontrager Montrose Elite, titanium rails
Seatpost Bontrager Line Elite Dropper, internal routing, 31.6mm
Weight Limit 136kg (bike, rider and cargo)
Manufacturer Claimed Weight M - 11.80 kg / 26.02 lbs (with TLR sealant, no tubes)

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools.

To see how you build your new bike once you receive it, please see our bike assembly page here.

Please note all bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. We do not install accessories to bikes, including mudguards.
