I a cyclist who has Raced prepared rave bikes at a national level and worked in shops as a mechanic and sales man. The big brands should be worried by products like these! The carbon rim on these is bang up to date! Over 20mm internal width fantastic gully to aid fitting tyres, good bead lock to hold the tyres once inflated correctly, and Hooked rims! Hooked rims allow greater use of tyre and innertubes at higher pressure, so if you run tubless hit some glass and put a 1 inch slash in the tyre you can simply stick in a gel wrapper a tyre boot or even a fiver etc over the hole then inflate you inner tube to get back home, you can't do that on hookless and you go over 72psi on hookless! Then there is the use of Brass nipples this makes perfect sense in poor climates and increases durability at the cost of a few grams, Pillar spokes which are company starting to really pick up their quality, the wing spokes on these get fantastic reviews off many wheel builders. Last but not least is the hub, these are extremely well sealed cartridge bearings that then have a cap which also forms a seal the help keep the crap weather out, there is also a Labyrinth rubber style seal as well. The engagement on these are extremely fast! I would say feel identical to my DT Swiss 240 hubs with the upgrades fast engagement clutch rings. They are built extremely well, on a high end trueing stand they are 0.4mm off in any direction, and the spoke tension is extremely even. Tyre fitting wise my Pirelli TLR 26's pinged into position easily, but my Schwalbe ONE TLE took a little more effort to get over the bead lock. They are 24 spokes 2 cross pattern both sides which is perfect for modern disc brakes which now place lots of extra stress on the spokes. They ride extremely smooth and don't catch side winds any more than high end 50mm rims. They come with spare spokes nipples and nipple washers and nice long tubless valves. For the money they are spot on
Product Details

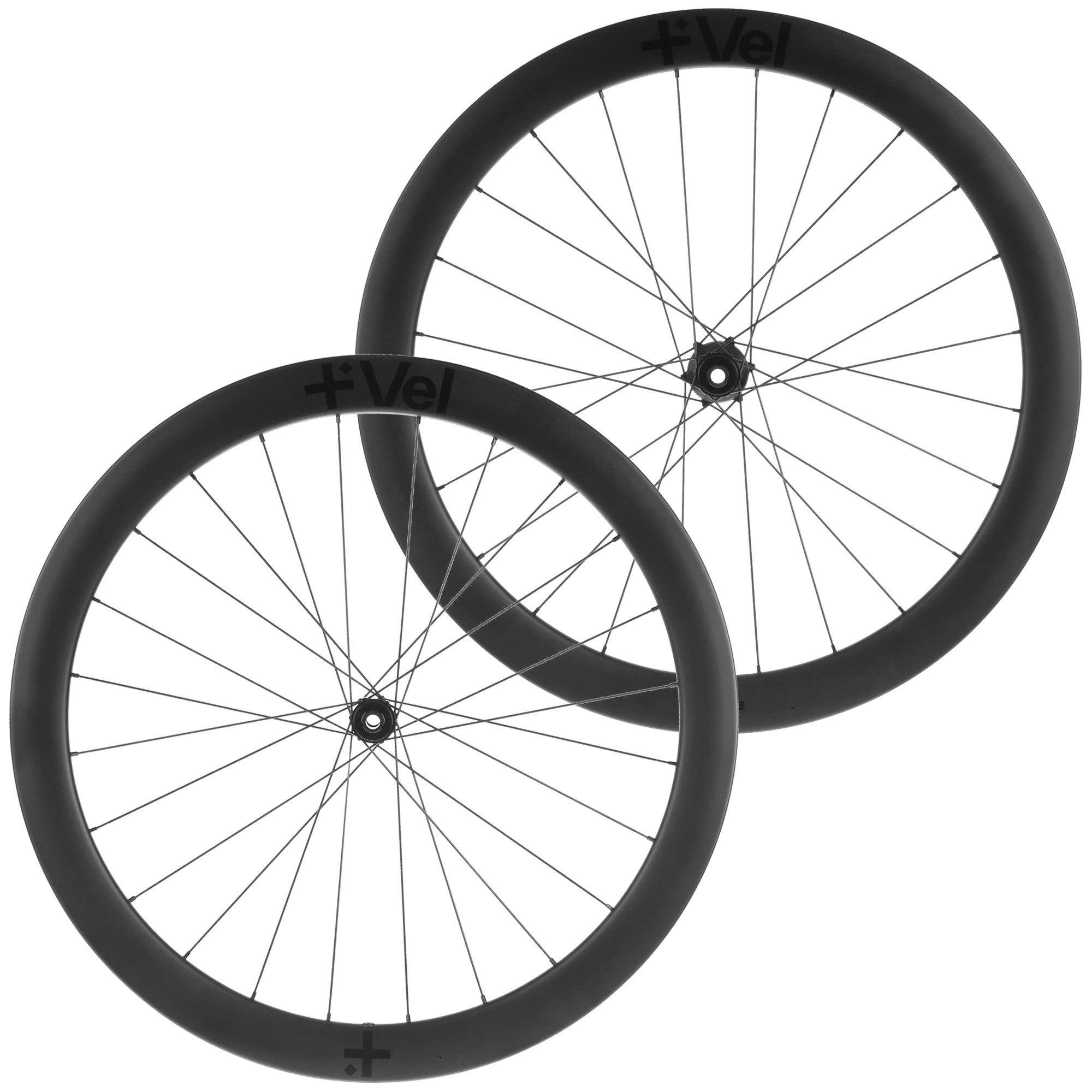

Vel 50 RL Carbon Tubeless Disc Wheelset
Vel’s handbuilt 50 RL Carbon Tubeless Disc Brake Wheelset is both fast and efficient, making them a great upgrade from stock wheels. With an internal width of over 20mm they work perfectly with wider, modern tyres, providing good support for the sidewalls and allowing lower pressures to be run for more comfort and grip. Their aerodynamic shape cuts through the wind to reduce drag without being a handful in crosswinds whilst the straight pull Pillar Wing spokes ensure accurate steering and good power transfer.
The Vel RE aluminium hubs house sealed bearings for smooth running and longevity, with Center Lock disc fitments providing safe, secure disc rotor mounting. The rear hub uses a 102 tooth engagement ring with six pawls for super-fast engagement, so the instant the power is applied the bike will accelerate. The rims come with tubeless tape already applied and as tubeless valves are also supplied, the conversion to using these tubeless-ready tyres is a simple process. These rims can also be used with a traditional clincher tyre and inner tube if preferred.
Crash replacement policy
Crashes, unexpected accidents and falls can happen under normal riding conditions, therefore if your product has been registered within 3 months of purchase we will offer to replace it with an identical or equivalent product up to 40% off RRP within the first 3 years of ownership. This crash replacement policy only applies to the original owner.
Limited warranty
Vel wheels come with a two-year limited warranty for manufacturing or material defects that would appear during normal use, with the exception of wear and tear parts. The warranty is extended to 3 years if registered within the first 3 months from the purchase date.
##VIMEO:767256800:560:315##
Features
- Clincher / tubeless-ready tyre compatible
- Double wrapped with tubeless rim tape
- Wheel Size: 700c
- Rim: Toray 24/30T carbon
- Rim ERD (Effective Rim Diameter): 539mm
- Rim Depth: 50mm
- Internal Rim Width: 20.3mm
- External Rim Width: 27.5mm
- Spokes: Pillar Wing PSR21 straight pull, 14g, two-cross lacing
- Spoke Count: Front - 24 / Rear - 24
- Hubs: Vel RE Rapid Engagement, AL6061 CNC machined shell, sealed bearings, 102T engagement ring with six pawls
- Bearings: Front 6902 x 2, rear 17287 x2, 6902 x 1, 6903 x1
- Disc Standard: Center Lock
- Front Axle: 12x100mm
- Rear Axle: 12x142mm
- Recommended Tyre Size: 25-34mm
- Maximum tyre pressure: 120psi
- Manufacturer Claimed Weight: Front - 735 grams / Rear - 875 grams / Wheelset - 1,610 grams
- Compatibility: Shimano/SRAM / SRAM XDR / Shimano Microspline
- Includes: Spare spokes and tubeless valves
- Maximum system weight: 110kg
Reviews
Only take my wheels out for second ride. The freehub broken within the first 25 KM. Unbelievable poor quality. Raises the warranty claim. Finger crossed
Shipping & Returns
Free UK delivery on orders over £50. Orders are dispatched within 1-2 working days and typically arrive 1-2 working days later.
Return unused items in their original packaging within 30 days of delivery. Return postage is £3.50.
Q & A
50 questions, 20 answered
Can you tell me what length tubeless valve you recommend for a set of Vel 50mm, also what is the maximum tire width , Thank You
Hi Michael, I would recommend atleast 70mm, Max tyre size is 34mm, Many thanks Joe W
Hi, I have a Tarmac SL7 with 12 speed Shimano Di2. Should I order Shimano/SRAM or Shimano Microspline option?
Hi there, You will need the Shimano/SRAM option, Many thanks Joe W
Will these fit a 12 speed Shimano cassette? Thanks.
Hi there, Yes these can be used with Shimano 12 speed, Many thanks Joe W
