Description

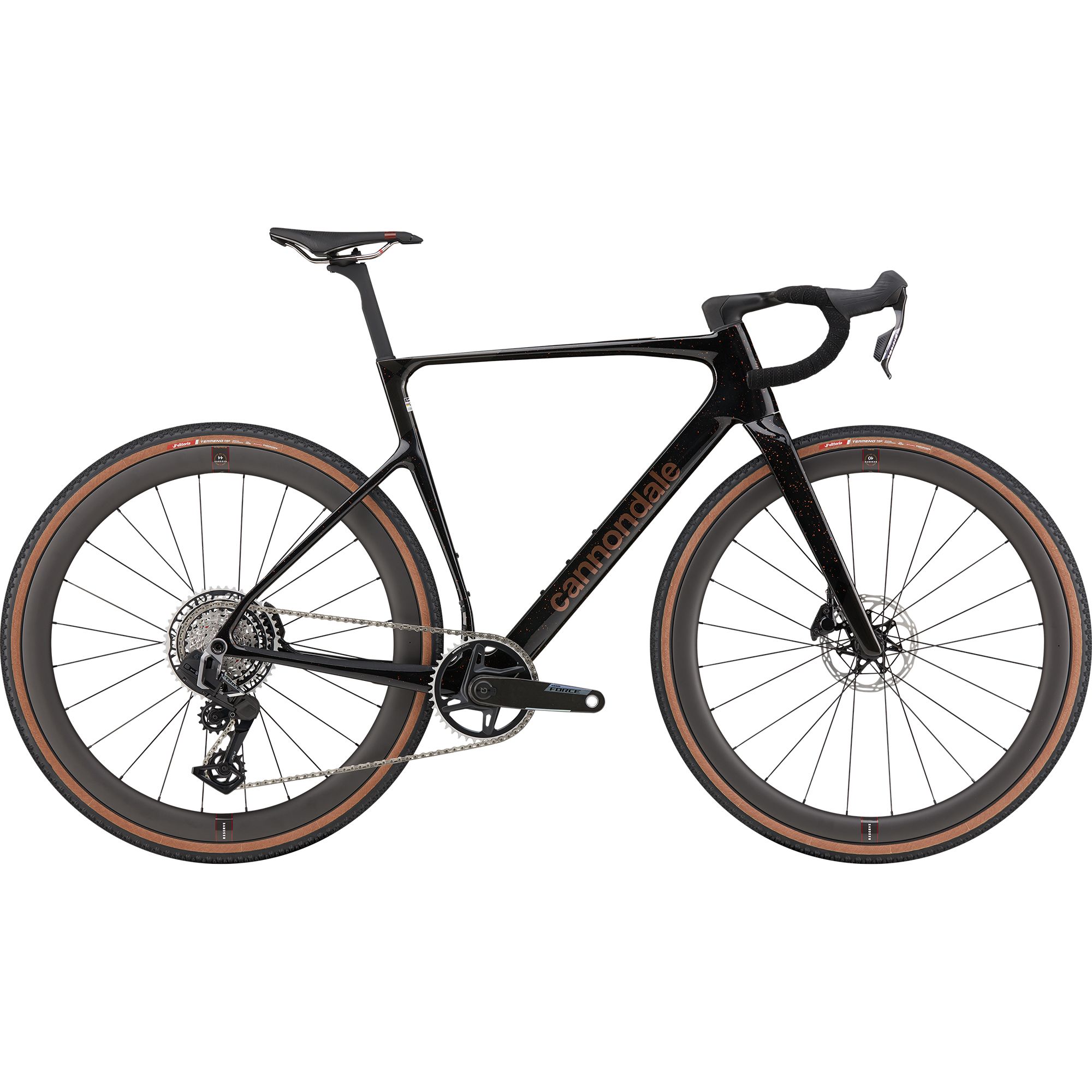

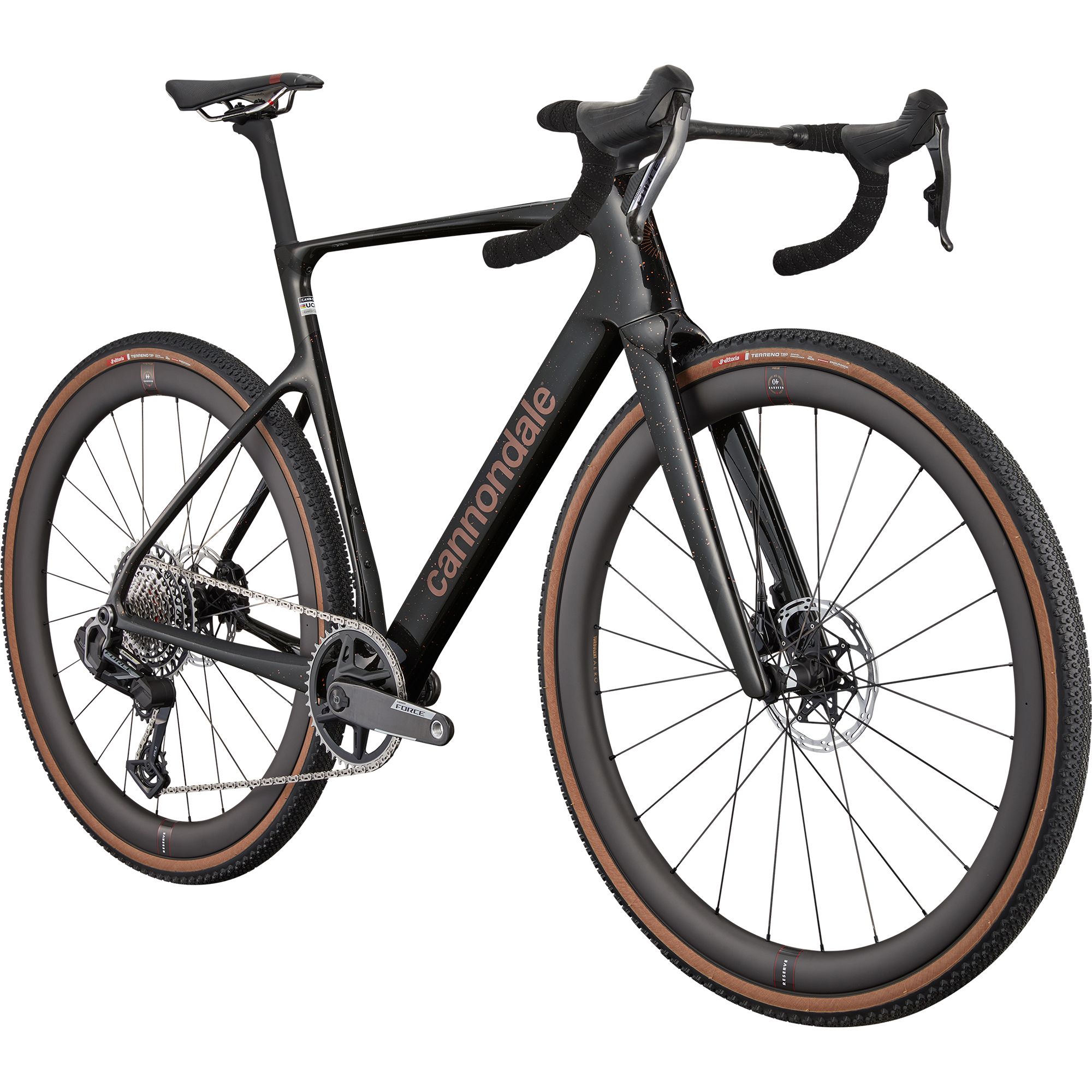

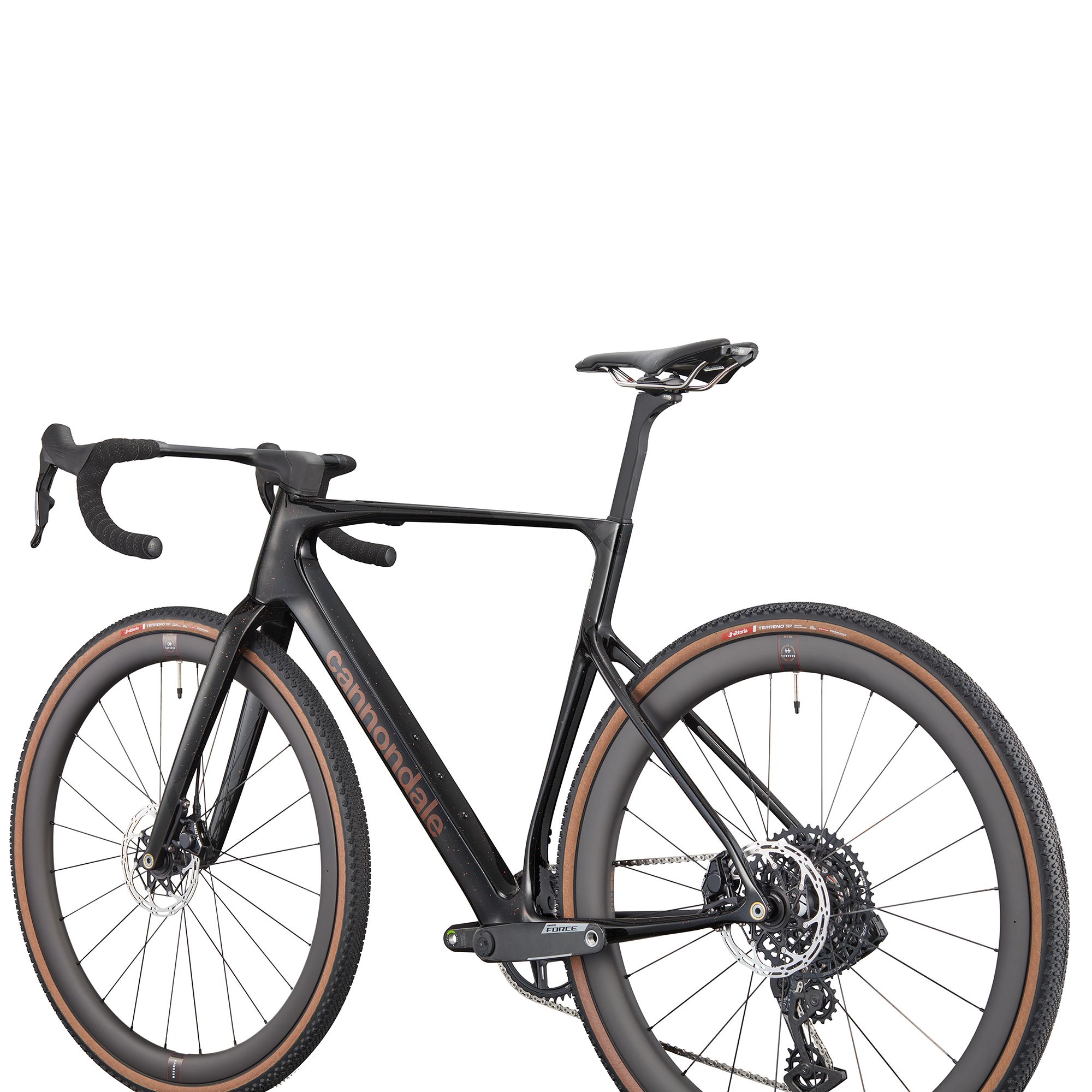

Cannondale SuperX Carbon 1 Gravel Bike
A pure gravel race machine, the Cannondale SuperX Carbon 1 Gravel Bike is designed to take the lead and never give it up. Focused on all-out speed and precision handling, it is built for riders who aim for podium finishes.
The lightweight SuperX carbon frameset delivers low drag and sharp handling, while the Reserve 40|44 GR carbon wheels with DT Swiss 350 hubs provide outstanding responsiveness and durability on race day. Vittoria Terreno 700x40c tyres are fast-rolling and tubeless ready, gripping everything from loose gravel to muddy corners.
The new SRAM Force XPLR AXS 13-speed groupset with hydraulic disc brakes offers crisp, wireless shifting and powerful braking. The integrated Force crankset includes a power meter, giving riders the tools to pace and push with data-driven confidence. Up front, Cannondale’s sleek SystemBar R-One ensures low drag and clean lines.
Technical Specification
| Frame | SuperX Carbon with Proportional Response construction, internal cable routing, 12x142 mm thru-axle, UDH, BSA 68 mm threaded bottom bracket, flat mount disc brake compatibility, integrated seatpost binder |
| Fork | SuperX Carbon with integrated crown race, 12x100 mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55 mm offset |
| Headset | Integrated, 1-1/8" to 1.5" |
| Rims/Wheels | Reserve 40|44 GR carbon rims with Turbulent Aero technology, 24h, tubeless ready |
| Hubs | Front |
| Tyres | Vittoria Terreno T50, 700x40c, tubeless ready |

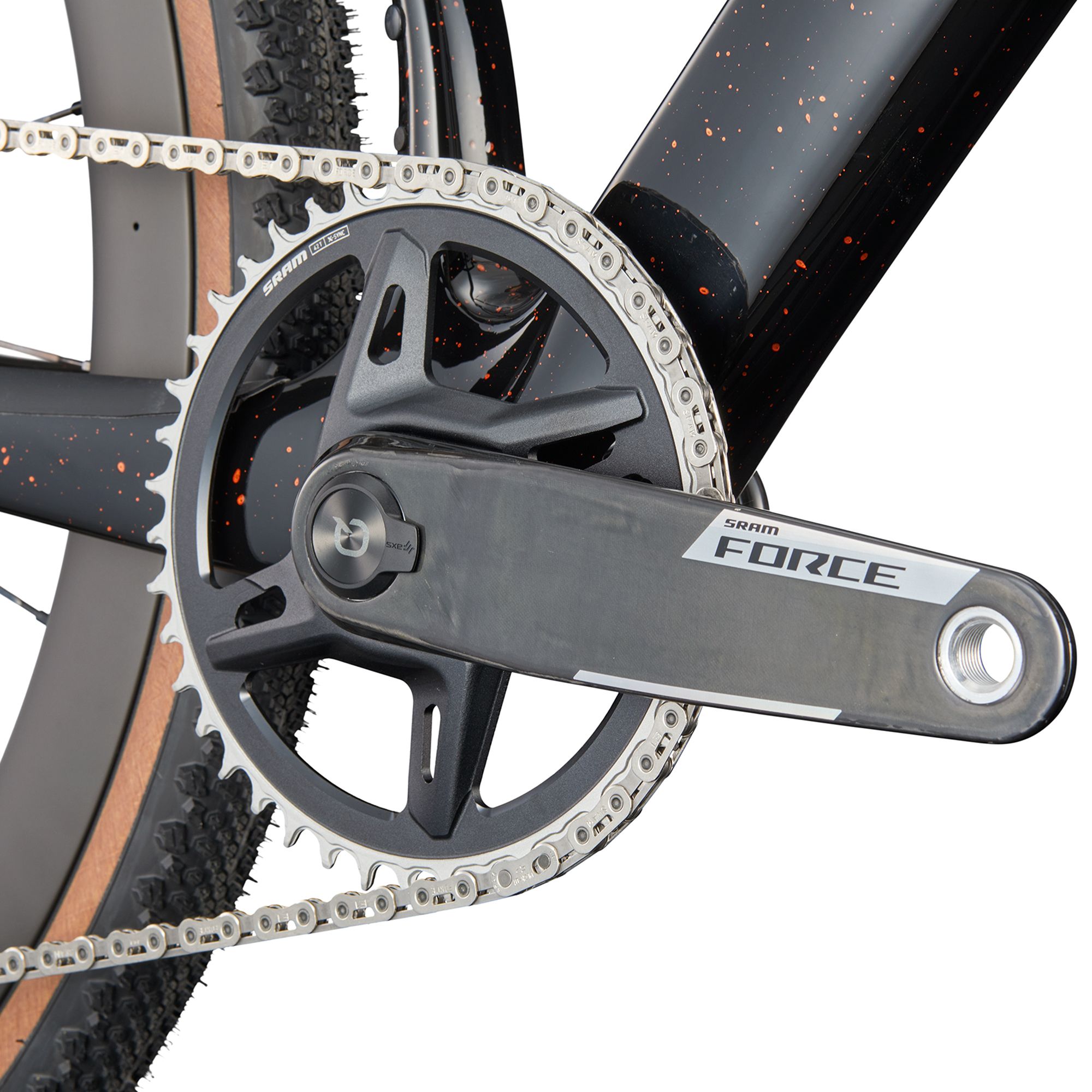

| Crankset | SRAM Force XPLR AXS with 40T chainring and integrated power meter |
| Chainring | 40T (integrated with crankset) |
| Bottom Bracket | SRAM DUB BSA Road 68 Wide |
| Chain | SRAM Force |

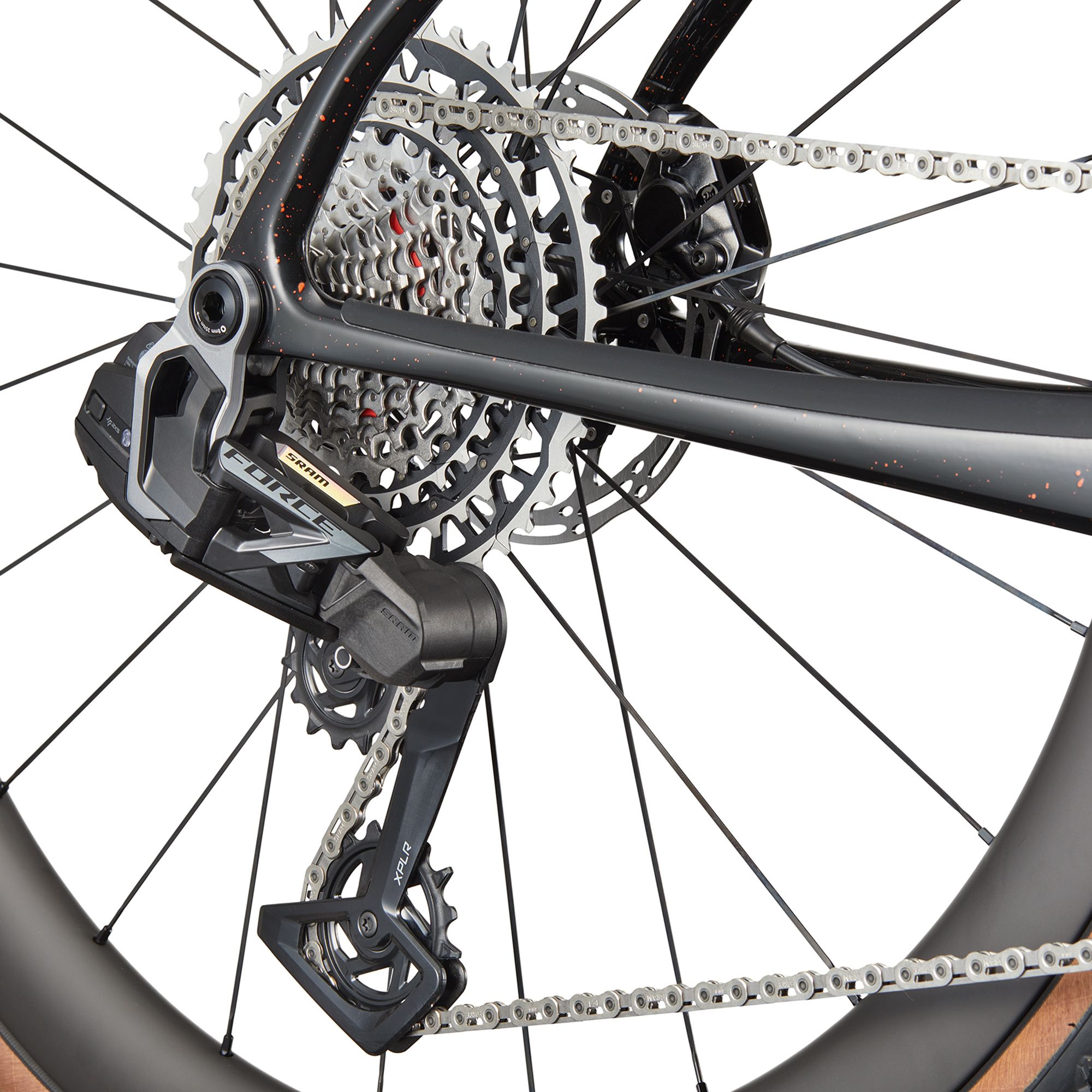

| Rear Derailleur | SRAM Force XPLR AXS |
| Cassette | SRAM Force XPLR, 10-46T, 13 speed |
| Shifters | SRAM Force |

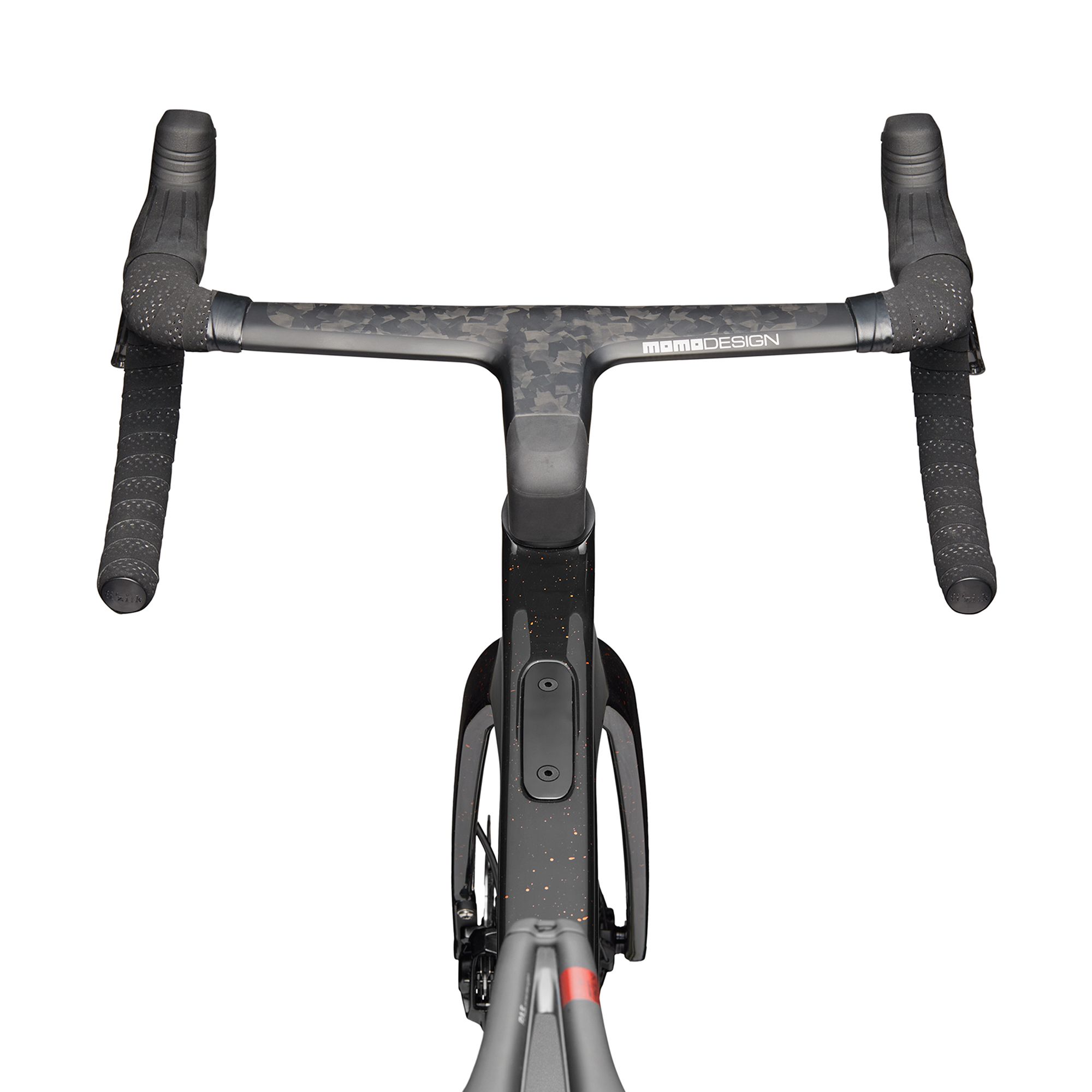

| Handlebars | Cannondale SystemBar R-One – low-drag, full carbon integrated bar and stem, internal routing |
| Grips/Tape | Cannondale Bar Tape, 3.5 mm |
| Stem | Cannondale SystemBar R-One – integrated with handlebar |
| Brake Levers | SRAM Force AXS hydraulic disc |
| Brakes | SRAM Force AXS with Centerline 160/160 mm rotors |
| Saddle | Prologo Dimension AGX Tirox |
| Seatpost | Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0 mm offset (46 cm), 20 mm offset (51–61 cm) |
| Accessories & Extras | Reserve Fillmore valves, SRAM AXS charger |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
