Does it have a free hub ?
Hi Jimmy, Yes. It runs an 11-speed Shimano CUES cassette (11 to 50T) on AXIS Elite Disc wheels, so the rear hub has a standard freehub body that the cassette sits on. Many thanks
Sale
Sale
Product Details

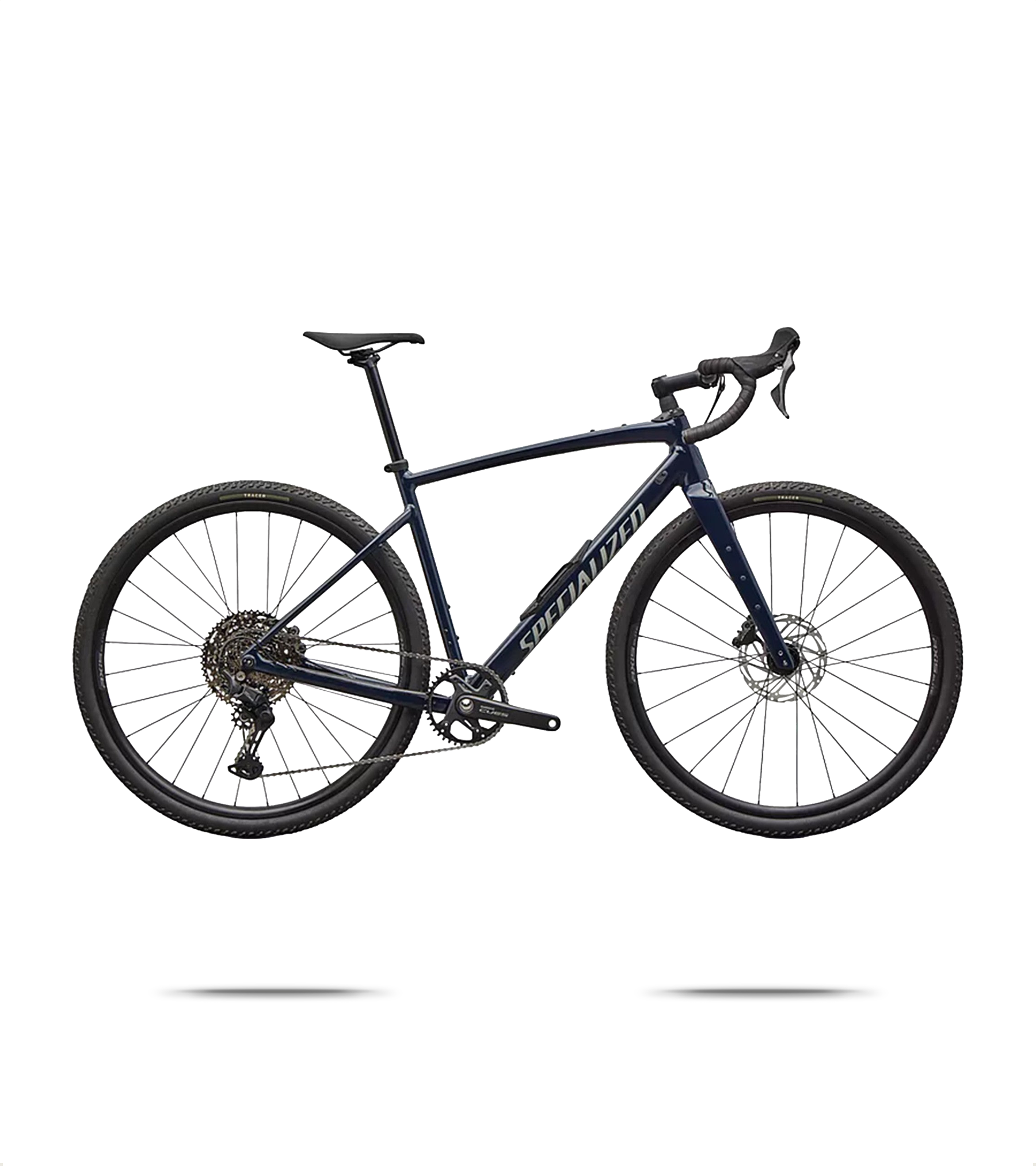

Specialized Diverge 4 Sport E5 Alloy Gravel Bike
The Specialized Diverge 4 Sport E5 Alloy gravel bike is engineered to deliver exceptional performance on race days while remaining fully prepared for long-distance adventures. Race-tuned yet adventure-ready, it combines speed, capability, and versatility in a single, complete package.
Diverge Frame and Design
The E5 Alloy Diverge 4 Sport features the most responsive Diverge frame ever developed in alloy, designed for agility and control across all terrains. With Future Shock 3.0, it enhances comfort and stability, adapting seamlessly to both rider and surface. Whether navigating smooth tarmac or rough gravel tracks, the frame ensures precise handling and high performance.
Specialized Capability
The Diverge 4 Sport provides generous tyre clearance, improving traction and versatility on varied surfaces. For the first time on an alloy model, it also includes internal storage, offering practical space for essentials on extended rides or off-grid adventures. These features make the bike equally suited for competitive events and adventure riding.
Specialized Diverge Performance
Combining race-ready responsiveness with adventure-ready durability, the Diverge 4 Sport E5 Alloy is built to chase horizons or rivals. Its balanced design ensures it excels in speed, control, and versatility, establishing it as one of the most capable gravel bikes available in alloy.
Features
- Frame: Specialized Diverge E5 Premium Aluminum, SWAT Door integration, Future Shock suspension, threaded BB, internal routing, 12x142 mm thru-axle, flat-mount disc, UDH dropout
- Fork: Future Shock 3.1 w/ Smooth Boot, FACT Carbon, 12x100 mm thru-axle, flat-mount disc
- Front brake: Shimano Cues, hydraulic disc
- Rear brake: Shimano Cues, hydraulic disc
- Crankset: Shimano Cues FC-U6040, 40T
- Rear derailleur: Shimano Cues 11-speed w/ Shadow Plus
- Bottom bracket: Shimano Threaded BSA BB
- Chain: Shimano CN-LG500
- Cassette: Shimano CS-LG400-11, Cues, 11-speed, 11-50T
- Shift levers: Shimano Cues ST-U6030
- Front wheel: AXIS Elite Disc
- Rear wheel: AXIS Elite Disc
- Tyres: Tracer, 700x45, tubeless ready (front and rear)
- Inner tubes: Presta, 700x32-50 mm
- Stem: Future Stem, Comp
- Saddle: Body Geometry Power Sport, steel rails
- Seatpost: Alloy, 2-bolt clamp, 12 mm offset, 27.2 mm, anti-corrosion hardware
- Handlebars: Specialized Adventure Gear Hover, 103 mm drop x 70 mm reach x 12° flare
- Seat binder: Alloy, 30.8 mm
- Handlebar tape: Supacaz Suave
- SWAT storage: SWAT 3.0 internal downtube storage
Specifications
- Model
- Diverge 4 Sport Alloy
- Bottom Bracket [Maker]
- Shimano
- Bottom Bracket Standard
- BSA
- Brakes [Kind]
- Hydraulic Disc
- Brakes [Maker]
- Shimano
- Brakes [Model]
- CUES
- Cassette [Gearing]
- 11-50
- Cassette [Maker]
- Shimano
- Cassette [Model]
- Cues CS-LG400-11
- Chain [Maker]
- Shimano
- Chain [Model]
- CN-LG500
- Chainring [Gearing]
- 40
- Crank [Maker]
- Shimano
- Crank [Model]
- Cues FC-U6040
- Discipline Compatibility
- Gravel
- E-Bike
- No
- Family
- Diverge
- Fork [Axle Diameter]
- 12 mm
- Fork [Axle Type]
- Thru-Axle
- Fork [Brake Type]
- Disc
- Fork [Maker]
- Specialized
- Fork [Material]
- Carbon
- Fork [Model]
- Future Shock 3.1
- Fork [Rake]
- 55 mm
- Fork [Travel]
- 20 mm
- Fork [Wheel Size]
- 700c
- Frame [Hanger Standard]
- UDH
- Frame [Material]
- Aluminium
- Frame [Travel]
- 20 mm
- Frameset
- No
- Gearing [Configuration]
- 1x
- Gearing [Kind]
- Conventional
- Gender
- Unisex
- Handlebar [Drop]
- 103 mm
- Handlebar [Flare]
- 12 degree
- Handlebar [Kind]
- Drop
- Handlebar [Maker]
- Specialized
- Handlebar [Material]
- Aluminium
- Handlebar [Reach]
- 70 mm
- Handlebar [Shape]
- Drop bar
- RD [Maker]
- Shimano
- RD [Model]
- CUES
- Saddle [Maker]
- Specialized
- Saddle [Material]
- Steel
- Seatpost [Diameter]
- 27.2
- Seatpost [Kind]
- Rigid
- Seatpost [Maker]
- Specialized
- Seatpost [Material]
- Aluminium
- Seatpost [Offset]
- 12 mm
- Shifters [Maker]
- Shimano
- Shifters [Model]
- CUES ST-U6030
- Shifting
- Mechanical
- Stem [Material]
- Aluminium
- Sub Family
- Diverge 4
- Suspension Configuration
- Hardtail
- Tires [Maker]
- Specialized
- Tires [Width]
- 45 mm
- Wheels [Configuration]
- Front+Rear
- Wheels [Kinds]
- Tubeless Ready
- Wheelset [Maker]
- Specialized
- Wheelset [Material]
- Aluminium
- Wheelset [Model]
- AXIS Elite Disc
- Product code
- 1956549 / 54293716369754
Size Guide
| — | 44 | 49 | 52 | 54 | 56 | 58 | 61 | 64 |
|---|---|---|---|---|---|---|---|---|
| Rider Height (cm) | <158 | 158 - 163 | 163 - 170 | 170 - 178 | 175 - 180 | 180 - 188 | 188 - 196 | >196 |
| Rider Height (ft. in) | <5'2" | 5'2" - 5'4" | 5'4" - 5'7" | 5'7" - 5'10" | 5'9" - 5'11" | 5'11" - 6'2" | 6'2" - 6'5" | >6'5" |
| Seat Tube (ctr-top) | 363 | 390 | 430 | 470 | 500 | 530 | 560 | 590 |
| Seat Tube (ctr-ctr) | — | - | - | - | - | - | - | - |
| Effective Top Tube | 515 | 529 | 542 | 558 | 573 | 589 | 605 | 628 |
| Actual Top Tube | — | - | - | - | - | - | - | - |
| Seat Angle (°) | 74.5 | 74 | 73.75 | 73.5 | 73.5 | 73.5 | 73.5 | 73 |
| Head Tube Angle (°) | 69.5 | 70 | 70.5 | 71.25 | 71.75 | 71.75 | 71.75 | 72.25 |
| Head Tube Length | 99 | 99 | 104 | 116 | 133 | 159 | 185 | 209 |
| Fork Rake | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Chainstay Length | 425 | 425 | 425 | 425 | 425 | 425 | 425 | 425 |
| Wheelbase | 1016 | 1019 | 1026 | 1932 | 1042 | 1059 | 1076 | 1088 |
| Stack | 568 | 571 | 577 | 592 | 610 | 634 | 659 | 684 |
| Reach | 357 | 365 | 374 | 383 | 392 | 401 | 410 | 419 |
All measurements in mm unless otherwise stated.
