Product Details

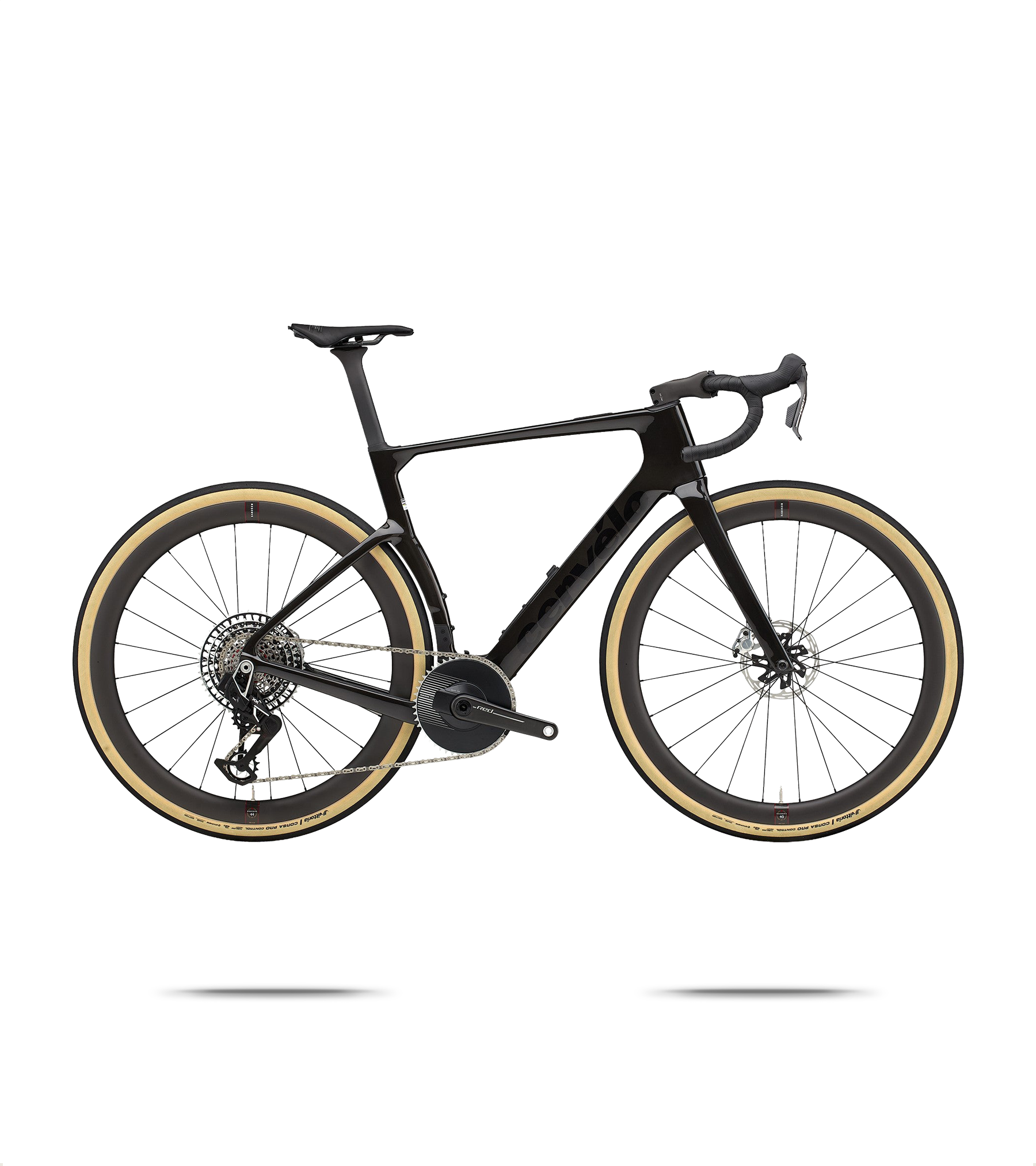

Cervelo Aspero-5 Red E1 AXS Gravel Bike

Engineered for elite gravel racing, the Cervelo Aspero-5 Red E1 AXS Gravel Bike is optimised for aerodynamic efficiency, stiffness and low weight. The new HB16 cockpit enhances cable integration and saves 5.7 watts compared to previous models. The mixed tyre setup balances grip and rolling resistance, while the large chainring clearance and UDH compatibility ensure compatibility with wide-range drivetrains and power meters.

Features
  • Fork: Cervelo All-Carbon, Tapered Aspero-5 Fork
  • Headset: FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45°
  • Front Thru Axle: Cervelo Aero Thru Axle, M12x1.5 mm, 122 mm length
  • Rear Thru Axle: Cervelo Aero Thru Axle, M12x1.0 mm, 169 mm length
  • Front Wheel: Reserve 40|TA GR, DT Swiss 240, 12x100 mm, 24h, centrelock, tubeless compatible
  • Rear Wheel: Reserve 44|TA GR, DT Swiss 240, 12x142 mm, XDR freehub, 24h, centrelock, tubeless compatible
  • Tyres: Corsa Pro Control TLR G2.0, 700x42c
  • Crankset: SRAM Red 1 AXS E1, 48T, DUB Wide, with power meter
  • Bottom Bracket: SRAM DUB Wide Ceramic, T47 BBright
  • Chain: SRAM XX SL, 12 speed
  • Rear Derailleur: SRAM XX SL Eagle AXS, 12 speed
  • Cassette: SRAM XX SL, 10-52, 12 speed
  • Shifter/Brake: SRAM Red AXS, 12 speed
  • Handlebar: Cervélo HB16 Carbon, 31.8 mm clamp
  • Stem: Cervelo ST31 Carbon
  • Saddle: Prologo Nago R4 PAS NACK
  • Seatpost: Cervelo SP27 Carbon
  • Brake Rotors: SRAM Paceline X, Centrelock
Highlights
  • Groupset: SRAM Red E1 AXS 1x
  • Cockpit: Cervelo HB16 / ST31
  • Wheels: Reserve 40|44G with DT Swiss 240 hubs
  • Power Meter: Quarq spider
Specifications
Model
Aspero-5 Red E1 AXS
Bottom Bracket [Maker]
SRAM
Bottom Bracket Standard
T47
Brakes [Kind]
Hydraulic Disc
Brakes [Maker]
SRAM
Brakes [Model]
RED
Cassette [Gearing]
10-52
Cassette [Maker]
SRAM
Cassette [Model]
XX SL Eagle Transmission
Chain [Maker]
SRAM
Chain [Model]
XX SL Eagle Transmission
Chainring [Gearing]
48
Crank [Maker]
SRAM
Crank [Model]
RED
Discipline Compatibility
Gravel
E-Bike
No
F Hub [Maker]
DT Swiss
F Hub [Model]
240
Family
Aspero-5
Fenders Mounts
No
Fork [Axle Diameter]
12 mm
Fork [Axle Type]
Thru-Axle
Fork [Brake Type]
Disc
Fork [Maker]
Cervelo
Fork [Material]
Carbon
Fork [Model]
Aspero-5
Fork [Rake]
57 mm
Fork [Wheel Size]
700c
Frame [Hanger Standard]
UDH
Frame [Material]
Carbon
Frame [Tire Clearance]
45c mm
Frame [Travel]
0 mm
Frameset
No
Gearing [Configuration]
1x
Gearing [Kind]
Conventional
Gender
Unisex
Handlebar [Kind]
Drop
Handlebar [Maker]
Cervelo
Handlebar [Material]
Carbon
Handlebar [Shape]
Drop bar
Headset [Maker]
FSA
Headset [SHIS]
IS
Power Meter [Maker]
SRAM
Power Meter [Model]
RED AXS
R Hub [Maker]
DT Swiss
R Hub [Model]
240
Rack Mounts
No
RD [Maker]
SRAM
RD [Model]
XX SL Eagle Transmission
Saddle [3D Printed]
No
Saddle [Maker]
Prologo
Seatpost [Kind]
Rigid
Seatpost [Maker]
Cervelo
Seatpost [Material]
Carbon
Seatpost [Offset]
0 mm
Shifters [Maker]
SRAM
Shifters [Model]
RED AXS
Shifting
Electronic
Stem [Maker]
Cervelo
Stem [Material]
Carbon
Sub Family
Aspero 5
Suspension Configuration
Rigid
Tires [Maker]
Vittoria
Tires [Width]
42 mm
Wheels [Configuration]
Front+Rear
Wheels [Kinds]
Tubeless Ready
Wheelset [Maker]
Reserve
Wheelset [Material]
Carbon
Wheelset [Model]
GR
Product code
1932462 / 54293915599194
Size Guide
—485154565861
A------
B------
C515531548565581597
D------
E73°73°73°73°73°73°
F70°70°71.1°71.5°71.5°71.5°
G108.9138.3155.8180.1207231.2
H------
I------
J------
K352362372382391400
L527549572595618641
Cervelo C5 Bikes Size Guide

If you fall between sizes, we recommend experienced riders selecting the smaller frame which will offer faster handling. A larger bicycle offers more stability.

Should you have any specific questions, please contact us for information and talk to one of our experienced members of staff.

A: Seat Tube (CTR-TOP)

B: Seat Tube (CTR-CTR)

C: Effective Top Tube

D: Actual Top Tube

E: Seat Arc Angle

F: Head Arc Angle

G: Head Tube

H: Fork Rake

I: Chainstay

J: Wheelbase

K: Stack

L: Reach

* All measurements in mm unless otherwise stated
