Product Details

Excellent condition approved used bike with no noticeable marks on the frame or components

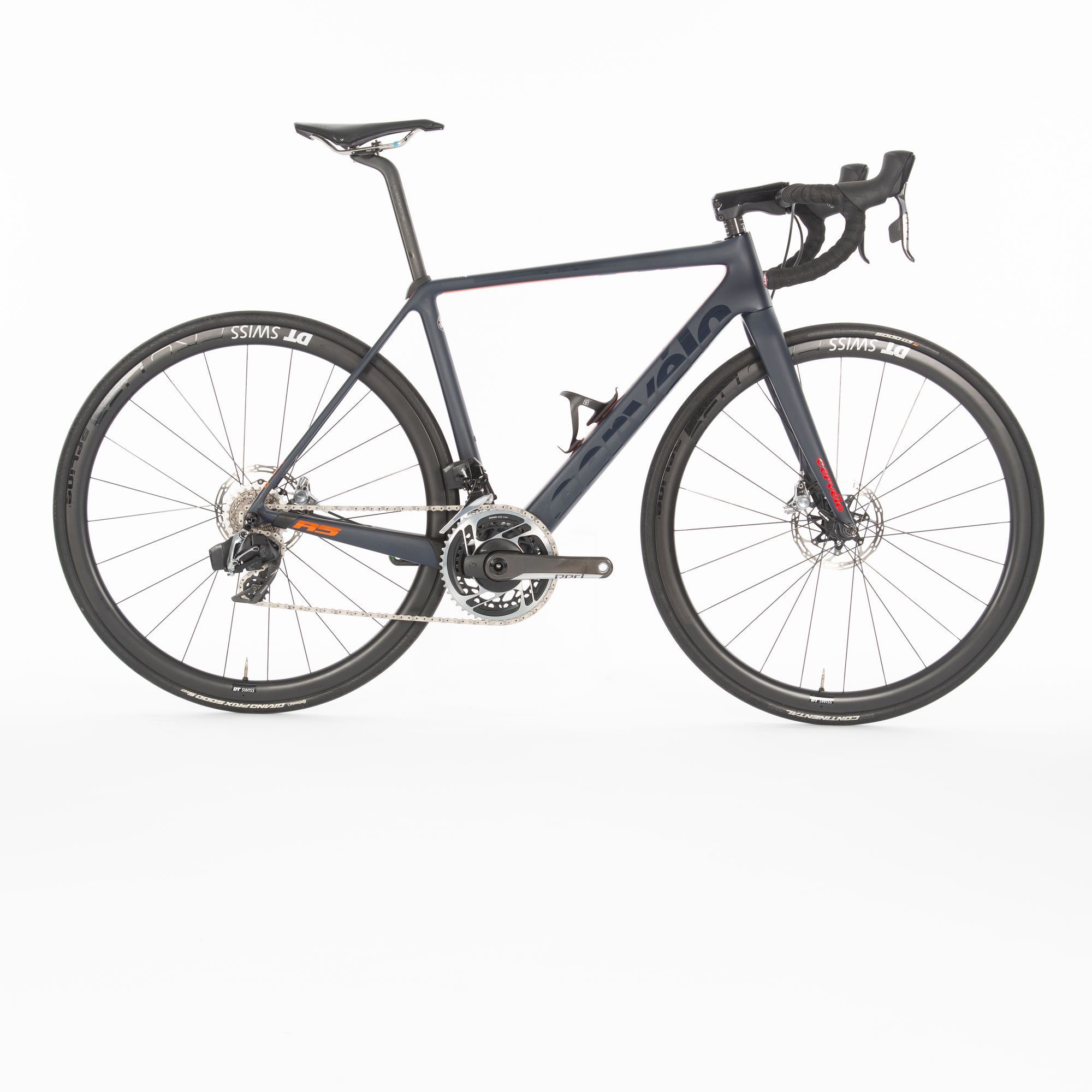

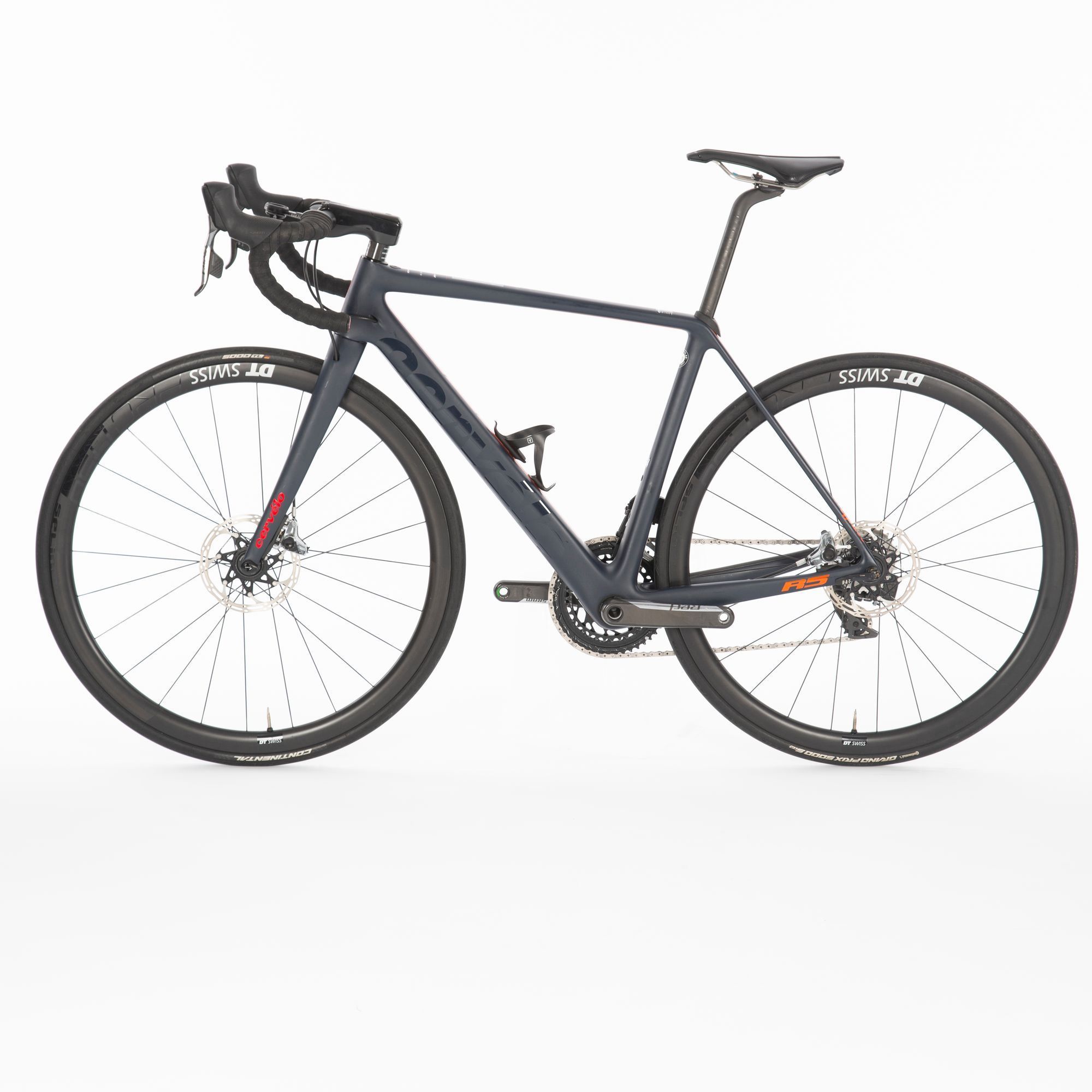

Cervelo R5 Red eTap AXS 12-Speed Disc Road Bike 2020

A superlight bike that's perfect for dominating the hills, the Cervelo R5 Disc Road Bike is now finished off with the latest full SRAM RED eTap AXS 12-speed groupset. Benefit from the wider and smoother progression of the X-Range gearing with more 1-tooth cassette sprocket jumps and closer chainring configuration to ensure that you are never far from the sweet spot. The striking look of the redesigned Flattop chain is quieter and stronger, despite being thinner, resulting in crisp and accurate shifting that won't skip a beat.

With an 18% improvement in head tube stiffness and a 26% improvement in bottom bracket stiffness over previous editions of the R5, you can be sure of unrivalled power transfer that will launch you up the climbs. Even on the flat the Pro-Ft geometry, refined from working with professional riders, offers an exceptionally low stack height for an optimum aerodynamic position. Should you need to change a wheel or fix a puncture, the RAT quick-release thru-axle requires just a 1/4 turn so you will be back on the road in no time.

Features

  • SQUOVAL MAX tubes combine the attributes of a square for strength with an oval for a more aerodynamic leading edge
  • BBright system uses oversized frame tubes in key areas for improved stiffness and power transfer
  • RAT thru-axles for fast wheel changes
  • Plenty of tyre clearance for tyres up to 28mm width
  • Integrated computer mount for uncluttered handlebar
  • The disc model of the R5 is Cervelo's stiffest ever road bike frame



  • Certified Quality & Peace of Mind
    Every bike is meticulously inspected to the highest safety standards and comes with a one-year warranty*, ensuring reliability and performance you can trust.
  • Premium Bikes, Lower Prices
    Own a high-end bike for less – get access to top-tier brands and models at a fraction of the cost, making performance cycling more affordable.
  • Sustainable & Eco-Friendly Choice
    Choosing a pre-owned bike helps reduce waste and extends the life of quality bicycles, making it a greener way to ride.

Hassle-Free Trade-In & Upgrade
Easily part-exchange your old bike for an upgrade, making it simple to switch, save, and keep riding the best bike for your needs

Approved Used Warranty Information

Features

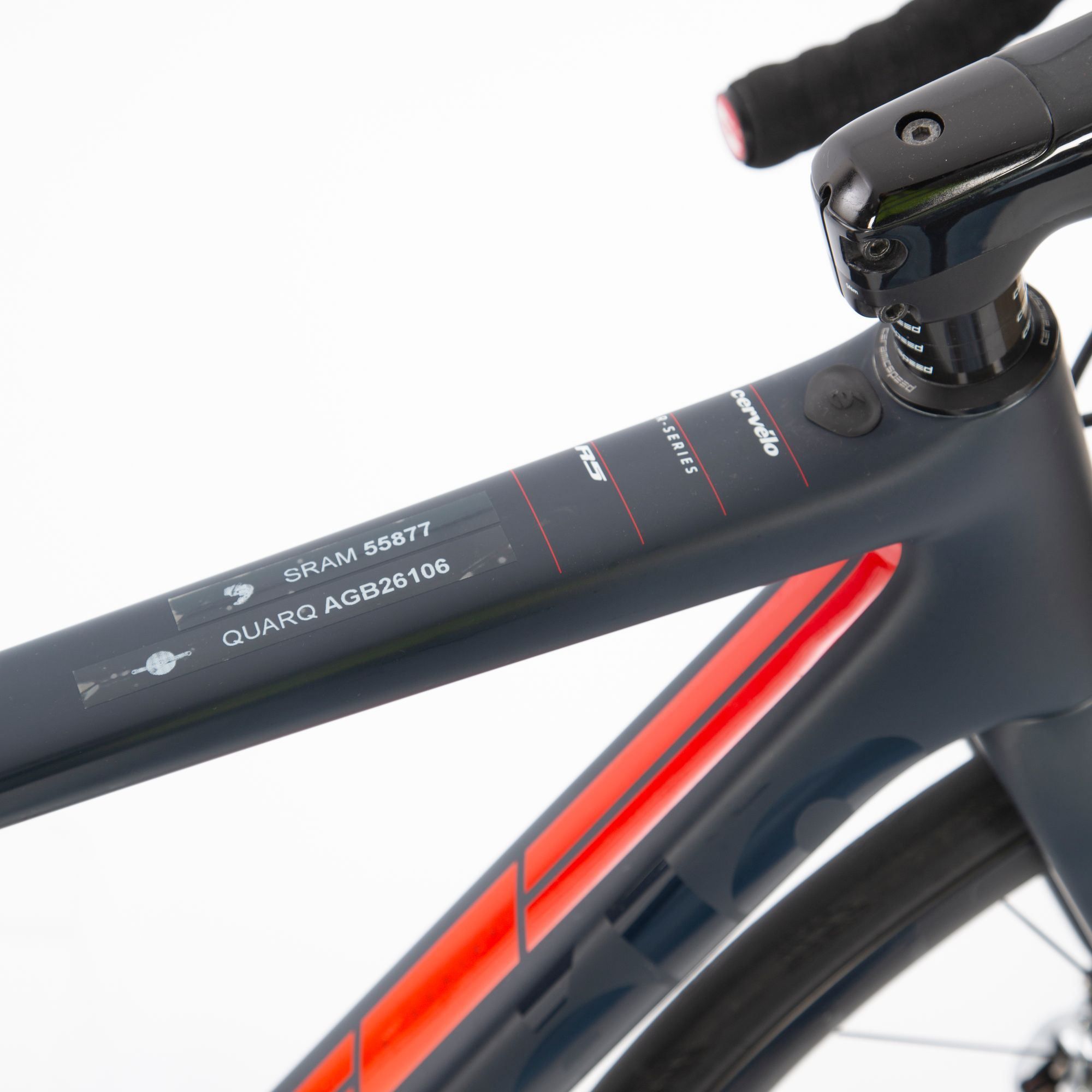

  • Frame: Cervelo R5 54cm Navy blue RAT thru-axle disc dropouts for 12/100mm front, 12/142mm rear.

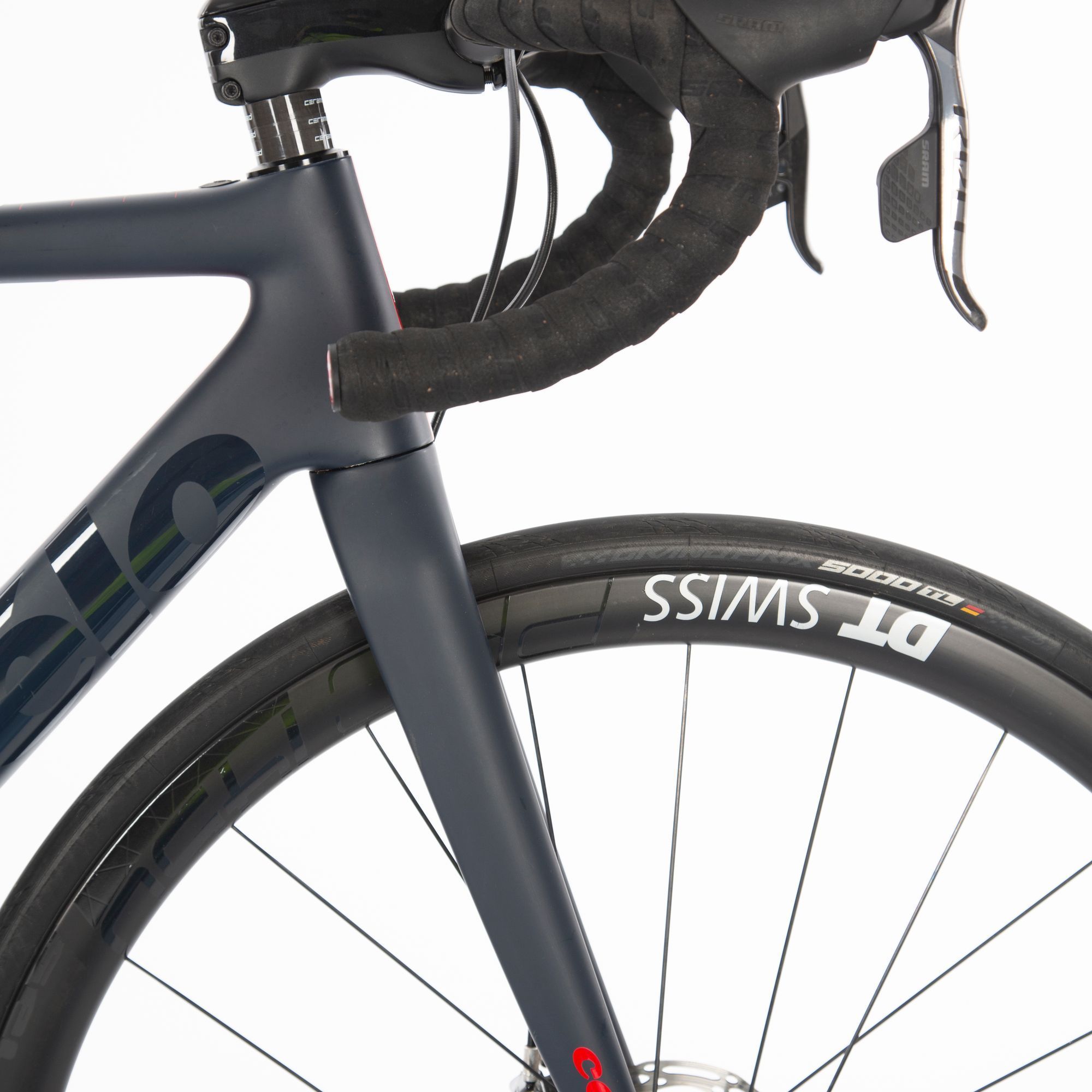

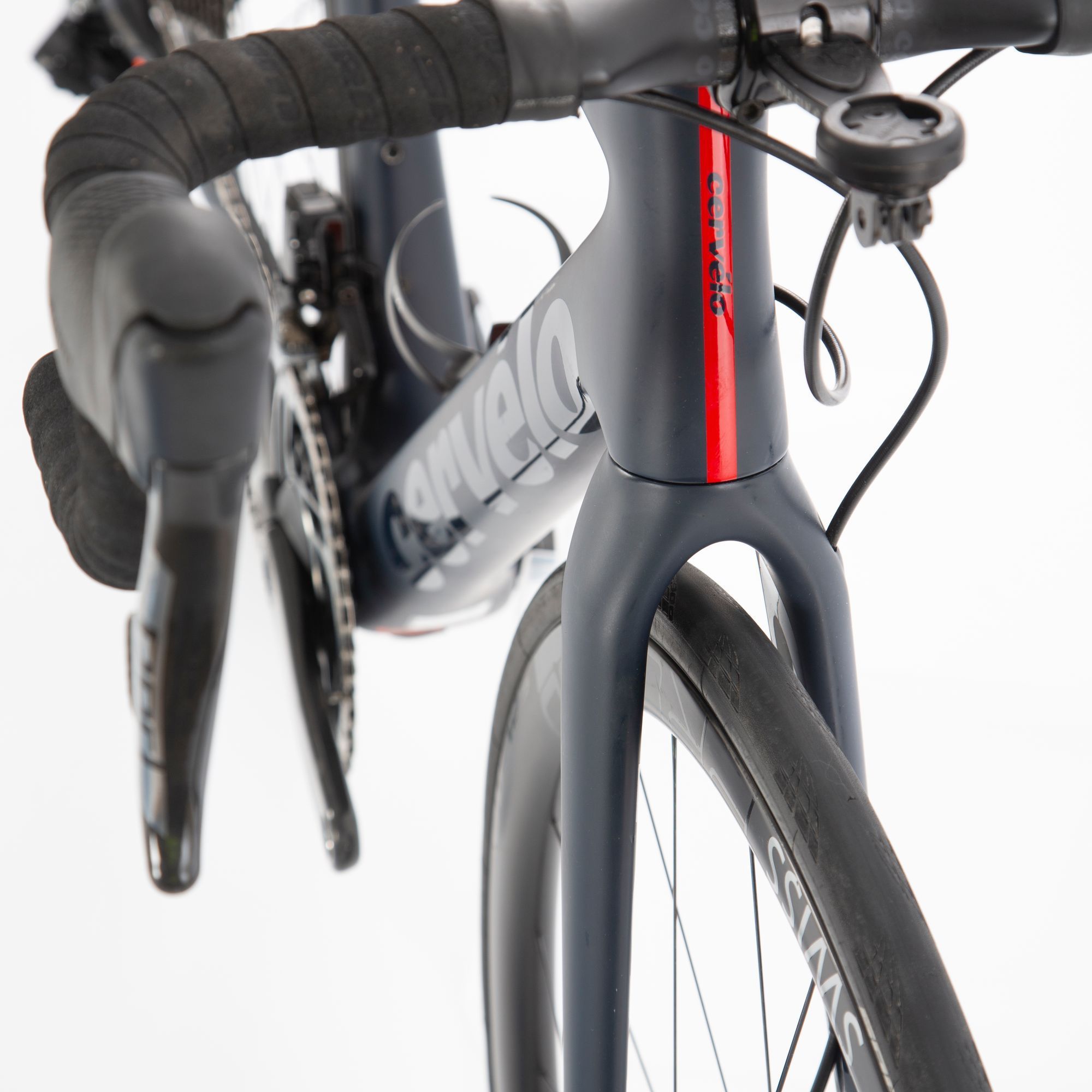

  • Fork: Cervelo all carbon R5 disc
  • Headset: Ceramic speed
  • Stem: Cervelo aero carbon stem
  • Handlebar: Cervelo AB06 aero carbon
  • Groupset: Sram Red AXS
  • Levers/Shifters: Red eTap HRD road shift/brake levers, HRD calipers
  • Front Derailleur: SRAM Red eTap AXS 12-spd

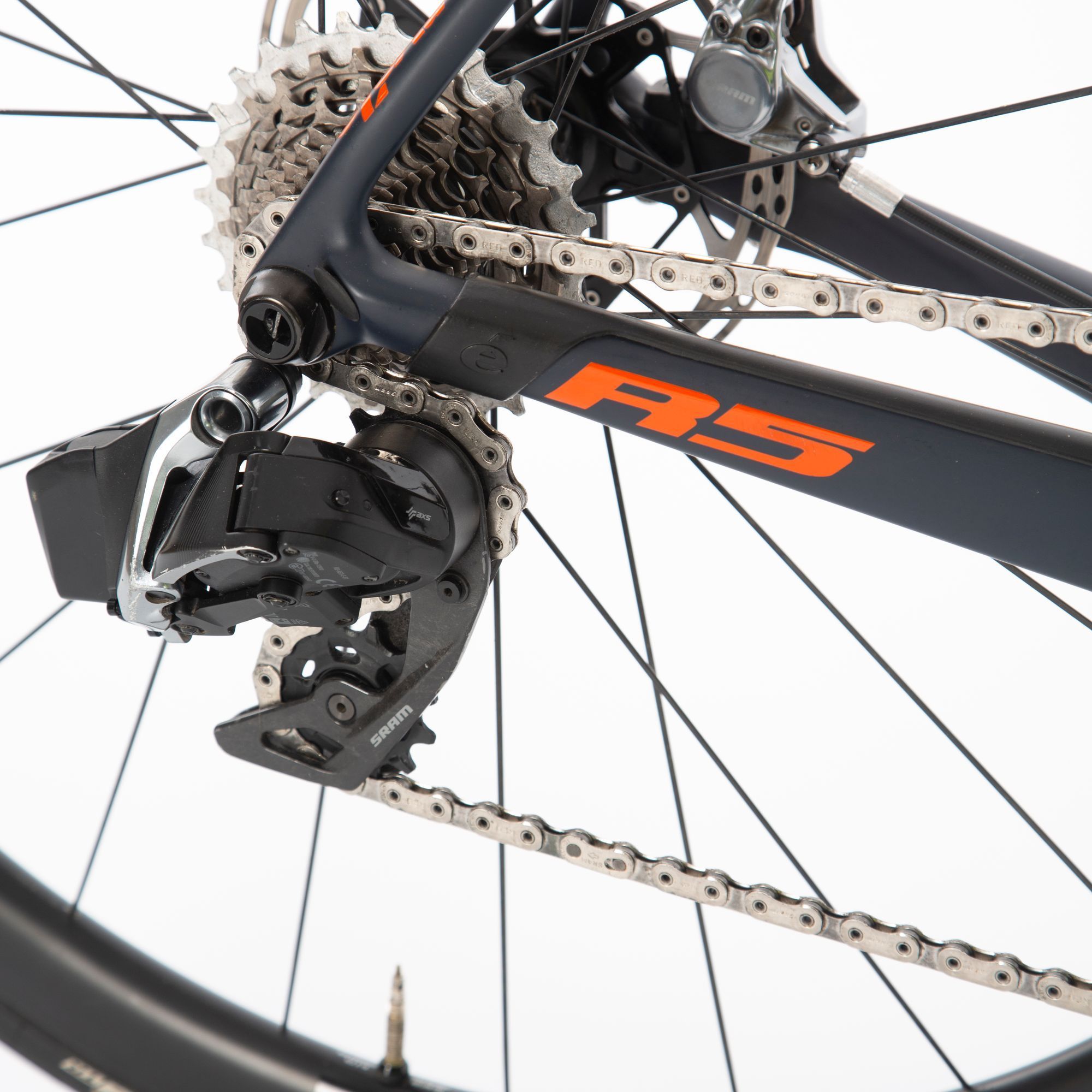

  • Rear Derailleur: SRAM Red eTap AXS 12-spd
  • Cassette: Sram red 10/28t XDR

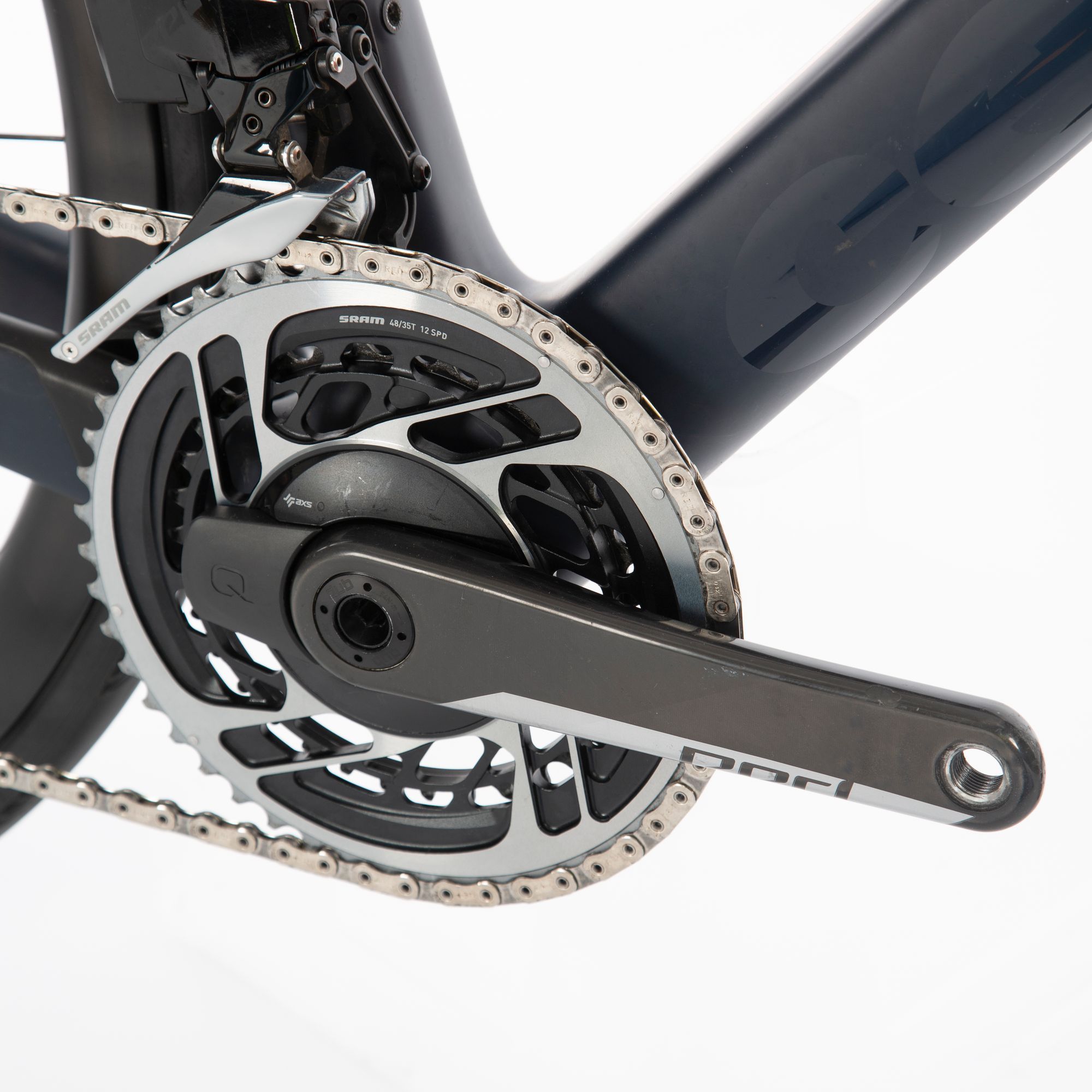

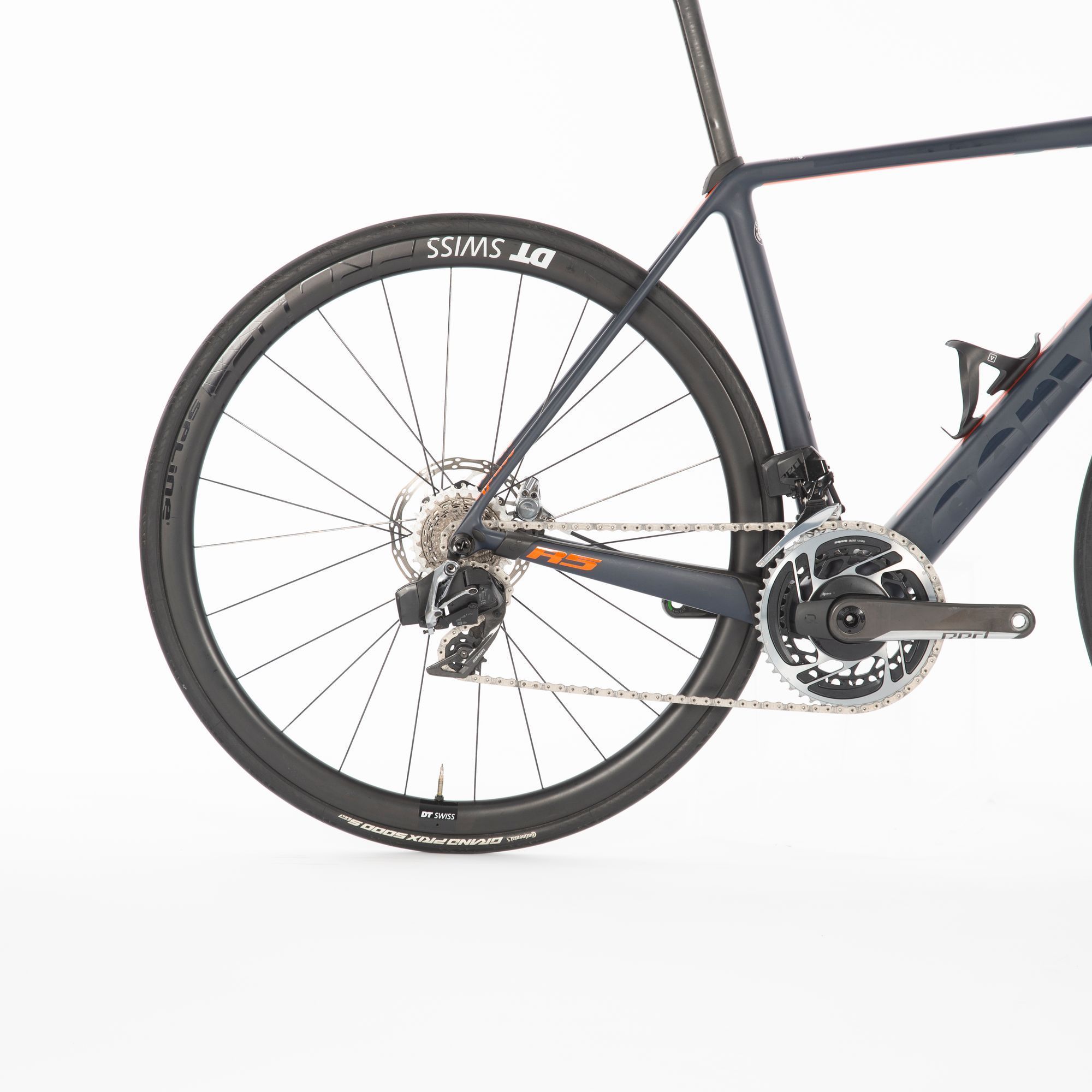

  • Crankset: Quarq Red Dub 48/35t 172.5mm
  • Wheels: DT Swiss 1450 Spline 35 Disc
  • Tyres: Continental GP5000 TL

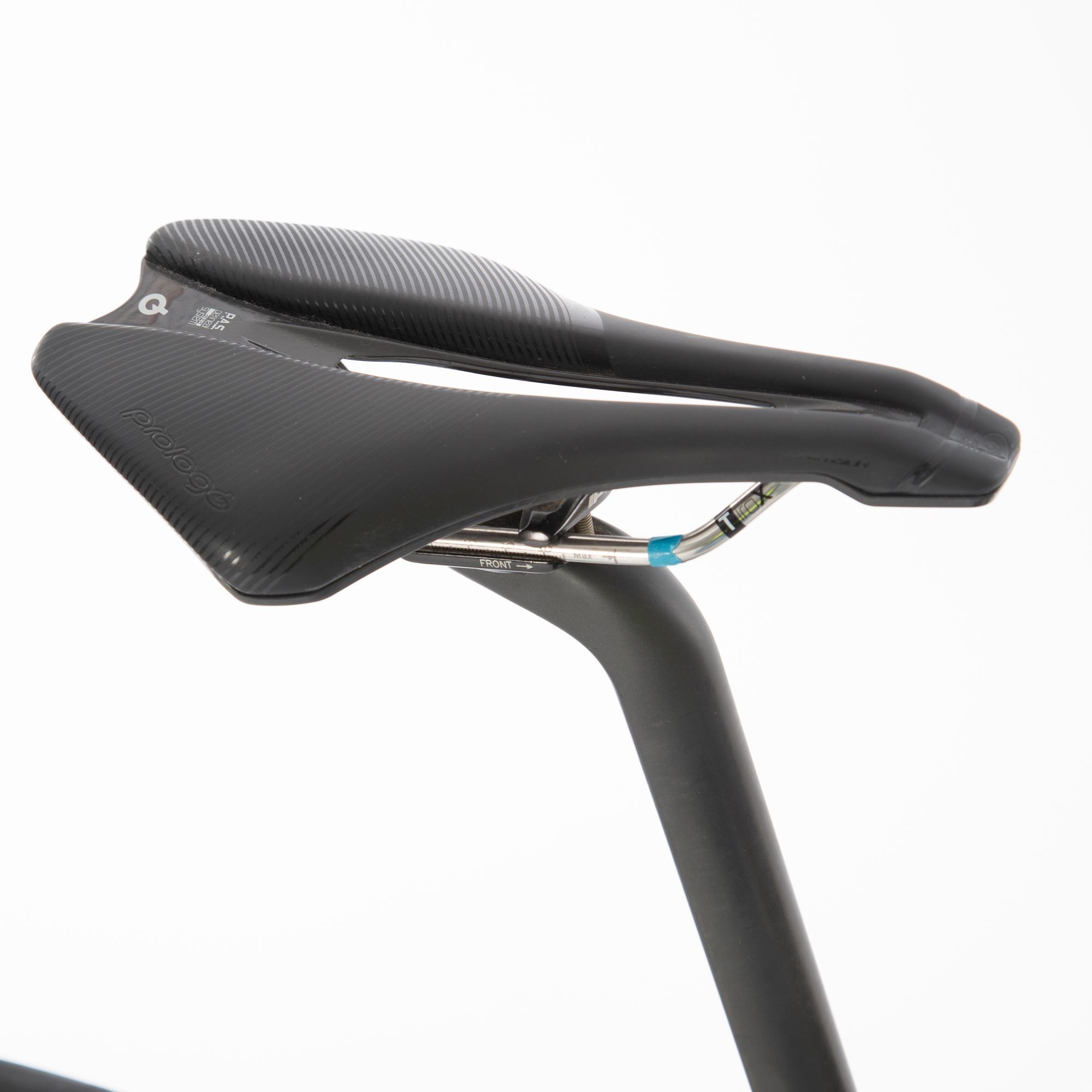

  • Saddle: Prologo dimension saddle Ti rails.
  • Seatpost: Cervelo Flatback carbon seatpost.
  • Pedals: Available to be purchased separately
Specifications
Model
R5
Brakes [Kind]
Hydraulic Disc
Brakes [Maker]
SRAM
Brakes [Model]
Red eTap HRD
Cassette [Gearing]
10-28
Cassette [Maker]
SRAM
Cassette [Model]
Red XDR
Chainring [Gearing]
48/35
Condition Grade
Excellent
Crank [Maker]
Quarq
Crank [Model]
Red Dub
E-Bike
No
Family
R5
FD [Maker]
SRAM
FD [Model]
Red eTap AXS 12-spd
Fenders Mounts
No
Fork [Axle Type]
Thru-Axle
Fork [Brake Type]
Disc
Fork [Maker]
Cervelo
Fork [Material]
Carbon
Fork [Wheel Size]
700c
Frame [Material]
Carbon
Frameset
No
Gearing [Configuration]
2x
Gearing [Kind]
Conventional
Gender
Unisex
Handlebar [Kind]
Drop
Handlebar [Maker]
Cervelo
Handlebar [Material]
Carbon
Headset [Maker]
CeramicSpeed
Power Meter [Maker]
Quarq
Power Meter [Model]
Red Dub
Rack Mounts
No
RD [Maker]
SRAM
RD [Model]
Red eTap AXS 12-spd
Saddle [Maker]
Prologo
Seatpost [Maker]
Cervelo
Seatpost [Material]
Carbon
Shifters [Maker]
SRAM
Shifters [Model]
Red eTap HRD
Shifting
Electronic
Stem [Maker]
Cervelo
Stem [Material]
Carbon
Suspension Configuration
Rigid
Tires [Maker]
Continental
Wheels [Configuration]
Front+Rear
Wheels [Kinds]
Tubeless Ready
Wheelset [Maker]
DT Swiss
Wheelset [Material]
Aluminium
Wheelset [Model]
1450 Spline 35 Disc
Mileage / Usage
Lightly used
Product code
1941815 / 54293892530522
Size Guide
Size485154565861
Rider Height (cm)152 - 161159 - 168168 - 174174 - 180180 - 185185 - 192.5
Rider Height (ft. in.)5'0" - 5'3.5"5'2.5" - 5'6"5'6" - 5'8.5"5'8.5" - 5'11"5'11 - 6'1"6'1" - 6'4"
Seat Tube (ctr-top)430478508534557580
Seat Tube (ctr-ctr)------
Effective Top Tube502522543565581598
Actual Top Tube ------
Seat Angle (°)74.57473.5737373
Head Tube Angle (°)70.571.572727272
Head Tube Length89.5109.9136162.3191.2217.5
Fork Rake595350505050
Chainstay Length415415415415415415
Wheelbase982.2984.5995.21012.31030.71047/8
Stack505530555580605630
Reach360369378387396405
Stem Length8090100100110110
Handlebar Width380400420420440440
Cervelo Caledonia-5 Size Guide 2022

All measurements in mm unless otherwise stated.
