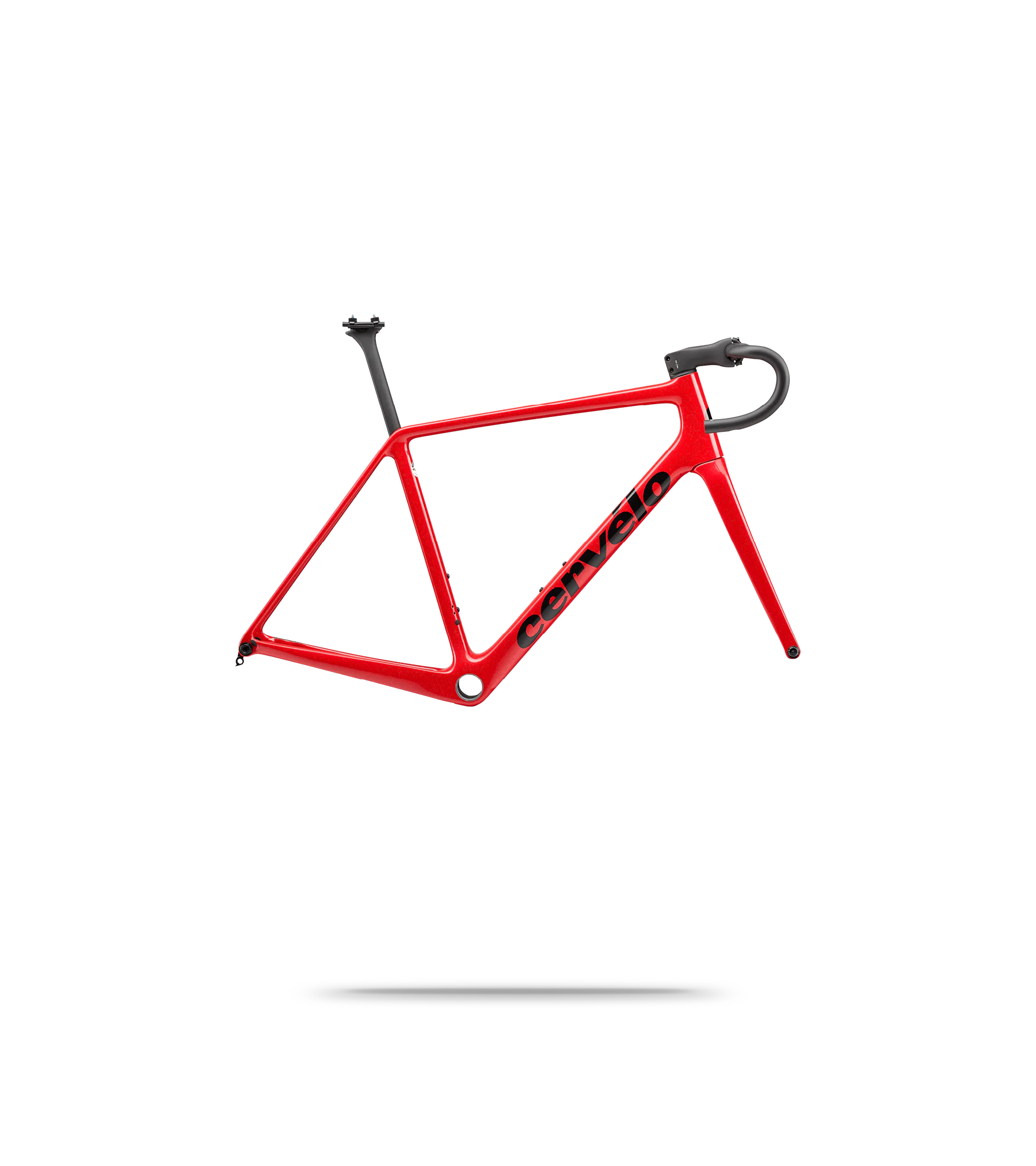

Already with multiple pro cycling victories under its belt, there can be no doubting that the Cervelo R5 Disc Road Frameset is very worthy to continue the R5 lineage.
Very unusually, Cervelo claims that this latest R5 is actually less stiff in certain areas than its predecessor. Professional feedback led them to soften the front end slightly for more compliance, control and comfort over long rides and multi-day races whilst still retaining the R5’s trademark bottom bracket stiffness and power transfer.
It is however business as usual elsewhere, with a frame weight reduction of 130 grams and aerodynamic improvements too, helping keep the bike right at the pointy end of the world’s biggest bike races. An in-house stem and handlebar enable cable routing for the disc brakes to run fully internally for further aero gains and an incredibly slick-looking aesthetic with the carbon post adding vibration-taming compliance and reduced drag.
Cervelo has also increased the tyre clearance up to 34mm, ensuring that the odd badly surfaced track or cobbled road won’t cause the bike any trouble.
Please note, this frameset can only be used with electronic gearing - Shimano Di2 or SRAM eTap AXS.
| Size | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height (cm) | 152 - 161 | 159 - 168 | 168 - 174 | 174 - 180 | 180 - 185 | 185 - 192.5 |
| Rider Height (inches) | 5'0" - 5'3.5" | 5'2.5" - 5'6" | 5'6" - 5'8.5" | 5'8.5" - 5'11" | 5'11" - 6'1" | 6'1' - 6'4" |
| Seat Tube (ctr-top) | 480 | 510 | 540 | 560 | 580 | 610 |
| Seat Tube (ctr-ctr) | - | - | - | - | - | - |
| Effective Top Tube | 515 | 532 | 548 | 563 | 581 | 597 |
| Actual Top Tube | - | - | - | - | - | - |
| Seat Angle (°) | 73 | 73 | 73 | 73 | 73 | 73 |
| Head Tube Angle (°) | 71 | 72 | 72 | 73.5 | 73.5 | 73.5 |
| Head Tube Length | 103 | 124 | 147 | 171 | 199 | 225 |
| Fork Rake | 58 | 52 | 46 | 43 | 43 | 43 |
| Chainstay Length | 405 | 405 | 405 | 405 | 405 | 405 |
| Wheelbase | 969 | 971 | 973 | 981 | 999 | 1016 |
| Stack | 505 | 530 | 555 | 580 | 605 | 630 |
| Reach | 360 | 369 | 378 | 387 | 396 | 405 |
All measurements in mm unless otherwise stated.
No reviews yet. Be the first to review this product.
Free UK delivery on orders over £50. Orders are dispatched within 1-2 working days and typically arrive 1-2 working days later.
Return unused items in their original packaging within 30 days of delivery. Return postage is £3.50.
1 question answered
Hi there, I'm afraid due tot he design of the cable routing Campagnolo is not an option on this frame, Many thanks Joe W
