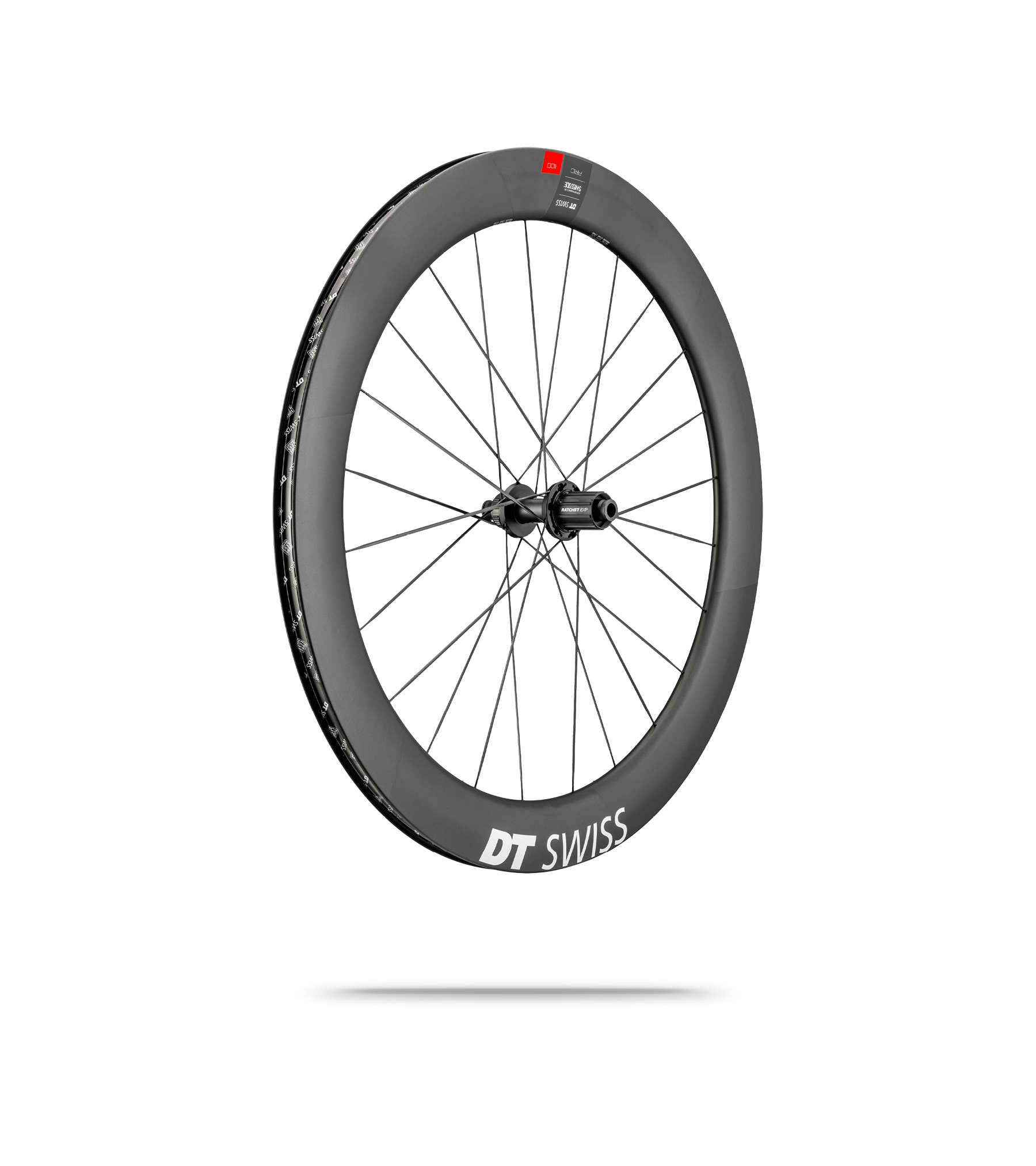

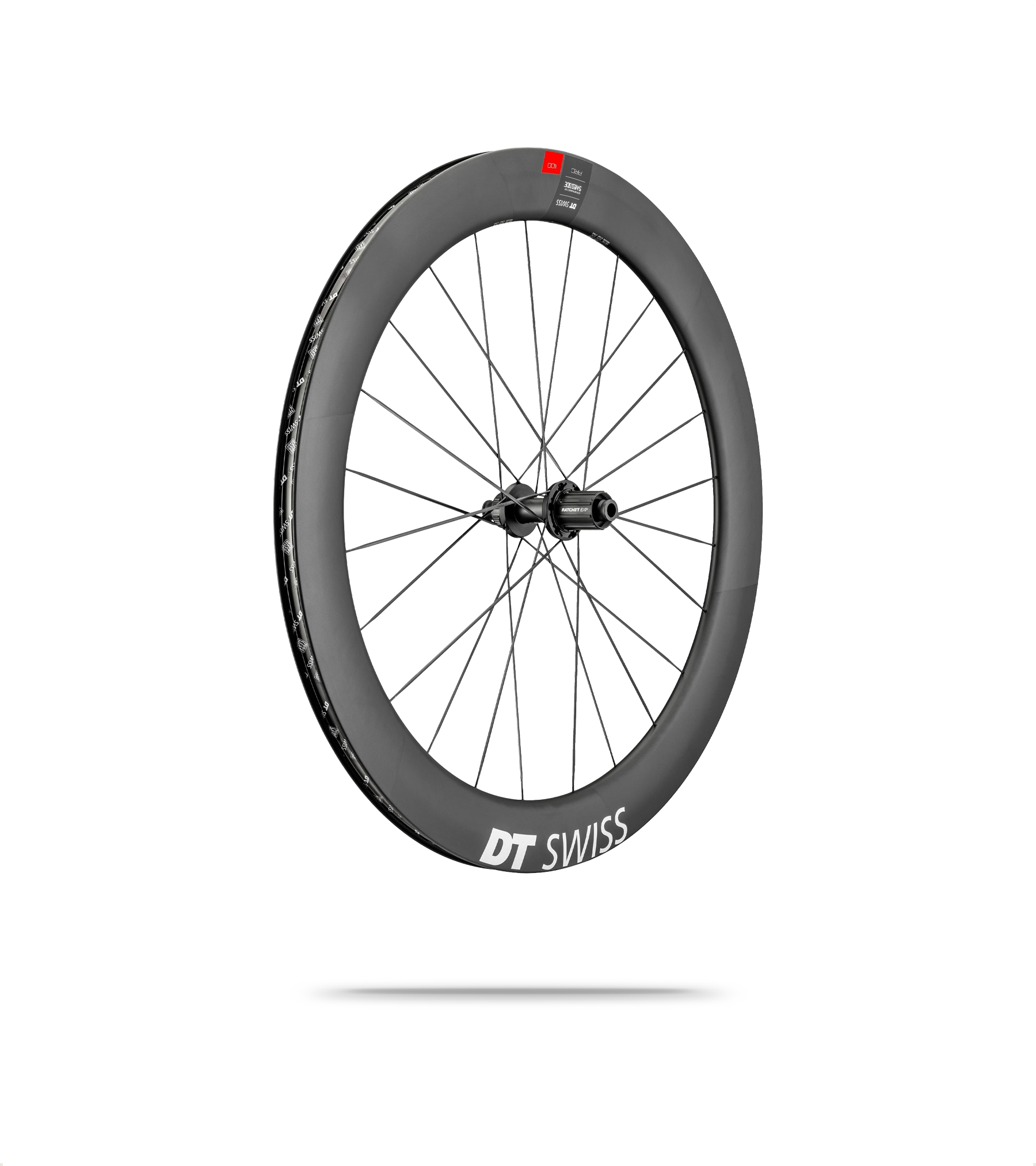

DT Swiss ARC 1100 DICUT 62mm Disc Brake Rear Wheel
Combining aerodynamics with low weight and efficiency, the DT Swiss ARC 1100 DICUT 62mm Disc Brake Rear Wheel is an excellent choice when speed is required across heavily undulating to flat road parcours.

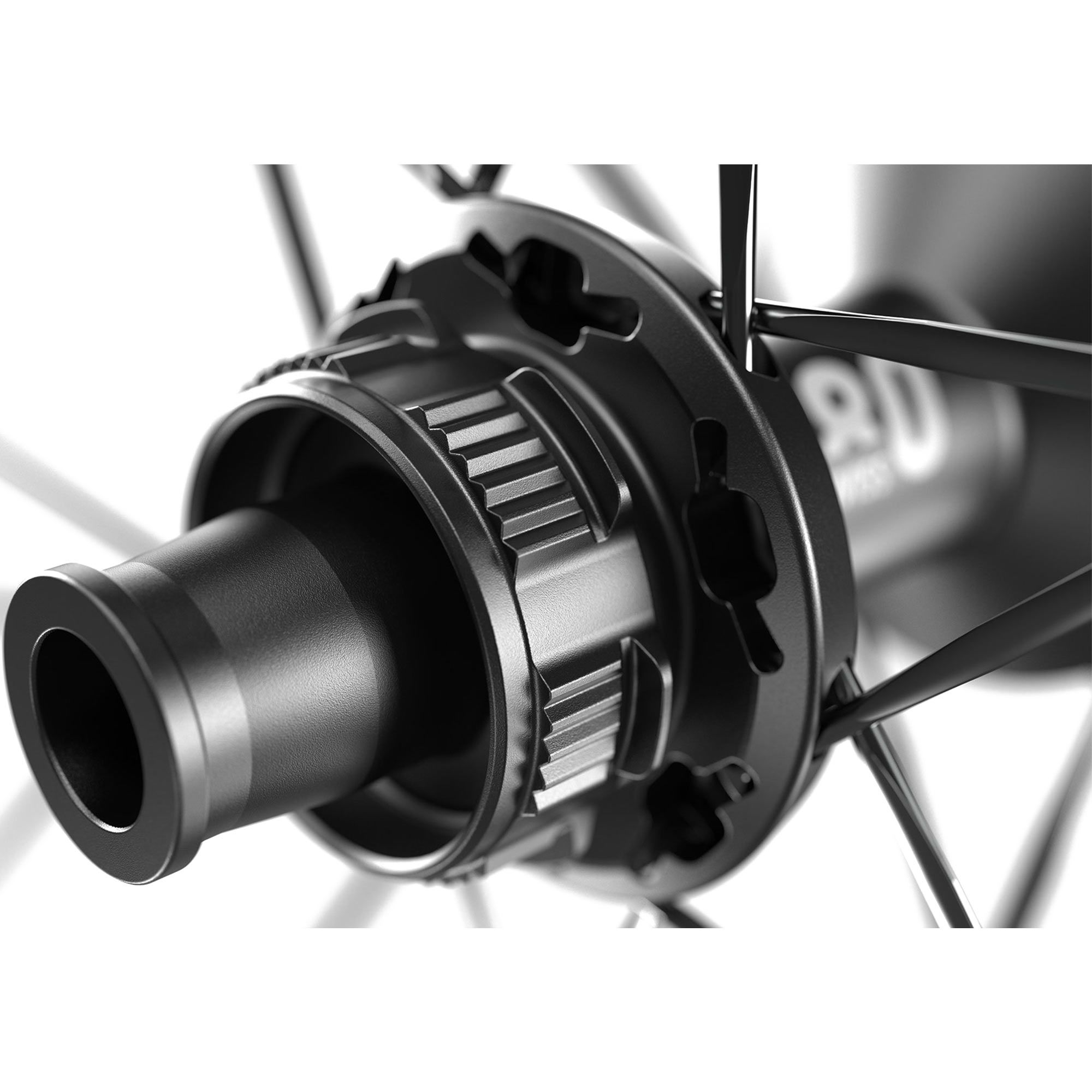

The lightweight but torsionally stiff alloy shell of the 180 DICUT hub heightens braking control by providing a secure base for disc brake rotor mounting and hosts ceramic bearings to lower rotational friction markedly. This hub is partnered by the full carbon rim that bestows high lateral rigidity for responsive accelerations while remaining low in weight to be spritely when climbing. The carbon rim has a 62mm deep profile that has been honed in the wind tunnel and a 20mm internal width that supports the sidewalls of tubeless-ready or standard clincher tyres. This sidewall support helps tyres to realise lower rolling resistance, improved comfort and better cornering traction.
The hub and rim are linked together by the bladed Aero Comp spokes laced in a two-cross pattern to grant improved pedalling efficiency and reliability.
- Tubeless tape 23mm
- Tubeless-ready tyre TL valve, aluminium black 49-65mm
- SRAM XDR Road freehub body kit
- 5mm endcap kit
- Valve guard
- Wheel bag
- A truly versatile wheel suitable for riding across all manner of ride topography

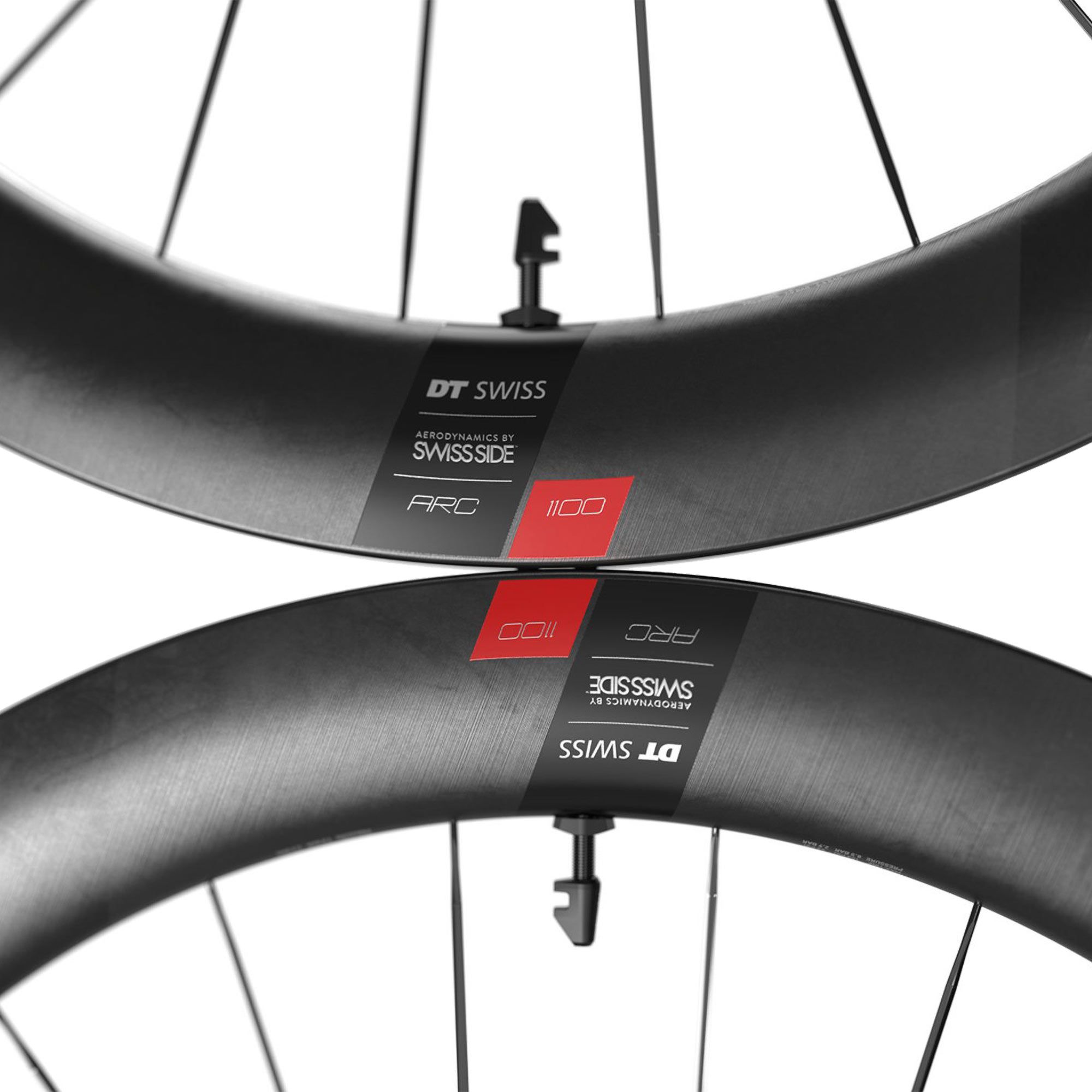

- Lightweight and torsionally stiff full carbon rim
- 62mm deep AERO+ rim profile is aerodynamically tuned in cooperation with SWISS SIDE
- 27mm external rim width reduces air turbulence at the tyre-to-rim interface
- Broad 20mm internal rim width lowers rolling resistance and improves comfort
- Hooked internal rim format is compatible with tubeless-ready or standard clincher tyres

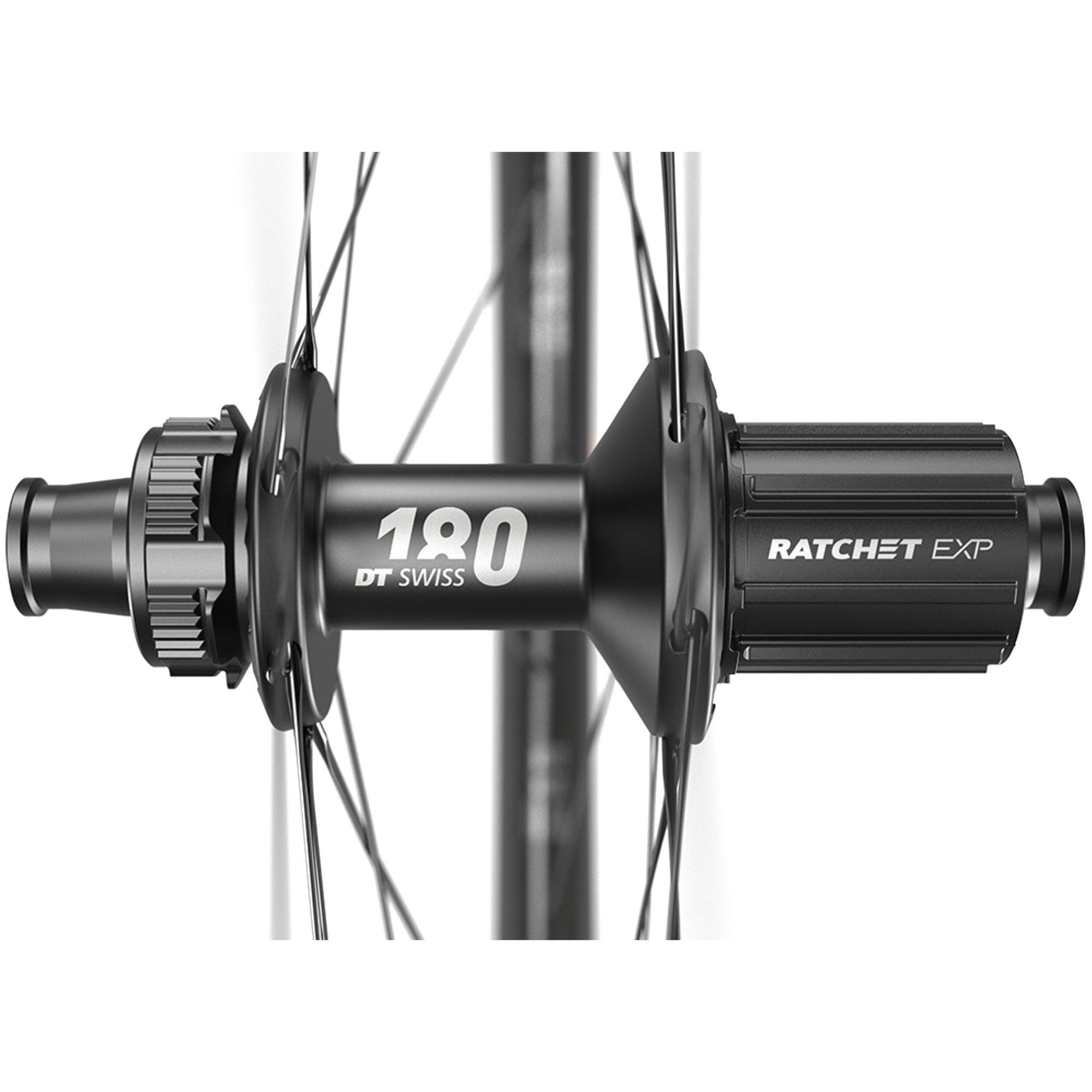

- DT Swiss 180 DICUT hubs are light and have SINC ceramic bearings
- EXP ratchet freehub offers near-instant engagement
- DT Swiss Aero Comp spokes lower drag and are reliable
- Tyre compatibility: Tubeless-ready clincher or standard clincher
- Wheel size: 700c
- Rim: Full carbon
- Rim profile: AERO+
- Rim finish: Naked carbon with waterslide decals
- Rim depth: 62mm
- Internal rim width: 20mm
- Rim internal format: Hooked
- External rim width: 27mm
- Spokes: DT Aero Comp II T-head
- Spoke count: 24
- Spoke lacing pattern: Two-cross
- Hub: DT Swiss 180 disc brake with EXP 36 freehub
- Bearings: Ceramic
- Freehub compatibility: Shimano HG/SRAM Road 11-speed (SRAM XDR Road freehub body included as a spare)
- Brake compatibility: Disc Center Lock
- Axle: 12mm x 142mm thru-axle compatible
- Recommended tyre size: 23mm and above
- Maximum tyre pressure: Depends on tyre type and width - please refer to the user guide
- Maximum recommended system weight: 110kg (including rider, bike and any luggage)
- Manufacturer claimed weight: 900 grams
