Product Details

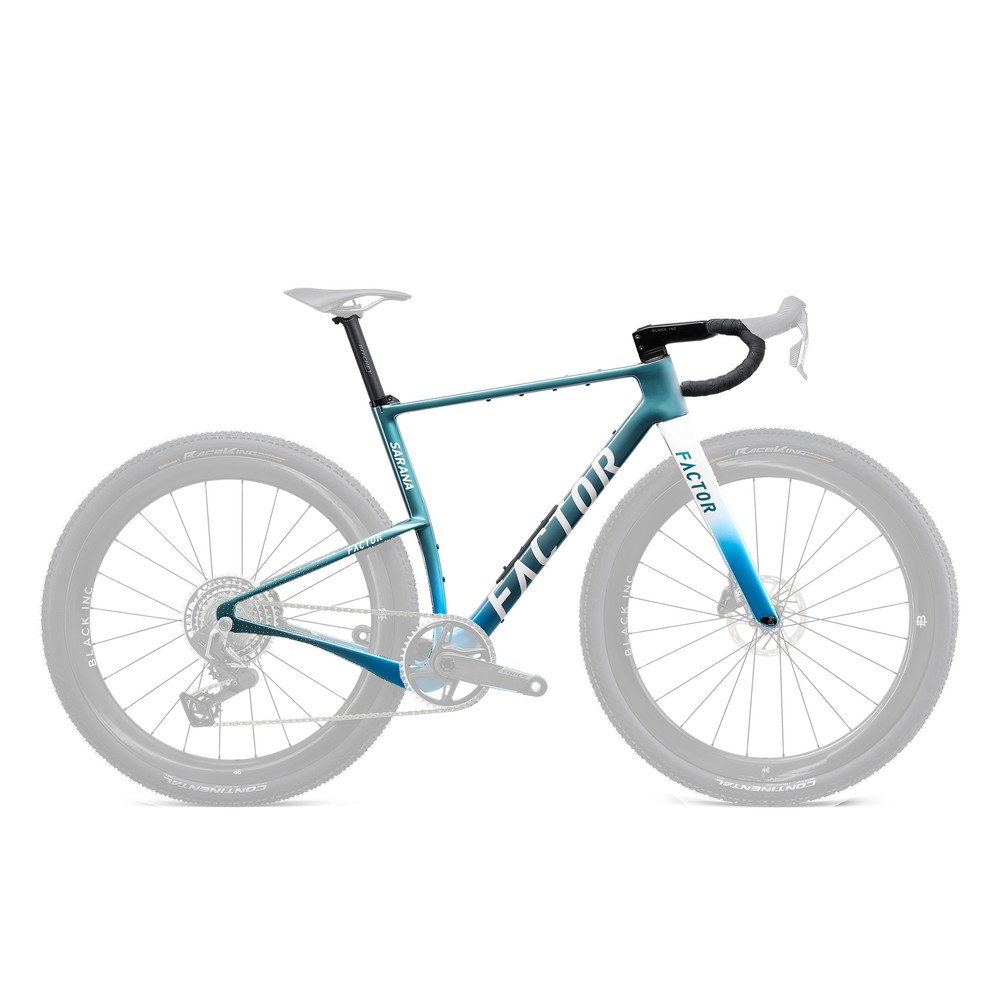

Factor Sarana Gravel Frameset

Engineered for riders who demand speed, versatility, and uncompromised storage, the Factor Sarana Gravel Frameset represents a bold leap forward in endurance design. Built from a full carbon monocoque structure with a directional carbon lay-up, this frame balances extreme lateral stiffness with tuned in-plane compliance. The oversized down tube acts as the structural backbone, combining aerodynamic efficiency with a cavernous internal storage bay complete with an integrated AirTag recess. Designed around modern gravel demands, it features clearance for massive 29 by 2.2 inch tyres and utilises a dependable T47a bottom bracket. Every detail, from the universal derailleur hanger compatibility to the dropper-post ready 30.9 millimetre seatpost diameter, ensures you are equipped for high-speed racing or long-haul backcountry expeditions.

Vibration Damping and Race Geometry

Performance on unpaved terrain relies heavily on control and power transfer, and the Sarana delivers exceptional responsiveness through its race-proven geometry and leaf-spring rear stays. Featuring a balanced 71.5 degree head angle, short 425 millimetre chainstays, and a low 80 millimetre bottom-bracket drop, the frame maintains a low centre of gravity for predictable, sharp handling at high speeds. The dropped seat stays and offset seat tube act together to absorb trail chatter and damp vibrations by up to 18 percent compared to traditional endurance framesets. Power is channelled efficiently to the rear wheel through high-modulus carbon fibres in the bottom bracket and chainstays, ensuring zero power loss when sprinting out of corners or climbing steep gradients.

Drivetrain Integration and Frame Finish

Finished in a striking dual-texture matte and gloss style with metallic blue and gold accents, the Sarana offers the ultimate foundation for a high-performance 1x drivetrain setup. The frame natively accommodates chainrings up to 52 teeth alongside 160 or 180 millimetre disc rotors, providing the versatility needed to build a machine optimized for high-speed gravel efforts or multi-day endurance events. Carefully proportioned stack and reach figures support an aerodynamic, aggressive posture that remains comfortable across extended distances. Combined with robust frame stiffness tested through extensive simulation, this frameset delivers exceptional stability, clean integration, and speed on demanding terrain.

Features
  • Frame: Full carbon monocoque with directional lay-up tuned for lateral stiffness and in-plane compliance
  • Down Tube: Large-section aerodynamic storage system with integrated AirTag recess
  • Seat Stays: Leaf-spring shaping for controlled flex response
  • Seatpost: 30.9 mm dropper-compatible
  • Drivetrain: 1× only / UDH-compatible / max 52T chainring
  • Tyre Clearance: 29 × 2.2" (57 mm OD)
  • Bottom Bracket: T47a
  • Rotor Compatibility: 160 / 180 mm
  • Suspension Compatibility: Rigid
  • Finish: Dual-texture matte/gloss with metallic blue and gold colourways
  • Sizes: 49 / 52 / 54 / 56 / 58
Size Guide
Size495254565861
A. Stack (mm)530547565585605625
B. Reach (mm)377385393402412422
C. Head Tube Angle71.571.972727273
D. BB Drop (mm)808078787878
E. Trail (mm)64.461.861.261.261.261.2
F. Fork Rake/Offset (mm)505050505050
G. Chainstay Length (mm)420420420423425425
H. Wheelbase (mm)992.61002.51016.5103510531070
I. Standover (mm)749.5770793812833850.5
J. Seat Tube Length (mm)455480505525549565
K. Seat Tube Angle74.5747473.573.573.5
