Garmin Rally RS210 Dual Sided Power Meter Pedals

1956336 / 54293749793114

Product Details

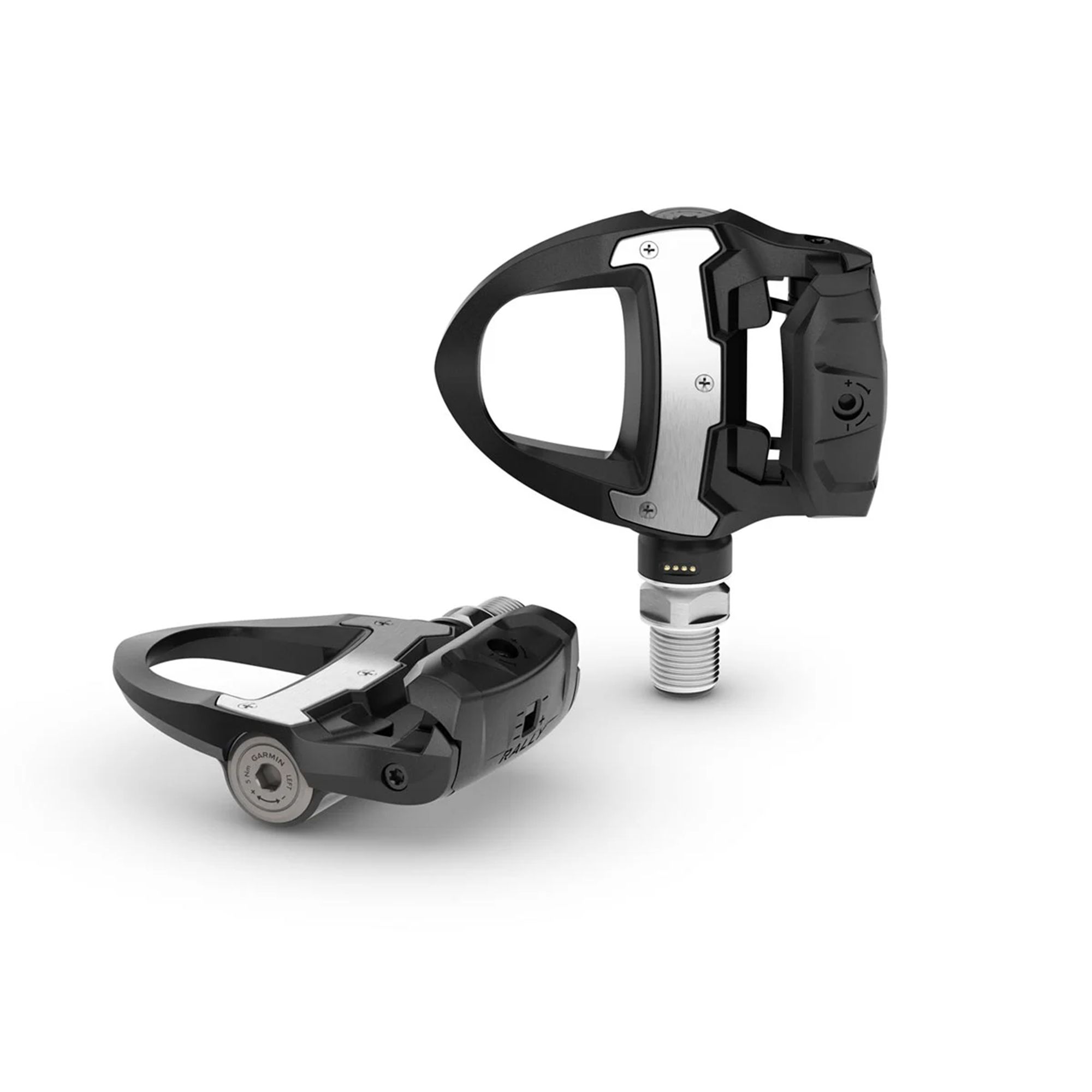

Garmin Rally RS210 Dual Power Meter Pedals

The Garmin Rally RS210 are dual-sensing power meter pedals that provide accurate power data and can be easily swapped between road and off-road pedal bodies. The removable power sensor allows quick transfer between compatible road and off-road pedal bodies, making it easy to use across multiple bikes.

Garmin's Quick Charging

These rechargeable pedals provide up to 90 hours of ride time, with quick charging for extended use with minimal downtime.

Highly Responsive and Accurate to Within +/- 1%

With a reimagined strain gauge and added gyroscope, the pedals deliver highly responsive and precise power measurements within +/- 1%.

Garmin Rally Advanced Cycling Dynamics

Riders can access detailed metrics on left versus right leg balance, power phases, and seated versus standing time to better understand and improve their training.

Garmin Rally Pedal IQ Smart Calibration

The Pedal IQ feature alerts riders when calibration is required, accounting for factors such as temperature changes since the last calibration when paired with compatible Garmin devices.

Garmin Cleat Compatibility

The pedals are compatible with Shimano SPD-SL cleats for road use.

In The Box

Rally RS210 pedal-based power meter
Two charging clips and charging cables
SHIMANO SPD-SL compatible cleats
Hardware
Documentation

Features

Weight: 312 g (11 oz)
Stack height: 12.2 mm (0.48″)
Adjustable release tension: Yes
Water rating: IPX7
Maximum rider weight: 105 kg (231.5 lbs)
Cleat Type: SHIMANO SPD-SL
Q-factor: 53 mm (55 mm with provided 2 mm washer)
Quick change pedal body: Compatible with all Rally 110/210 pedal bodies
Pedal body materials: Carbon material based design
Force data: Yes
Battery type: Rechargeable
Quick charge: 12 hours in 15 minutes of charging time (USB-C required)
Accuracy (+/-): 1%
Battery life: Up to 90 hours
Temperature compensation: Yes
Oval chainring compatible: Yes
Measurement location: Spindle
Field calibration: Yes
Communication: ANT+®, BLUETOOTH® and USB (USB-C compliant)
Pedal IQ™ Smart Calibration: Yes
Travel mode: Yes
Cycling Dynamics compatible: Yes
Garmin Connect™ compatible: Yes

Specifications

Compatibility (Device / Platform): ANT+, Bluetooth
Connectivity Type: ANT+, Bluetooth
Power Source Type: Rechargeable Battery
Primary Product Type (Electronics): Power Meter
Water Resistance Rating: IPX7
Accuracy Rating (%): 1 %
Battery Life (Typical Use, Hours): 90 hrs
Battery Type (Power Meter): Rechargeable
Cadence Measurement: Built-in
Charging Interface: Proprietary
Display Type: No Display
Firmware Upgradable: Yes
Measurement Position: Pedal
Measures Left / Right Balance: Yes
Mounting Location: Pedal
Weight (g): 312 g
Product code: 1956336 / 54293749793114
