Product Details

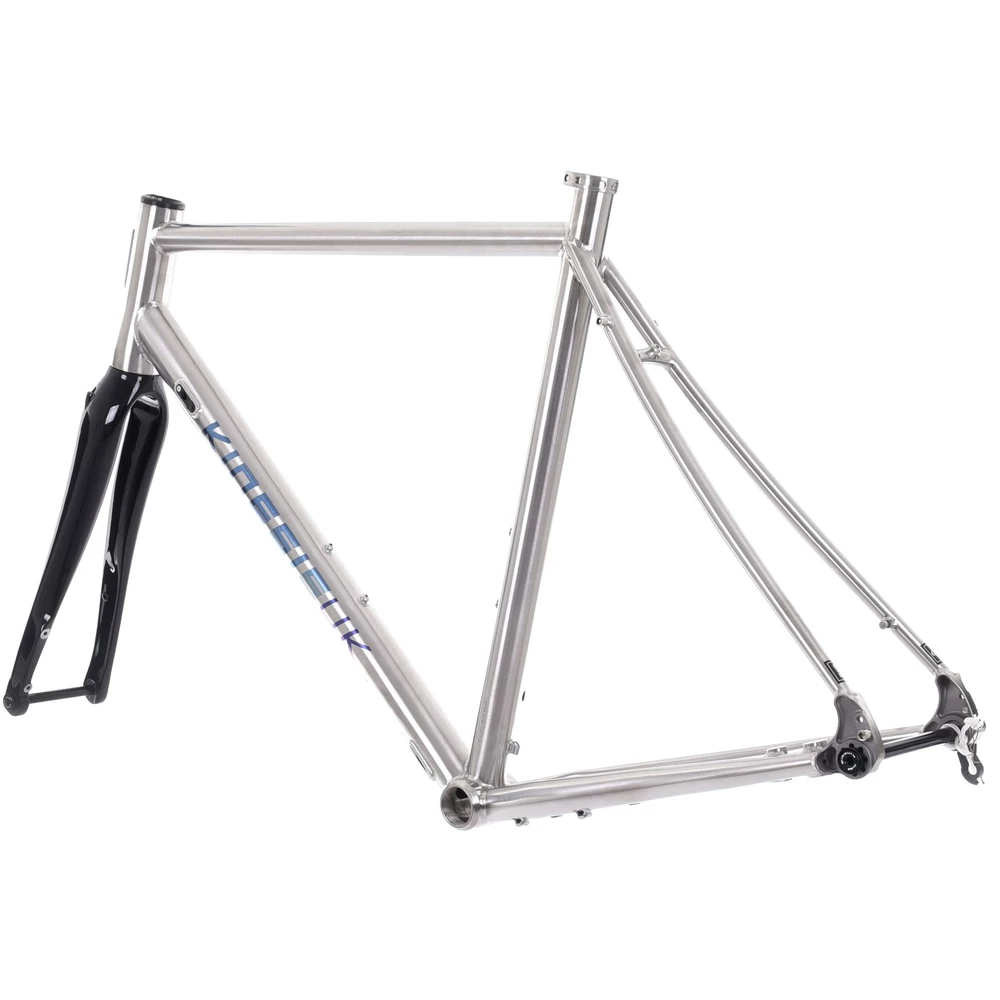

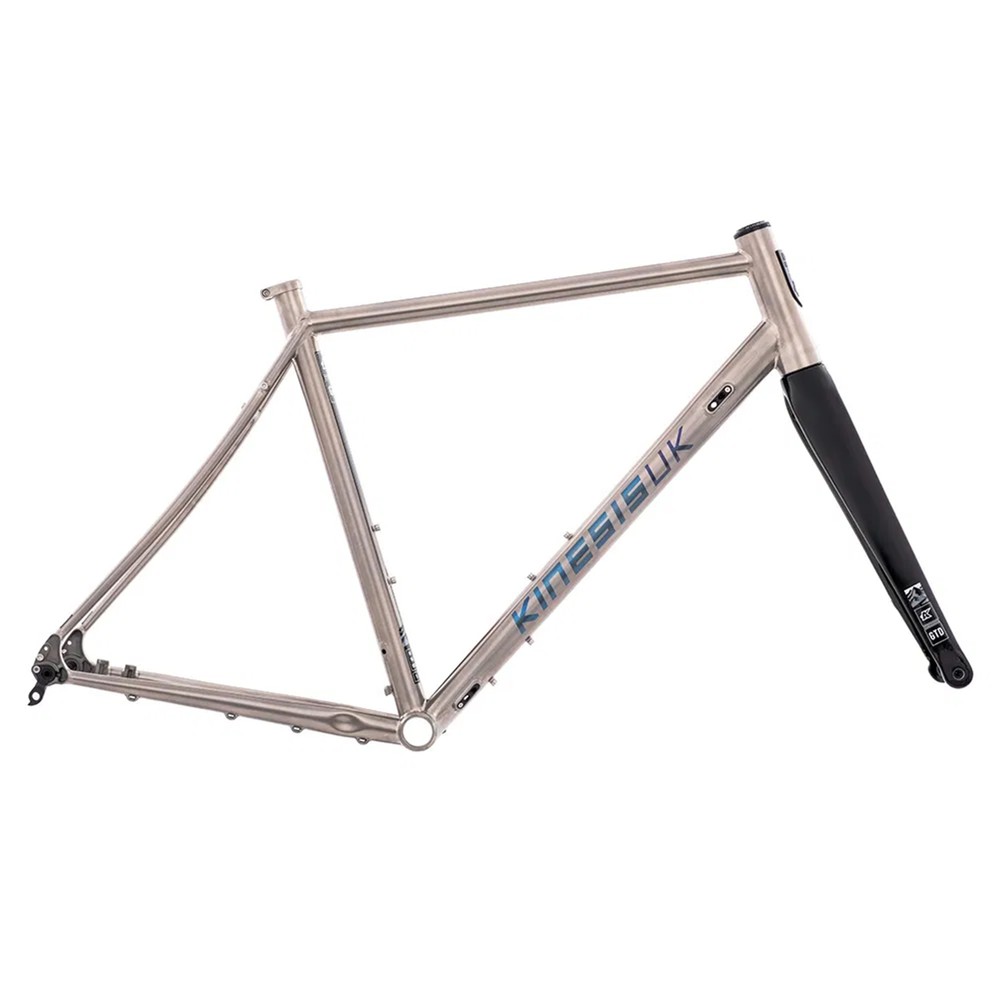

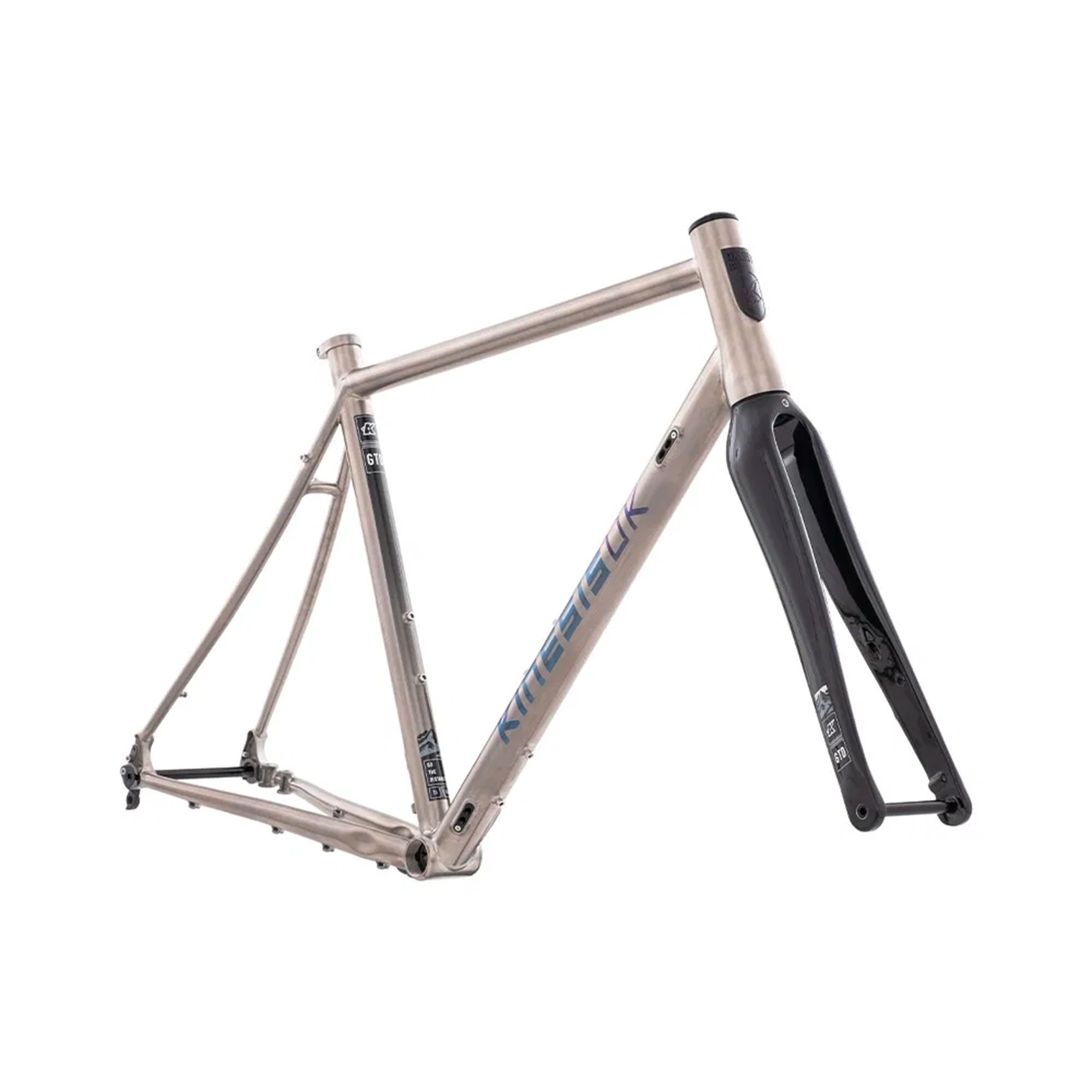

Kinesis GTD v2 Titanium Road Frameset

Built to deliver joy with every pedal stroke, the flagship Kinesis GTD v2 Titanium Road Frameset is a sublime choice for endurance road cycling. Renowned amongst enthusiasts for its impeccable ride quality, the GTD v2 is designed for all year riding thanks to revised cable routing which prevents ingress from water and dirt. The adaptable cable ports are versatile and can be set up for all major groupsets, and the 12mm thru-axle adds unbeatable stiffness under power.

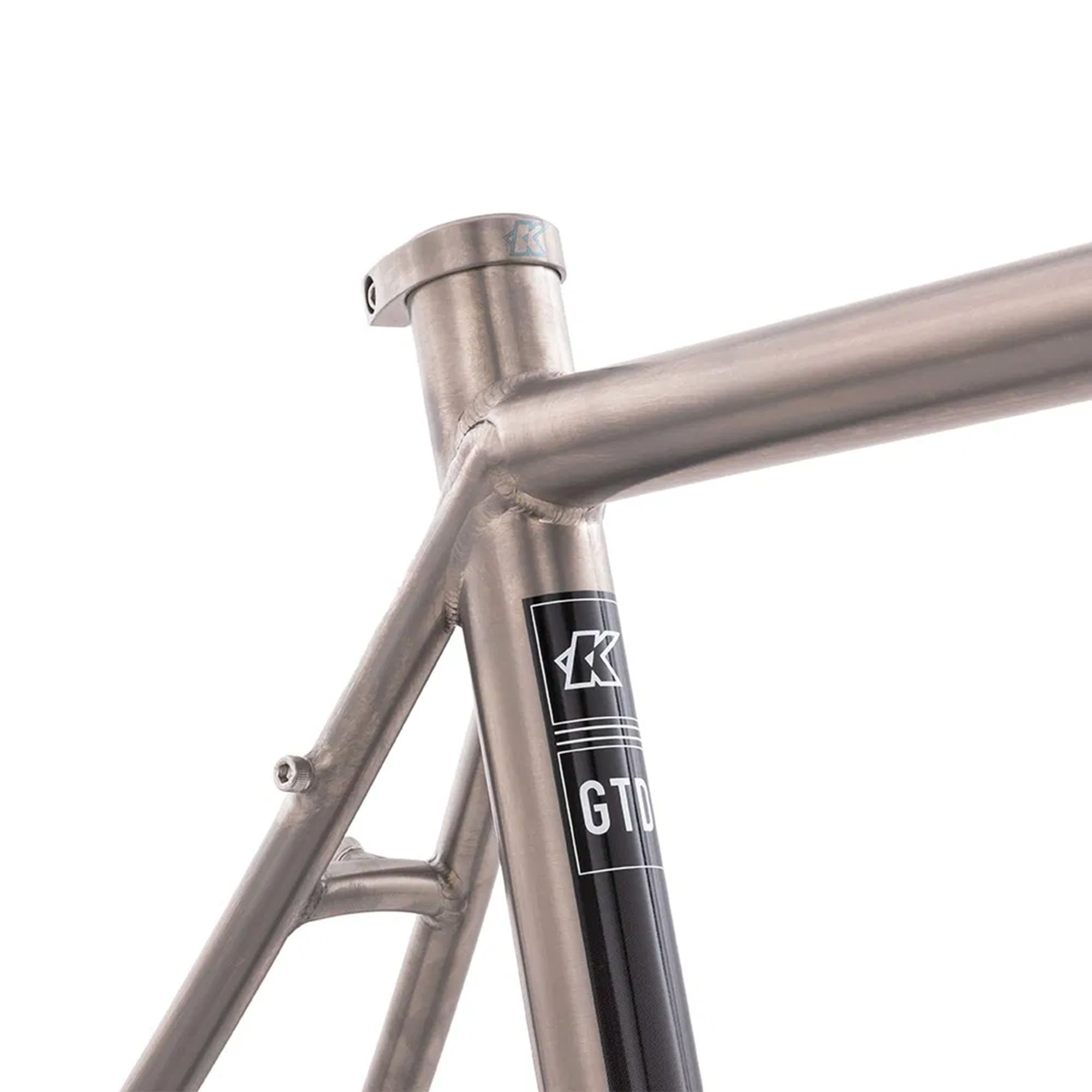

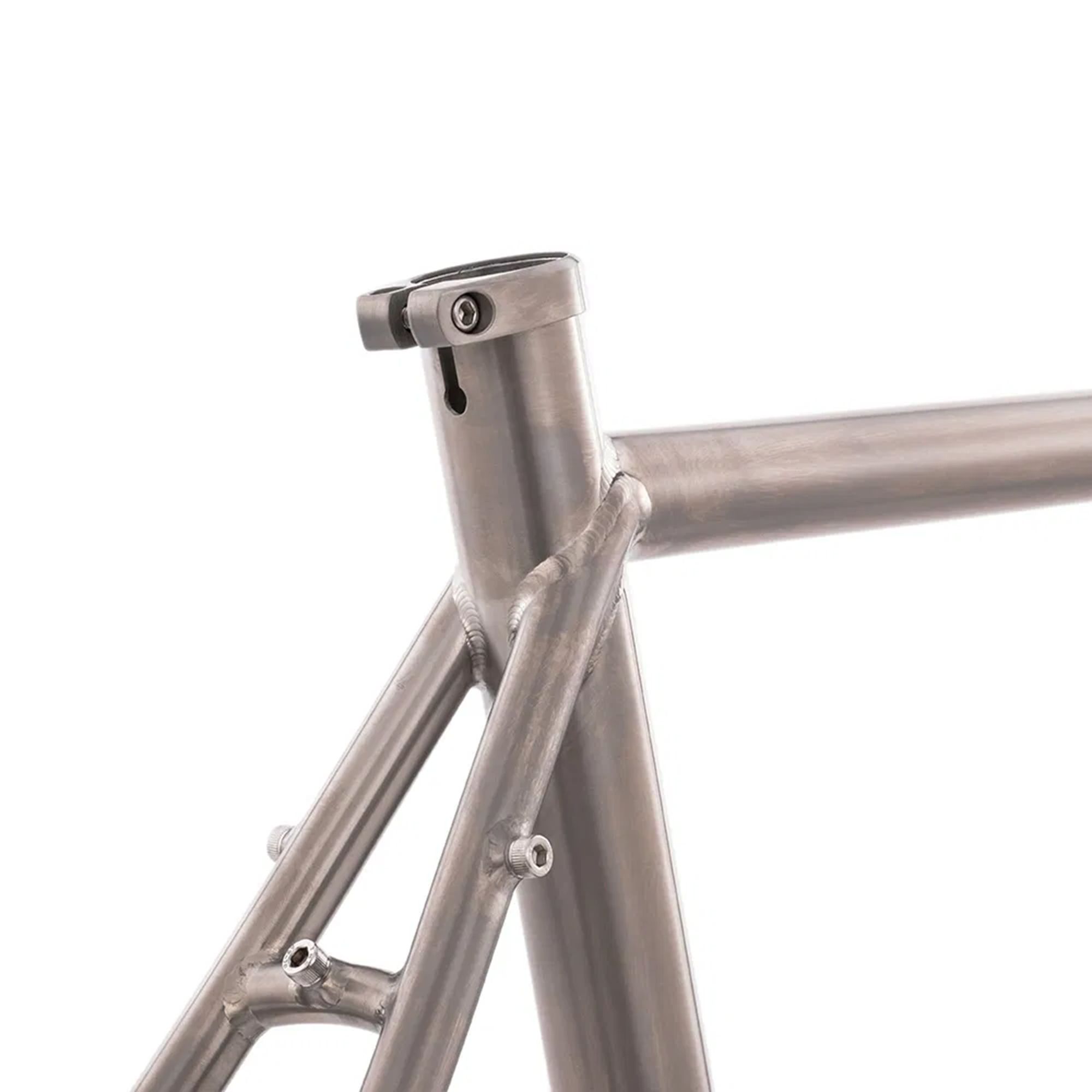

Built for the journey, the GTD v2 sees a host of mounting options for racks, mudguards and multiple bottle cages, ideal for all-season riding. Kinesis Rider Fit geometry sees comfort across all size ranges, with the smallest frame sizes seeing a sloped top tube to increase standover clearance. The natural compliance of titanium adds comfort, which is further enhanced by the use of curved seat stays to improve vibration damping. Straight chain stays promote stiffness, ideal for maximum power transfer on sprints and climbs.

Kinesis GTD v2 Highlights

  • Full titanium construction for a comfortable, compliant ride
  • Kinesis carbon thru-axle fork
  • Adaptable cable ports for all major groupsets
  • Kinesis Rider Fit Geometry for comfort across all sizes
  • Frame supplied with fork, headset, titanium seat clamp, front & rear thru-axle, frame ports and cable guide
Features

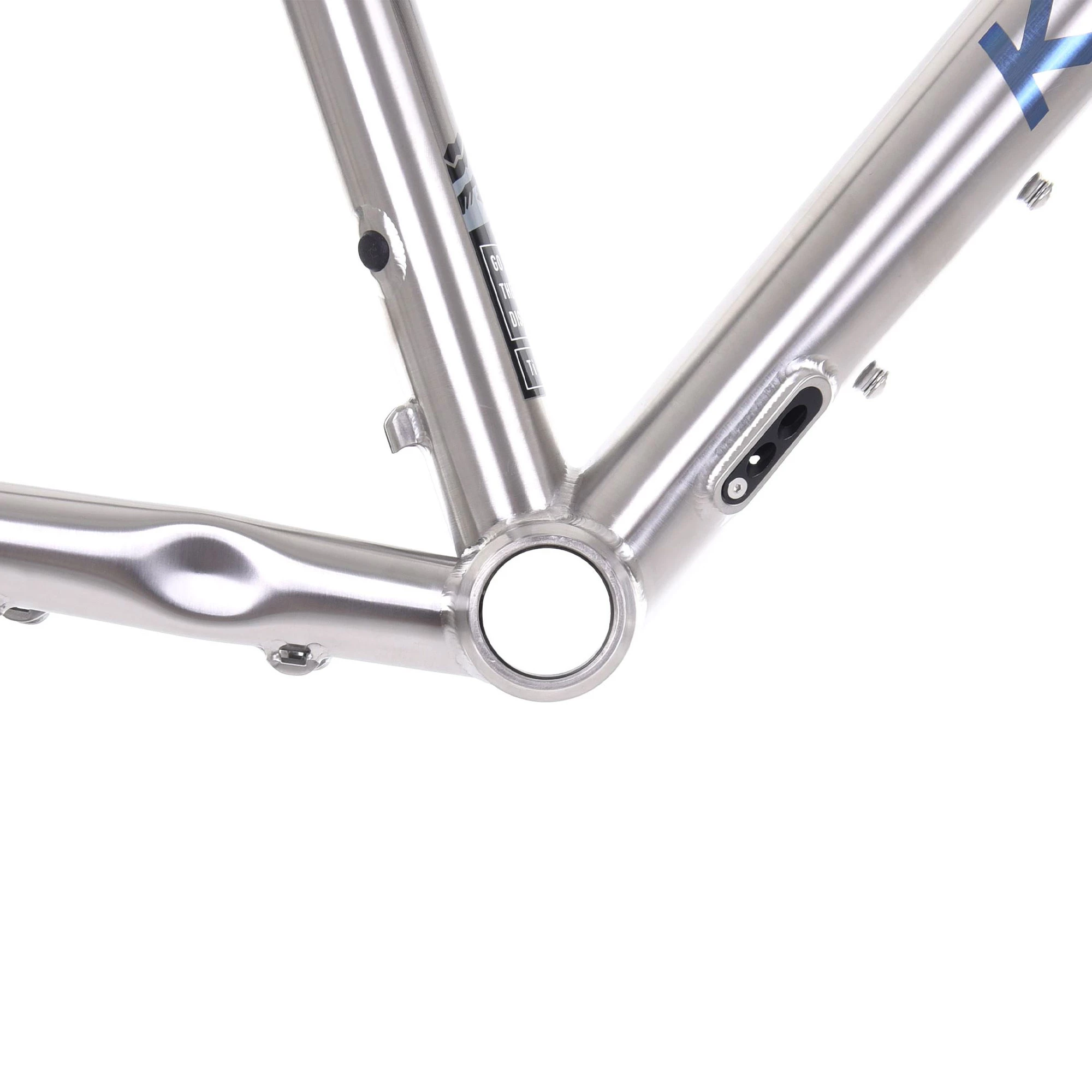

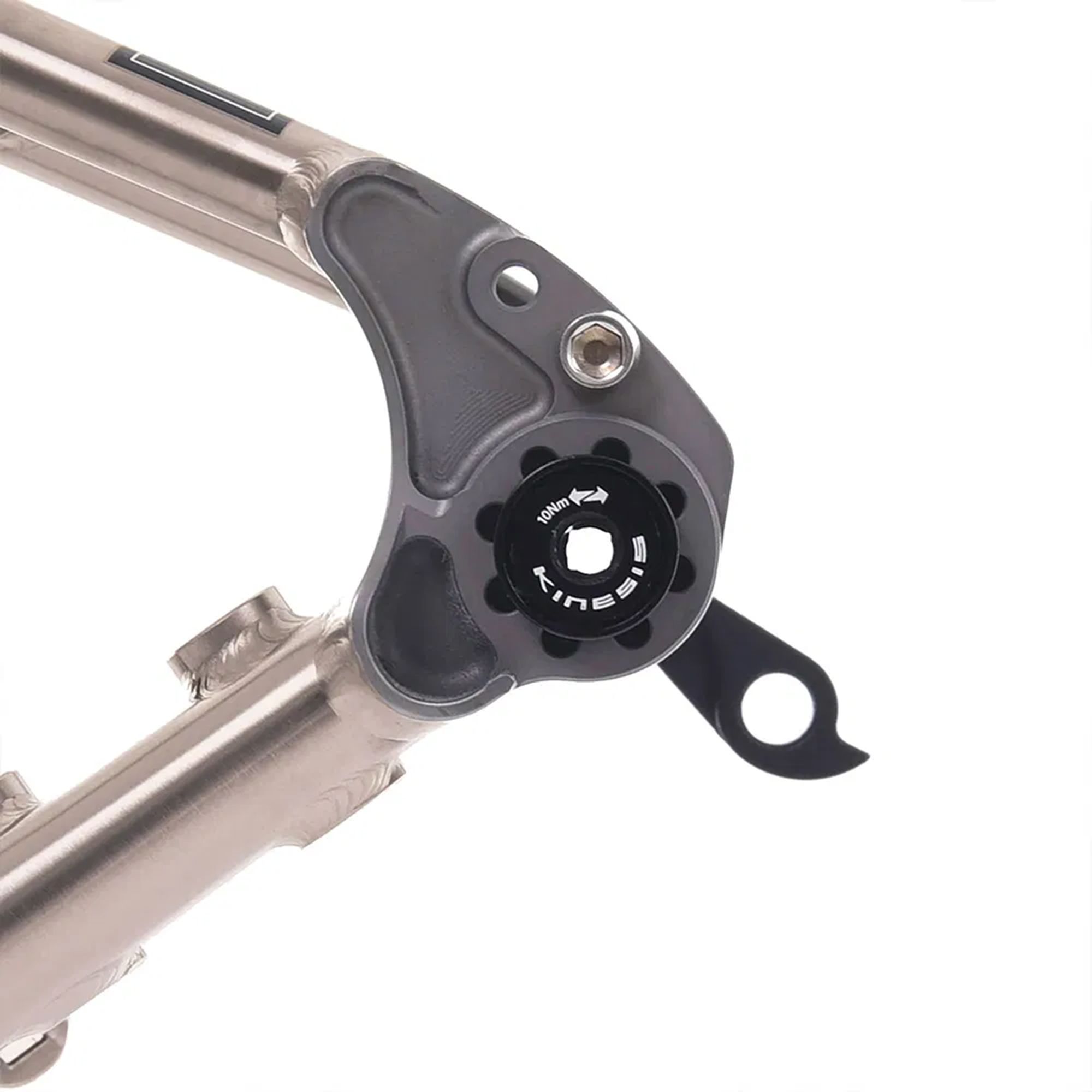

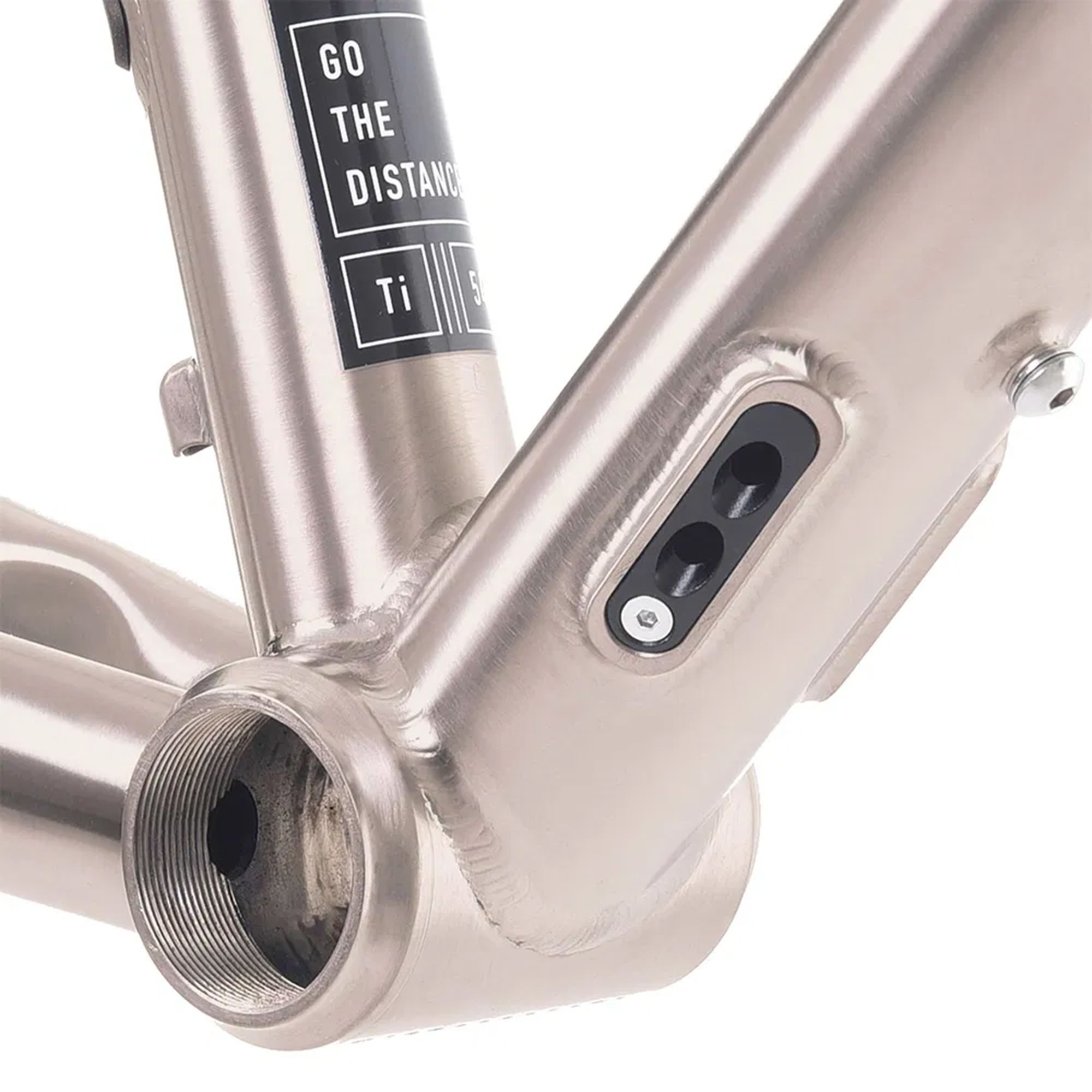

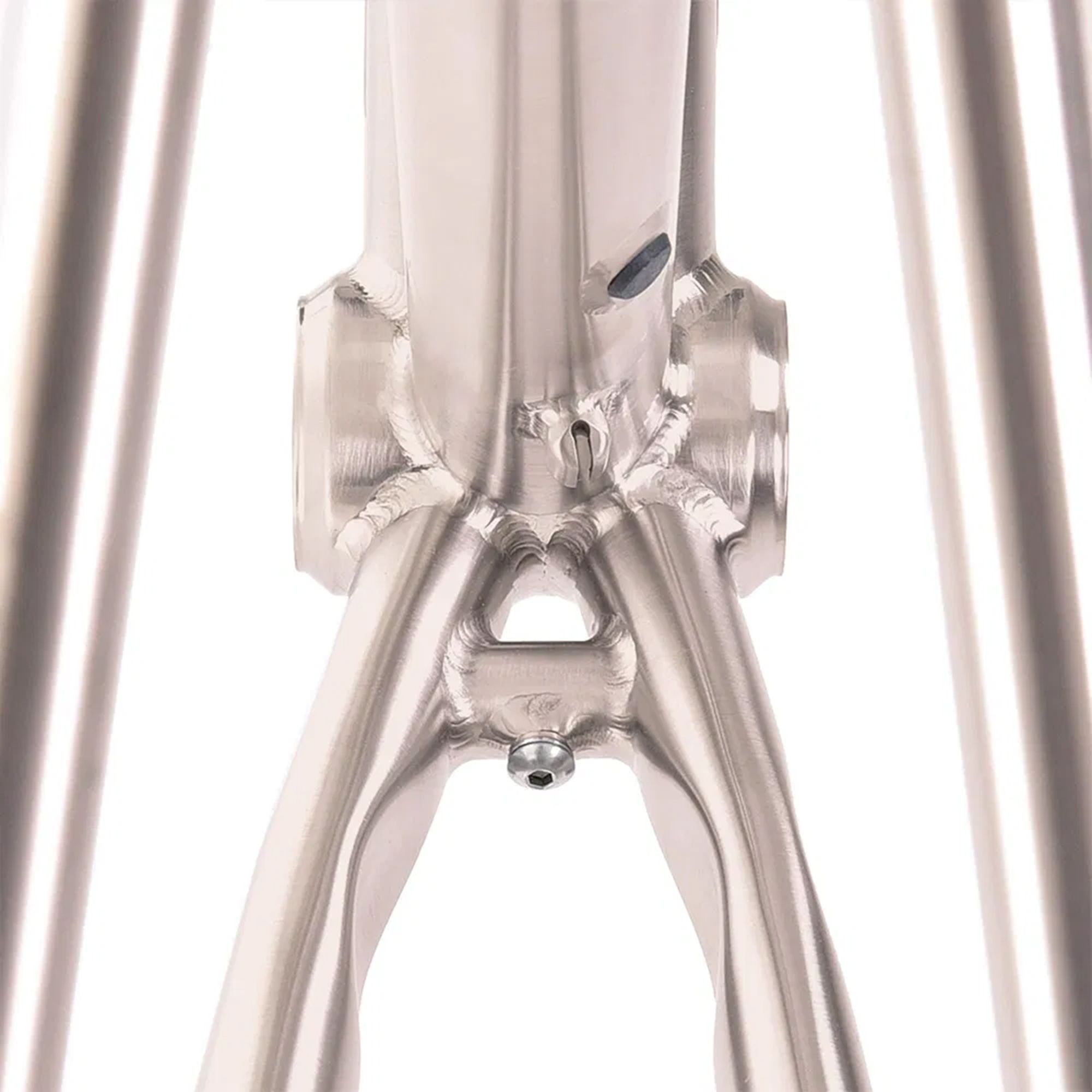

  • Frame: Kinesis custom drawn 3Al 2.5v titanium tubing, clearance for up to 34mm tyres, 142x12mm axle spacing, 68mm threaded bottom bracket, mudguard and rack mounts, compatible with mechanical and Di2 systems, 34.9mm front mech clamp, Flat mount specific calliper mount, 32mm long flat mount disc brake bolts required
  • Fork: Kinesis carbon monocoque disc tapered fork, 100x12mm

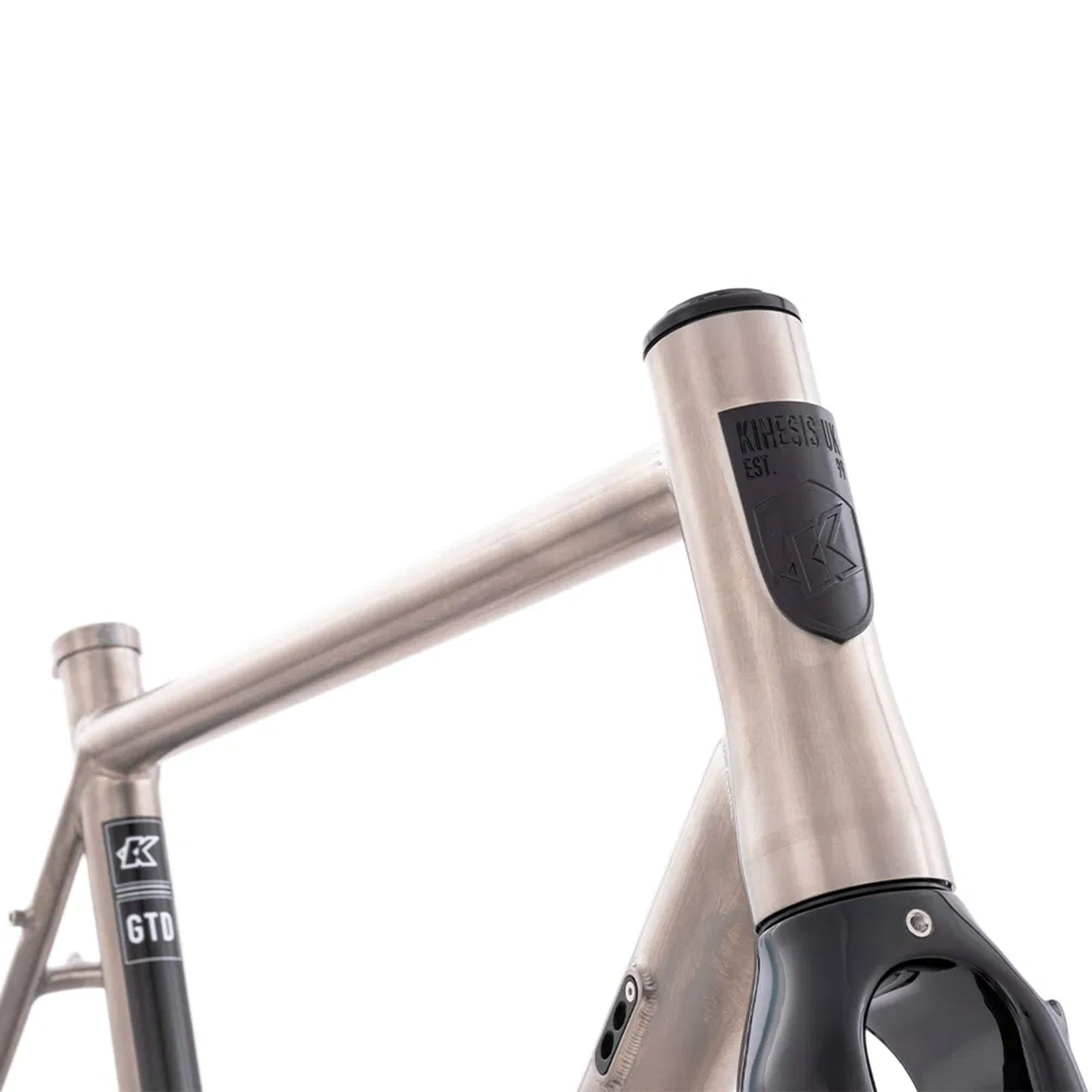

  • Headset: GW Tapered headset with ACB Bearings
  • Manufacturer claimed weight: 1.74kg (size medium)
Highlights
  • Full titanium construction for a comfortable, compliant ride
  • Kinesis carbon thru-axle fork
  • Adaptable cable ports for all major groupsets
  • Kinesis Rider Fit Geometry for comfort across all sizes
  • Frame supplied with fork, headset, titanium seat clamp, front & rear thru-axle, frame ports and cable guide
Specifications
Model
GTD v2 Titanium Road Frameset
Bottom Bracket Standard
BSA
Brakes [Kind]
Hydraulic Disc
Discipline Compatibility
Road, Commute
E-Bike
No
Family
GTD
Fenders Mounts
Yes
Fork [Axle Diameter]
12 mm
Fork [Axle Type]
Thru-Axle
Fork [Brake Type]
Disc
Fork [Maker]
Kinesis
Fork [Material]
Carbon
Fork [Model]
Kinesis Carbon Monocoque Disc Tapered
Fork [Rake]
47 mm
Fork [Wheel Size]
700c
Frame [Material]
Titanium
Frame [Tire Clearance]
34c mm
Frameset
Yes
Gearing [Kind]
Conventional
Gender
Unisex
Headset [Maker]
gw
Rack Mounts
Yes
Seatpost [Diameter]
31.6
Seatpost [Kind]
Rigid
Seatpost [Material]
Aluminium
Sub Family
GTD V2
Suspension Configuration
Rigid
Product code
1343113 / 54295761584474
Size Guide
Kinesis GTD v2 Size Guide

All measurements in mm unless otherwise stated.

Reviews
Rating 5 out of 5
5
Value of Product
5
Quality of Product
5
Rating 5 out of 5
RJS,
Verified purchaser

Great discount, top Ti frame from Kinesis- arrived hassle free and v quickly. Delighted with frame, build and ride

Rating 5 out of 5
Doo,
Verified purchaser

So happy with this frame - light, soaks up buzz and looks super flash. Lots of mount options. Amazing

Shipping & Returns

Free UK delivery on orders over £50. Orders are dispatched within 1-2 working days and typically arrive 1-2 working days later.

Return unused items in their original packaging within 30 days of delivery. Return postage is £3.50.

Payment & deliveryReturns & exchanges
Q & A

6 questions answered

  1. Is it possible to fit rim brakes, rather than disc brakes, to this frame?

    Asked by Andrew (London) —

    1. Hi Andrew, This is a Disc only Frame, Many thanks Joe W

      Joe W

  2. How do I purchase this frame on the cycle scheme?

    Asked by Steven M (London) —

    1. Hi Steve, You will need to contact the Customer Care Team to process this, Many thanks Joe W

      Joe W

  3. I am interested in the frame but wondered if I could come and try it for size? I'm 169cm tall (female), based on the size guide should be small. However, the XS dimensions seem to be more in line with my current frame and concerned the reach is too long

    Asked by embike123 (Sheffield) —

    1. Hi there, Please contact the store you would like to visit directly so they can move this forward for you, https://www.sigmasports.com/stores Many thanks Joe W

      Joe W
