A beautifully designed bike from the legendary Italian marque. I went for the F5 because I’d hired one for a week in Italy and loved the lightness on climbs, the handling around corners, the surefootedness on descents and the comfort over rougher terrain. I also like the blue matt finish. Dogma is way out of my price range and, frankly, ability, but I did consider the F7, which is slightly lighter than the F5 and has higher spec components. Eventually I felt that the extra cost of servicing and replacement parts on the F7 was not worth the extra few grammes. There are plenty of weight-saving options for my F5 if I choose to upgrade. As delivered, though, the bike is as light, stiff and slippery as I’d hoped. I love it. Also, kudos to Sigma, who spent several hours with me on the jig before confirming the ideal frame size. They also swapped out the stem at no cost, and threw in a Wahoo mount, bottle cages and pedals. Five star service.
Product Details

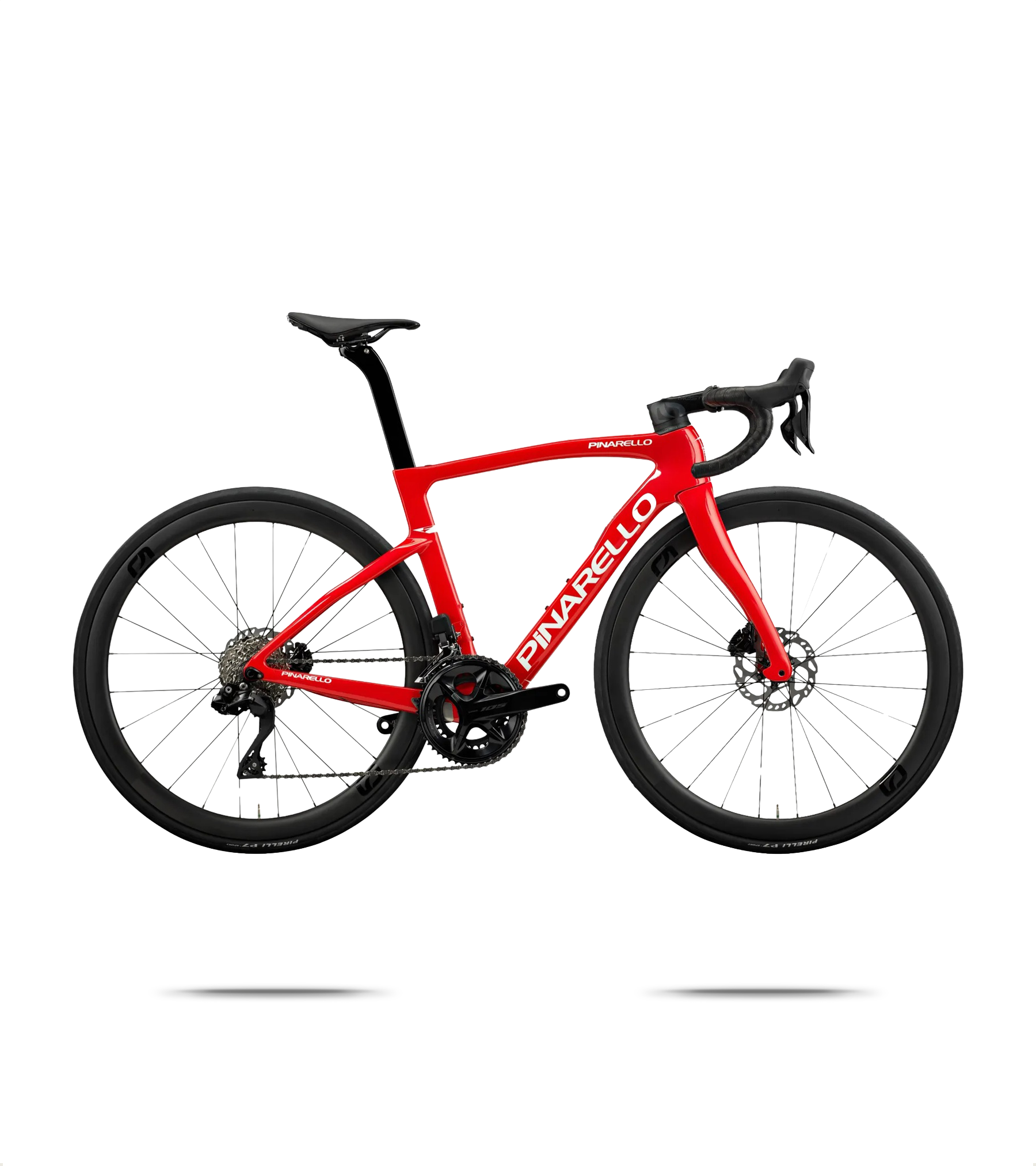

Pinarello F5 105 Di2 Disc Carbon Road Bike
The Pinarello F5 105 Di2 Disc Road Bike is a race bike that borrows much from the top-end Dogma F, but makes it a little more accessible in terms of price. Delivering versatile performance, this bike is as capable in the mountains as it is on fast flats and technical descents. Constructed from T700 carbon, the frame achieves a good balance of a stiff, responsive ride, compliance and vibration absorption. Carbon Reinforced Polymer (CFRP) optimises the frame to ensure it's stiff and strong exactly where required.
The racing geometry is based on that of the Dogma F, and many of the aerodynamic features have been brought across too, including the Flatback truncated airfoil tube profiles, the aero seatpost and TiCr full cable integration, while asymmetric chainstays improve lateral stiffness and enhance the handling. Pinarello has introduced a newly designed seat clamp that's hidden, compact, aero and lightweight. Additionally, an asymmetric seatstay design provides better balance and creates a lively ride feel.
The 'Made4you' concept has been applied to this Pinarello F meaning that every rider, regardless of height, will get the same feel and performance. Handlebar width, stem length and crank length are all frame size specific, making it easier to dial in the bike perfectly.
Shimano's latest groupset in the electronic line-up; 105 Di2, brings performance at better value, and is the perfect complement to this build. A wide gear range and smooth, precise shifting is paired with powerful hydraulic braking that's effective in all conditions. Fulcrum 800 wheels are fiitted with Pirelli P7 Sport clincher tyres for good traction, fast rolling and puncture protection.
Highlights
- T700 carbon frame and carbon ONDA fork
- Racing geometry
- Think 2 design, to fit electronical or mechanical group sets on the same frame
- TiCR internal cable routing
- 30mm tyre clearance
- The frame is compatible with 12mmx100mm through axle on the front and 12mmx142mm axle on the rear
- Shimano 105 Di2 2x12-speed drivetrain and hydraulic disc brakes
- Fulcrum 800 tubeless-ready wheels and Pirelli P7 Sport clincher tyres
Features
- Frame: Pinarello Torayca T700 UD, TiCR™ internal cable routing, Italian BB, UCI approved
- Fork: Pinarello ONDA carbon
- Stem: MOST Tiger aluminium aero TiCR
- Handlebar: MOST Jaguar aero XA TiCR
- Bar Tape: MOST
- Brakes: Shimano 105 7170 hydraulic disc, 160mm rotors
- Brake Levers: Shimano 105 Di2 7170, hydraulic disc
- Front Derailleur: Shimano 105 Di2 7150, braze-on
- Rear Derailleur: Shimano 105 Di2 7150, 12-speed
- Shift Levers: Shimano 105 Di2 7170, hydraulic disc, 12-speed
- Chain: Shimano 105 7100, 12-speed
- Cassette: Shimano 105 7100, 12-speed, 11-34t, 12-speed
- Crankset: Shimano 105 7100, BSA, 50/34
- Wheels: Fulcrum 800 disc brake, 700c, 28h, tubeless-ready clincher
- Tyres: Pirelli P7 Sport, clincher
- Saddle: MOST Lynx Ultra Superflow
- Seatpost: Pinarello F, full carbon, aerodynamic design, with hidden, frontal seat clamp
- Pedals: Available to be purchased separately
- Manufacturer Claimed Weight: Frame - 995 grams / 520 grams (51.5cm)
Highlights
- T700 carbon frame
- Carbon ONDA fork
- Shimano 105 Di2 2x12-speed drivetrain and hydraulic disc brakes
- Fulcrum 800 tubeless-ready wheels and Pirelli P7 Sport clincher tyres
- 30mm tyre clearance
Specifications
- Model
- F5 105 Di2
- Battery [Maker]
- Shimano
- Bottom Bracket Standard
- Italian
- Brakes [Kind]
- Hydraulic Disc
- Brakes [Maker]
- Shimano
- Brakes [Model]
- 105 7170
- Cassette [Gearing]
- 11-34
- Cassette [Maker]
- Shimano
- Cassette [Model]
- 105 7100
- Chain [Maker]
- Shimano
- Chain [Model]
- 105 7100
- Chainring [Gearing]
- 50/34
- Crank [Maker]
- Shimano
- Crank [Model]
- 105 7100
- E-Bike
- No
- Family
- F5
- FD [Maker]
- Shimano
- FD [Model]
- 105 Di2 7150
- Fenders Mounts
- No
- Fork [Axle Type]
- 12x100mm Thru-Axle
- Fork [Brake Type]
- Disc
- Fork [Maker]
- Pinarello
- Fork [Material]
- Carbon
- Fork [Model]
- ONDA
- Fork [Wheel Size]
- 700c
- Frame [Material]
- Carbon
- Frameset
- No
- Gearing [Configuration]
- 2x
- Gearing [Kind]
- Conventional
- Gender
- Unisex
- Handlebar [Kind]
- Drop
- Handlebar [Maker]
- MOST
- Rack Mounts
- No
- RD [Maker]
- Shimano
- RD [Model]
- 105 Di2 7150
- Saddle [Maker]
- MOST
- Seatpost [Kind]
- Rigid
- Seatpost [Maker]
- Pinarello
- Seatpost [Material]
- Carbon
- Shifters [Maker]
- Shimano
- Shifters [Model]
- 105 Di2 7170
- Shifting
- Electronic
- Stem [Maker]
- MOST
- Stem [Material]
- Aluminium
- Suspension Configuration
- Rigid
- Tires [Maker]
- Pirelli
- Wheels [Configuration]
- Front+Rear
- Wheels [Kinds]
- Tubeless Ready, Clincher
- Wheelset [Maker]
- Fulcrum
- Wheelset [Material]
- Aluminium
- Wheelset [Model]
- 800
- Product code
- 1756687 / 55083958600026
Size Guide
| Size | 43 | 46.5 | 50 | 51.5 | 53 | 54 | 55 | 56 | 57.5 | 59.5 | 62 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rider Height (ft. in.) | 4'10" - 5'3" | 5'4' - 5'5" | 5'5" - 5'7" | 57" - 5'8" | 5'8 - 5'9" | 5'9" - 5'10" | 5'10" - 5'10" | 5'10" - 6'0" | 6'0" - 6'1" | 6'1" - 6'4" | 6'4" - 7'0" |
| Seat Tube (ctr-top) | 430 | 465 | 500 | 515 | 530 | 540 | 550 | 560 | 575 | 595 | 620 |
| Seat Tube (ctr-ctr) | 425 | 450 | 465 | 485 | 500 | 510 | 520 | 525 | 540 | 560 | 600 |
| Effective Top Tube | 500 | 515 | 525 | 535 | 545 | 550 | 557 | 565 | 575 | 587 | 620 |
| Actual Top Tube | - | - | - | - | - | - | - | - | - | - | - |
| Seat Angle (°) | 74.4 | 74.4 | 74 | 73.7 | 73.7 | 73.4 | 73.4 | 73 | 73 | 72.4 | 72 |
| Head Tube Angle (°) | 69.5 | 70.5 | 71.4 | 72 | 72.5 | 72.8 | 72.8 | 73.2 | 73.7 | 73.4 | 73.4 |
| Head Tube Length | 97 | 104 | 109 | 114 | 123 | 131 | 142 | 149.5 | 163 | 199 | 239 |
| Fork Rake | 43 | 43 | 43 | 43 | 43 | 43 | 43 | 43 | 43 | 43 | 43 |
| Chainstay Length | 406 | 406 | 406 | 406 | 406 | 408 | 408 | 408 | 408 | 408 | 411 |
| Wheelbase | - | - | - | - | - | - | - | - | - | - | - |
| Stack | 502.4 | 517.6 | 525.4 | 532.3 | 542.6 | 551.2 | 561.6 | 570.2 | 584.8 | 613.3 | 651.7 |
| Reach | 351.4 | 364.8 | 372.1 | 378 | 383.3 | 385 | 388.8 | 390.7 | 396.7 | 393.3 | 410.1 |
*All measurements in mm unless otherwise stated.
Reviews
Shipping & Returns
Free UK delivery on orders over £50. Orders are dispatched within 1-2 working days and typically arrive 1-2 working days later.
Return unused items in their original packaging within 30 days of delivery. Return postage is £3.50.
Q & A
3 questions answered
Are these delivered with the maximum number of spacers fitted?
HI there, Yes these are, Many thanks Joe W
Hi there, Yes, the F5 ships with the full Pinarello spacer stack, so you've got the maximum stem height to start with. All Pinarellos go out on our Premium Delivery service, so a qualified mechanic does the handover at your door and can drop the stem to height on the day. If you'd like a specific stack height set before delivery, get in touch via https://www.sigmasports.com/contact-us with your order number. Many thanks, Matt B
what is the size of the stem in the size 46.5 please
Hi there, These are listed to come with a 90mm stem and 42cm bar but this can change depending on stock availability Many thanks Joe W
What size bar & stem comes with a size 56? Many thanks.
Hi there, Please contact the Customer Care Team on this and we can get this information from Pinarello directly for you, Many thanks Joe W
