So far, it has been faultless, the carbon cranks feel stiffer than the Ultegra 8000 cranks they replaced. The auto-calibrate feature makes for very easy to use. The spider is designed for Dura Ace 9100 chainrings so the tie-in isn't as slick with R8000 but its a small difference.
Product Details

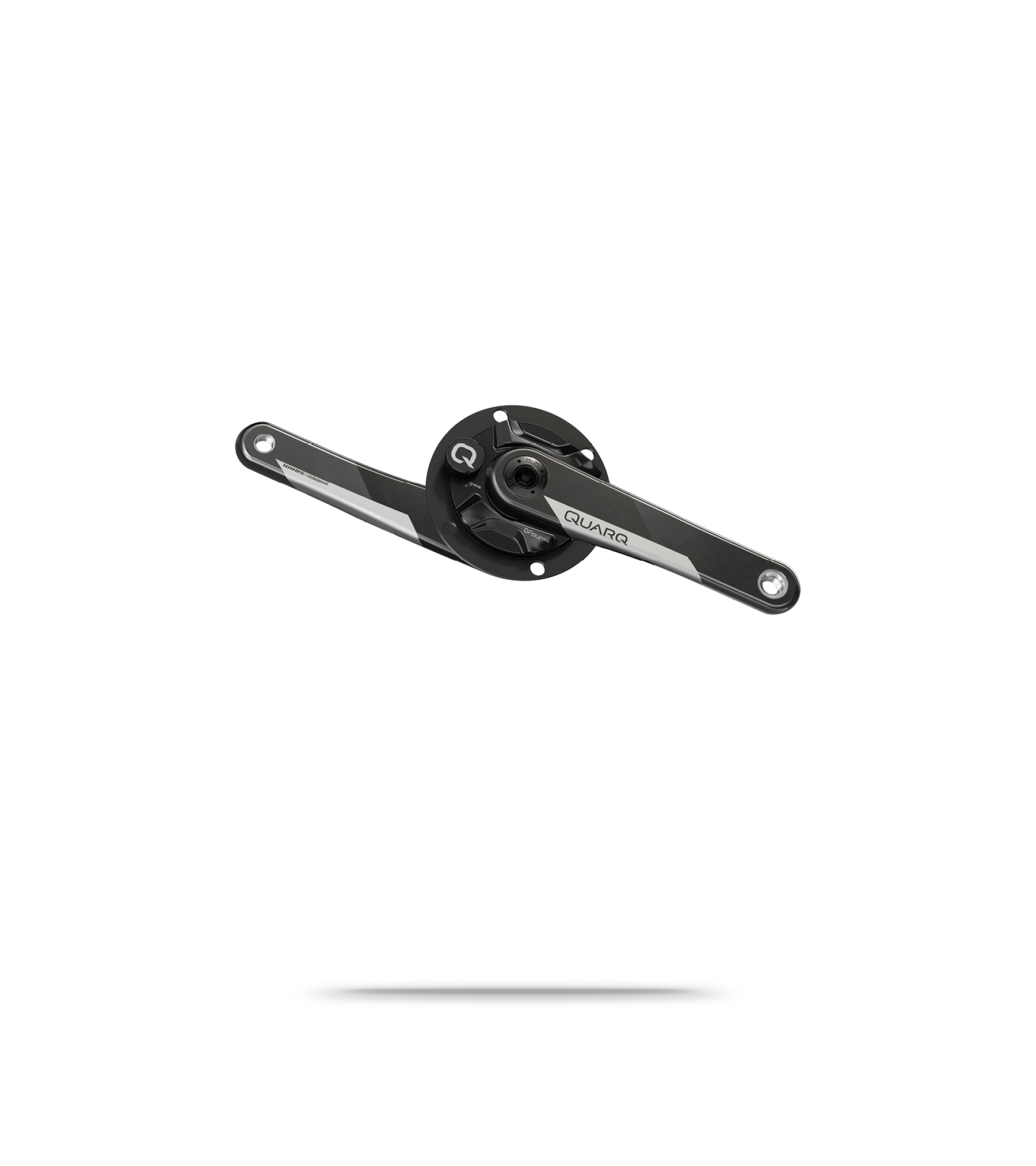

Quarq DFour DUB 110 BCD Road Power Meter Crankset
Quarq’s DFour DUB 110 BCD Road Power Meter Crankset offers power measurement accurate to within 1.5% and provides metrics for both legs for ultimate precision. The device is housed in the 110 BCD spider so chainrings can be switched without affecting the measurements, and there is no need to calibrate the device thanks to MagicZero technology which automatically performs checks and recalibrations. 10K temperature compensation takes account of climatic conditions which can have an effect on a power meter’s readings.
Data is sent using both Bluetooth low energy technology and ANT+ for compatibility for the majority of devices and the CR2032 battery gives up to 200 hours of riding. When a replacement battery is required, no tools are needed for the swap. The crankset is compatible with Shimano Dura-Ace R9100 or Ultegra R8000 chainrings and SRAM DUB bottom brackets, giving access to a wide range of ratios and quality components.
Features
- Bluetooth low energy technology and ANT+ wireless data transfer
- MagicZero - automatically checks and recalibrates power meter – no need to manually calibrate
- AxCad - no cadence magnet required
- 10K temperature compensation
- Battery - CR2032, 200-hour battery life, change without tools
- OmniCal - swap chainrings without affecting accuracy
- 2-year warranty
- IPX7 waterproof rating
- Accuracy - within 1.5%, measuring both legs
- Bolt Circle Diameter (BCD): 110 BCD
- Crank arm material: Carbon
- Colour (Crank arm): Natural carbon
- Power meter type: Spider
- Bottom bracket compatibility: SRAM road DUB
- Chainring compatibility: Dura-Ace R9100 or Ultegra R8000 chainrings
Specifications
- Compatibility (Device / Platform)
- ANT+, Bluetooth
- Connectivity Type
- Bluetooth, ANT+
- Power Source Type
- Disposable Battery
- Primary Product Type (Electronics)
- Power Meter
- Water Resistance Rating
- IPX7
- Accuracy Rating (%)
- 1.5 %
- Battery Life (Typical Use, Hours)
- 200 hrs
- Battery Type (Power Meter)
- CR2032
- Cadence Measurement
- Built-in
- Discipline Compatibility
- Road, Triathlon, TT
- Display Type
- No Display
- Firmware Upgradable
- Yes
- Measurement Position
- Spider
- Measures Left / Right Balance
- Yes
- Mounting Location
- Crankset
- Product code
- 1406408 / 54295650795866
Reviews
Easy ordering process and quick delivery - thanks!
Shipping & Returns
Free UK delivery on orders over £50. Orders are dispatched within 1-2 working days and typically arrive 1-2 working days later.
Return unused items in their original packaging within 30 days of delivery. Return postage is £3.50.
Q & A
9 questions answered
Is it possible to run this with a GRX 40t 1x ring?
Hi there, No this will not work, Many thanks Joe W
Can I use this in my existing BB30 Bottom bracket
Hi there, This will depend if you have a BB30/DUB BB or not. Many thanks Joe W
Is this compatible with 12 speed Ultegra?
Hi Andy. At this time Quarq have said this will only work with the 11 speed rings, Many thanks Joe W
