Product Details

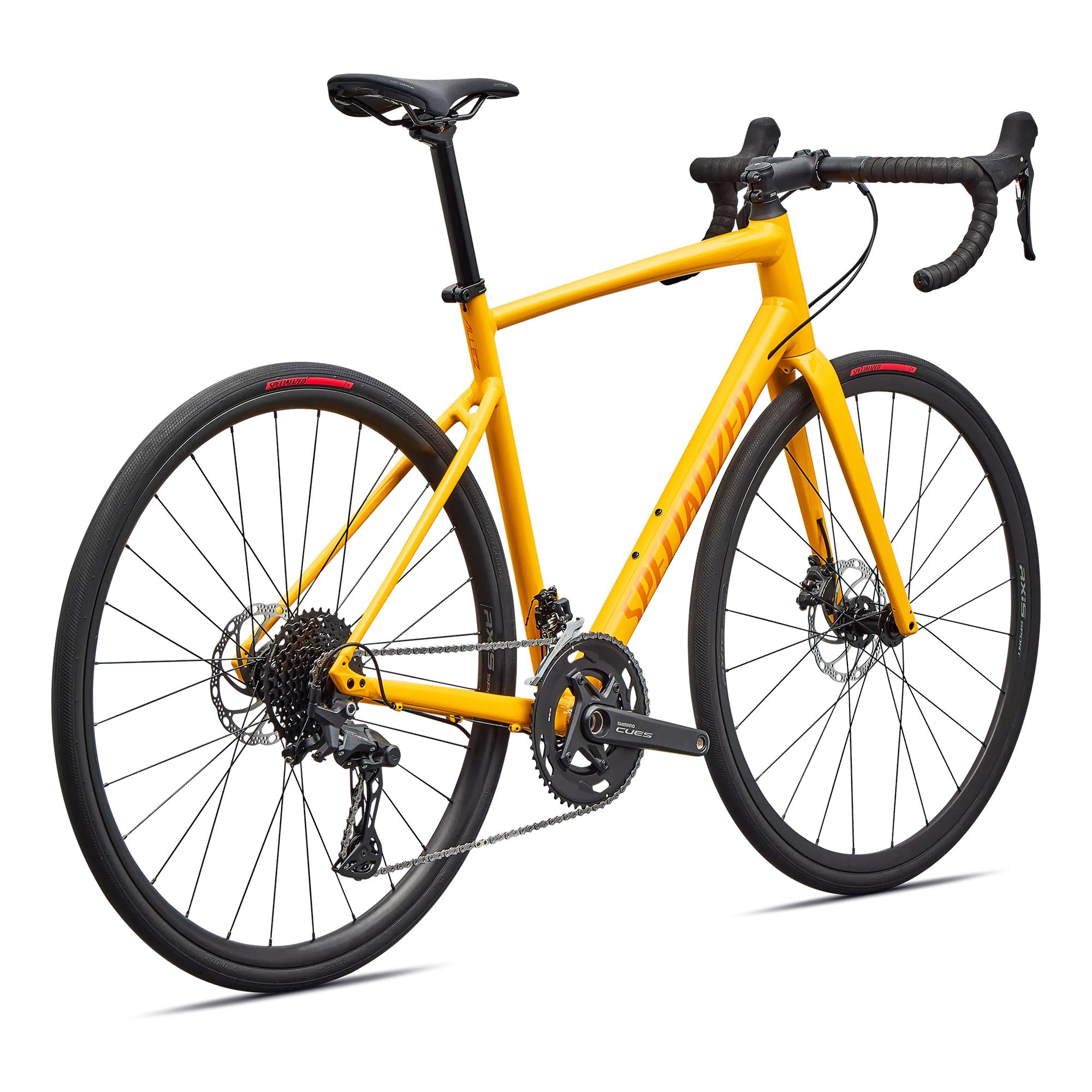

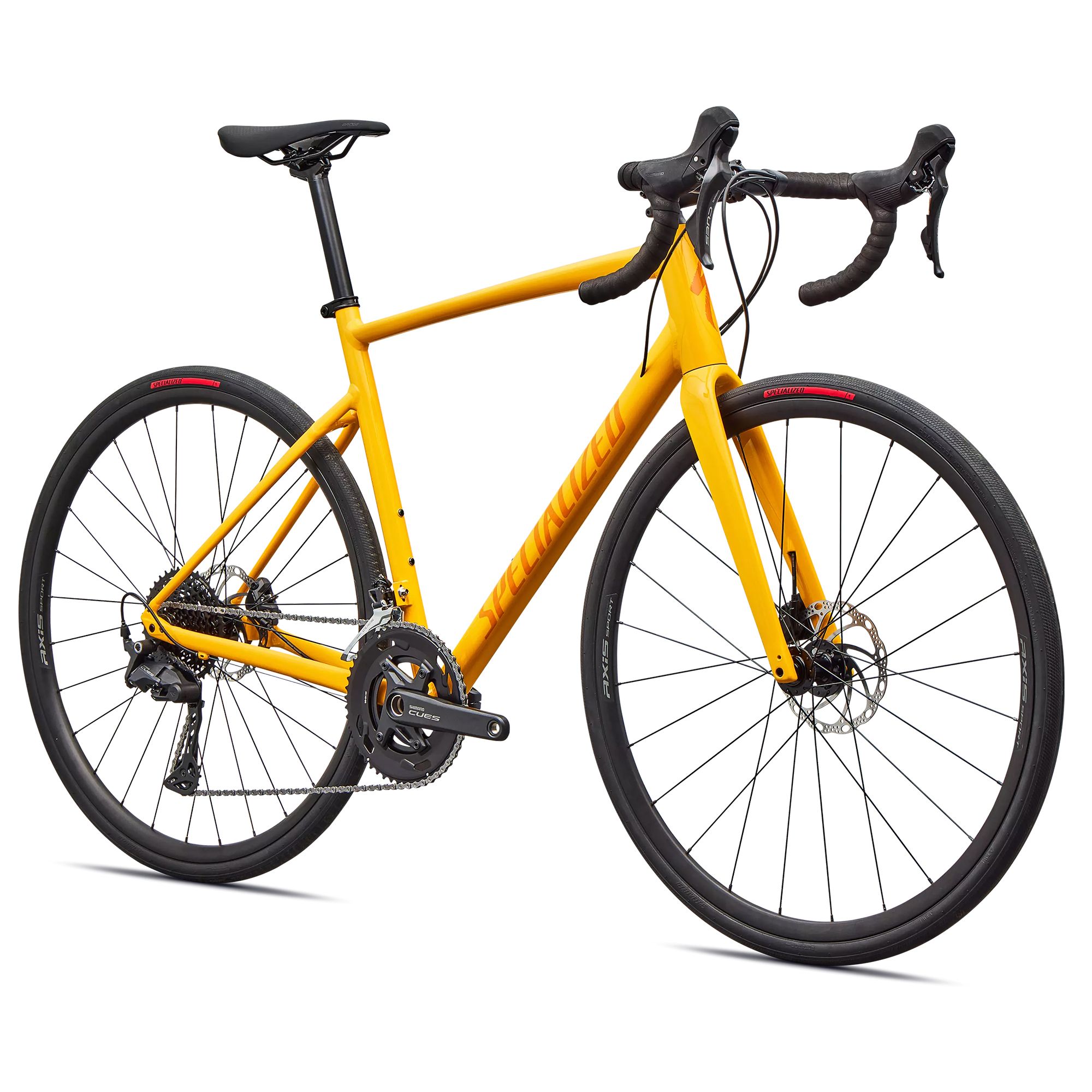

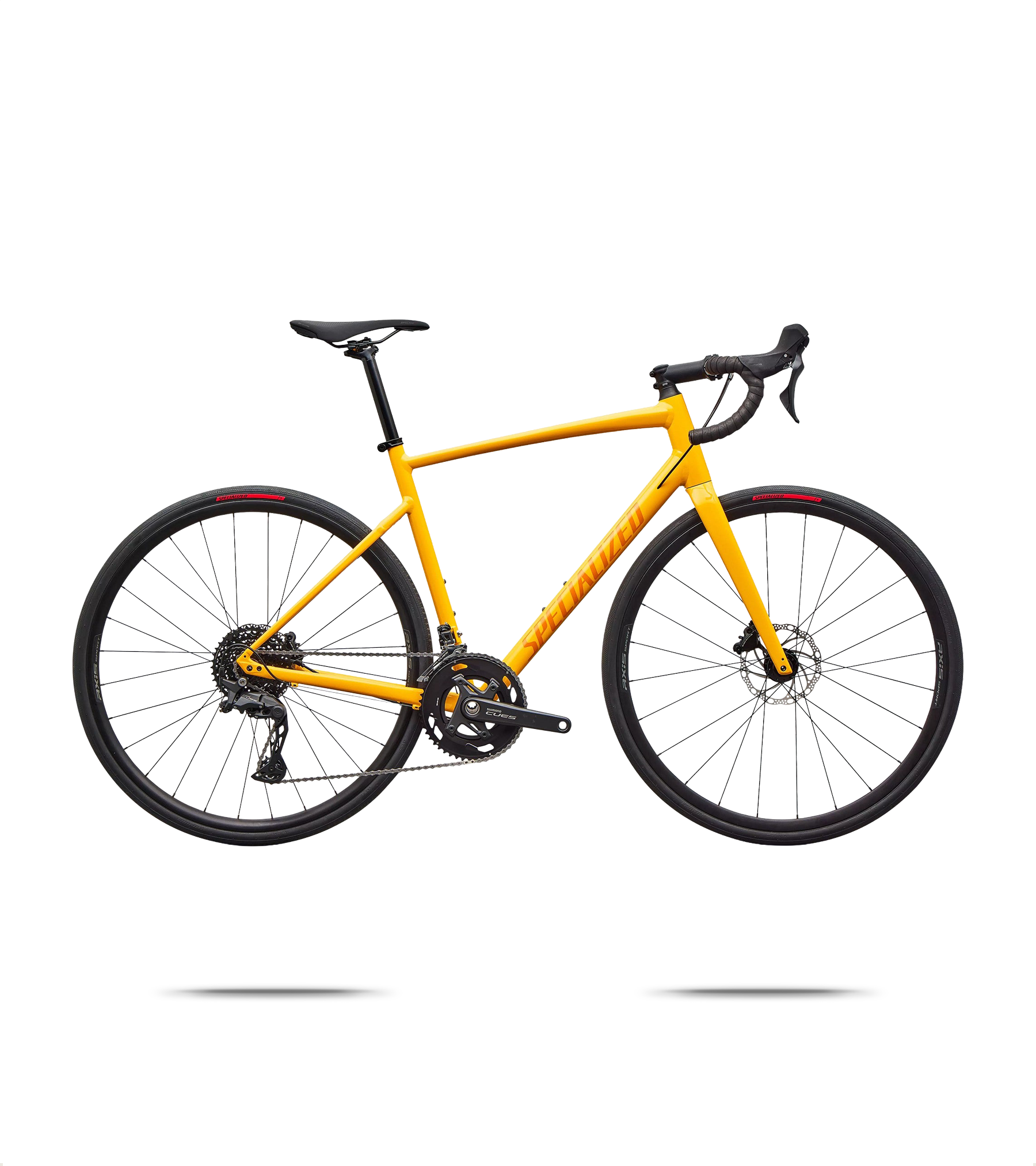

Specialized Allez E5 Road Bike
Four decades after the first Allez was introduced, the new model is the lightest in its class and delivers greater confidence, versatility and performance than ever before. Whether for weekend rides, fast commutes or the first steps into road cycling, the Allez sets the standard for alloy road bikes.
Specialized Allez lightweight design
Built from premium butted and double-butted E5 alloy, the Allez frame weighs just 1,375 grams, paired with a full carbon fork for further weight savings and a smoother ride. With modern build choices throughout, the Allez is the lightest in its class.
Allez confidence and control
The E5 alloy frame combines low weight, durability and speed with excellent stiffness-to-weight ratio. Dual-piston disc brakes provide powerful and consistent stopping in all conditions, while geometry inspired by the Roubaix delivers long-distance comfort, stable handling and sharp performance on winding roads.
Specialized versatility and performance
Equipped with racks and mudguard mounts, the Allez adapts to commuting, group rides or challenging climbs. With clearance for 35 mm tyres, or 32 mm with fenders, it handles rough roads and light gravel with ease, while a wide gear range ensures efficient spinning on steep gradients.
Features
- Frame: Specialized E5 Premium Aluminium, flat mount disc, fully manipulated tubing with SmoothWelds, internal cable routing, threaded BB, 12x142 mm thru axle
- Fork: Specialized FACT full carbon, flat mount disc, 1-1/8" to 1-3/8" taper, mudguard eyelets, 12x100 mm thru axle
- Front brake: Shimano CUES hydraulic
- Rear brake: Shimano CUES hydraulic
- Chain: KMC XGlide
- Crankset: Shimano CUES FC-U6030, 50/34T
- Front derailleur: Shimano CUES FD-U6030, braze-on
- Rear derailleur: Shimano CUES RD-U6020, 10 speed
- Shift levers: Shimano CUES ST-U6030
- Cassette: Shimano CUES, 11-39T, 10 speed
- Bottom bracket: Shimano threaded BSA
- Front wheel: AXIS Sport Disc
- Rear wheel: AXIS Sport Disc
- Tyres: RoadSport, 700x30
- Inner tubes: Presta, 700x28-32 mm
- Stem: 3D forged alloy, 31.8 mm, 7 degree rise
- Seatpost: Alloy, 2 bolt clamp, 12 mm offset, 27.2 mm, anti corrosion hardware
- Saddle: Body Geometry Bridge Saddle, steel rails
- Seat binder: Bolt type, rack compatible, 31.8 mm
- Handlebars: Specialized shallow drop, 6061 alloy, 70x125 mm, 31.8 mm clamp
- Handlebar tape: Supacaz Suave
- Claimed weight: 10.0 kg (22 lb 0.7 oz), size 56
Specifications
- Model
- Allez E5
- Bottom Bracket [Maker]
- Shimano
- Bottom Bracket Standard
- BSA
- Brakes [Kind]
- Hydraulic Disc
- Brakes [Maker]
- Shimano
- Brakes [Model]
- CUES
- Cassette [Gearing]
- 11–39
- Cassette [Maker]
- Shimano
- Cassette [Model]
- CUES
- Chain [Maker]
- KMC
- Chainring [Gearing]
- 50/34
- Crank [Maker]
- Shimano
- Crank [Model]
- CUES FC-U6030
- Discipline Compatibility
- Road, Commute
- E-Bike
- No
- Family
- Allez
- FD [Maker]
- Shimano
- FD [Model]
- CUES FD-U6030
- Fenders Mounts
- Yes
- Fork [Axle Diameter]
- 12 mm
- Fork [Axle Type]
- Thru-Axle
- Fork [Brake Type]
- Disc
- Fork [Maker]
- Specialized
- Fork [Material]
- Carbon
- Fork [Model]
- FACT
- Fork [Wheel Size]
- 700c
- Frame [Hanger Standard]
- Brand-Specific
- Frame [Material]
- Aluminium
- Frame [Tire Clearance]
- 3.5" mm
- Frameset
- No
- Gearing [Configuration]
- 2x
- Gearing [Kind]
- Conventional
- Gender
- Unisex
- Handlebar [Drop]
- 125 mm
- Handlebar [Kind]
- Drop
- Handlebar [Maker]
- Specialized
- Handlebar [Material]
- Aluminium
- Handlebar [Reach]
- 70 mm
- Handlebar [Shape]
- Drop bar
- Rack Mounts
- Yes
- RD [Maker]
- Shimano
- RD [Model]
- CUES RD-U6020
- Saddle [Maker]
- Specialized
- Seatpost [Diameter]
- 27.2
- Seatpost [Kind]
- Rigid
- Seatpost [Maker]
- Specialized
- Seatpost [Material]
- Aluminium
- Seatpost [Offset]
- 12 mm
- Shifters [Maker]
- Shimano
- Shifters [Model]
- CUES ST-U6030
- Shifting
- Mechanical
- Stem [Clamp Diameter]
- 31.8
- Stem [Material]
- Aluminium
- Stem [Rise]
- 7 degree
- Suspension Configuration
- Rigid
- Tires [Maker]
- Specialized
- Tires [Width]
- 30 mm
- Wheels [Configuration]
- Front+Rear
- Wheels [Kinds]
- Clincher
- Wheelset [Maker]
- axis
- Wheelset [Material]
- Aluminium
- Product code
- 1949455 / 54293689893210
Size Guide
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Rider Height (cm) | 155 - 163 | 163 - 170 | 170 - 175 | 175 - 180 | 180 - 188 | 188 - 196 |
| Rider Height (ft. in.) | 5'1" - 5'4" | 5'4" - 5'7" | 5'7" - 5'9" | 5'9" - 5'11" | 5'11" - 6'2" | 6'2" - 6'5" |
| Seat Tube (ctr-top) | 431 | 462 | 481 | 504 | 532 | 567 |
| Seat Tube (ctr-ctr) | - | - | - | - | - | - |
| Effective Top Tube | 508 | 531 | 540 | 562 | 577 | 595 |
| Actual Top Tube | - | - | - | - | - | - |
| Seat Angle (°) | 75.5 | 74 | 74 | 73.5 | 73.5 | 73 |
| Head Tube Angle (°) | 71.75 | 72.5 | 73 | 73.5 | 73.5 | 74 |
| Head Tube Length | 109 | 120 | 137 | 157 | 184 | 204 |
| Fork Rake | 47 | 47 | 44 | 44 | 44 | 44 |
| Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 |
| Wheelbase | 973 | 975 | 978 | 991 | 1005 | 1012 |
| Stack | 514 | 527 | 544 | 565 | 591 | 612 |
| Reach | 375 | 380 | 384 | 395 | 402 | 408 |

All sizes are shown in millimetres unless otherwise stated.
