Specialized Crux Comp Disc Gravel Bike 2022

★★★★★ ★★★★★
£3,199.00 - £3,599.00
RRP £4,600.00

Need help choosing a bike, or technical advice?

Call our friendly team of bike experts on 020 3375 8700

Select a colour and size to view stock availability

Price £3,599.00 (Save 22%)
Price £3,199.00 (Save 30%)
Crux Comp Disc Gravel Bike 2022

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1489978

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with Pedalsure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

Product Highlights

Fact 10R Carbon Fibre
Fact 10R Carbon Fibre

FACT, short for 'Functional Advanced Composite Technology' is one of Specialized's premium carbon fibres. Designed to offer you a better ride.


Wide tyre clearance of up to 47mm on a 700cc wheel, or 2.1" on a 650b for enhanced grip on technical terrain.


The ultralight weighs only 725 or 825 grams for the 12r and 10r FACT frames respectively.


A low stack height and long reach ensures balanced weight distribution and quick handling.

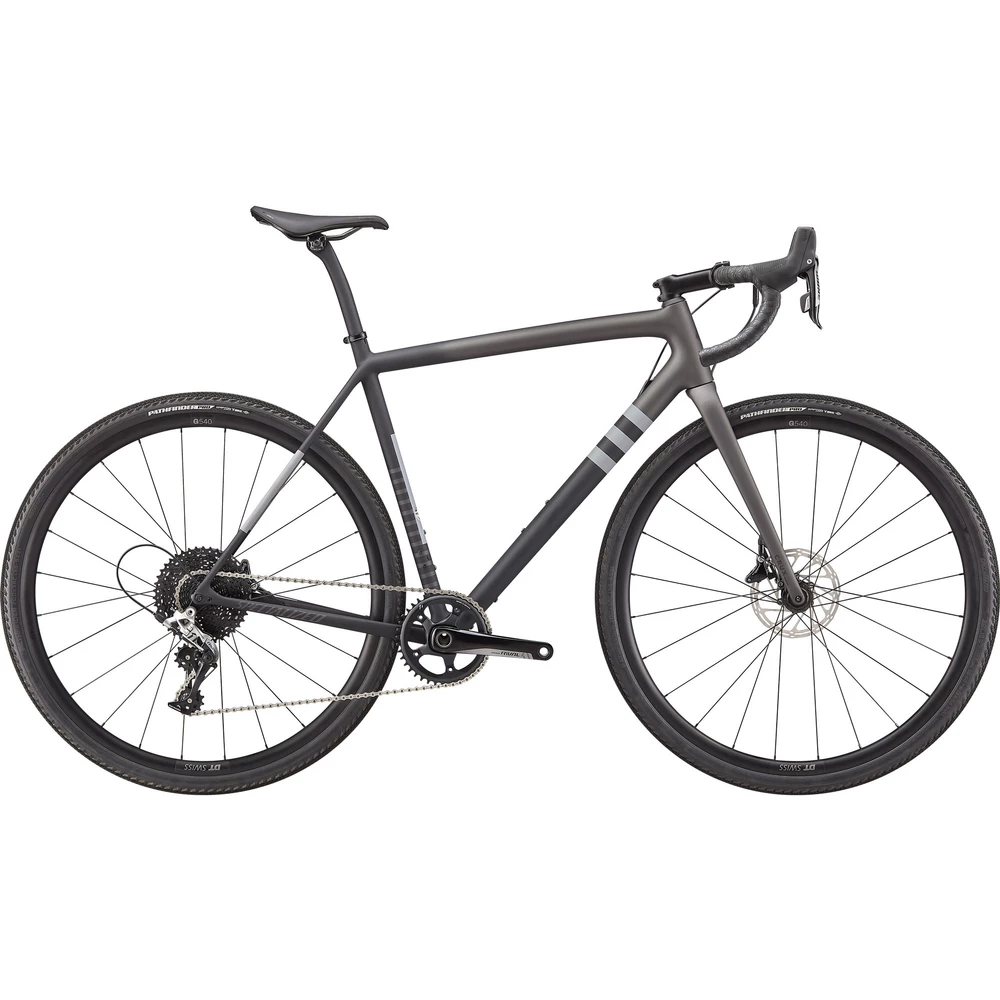

Specialized Crux Comp Disc Gravel Bike 2022

The Specialized Crux Comp Disc Gravel Bike is the ideal choice for riders who like to tackle mixed-terrain routes with as much speed as possible. The frame and fork utilise a sophisticated carbon layup pattern and refined tube shapes borrowed from the groundbreaking Aethos road bike to grant low weight, maximum pedalling efficiency and exceptional rough surface compliance. The frame weighs just 825 grams (size 56), and the fork comes in at 400 grams, but despite these impressive numbers, resilience and durability aren’t sacrificed, enabling the rider to thunder across the biggest hits with utmost confidence.

The frameset offers tremendous tyre clearance, with up to 700c x 47mm or 650b x 2.1” rubber being catered for. Accommodating such tyres enables the Crux to confront the most demanding rock and root-strewn rides with heightened traction, control and comfort. However, despite this tyre clearance, clever design and innovative carbon orientation mean that a hollow, straight, and aesthetically pleasing drive-side chainstay can be used, rather than an ugly, kinked format.

A performance gravel geometry with a longer reach, 72mm bottom bracket drop and lower stack delivers nimble handling and balance, while extra robustness is provided by the super-strong gravel-specific DT Swiss G540 wheelset. This wheelset is driven by a slick-shifting, wide-ranging SRAM Rival 1 11-speed gear setup and is stopped with aplomb in all weather conditions by hydraulic disc brakes.


  • A light, nimble gravel bike that delivers a speedy, uncomplicated ride across trails, tracks and bumpy back roads
  • The 10r carbon frame weighs just 825g (size 56)
  • The frame’s sophisticated carbon layup and refined tube shaping borrowed from the Aethos road bike ensures sublime reactivity and tremendous rough surface compliance
  • Thanks to the advanced design and carbon layup, a straight, hollow drive-side chainstay can be used, promoting a super-clean aesthetic
  • The fork weighs 400g (uncut) is laterally stiff but damps vibrations from rough terrain
  • Tremendous tyre clearance for 700 x 47mm or 650b x 2.1” tyres grants more capability across the harshest riding surfaces
  • Performance gravel geometry with a 10mm longer reach, 72mm drop and low stack delivers balance, agile handling and composure
  • A threaded bottom bracket, 27.2mm seatpost size, simple seatpost clamp and no-fuss rear derailleur hanger ease maintenance and usability
  • The DT Swiss G540 wheels are robust and low maintenance
  • A SRAM Rival 1 11-speed gear configuration shifts flawlessly amongst a vast range of ratios
  • Hydraulic disc brakes exhibit stopping power and control in all conditions
  • Frameset rider weight limit: 125kg
  • Complete bike rider weight limit: 109kg (this is lower than the frame because the components have lower rider weight limits)

Technical Specification

Frame Specialized Crux FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc
Fork Specialized S-Works Crux FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc
Bottom Bracket SRAM GXP BSA
Stem Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
Handlebar Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare
Bar Tape Supacaz Super Sticky Kush
Front Brake SRAM Rival, hydraulic disc
Rear Brake SRAM Rival, hydraulic disc
Brake Levers SRAM Rival, hydraulic disc
Rear Derailleur SRAM Rival 1, long cage, 11-speed
Shift Levers SRAM Rival 1, 11-speed
Chain KMC X11 Extra Lightweight, 11-speed
Cassette SunRace, 11-42t, 11-speed
Crankset SRAM Rival 1x, with a 40t chainring
Front Wheel DT Swiss G540 Disc, 700c, tubeless-ready
Rear Wheel DT Swiss G540 Disc, 700c, tubeless-ready
Front Tyre Specialized Pathfinder Pro 2Bliss Ready, Tan Sidewall, 700x38c, tubeless-ready
Rear Tyre Specialized Pathfinder Pro 2Bliss Ready, Tan Sidewall, 700x38c, tubeless-ready
Saddle Body Geometry Power Sport, steel rails
Seatpost Roval Terra Carbon Seat Post, 20mm Offset
Pedals Available to be purchased separately
Claimed Manufacturer Weight 8.5kg, size 56, out-of-the-box weight

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team.

Specialized Crux Comp Disc Gravel Bike 2022 Sizing
