Product Details

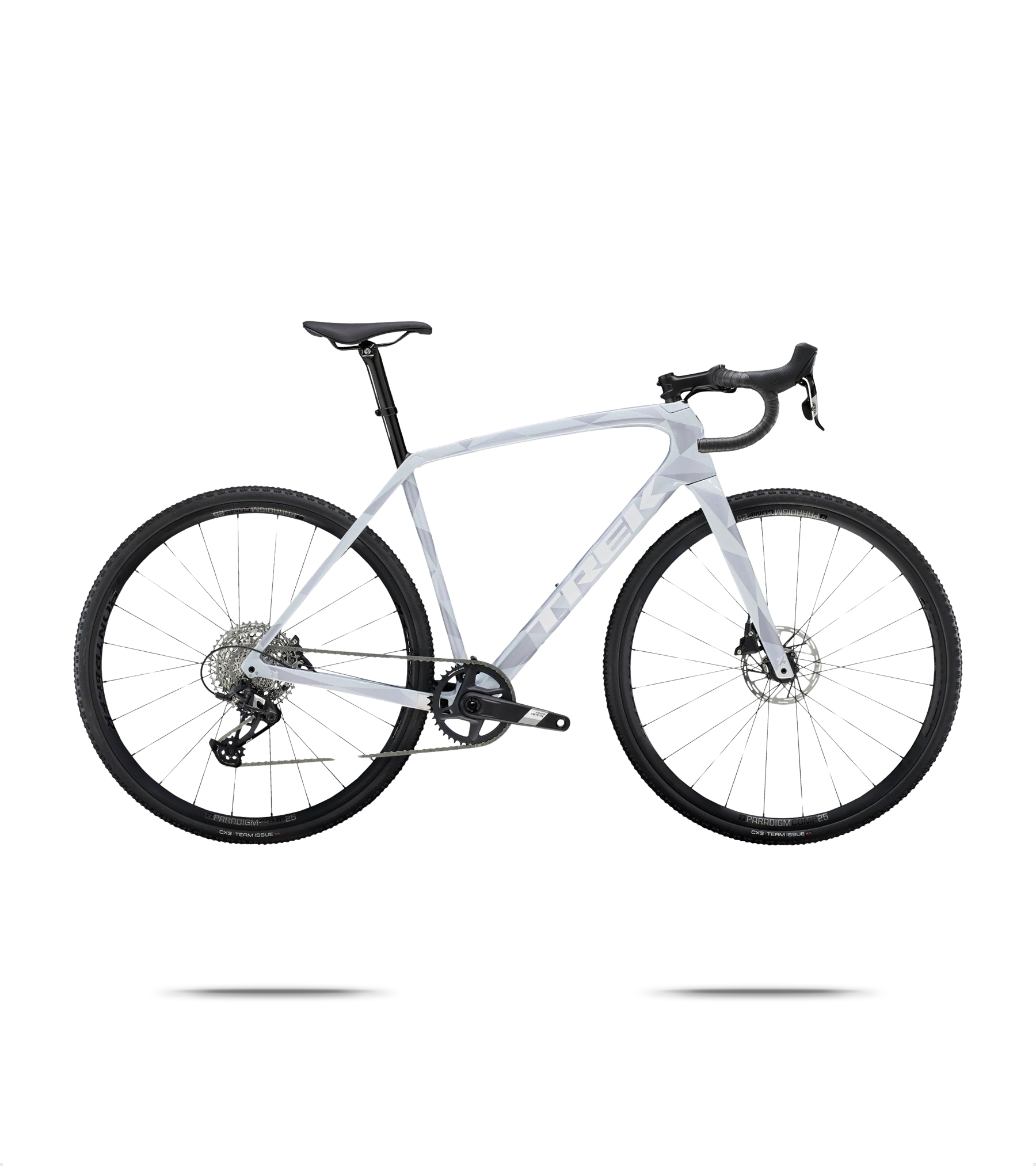

Trek Boone 5 Cyclocross Bike

Embrace the thrill of cyclocross racing with the Boone 5 Disc, a high-performance carbon race bike meticulously crafted to dominate any CX course, even those renowned on the UCI circuit. The lightweight carbon frame features terrain-smoothing Rear IsoSpeed technology, complemented by top-notch components like the SRAM Apex drivetrain, vibration-absorbing handlebar, and powerful disc brakes. These elements ensure peak performance in varying conditions, offering precision and stopping power on bumpy, muddy terrains.

Tailored for the avid cyclocross racer who seeks podium-topping performance, the Boone 5 Disc is designed for mid-air maneuvers, bunny hopping over barriers, and conquering every course. The 600 Series OCLV Carbon frame with Rear IsoSpeed enhances comfort and traction, while the hidden cable routing protects against the elements. The 1x12 SRAM Apex XPLR drivetrain, Trek IsoSpeed Cross carbon fork, and flat-mount hydraulic disc brakes contribute to the bike's cutting-edge technology.

Built for speed and podium aspirations, the Boone ensures a remarkable racing experience on every section of the course, regardless of the conditions. As you crush frites and flyovers, this bike stands as a testament to its durability, capability, and the clean shifts offered by the SRAM Apex XPLR drivetrain. With the input of cyclocross royalty, including World Champion Sven Nys and US National Champ Katie Compton, the Boone combines race-specific geometry, tube shapes, and Rear IsoSpeed to excel in all aspects of the race, including run-ups.

In the dynamic world of cyclocross, where agility and efficiency are paramount, carbon rules on the cross course, providing a lighter, more forgiving, and more efficient experience compared to aluminum alternatives. The Boone 5 Disc is a testament to this, offering a competitive edge to riders who demand the best from their cyclocross racing experience.

Features
  • Frame: 600 Series OCLV Carbon, IsoSpeed, tapered head tube, Internal cable routing, Ride Tuned seat mast, 3S chain keeper, T47 BB, flat-mount disc, 142x12 mm thru-axle
  • Fork: Trek Cross, full carbon, tapered carbon steerer, flat mount disc, 12x100mm thru axle
  • Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
  • Shifter: SRAM Apex, 12-speed
  • Rear derailleur: SRAM Apex XPLR, 44T max cog
  • Crank: SRAM Apex 1, 40T, DUB Wide
  • Bottom bracket: SRAM DUB, T47 threaded, internal bearing
  • Cassette: SRAM XG-1230, 11-44, 12-speed
  • Chain: SRAM Apex, 12-speed
  • Max. chainring size: See service manual
  • Wheel front: Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
  • Wheel rear: Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, Shimano 11/12-speed freehub, 142x12 mm thru axle
  • Skewer front: Bontrager Switch thru axle, removable lever
  • Skewer rear: Bontrager Switch thru-axle, removable lever
  • Tyre: Bontrager CX3 Team Issue, aramid bead, 120 tpi, 700x32 mm
  • Max tyre size: 38mm
  • Saddle: Verse Short Comp, steel rails
  • Seatpost: Bontrager carbon seat mast cap, 5 mm offset
  • Handlebar: Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm
  • Handlebar tape: Bontrager Supertack Perf tape
  • Stem: Bontrager Pro, 31.8 mm, Blendr-compatible
  • Brake: SRAM Apex hydraulic disc, flat mount
  • Brake rotor: SRAM Paceline, rounded, CentreLock, 160 mm
  • Brake lever: SRAM Apex, 12-speed
  • Rotor size: Max brake rotor sizes: 160mm front & rear
Highlights
  • Durability and Capability: SRAM Apex XPLR delivers clean shifts and a vast gear range.
  • Pro-Designed: Input from cyclocross champions like Sven Nys and Katie Compton in the bike's design.
  • Enhanced Comfort: Rear IsoSpeed reduces fatigue on rough courses, enhancing compliance for longer rides.
  • Cross-Specific Features: Boone's geometry and tube shapes facilitate easy shouldering, dominating all race aspects, including run-ups.
Specifications
Model
Boone 5
Bottom Bracket [Maker]
SRAM
Bottom Bracket Standard
T47
Brakes [Kind]
Hydraulic Disc
Brakes [Maker]
SRAM
Brakes [Model]
Apex
Cassette [Gearing]
11–44
Cassette [Maker]
SRAM
Cassette [Model]
XG-1230
Chain [Maker]
SRAM
Chain [Model]
Apex
Chainring [Gearing]
40
Crank [Maker]
SRAM
Crank [Model]
Apex 1
Discipline Compatibility
Cyclocross
E-Bike
No
F Hub [Maker]
Bontrager
F Hub [Model]
Paradigm Comp 25
Family
Boone
Fenders Mounts
No
Fork [Axle Diameter]
12 mm
Fork [Axle Type]
Thru-Axle
Fork [Brake Type]
Disc
Fork [Maker]
Trek
Fork [Material]
Carbon
Fork [Model]
Trek Cross
Fork [Rake]
45 mm
Fork [Wheel Size]
700c
Frame [Hanger Standard]
Direct Mount
Frame [Material]
Carbon
Frame [Tire Clearance]
38c mm
Frameset
No
Gearing [Configuration]
1x
Gearing [Kind]
Conventional
Gender
Unisex
Handlebar [Drop]
123 mm
Handlebar [Kind]
Drop
Handlebar [Maker]
Bontrager
Handlebar [Material]
Aluminium
Handlebar [Reach]
93 mm
R Hub [Maker]
Bontrager
R Hub [Model]
Paradigm Comp 25
Rack Mounts
No
RD [Maker]
SRAM
RD [Model]
Apex XPLR
Saddle [Maker]
Bontrager
Saddle [Material]
Steel
Seatpost [Kind]
Rigid
Seatpost [Maker]
Bontrager
Seatpost [Material]
Carbon
Seatpost [Offset]
5 mm
Shifters [Maker]
SRAM
Shifters [Model]
Apex
Shifting
Mechanical
Stem [Angle]
7 degree
Stem [Clamp Diameter]
31.8
Stem [Maker]
Bontrager
Stem [Material]
Aluminium
Sub Family
Boone 5
Suspension Configuration
Rigid
Tires [Maker]
Bontrager
Tires [Width]
32 mm
Wheels [Configuration]
Front+Rear
Wheels [Kinds]
Tubeless Ready
Wheelset [Inner Width]
25 mm
Wheelset [Maker]
Bontrager
Wheelset [Material]
Aluminium
Wheelset [Model]
Paradigm Comp 25
Product code
1747184 / 54294743875930
Size Guide
49cm52cm54cm56cm58cm61cm
A476493513533553583
B------
C518531544558570588
D------
E75°74.5°74°73.6°73.3°73°
F71°71.5°72°72°72.3°72.3°
G110123138157176205
H747167676666
I425425425425425425
J100110051010102010281043
Rider's Height (Cm)156 - 162163 - 168168 - 174174 - 180180 - 185185 - 191

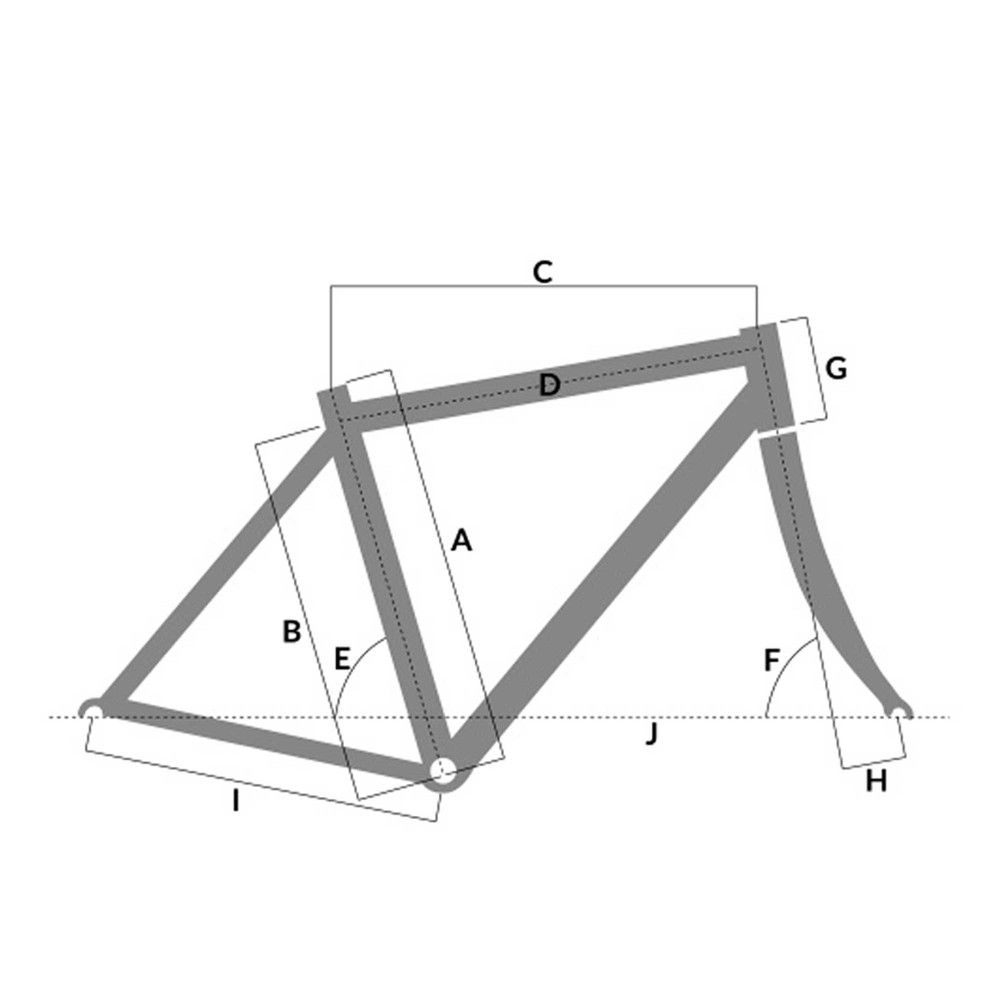

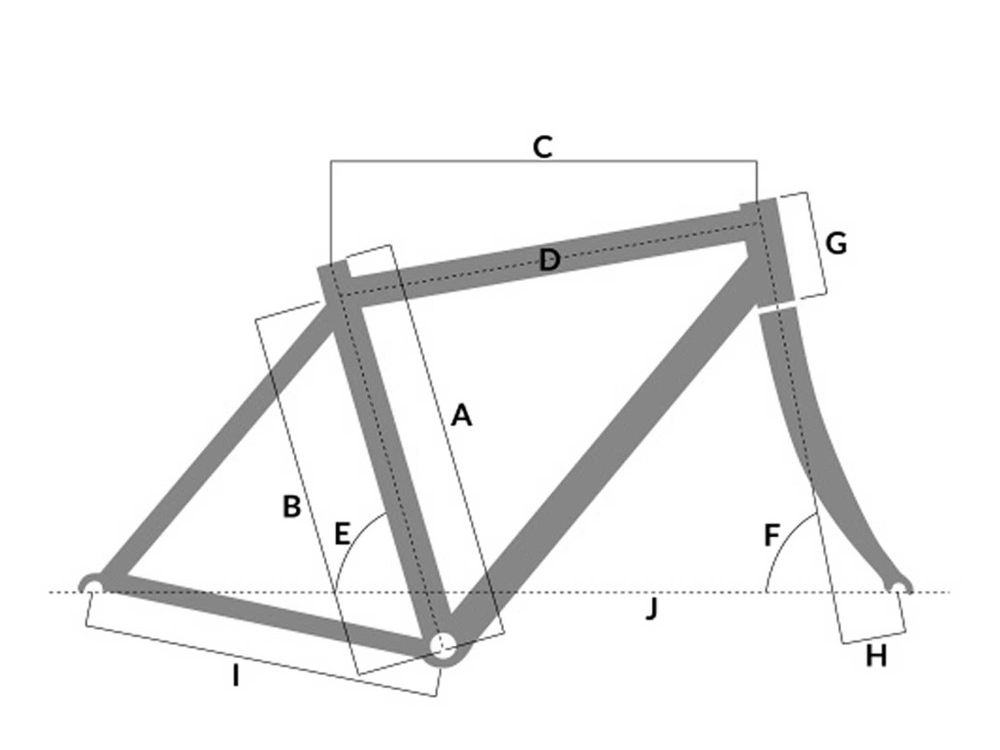

Trek Boone Cyclocross Bikes 2022 Size Guide

If you fall between sizes, we recommend experienced riders selecting a smaller frame which will offer faster handling. A larger bicycle offers more stability. Should you have any specific questions, please contact us for information and talk to one of our experienced members of staff.

A: Seat Tube (CTR-TOP)

B: Seat Tube (CTR-CTR)

C: Effective Top Tube

D: Actual Top Tube E: Seat Angle

F: Head Angle G: Head Tube

H: Fork Rake

I: Chainstay

J: Wheelbase

* All measurements in cm unless otherwise stated
