Trek Domane AL 5 Gen 4 Disc Road Bike 2026

£1,600.00

Delivery

Select size to see delivery options

Collect in Store

Cycle to Work – Save up to 42%

Spread the cost of your new bike and save up to 42% through the Cycle to Work scheme. We accept all major providers including Cyclescheme, Green Commute Initiative, Bike2Work and more.
We do not accept Halfords Cycle2Work or Evans Cycles Ride-to-Work Scheme vouchers.
Check with your employer for eligibility.

Free Delivery on all bikes

Complimentary standard delivery on all bikes to UK mainland addresses. Orders typically arrive within 2–5 working days. A signature is required on delivery. When you receive your bike all you'll need to do is unpack it, attach your pedals, turn the handlebars and ride.

Premier Delivery

Upgrade to Premier Delivery at checkout for a nominated day, extended assembly and in-home handover by a trained technician. Available on eligible bikes across UK mainland.

Built, checked, tuned & tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Pedals & accessories

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team

You May Also Need

Sweet Protection
Fluxer Mips Cycling Helmet
£140.00
£179.00
Specialized
Align II MIPS Cycling Helmet
£42.00
£45.00
Kryptonite
Evolution Series 4 1016 Integrated Chain Bike Lock Sold Secure Gold
£94.00
£135.00

Product Details

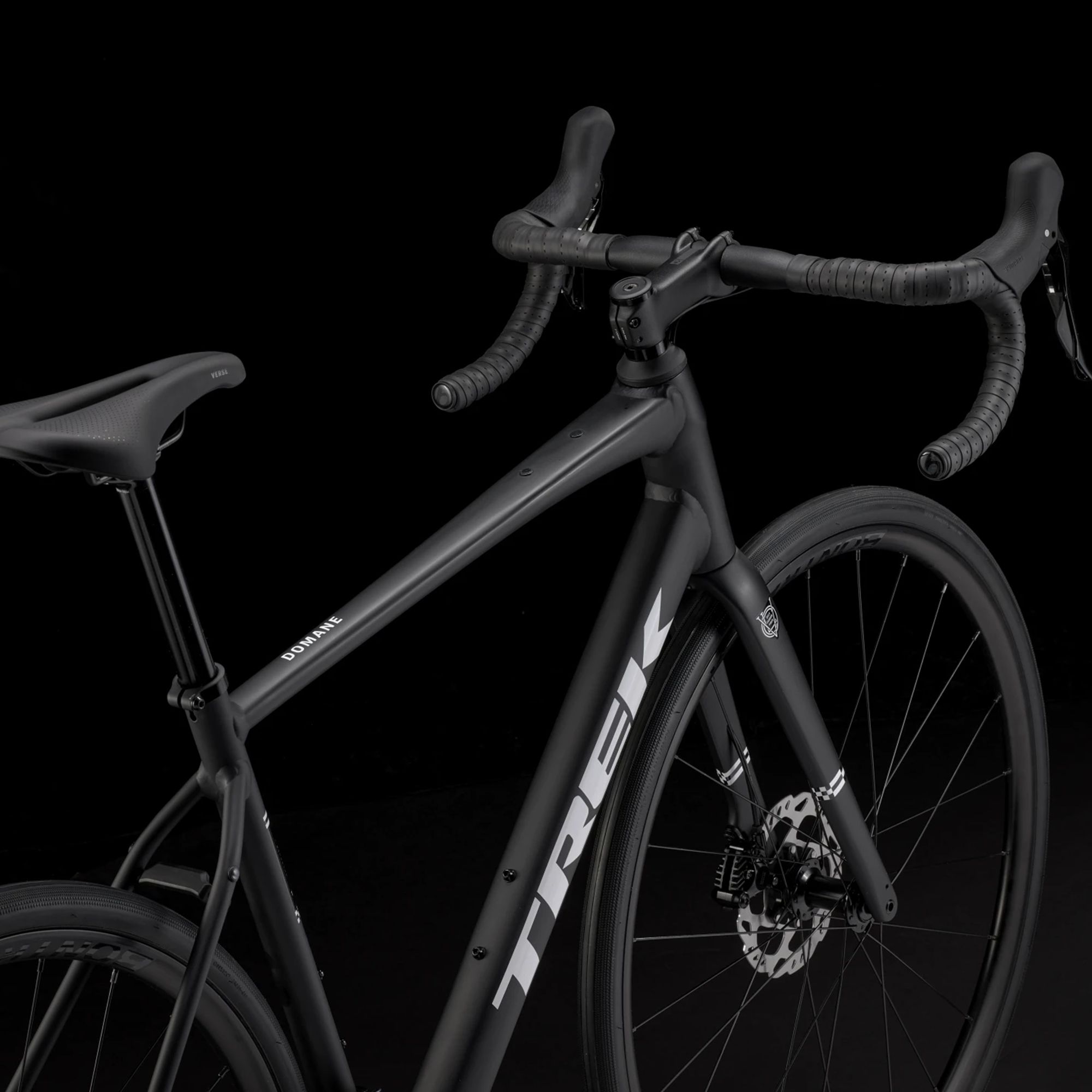

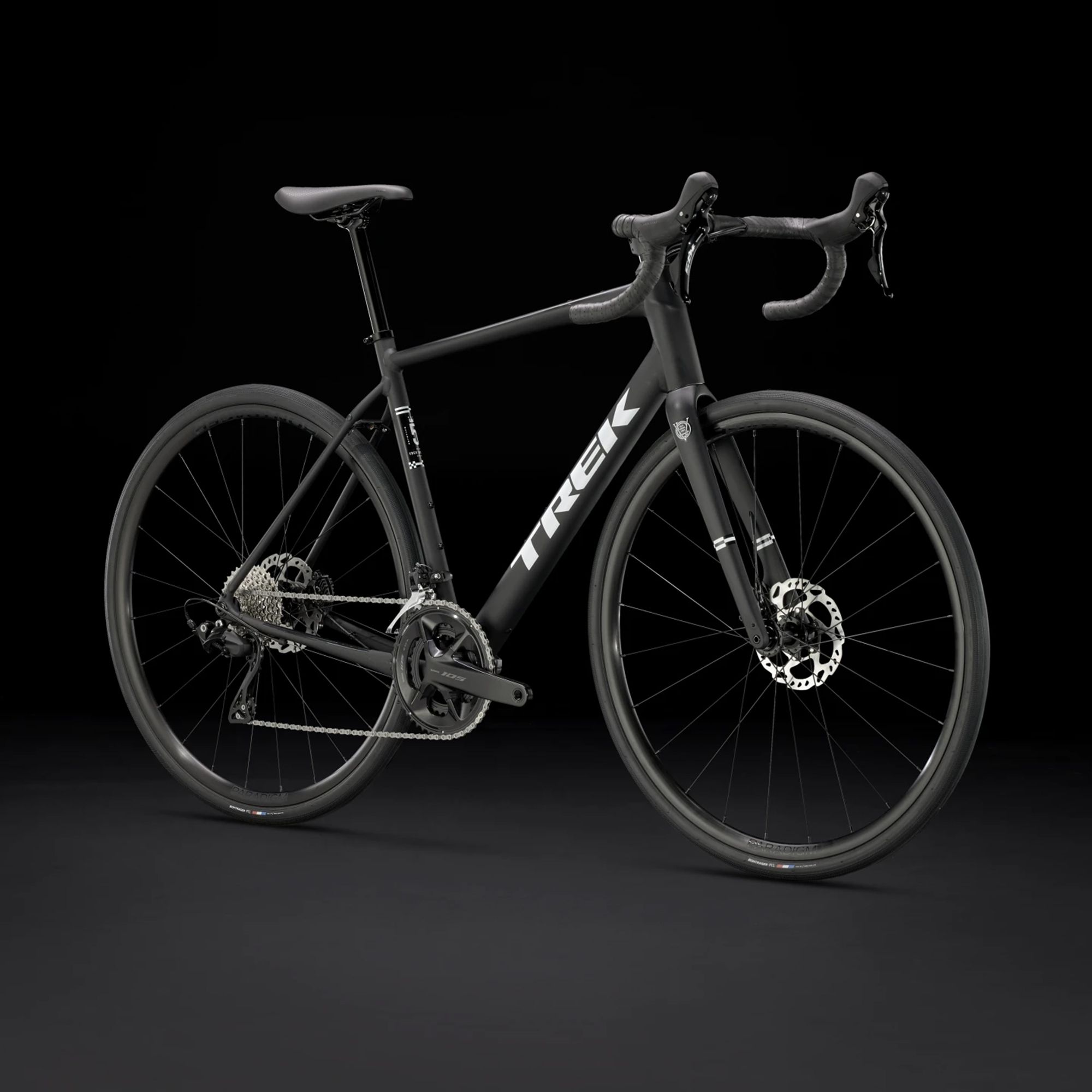

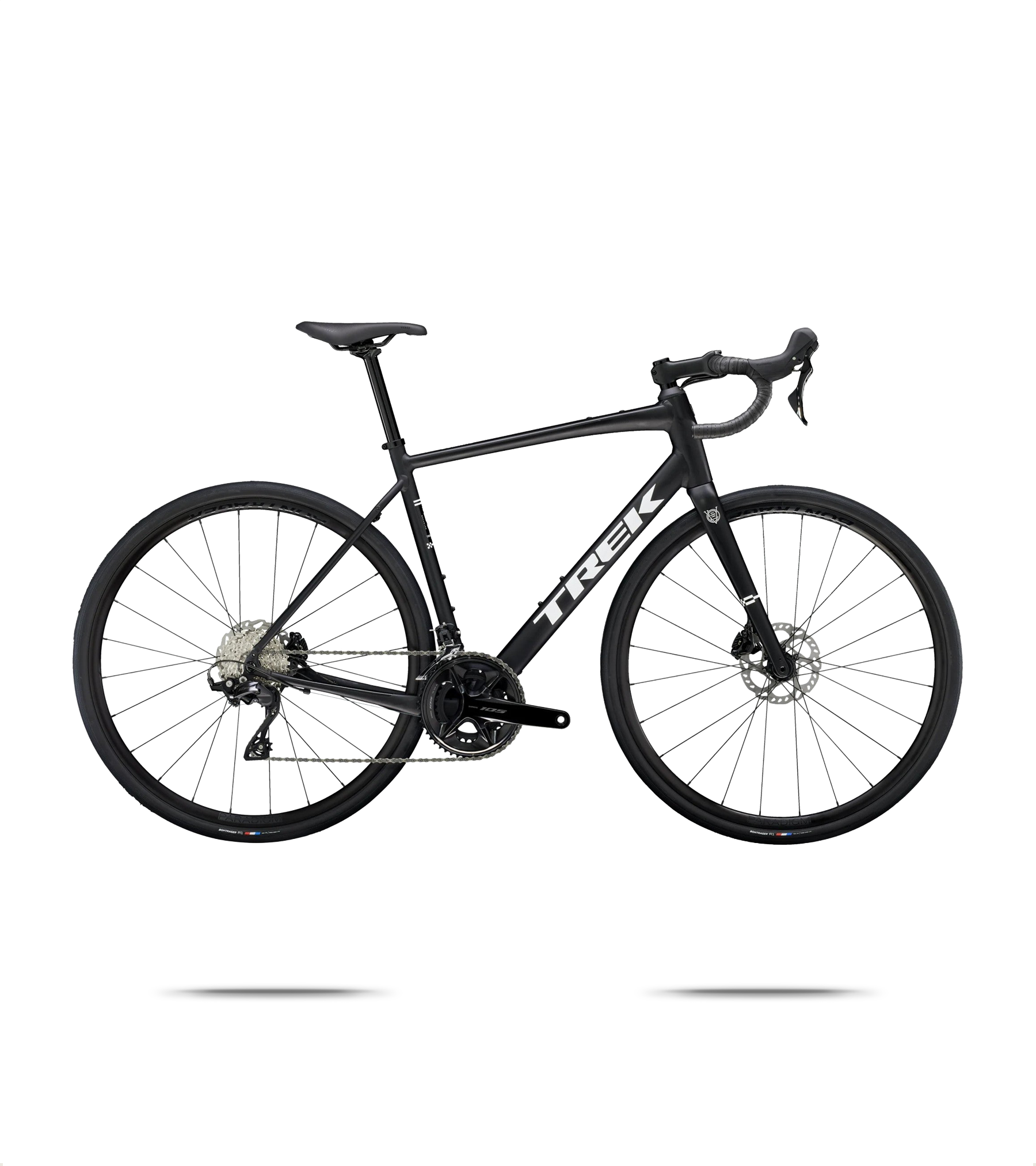

Trek Domane AL 5 Gen 4 Disc Road Bike 2026

The Domane AL 5 is a versatile road bike, ideal for newcomers to road cycling. Featuring an Alpha Aluminium frame, 12-speed Shimano 105 drivetrain, and a comfortable all-day geometry, it's perfect for casual rides, group cycling, and venturing off-road onto gravel paths. Whether you're commuting or enjoying extended rides, the Domane AL 5's affordability, smooth performance, and adaptable gearing make it a suitable choice.

Designed for those entering the world of road biking, the Domane AL 5 offers a balanced blend of comfort and speed. With its advanced Alpha Aluminium frame, Shimano 105 groupset, disc brakes, and integrated mounts for additional gear, it provides a smooth and enjoyable riding experience, whether cruising on roads or exploring gravel terrains.

Features

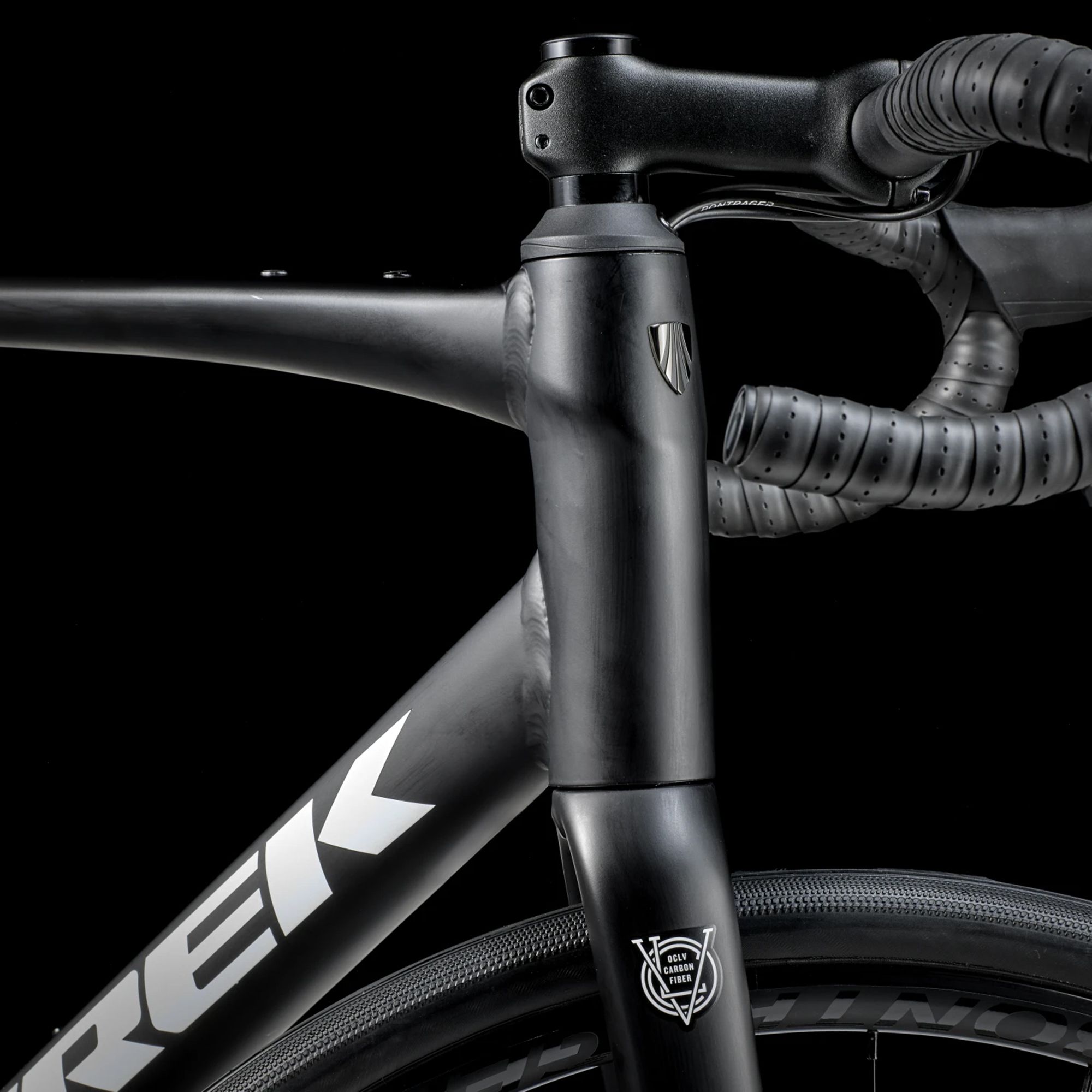

Frame: 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle
Fork: Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

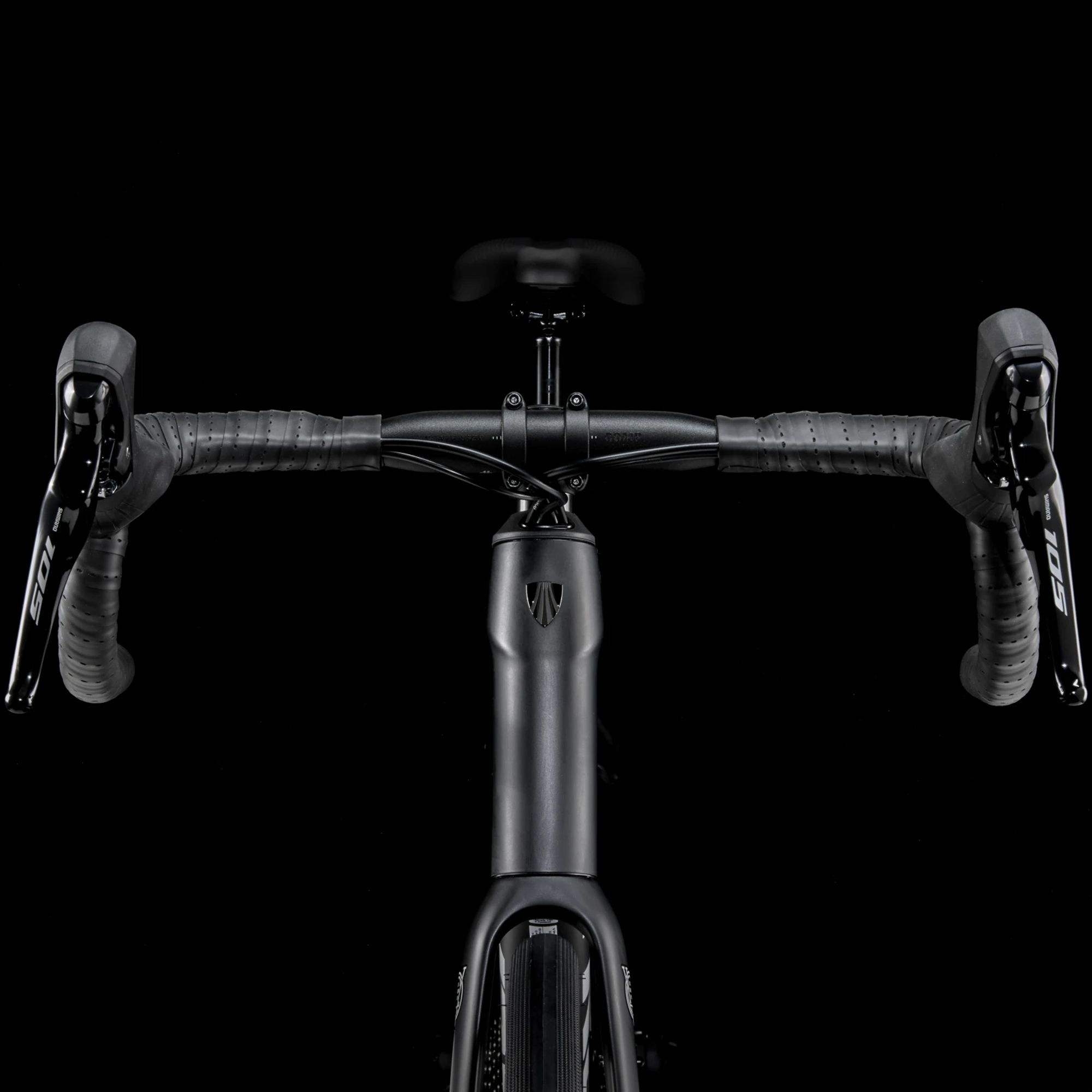

Shifter: Shimano 105 R7120, 12-speed
Front derailleur: Shimano 105 R7100, 31.8 mm clamp, down swing
Rear derailleur: Shimano 105 R7100, 36T max cog
Bottom bracket: Shimano RS501 BSA
Cassette: Shimano 105 7101, 11-34, 12-speed
Chain: Shimano SLX M7100, 12-speed
Max. chainring size: 1x: 50T, 2x: 50/34
Hub front: Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Skewer front: Bontrager Switch chamfered thru axle, removable lever
Hub rear: Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear: Bontrager Switch chamfered thru axle, removable lever
Rim: Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Spokes: 14 g stainless steel, black
Tyre: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm
Max tyre size: 38mm without mudguards, 35mm with mudguards
Saddle: Verse Short, steel rails, 145 mm width
Seatpost: Bontrager Comp, 6061 alloy

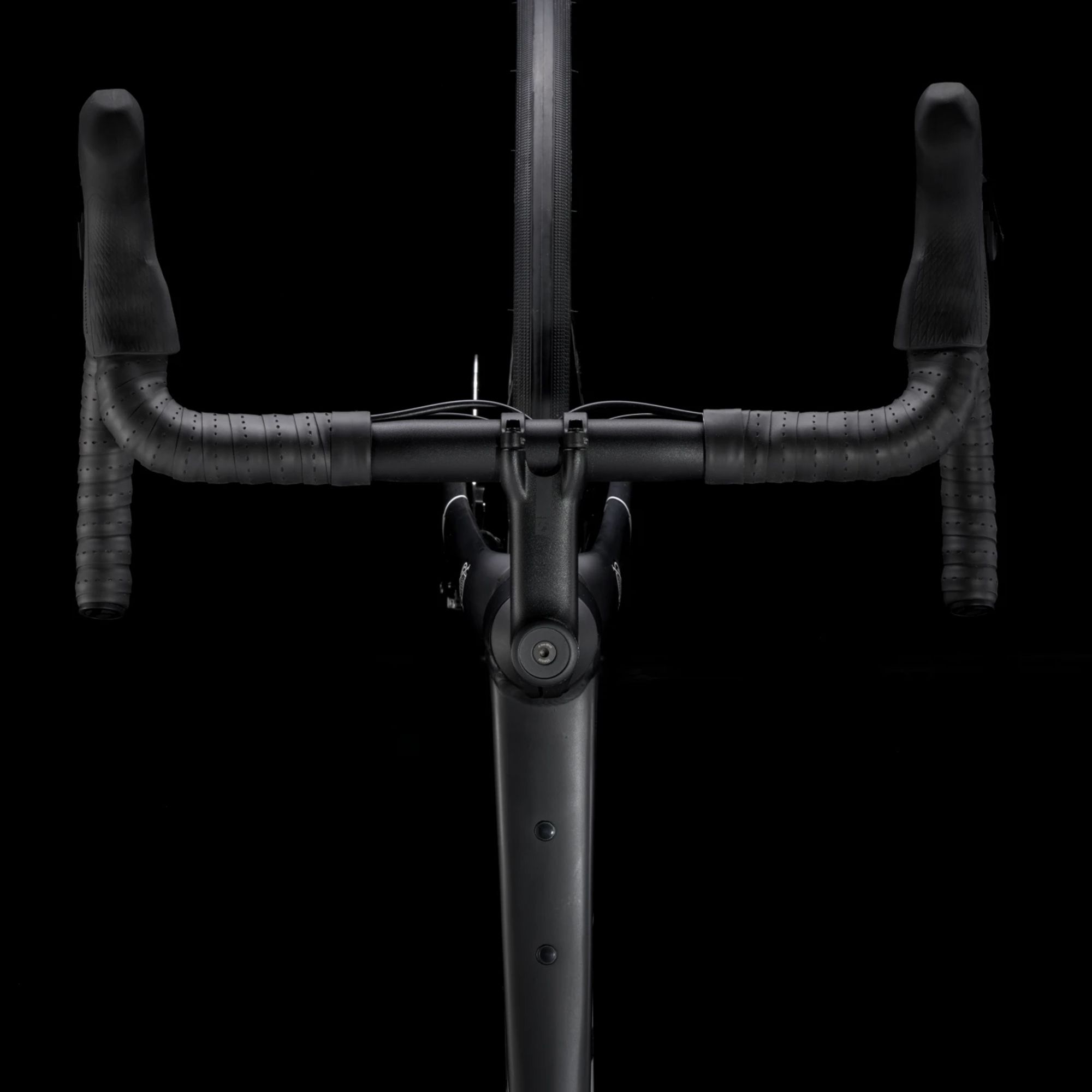

Handlebar: Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing
Handlebar tape: Bontrager Supertack Perf tape
Stem: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree
Brake: Shimano 105 hydraulic disc
Brake rotor: Shimano RT70, centerlock, 160mm
Rotor size: Max brake rotor sizes: 160 mm front and rear

Highlights

Versatility: Domane AL 5 excels on both smooth roads and gravel paths, thanks to its Alpha Aluminium frame and clearance for larger tires.
Affordability and Comfort: Ideal for beginners, it offers a comfortable all-day geometry, making it suitable for extended rides, while remaining budget-friendly.
Advanced Technology: Boasting a 12-speed Shimano 105 drivetrain, powerful disc brakes, and integrated mounts for additional gear, the Domane AL 5 provides a seamless and high-performance road biking experience.

Specifications

Model: Domane AL 5 Gen 4
Bottom Bracket [Maker]: Shimano
Bottom Bracket Standard: BSA
Brakes [Kind]: Hydraulic Disc
Brakes [Maker]: Shimano
Brakes [Model]: 105
Cassette [Gearing]: 11-34
Cassette [Maker]: Shimano
Cassette [Model]: 105 7101
Chain [Maker]: Shimano
Chain [Model]: SLX M7100
Chainring [Gearing]: 50/34
Crank [Maker]: Shimano
Crank [Model]: 105 R7100
Discipline Compatibility: Road
E-Bike: No
F Hub [Maker]: Bontrager
Family: Domane+
FD [Maker]: Shimano
FD [Model]: 105 R7100
Fenders Mounts: Yes
Fork [Axle Diameter]: 12 mm
Fork [Axle Type]: Thru-Axle
Fork [Brake Type]: Disc
Fork [Maker]: Trek
Fork [Material]: Carbon
Fork [Model]: Domane AL carbon
Fork [Wheel Size]: 700c
Frame [Hanger Standard]: UDH
Frame [Material]: Aluminium
Frame [Tire Clearance]: 38c mm
Frameset: No
Gearing [Configuration]: 2x
Gearing [Kind]: Conventional
Gender: Unisex
Handlebar [Drop]: 121 mm
Handlebar [Kind]: Drop
Handlebar [Maker]: Bontrager
Handlebar [Material]: Aluminium
Handlebar [Reach]: 80 mm
Handlebar [Shape]: Drop bar
R Hub [Maker]: Bontrager
Rack Mounts: No
RD [Maker]: Shimano
RD [Model]: 105 R7100
Saddle [Maker]: Bontrager
Saddle [Width]: 145 mm
Seatpost [Diameter]: 27.2
Seatpost [Kind]: Rigid
Seatpost [Maker]: Bontrager
Seatpost [Material]: Aluminium
Seatpost [Offset]: 8 mm
Shifters [Maker]: Shimano
Shifters [Model]: 105 R7120
Shifting: Mechanical
Stem [Angle]: 7 degree
Stem [Clamp Diameter]: 31.8
Stem [Maker]: Bontrager
Stem [Material]: Aluminium
Sub Family: Domane AL
Suspension Configuration: Rigid
Tires [Maker]: Bontrager
Tires [Width]: 32 mm
Wheels [Configuration]: Front+Rear
Wheels [Kinds]: Tubeless Ready
Wheelset [Inner Width]: 21 mm
Wheelset [Maker]: Bontrager
Wheelset [Material]: Aluminium
Wheelset [Model]: Paradigm SL
Product code: 1743255 / 54294801416538

Size Guide

Size	47cm	50cm	52cm	54cm	56cm	58cm	60cm	62cm
Rider Height (cm)	152 - 158	158 - 163	163 - 168	168 - 174	174 - 180	180 - 185	185 - 190	190 - 195
Inseam (cm)	71 - 75	74 - 77	76 - 79	78 - 82	81 - 85	84 - 87	86 - 90	89 - 92
Rider Height (ft. in.)	5'0" - 5'2"	5'2" - 5'4"	5'4" - 5'6"	5'6" - 5'9"	5'9" - 5'11"	5'11" - 6'1"	6'1" - 6'3"	6'3" - 6'5"
Inseam (inches)	28" - 30"	29" - 30"	30" - 31"	31" - 32"	32" - 33"	33" - 34"	34" - 35"	35" - 36"
Seat Tube (ctr-top)	424	453	483	496	525	553	573	593
Seat Tube (ctr-ctr)	-	-	-	-	-	-	-	-
Effective Top Tube	512	521	534	543	559	574	586	598
Actual Top Tube	-	-	-	-	-	-	-	-
Seat Angle (°)	74.6	74.6	74.2	73.7	73.3	73.0	72.8	72.5
Head Tube Angle (°)	72.1	72.1	72.8	73	73.5	73.8	73.9	73.9
Head Tube Length	100	111	121	131	151	171	191	211
Fork Rake	45	45	45	45	45	45	45	45
Chainstay Length	410	410	410	410	410	411	411	412
Wheelbase	972	974	977	981	983	992	1001	1010
Stack	507	521	533	541	563	581	601	620
Reach	373	378	383	386	391	396	399	403

All measurements are in mm unless otherwise stated.
