Product Details

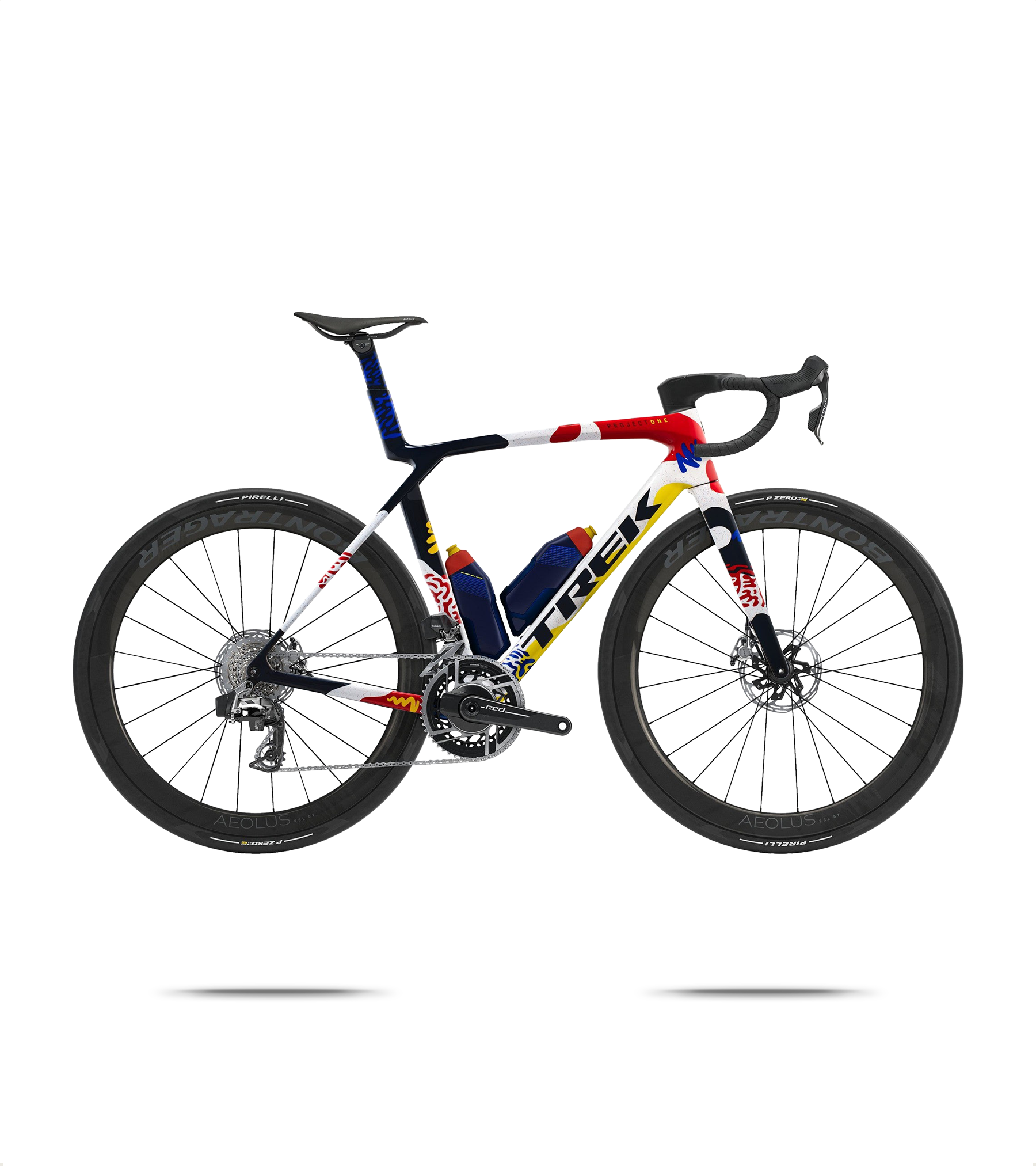

Trek Madone SLR 9 AXS Gen 8 Road Bike

If you live for racing and demand the best road race bike, the Madone SLR 9 AXS Gen 8 offers a perfect blend of aerodynamics, comfort, and lightweight performance. Crafted from our top-tier 900 Series OCLV Carbon with aero tubing and IsoFlow comfort technology, this bike ensures optimal speed and comfort. It features SRAM's latest RED AXS E1 drivetrain and power meter for precise, customizable shifting and enhanced training data.

The road bike includes RSL Aero Bottles and Cages for improved aerodynamics, Bontrager Aeolus RSL 51 tubeless carbon wheels, and a Trek Aero RSL one-piece bar/stem. Designed for superbike performance, the Madone SLR 9 AXS Gen 8 excels in climbs, descents, and everything in between, with top components that leave no room for compromise.

Features

Frame: 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
Fork: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
Weight: ML – 7.00 kg/15.44 lb (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
Battery: SRAM eTap battery pack (with charger)
Shifter: SRAM RED AXS E1
Front derailleur: SRAM RED AXS E1, braze-on
Rear derailleur: SRAM RED AXS E1, 36T max cog
Crank: SRAM RED AXS E1, power meter, 48/35, DUB
Bottom bracket: SRAM DUB, T47 threaded, internal bearing
Cassette: SRAM RED XG-1290 E1, 10-33, 12-speed
Chain: SRAM RED E1, 12-speed
Max. chainring size: 1x 54T, 2x 56/43
Wheel front: Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, 100x12 mm thru axle
Wheel rear: Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, Shimano 11/12 freehub, 142x12 mm thru axle
Skewer front: Bontrager Switch chamfered thru axle, removable lever
Skewer rear: Bontrager Switch chamfered thru axle, removable lever
Rim: Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless-Ready
Tyre part: Bontrager TLR sealant, 180 ml/6 oz
Max tyre size: 32 mm (as measured, see manual for details)
Saddle: Aeolus RSL, carbon rails,
Seatpost: Madone aero carbon seat post, 0 mm offset,
Handlebar/stem (integrated): Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit
Rotor size: Max brake rotor sizes: 180 mm front, 160 mm rear

Highlights

Full System Foil aero tube shapes optimize aerodynamics and redefine speed
900 Series OCLV carbon frame is extremely light, stiff for power, and compliant for comfort
Carbon wheels reduce weight and enhance performance for climbing and descending

Specifications

Model: Madone SLR 9 AXS Gen 8
Battery [Maker]: SRAM
Bottom Bracket [Maker]: SRAM
Bottom Bracket Standard: T47
Brakes [Kind]: Hydraulic Disc
Brakes [Maker]: SRAM
Brakes [Model]: Red AXS E1
Cassette [Gearing]: 10-33
Cassette [Maker]: SRAM
Cassette [Model]: RED XG-1290 E1
Chain [Maker]: SRAM
Chain [Model]: RED E1
Chainring [Gearing]: 48/35
Crank [Maker]: SRAM
Crank [Model]: Red AXS E1
Discipline Compatibility: Road
E-Bike: No
F Hub [Maker]: Bontrager
F Hub [Model]: Aeolus RSL 51
Family: Madone
FD [Maker]: SRAM
FD [Model]: Red AXS E1
Fenders Mounts: No
Fork [Axle Diameter]: 12 mm
Fork [Axle Type]: 12x100mm Thru-Axle
Fork [Brake Type]: Disc
Fork [Maker]: Trek
Fork [Material]: Carbon
Fork [Model]: Madone Gen 8
Fork [Wheel Size]: 700c
Frame [Hanger Standard]: UDH
Frame [Material]: Carbon
Frame [Tire Clearance]: 32c mm
Frameset: No
Gearing [Configuration]: 2x
Gearing [Kind]: Conventional
Gender: Unisex
Handlebar [Drop]: 124 mm
Handlebar [Kind]: Drop
Handlebar [Maker]: Trek
Handlebar [Material]: Carbon
Handlebar [Reach]: 80 mm
Handlebar [Shape]: Drop bar
Handlebar [Width]: 420 mm
Power Meter [Maker]: SRAM
Power Meter [Model]: Red AXS E1
R Hub [Maker]: Bontrager
R Hub [Model]: Aeolus RSL 51
Rack Mounts: No
RD [Maker]: SRAM
RD [Model]: Red AXS E1
Saddle [Maker]: Bontrager
Saddle [Material]: Carbon
Saddle [Width]: 145 mm
Seatpost [Kind]: Rigid
Seatpost [Maker]: Trek
Seatpost [Material]: Carbon
Seatpost [Offset]: 0 mm
Shifters [Maker]: SRAM
Shifters [Model]: Red AXS E1
Shifting: Electronic
Stem [Angle]: -7 degree
Stem [Length]: 100 mm
Stem [Maker]: Trek
Stem [Material]: Carbon
Sub Family: Madone SLR
Suspension Configuration: Rigid
Tires [Maker]: Bontrager
Tires [Width]: 28 mm
Wheels [Configuration]: Front+Rear
Wheels [Kinds]: Tubeless Ready
Wheelset [Inner Width]: 21 mm
Wheelset [Maker]: Bontrager
Wheelset [Material]: Carbon
Wheelset [Model]: Aeolus RSL 51
Product code: 1933934 / 54354033967450

Size Guide

All measurements in mm unless otherwise stated.
