This type of bottom bracket is a great example how bottom bracket design every bike manufacturer should consider. Great replacement for problematic Specialized OSBB! Install this and you will forget about creaking from BB and fully concentrate on riding a bike. You will only need to replace bearings from time to time. Solution is this, press fit, but threaded BB. When buying this particular BB, you will need consider two things. 1. Tools - you need 2x 48.5mm - 16 notch tool, 2x because you need to properly tighten BB 2. Spacers - measure your old BB and distance from one crank arm to another crank arm, Q factor should be the same as your old BB. In my case of Specialized OSBB, I need to insert 3.5mm from each side of bottom bracket. All in all, on of the best solutions for BB out there.
Product Details
Performance & Use Case

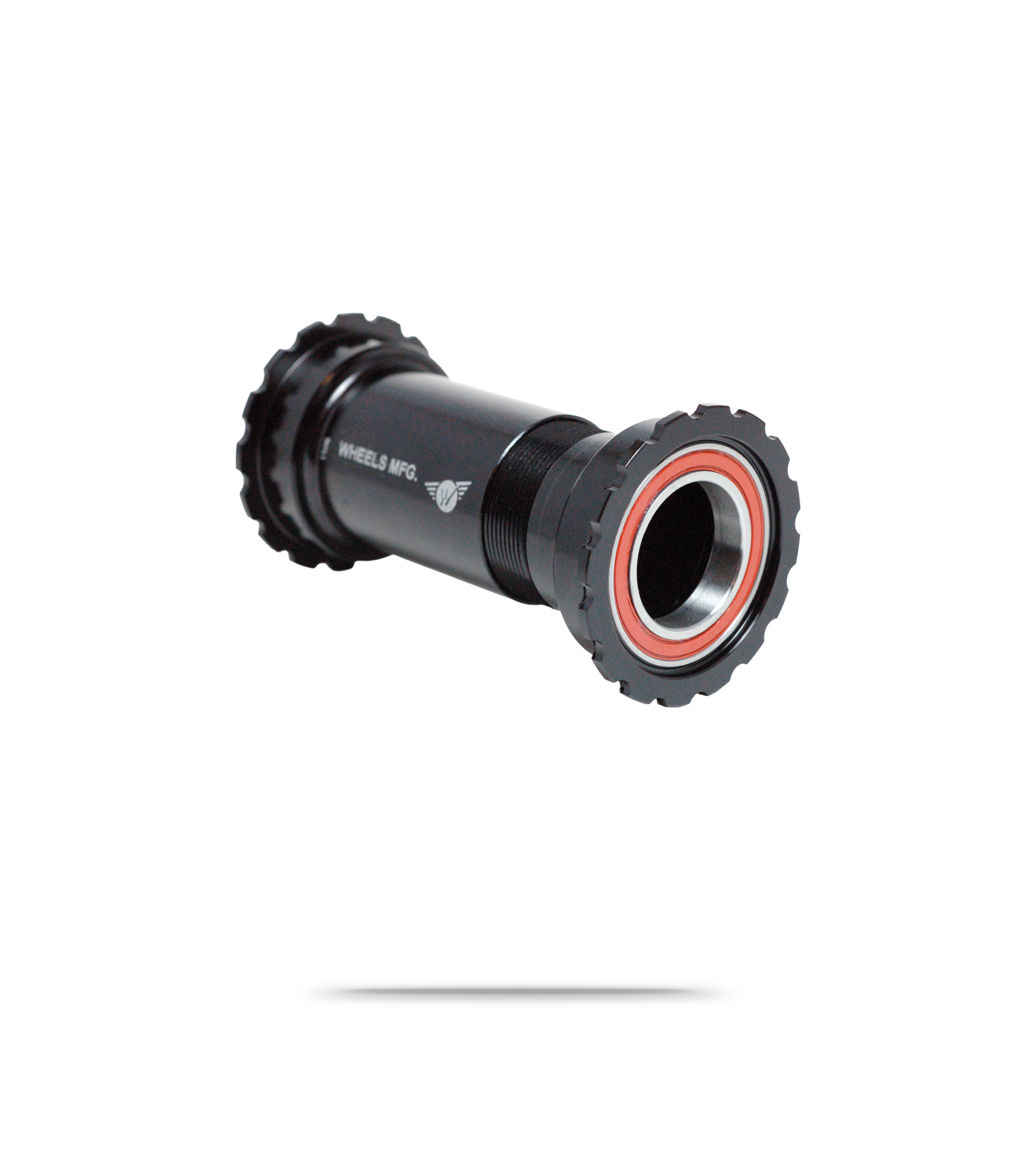

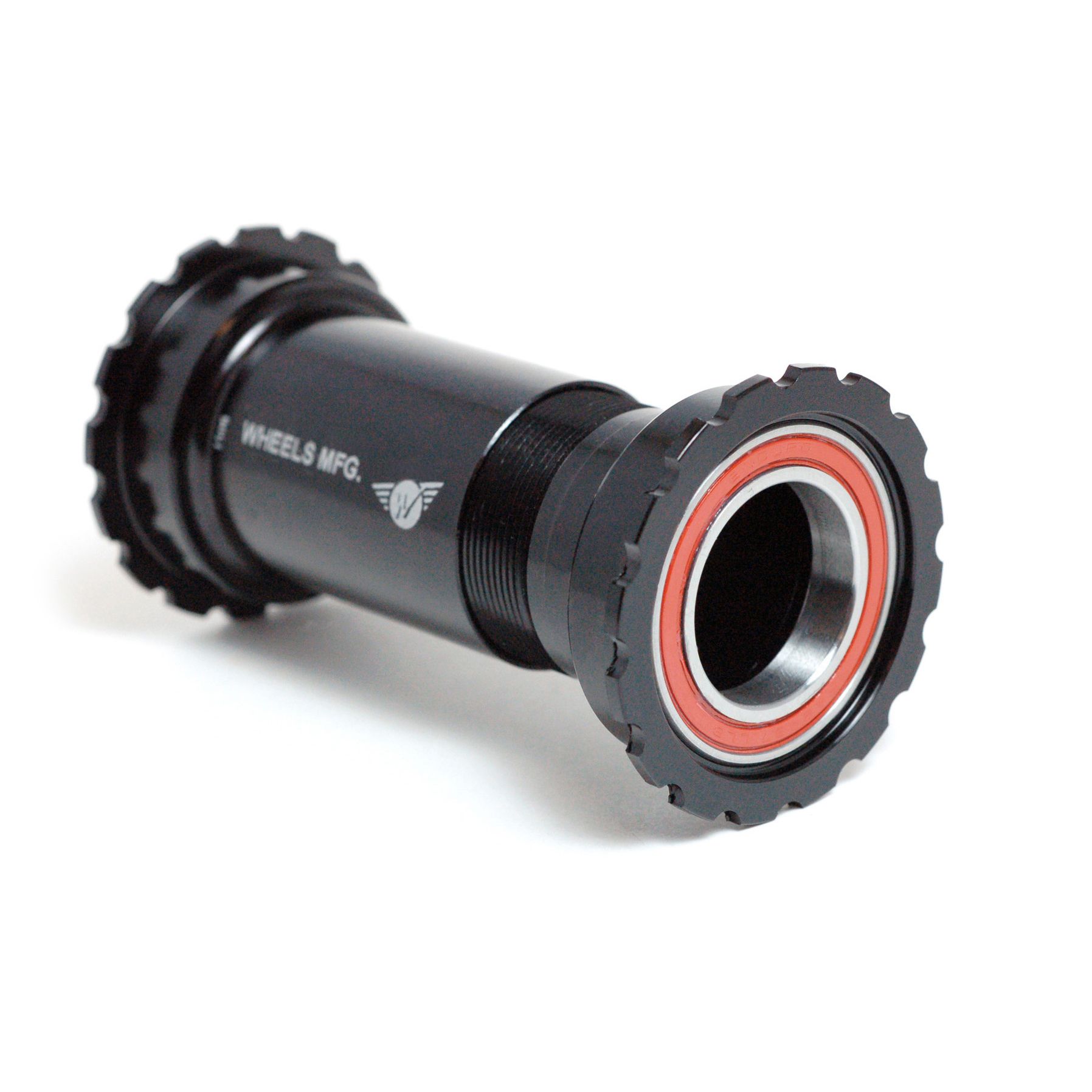

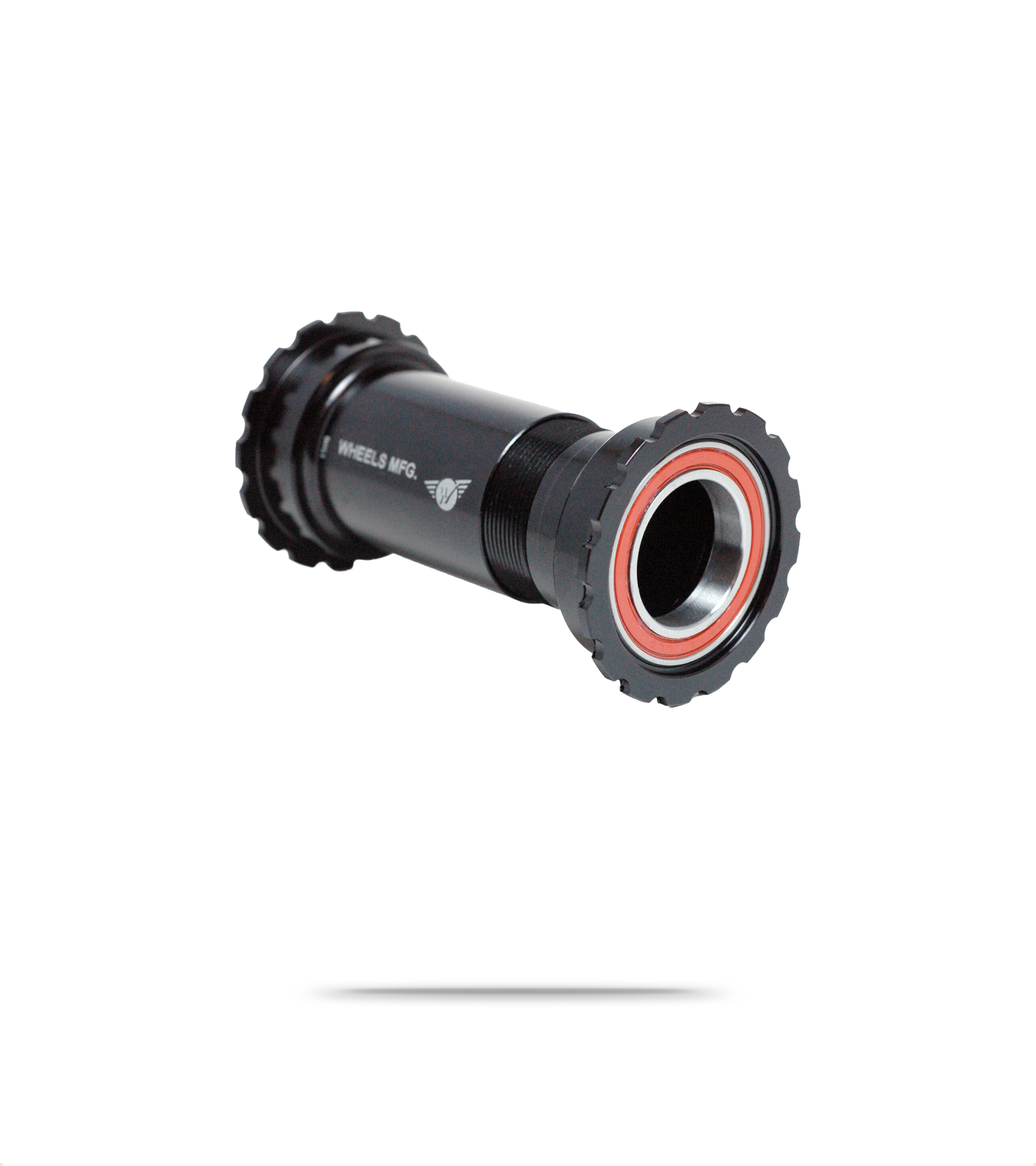

The Wheels Manufacturing PF30 Threaded Bottom Bracket is the durable upgrade for any frame running the PF30 press-fit standard. Where OEM bottom brackets wear out and need full replacement, Wheels Manufacturing's design uses serviceable Enduro bearings that can be replaced when worn - extending working life and reducing waste. The thread-together cup design adds creak-free stability that press-fit alternatives struggle to match.
Construction & Materials
The shell is machined in the USA from aluminium for precision tolerances and lasting durability. The two cups thread together through the frame for a stable, creak-free fit. Double lip-sealed Enduro bearings keep water and grit away from the bearing surfaces. The angular contact variant disperses load more evenly than standard cartridge bearings, particularly relevant for SRAM cranksets under hard pedalling.
Compatibility
Fits any frameset with a PF30 press-fit shell (61mm to 86.5mm shell width). Two spindle-compatibility options: Shimano Hollowtech II (24mm with angular contact bearings) and Rotor/FSA (30mm with standard ABEC-3 bearings). Select the variant that matches your crankset.
Features
- USA-machined aluminium shell for superior function and durability
- Serviceable, double lip-sealed Enduro bearings - replace when worn
- Two threaded cups screw together for stable, creak-free installation
- PF30 press-fit shell standard with shell widths 61mm to 86.5mm
- Spindle options cover Shimano Hollowtech II (24mm Angular Contact) and Rotor/FSA (30mm Standard ABEC-3)
- Direct replacement for OEM PF30 bottom brackets
- Quick bearing replacement when worn
Specifications
- Bottom Bracket Standard
- PF30
- Discipline Compatibility
- Road, Gravel, Mountain Bike
- Spindle Diameter
- 24mm, 30mm
- Threaded / Press Fit
- press-fit
- Bearing Type
- Steel
- Bottom Bracket [Maker]
- Wheels Manufacturing
- Crank Compatibility
- Shimano Hollowtech II, 30mm
- Intended Use
- Performance
- Shell Width
- 68mm, 73mm, 83mm
- Sleeved Design
- No
- Product code
- 681799 / 54293035057498
Reviews
I recently replaced my BBRight bb for this one, replacing it was easy. The crank spins nicely again.
Shipping & Returns
Free UK delivery on orders over £50. Orders are dispatched within 1-2 working days and typically arrive 1-2 working days later.
Return unused items in their original packaging within 30 days of delivery. Return postage is £3.50.
Q & A
20 questions answered
Would this fit 2017 suoersix evo himod with hollowgram cranks with spiderings?
Hi there, Yes it will, Many thanks Joe W
What tool is required to fit this please? I have bought this from you. The outside diameter of the 16-notch caps is 49.2mm and Wheels Manufacturing don't even appear to make a wrench that is this size.
Hi there, Please contact the Sales team and they will look into this for you, Many thanks Joe W
Hi, please can you confirm this will fit a PF30 frameset and SRAM Force 1 BB30 chainset? Thanks
Hi there, Yes this will, Many thanks Joe W
