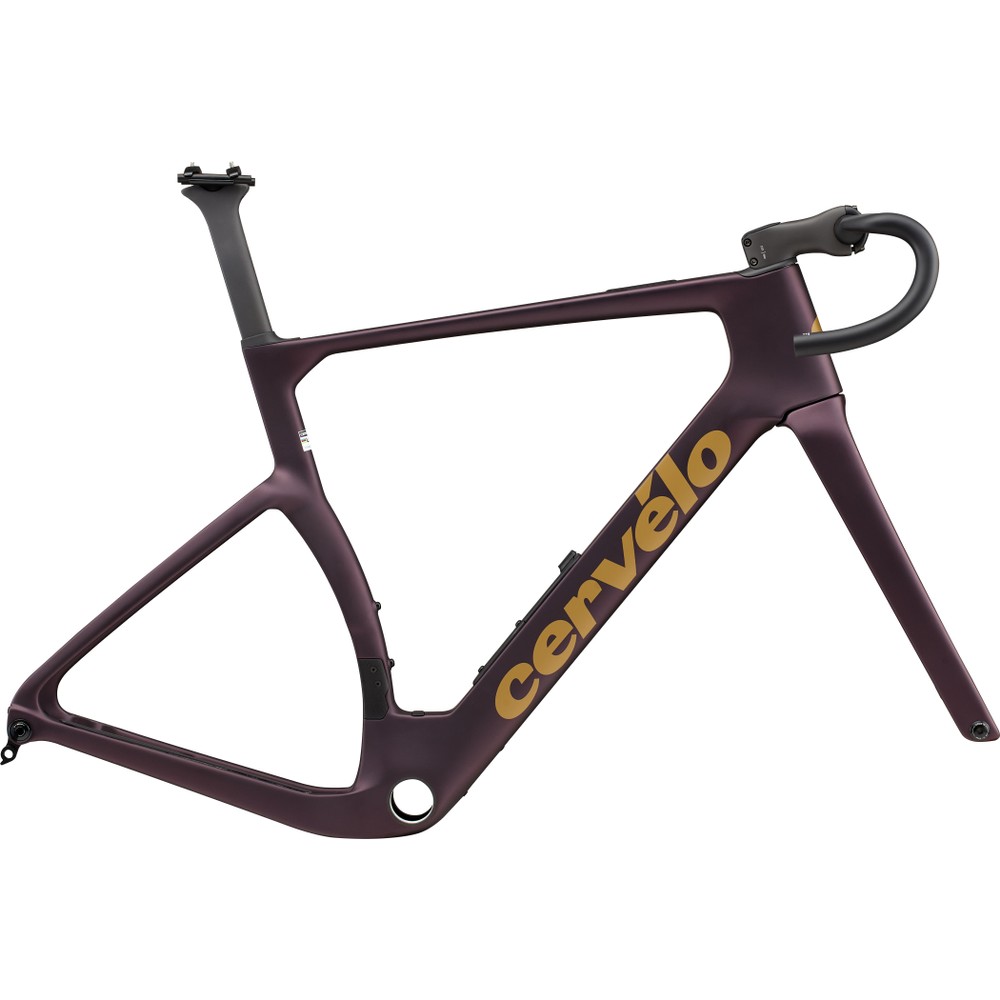

Cervelo Aspero-5 Limited Edition Frameset

£3,500.00

£5,250.00

Save 33%

The Áspero-5 Frameset, here as a Limited Edition, isn’t just an upgrade; it’s a revolution in gravel racing. Designed to dominate the front of the pack, this is the most aerodynamic gravel bike ever created, 37 watts faster than its predecessor and 34 watts faster than its closest rival.

Delivery

Select size to see delivery options

Collect in Store

Cycle to Work – Save up to 42%

Spread the cost of your new bike and save up to 42% through the Cycle to Work scheme. We accept all major providers including Cyclescheme, Green Commute Initiative, Bike2Work and more. Check with your employer for eligibility.

Free Delivery on all bikes

Complimentary standard delivery on all bikes to UK mainland addresses. Orders typically arrive within 2–5 working days. A signature is required on delivery. When you receive your bike all you'll need to do is unpack it, attach your pedals, turn the handlebars and ride.

Premier Delivery

Upgrade to Premier Delivery at checkout for a nominated day, extended assembly and in-home handover by a trained technician. Available on eligible bikes across UK mainland.

Built, checked, tuned & tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Pedals & accessories

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team

You May Also Need

Vittoria
Corsa Pro Control TLR Road Tyre
£66.00
£89.99
Continental

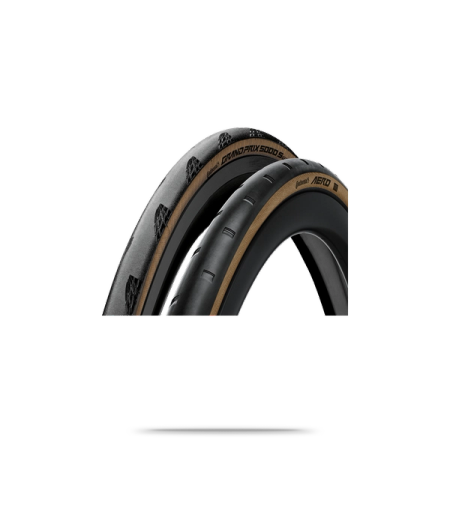

Aero TR Ltd Tour de France Tubeless Tyre Set
£169.00
£199.99
SRAM

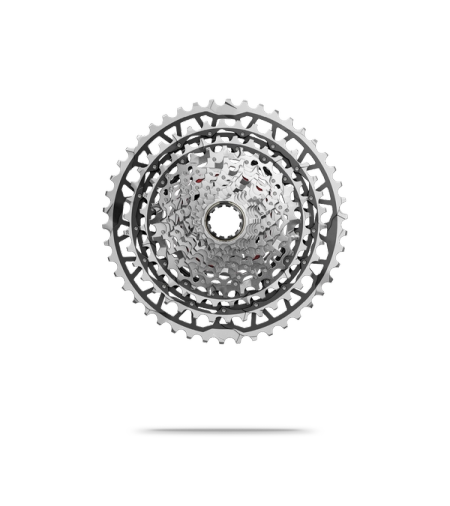

XG-1371 Force XPLR E1 13 Speed Cassette
£265.00
£270.00

Product Details

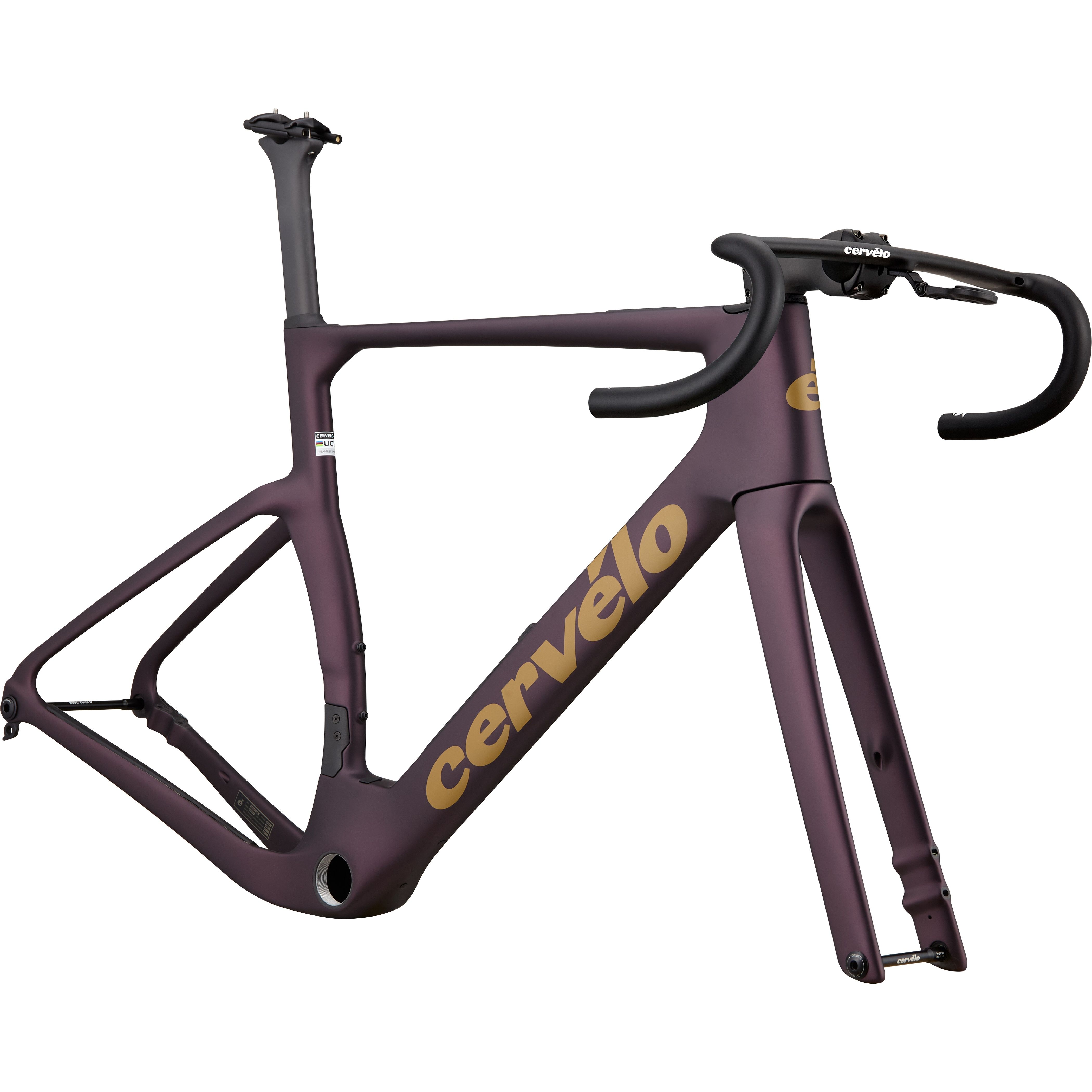

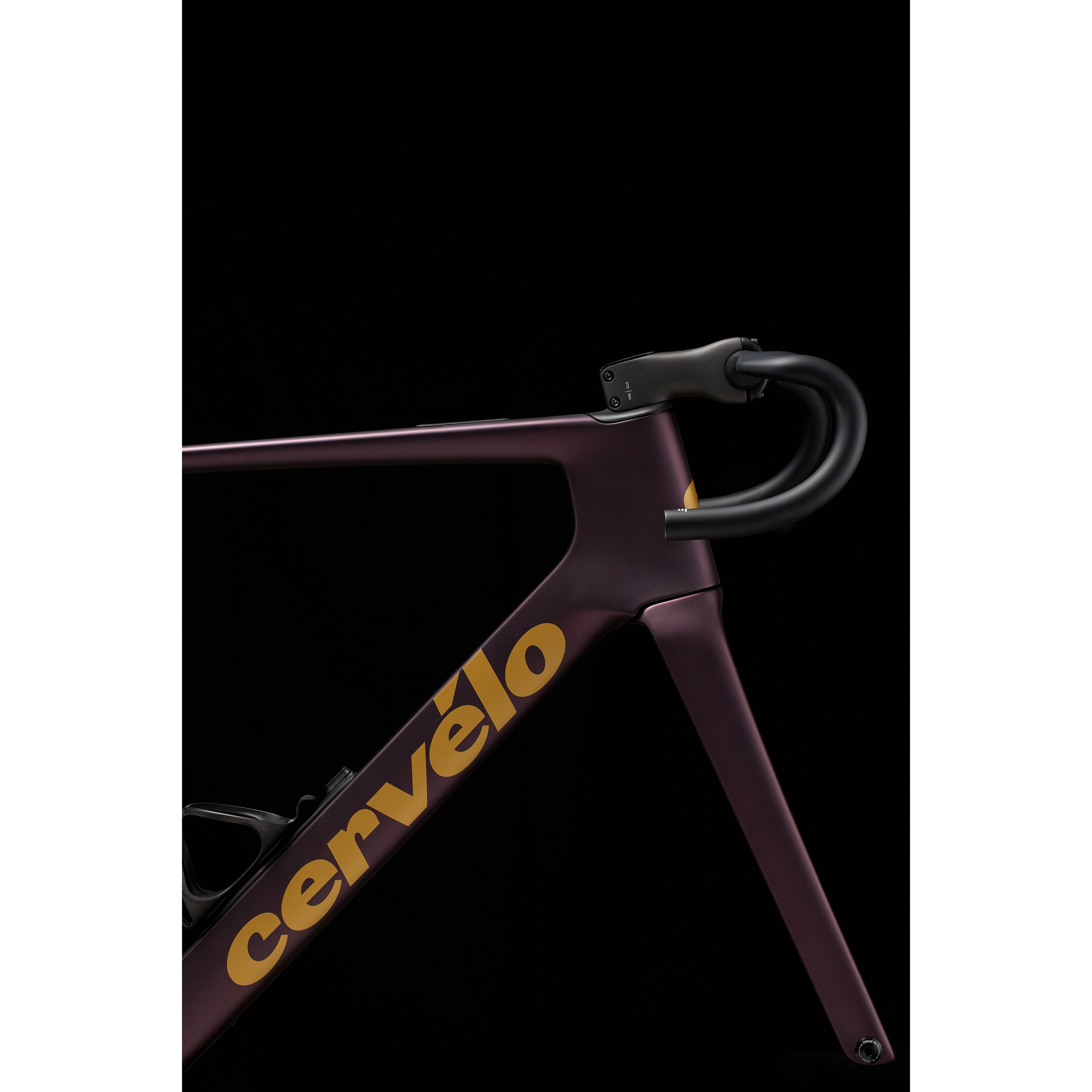

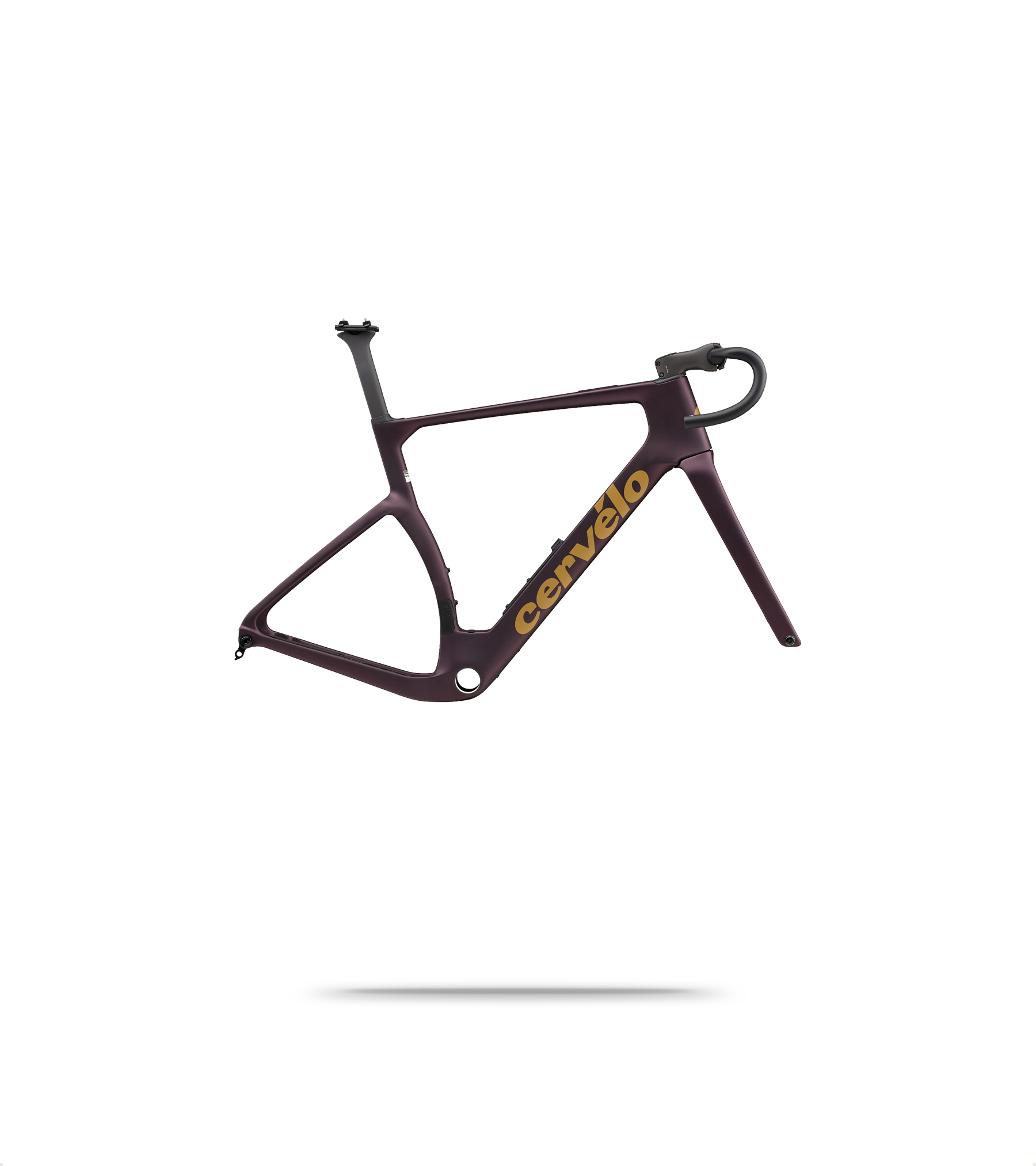

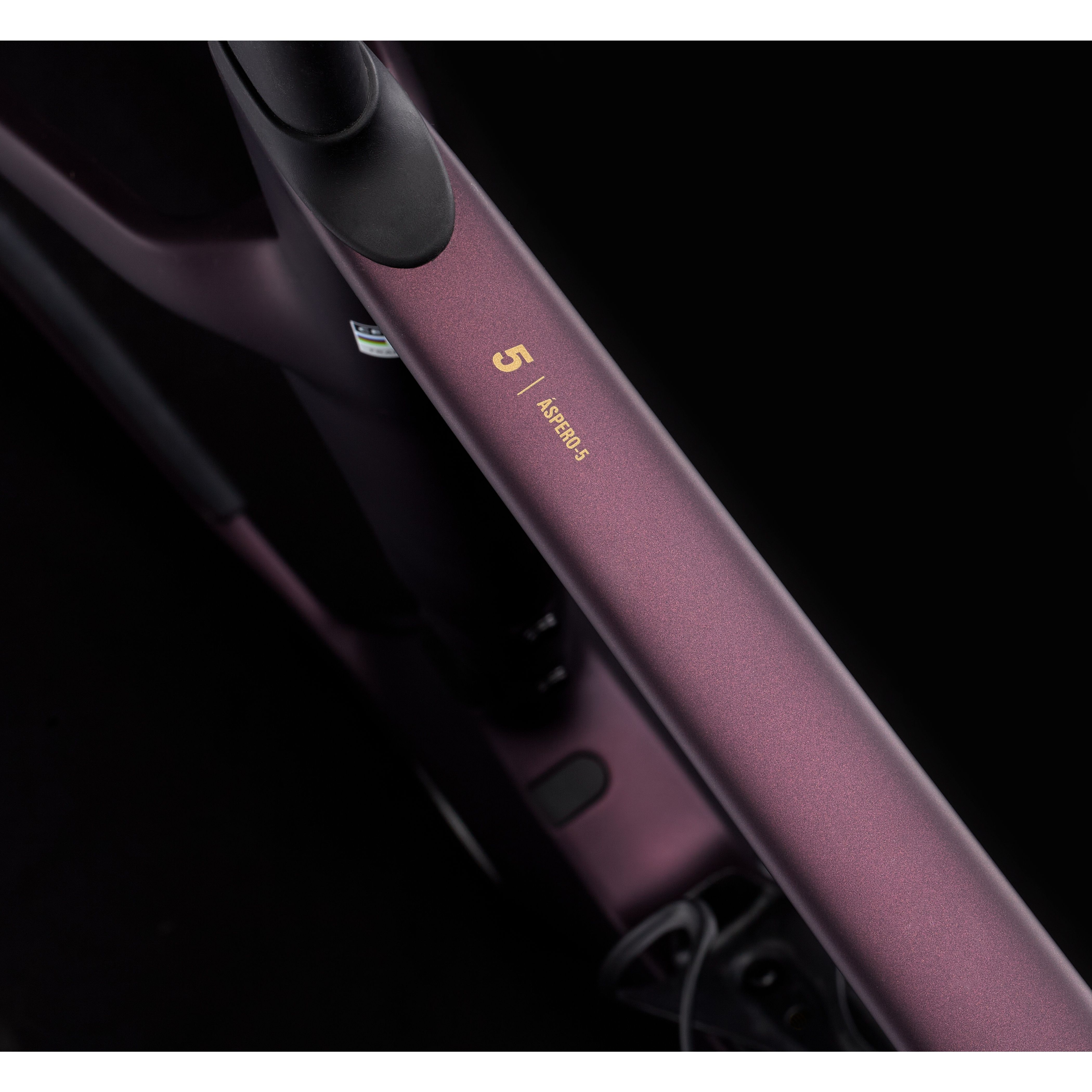

Cervelo Aspero-5 Frameset Limited Edition

Cervélo’s reputation for cutting-edge aerodynamics shines in the Áspero-5 Frameset. The bike’s sleek design, including an aero handlebar and stem, shaves off nearly 6 Watts alone, while the frameset itself is 66 grams lighter than before, despite adding surface area for improved airflow. Whether you’re tackling technical terrain or sprinting on smoother courses, the Áspero-5’s optimised geometry ensures stable, confident handling, with tyre clearance up to 45mm, ensuring sure-footed handling at speed.

Race-Ready Innovation, Built for Speed

Inspired by Cervélo’s P-Series triathlon bike, the Áspero-5 features an industry-leading downtube storage door, the lightest and most aerodynamic system available. Keep your tube, tools, and flat kit hidden inside the frame, reducing drag and keeping you focused on the race ahead.

Features

Claimed Frame Weight: 1025 g
Claimed Fork Weight: 420 g
System Weight: 2026 g (incl. bar, seatpost, stem, storage door)
Tyre Clearance: Up to 45 mm front and rear
Bottom Bracket: Threaded T47A
Storage: Integrated downtube compartment
UDH and Transmission-compatible
Large chainrings up to 52T
Compatible with dual-sided power meters
Downtube internal storage
Direct mount top tube bag compatible
Carbon handlebar, stem, and seatpost included
Cockpit Support: Fully and semi-internal routing supported (ST31/ST36)

Highlights

Cervelo All-Carbon
Threaded T47A Bottom Bracket
UDH and Transmission compatible

Specifications

Model: Aspero-5 Limited Edition Frameset
Bottom Bracket Standard: T47
Brakes [Kind]: Hydraulic Disc
Discipline Compatibility: Gravel
E-Bike: No
Family: Aspero-5
Fenders Mounts: No
Fork [Axle Diameter]: 12 mm
Fork [Axle Type]: Thru-Axle
Fork [Brake Type]: Disc
Fork [Material]: Carbon
Frame [Hanger Standard]: UDH
Frame [Material]: Carbon
Frame [Tire Clearance]: 45c mm
Frameset: Yes
Gearing [Kind]: Conventional
Gender: Unisex
Handlebar [Kind]: Drop
Handlebar [Maker]: Cervelo
Handlebar [Material]: Carbon
Rack Mounts: No
Seatpost [Kind]: Rigid
Seatpost [Maker]: Cervelo
Seatpost [Material]: Carbon
Stem [Maker]: Cervelo
Stem [Material]: Carbon
Sub Family: Aspero 5
Suspension Configuration: Rigid
Product code: 2007787 / 54354011095386

Size Guide

Size	48	51	54	56	58	61
Frame Reach (mm)	368.7	376.5	383.3	391.1	400.3	408.3
Stack (mm)	496.1	520.2	544.6	567.5	590.7	610.7
Head Tube Angle	71	72	73	73	73	73
Front Center (mm)	574	576	578	595	611	628
Bottom Bracket Drop (mm)	76.5	76.5	74	74	71.5	71.5
Head Tube Length (mm)	86	106	130	156	184	211
Top Tube Length (mm)	516	532	548	565	581	598
Seat Tube Angle	74.5	74	73.5	73	73	73
Standover Height (mm)	708	748	774	798	824	848
Trail (mm)	57.3	57.3	57.3	57.3	57.3	57.3
Fork Offset (mm)	57.5	51.5	45.5	45.5	45.5	45.5
Wheelbase (mm)	972	974	977	994	1011	1028
Chainstay Length (mm)	410	410	410	410	410	410
