Product Details

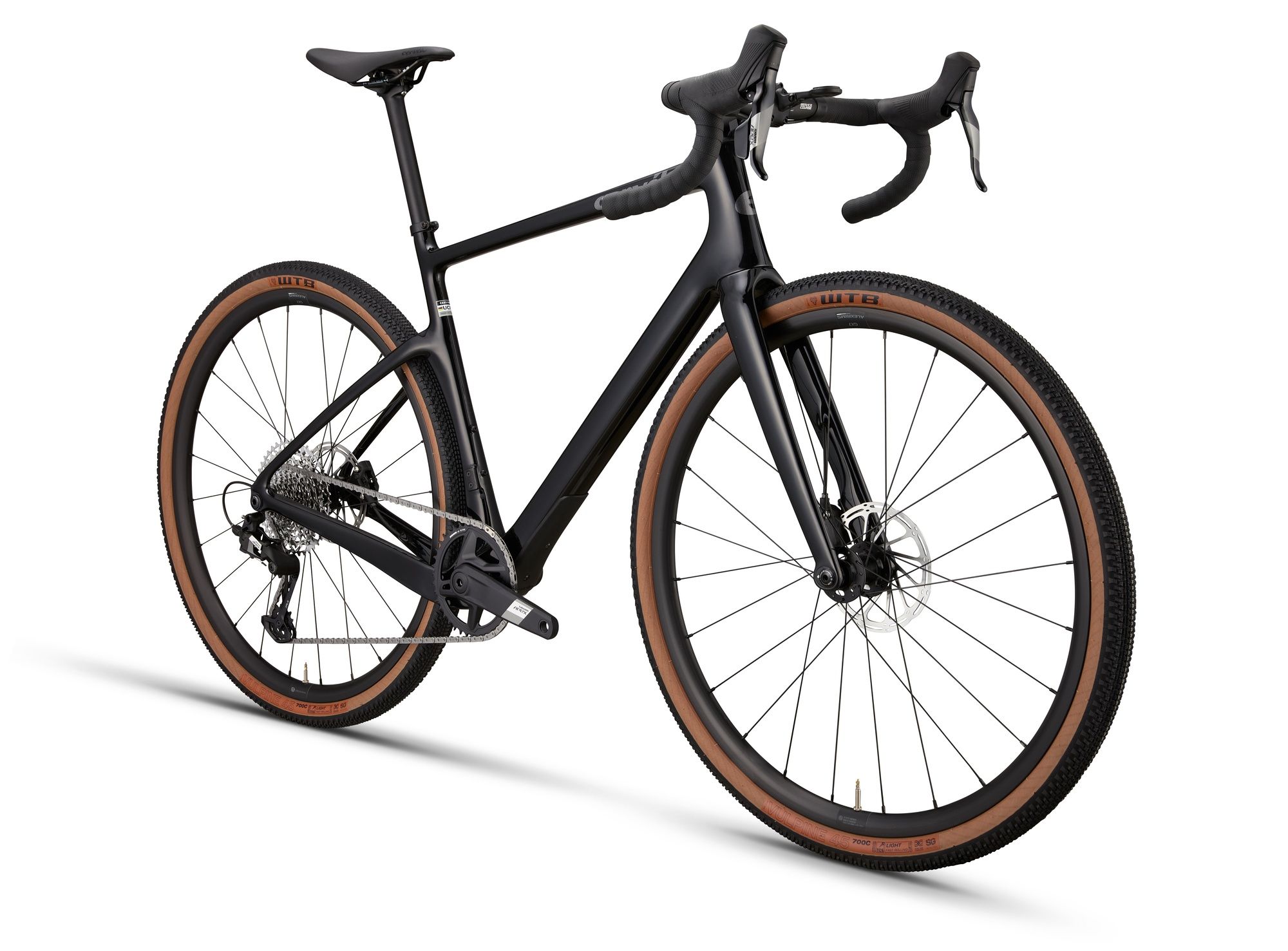

Aspero Apex XPLR 1 Gravel Bike

Featuring the tried and tested gravel-ready Aspero carbon frame and forks with tuned geometry for a rapid but comfortable ride, the Aspero Apex XPLR 1 Gravel Bike is made for the fun of off-road exploration. Tube profiles are tuned for smooth aerodynamics, saving energy for those big days in the saddle, while also being engineered to provide extra compliance over rough terrain, making the last miles of an epic day all the more comfortable.

Faultless shifting and braking come courtesy of SRAM's brilliant Apex XPLR groupset. This mechanical 1x setup, with a wide-range cassette, offers all the gear range you could want, and with smooth shifts when you need them most. Meanwhile, powerful hydraulic disc brakes provide confidence-inspiring braking when things get gnarly on the trails, letting you enjoy the ride to the maximum.

Features
  • Frame: Cervelo Aspero All-Carbon
  • Fork: Tapered Aspero Fork
  • Headset: FSA IS2 1-1/4 x 1-1/2 headset
  • Axles: Cervelo Aero Thru-Axles, 12 x 100 / 12 x 142
  • Bottom Bracket: SRAM DUB Wide, T47 BBright
  • Handlebar: Zipp Service Course 70 XPLR Alloy, 31.8mm clamp, 5-degree flare, 11-degree outsweep
  • Stem: Cervelo ST36 Alloy Stem
  • Bar Tape: Cervelo
  • Front Brake: SRAM Apex hydraulic disc - Centerline Centerlock Rotors
  • Rear Brake: SRAM Apex hydraulic disc - Centerline Centerlock Rotors
  • Brake and Shift Levers: SRAM Apex XPLR
  • Rear Derailleur: SRAM Apex XPLR mechanical
  • Chain: SRAM Apex, 12 speed
  • Cassette: SRAM Apex XLPR, 11-44, 12 speed
  • Crankset: SRAM Apex 1, 40T, DUB Wide
  • Front Wheel: Alexrims GX7, 12x100mm, 24H, 25mm IW, 6 bolt, tubeless compatible
  • Rear Wheel: Alexrims GX7, 12x142mm, 24H, 25mm IW, HG freehub, 6 bolt, tubeless compatible
  • Tyres: WTB Vulpine TCS Light Fast Rolling Dual DNA 60tpi 700x45c
  • Saddle: Cervelo
  • Seatpost: Cervélo Alloy 27.2
  • Pedals: Available to be purchased separately
  • Accessories: Smartpak 400A Top Tube Storage Bag
Specifications
Model
Aspero Apex XPLR 1
Bottom Bracket [Maker]
SRAM
Bottom Bracket Standard
T47
Brakes [Kind]
Hydraulic Disc
Brakes [Maker]
SRAM
Brakes [Model]
Apex
Cassette [Gearing]
11–44
Cassette [Maker]
SRAM
Cassette [Model]
Apex XPLR
Chain [Maker]
SRAM
Chain [Model]
Apex
Chainring [Gearing]
40
Crank [Maker]
SRAM
Crank [Model]
Apex 1
Discipline Compatibility
Gravel
E-Bike
No
Family
Aspero
Fork [Axle Diameter]
12 mm
Fork [Axle Type]
Thru-Axle
Fork [Brake Type]
Disc
Fork [Maker]
Cervelo
Fork [Material]
Carbon
Fork [Model]
Aspero Fork
Fork [Rake]
52 mm
Fork [Wheel Size]
700c
Frame [Hanger Standard]
Brand-Specific
Frame [Material]
Carbon
Frame [Tire Clearance]
45c mm
Frameset
No
Gearing [Configuration]
1x
Gearing [Kind]
Conventional
Gender
Unisex
Handlebar [Flare]
5 degree
Handlebar [Kind]
Drop
Handlebar [Maker]
Zipp
Handlebar [Material]
Aluminium
Handlebar [Shape]
Drop bar
Headset [Maker]
FSA
Headset [SHIS]
IS2
RD [Maker]
SRAM
RD [Model]
Apex XPLR
Saddle [Maker]
Cervelo
Seatpost [Diameter]
27.2
Seatpost [Kind]
Rigid
Seatpost [Maker]
Cervelo
Seatpost [Material]
Aluminium
Shifters [Maker]
SRAM
Shifters [Model]
Apex XPLR
Shifting
Mechanical
Stem [Maker]
Cervelo
Stem [Material]
Aluminium
Suspension Configuration
Rigid
Tires [Maker]
WTB
Tires [Width]
45 mm
Wheels [Configuration]
Front+Rear
Wheels [Kinds]
Tubeless Ready
Wheelset [Inner Width]
25 mm
Wheelset [Maker]
alexrims
Wheelset [Material]
Aluminium
Wheelset [Model]
GX7
Product code
1938814 / 54293831811418
Size Guide
—485154565861
A------
B------
C515531548565581597
D------
E73°73°73°73°73°73°
F70°70°71.1°71.5°71.5°71.5°
G108.9138.3155.8180.1207231.2
H------
I------
J------
K352362372382391400
L527549572595618641
Cervelo C5 Bikes Size Guide

If you fall between sizes, we recommend experienced riders selecting the smaller frame which will offer faster handling. A larger bicycle offers more stability.

Should you have any specific questions, please contact us for information and talk to one of our experienced members of staff.

A: Seat Tube (CTR-TOP)

B: Seat Tube (CTR-CTR)

C: Effective Top Tube

D: Actual Top Tube

E: Seat Arc Angle

F: Head Arc Angle

G: Head Tube

H: Fork Rake

I: Chainstay

J: Wheelbase

K: Stack

L: Reach

* All measurements in mm unless otherwise stated
