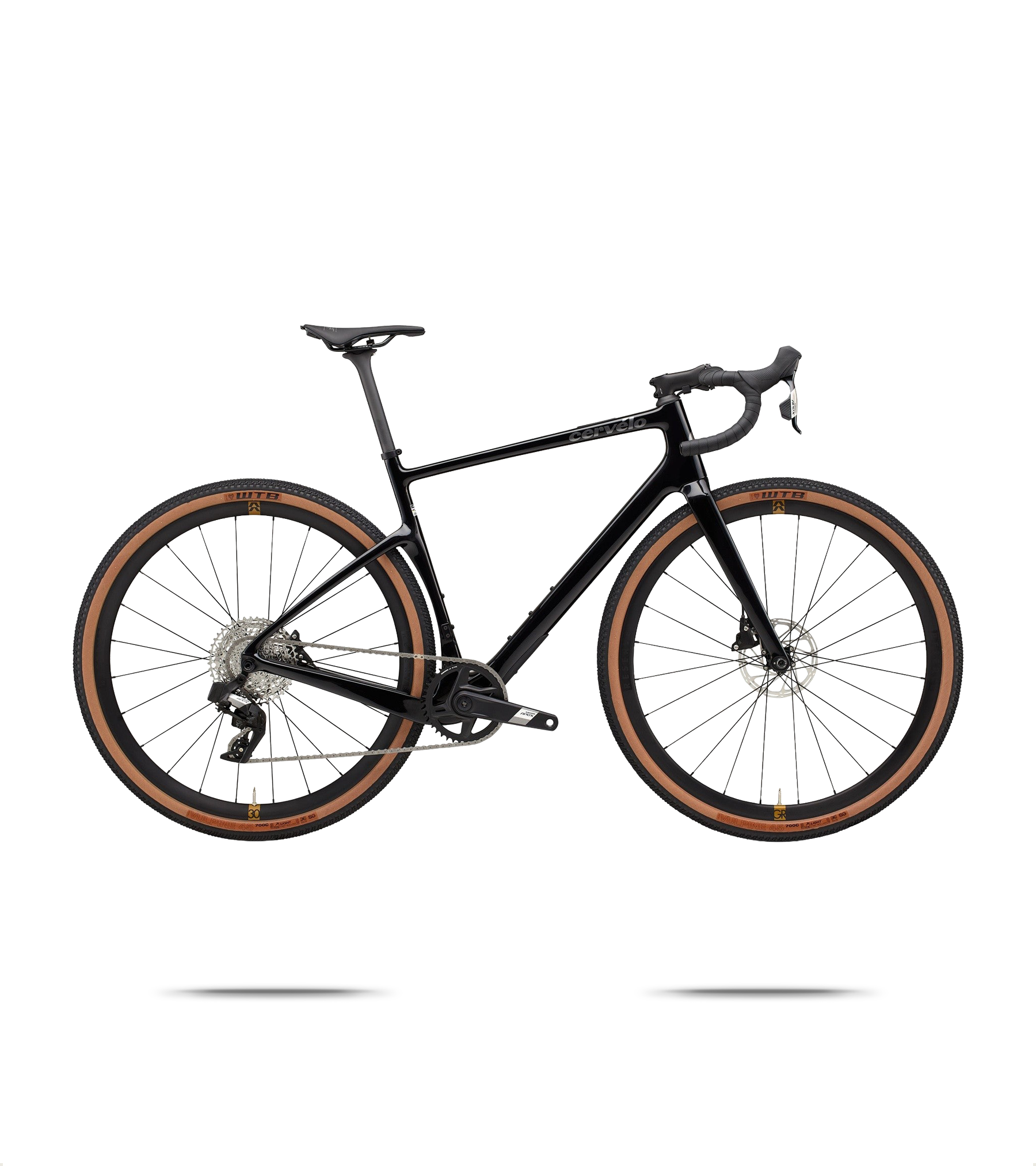

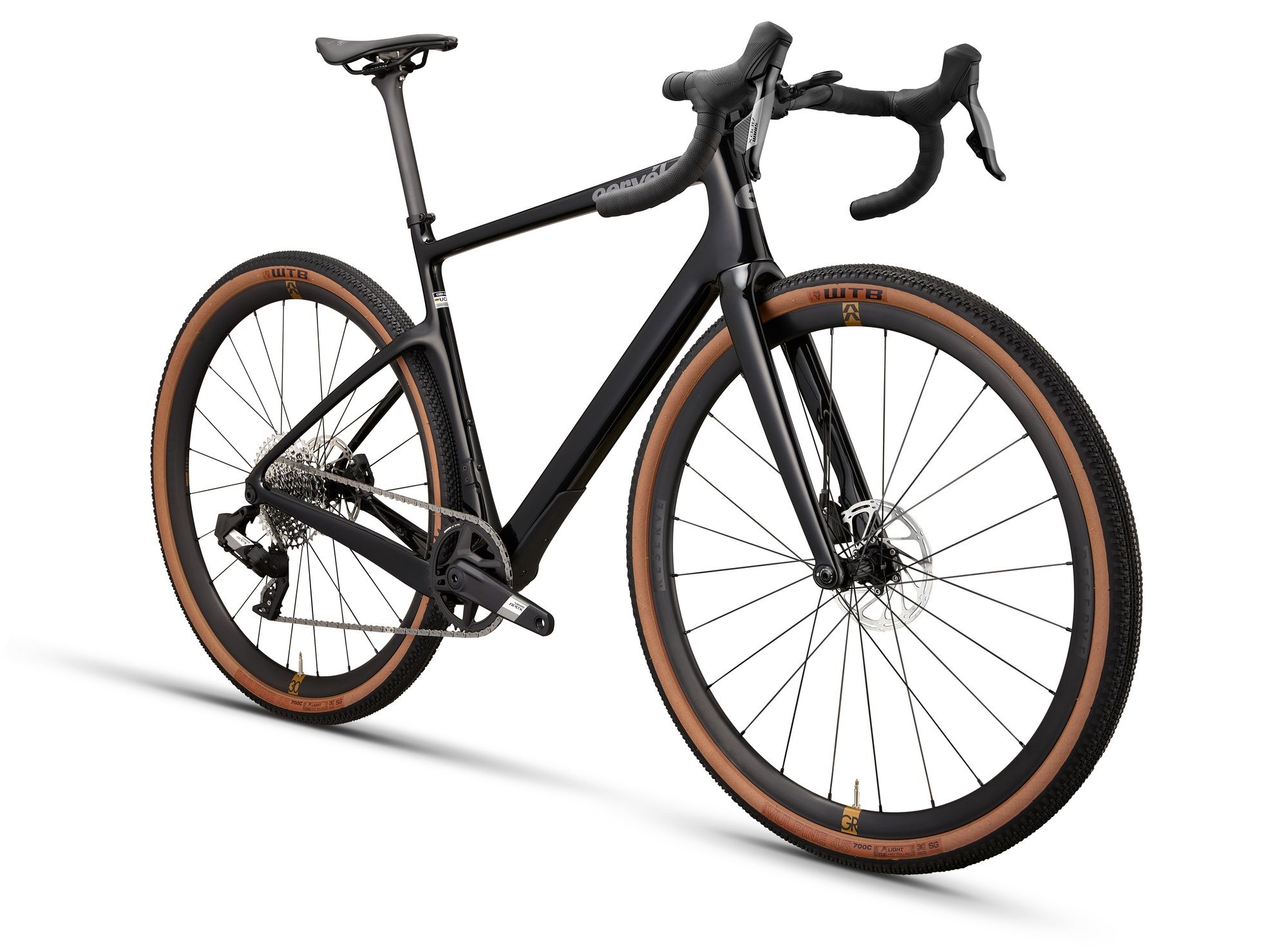

Aspero Apex XPLR AXS 1 Gravel Bike

Featuring the tried and tested gravel-ready Aspero carbon frame and forks with tuned geometry for a rapid but comfortable ride, the Aspero Apex XPLR AXS 1 Gravel Bike is made for the fun of off-road exploration. Tube profiles are tuned for smooth aerodynamics, saving energy for those big days in the saddle, while also being engineered to provide extra compliance over rough terrain, making the last miles of an epic day all the more comfortable.

Faultless shifting and braking come courtesy of SRAM's brilliant Apex XPLR AXS groupset. This wireless AXS 1x setup, with a wide-range cassette, offers all the gear range you could want, keeping you in the perfect cadence sweet spot for both hills and charging hard on the flats. The wireless setup gives smooth, snappy and reliable gear shifts whenever and wherever you need them most. Meanwhile, powerful hydraulic disc brakes provide confidence-inspiring braking when things get gnarly on the trails, letting you enjoy the ride to the maximum.

Features
  • Frame: Cervelo Aspero All-Carbon
  • Fork: Tapered Aspero Fork - FSA IS2 1-1/4 x 1-1/2 headset
  • Axles: Cervelo Aero Thru-Axles, 12 x 100 / 12 x 142
  • Bottom Bracket: SRAM DUB Wide, T47 BBright
  • Handlebar: Cervelo AB09F flared carbon handlebars
  • Stem: Cervelo ST36 Alloy Stem
  • Bar Tape: Cervelo
  • Front Brake: SRAM Apex hydraulic disc - Centerline Centerlock Rotors
  • Rear Brake: SRAM Apex hydraulic disc - Centerline Centerlock Rotors
  • Brake and Shift Levers: SRAM Apex AXS D1
  • Rear Derailleur: SRAM Apex XPLR AXS D1 wireless
  • Chain: SRAM Apex D1, 12 speed
  • Cassette: SRAM Apex XPLR D1, 11-44T, 12-Speed
  • Crankset: SRAM Apex 1 D1, 40T, DUB Wide
  • Front Wheel: Reserve 30 GR AL, Reserve 4LD, 12x100mm, 24H, centerlock, tubeless compatible
  • Rear Wheel: Reserve 30 GR AL, Reserve 4LD, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible
  • Tyres: WTB Vulpine TCS Light Fast Rolling Dual DNA SG 120tpi 700x45c
  • Saddle: Prologo Nago R4 PAS LIGHTWEIGHT STN
  • Seatpost: Cervélo SP19 Carbon 27.2
  • Pedals: Available to be purchased separately
  • Accessories: Cervélo Front Computer/Accessory Mount 810, Cervélo Rear Accessory Mount, Cervélo Smartpak Top Tube Storage Bag 400A
Specifications
Model
Aspero Apex XPLR AXS 1
Bottom Bracket [Maker]
SRAM
Bottom Bracket Standard
T47
Brakes [Kind]
Hydraulic Disc
Brakes [Maker]
SRAM
Brakes [Model]
Apex AXS
Cassette [Gearing]
11–44
Cassette [Maker]
SRAM
Cassette [Model]
Apex XPLR D1
Chain [Maker]
SRAM
Chain [Model]
Apex D1
Chainring [Gearing]
40
Crank [Maker]
SRAM
Crank [Model]
Apex 1 D1
Discipline Compatibility
Gravel
E-Bike
No
Family
Aspero
Fork [Axle Diameter]
12 mm
Fork [Axle Type]
Thru-Axle
Fork [Brake Type]
Disc
Fork [Maker]
Cervelo
Fork [Material]
Carbon
Fork [Wheel Size]
700c
Frame [Hanger Standard]
UDH
Frame [Material]
Carbon
Frameset
No
Gearing [Configuration]
1x
Gearing [Kind]
Conventional
Gender
Unisex
Handlebar [Flare]
16 degree
Handlebar [Kind]
Drop
Handlebar [Maker]
Cervelo
Handlebar [Material]
Carbon
Handlebar [Shape]
Drop bar
Headset [Maker]
FSA
RD [Maker]
SRAM
RD [Model]
Apex XPLR AXS D1
Saddle [Maker]
Prologo
Seatpost [Diameter]
27.2
Seatpost [Kind]
Rigid
Seatpost [Maker]
Cervelo
Seatpost [Material]
Carbon
Shifters [Maker]
SRAM
Shifters [Model]
Apex AXS D1
Shifting
Electronic
Stem [Maker]
Cervelo
Stem [Material]
Aluminium
Suspension Configuration
Rigid
Tires [Maker]
WTB
Tires [Width]
45 mm
Wheels [Configuration]
Front+Rear
Wheels [Kinds]
Tubeless Ready
Wheelset [Inner Width]
30 mm
Wheelset [Maker]
Reserve
Wheelset [Material]
Aluminium
Wheelset [Model]
30 GR AL
Product code
1938855 / 54293828436314
Size Guide
—485154565861
A------
B------
C515531548565581597
D------
E73°73°73°73°73°73°
F70°70°71.1°71.5°71.5°71.5°
G108.9138.3155.8180.1207231.2
H------
I------
J------
K352362372382391400
L527549572595618641
Cervelo C5 Bikes Size Guide

If you fall between sizes, we recommend experienced riders selecting the smaller frame which will offer faster handling. A larger bicycle offers more stability.

Should you have any specific questions, please contact us for information and talk to one of our experienced members of staff.

A: Seat Tube (CTR-TOP)

B: Seat Tube (CTR-CTR)

C: Effective Top Tube

D: Actual Top Tube

E: Seat Arc Angle

F: Head Arc Angle

G: Head Tube

H: Fork Rake

I: Chainstay

J: Wheelbase

K: Stack

L: Reach

* All measurements in mm unless otherwise stated
