Product Details

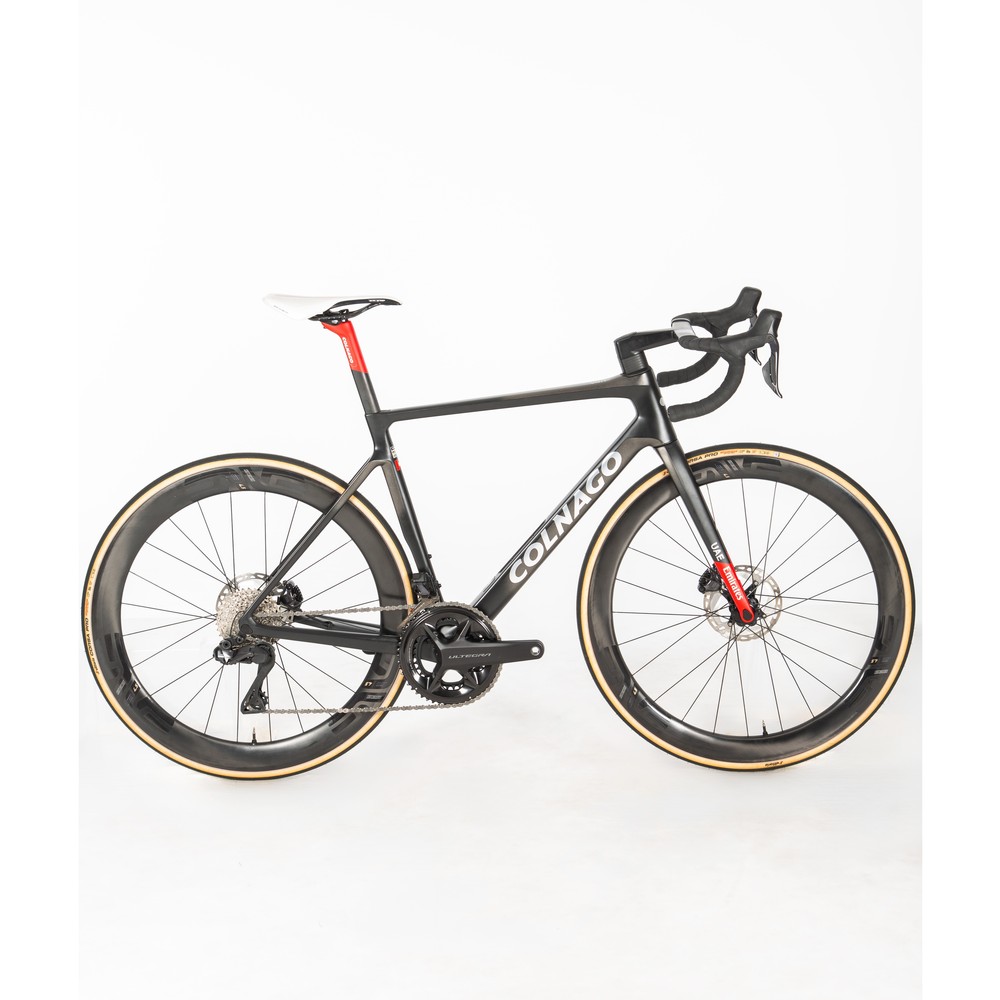

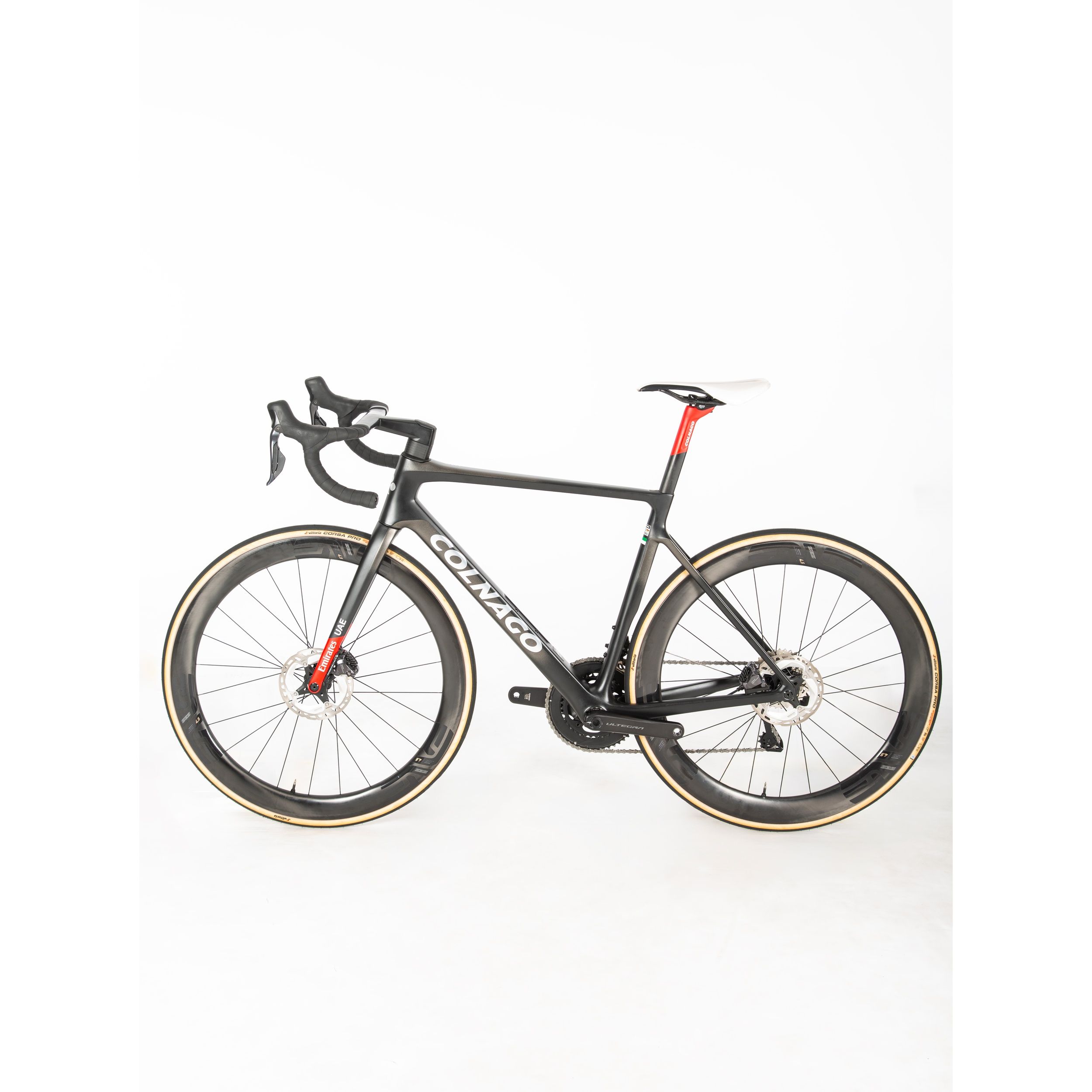

Great condition approved used bike with a paint chip to the seatpost and minor cosmetic scuffs to the saddle

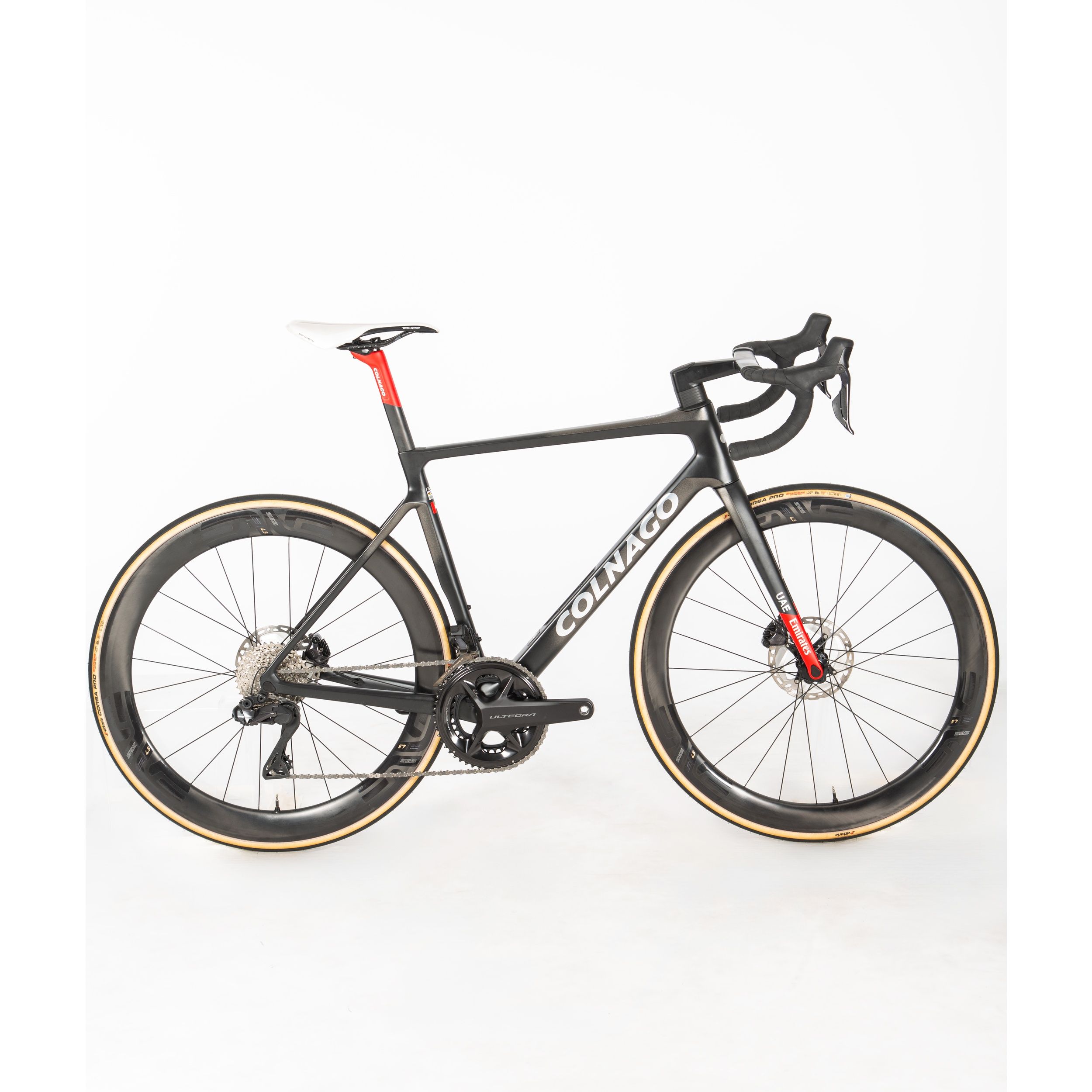

Colnago V4RS Disc Frameset

The Colnago V4Rs Disc Brake Frameset has a lot in common with its V3Rs predecessor, but it now performs better aerodynamically and is very slightly lighter. Tested in five different configurations prior to the release of the final product, both in the wind tunnel and in the real world, the V4Rs represent the perfect balance between ride quality and stiffness. Stiffness has, in fact, reduced slightly in the head tube while it remains the same in the bottom bracket area, resulting in a more solid bike with more stable handling.

Another key new benefit of this latest road model has increased resistance to impact, particularly in vulnerable areas such as the seatstays, maximising strength in the event of a crash. The latest carbon structure is also more flexible with greater resilience in general. Stack-reach ratios are now consistent across the sizes to retain the sublime handling and racy feel of the bike in every frame. Created 'ready-to-race', the pro-inspired geometry is aggressive yet won't feel uncomfortable after hours of hard riding.

A CeramicSpeed SLT headset reduces the chances of both contamination and corrosion. Pairing this frameset with the CC.01 bar (purchased separately) creates a fully integrated system. This bar was originally created for the V4Rs and then debuted on the C68 model Colnago claims a 16% reduction in drag with this setup, with no detrimental effect on stiffness compared to using a round bar. However, the frameset is also compatible with traditional handlebars if preferred.

The space for tyres up to 32mm wide will be an important feature for those riders who value higher levels of comfort in addition to performance and the frameset is compatible only with electronic groupsets. A colour-matched carbon aero seatpost delivers a smart finishing touch.



  • Certified Quality & Peace of Mind
    Every bike is meticulously inspected to the highest safety standards and comes with a one-year warranty*, ensuring reliability and performance you can trust.
  • Premium Bikes, Lower Prices
    Own a high-end bike for less – get access to top-tier brands and models at a fraction of the cost, making performance cycling more affordable.
  • Sustainable & Eco-Friendly Choice
    Choosing a pre-owned bike helps reduce waste and extends the life of quality bicycles, making it a greener way to ride.
  • Hassle-Free Trade-In & Upgrade
    Easily part-exchange your old bike for an upgrade, making it simple to switch, save, and keep riding the best bike for your needs

Approved Used Warranty Information

Features
  • Frame: Colnago V4RS Carbon, 2023 UAE Emirates Team edition, 51cm

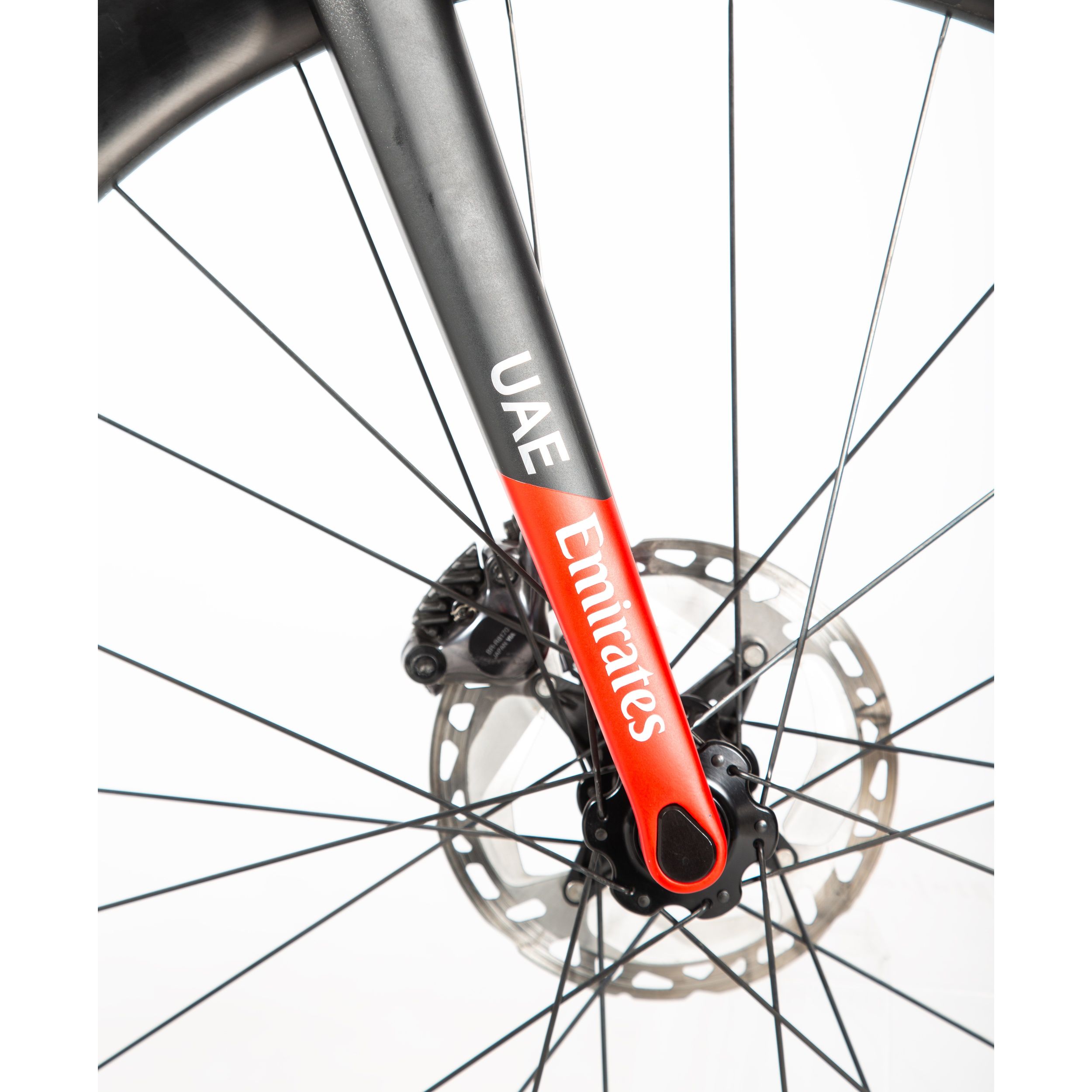

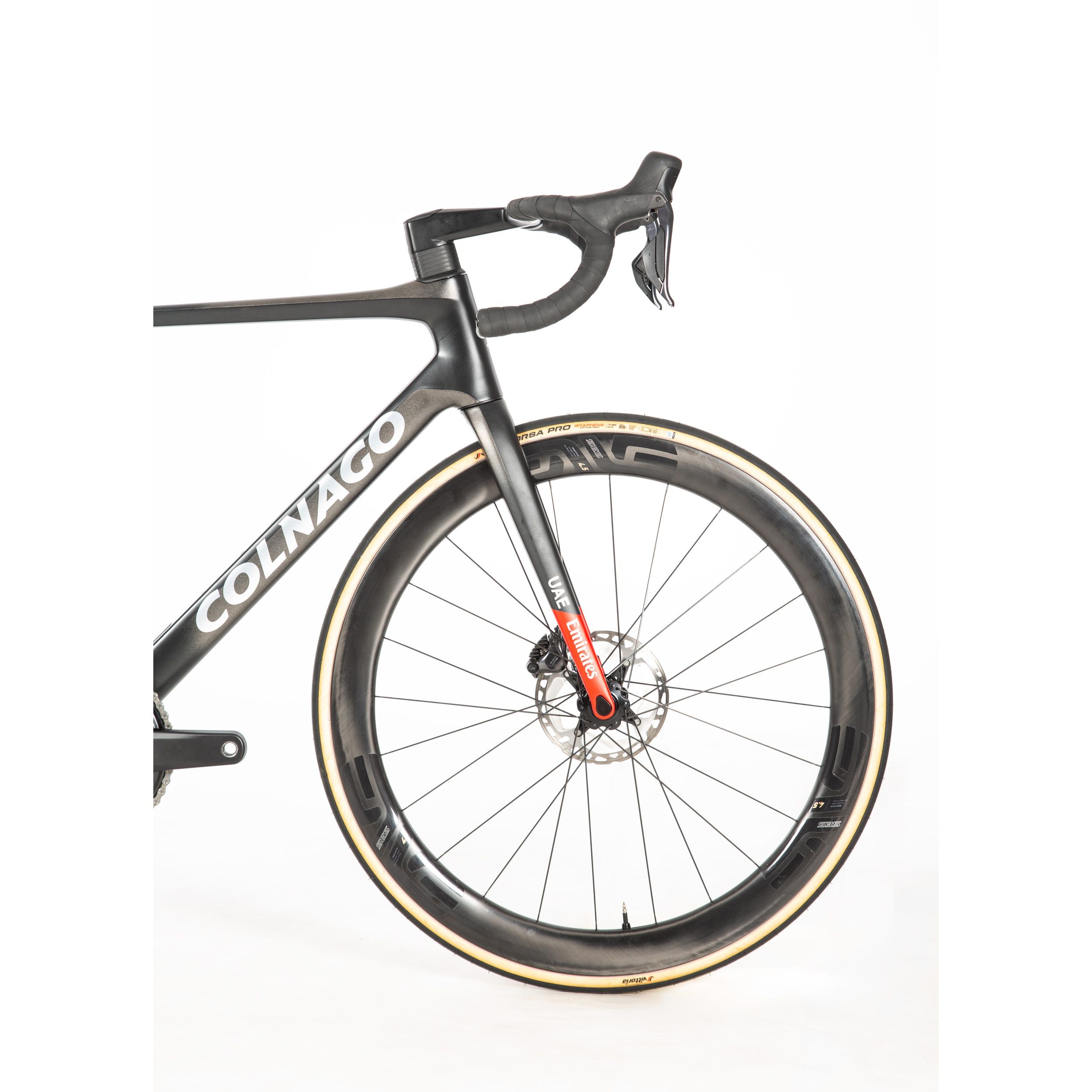

  • Fork: Colnago V4RS Carbon, UAE Emirates Team colours

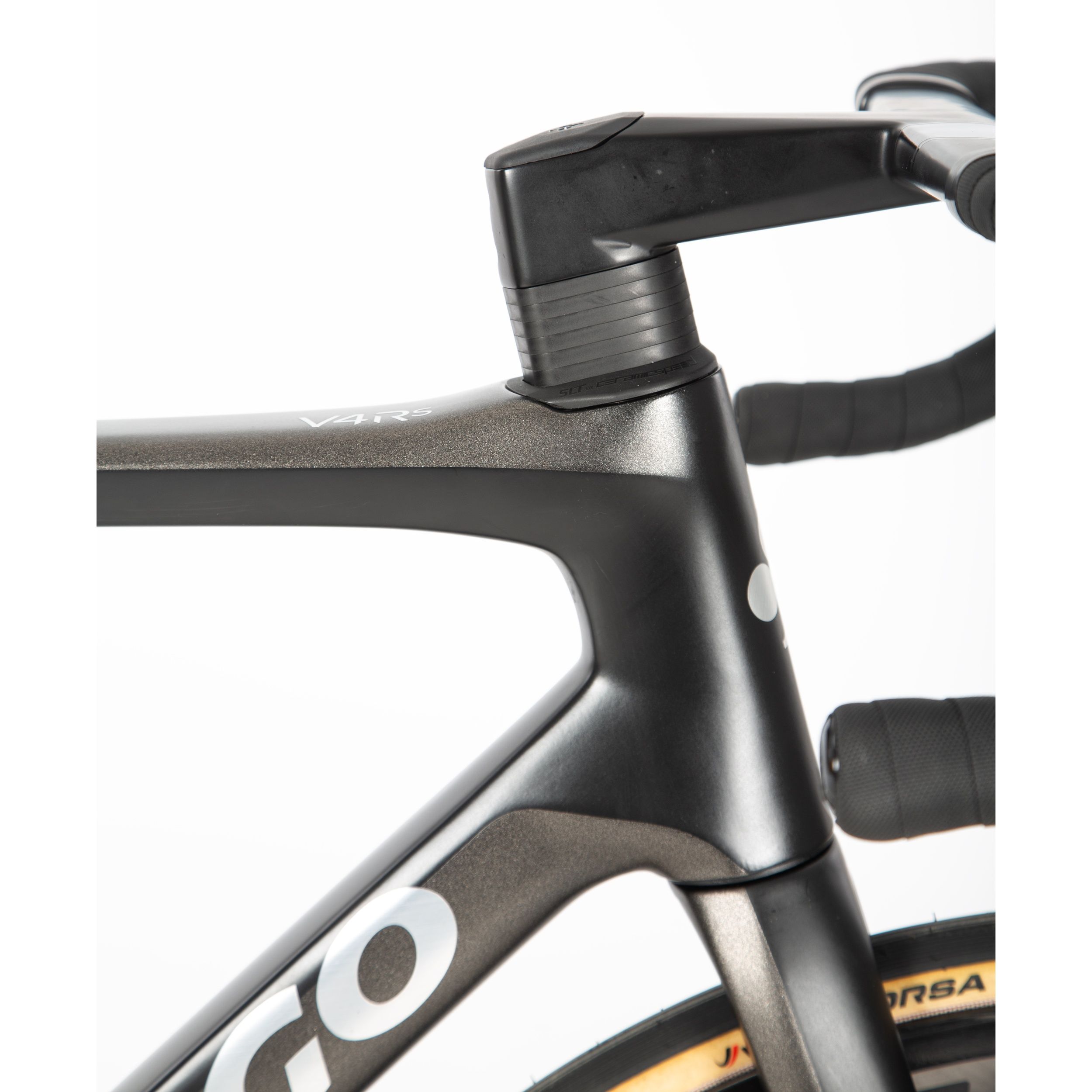

  • Headset: CeramicSpeed SLT Integrated headset
  • Bottom Bracket: CeramicSpeed T47 Threaded

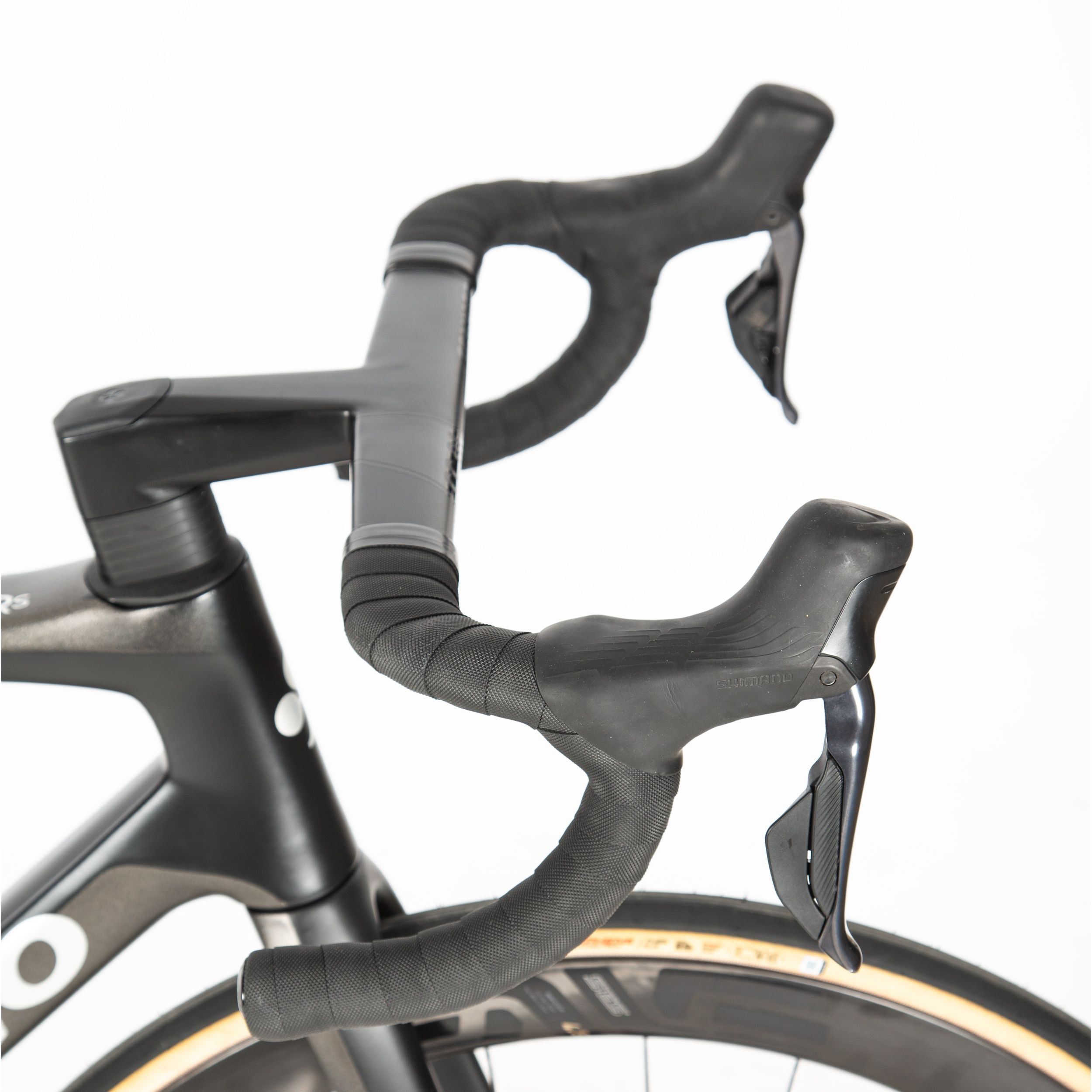

  • Stem: Colnago CC.01 Integrated Bar/Stem Combo 120mm -6°

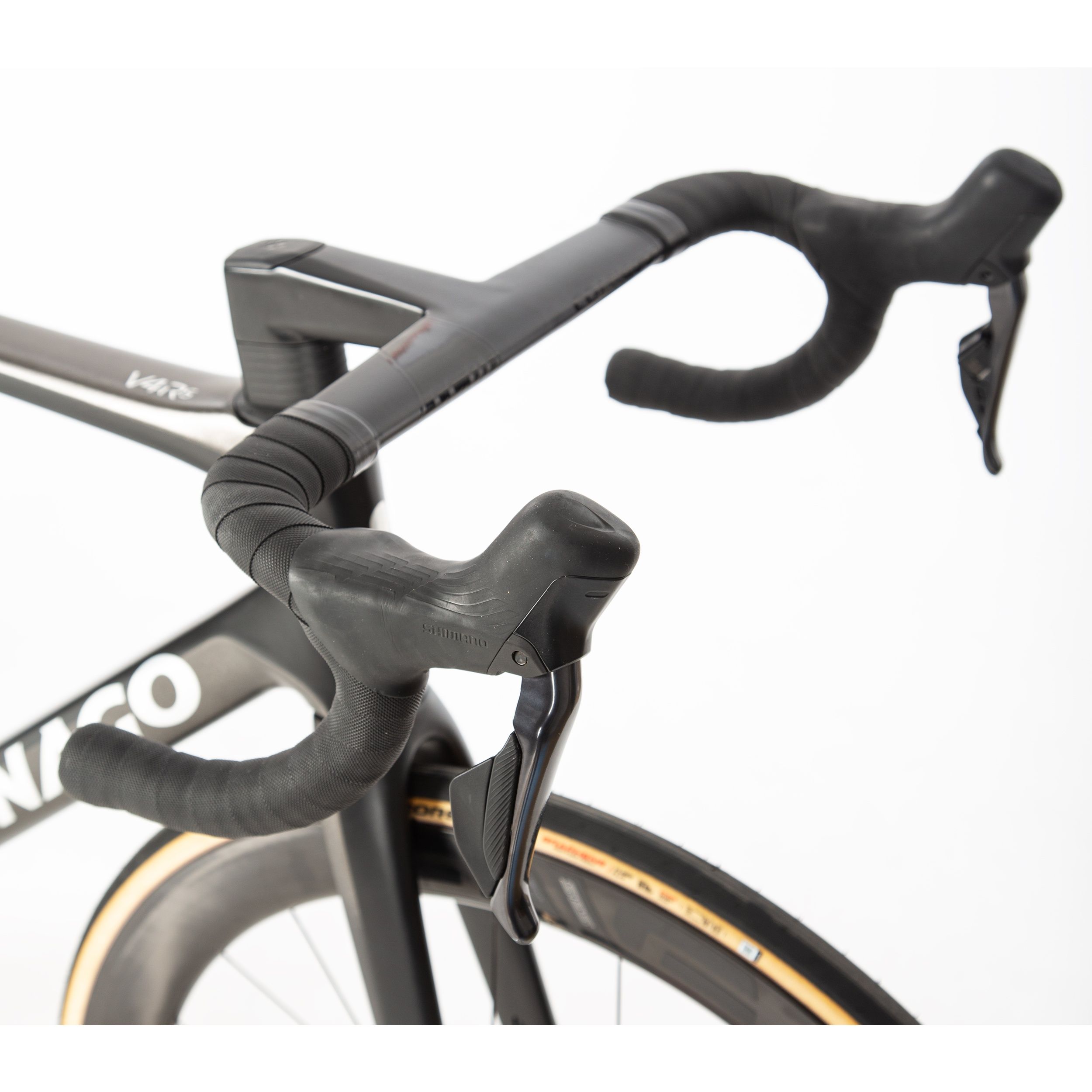

  • Handlebar: Colnago CC.01 Integrated Bar/Stem Combo width 410mm, drop 122mm, reach 80mm
  • Levers/Shifters: Shimano Ultegra BR-R8170 Hydraulic, 160mm rotor
  • Front Derailleur: Shimano Ultegra FD-R8150 Di2 2x12 speed, braze-on

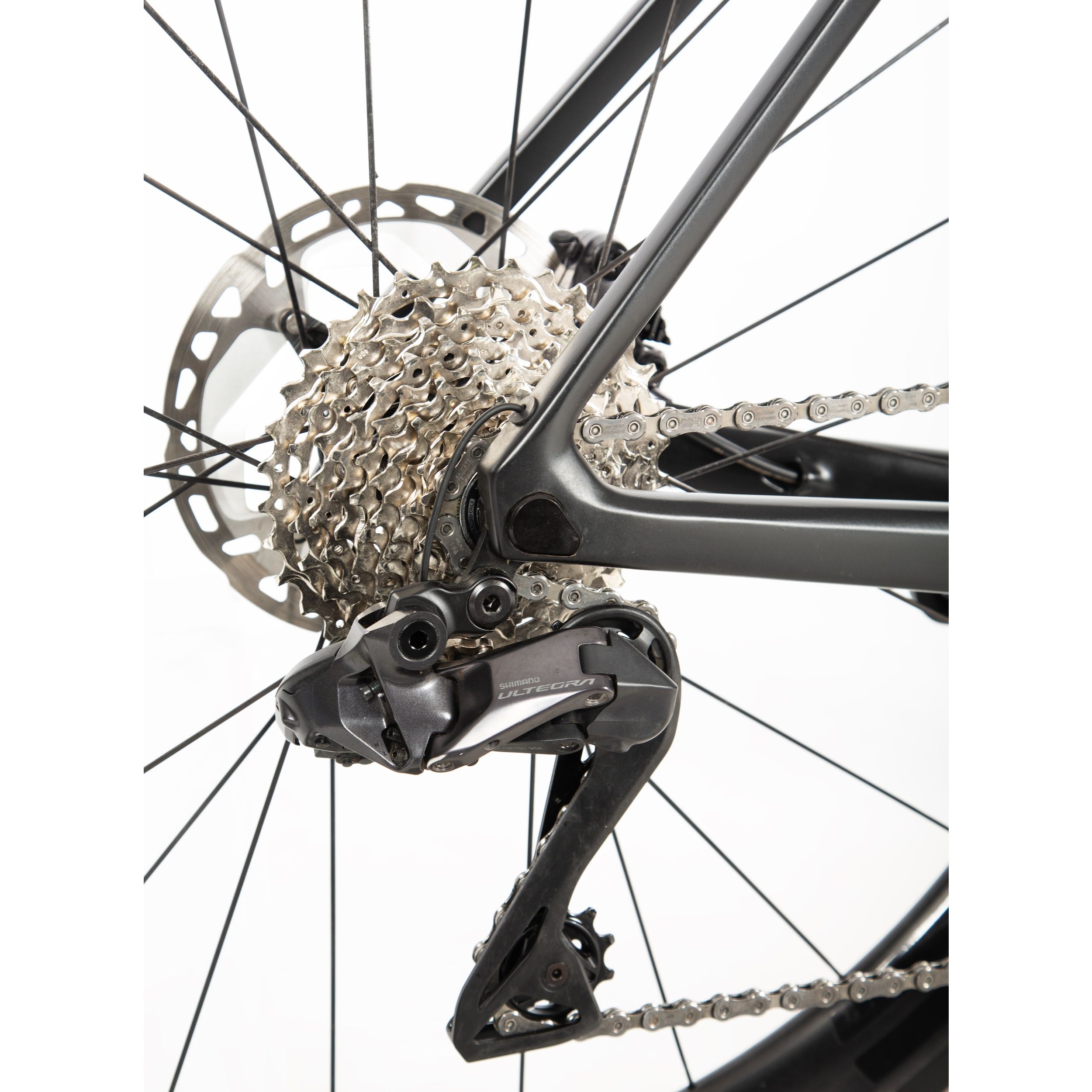

  • Rear Derailleur: Shimano Ultegra RD-R8150 Di2 12 speed
  • Cassette: Shimano 105 CS-R7100, 11-34T

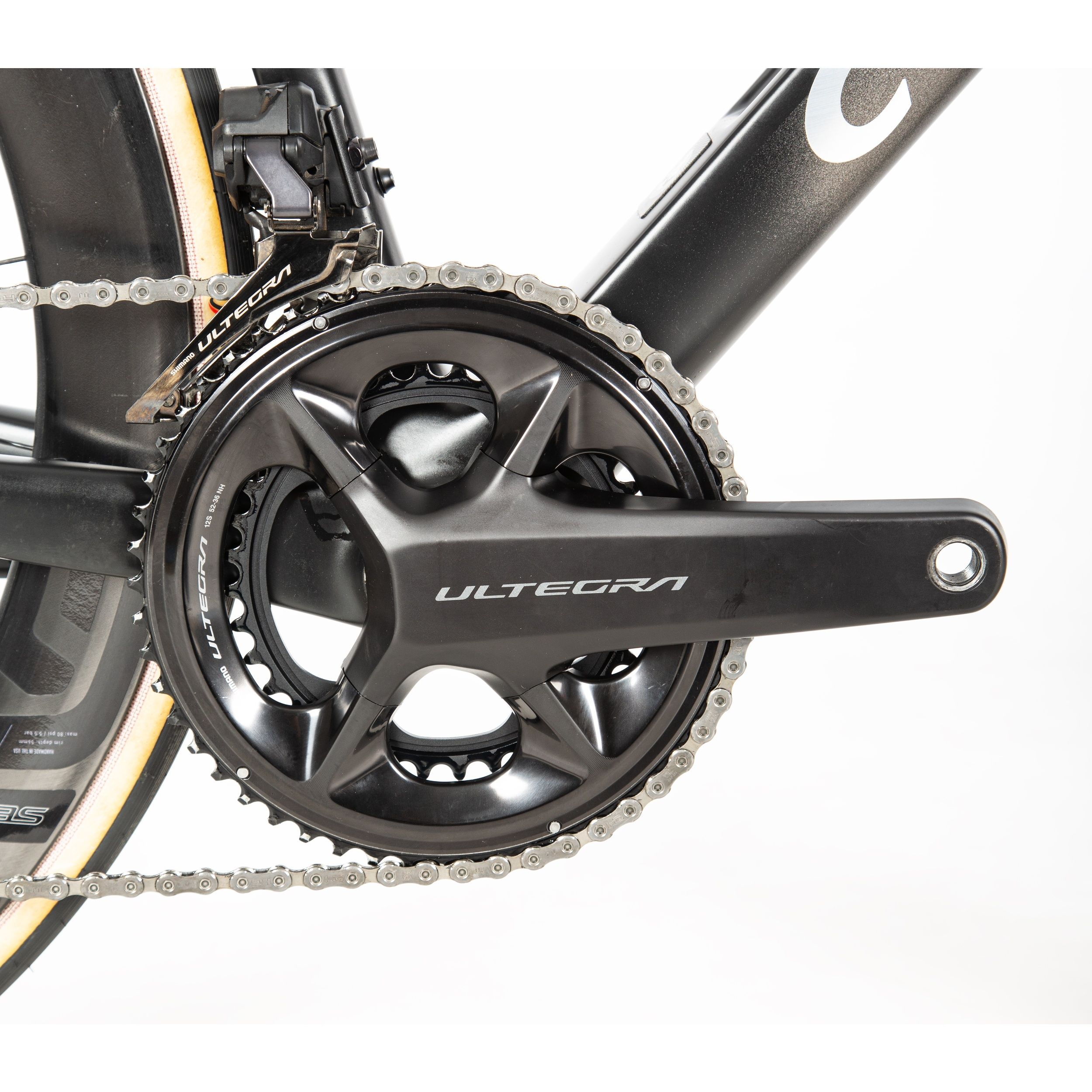

  • Crankset: Shimano Ultegra FC-R8100 2x12 speed, 52-36T, 172.5mm cranks
  • Wheels: ENVE SES 4.5 Carbon, TLR
  • Tyres: Vittoria Corsa Pro, Graphene Cotton-Tech, 700x29c, TLR, sealant installed

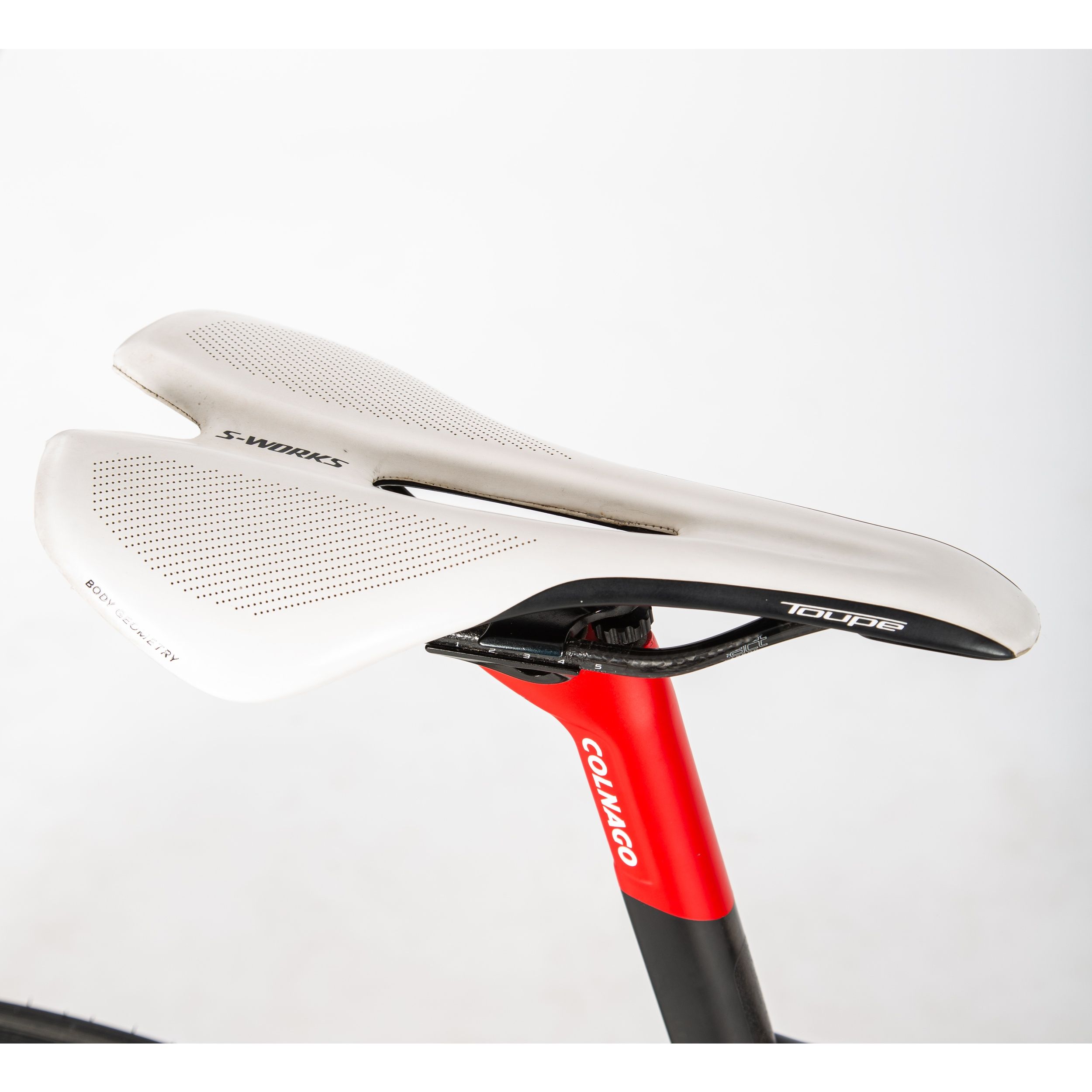

  • Saddle: S-Works Toupe 143mm, FACT Carbon Rails

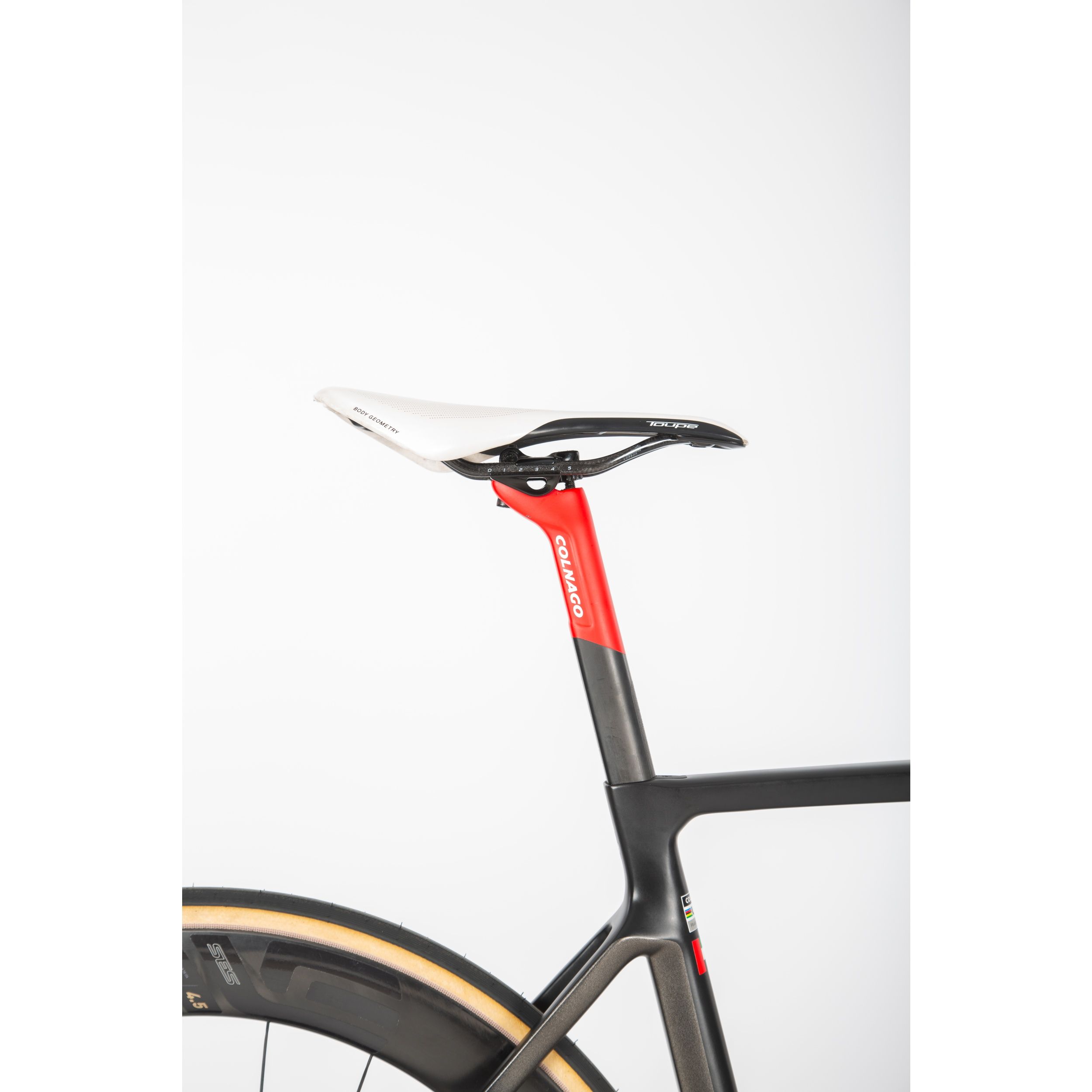

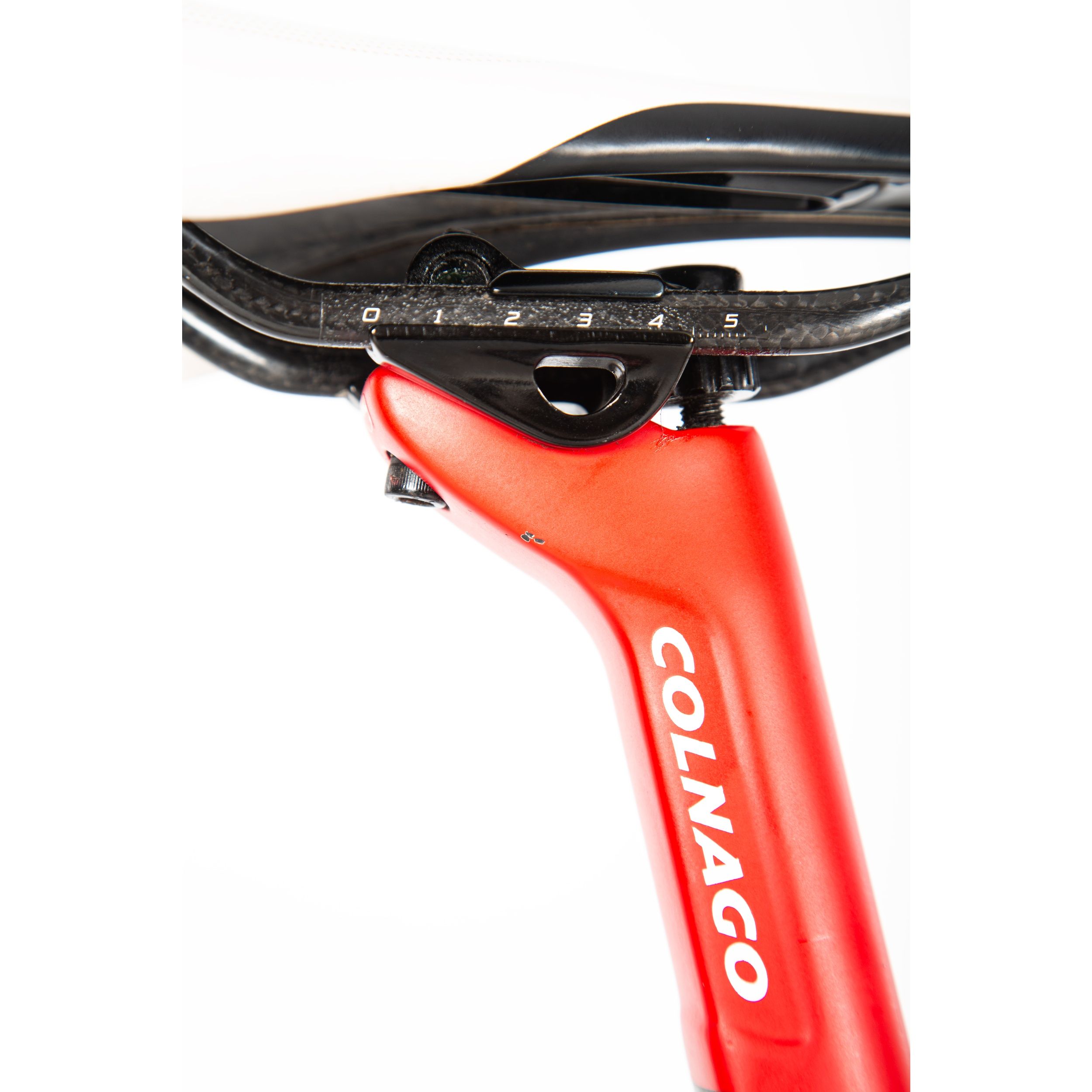

  • Seatpost:Colnago V4RS Carbon
  • Pedals: Available to be purchased separately
Specifications
Model
V4RS
Bottom Bracket [Maker]
CeramicSpeed
Bottom Bracket Standard
T47
Brakes [Kind]
Hydraulic Disc
Brakes [Maker]
Shimano
Brakes [Model]
BR-R8170
Cassette [Gearing]
11-34
Cassette [Maker]
Shimano
Cassette [Model]
CS-R7100
Chainring [Gearing]
52–36
Condition Grade
Good
Crank [Maker]
Shimano
Crank [Model]
FC-R8100
E-Bike
No
Family
V4RS
FD [Maker]
Shimano
FD [Model]
FD-R8150
Fenders Mounts
No
Fork [Brake Type]
Disc
Fork [Material]
Carbon
Fork [Wheel Size]
700c
Frame [Material]
Carbon
Frameset
No
Gearing [Configuration]
2x
Gearing [Kind]
Conventional
Gender
Unisex
Handlebar [Kind]
Drop
Handlebar [Maker]
Colnago
Handlebar [Material]
Carbon
Handlebar [Shape]
Drop bar
Headset [Maker]
CeramicSpeed
Rack Mounts
No
RD [Maker]
Shimano
RD [Model]
RD-R8150
Saddle [Maker]
Specialized
Saddle [Material]
Carbon
Seatpost [Maker]
Colnago
Seatpost [Material]
Carbon
Shifters [Maker]
Shimano
Shifters [Model]
BR-R8170
Shifting
Electronic
Stem [Maker]
Colnago
Stem [Material]
Carbon
Suspension Configuration
Rigid
Tires [Maker]
Vittoria
Wheels [Configuration]
Front+Rear
Wheels [Kinds]
Tubeless Ready
Wheelset [Maker]
ENVE
Wheelset [Material]
Carbon
Wheelset [Model]
SES 4.5
Product code
2008211 / 54293373059418
Size Guide
Size4245.548.551535557
Rider Height (cm)160-163165-168170-175175-183185-188191-193196-199
Rider Height (in)5'3" - 5'4"5'5" - 5'6"5'7" - 5'9"5'9" - 6'0"6'1" - 6'2"6'3" - 6'4"6'5" - 6'6"
Seat Tube (ctr-top)420455485510530550570
Seat Tube (ctr-ctr)-------
Effective Top Tube504517535550567586599
Actual Top Tube -------
Seat Angle (°)75.5°75.0°74.5°74.0°73.50°73.0°73.0°
Head Tube Angle (°)70.6°71.0°71.5°71.8°72.5°72.9°73.1°
Head Tube Length103114130148164181200
Fork Rake43434343434343
Chainstay Length408408408410414414414
Wheelbase-------
Stack510522539557575593612
Reach370375383388395403410
Colnago C68 Road Bikes & Framesets Size Guide 2022

*All measurements in mm unless otherwise stated.
