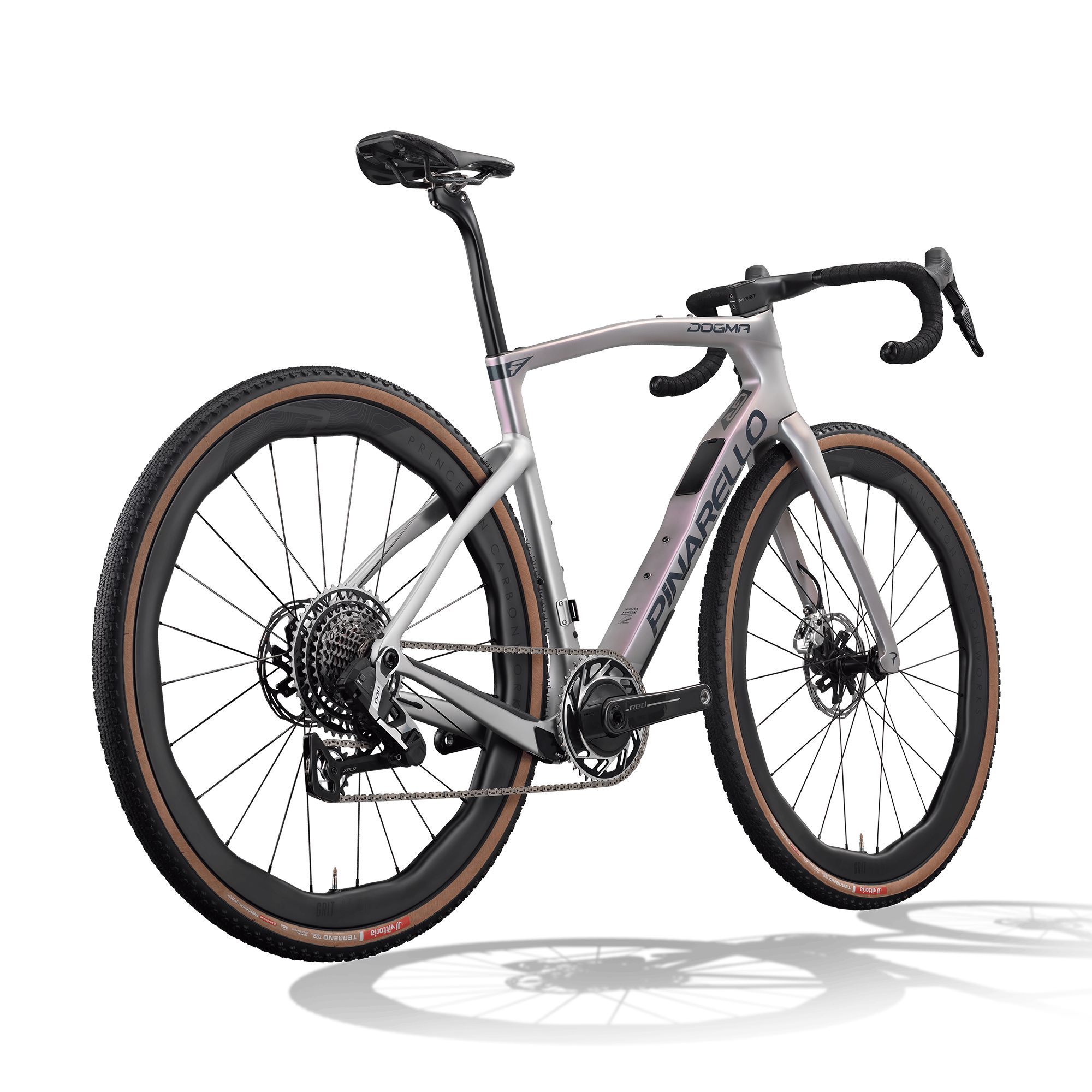

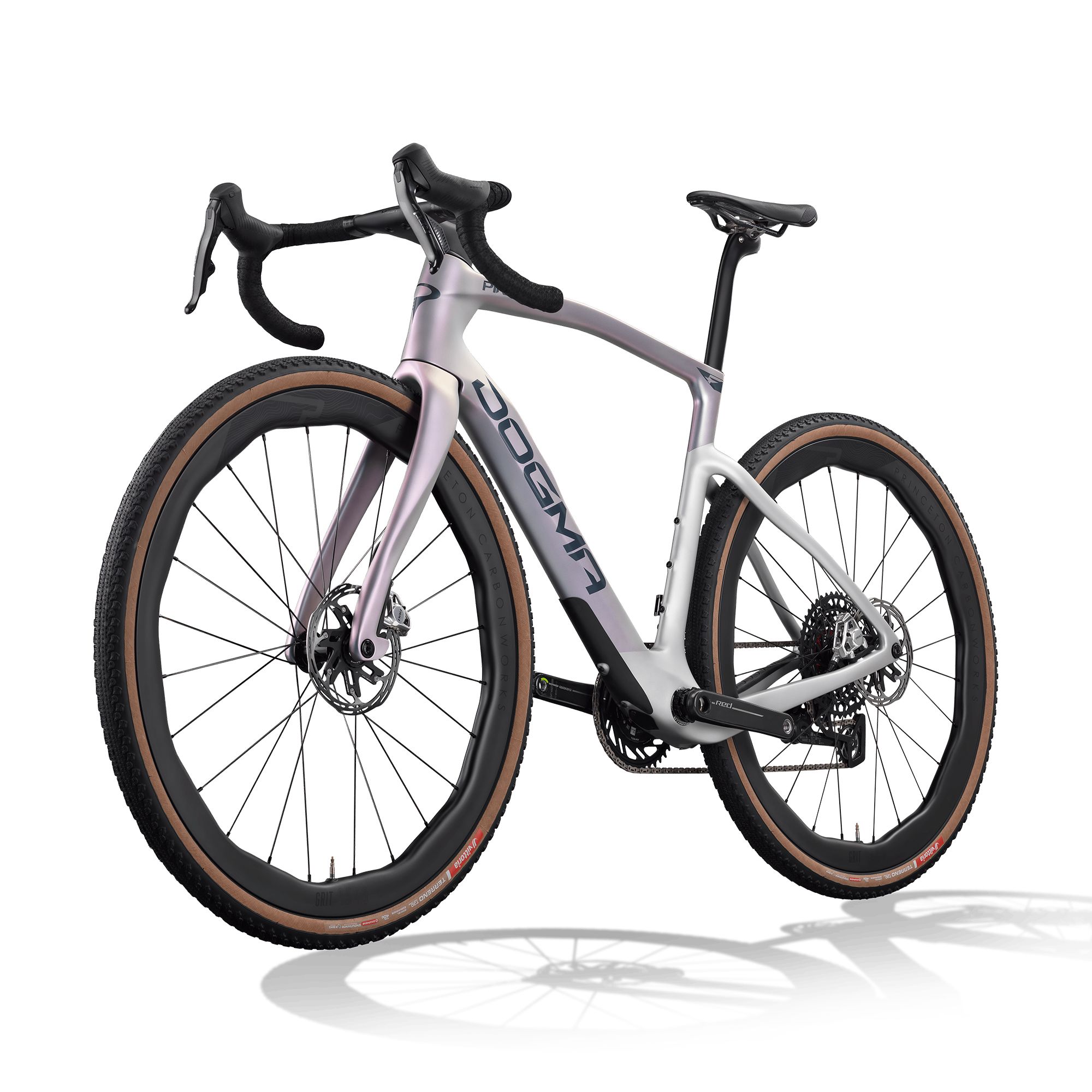

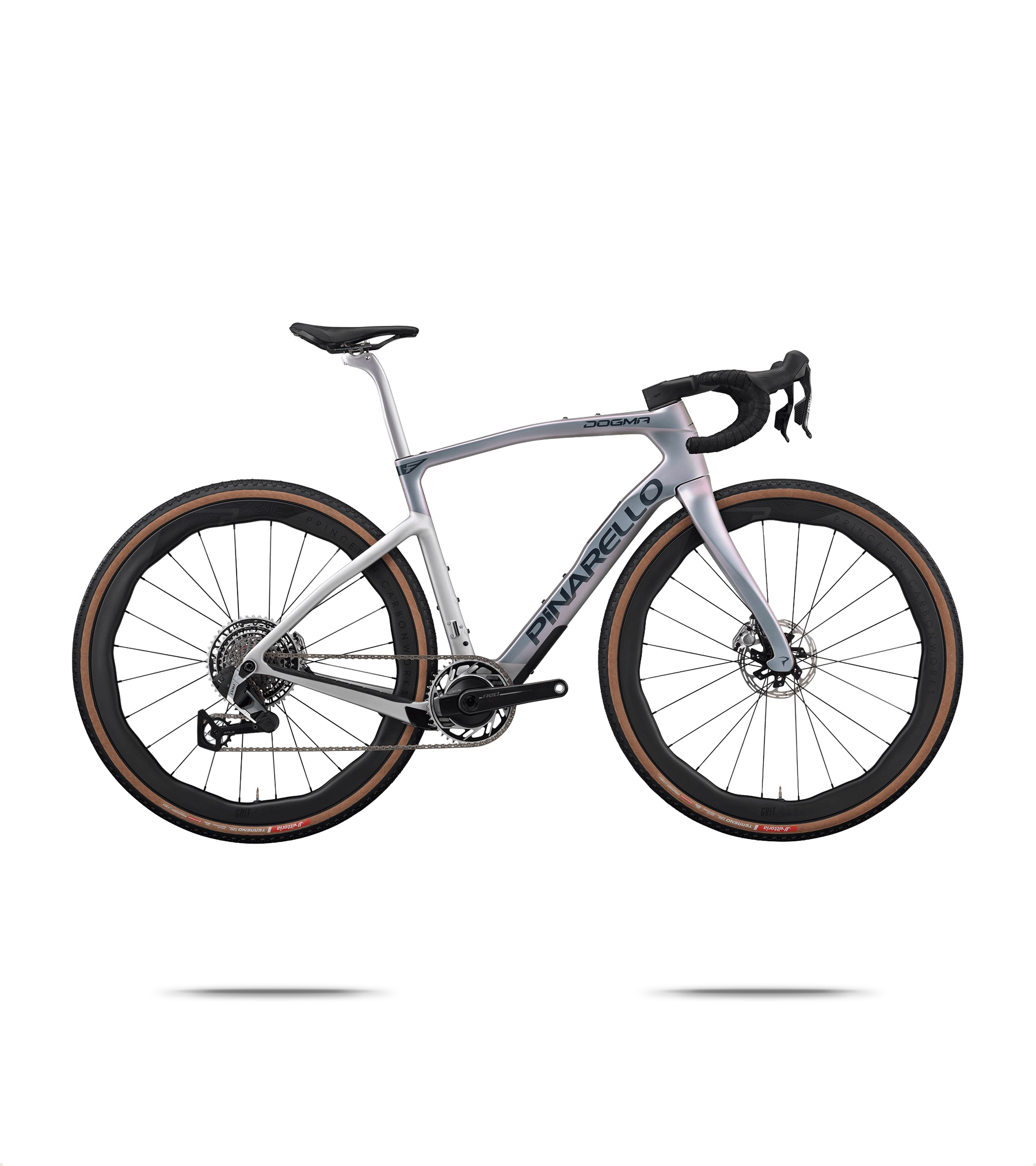

Pinarello Dogma GR Red AXS XPLR Gravel Bike

£12,500.00

The Pinarello Dogma GR Red AXS XPLR Carbon Gravel Bike blends the speed of the Dogma F with the off-road power of the Crossista and Dogma XC to create a purpose-built gravel race bike.

Delivery

Select size to see delivery options

Collect in Store

Cycle to Work – Save up to 42%

Spread the cost of your new bike and save up to 42% through the Cycle to Work scheme. We accept all major providers including Cyclescheme, Green Commute Initiative, Bike2Work and more. Check with your employer for eligibility.

Free Delivery on all bikes

Complimentary standard delivery on all bikes to UK mainland addresses. Orders typically arrive within 2–5 working days. A signature is required on delivery. When you receive your bike all you'll need to do is unpack it, attach your pedals, turn the handlebars and ride.

Premier Delivery

Upgrade to Premier Delivery at checkout for a nominated day, extended assembly and in-home handover by a trained technician. Available on eligible bikes across UK mainland.

Built, checked, tuned & tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Pedals & accessories

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team

You May Also Need

Specialized
S-Works Evade 4 Cycle Helmet
£269.00
£279.00
Specialized
Specialized S-Works Torch Road Cycling Shoes
£264.00
£350.00
POC
Cytal Lite Road Helmet
£146.00
£320.00

Product Details

Pinarello Dogma GR Red AXS XPLR Carbon Gravel Bike

The Pinarello Dogma GR Red AXS XPLR Carbon Gravel Bike blends the speed of the Dogma F with the off-road power of the Crossista and Dogma XC to create a purpose-built gravel race bike aimed at dominating fast gravel events. Its TorayCa M40X carbon frame and race-orientated geometry deliver an aerodynamic yet confident platform for high-speed gravel racing.

Pinarello Innovation and Design

Pinarello’s evolving headtube nose, Racing Geometry and an Adaptive seatpost work together to balance aerodynamic efficiency, stable front-end handling and comfort over rough terrain. The new eTICR Onda fork with ForkFlap improves aero performance while keeping a clean aesthetic, and a hidden front thru-axle thread enhances the integration of the front end.

Pinarello Cockpit and Fit

The Dogma GR uses the Talon Ultra Fast GR integrated handlebar with 7° flare and 7° inward bend and includes gravel TT bar compatibility. Extensions offer adjustable reach and stack, an integrated computer mount and a fixed +10° tilt to suit aggressive positions while retaining control.

This build runs a SRAM RED XPLR AXS 1x13 groupset with SRAM Red chain and a SRAM DUB Italian BB, paired with Princeton Grit 4540 DB wheels and Vittoria Terreno T30 40 tyres, delivering a fast, race-ready system out of the box. The wheelset uses the new MOST ultra-light custom axles with tool-free removal and is optimised for 28–40mm gravel tyres depending on wheel choice.

Pinarello Dogma GR Construction

The frame features TiCR cable routing and an Italian bottom bracket standard; the seatpost is a Pinarello Aero design with a 3D-printed titanium top clamp. The bike includes practical touches such as dedicated bottle and cage compatibility and has been engineered with a clear focus on light weight, stiffness and off-road durability.

Pinarello Gravel Racing Inspired

Built for riders who want a true gravel racing bike, the Dogma GR suits competitors seeking an aero-minded, confidence-inspiring bike that still handles the unpredictability of fast gravel courses.

Features

Frame: TorayCa M40X, TiCR Cable Routing, Italian BB
Fork: New eTICR Onda Fork with ForkFlap, 1.5" upper and lower steerer
Crankset and Chainrings: SRAM RED XPLR AXS 1x13
Front Derailleur: SRAM RED XPLR AXS 1x13
Cassette: SRAM RED XPLR AXS 1x13
Chain: SRAM Red
Bottom Bracket: SRAM BB DUB Italian 70mm Road Wide
Front/Rear Brake: SRAM Red caliper, 160mm rotor
Integrated Handlebar: Talon Ultra Fast GR
Bar Tape: MOST bar tape
Saddle: Lynx 2.0 XC
Seatpost: Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts
Tyres: Vittoria Terreno T30 40mm
Wheelset: Princeton Grit 4540 DB
Axles: New MOST Ultra Light Custom Axle 12x100 and 12x142, tool free removal
Bottle Cages: Bottlecage Trap PACF ø 74mm
Bottles: Fly Bottle Pinarello 550ml

Specifications

Model: Dogma GR Red AXS XPLR
Bottom Bracket [Maker]: SRAM
Bottom Bracket Standard: Italian
Brakes [Kind]: Hydraulic Disc
Brakes [Maker]: SRAM
Brakes [Model]: RED
Cassette [Maker]: SRAM
Cassette [Model]: RED
Chain [Maker]: SRAM
Chain [Model]: RED
Chainring [Gearing]: 44
Crank [Maker]: SRAM
Crank [Model]: RED
Discipline Compatibility: Gravel
E-Bike: No
Family: Dogma GR
Fenders Mounts: No
Fork [Axle Diameter]: 12 mm
Fork [Axle Type]: Thru-Axle
Fork [Brake Type]: Disc
Fork [Material]: Carbon
Fork [Model]: eTICR Onda with ForkFlap
Fork [Rake]: 50 mm
Fork [Wheel Size]: 700c
Frame [Material]: Carbon
Frameset: No
Gearing [Configuration]: 1x
Gearing [Kind]: Conventional
Gender: Unisex
Handlebar [Flare]: 7 degree
Handlebar [Kind]: Drop
Handlebar [Shape]: Talon Ultra Fast GR
Rack Mounts: No
RD [Maker]: SRAM
RD [Model]: RED XPLR eTap
Saddle [3D Printed]: No
Saddle [Maker]: Pinarello
Seatpost [Kind]: Rigid
Seatpost [Maker]: Pinarello
Seatpost [Material]: Carbon
Shifters [Maker]: SRAM
Shifting: Electronic
Suspension Configuration: Rigid
Tires [Maker]: Vittoria
Tires [Width]: 40 mm
Wheels [Configuration]: Front+Rear
Wheelset [Maker]: princeton
Wheelset [Material]: Carbon
Wheelset [Model]: Grit 4540 DB
Product code: 1970899 / 54293602894170

Size Guide

CC	43	46.5	50	51.5	53	54.5	56	57.5	59.5
CE	41.5	42.5	45	46.5	48.5	50	51.5	52.5	54
L	51.5	52	53	54	55	56.2	57.5	58.5	605
A	74.4	74.4	74	73.7	73.7	73.4	73	73	72.4
B	70	70.5	70.5	71	71	71	71.5	72	72.5
P	425	425	425	425	425	425	427	427	427
T	115	121	130	137	150	165	180	200	228
D	72	72	72	72	72	72	72	72	72
R	50	50	50	50	50	50	50	50	50
G	390	390	390	390	390	390	390	390	390
Reach	355	361.1	366.9	372.6	379.1	384	388.6	392.7	398
Stack	536	543.6	552.1	560.6	572.9	587.1	603.3	624.3	653
—	—	—	—	—	—	—	—	—	—
