Product Details

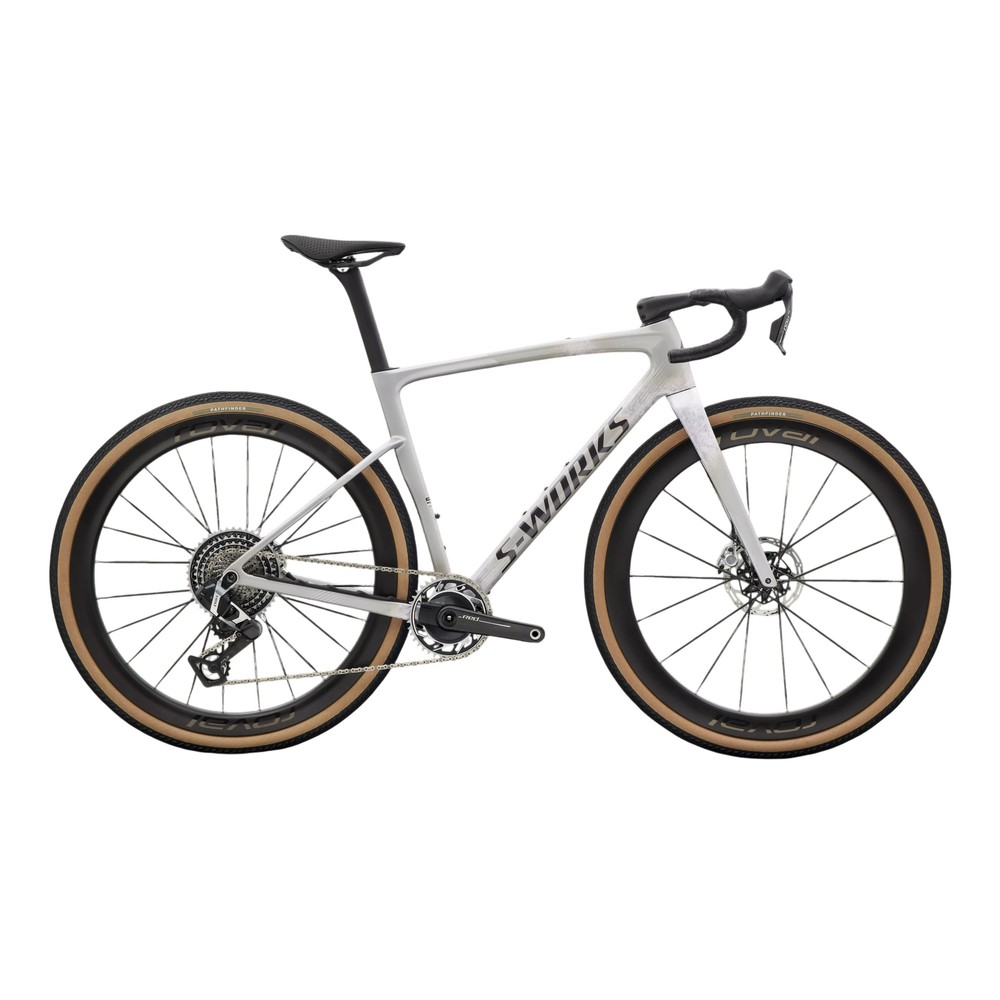

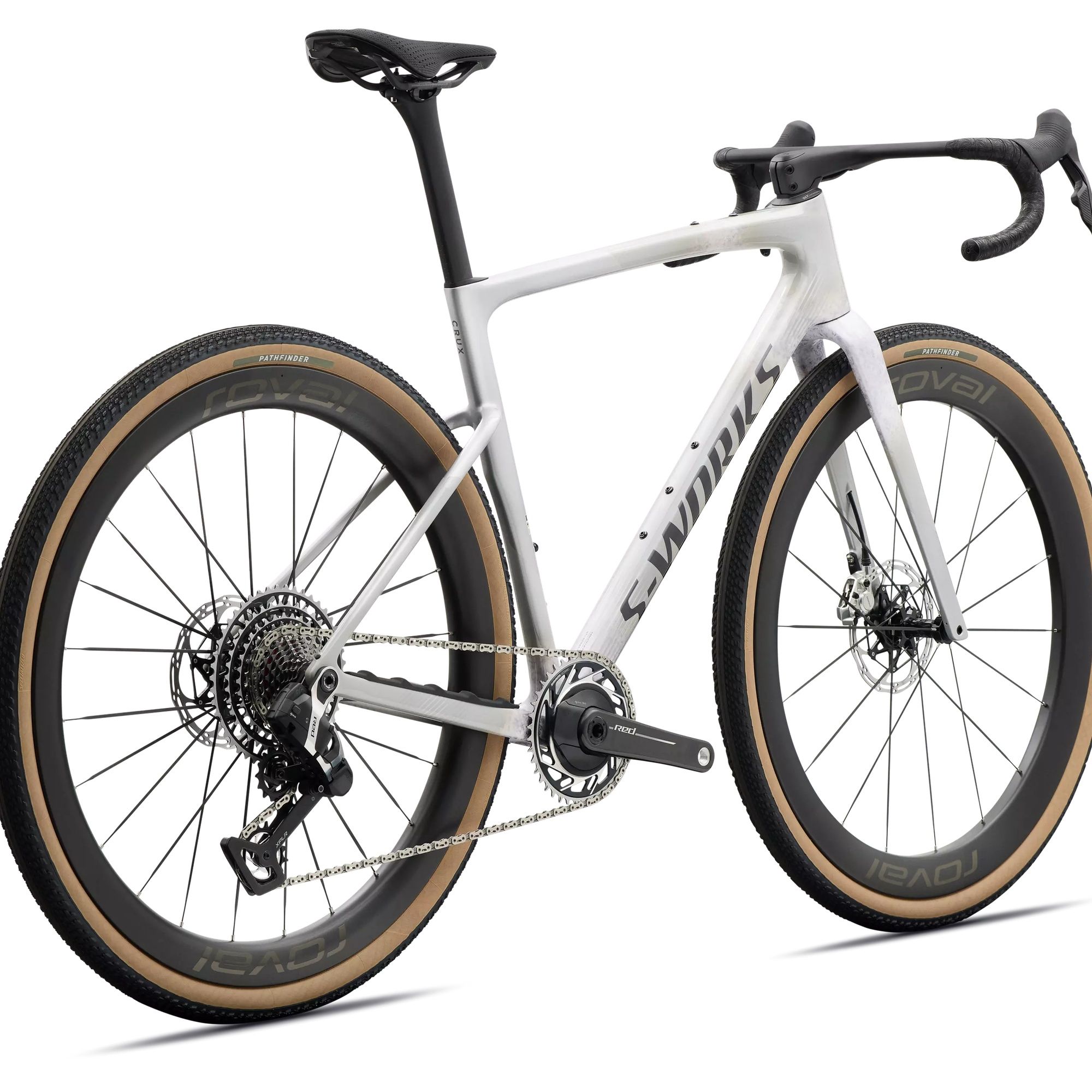

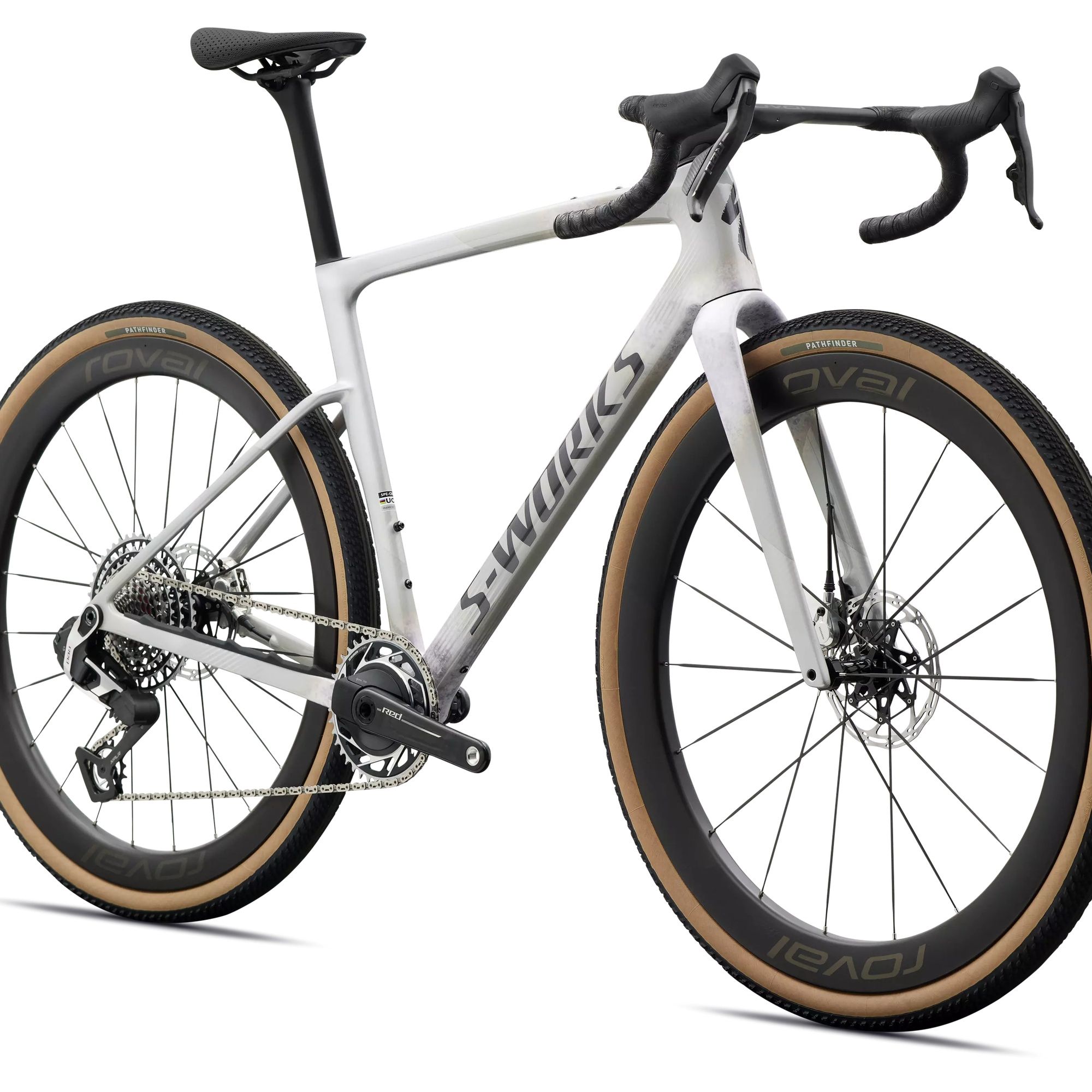

Specialized S-Works Crux 5 AXS Gravel Bike

The S-Works Crux 5 gravel bike represents a complete paradigm shift in gravel racing by prioritising real-world speed over simple laboratory metrics. While most brands focus on either aerodynamics or weight in isolation, this machine integrates both into a chassis that weighs a mere 7.1 kilograms. By utilising FACT 12r carbon technology, the frame hits a featherweight 789 grams, allowing you to float over steep climbs while maintaining the structural integrity needed for aggressive descending. This is not just a lightweight bike; it is a precision instrument designed to convert every watt of your output into forward momentum, ensuring that your effort is never wasted on inefficient frame flex or unnecessary bulk.

Engineered for Aerodynamic Dominance

Efficiency in the wind is no longer reserved for the tarmac, and the Crux 5 brings professional road-level aerodynamics to the dirt. Equipped with Roval Terra Aero CLX wheels and a fully integrated Roval Terra cockpit, the bike slices through the air with the same clinical efficiency as a dedicated aero road bike. This integration reduces drag significantly over long solo efforts or when pulling at the front of a lead group. By treating gravel racing as a high-speed discipline where seconds matter, this setup provides the lowest time to finish of any gravel platform ever produced, giving you a distinct mechanical advantage when the pace intensifies on exposed sections of the course.

Unmatched Control and Componentry

The handling characteristics of the Crux 5 are tuned to mirror the responsiveness of the legendary Tarmac, providing a level of agility that feels intuitive on technical trails and loose corners. This surgical precision is complemented by the flagship SRAM RED XPLR drivetrain, which offers wireless electronic shifting that remains flawless even under the coating of dust and mud. Every shift is crisp and immediate, allowing you to maintain your cadence through rolling terrain. For the competitive cyclist who demands the absolute pinnacle of technology, this bike offers the perfect marriage of stability and speed, purpose-built to put you on the top step of the podium.

Features
  • Frame: S-Works Crux 5 FACT 12r Carbon, Rider First Engineered, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
  • Fork: S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
  • Tape: Supacaz Super Sticky Kush

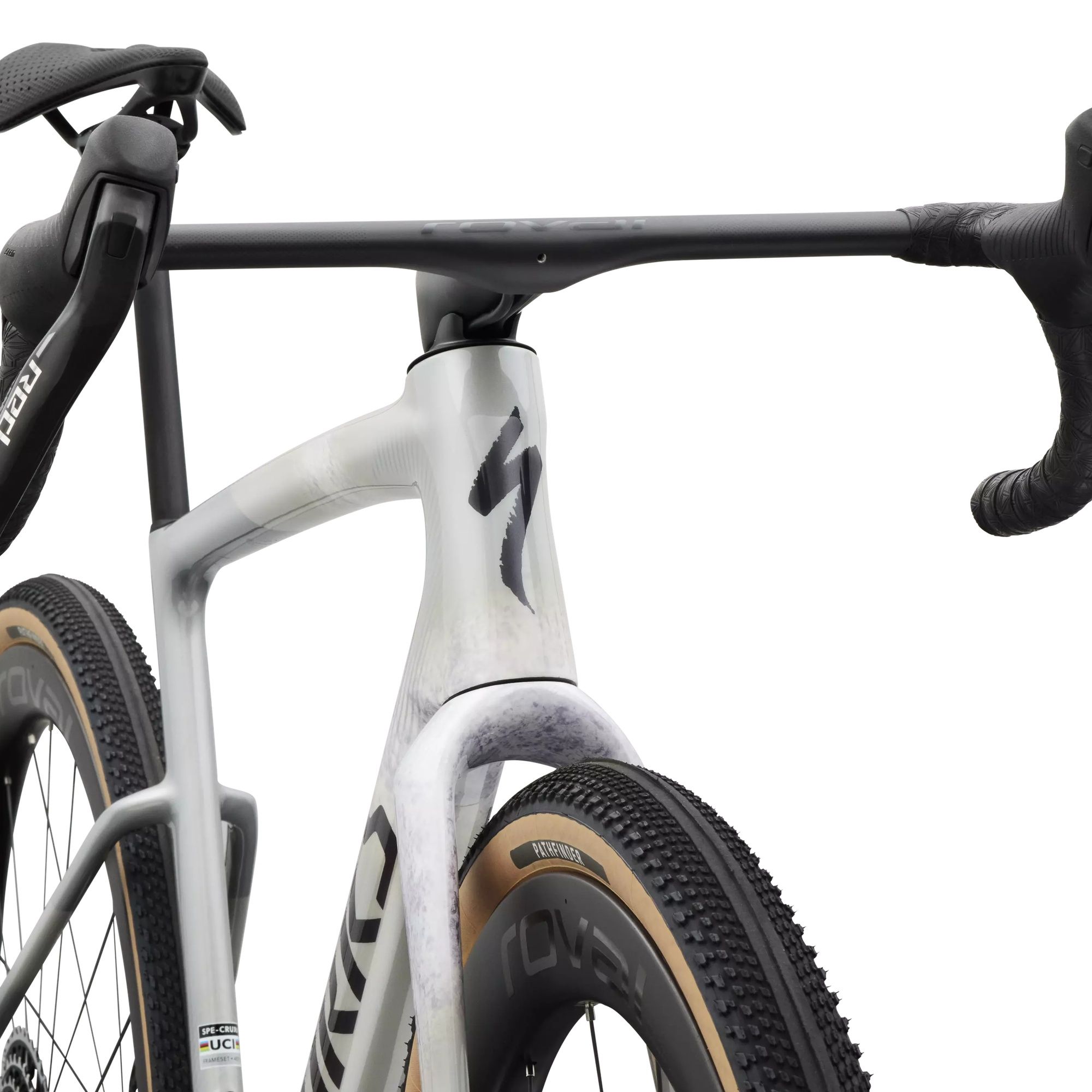

  • Handlebar/Stem: Roval Terra Cockpit, Integrated Bar/Stem
  • Front Brake: SRAM RED E1, hydraulic disc
  • Rear Brake: SRAM RED E1, hydraulic disc

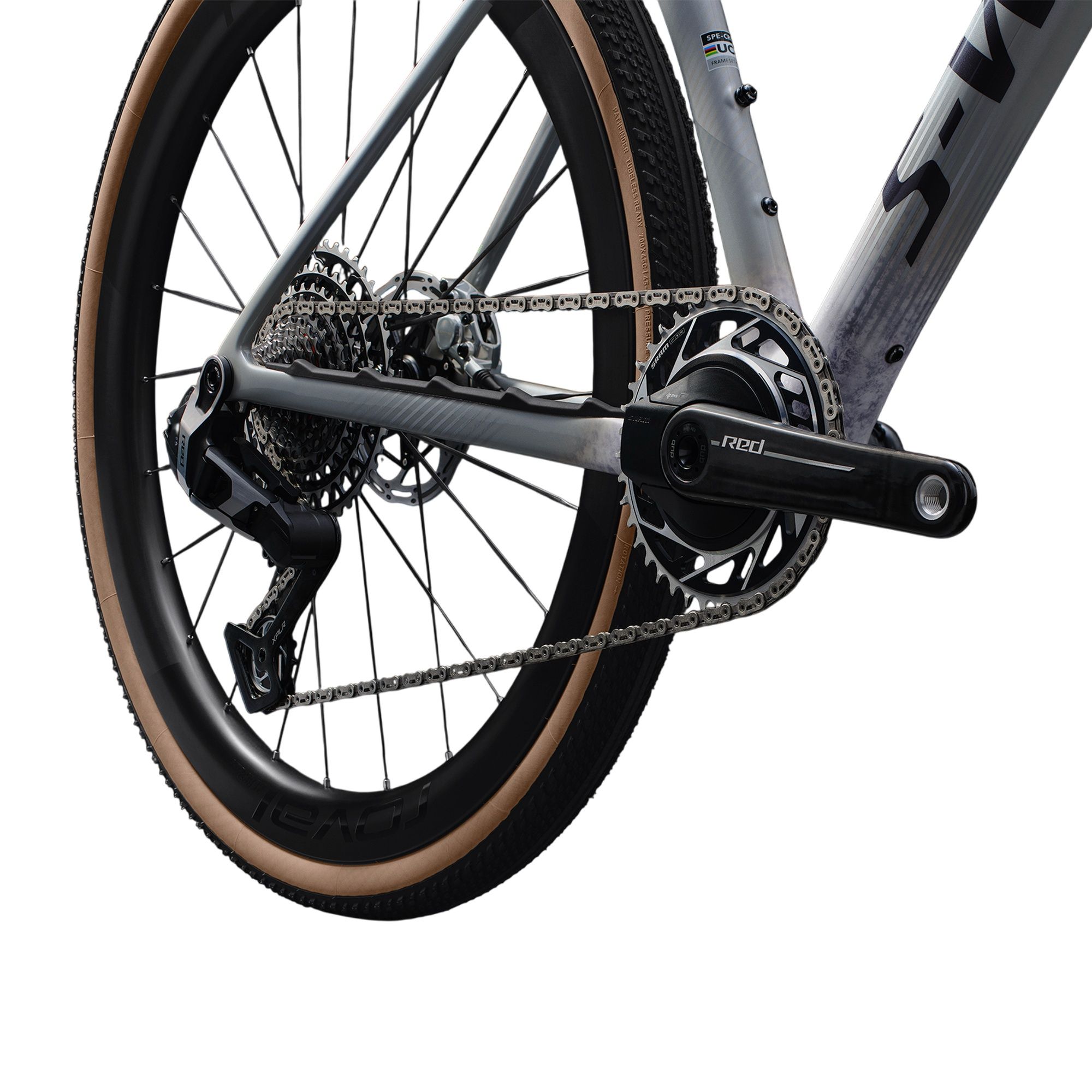

  • Rear Derailleur: SRAM RED AXS XPLR E1, 13-speed
  • Shift Levers: SRAM RED AXS E1, hydraulic disc
  • Cassette: SRAM RED XPLR E1, 13-speed, 10-46t
  • Crankset: SRAM RED XPLR E1, Quarq power meter, 40t
  • Bottom Bracket: Ceramic Speed BB Alpha, BSA DUB
  • Chain: SRAM RED E1
  • Front Wheel: Roval Terra Aero CLX, 27mm internal width, tubeless ready, 50mm depth, 18h, Roval LF18-F hub with ceramic SINC bearings, Centerlock disc, Roval by ARRIS, Composite Aero Spoke with Ti End Pieces
  • Rear Wheel: Roval Terra Aero CLX, 27mm internal width, tubeless ready, 45mm depth, 24h, Roval LF19-R hub with ceramic SINC bearings, Centerlock disc, Roval by ARRIS, Composite Aero Spoke with Ti End Pieces

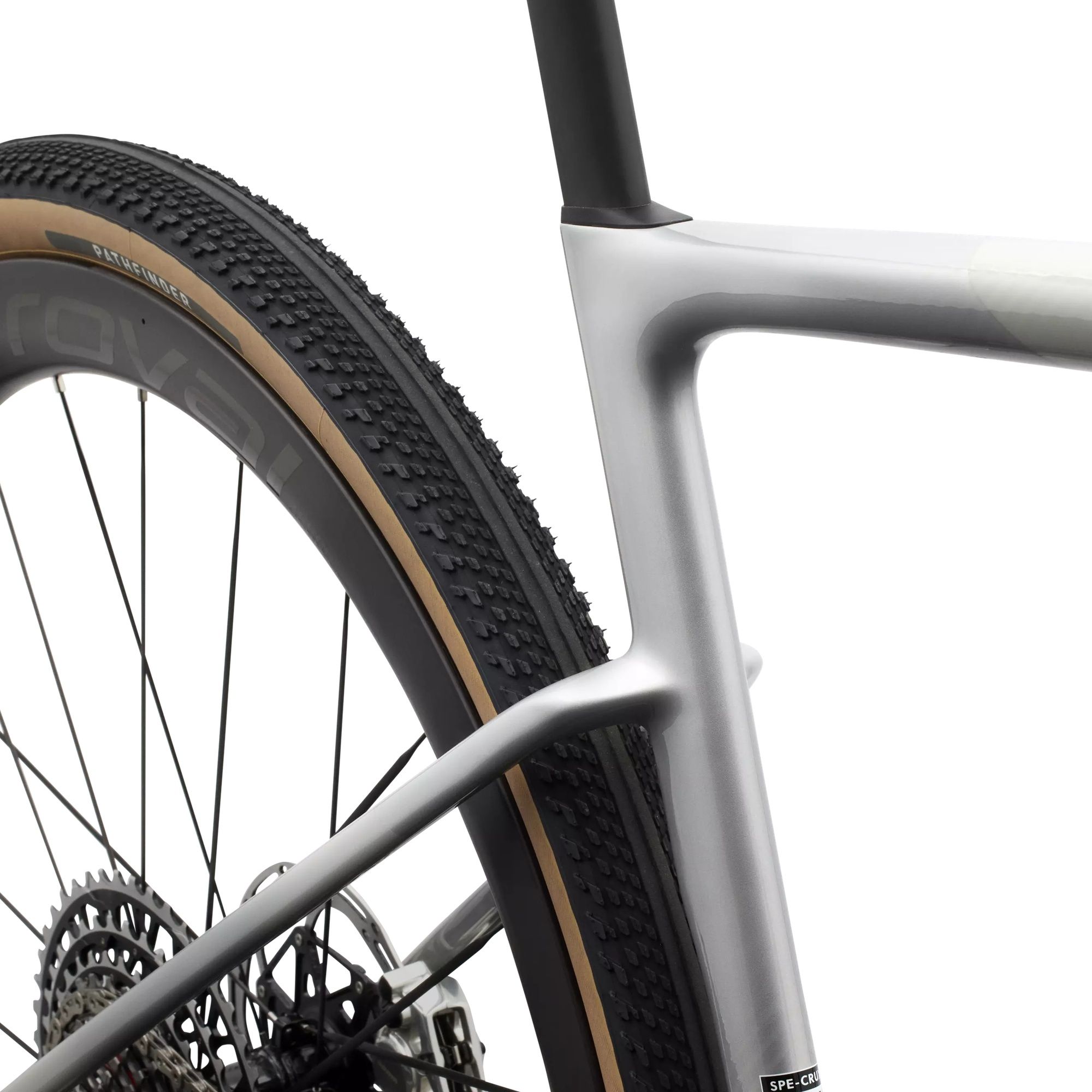

  • Front Tyre: Pathfinder 700x45, Tubeless Ready
  • Rear Tyre: Pathfinder 700x45, Tubeless Ready
  • Inner Tubes: 700x32x50mm, 60mm Presta valve

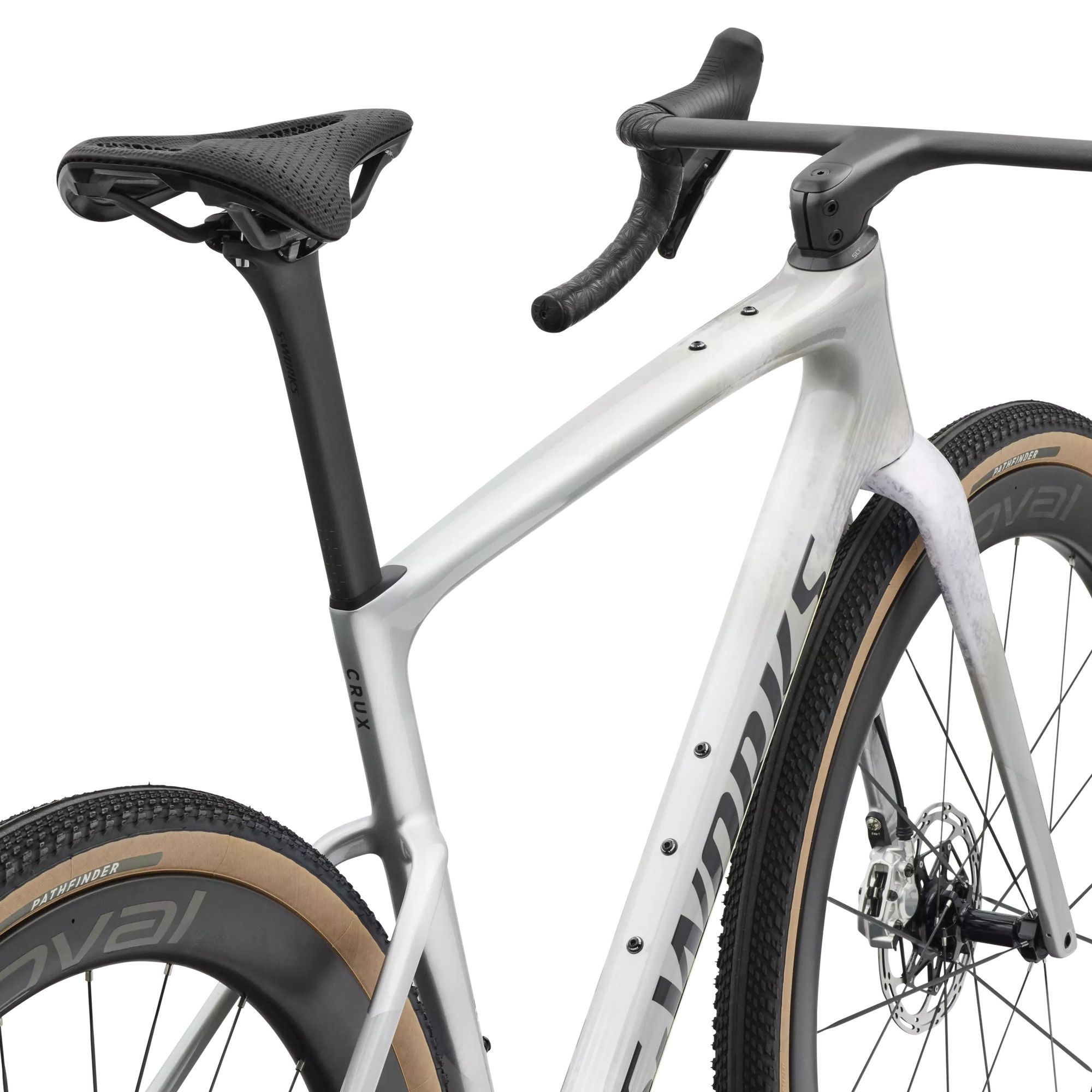

  • Seat Post: S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset, Lightweight Saddle Clamp
  • Seat Binder: Integrated Wedge
  • Saddle: S-Works Power with Mirror
  • Weight: 7.1 kg (Size: 56)
Specifications
Model
S-Works Crux 5 AXS
Bottom Bracket [Maker]
CeramicSpeed
Bottom Bracket Standard
BSA
Brakes [Kind]
Hydraulic Disc
Brakes [Maker]
SRAM
Brakes [Model]
RED E1
Cassette [Gearing]
10-46
Cassette [Maker]
SRAM
Cassette [Model]
RED XPLR E1
Chain [Maker]
SRAM
Chain [Model]
RED E1
Chainring [Gearing]
40
Crank [Maker]
SRAM
Crank [Model]
RED XPLR E1
Discipline Compatibility
Gravel
E-Bike
No
F Hub [Maker]
Roval
F Hub [Model]
LF18-F
Family
Crux
Fenders Mounts
No
Fork [Axle Diameter]
12 mm
Fork [Axle Type]
12x100mm Thru-Axle
Fork [Brake Type]
Disc
Fork [Maker]
Specialized
Fork [Material]
Carbon
Fork [Model]
S-Works FACT Carbon
Fork [Wheel Size]
700c
Frame [Hanger Standard]
UDH
Frame [Material]
Carbon
Frameset
No
Gearing [Configuration]
1x
Gearing [Kind]
Conventional
Gender
Unisex
Handlebar [Kind]
Drop
Handlebar [Maker]
Roval
Handlebar [Material]
Carbon
Power Meter [Maker]
Quarq
Power Meter [Model]
Quarq (integrated in SRAM RED XPLR E1 crankset)
R Hub [Maker]
Roval
R Hub [Model]
LF19-R
Rack Mounts
No
RD [Maker]
SRAM
RD [Model]
Red AXS XPLR E1
Saddle [3D Printed]
Yes
Saddle [Maker]
Specialized
Seatpost [Kind]
Carbon
Seatpost [Maker]
Specialized
Seatpost [Material]
Carbon
Seatpost [Offset]
15 mm
Shifters [Maker]
SRAM
Shifters [Model]
Red AXS E1
Shifting
Electronic
Stem [Maker]
Roval
Sub Family
Crux 5
Suspension Configuration
Rigid
Tires [Maker]
Specialized
Tires [Width]
45 mm
Wheels [Configuration]
Front+Rear
Wheels [Kinds]
Tubeless Ready
Wheelset [Inner Width]
27 mm
Wheelset [Maker]
Roval
Wheelset [Material]
Carbon
Wheelset [Model]
Terra Aero CLX
Product code
2039932 / 54371526639962
Size Guide
495254565861
Seat Tube Length (mm)445456473497515545
Seat Tube Angle75.5°74.5°74.5°74°74°74°
Top Tupe Length, horizontal (mm)512534543566583603
Head Angle70.5°70.75°71°71.5°71.5°71.5°
Head Tube Length95110125142163188
Fork Length, Full (mm)401401401401401401
Fork Rake515151515151
Fork-Center (mm)594604613626644665
Chainstay Length425425425425425425
Wheelbase100810161026103910571078
Stack530547560578598621
Reach375382388400412425
B-B Height (mm)278278280280280280
B-B Drop, low (mm)808078787878
