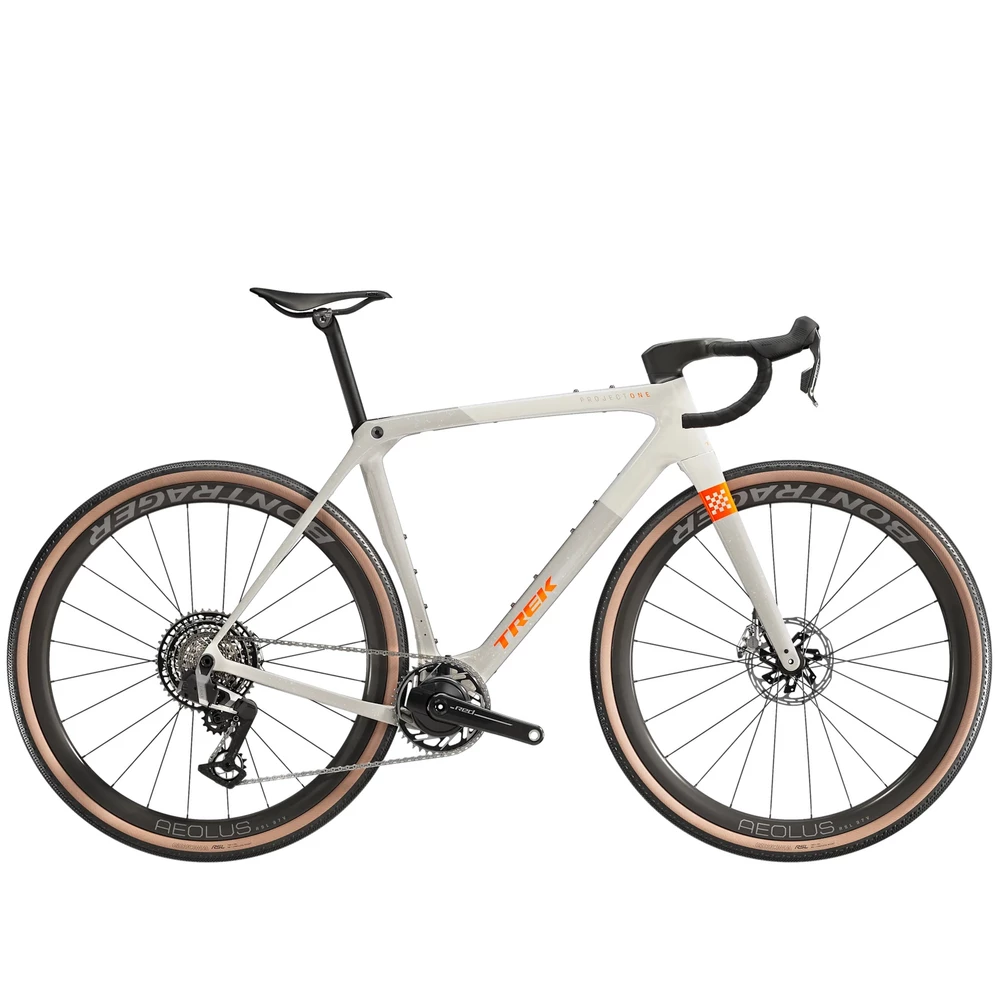

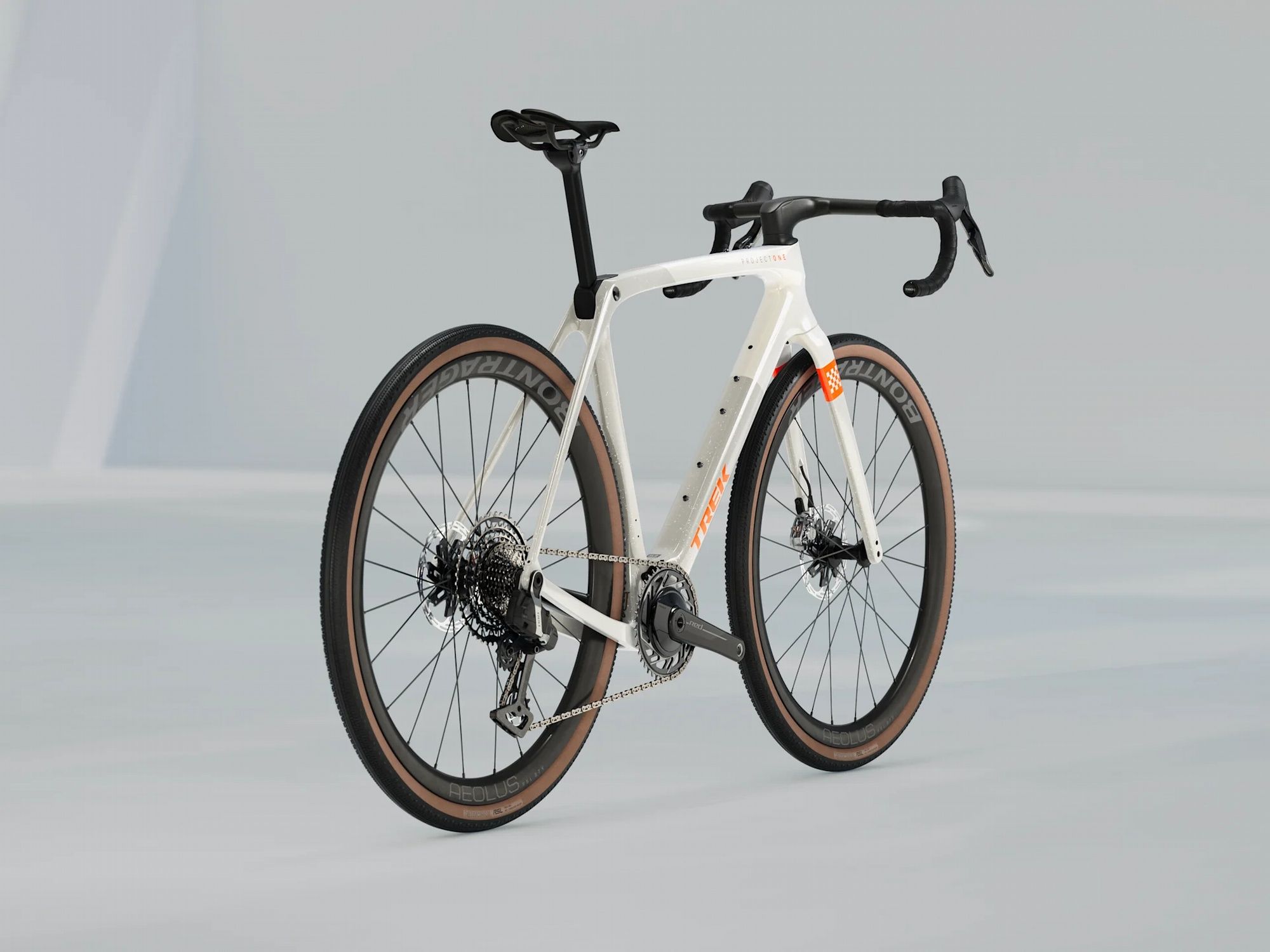

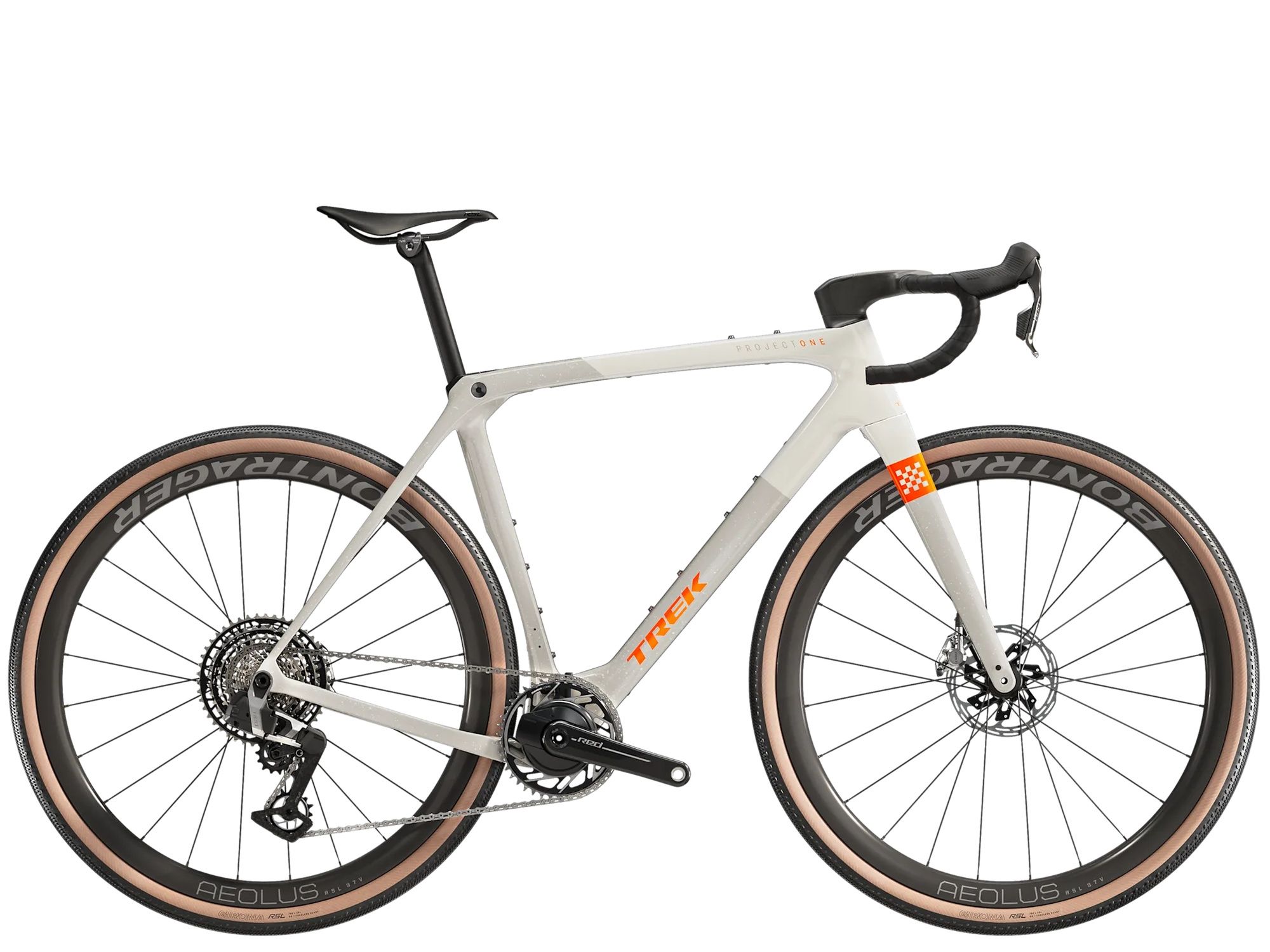

Trek Checkmate SLR 9 AXS Gravel Bike 2025


The Checkmate SLR 9 AXS is our pinnacle gravel race bike, engineered for speed and agility on the most challenging terrains. Designed to chase podiums, it features a lightweight aerodynamic frame paired with IsoSpeed technology to smooth out rough roads. The new Gravel Race geometry ensures you stay aerodynamic and efficient, allowing you to maintain your momentum without wasting energy.

Equipped with top-of-the-line components, the Checkmate SLR 9 AXS keeps you ahead of the competition. It boasts carbon wheels for reduced weight and enhanced speed, along with SRAM's latest RED AXS XPLR wireless drivetrain for precise and ergonomic shifting. This bike is built for racers who demand the best in performance and are determined to lead the pack.

Features
  • Frame: 800 Series OCLV Carbon, IsoSpeed, hidden mudguard mounts, integrated frame bag mounts, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle

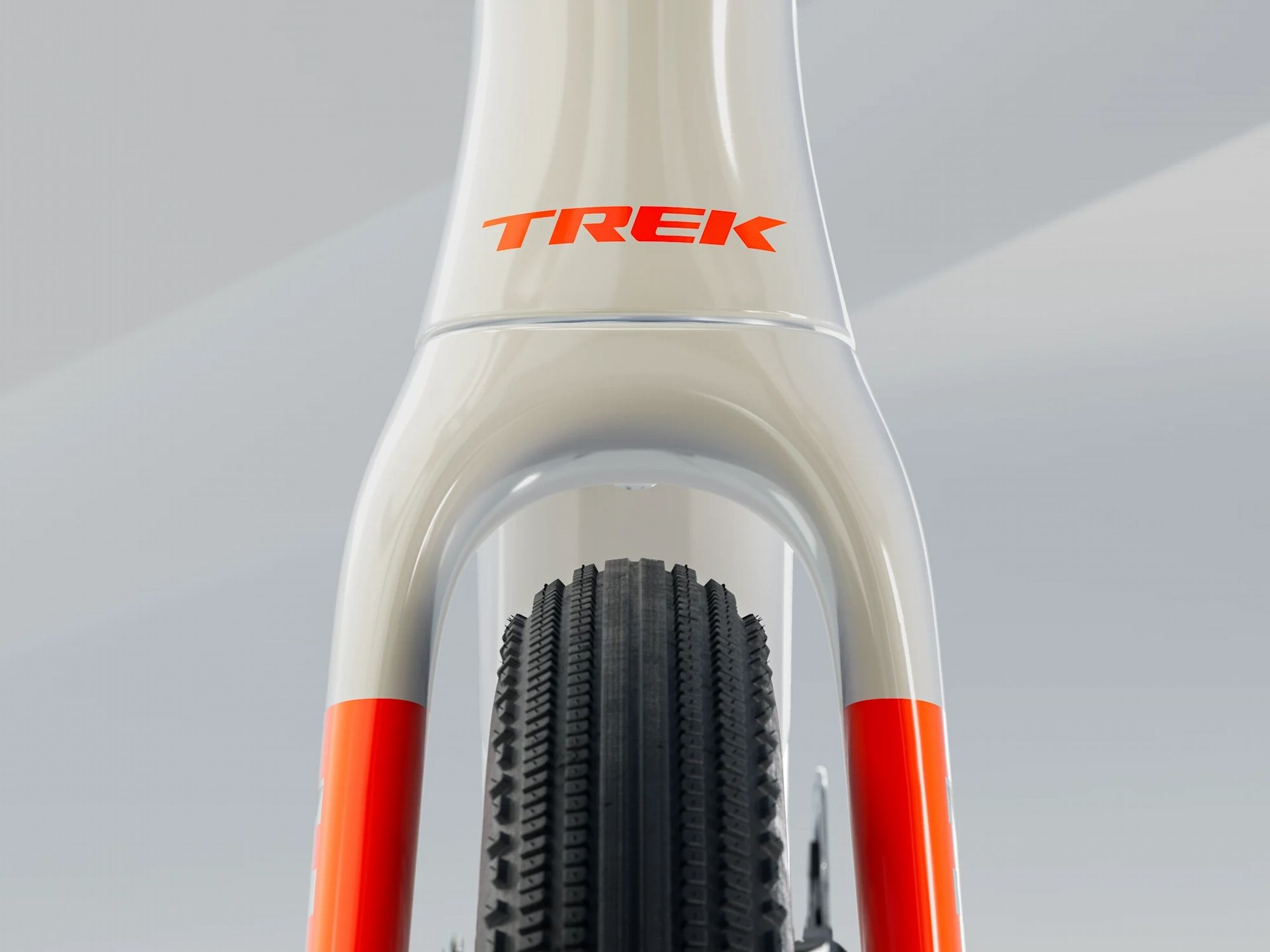

  • Fork: Checkpoint SLR full carbon, tapered carbon steerer, hidden fender mounts, flat mount disc, 12x100mm thru axle
  • Weight: ML - 7.55 kg / 16.65 lbs (with TLR sealant, no tubes)
  • Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 125 kg (275 lb).
  • Battery: SRAM eTap battery pack (with charger)
  • Shifter: SRAM RED AXS E1

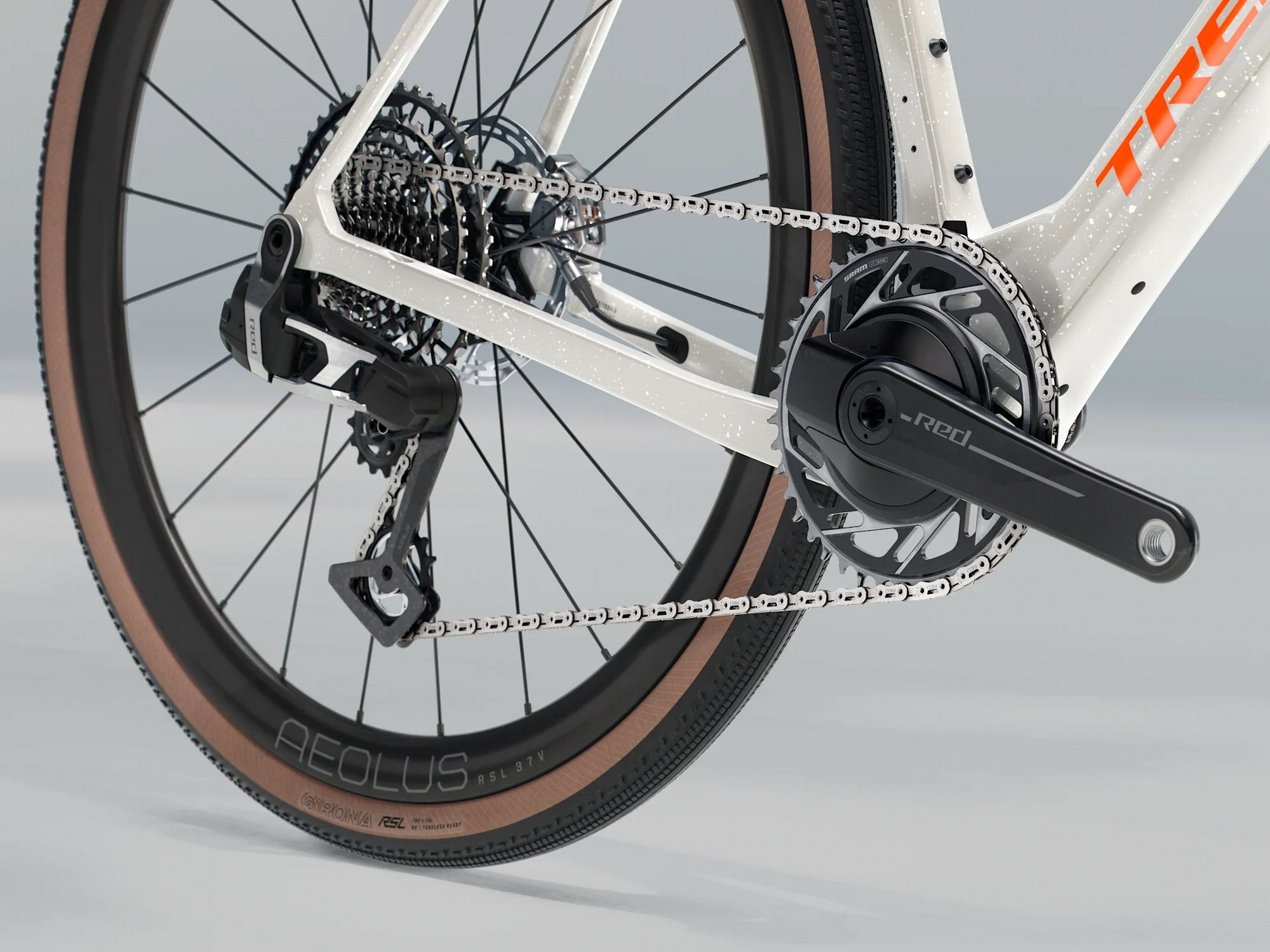

  • Rear derailleur: SRAM RED XPLR eTap AXS, 46T max cog
  • Crank: SRAM RED XPLR, power meter, 42T, DUB wide
  • Bottom bracket: SRAM DUB, T47 threaded, internal bearing
  • Cassette: SRAM XG-1391, 10-46T, 13-speed
  • Chain: SRAM RED E1, 12-speed
  • Wheel front: Bontrager Aeolus RSL 37V, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 100 x 12mm thru axle
  • Wheel rear: Bontrager Aeolus RSL 37V, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 142 x 12mm thru axle
  • Skewer front: Bontrager Switch chamfered thru axle, removable lever
  • Skewer rear: Bontrager Switch chamfered thru axle, removable lever
  • Tyre: Bontrager Girona RSL GR, Tubeless-Ready, aramid bead, 220 tpi, 700x38 mm
  • Tyre part: Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip: Bontrager TLR
  • Max tyre size: 45 mm without mudguards
  • Saddle: Aeolus RSL, carbon rails,
  • Seatpost: KVF aero carbon seat post, 5 mm offset

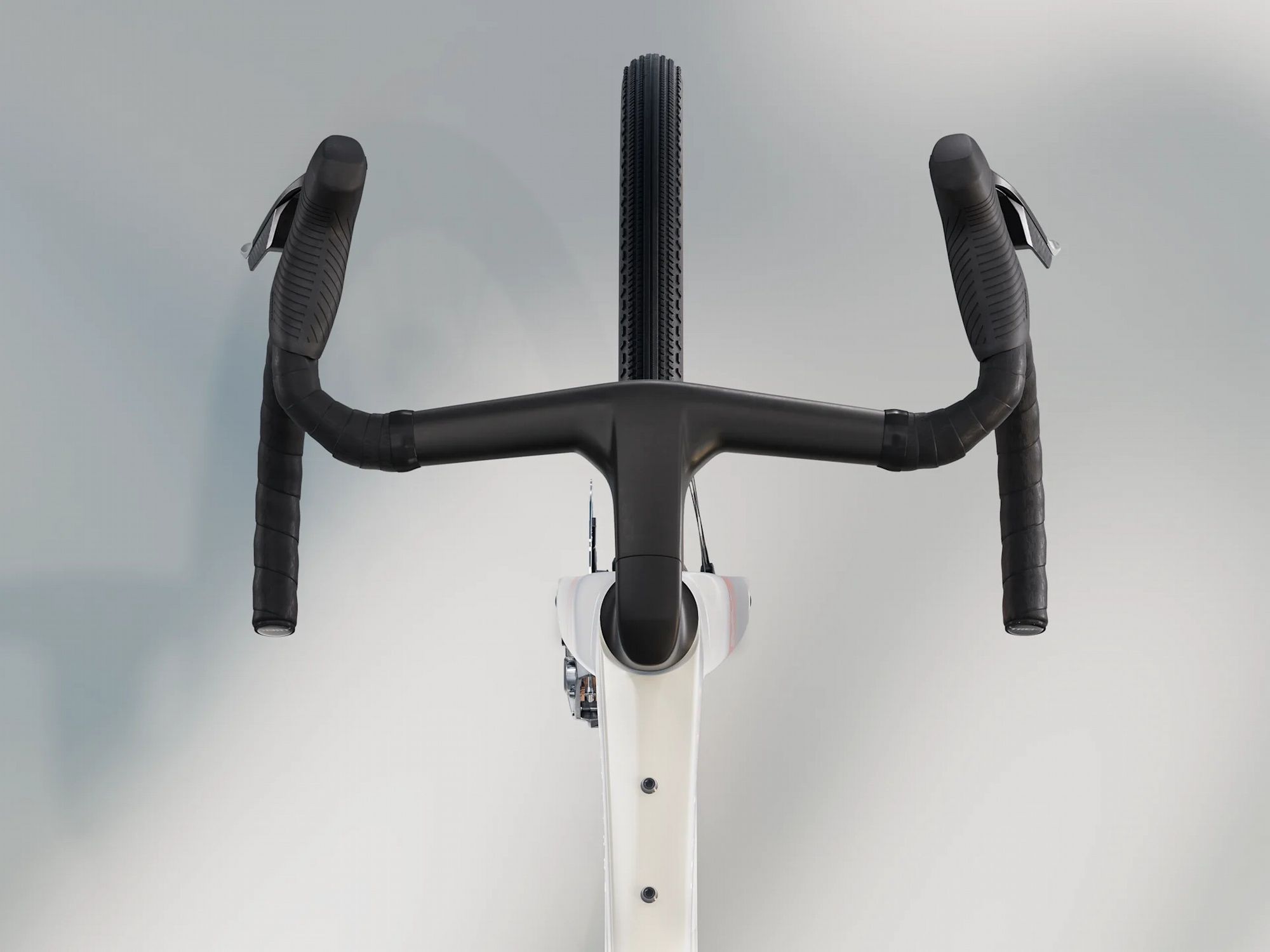

  • Handlebar/stem (integrated): Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit
  • Brake rotor: SRAM Paceline X, rounded, CentreLock, 160 mm
  • Rotor size: Max brake rotor sizes 180mm front and rear
Highlights
  • New Gravel Race geometry optimizes aerodynamics and comfort for long rides.
  • Ultra-light 800 Series OCLV Carbon frame reduces road chatter to save energy.
  • Multiple mounts for Adventure Bags to carry all your race-day essentials.
Specifications
Model
Checkmate SLR 9 AXS
Battery [Maker]
SRAM
Bottom Bracket [Maker]
SRAM
Bottom Bracket Standard
T47
Brakes [Kind]
Hydraulic Disc
Brakes [Maker]
SRAM
Brakes [Model]
Paceline X
Cassette [Gearing]
10-46
Cassette [Maker]
SRAM
Cassette [Model]
XG-1391
Chain [Maker]
SRAM
Chain [Model]
RED
Chainring [Gearing]
42
Crank [Maker]
SRAM
Crank [Model]
RED XPLR
Discipline Compatibility
Gravel
E-Bike
No
F Hub [Maker]
Bontrager
Family
Checkmate
Fenders Mounts
Yes
Fork [Axle Diameter]
12 mm
Fork [Axle Type]
12x100mm
Fork [Brake Type]
Disc
Fork [Maker]
Trek
Fork [Material]
Carbon
Fork [Model]
Checkmate SLR
Fork [Wheel Size]
700c
Frame [Hanger Standard]
UDH
Frame [Material]
Carbon
Frame [Tire Clearance]
45c mm
Frameset
No
Gearing [Configuration]
1x
Gearing [Kind]
Conventional
Gender
Unisex
Handlebar [Drop]
124 mm
Handlebar [Kind]
Drop
Handlebar [Maker]
Trek
Handlebar [Material]
Carbon
Handlebar [Reach]
80 mm
Handlebar [Shape]
race-fit
Power Meter [Maker]
SRAM
Power Meter [Model]
RED XPLR AXS
R Hub [Maker]
Bontrager
Rack Mounts
No
RD [Maker]
SRAM
RD [Model]
RED XPLR eTap AXS
Saddle [Maker]
Trek
Saddle [Material]
Carbon
Saddle [Width]
155 mm
Seatpost [Diameter]
27.2
Seatpost [Kind]
Rigid
Seatpost [Length]
280 mm
Seatpost [Maker]
Trek
Seatpost [Material]
Carbon
Seatpost [Offset]
5 mm
Shifters [Maker]
SRAM
Shifters [Model]
RED AXS
Shifting
Electronic
Stem [Angle]
-7 degree
Stem [Clamp Diameter]
31.8
Stem [Maker]
Trek
Stem [Material]
Carbon
Sub Family
Checkmate SLR
Suspension Configuration
Rigid
Tires [Maker]
Bontrager
Tires [Width]
38 mm
Wheels [Configuration]
Front+Rear
Wheels [Kinds]
Tubeless Ready
Wheelset [Inner Width]
37 mm
Wheelset [Maker]
Bontrager
Wheelset [Material]
Carbon
Wheelset [Model]
Aeolus RSL 37V
Product code
1838377 / 54294440247642
Size Guide
—485154576063
Rider Height (Cm)158 - 163162 - 168167 - 174173 - 184184 - 191190 - 197
Seat Tube (ctr-top)440482512543573605
Seat Tube (ctr-ctr)------
Effective Top Tube520531543557583603
Actual Top Tube ------
Seat Angle (°)74.37473.873.57372.8
Head Tube Angle (°)69.5707171.871.872.3
Head Tube Length11512514160200320
Fork Rake525252525252
Chainstay Length450450450450450450
Wheelbase104110451048105210741086
Stack540551565587625655
Reach368373378383392400
Tail747165595956
Standover713741768794826854
Trek 520 Disc Size Guide 2020

*All measurements in mm unless otherwise stated
