Trek Checkpoint ALR 5 Gen 3 Gravel Bike

£1,700.00

Delivery

Select size to see delivery options

Collect in Store

Cycle to Work – Save up to 42%

Spread the cost of your new bike and save up to 42% through the Cycle to Work scheme. We accept all major providers including Cyclescheme, Green Commute Initiative, Bike2Work and more. Check with your employer for eligibility.

Free Delivery on all bikes

Complimentary standard delivery on all bikes to UK mainland addresses. Orders typically arrive within 2–5 working days. A signature is required on delivery. When you receive your bike all you'll need to do is unpack it, attach your pedals, turn the handlebars and ride.

Premier Delivery

Upgrade to Premier Delivery at checkout for a nominated day, extended assembly and in-home handover by a trained technician. Available on eligible bikes across UK mainland.

Built, checked, tuned & tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Pedals & accessories

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team

You May Also Need

Specialized
Align II MIPS Cycling Helmet
£38.00
£45.00
Vel
9 Piece Hex Key Set
£6.00
£15.00
Specialized
Power Comp Saddle
£77.00
£95.00

Product Details

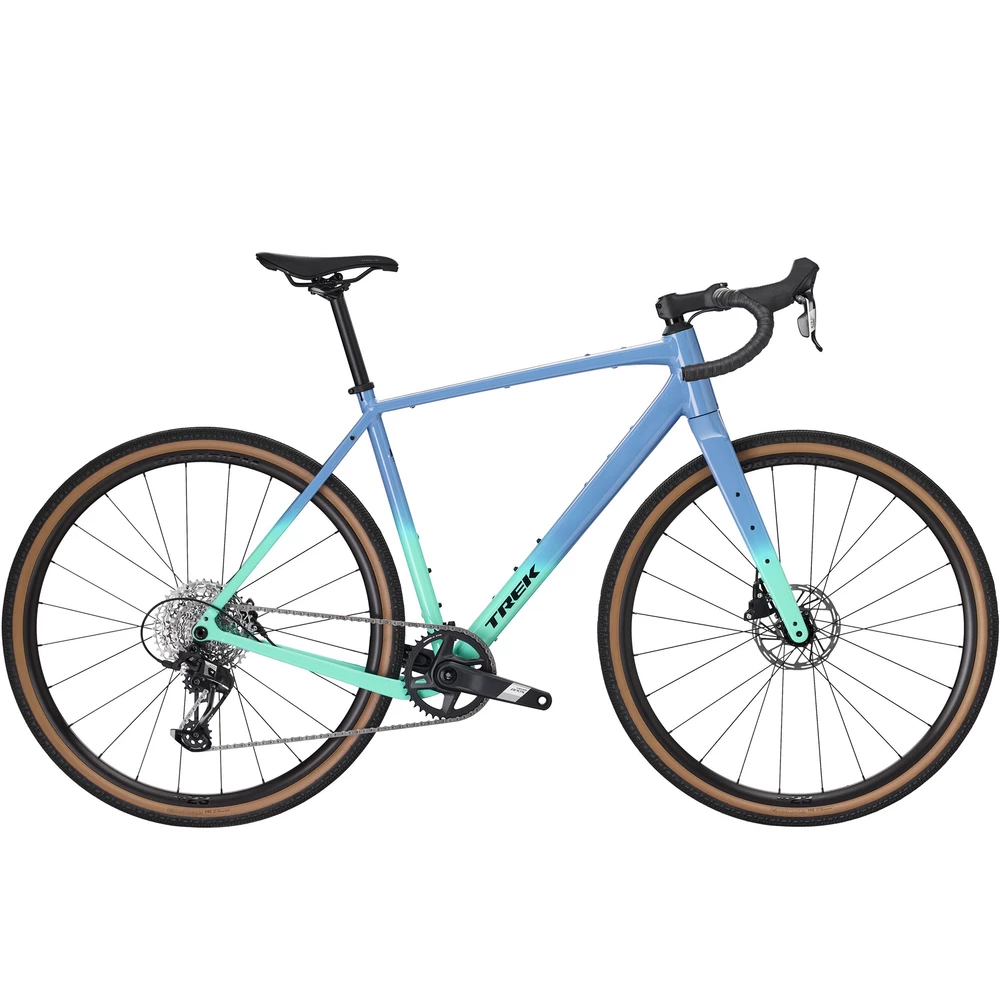

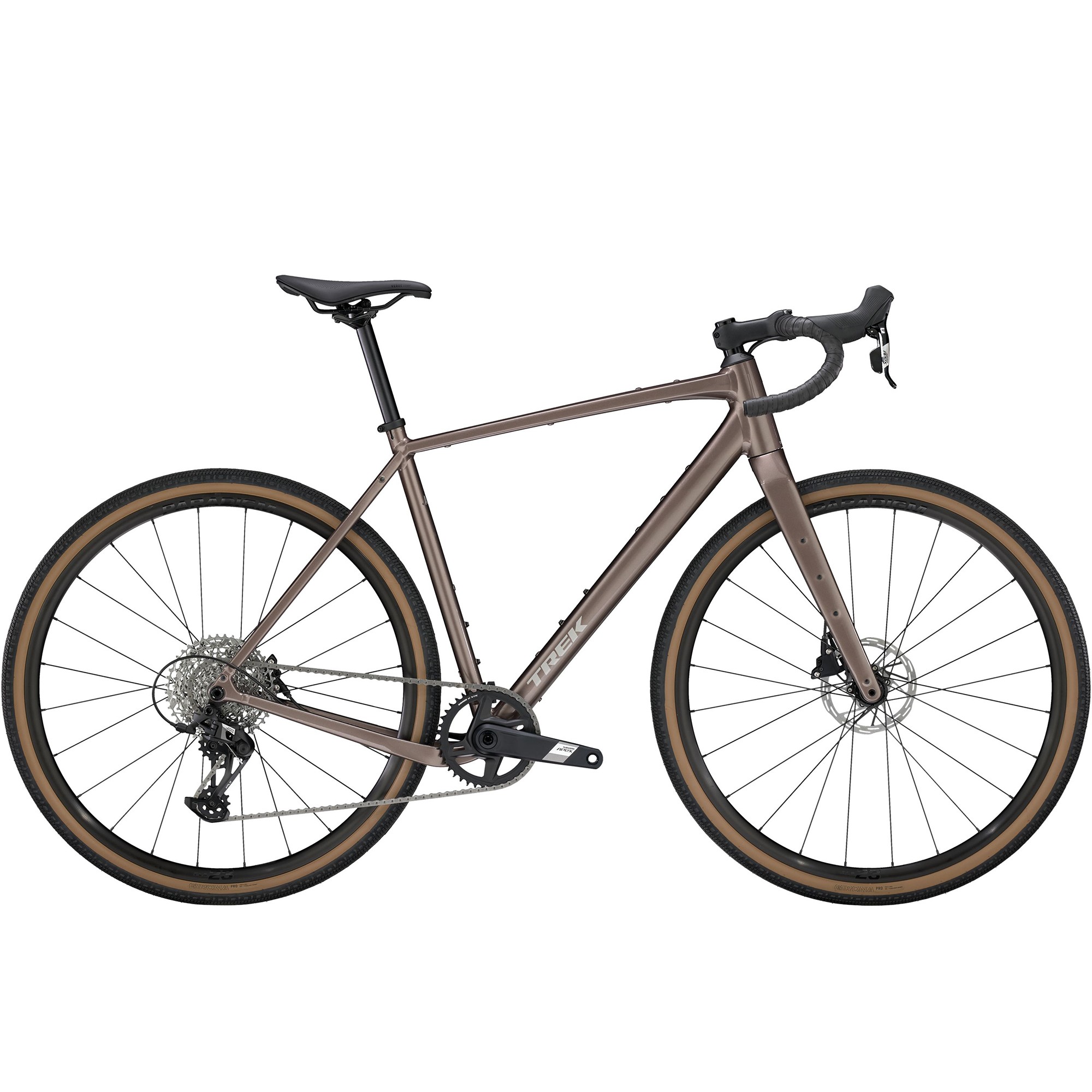

Trek Checkpoint ALR 5 Gen 3 Gravel Bike

The Trek Checkpoint ALR 5 Gen 3 Gravel Bike is an aluminium adventure bike built to go wherever the road or trail leads. Its modern endurance geometry delivers confident handling and lasting comfort over long distances, while a carbon fork helps absorb vibrations from rough terrain.

With 50 mm tyre clearance, there's ample room for extra grip and control on loose or uneven surfaces. The bike is equipped with a 12-speed SRAM Apex XPLR drivetrain for reliable, gravel-specific gearing, along with powerful hydraulic disc brakes for confident stopping in all conditions. Tubeless Ready Bontrager Paradigm wheels and multiple mounting points for bags and gear make it ideal for bikepacking, gravel races or all-day exploration.

Features

Frame: 300 Series Alpha Aluminium, internal cable routing, 3S chain keeper, T47, UDH, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm chamfered thru axle
Fork: Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100 mm thru axle
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb)
Shifter: SRAM Apex, 12 speed
Rear derailleur: SRAM Apex XPLR, 44T max cog
Crank:
Size - XS, S, SRAM Apex 1, 40T, DUB Wide, 165 mm length
Size - M, ML, SRAM Apex 1, 40T, DUB Wide, 170 mm length
Size - L, XL, SRAM Apex 1, 40T, DUB Wide, 172.5 mm length
Bottom bracket: SRAM DUB Wide, T47 threaded, internal bearing
Cassette: SRAM XPLR PG-1231, 11-44, 12-speed
Chain: SRAM Apex, 12-speed
Max chainring size: 1x: 44, 2x: 46/30
Hub front: Bontrager alloy, sealed bearing, CentreLock disc, 100x12 mm thru axle
Skewer front: Bontrager Switch chamfered thru axle, removable lever
Hub rear: Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear: Bontrager Switch chamfered thru axle, removable lever
Rim: Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve
Spokes: 14 g stainless steel, black
Tyre: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
Tyre part: Bontrager TLR sealant, 180 ml / 6 oz
Max tyre size: 50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
Saddle: Verse Short Comp, steel rails, 145 mm width
Seatpost: Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Handlebar:
Size - XS, S, Bontrager Elite Gravel, alloy, 40 cm width
Size - M, ML, Bontrager Elite Gravel, alloy, 42 cm width
Size - L, Bontrager Elite Gravel, alloy, 44 cm width
Size - XL, Bontrager Elite Gravel, alloy, 46 cm width
Handlebar tape: Bontrager Supertack Perf tape
Stem:
Size - XS, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size - S, M, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size - ML, L, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size - XL, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Brakes: SRAM Apex D1 hydraulic disc, flat mount
Brake rotor: SRAM Paceline, rounded, CentreLock, 160 mm
Brake lever: SRAM Apex, 12 speed

Highlights

300 Series Alpha Aluminium Frame and Carbon Fork
SRAM Apex XPLR 12 Speed Groupset

Specifications

Model: Checkpoint ALR 5 Gen 3
Bottom Bracket [Maker]: SRAM
Bottom Bracket Standard: T47
Brakes [Kind]: Hydraulic Disc
Brakes [Maker]: SRAM
Brakes [Model]: Apex D1
Cassette [Gearing]: 11–44
Cassette [Maker]: SRAM
Cassette [Model]: XPLR PG-1231
Chain [Maker]: SRAM
Chain [Model]: Apex
Chainring [Gearing]: 40
Crank [Maker]: SRAM
Crank [Model]: Apex
Discipline Compatibility: Gravel
E-Bike: No
F Hub [Maker]: Bontrager
Family: Checkpoint+
Fenders Mounts: Yes
Fork [Axle Diameter]: 12 mm
Fork [Axle Type]: Thru-Axle
Fork [Brake Type]: Disc
Fork [Maker]: Trek
Fork [Material]: Carbon
Fork [Model]: Checkpoint
Fork [Rake]: 50 mm
Fork [Travel]: 0 mm
Fork [Wheel Size]: 700c
Frame [Hanger Standard]: UDH
Frame [Material]: Aluminium
Frame [Tire Clearance]: 50c mm
Frame [Travel]: 0 mm
Frameset: No
Gearing [Configuration]: 1x
Gearing [Kind]: Conventional
Gender: Unisex
Handlebar [Kind]: Drop
Handlebar [Maker]: Bontrager
Handlebar [Material]: Aluminium
Handlebar [Shape]: Drop
Handlebar [Width]: 420 mm
R Hub [Maker]: Bontrager
Rack Mounts: Yes
RD [Maker]: SRAM
RD [Model]: Apex XPLR
Saddle [3D Printed]: No
Saddle [Maker]: Trek
Saddle [Material]: Steel
Saddle [Width]: 145 mm
Seatpost [Diameter]: 27.2
Seatpost [Kind]: Rigid
Seatpost [Length]: 330 mm
Seatpost [Maker]: Bontrager
Seatpost [Material]: Aluminium
Seatpost [Offset]: 12 mm
Shifters [Maker]: SRAM
Shifters [Model]: Apex
Shifting: Mechanical
Stem [Angle]: 7 degree
Stem [Clamp Diameter]: 31.8
Stem [Length]: 80 mm
Stem [Maker]: Bontrager
Stem [Material]: Aluminium
Sub Family: Checkpoint ALR
Suspension Configuration: Rigid
Tires [Maker]: Bontrager
Tires [Width]: 42 mm
Wheels [Configuration]: Front+Rear
Wheels [Kinds]: Tubeless Ready
Wheelset [Inner Width]: 23 mm
Wheelset [Maker]: Bontrager
Wheelset [Material]: Aluminium
Wheelset [Model]: Paradigm 23
