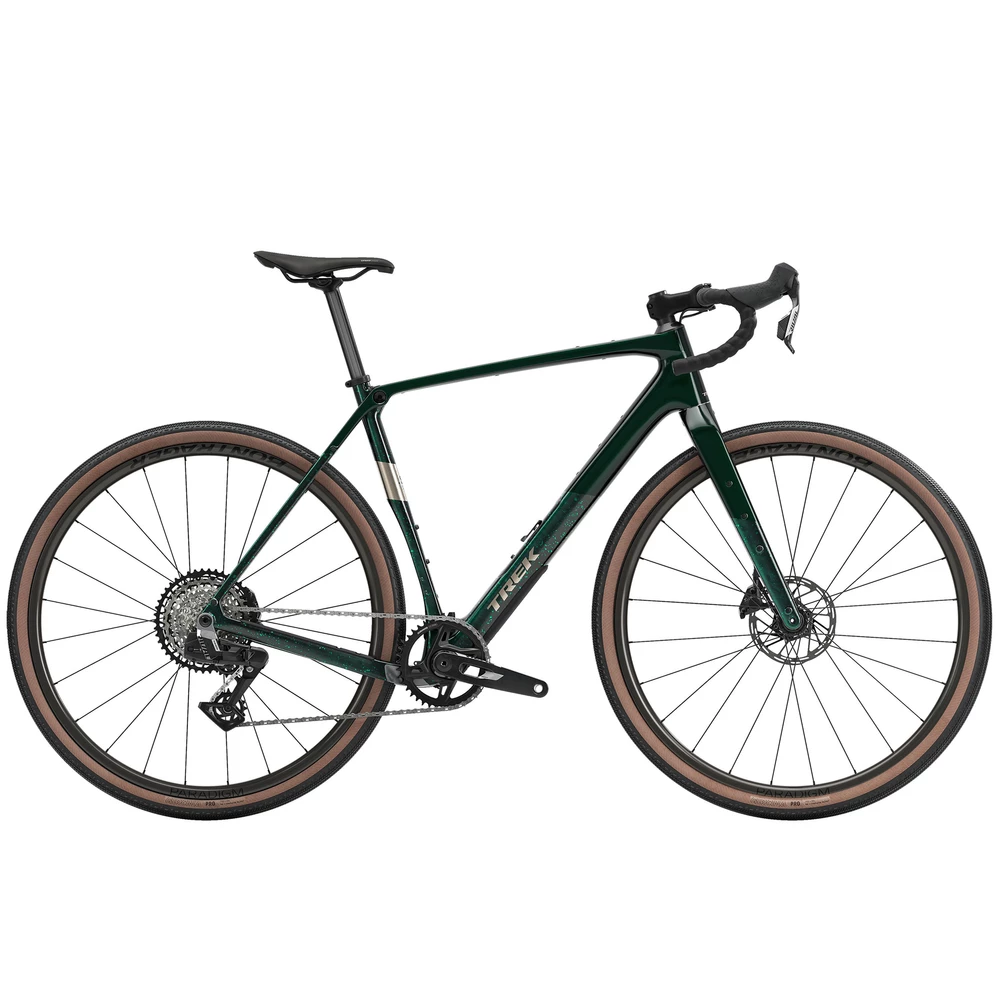

Trek Checkpoint SL 6 Rival XPLR AXS Gen 3 Gravel Bike
The Trek Checkpoint SL 6 Rival XPLR AXS Gen 3 Gravel Bike is a carbon gravel bike built for big adventures and long days in the saddle. Its lightweight OCLV Carbon frame features comfort-oriented Gravel Endurance geometry for stable handling on rough terrain, while IsoSpeed technology helps absorb road chatter and vibrations for a smoother ride.
With clearance for up to 50 mm tyres, it offers confident grip and control across varied surfaces. The SRAM Rival AXS E1 wireless 13-speed groupset delivers precise, cable-free shifting, and a full suite of frame and fork mounts gives you plenty of room for gear and accessories. Ideal for everything from fast gravel rides to multi-day bikepacking trips.
Features
- Frame: 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle
- Max compatible fork travel: 40 mm (XS: compatible with rigid fork only)
- Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb)
- Battery: SRAM eTap battery pack (with charger)
- Rear derailleur: SRAM Rival XPLR AXS, 46T max cog
- Cassette: SRAM Rival XPLR XG-1351, 10-46, 13-speed
- Max chainring size: 1x: 44, 2x: 46/30
- Wheel front: Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
- Wheel rear: Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, SRAM XD-R 12-speed freehub, 142x12 mm thru axle
- Skewer front: Bontrager Switch chamfered thru axle, removable lever
- Skewer rear: Bontrager Switch chamfered thru axle, removable lever
- Tyre: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
- Tyre part: Bontrager TLR sealant, 180 ml / 6 oz
- Rim strip: Bontrager TLR
- Max tyre size: 50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
- Saddle: Verse Short Comp, steel rails, 145 mm width
- Seatpost: Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
- Handlebar:
- Size - XS, S, Bontrager Elite Gravel, alloy, 40 cm width
- Size - M, ML, Bontrager Elite Gravel, alloy, 42 cm width
- Size - L, Bontrager Elite Gravel, alloy, 44 cm width
- Size - XL, Bontrager Elite Gravel, alloy, 46 cm width
- Handlebar tape: Bontrager Supertack Perf tape
- Stem:
- Size - XS, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
- Size - S, M, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
- Size - ML, L, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
- Size - XL, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Specifications
- Model
- Checkpoint SL 6 Rival XPLR AXS Gen 3
- Bottom Bracket [Maker]
- SRAM
- Bottom Bracket Standard
- T47
- Brakes [Kind]
- Hydraulic Disc
- Brakes [Maker]
- SRAM
- Brakes [Model]
- Rival AXS
- Cassette [Gearing]
- 10-46
- Cassette [Maker]
- SRAM
- Cassette [Model]
- Rival XPLR XG-1351
- Chain [Maker]
- SRAM
- Chain [Model]
- Rival E1
- Chainring [Gearing]
- 40
- Crank [Maker]
- SRAM
- Crank [Model]
- Rival XPLR
- Discipline Compatibility
- Gravel
- E-Bike
- No
- F Hub [Maker]
- Bontrager
- Family
- Checkpoint+
- Fenders Mounts
- Yes
- Fork [Axle Diameter]
- 12 mm
- Fork [Axle Type]
- Thru-Axle
- Fork [Brake Type]
- Disc
- Fork [Maker]
- Trek
- Fork [Material]
- Carbon
- Fork [Model]
- Checkpoint
- Fork [Rake]
- 49 mm
- Fork [Wheel Size]
- 700c
- Frame [Hanger Standard]
- UDH
- Frame [Material]
- Carbon
- Frame [Tire Clearance]
- 50c mm
- Frameset
- No
- Gearing [Configuration]
- 1x
- Gearing [Kind]
- Conventional
- Gender
- Unisex
- Handlebar [Kind]
- Drop
- Handlebar [Maker]
- Bontrager
- Handlebar [Material]
- Aluminium
- Handlebar [Shape]
- Drop bar
- Headset [SHIS]
- rcs
- R Hub [Maker]
- Bontrager
- Rack Mounts
- Yes
- RD [Maker]
- SRAM
- RD [Model]
- Rival XPLR AXS
- Saddle [Maker]
- Bontrager
- Saddle [Material]
- Steel
- Saddle [Width]
- 145 mm
- Seatpost [Diameter]
- 27.2
- Seatpost [Kind]
- Rigid
- Seatpost [Length]
- 330 mm
- Seatpost [Maker]
- Bontrager
- Seatpost [Material]
- Carbon
- Seatpost [Offset]
- 8 mm
- Shifters [Maker]
- SRAM
- Shifters [Model]
- Rival AXS E1
- Shifting
- Electronic
- Stem [Angle]
- 7 degree
- Stem [Clamp Diameter]
- 31.8
- Stem [Maker]
- Bontrager
- Stem [Material]
- Aluminium
- Sub Family
- Checkpoint SL
- Suspension Configuration
- Rigid
- Tires [Maker]
- Bontrager
- Tires [Width]
- 42 mm
- Wheels [Configuration]
- Front+Rear
- Wheels [Kinds]
- Tubeless Ready
- Wheelset [Inner Width]
- 25 mm
- Wheelset [Maker]
- Bontrager
- Wheelset [Material]
- Aluminium
- Wheelset [Model]
- Paradigm Comp 25
- Product code
- 1939585 / 54293871329626
Size Guide
| — | 48 | 51 | 54 | 57 | 60 | 63 |
|---|---|---|---|---|---|---|
| Rider Height (Cm) | 158 - 163 | 162 - 168 | 167 - 174 | 173 - 184 | 184 - 191 | 190 - 197 |
| Seat Tube (ctr-top) | 440 | 482 | 512 | 543 | 573 | 605 |
| Seat Tube (ctr-ctr) | - | - | - | - | - | - |
| Effective Top Tube | 520 | 531 | 543 | 557 | 583 | 603 |
| Actual Top Tube | - | - | - | - | - | - |
| Seat Angle (°) | 74.3 | 74 | 73.8 | 73.5 | 73 | 72.8 |
| Head Tube Angle (°) | 69.5 | 70 | 71 | 71.8 | 71.8 | 72.3 |
| Head Tube Length | 115 | 125 | 14 | 160 | 200 | 320 |
| Fork Rake | 52 | 52 | 52 | 52 | 52 | 52 |
| Chainstay Length | 450 | 450 | 450 | 450 | 450 | 450 |
| Wheelbase | 1041 | 1045 | 1048 | 1052 | 1074 | 1086 |
| Stack | 540 | 551 | 565 | 587 | 625 | 655 |
| Reach | 368 | 373 | 378 | 383 | 392 | 400 |
| Tail | 74 | 71 | 65 | 59 | 59 | 56 |
| Standover | 713 | 741 | 768 | 794 | 826 | 854 |
*All measurements in mm unless otherwise stated
