Product Details

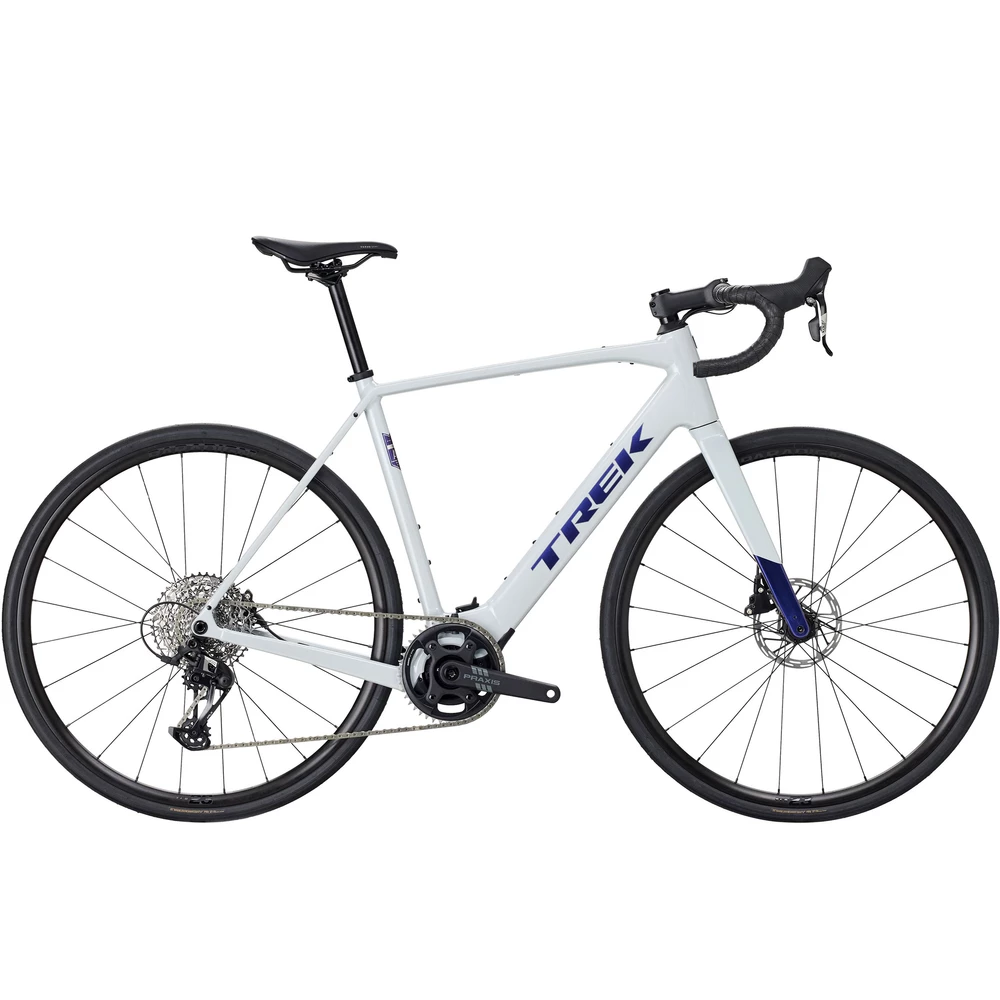

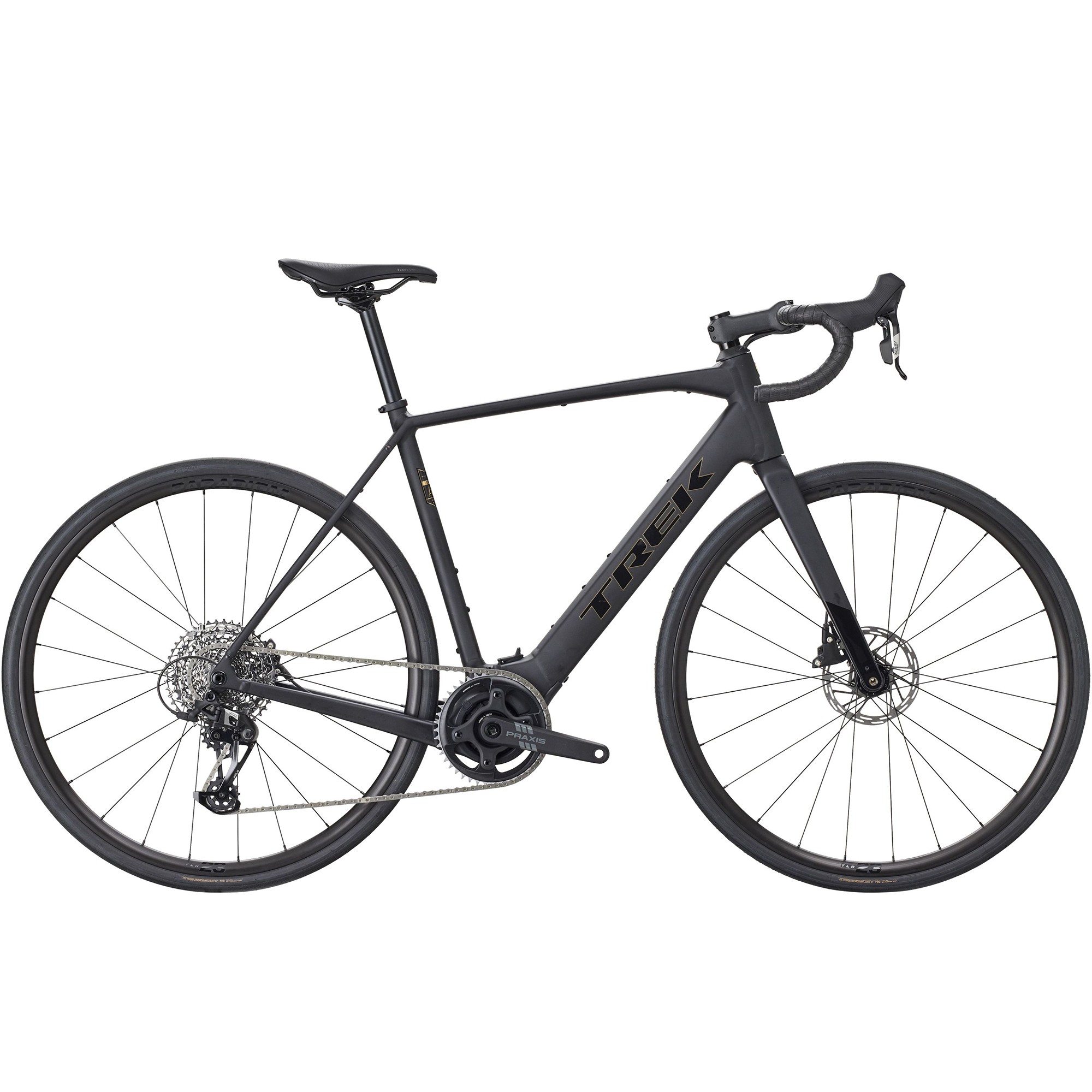

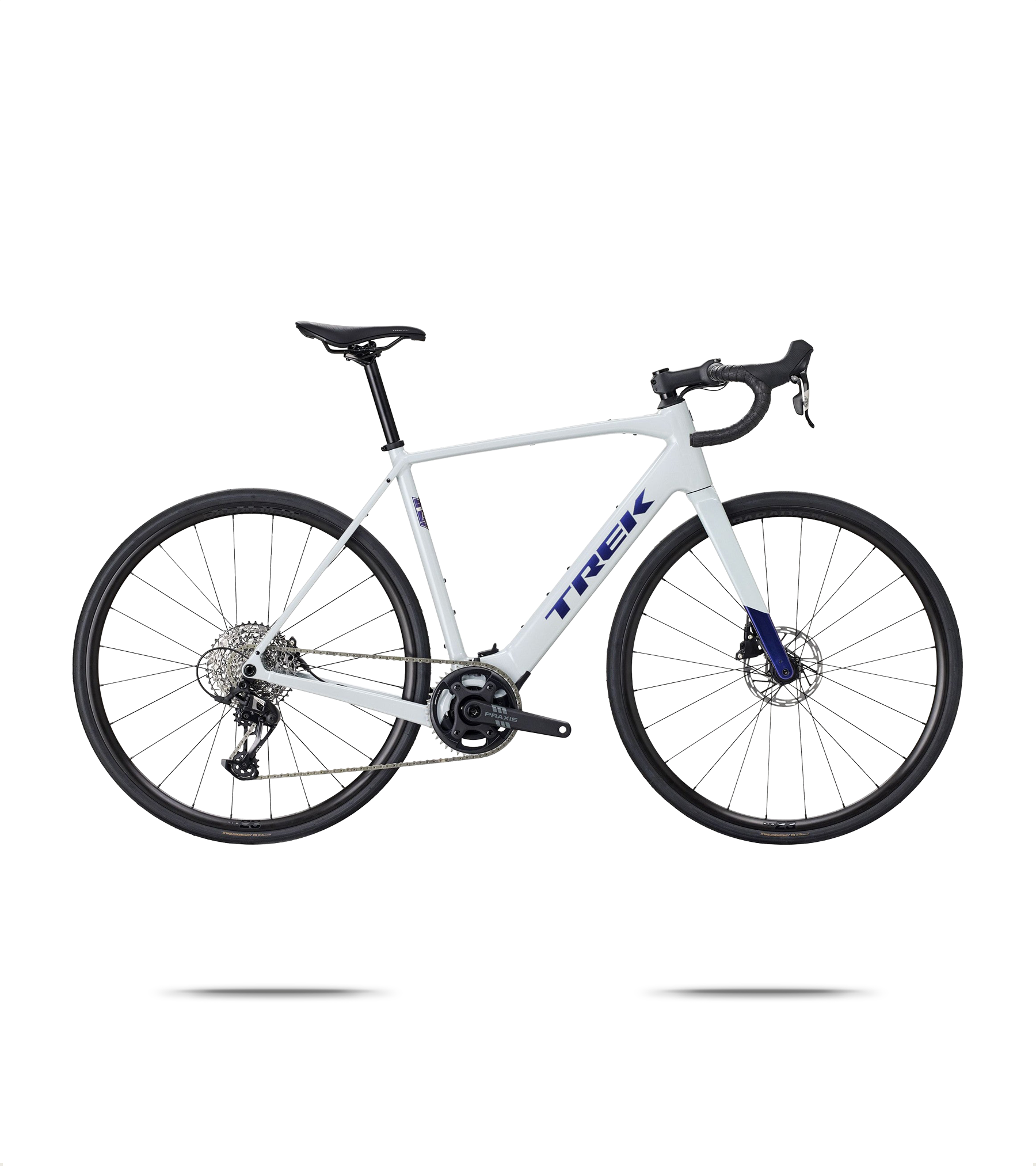

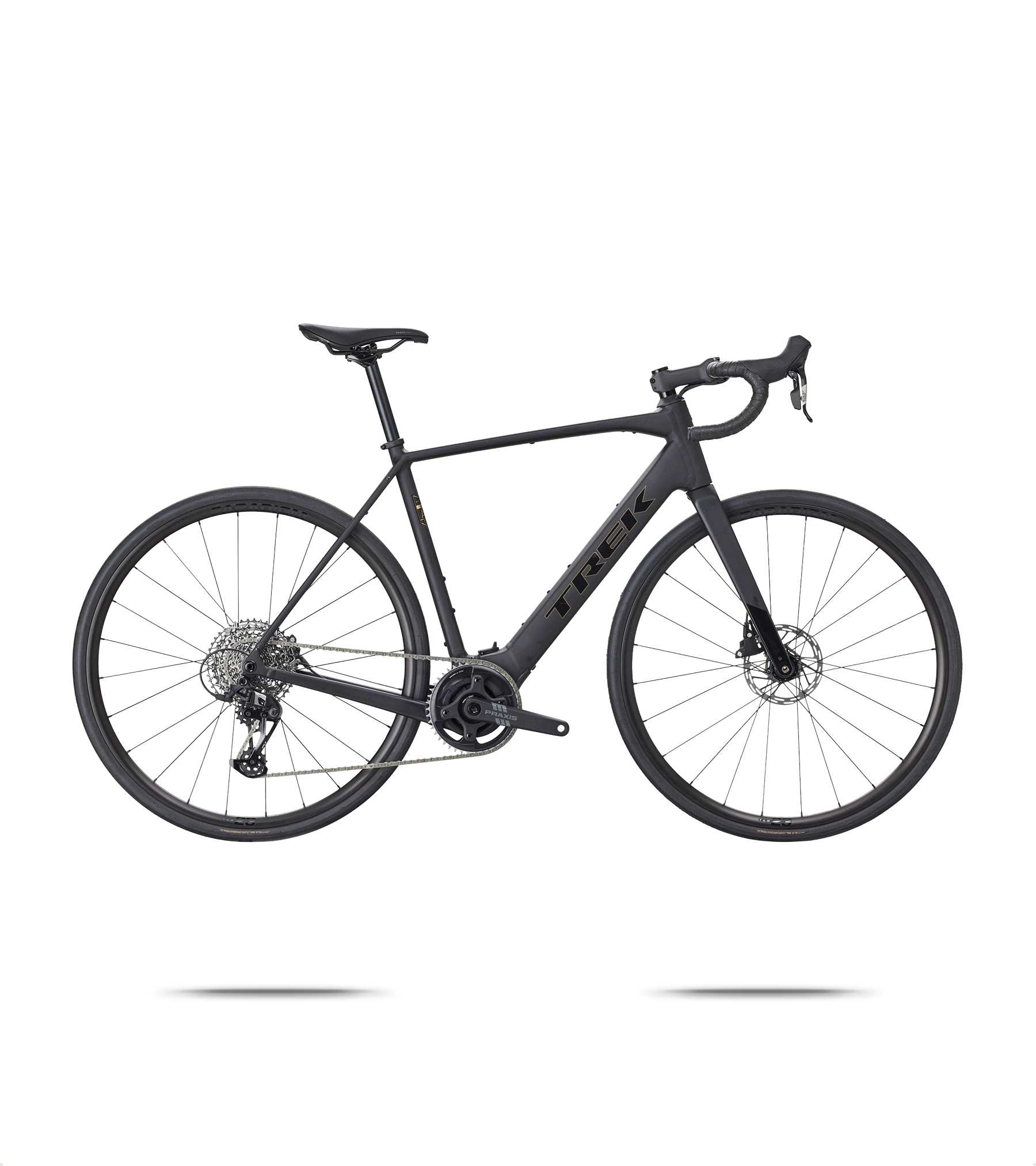

Trek Domane+ ALR 5 Electric Road Bike
The Trek Domane+ ALR 5 Electric Road Bike is a lightweight aluminium e-road bike that delivers a smooth, quiet and natural-feeling ride. Powered by the TQ HPR60 motor, it offers responsive support for long-distance rides and challenging climbs, helping you go further with ease.
Paired with a SRAM Apex 12-speed drivetrain, it delivers reliable, precise shifting across varied terrain. Ideal for riders looking to extend their road adventures without compromising the feel of a traditional ride.
Features
- Frame: 300 Series Alpha Aluminium, TQ drive system, hidden mudguard mounts, rack mounts, integrated frame bag mounts, internal cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle
- Fork: Domane ALR carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, chamfered 12x100 mm thru axle
- Weight: ML – 14.39 kg / 31.73 lb (with TLR sealant, no tubes)
- Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb)
- Computer: TQ LED display with Bluetooth and ANT+ connectivity
- Motor: TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
- Shifter: SRAM Apex, 12-speed
- Rear derailleur: SRAM Apex XPLR, 44T max cog
- Crank:
- Size - XS, S, Praxis Alloy, 165 mm length
- Size - M, ML, Praxis Alloy, 170 mm length
- Size - L, XL, Praxis Alloy, 172.5 mm length
- Cassette: SRAM XPLR PG-1231, 11-44, 12-speed
- Chain: SRAM Apex, 12-speed
- Max chainring size: 1x: 46T
- Hub front: Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
- Skewer front: Bontrager Switch chamfered thru axle, removable lever
- Hub rear: Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
- Skewer rear: Bontrager Switch chamfered thru axle, removable lever
- Rim: Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve
- Spokes: 14 g stainless steel, black
- Tyre: Bontrager Kwaremont Pro GR, tubeless ready, folding bead, dual compound, 120 tpi, 700x32 mm
- Tyre part: Bontrager TLR sealant, 180 ml / 6 oz
- Max tyre size: 38 mm without mudguards, 35 mm with mudguards
- Saddle: Verse Short Comp, steel rails, 145 mm width
- Seatpost: Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
- Handlebar:
- Size - XS, Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width
- Size - S, Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width
- Size - M, ML, Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width
- Size - L, XL, Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width
- Handlebar tape: Trek EcoTack
- Stem:
- Size - XS, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
- Size - S, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
- Size - M, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
- Size - ML, L, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
- Size - XL, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
- Brake rotor: SRAM Paceline, rounded, CentreLock, 160 mm
- Brake lever: SRAM Apex, 12 speed
Highlights
- 300 Series Alpha Aluminium Frame and Carbon Fork
- SRAM Apex 12-speed Groupset
Specifications
- Model
- Domane+ ALR 5
- Battery [Capacity]
- 360 Wh
- Battery [Maker]
- tq
- Brakes [Kind]
- Hydraulic Disc
- Brakes [Maker]
- SRAM
- Brakes [Model]
- Apex
- Cassette [Gearing]
- 11–44
- Cassette [Maker]
- SRAM
- Cassette [Model]
- XPLR PG-1231
- Chain [Maker]
- SRAM
- Chain [Model]
- Apex
- Chainring [Gearing]
- 44
- Crank [Maker]
- praxis
- Crank [Model]
- Praxis Alloy
- Discipline Compatibility
- Road
- E-Bike
- Yes
- F Hub [Maker]
- Bontrager
- F Hub [Model]
- Bontrager alloy sealed bearing CenterLock
- Family
- Domane+
- FD [Maker]
- SRAM
- FD [Model]
- Apex Di2
- Fenders Mounts
- Yes
- Fork [Axle Diameter]
- 12 mm
- Fork [Axle Type]
- 12x100mm Thru-Axle
- Fork [Brake Type]
- Disc
- Fork [Maker]
- Trek
- Fork [Material]
- Carbon
- Fork [Model]
- Domane ALR
- Fork [Wheel Size]
- 700c
- Frame [Hanger Standard]
- UDH
- Frame [Material]
- Aluminium
- Frame [Tire Clearance]
- 38c mm
- Frameset
- No
- Gearing [Configuration]
- 1x
- Gearing [Kind]
- Conventional
- Gender
- Unisex
- Handlebar [Drop]
- 121 mm
- Handlebar [Kind]
- Drop
- Handlebar [Maker]
- Bontrager
- Handlebar [Material]
- Aluminium
- Handlebar [Reach]
- 80 mm
- Handlebar [Shape]
- Drop bar
- Motor [Kind]
- Mid-Drive
- Motor [Maker]
- tq
- Motor [Power]
- 250 W
- Motor [Torque]
- 60 Nm
- R Hub [Maker]
- Bontrager
- R Hub [Model]
- Bontrager alloy sealed bearing CenterLock
- Rack Mounts
- Yes
- RD [Maker]
- SRAM
- RD [Model]
- Apex XPLR
- Saddle [Maker]
- Bontrager
- Saddle [Material]
- Steel
- Saddle [Width]
- 145 mm
- Seatpost [Diameter]
- 27.2
- Seatpost [Kind]
- Rigid
- Seatpost [Length]
- 330 mm
- Seatpost [Maker]
- Bontrager
- Seatpost [Material]
- Aluminium
- Seatpost [Offset]
- 12 mm
- Shifters [Maker]
- SRAM
- Shifters [Model]
- Apex
- Shifting
- Mechanical
- Stem [Angle]
- 7 degree
- Stem [Clamp Diameter]
- 31.8
- Stem [Maker]
- Bontrager
- Stem [Material]
- Aluminium
- Sub Family
- Domane ALR
- Suspension Configuration
- Rigid
- Tires [Maker]
- Bontrager
- Tires [Width]
- 32 mm
- Wheels [Configuration]
- Front+Rear
- Wheels [Kinds]
- Tubeless Ready
- Wheelset [Inner Width]
- 23 mm
- Wheelset [Maker]
- Bontrager
- Wheelset [Material]
- Aluminium
- Wheelset [Model]
- Paradigm 23
- Product code
- 1939785 / 54293850587482

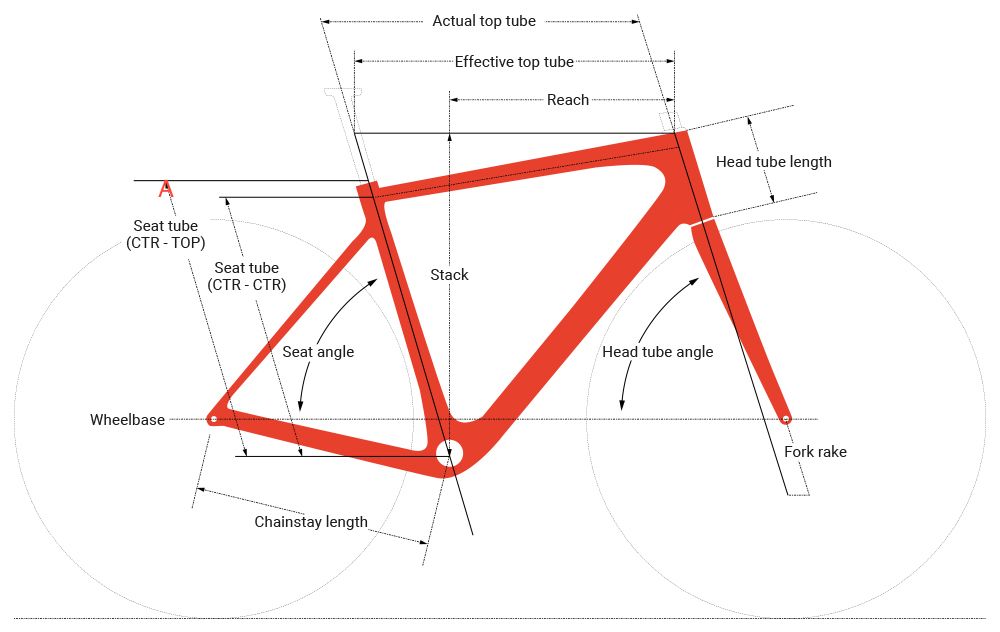

Size Guide
All measurements in mm unless otherwise stated.
