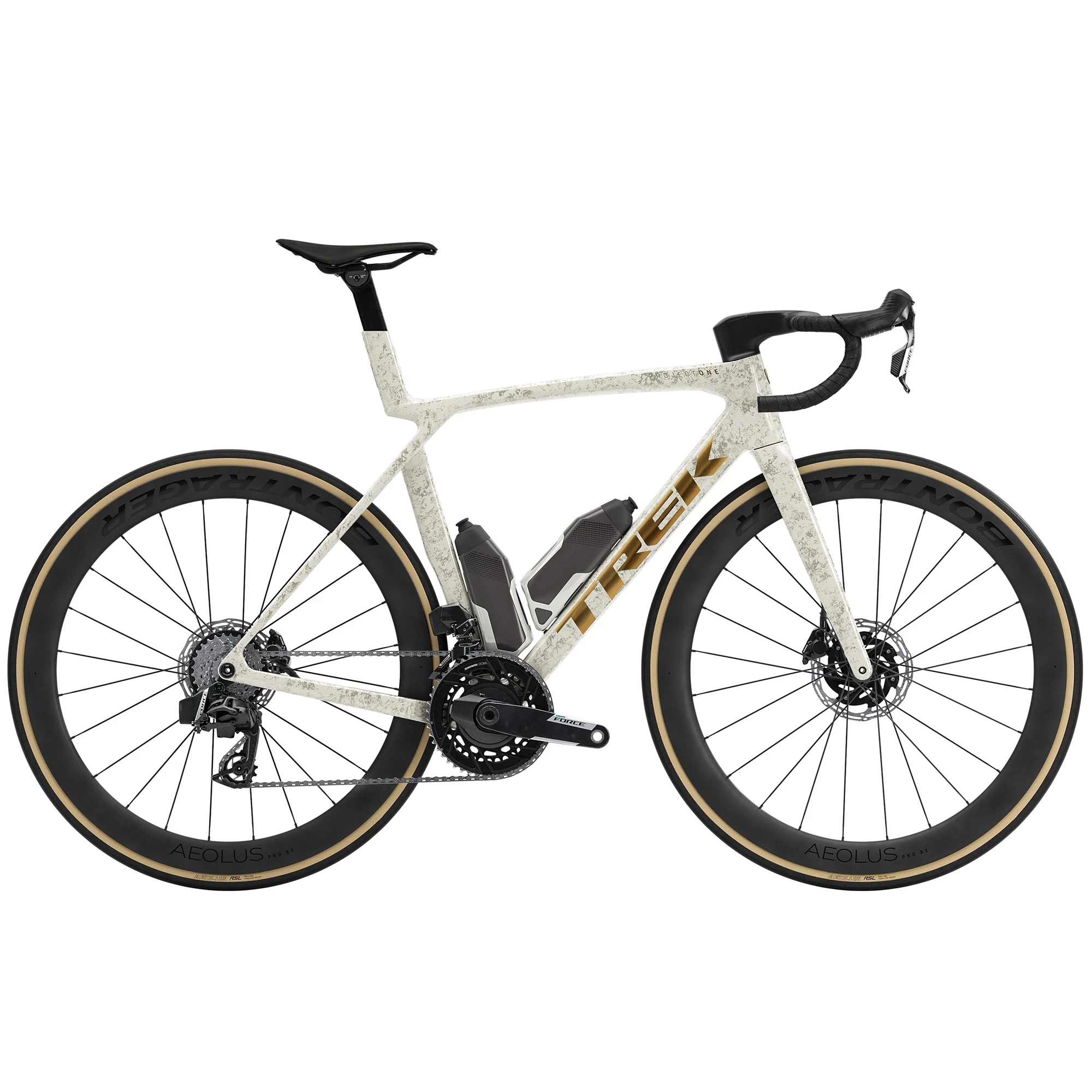

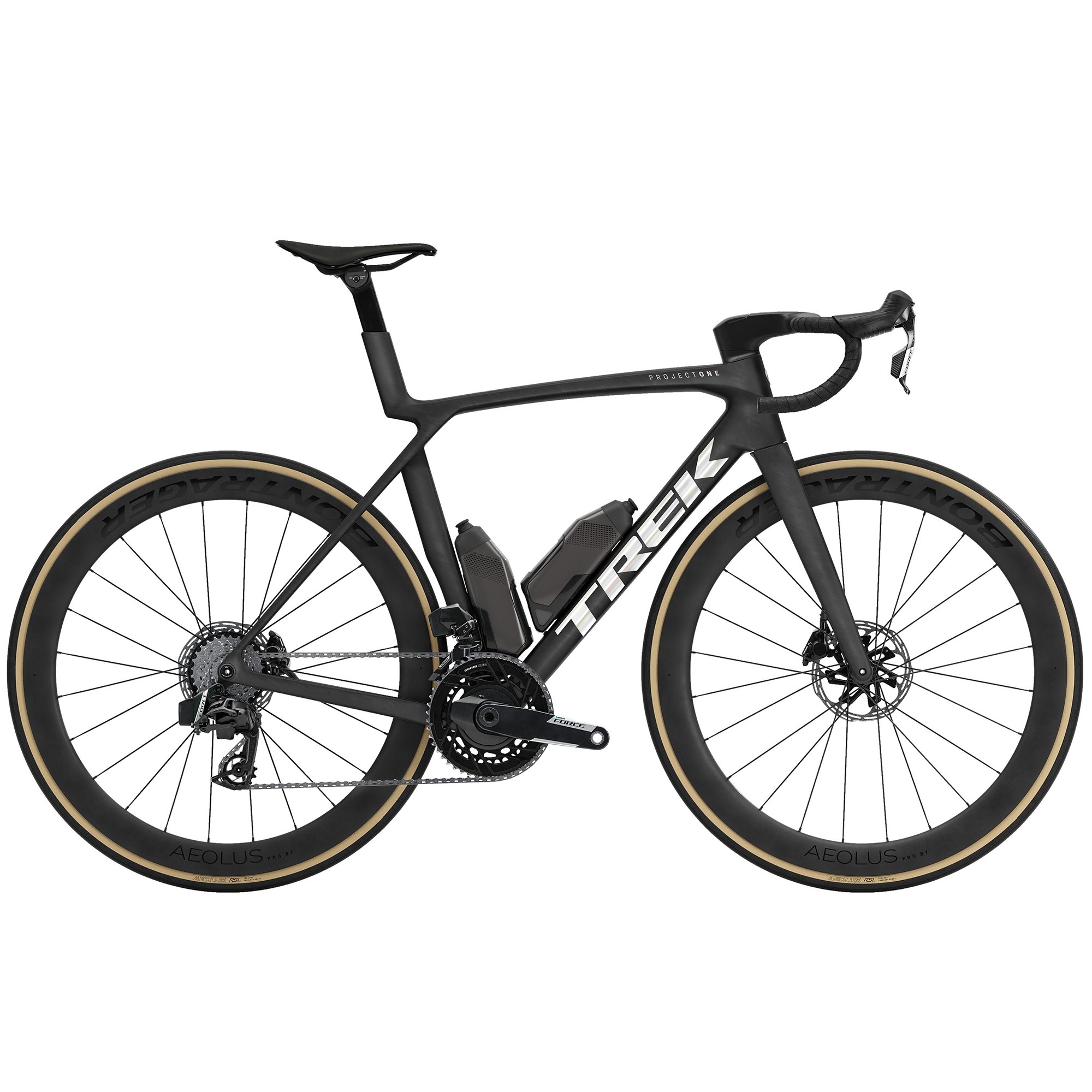

Trek Madone SLR 7 Force AXS E1 Road Bike

The Trek Madone SLR 7 Force AXS E1 Road Bike is a lightweight aero race bike engineered for pure speed and performance. Built with Trek’s premium 900 Series OCLV Carbon, the frame delivers exceptional stiffness and aerodynamic efficiency, while IsoFlow technology enhances comfort by smoothing road vibrations without compromising race-ready responsiveness.

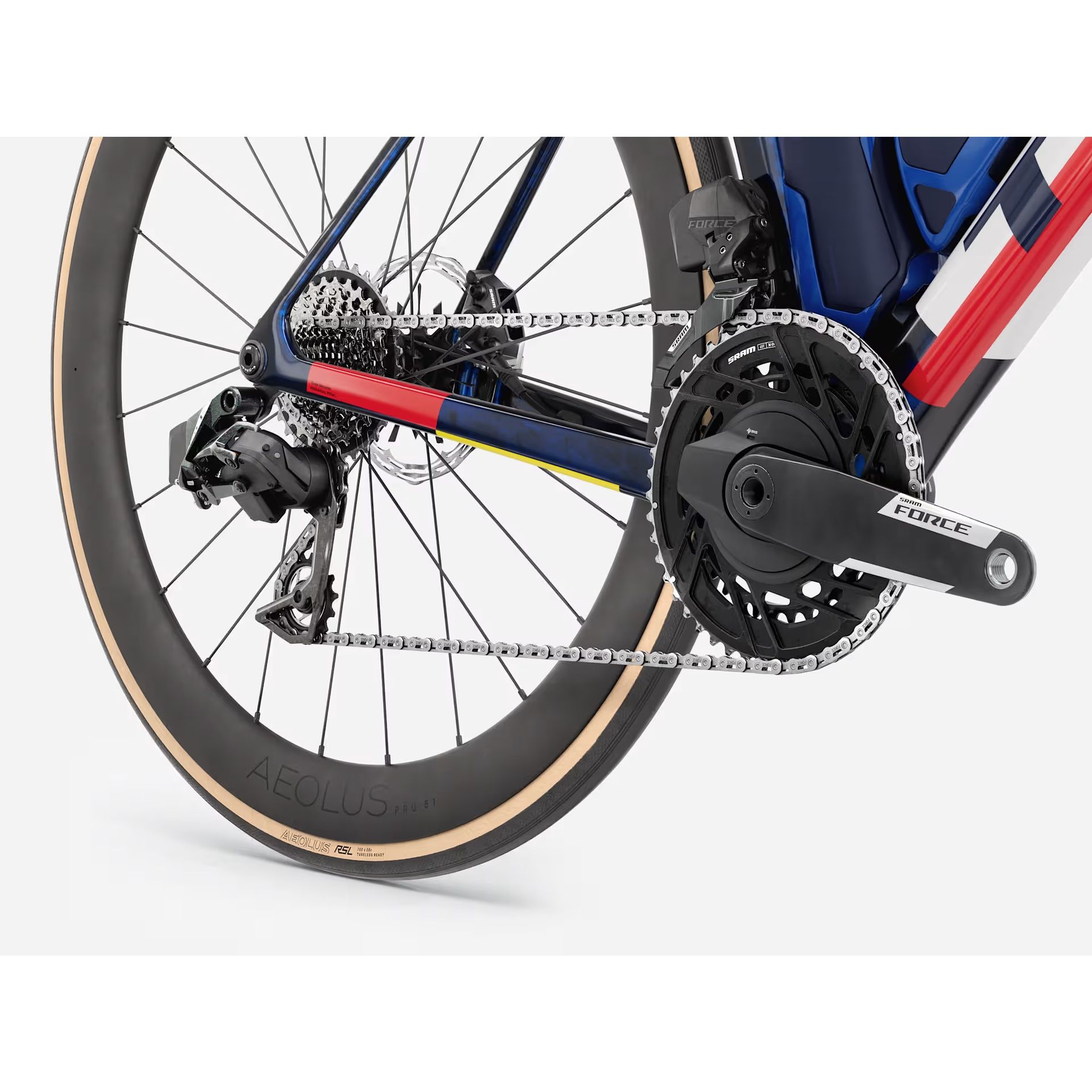

It features a wireless 2x12 SRAM Force AXS E1 electronic groupset with integrated power meter cranks for precise shifting and data-driven training. Bontrager Aeolus Pro 51 carbon wheels offer aero stability, while the Trek Aero RSL one-piece bar and stem and RSL Aero Bottles and Cages further reduce drag, making this bike a complete race-day package.

Features
  • Frame: 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
  • Fork: Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm chamfered thru axle
  • Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb)
  • Battery: SRAM eTap battery pack (with charger)
  • Front derailleur: SRAM Force AXS, braze-on
  • Rear derailleur: SRAM Force AXS, 36T max cog
  • Crank:
  • Size - XS, S: SRAM Force AXS with power meter, 48/35, DUB, 165 mm length
  • Size - M, ML: SRAM Force AXS with power meter, 48/35, DUB, 170 mm length
  • Size - L, XL: SRAM Force AXS with power meter, 48/35, DUB, 172.5 mm length
  • Bottom bracket: SRAM DUB, T47 threaded, internal bearing
  • Cassette: SRAM Force XG-1270, 10-33, 12-speed
  • Chain: SRAM Force E1, 12/13-speed
  • Max chainring size: 1x: 54T, 2x: 56/43
  • Wheel front: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
  • Wheel rear: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12 mm thru axle
  • Skewer front: Bontrager Switch chamfered thru axle, removable lever
  • Skewer rear: Bontrager Switch chamfered thru axle, removable lever
  • Tyre:
  • Size - XS, S, M, ML, L, XL: Bontrager Aeolus RSL RD, Tubeless Ready, cotton construction, aramid bead, 170 tpi, 700x28 mm
  • Size - XS, S, M, ML, L, XL: Pirelli P Zero Race TLR RS, 120 tpi, tubeless-compatible, 700x28 mm
  • Tube: Pirelli P Zero SmarTube, TPU
  • Max tyre size: 32 mm (as measured, see manual for details)
  • Saddle: Bontrager Aeolus Pro, carbon rails, 145 mm width
  • Seatpost: Madone aero carbon seat post, 0 mm offset, short length

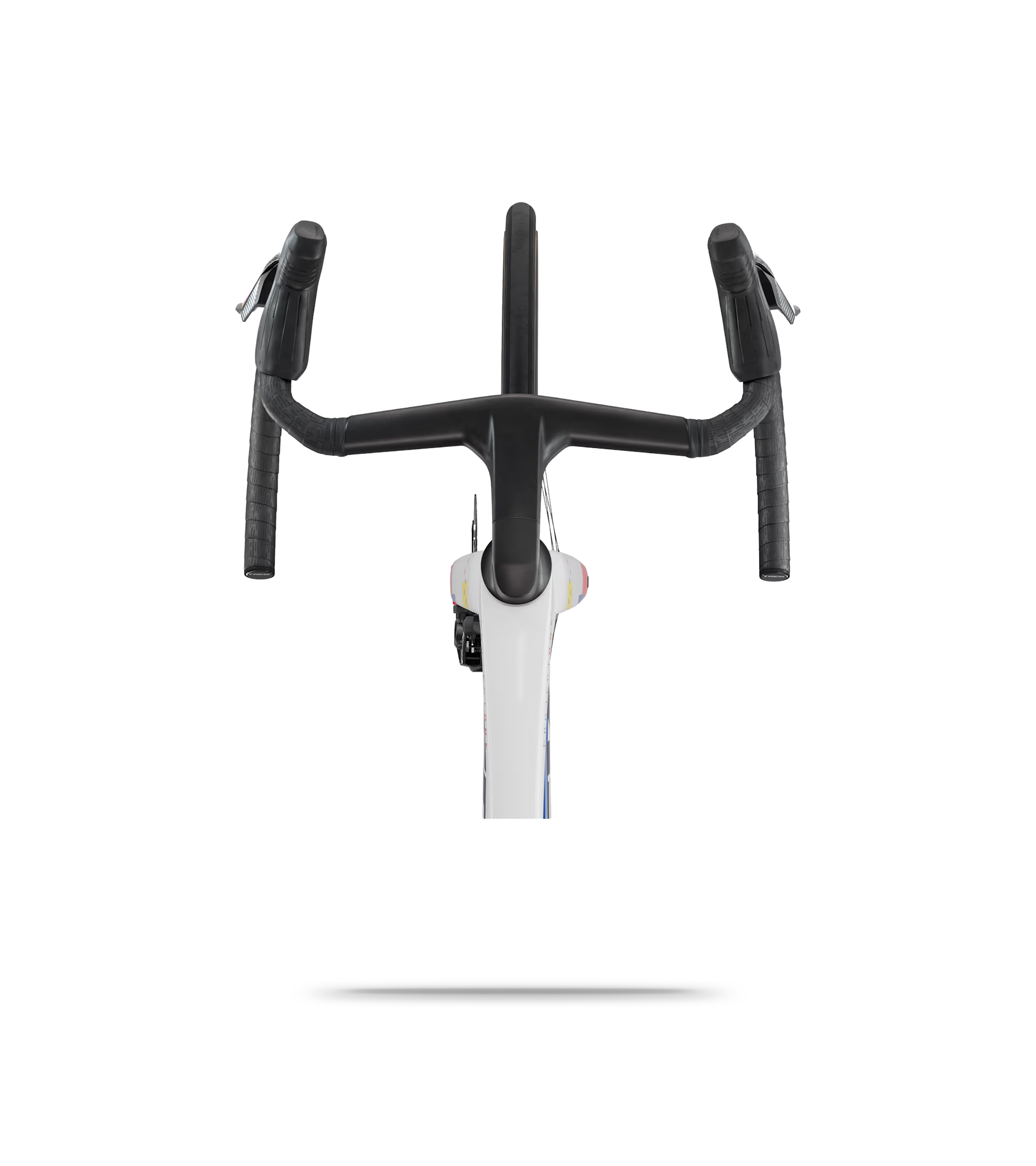

  • Handlebar/stem (integrated):
  • Size - XS: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length
  • Size - S: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length
  • Size - M: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length
  • Size - ML, L: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length
  • Size - XL: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length
  • Handlebar tape: Trek EcoTack
  • Brake: SRAM Force AXS hydraulic disc, flat mount
  • Brake rotor:
  • Size - XS, S, XL: SRAM Paceline X, rounded, CentreLock, 160 mm
  • Size - XS, S, M, ML, L, XL: SRAM CentreLine X, CentreLock, round edge, 160 mm
Highlights
  • 900 Series OCLV Carbon Frame and Fork
  • SRAM Force AXS E1 Groupset
  • Bontrager Aeolus Pro 51, OCLV Carbon Wheelset
Specifications
Model
Madone SLR 7 Force AXS E1
Bottom Bracket [Maker]
SRAM
Bottom Bracket Standard
T47
Brakes [Kind]
Hydraulic Disc
Brakes [Maker]
SRAM
Brakes [Model]
Force
Cassette [Gearing]
10-33
Cassette [Maker]
SRAM
Cassette [Model]
Force XG-1270
Chain [Maker]
SRAM
Chain [Model]
Force E1
Chainring [Gearing]
48/35
Crank [Maker]
SRAM
Crank [Model]
Force AXS
Discipline Compatibility
Road
E-Bike
No
Family
Madone
FD [Maker]
SRAM
FD [Model]
Force AXS
Fenders Mounts
No
Fork [Axle Diameter]
12 mm
Fork [Axle Type]
Thru-Axle
Fork [Brake Type]
Disc
Fork [Maker]
Trek
Fork [Material]
Carbon
Fork [Model]
Madone Gen 8
Fork [Wheel Size]
700c
Frame [Hanger Standard]
UDH
Frame [Material]
Carbon
Frame [Tire Clearance]
32c mm
Frameset
No
Gearing [Configuration]
2x
Gearing [Kind]
Conventional
Gender
Unisex
Handlebar [Drop]
124 mm
Handlebar [Kind]
Drop
Handlebar [Maker]
Trek
Handlebar [Material]
Carbon
Handlebar [Reach]
80 mm
Handlebar [Shape]
Drop bar
Power Meter [Maker]
SRAM
Power Meter [Model]
Force AXS
Rack Mounts
No
RD [Maker]
SRAM
RD [Model]
Force AXS
Saddle [Maker]
Bontrager
Saddle [Material]
Carbon
Saddle [Width]
145 mm
Seatpost [Kind]
Rigid
Seatpost [Maker]
Trek
Seatpost [Material]
Carbon
Seatpost [Offset]
0 mm
Shifters [Maker]
SRAM
Shifters [Model]
Force AXS E1
Shifting
Electronic
Stem [Angle]
-7 degree
Stem [Maker]
Trek
Stem [Material]
Carbon
Sub Family
Madone SLR
Suspension Configuration
Rigid
Tires [Maker]
Bontrager
Tires [Width]
28 mm
Wheels [Configuration]
Front+Rear
Wheels [Kinds]
Tubeless Ready
Wheelset [Maker]
Bontrager
Wheelset [Material]
Carbon
Wheelset [Model]
Aeolus Pro 51
Product code
2013576 / 54293832597850
Size Guide
Trek Emonda SL and SLR Size Guide 2022

All measurements are in mm unless otherwise stated.
