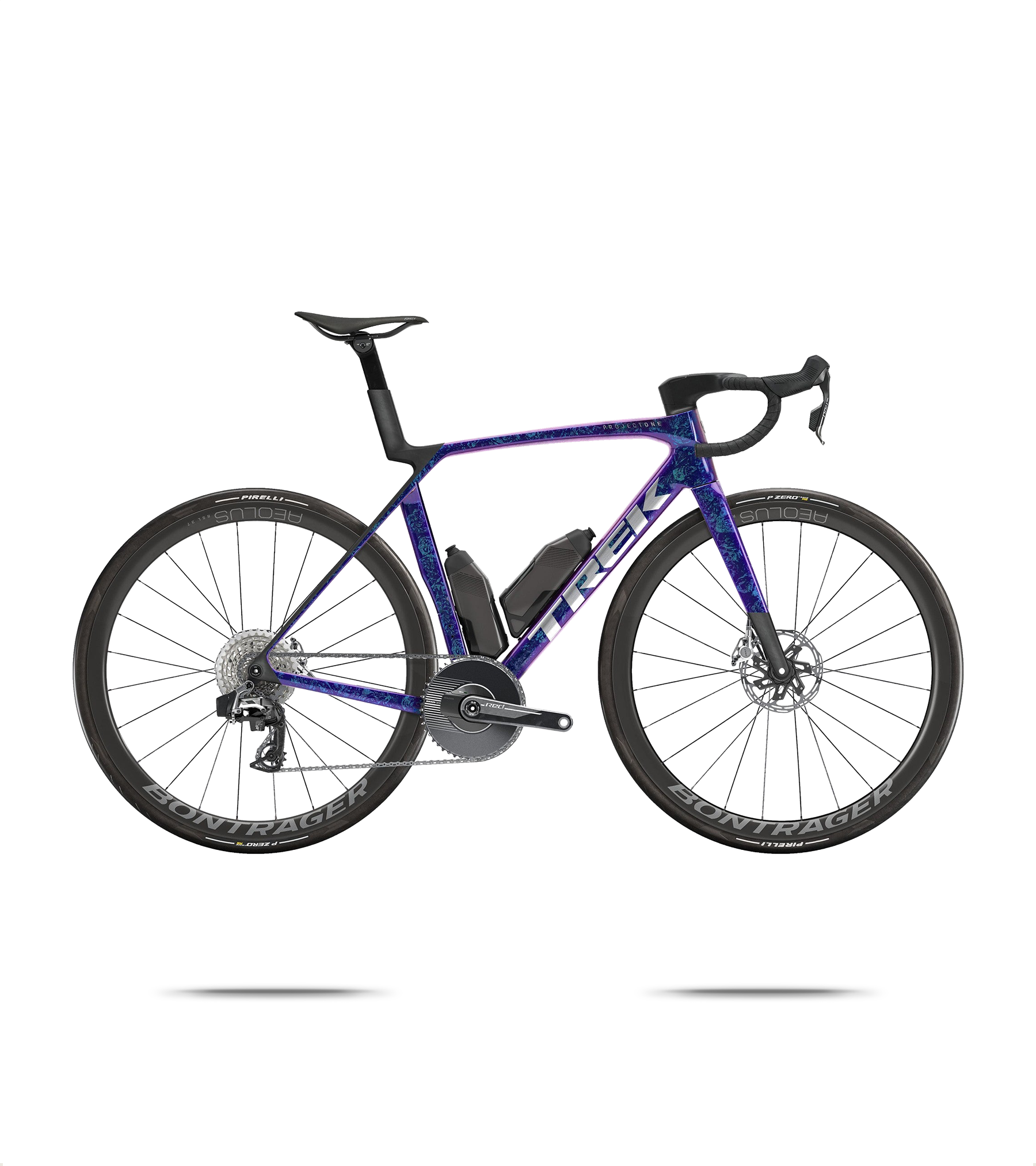

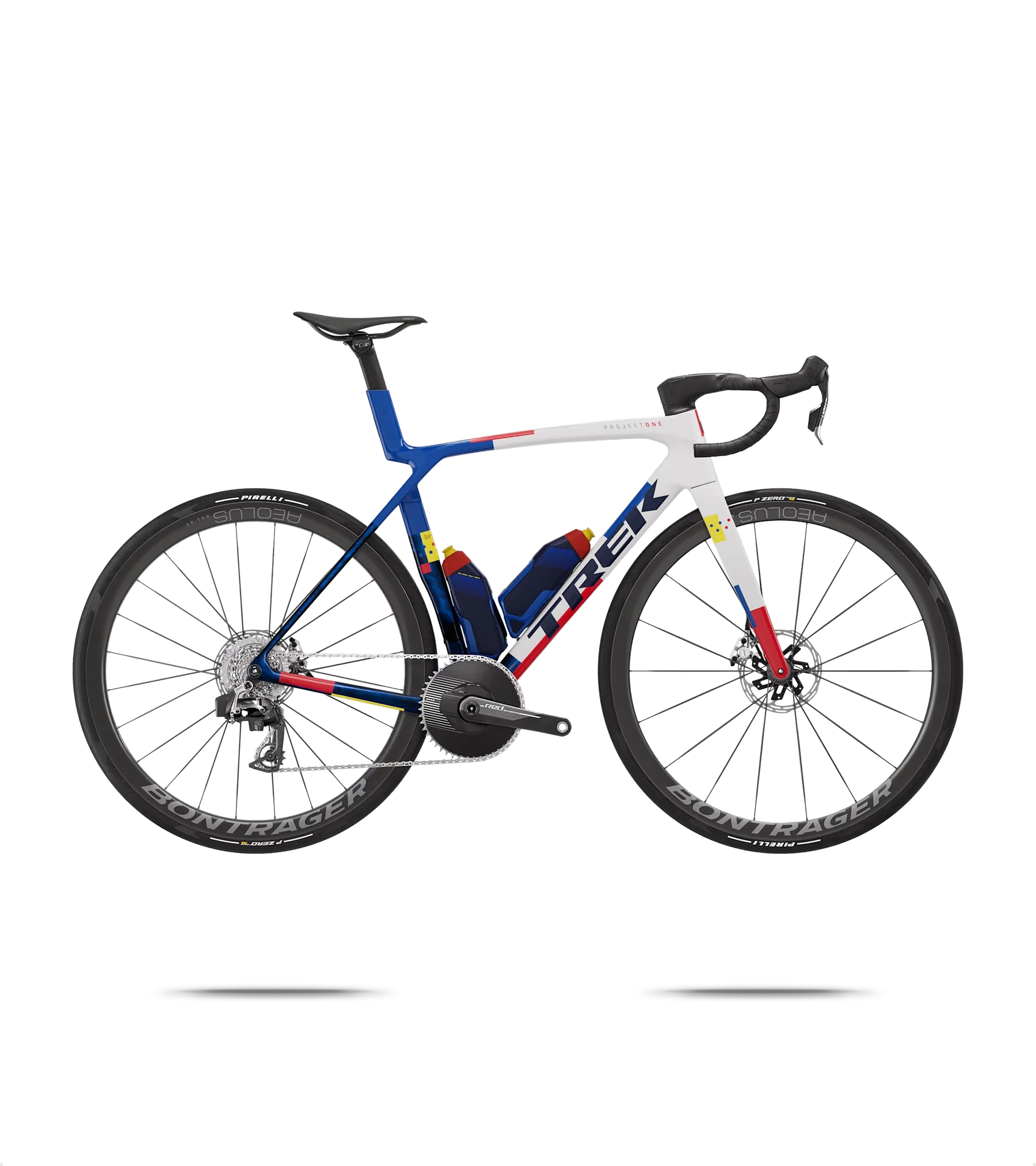

Trek Madone SLR 9 AXS 1x Gen 8 Road Bike
The Trek Madone SLR 9 AXS 1x Gen 8 Road Bike is the lightest Madone disc model Trek has ever produced. Tipping the scales at just 6.4 kg, it sits 400 grams below the UCI minimum weight limit while still delivering the aerodynamic efficiency the Madone is famous for. This ultralight build is designed to excel on climbs and fast across the flats, featuring a SRAM RED 1x12 wireless electronic drivetrain and lightweight Aeolus RSL 37 carbon wheels. Every detail is optimised to maximise speed and performance for riders who demand the absolute best.
Technical Specification
| Frame | 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle |
| Fork | Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm chamfered thru axle |
| Weight | ML - 6.40 kg / 14.11 lbs. Maximum total weight limit (bike, rider, cargo) |
| Battery | SRAM eTap battery pack with charger |
| Shifter | SRAM RED AXS E1 |
| Rear derailleur | SRAM RED AXS E1, 36T max cog |
| XS, S | SRAM RED E1, power meter, 48T, DUB, 165 mm length |
| M, ML | SRAM RED E1, power meter, 48T, DUB, 170 mm length |
| L, XL | SRAM RED E1, power meter, 48T, DUB, 172.5 mm length |
| Bottom bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM RED XG-1290 E1, 10-36, 12-speed |
| Chain | SRAM RED E1, 12-speed |
| Front wheel | Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 100 x 12 mm thru axle |
| Rear wheel | Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 142 x 12 mm thru axle |
| Front skewer | Bontrager Switch chamfered thru axle, removable lever |
| Rear skewer | Bontrager Switch chamfered thru axle, removable lever |
| Tyre | Pirelli P Zero Race RS, 120 tpi, 700x28 mm |
| Tube | Pirelli P Zero SmarTube, TPU |
| Saddle | Aeolus RSL, carbon rails, 145 mm width |
| Seatpost | Madone aero carbon seat post, 0 mm offset, short length |
| XS | Trek Aero RSL Road, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem |
| S | Trek Aero RSL Road, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem |
| M | Trek Aero RSL Road, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem |
| ML, L | Trek Aero RSL Road, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem |
| XL | Trek Aero RSL Road, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem |
| Handlebar tape | Trek gel cork |
| Brake | SRAM Red AXS E1 hydraulic disc, flat mount |
| Brake rotor | SRAM Paceline X, rounded, CentreLock, 160 mm |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
