Product Details

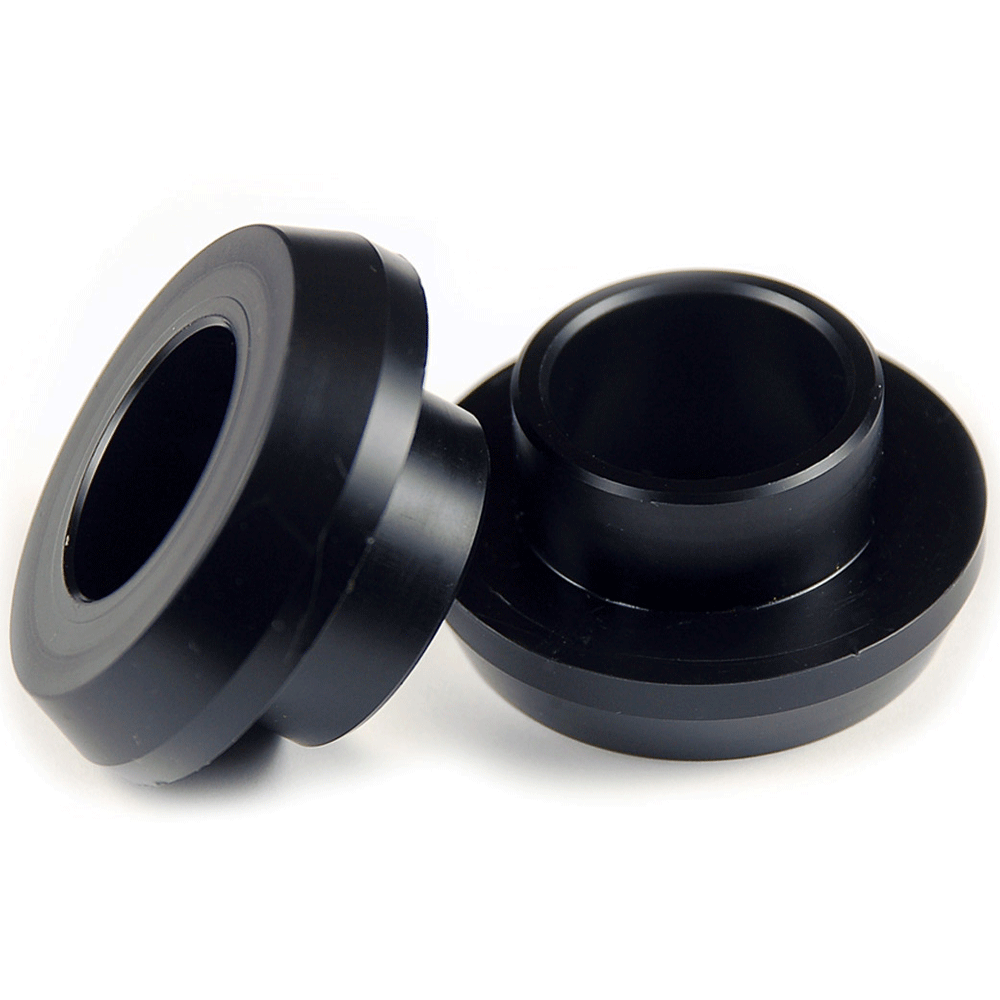

Wheels Mfg BB30 to 24mm Adapter

The Wheels Manufacturing BB30 Shim adapts 24mm Shimano Hollowtech II (or similar) cranks to work on BB30 frames. An elegant, lightweight and trouble-free solution for adapting 24mm standard cranks to new BB30-standard frames.

Simply tap the adapters into the 6806 bearing in the BB shell, install the spindle and cranks.

Features
  • Machined engineering-grade Delrin
Specifications
Bearing Standard
6806
Discipline Compatibility
Road, Gravel, Mountain Bike
Application
Bottom Bracket
Product code
36354 / 54296245895514
Reviews
Rating 2.5 out of 5
2.5
Value of Product
2
Quality of Product
2.5
Rating 4 out of 5
A C,

I've not had the same issues as the previous reviewer. They're an adapter, allowing you to run shimano cranks on bb30. Fitting new adapters to a new bike with a crank in good condition, with appropriate grease/loctite etc, and I find I get a year/6000kms before I replace the bearings. Yes they creak every now and then, but that's usually because the rain has washed out all the grease. Redo it and adjust again after one ride and it's back to almost silent.

Rating 1 out of 5
Fred,

Bought to convert a Cannondale CAADX frame to run Shimano 24mm-axle cranks, this is easy to fit - just remove the existing chainset and push the adaptors into the BB30 bearings. While it'll allow you to run Shimano, don't expect it to stop any of the infamous BB30 creaking. It doesn't. In fact, it's made the situation far worse, destroying a bottom bracket inside 5 months, forcing me to buy a better adaptor.

Shipping & Returns

Free UK delivery on orders over £50. Orders are dispatched within 1-2 working days and typically arrive 1-2 working days later.

Return unused items in their original packaging within 30 days of delivery. Return postage is £3.50.

Q & A

3 questions answered

  1. Is the price for a pair?

    Asked by John (Philippines)

    1. Hello, I can confirm that this price is for a pair of adaptors! Kind Regards Liam

      Liam

  2. Hi can I use this with a rotor pf 4630 bottom bracket on a 2014 p3 to use my Shimano gxp chainset.

    Asked by Ian (Guernsey)

    1. Hi Ian, Unfortunately not i'm afraid, I would recommend going for the bottom bracket below. https://www.sigmasports.com/item/Wheels-Manufacturing/BBright-to-Outboard-Bottom-Bracket-22-24mm/EQ9W Kind Regards Liam

      Liam

  3. Can i use this adapter so i can use a 9speed shimano sora crankset on my cannondale caad 12 frame

    Asked by Rick (Scotland, United Kingdom)

    1. Hi Rick, Thank you for your enquiry. I can confirm that this adaptor will be compatible with your chainset and frame! Kind Regards Liam
