Having had a cheap hanger alignment tool for many years, I gave up on it recently when trying to check the alignment on my 11sp setup as there was so much play in the system that the pointer at the rim could be out by more than +/- 6mm which is no good if you're aiming for 1mm. The Abbey tools HAG on the other hand is just superb. It's super-compact for storage but telescopes out when in use to the required length and even when at full stretch there's practically zero play at the rim; it's been manufactured to *very* tight tolerances and it shows. My only criticism (apart from price :-)) is that there is nothing to stop the green sleeve part from sliding (slowly) off the shaft with the 'T'-bar, so if you let it dangle for any length of time the green bit will hit the deck (or your foot). It is however a lovely bit of engineering excellence and a pleasure to use.
Product Details

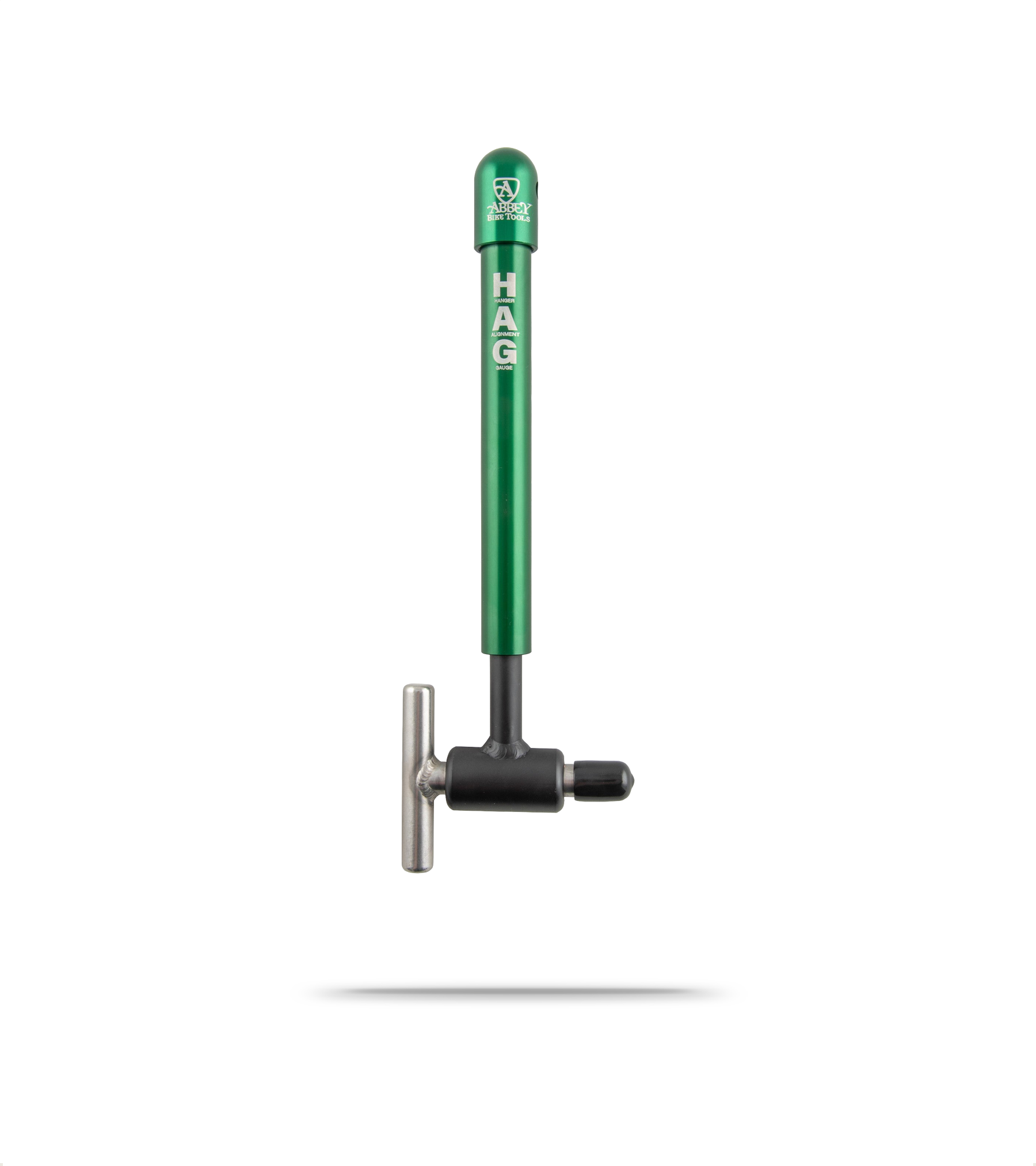

Abbey Tools Hanger Alignment Gauge Tool
The only hanger tool you'll ever need, the Abbey Bike Tools Alignment Gauge Tool is compact and versatile, being compatible with 26 inch, 27.5 inch/650B and 29 inch/700c wheels. This handy tool will give you the precision required for an efficient drivetrain. Its flexibility means ease of use, with the top half of the tool rotating out of the way of mudguard stays and frame tubes and the T bolt extends past the tool for use on even the more difficult full suspension bike hangers.
Features
- Tolerances as tight as a quarter of a thousandth of an inch (.0063mm) in some critical dimensions of this tool
- Ability to lock in the feeler so you don't have to second guess your measurement after bumping it on the tyre
- The top half of the tool will rotate out of the way of mudguard stays and frame tubes
- Feeler gauge stick stores inside the top half of the tool, very handy for the travelling mechanic
- T bolt extends past the tool for access to those problematic hangers found on some modern full suspension bikes
- Compact at just under 28cm / 11 inches
- Re-buildable. While ideally your HAG should be sent back for a rebuild, it is possible to do it in the field by replacing the brass bushing in the T-Bolt
- Compatible with the three most common wheel sizes, 26, 27.5/650B and 700/29
Specifications
- Bead Seating Tool Type
- Hanger Alignment Tool
- Compatibility Summary (Text)
- compatible-with-26-27-5-650b-and-29-700c-wheels-works-with-full-suspension-bike-hangers
- Primary Intended Use (Tools & Maintenance)
- Drivetrain Service
- Target System / Area
- Drivetrain
- Hazardous Labelling Present
- No
- Is Chemical / Fluid Product
- No
- Material (Primary)
- Steel
- Pack Type / Presentation
- Loose Tool
- Tool / Product Category (Tools & Maintenance)
- Hand Tool
- Product code
- 889187 / 54296093819226
Reviews
Having worked with bikes for coming up to 10 years this is the best tool I have seen for this job. Compact, easy to use and built like a tank. Love the little touches like the laser etching lining up both with the indicator rod fitted and without.
