Product Details

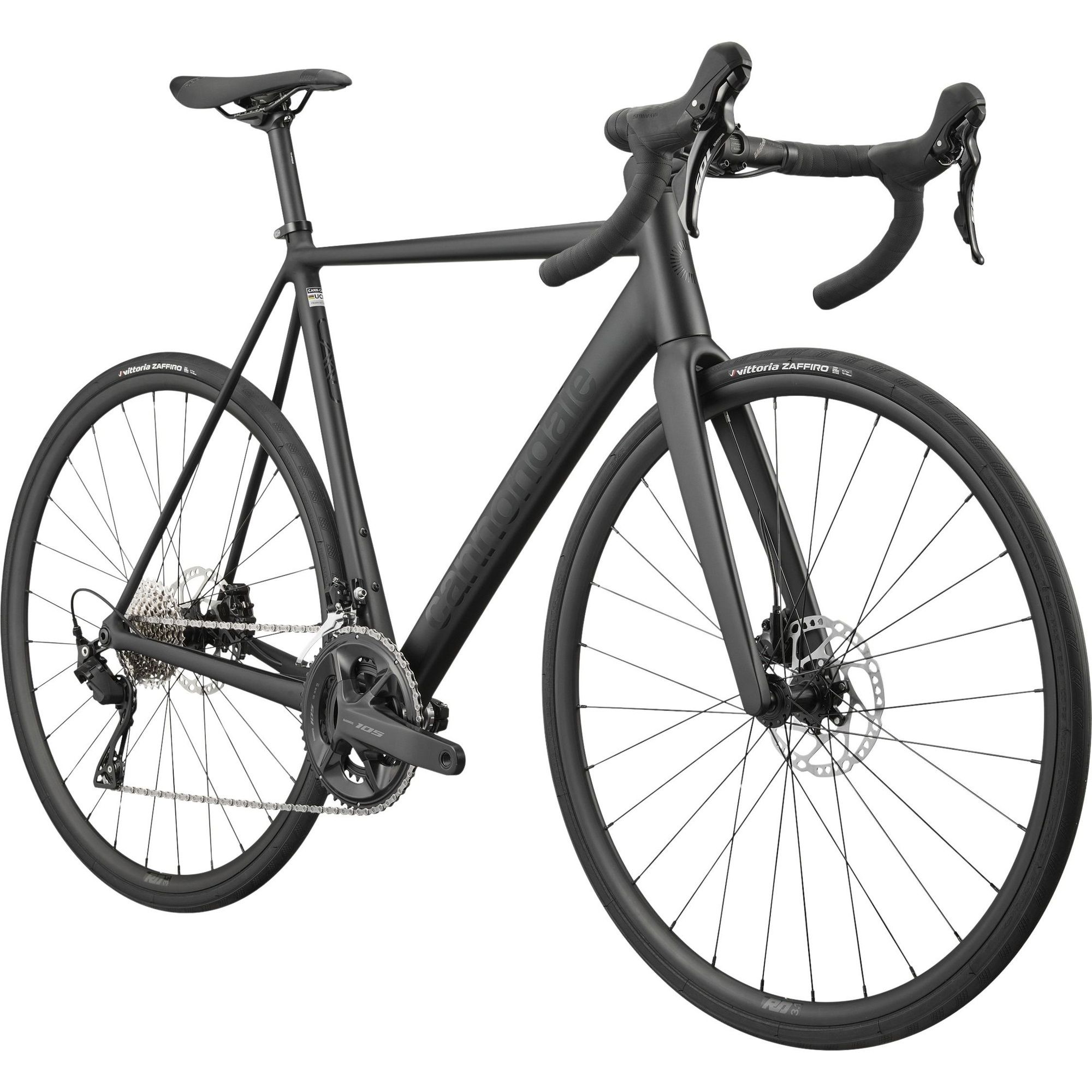

Cannondale CAAD14 3 105 Aluminium Road Bike

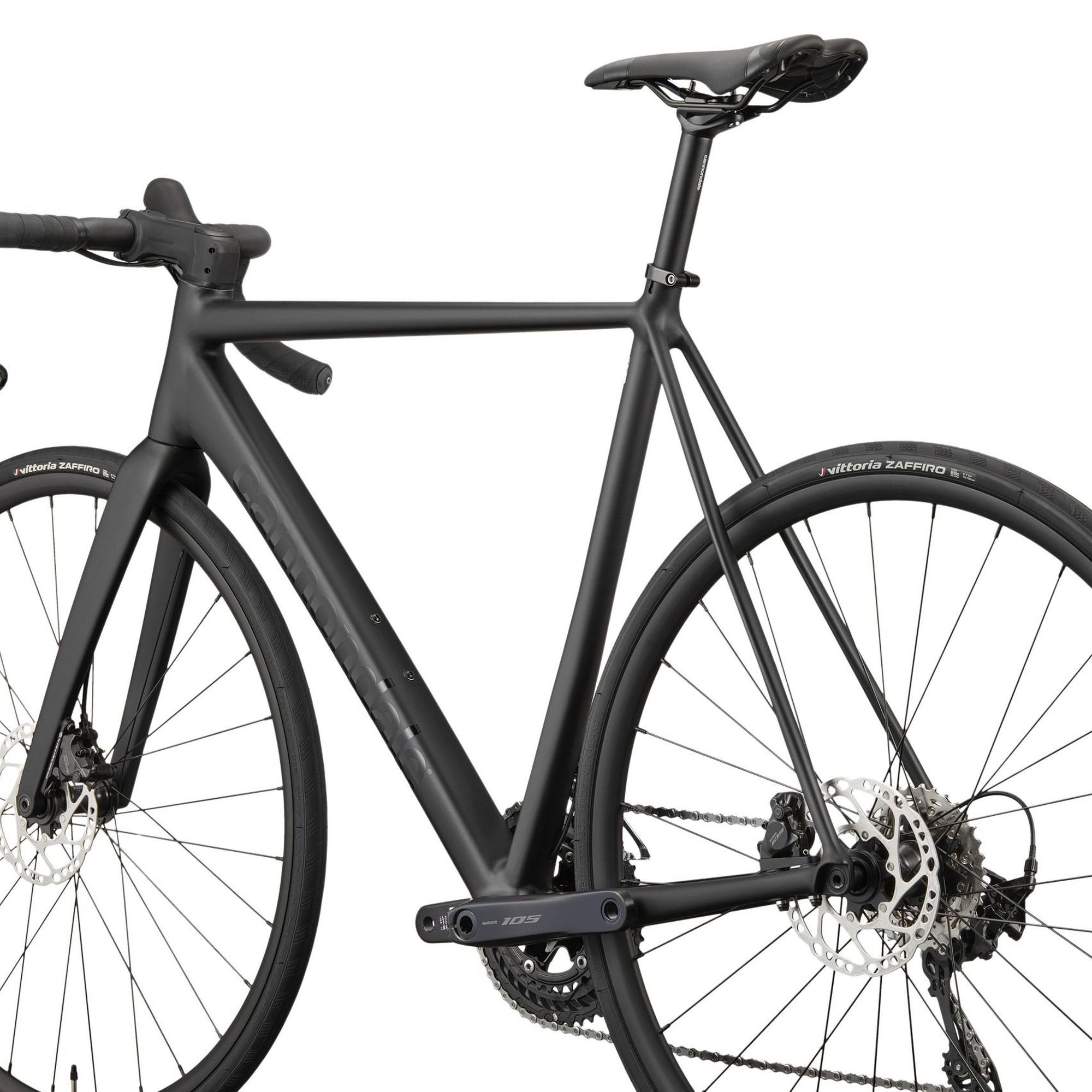

At the core of the CAAD14 3 Road Bike is Cannondale’s SmartForm C1 Premium Alloy frame, a benchmark in high-performance aluminium road bike design. Decades of refinement deliver smooth welds, clean geometry and sharp, road-true handling that feels alive beneath you.
The full carbon Delta Steerer fork enhances front-end stiffness while reducing weight and frontal area, thanks to integrated cable routing. The result is a bike that accelerates eagerly, corners with confidence and holds its line at speed—ideal for racing, fast sportives and ambitious club rides.
Shimano 105 12-Speed – Proven Mechanical Precision
Equipped with Shimano 105 R7100 2x12-speed, the CAAD14 3 offers smooth, dependable mechanical shifting trusted by competitive riders worldwide. The wide gearing range makes it equally capable on steep climbs and flat-out sprints, while hydraulic disc brakes deliver consistent stopping power in all conditions.
If you value simplicity, durability and precise shifting feel, Shimano 105 remains one of the best road bike groupsets available—making this an outstanding choice for performance-focused cyclists.
Clean Aero Cockpit – Speed Meets Comfort

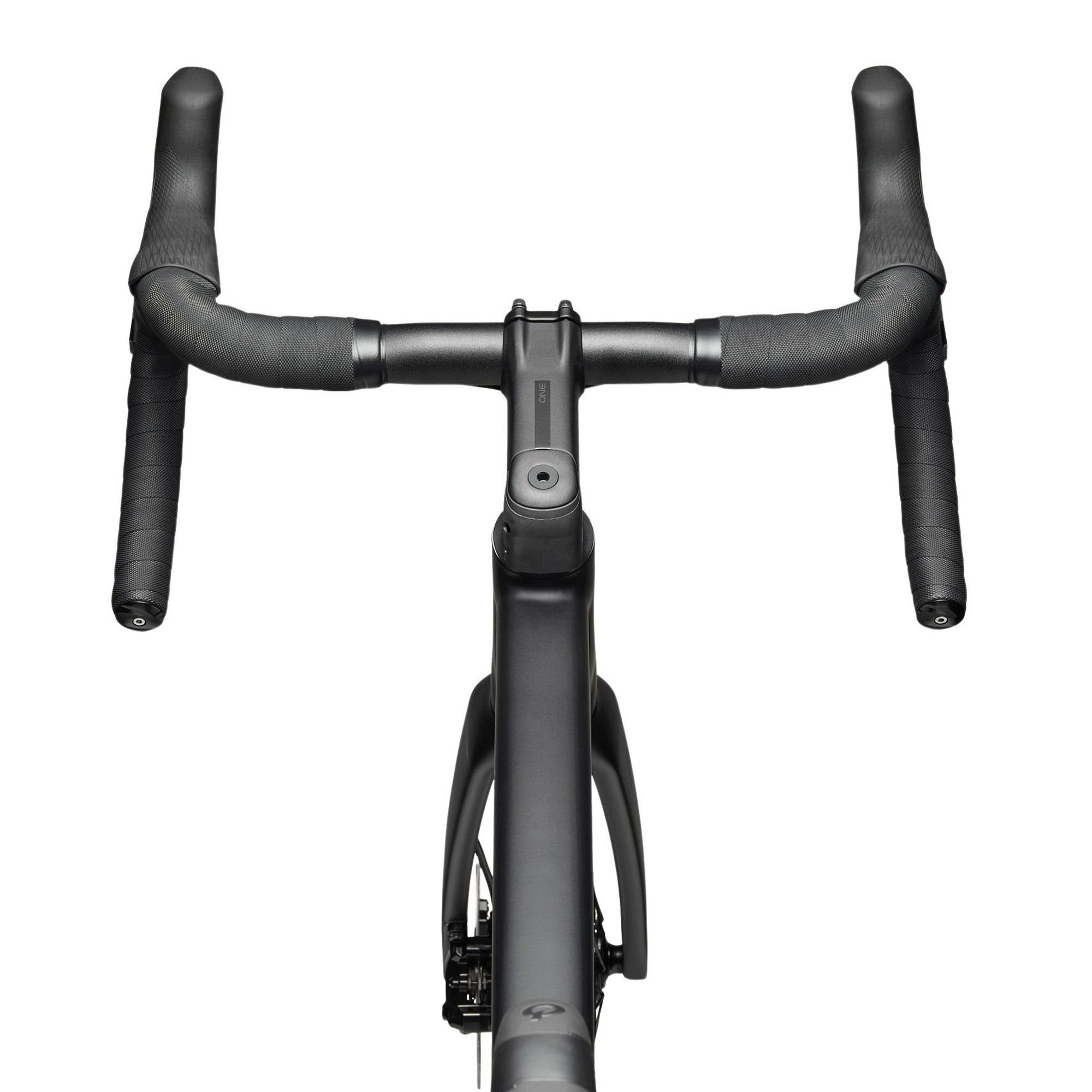

The Vision Trimax Compact handlebars paired with the Cannondale C1 Conceal stem create a sleek, ergonomic cockpit with hidden cables. Not only does this improve aerodynamics, it also delivers a clean, modern aesthetic in the striking Chalk finish.
Comfortable hand positions and responsive steering ensure you stay efficient and confident whether you’re attacking off the front or settling into a long endurance effort.
The Ideal Upgrade for Serious Road Riders
The Cannondale CAAD14 3 Road Bike is perfect for riders stepping up to a race-oriented aluminium bike with modern 12-speed gearing and disc brakes. It offers the lively road feel aluminium is known for, combined with contemporary integration and race-ready components.
If you want a lightweight road bike that balances performance, reliability and value, the Cannondale CAAD14 3 in Chalk is ready to deliver your next personal best.
Features
- Frame: CAAD14, SmartForm C1 Premium Alloy, integrated cable routing, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, UDH
- Fork: CAAD14, full carbon, 1-1/8" to 1-1/2" Delta Steerer, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 55mm offset (44–54cm), 45mm offset (56–61cm)
- Rear Shock: Null
- Rims: Cannondale RD 2.0 Disc, double wall w/ eyelet, 28h
- Hubs: Shimano TC500, centerlock, (F) 12x100mm, (R) 12x142mm
- Spokes: Stainless Steel, 14g
- Tires: Vittoria Zaffiro, 700x28c
- Pedals: Not included

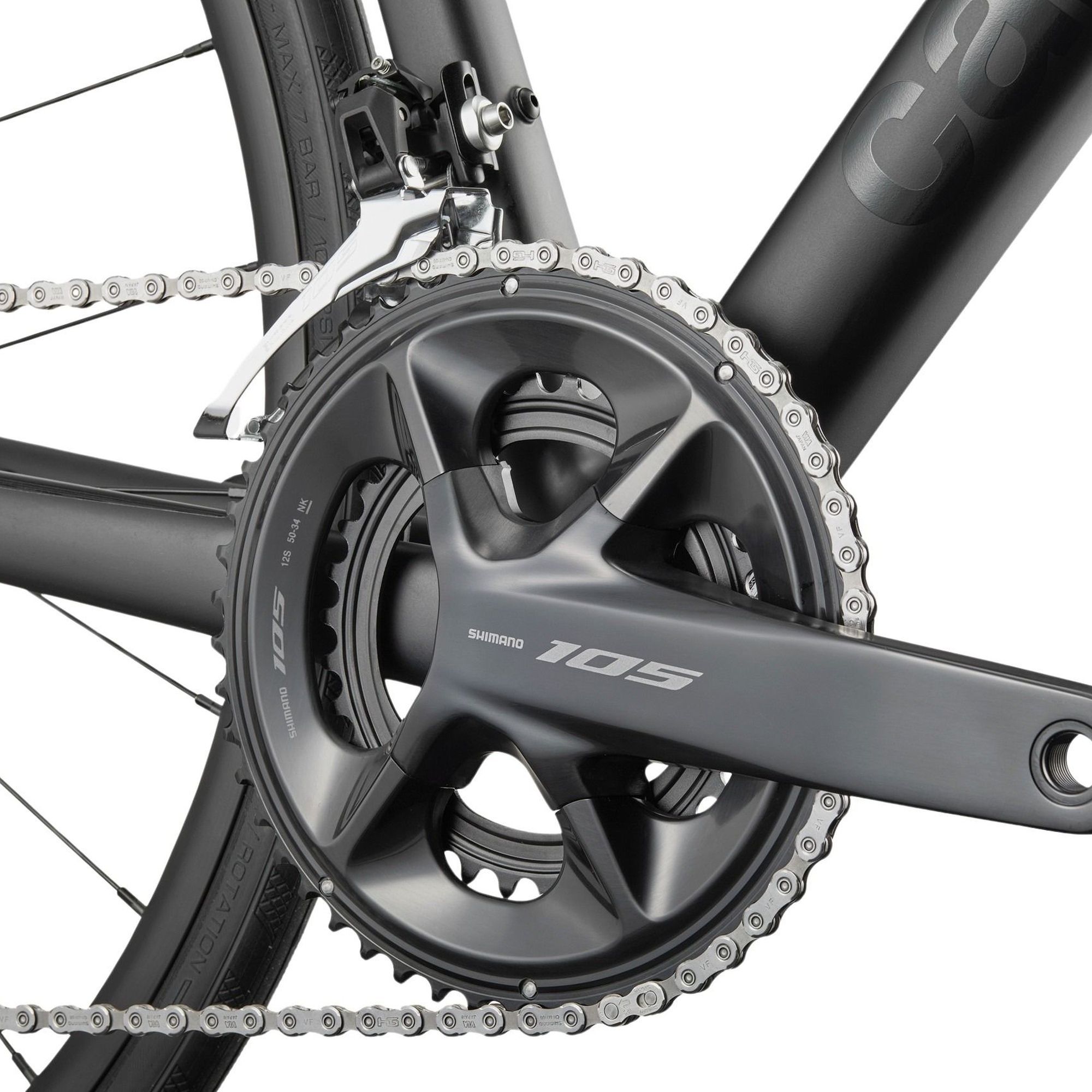

- Crank: Shimano 105 R7100, 50/34: 165mm (48–51cm), 170mm (54–56cm), 172.5mm (58–61cm)
- Bottom Bracket: Shimano BB-RS500, BSA 68
- Chain: Shimano 105 7100, 12-speed
- Rear Cogs: Shimano 105 R7100, 11–34, 12-speed
- Front Derailleur: Shimano 105 7100

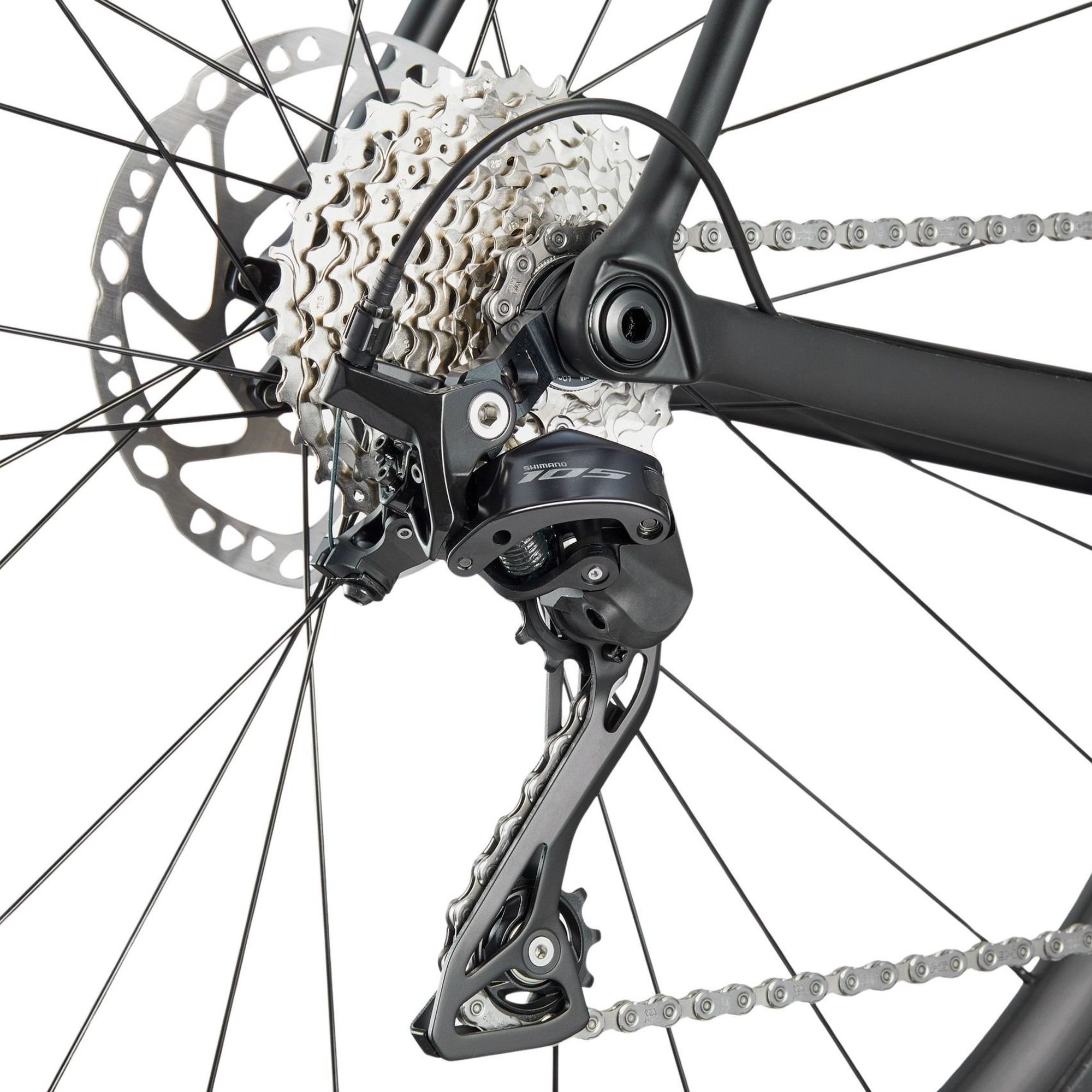

- Rear Derailleur: Shimano 105 7100, 12-speed
- Shifters: Shimano 105 R7100, 2x12-speed
- Handlebar: Vision Trimax Compact, 400mm (48–56cm), 420mm (58–61cm)
- Grips: Cannondale Bar Tape, 3.5mm
- Stem: Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44cm), 90mm (48–52cm), 100mm (54–56cm), 110mm (58–61cm)
- Headset: Integrated, 1-1/8" – 1.5"
- Brakes: Shimano 105 R7170 hydraulic disc, 160/160mm RT70 rotors
- Brake Levers: Shimano 105 R7100 hydraulic disc
- Saddle: Prologo Nago RS STN
- Seatpost: Cannondale 3, 6061 Alloy, 27.2x350mm, 11mm offset
- Speeds: 24
Specifications
- Model
- CAAD14 3 105
- Bottom Bracket [Maker]
- Shimano
- Bottom Bracket Standard
- BSA
- Brakes [Kind]
- Hydraulic Disc
- Brakes [Maker]
- Shimano
- Brakes [Model]
- 105 R7170
- Cassette [Gearing]
- 11-34
- Cassette [Maker]
- Shimano
- Cassette [Model]
- 105 R7100
- Chain [Maker]
- Shimano
- Chain [Model]
- 105 7100
- Chainring [Gearing]
- 50/34
- Crank [Maker]
- Shimano
- Crank [Model]
- 105 R7100
- Discipline Compatibility
- Road
- E-Bike
- No
- F Hub [Maker]
- Shimano
- F Hub [Model]
- TC500
- Family
- CAAD14
- FD [Maker]
- Shimano
- FD [Model]
- 105 7100
- Fenders Mounts
- No
- Fork [Axle Diameter]
- 12 mm
- Fork [Axle Type]
- 12x100mm Thru-Axle
- Fork [Brake Type]
- Disc
- Fork [Maker]
- Cannondale
- Fork [Material]
- Carbon
- Fork [Model]
- CAAD14 Delta Steerer Carbon
- Fork [Wheel Size]
- 700c
- Frame [Hanger Standard]
- UDH
- Frame [Material]
- Aluminium
- Frameset
- No
- Gearing [Configuration]
- 2x
- Gearing [Kind]
- Conventional
- Gender
- Men's
- Handlebar [Kind]
- Drop
- Handlebar [Maker]
- Vision
- Handlebar [Material]
- Aluminium
- Handlebar [Shape]
- Drop bar
- Headset [Maker]
- Cannondale
- R Hub [Maker]
- Shimano
- R Hub [Model]
- TC500
- Rack Mounts
- No
- RD [Maker]
- Shimano
- RD [Model]
- 105 7100
- Saddle [3D Printed]
- No
- Saddle [Maker]
- Prologo
- Seatpost [Diameter]
- 27.2
- Seatpost [Kind]
- standard
- Seatpost [Length]
- 350 mm
- Seatpost [Maker]
- Cannondale
- Seatpost [Material]
- Aluminium
- Seatpost [Offset]
- 11 mm
- Shifters [Maker]
- Shimano
- Shifters [Model]
- 105 R7100
- Shifting
- Mechanical
- Stem [Angle]
- -6 degree
- Stem [Clamp Diameter]
- 31.8
- Stem [Length]
- 100 mm
- Stem [Maker]
- Cannondale
- Stem [Material]
- Aluminium
- Suspension Configuration
- Rigid
- Tires [Maker]
- Vittoria
- Tires [Width]
- 28 mm
- Wheels [Configuration]
- Front+Rear
- Wheels [Kinds]
- Clincher
- Wheelset [Maker]
- Cannondale
- Wheelset [Material]
- Aluminium
- Wheelset [Model]
- RD 2.0 Disc
- Product code
- 2008278 / 54293366735194
Size Guide
| Size | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| A. Seat Tube Length (cm) | 49 | 52.5 | 55.5 | 58 | 60 | 62 |
| B. Top Tube Horizontal (cm) | 52.1 | 53.3 | 54.8 | 56.4 | 58.1 | 60.4 |
| C. Top Tube Actual (cm) | 51.2 | 52.9 | 54.6 | 56.3 | 57.8 | 59.8 |
| D. Head Tube Angle | 71.2 | 71.2 | 71.2 | 73 | 73 | 73 |
| E. Seat Tube Angle | 74.1 | 73.7 | 73.3 | 72.9 | 72.5 | 72.1 |
| F. Standover (cm) | 73.2 | 76.1 | 78.5 | 80.9 | 82.8 | 85.1 |
| G. Head Tube Length (cm) | 9.8 | 11.7 | 13.8 | 15.1 | 17.2 | 20.3 |
| H. Wheelbase (cm) | 99 | 100.1 | 101.2 | 99.8 | 101.1 | 102.9 |
| I. Front Centre (cm) | 58.7 | 59.6 | 60.8 | 59.3 | 60.5 | 62.3 |
| J. Chaninstay Length (cm) | 41.5 | 41.5 | 41.5 | 41.5 | 41.5 | 41.5 |
| K. Bottom Bracket Drop (cm) | 7.4 | 7.2 | 7.2 | 6.9 | 6.9 | 6.9 |
| L. Bottom Bracket Height (cm) | 26.8 | 27.1 | 27.1 | 27.3 | 27.3 | 27.3 |
| M. Fork Rake (cm) | 5.5 | 5.5 | 5.5 | 4.5 | 4.5 | 4.5 |
| N. Trail (cm) | 5.8 | 5.8 | 5.8 | 5.8 | 5.8 | 5.8 |
| O. Stack (cm) | 50.5 | 52 | 54 | 56 | 58 | 61 |
| P. Reach (cm) | 37.7 | 38.1 | 38.6 | 39.2 | 39.8 | 40.7 |
