Product Details

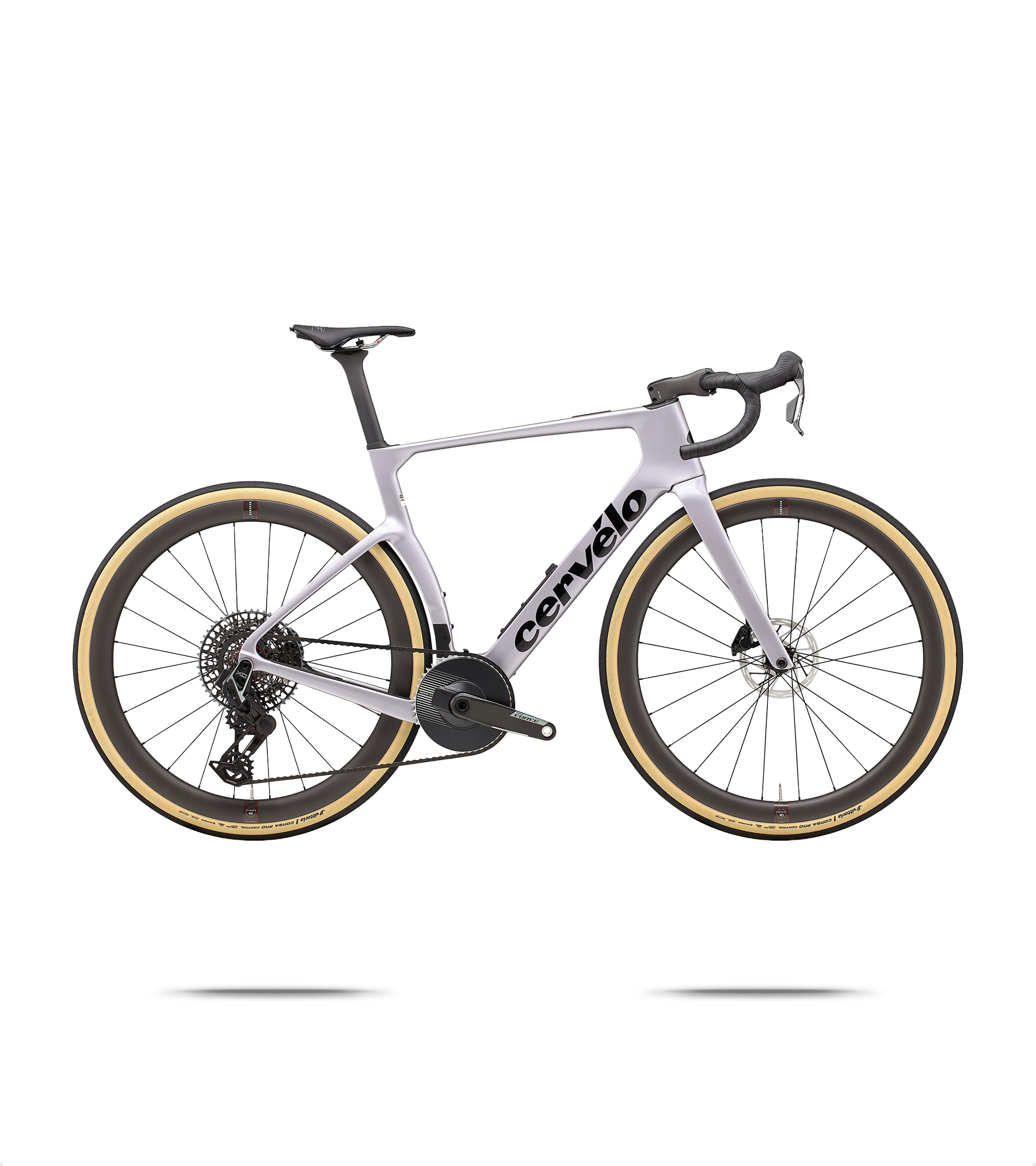

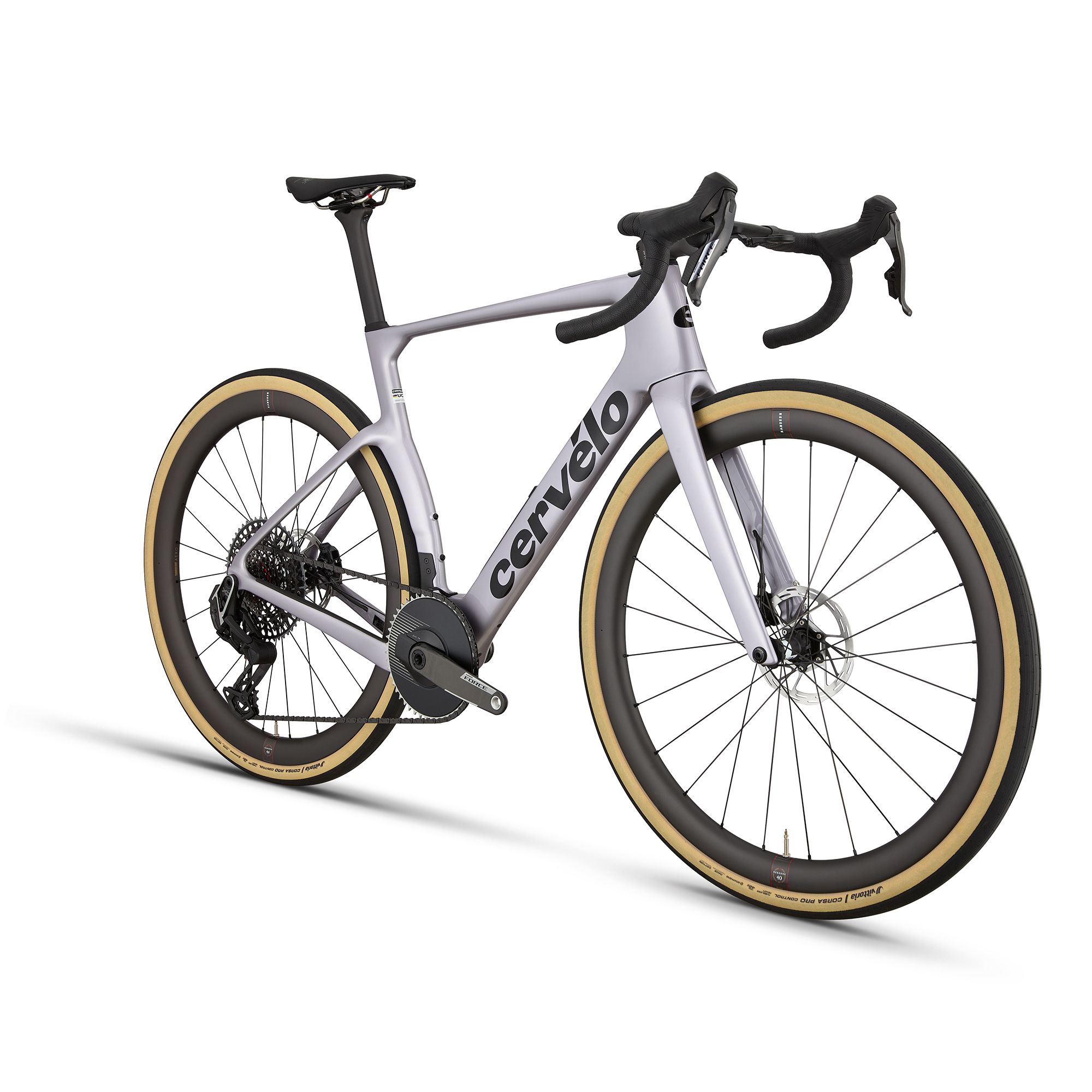

Cervelo Aspero-5 Force E1 AXS Gravel Bike
The Cervelo Aspero-5 Force AXS Gravel Bike brings pro-level speed to the ambitious gravel racer. Fitted with SRAM’s latest Force AXS 1x drivetrain, this build offers wide-range gearing optimised for fast courses and decisive sprints. The integrated Cervélo HB16 cockpit and Reserve 40|44G wheelset enhance aerodynamics without sacrificing handling. With Quarq power built in and the race-proven geometry of the Aspero-5 platform, this model is tuned for performance across a variety of gravel terrains.
Features
- 45mm tyre clearance
- In-Frame Storage (SB005)
- Universal Derailleur Hanger (UDH)
- ITU Mount Compatibility
- Bottom Bracket: SRAM DUB Wide Ceramic, T47 BBright
- Chain: SRAM X0, 12-Speed
- Rear Derailleur: SRAM X0 Eagle AXS, 12-Speed
- Cassette: SRAM X0 Eagle, 10-52, 12-Speed
- Shifter/Brake: SRAM Force AXS E1, 12-Speed
- Handlebar: Cervelo HB16 Carbon, 31.8mm clamp
- Stem: Cervelo ST31 Carbon
- Saddle: Prologo Nago R4 PAS TiRox
- Seatpost: Cervelo SP27 Carbon
- Brake Rotors: SRAM Paceline Centerlock
- Fork: Cervelo All-Carbon, Tapered Aspero-5 Fork
- Headset: FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45°
- Front Thru Axle: Cervélo Aero, M12x1.5mm, 122mm
- Rear Thru Axle: Cervélo Aero, M12x1.0mm, 169mm
- Front Wheel: Reserve 40TA GR, DT Swiss 350, 12x100mm, 24H, tubeless
- Rear Wheel: Reserve 44TA GR, DT Swiss 350, 12x142mm, XDR freehub, 24H, tubeless
- Tyres: Corsa Pro Control TLR G2.0 700x42c
- Crankset: SRAM Force 1 AXS E1, 48T, DUB Wide, with power meter
Highlights
- Groupset: SRAM ForceE1 AXS 1x
- Cockpit: Cervelo HB16 / ST31
- Wheels: Reserve 40|44G with DT Swiss 350 hubs
- Power Meter: Quarq spider
Specifications
- Model
- Aspero-5 Force E1 AXS
- Battery [Maker]
- SRAM
- Bottom Bracket [Maker]
- SRAM
- Bottom Bracket Standard
- T47
- Brakes [Kind]
- Hydraulic Disc
- Brakes [Maker]
- SRAM
- Brakes [Model]
- Force AXS
- Cassette [Gearing]
- 10-52
- Cassette [Maker]
- SRAM
- Cassette [Model]
- X0 Eagle
- Chain [Maker]
- SRAM
- Chain [Model]
- X0 Eagle
- Chainring [Gearing]
- 48
- Crank [Maker]
- SRAM
- Crank [Model]
- Force 1 AXS E1
- Discipline Compatibility
- Gravel
- E-Bike
- No
- F Hub [Maker]
- DT Swiss
- F Hub [Model]
- 350
- Family
- Aspero-5
- Fork [Axle Diameter]
- 12 mm
- Fork [Axle Type]
- 12x100mm Thru-Axle
- Fork [Brake Type]
- Disc
- Fork [Maker]
- Cervelo
- Fork [Material]
- Carbon
- Fork [Model]
- Aspero-5
- Fork [Rake]
- 57 mm
- Fork [Wheel Size]
- 700c
- Frame [Hanger Standard]
- UDH
- Frame [Material]
- Carbon
- Frame [Tire Clearance]
- 45c mm
- Frameset
- No
- Gearing [Configuration]
- 1x
- Gearing [Kind]
- Conventional
- Gender
- Unisex
- Handlebar [Kind]
- Drop
- Handlebar [Maker]
- Cervelo
- Handlebar [Material]
- Carbon
- Handlebar [Shape]
- Drop bar
- Headset [Maker]
- FSA
- Headset [SHIS]
- IS
- Power Meter [Maker]
- SRAM
- Power Meter [Model]
- Force AXS
- R Hub [Maker]
- DT Swiss
- R Hub [Model]
- 350
- RD [Maker]
- SRAM
- RD [Model]
- X0 Eagle AXS
- Saddle [3D Printed]
- No
- Saddle [Maker]
- Prologo
- Saddle [Material]
- Titanium
- Seatpost [Kind]
- Rigid
- Seatpost [Maker]
- Cervelo
- Seatpost [Material]
- Carbon
- Seatpost [Offset]
- 0 mm
- Shifters [Maker]
- SRAM
- Shifters [Model]
- Force AXS E1
- Shifting
- Electronic
- Stem [Maker]
- Cervelo
- Stem [Material]
- Carbon
- Sub Family
- Aspero 5
- Suspension Configuration
- Rigid
- Tires [Maker]
- Vittoria
- Tires [Width]
- 42 mm
- Wheels [Configuration]
- Front+Rear
- Wheels [Kinds]
- Tubeless Ready
- Wheelset [Maker]
- Reserve
- Wheelset [Material]
- Carbon
- Wheelset [Model]
- GR
- Product code
- 1932424 / 54293920448858

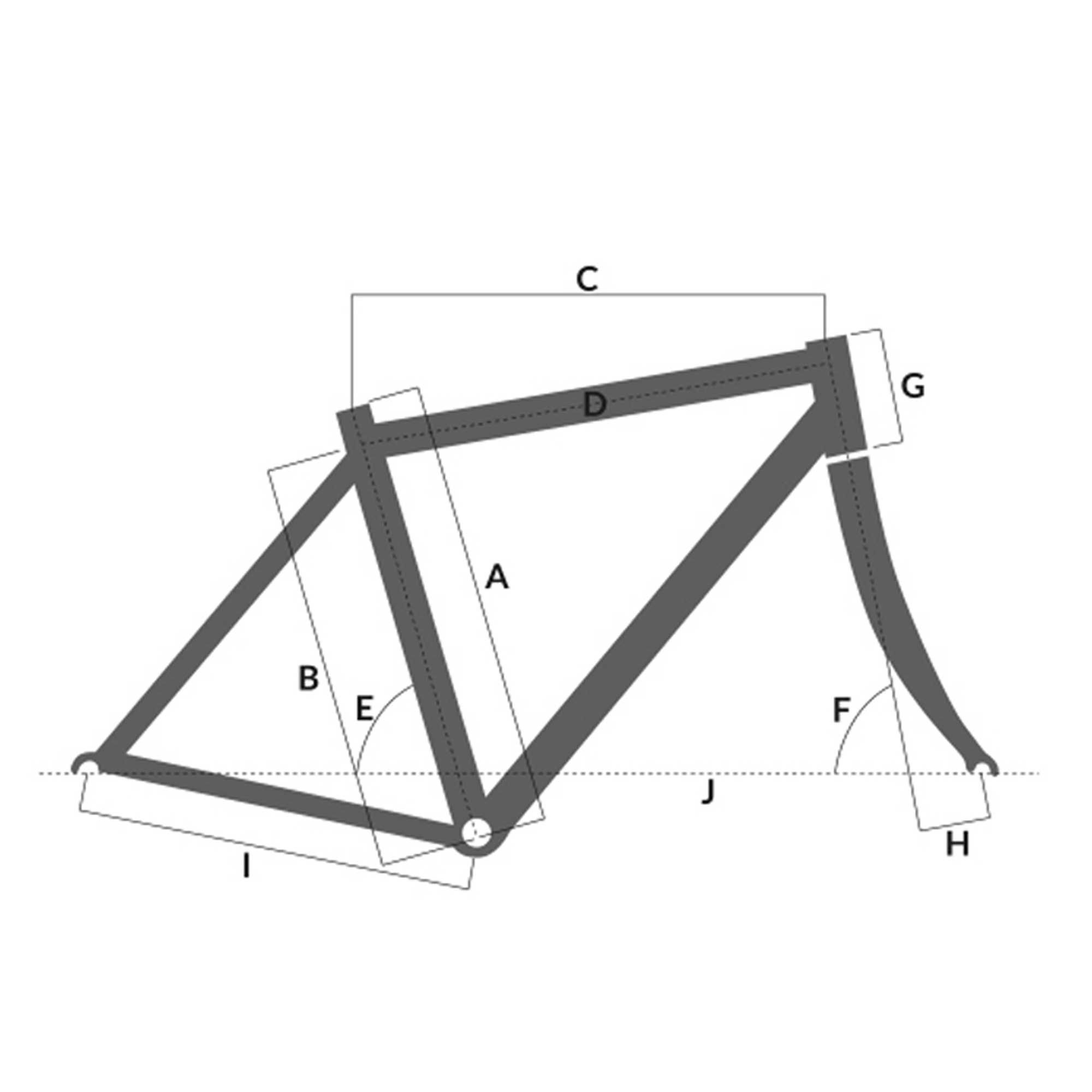

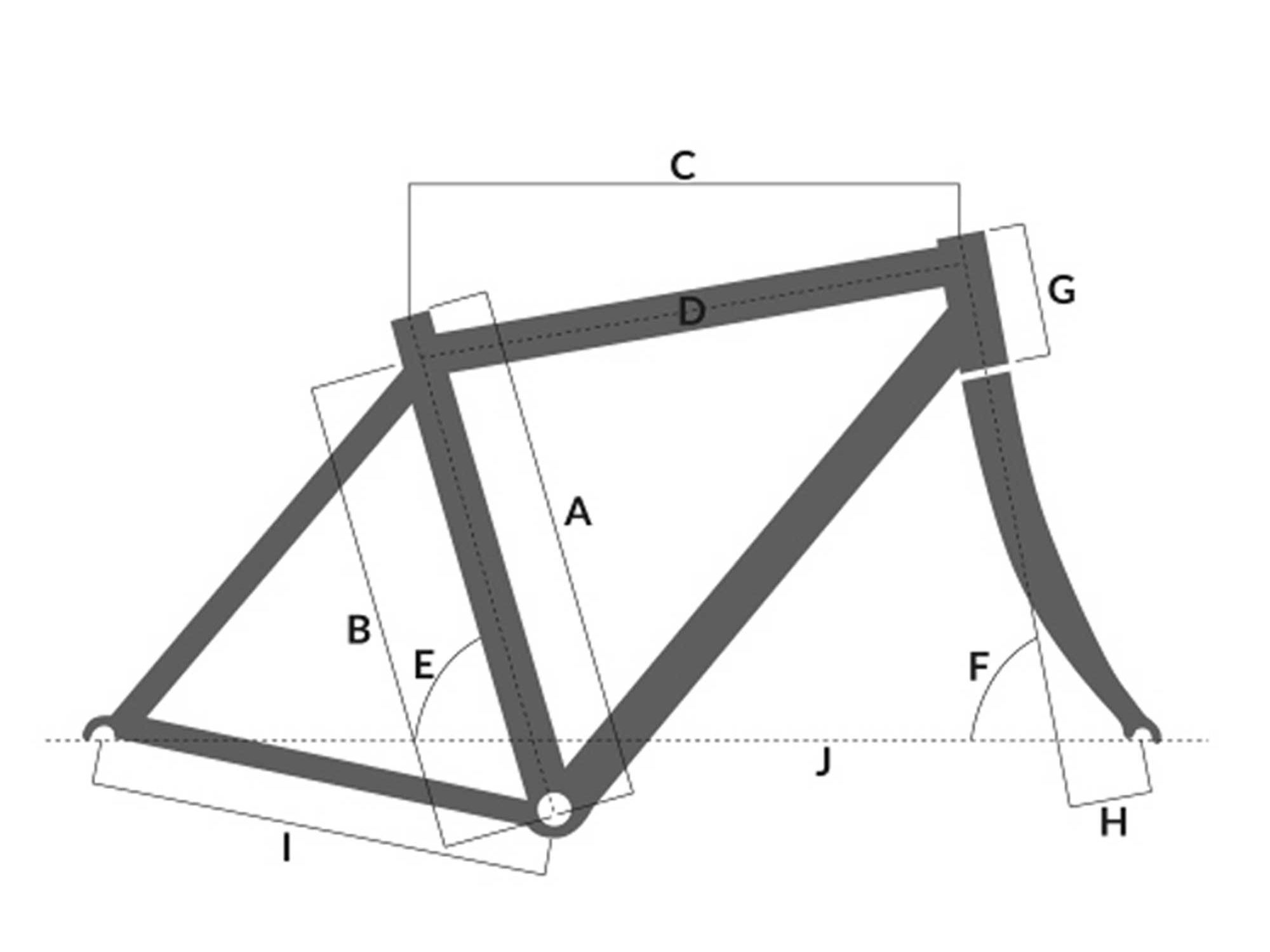

Size Guide
| — | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| A | - | - | - | - | - | - |
| B | - | - | - | - | - | - |
| C | 515 | 531 | 548 | 565 | 581 | 597 |
| D | - | - | - | - | - | - |
| E | 73° | 73° | 73° | 73° | 73° | 73° |
| F | 70° | 70° | 71.1° | 71.5° | 71.5° | 71.5° |
| G | 108.9 | 138.3 | 155.8 | 180.1 | 207 | 231.2 |
| H | - | - | - | - | - | - |
| I | - | - | - | - | - | - |
| J | - | - | - | - | - | - |
| K | 352 | 362 | 372 | 382 | 391 | 400 |
| L | 527 | 549 | 572 | 595 | 618 | 641 |
If you fall between sizes, we recommend experienced riders selecting the smaller frame which will offer faster handling. A larger bicycle offers more stability.
Should you have any specific questions, please contact us for information and talk to one of our experienced members of staff.
A: Seat Tube (CTR-TOP)
B: Seat Tube (CTR-CTR)
C: Effective Top Tube
D: Actual Top Tube
E: Seat Arc Angle
F: Head Arc Angle
G: Head Tube
H: Fork Rake
I: Chainstay
J: Wheelbase
K: Stack
L: Reach
* All measurements in mm unless otherwise stated
