Product Details

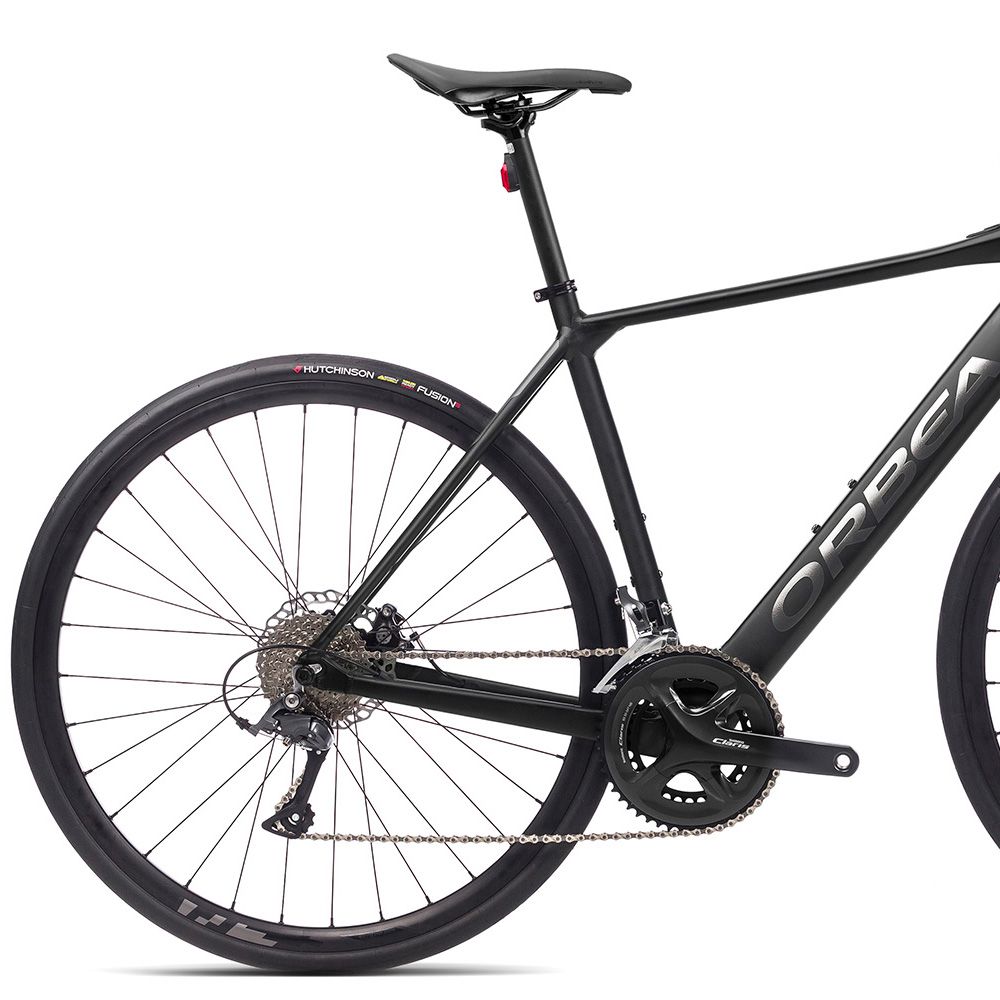

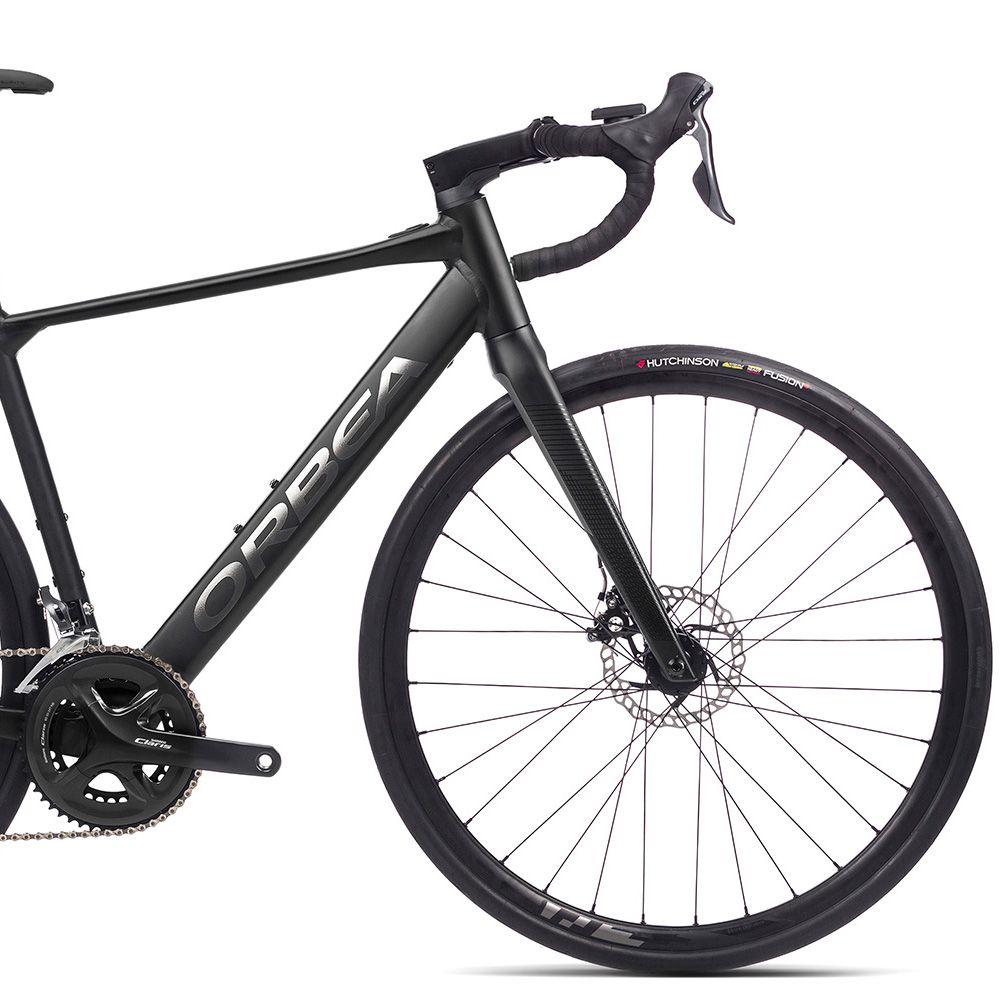

Orbea Gain D50 Electric Road Bike 2022
Starring as the entry point to the product lineup, the Orbea Gain D50 Electric Road Bike makes assisted road riding a reality for more riders than ever before. Its low price makes it ideal for casual road cyclists seeking a boost, and it features many of the technologies found within the high-end models. It even includes the same Ebikemotion X35 motor system, with a maximum assisted speed of 15.5 mph / 25 km/h on hills and flat roads. The geometry focuses on comfort, and the carbon fork damps vibration to reduce fatigue on long rides.
The specification offers everything you need to start your road cycling journey, including an 8-speed Shimano Claris drivetrain and wide, 30c Hutchinson Fusion 5 Performance tyres. The Fizik saddle is comfortable, as is the Orbea own-brand cockpit, and a seatpost mounted rear light improves visibility to other road users.
Browse our range of Orbea electric road bikes today.
Highlights
- The Ebikemotion X35 Plus motor improves your rides rather than dominates them
- The motor is located on the wheel axle, not the bottom bracket, so you’ll enjoy pedalling without resistance when the power assist is off
- ICR internal cable routing keeps the cockpit clean looking
- The integrated rear light draws power from the battery
- An Ebikemotion 248Wh battery is neatly housed in the downtube
- The Ebikemotion iWoc ONE interface displays battery and the assistance level as you ride
- Hydroformed Aluminium frame lightweight and robust
- Endurance geometry is perfect for all-day rides
- The Shimano Claris groupset is robust and simple to use
- Wide Hutchinson tyres are plush and grippy on the tarmac
Battery Specification
- Maximum Assist: 250w, 40Nm
- Motor Weight: 3.5kg
- Battery Power: 248Wh
Features
- Frame: Orbea Gain Hydro 6061 Hydroformed Aluminium 2022, ICR cable routing, forged BB, safety screw, 135x9mm QR, flat mount disc mount, 700x40 maximum tyre, 1" 1/2 semi-integrated headset
- Fork: Orbea Gain Hydro carbon fork, full carbon, 1-1/8" - 1.5" tapered head tube compatible, 700x40 maximum tyre, flat mount disc mount, thru-axle 12x100mm
- Headset: Acros Alloy 1-1/2" Internal Cable Routing
- Stem: Orbea OC RP21 Road Performance, ICR, -6º, IFC01 Computer mount interface
- Handlebar: Orbea OC RP30 Road Performance, 80mm reach, 125mm drop
- Front Brake: Shimano BR-RS305, mechanical disc
- Rear Brake: Shimano BR-RS305, mechanical disc
- Brake Levers: Shimano Claris ST-R2000
- Front Derailleur: Shimano Claris FD-R2000
- Rear Derailleur: Shimano Claris RD-R2000
- Shift Levers: Shimano Claris ST-R2000
- Chain: KMC X8
- Cassette: Shimano HG50, 11-32t, 8-speed
- Crankset: Shimano Claris R2000, 34x50t
- Front Wheel: Orbea Ready GR, clincher, 700c
- Rear Wheel: Orbea Ready GR, clincher, 700c
- Front Tyre: Hutchinson Fusion 5 Performance, clincher, 700c
- Rear Tyre: Hutchinson Fusion 5 Performance, clincher, 700c
- Saddle: Fizik Aliante R5
- Seatpost: Orbea OC 27.2mm, 0mm offset, for integrated light
- Pedals: Available to be purchased separately
- Accessories: Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen, STVZO
- Motor: Ebikemotion X35 Plus, 250W, 40Nm
- Remote: Ebikemotion iWoc ONE
- Battery: Ebikemotion 36V/6.9A 248Wh ANT+
- Charger: Ebikemotion X35 Electric assisted speed limit: 15.5 mph / 25 km/h
Highlights
- Hydroformed aluminium frame
- Orbea Gain Hydro carbon fork
- Shimano Claris groupset
- Orbea Ready GR wheels and Hutchinson Fusion 5 Performance 30mm tyres
- Ebikemotion X35 Plus, 250W, 40Nm motor and Ebikemotion 248Wh battery
Specifications
- Model
- Gain D50
- Battery [Maker]
- ebikemotion
- Bottom Bracket [Maker]
- Shimano
- Bottom Bracket Standard
- BB86/BB92
- Brakes [Kind]
- Mechanical Disc
- Brakes [Maker]
- Shimano
- Brakes [Model]
- BR-RS305
- Cassette [Gearing]
- 11-32
- Cassette [Maker]
- Shimano
- Cassette [Model]
- HG50
- Chain [Maker]
- KMC
- Chain [Model]
- X8
- Chainring [Gearing]
- 34–50
- Crank [Maker]
- Shimano
- Crank [Model]
- Claris R2000
- E-Bike
- Yes
- Family
- Gain
- FD [Maker]
- Shimano
- FD [Model]
- Claris FD-R2000
- Fork [Axle Type]
- 12x100mm
- Fork [Brake Type]
- Disc
- Fork [Maker]
- Orbea
- Fork [Material]
- Carbon
- Fork [Wheel Size]
- 700c
- Frame [Material]
- Aluminium
- Frameset
- No
- Gearing [Configuration]
- 2x
- Gearing [Kind]
- Conventional
- Gender
- Unisex
- Handlebar [Kind]
- Drop
- Handlebar [Maker]
- Orbea
- Handlebar [Material]
- Aluminium
- Handlebar [Shape]
- Drop bar
- Headset [Maker]
- Acros
- Motor [Kind]
- Hub
- Motor [Maker]
- ebikemotion
- RD [Maker]
- Shimano
- RD [Model]
- Claris RD-R2000
- Saddle [Maker]
- Fizik
- Seatpost [Diameter]
- 27.2
- Seatpost [Kind]
- Rigid
- Seatpost [Maker]
- Orbea
- Seatpost [Material]
- Aluminium
- Shifters [Maker]
- Shimano
- Shifters [Model]
- Claris ST-R2000
- Shifting
- Mechanical
- Stem [Maker]
- Orbea
- Suspension Configuration
- Rigid
- Tires [Maker]
- Hutchinson
- Wheels [Configuration]
- Front+Rear
- Wheels [Kinds]
- Clincher
- Wheelset [Material]
- Aluminium
- Product code
- 1464475 / 54295606100314
Size Guide
| — | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Rider Height (cm) | 150 - 160 | 160 - 170 | 170 - 180 | 180 - 190 | 190 - 200 |
| Seat Tube (ctr-top) | 460 | 510 | 555 | 585 | 610 |
| Seat Tube (ctr-ctr) | - | - | - | - | - |
| Effective Top Tube | 526 | 544 | 560 | 572 | 595 |
| Actual Top Tube | - | - | - | - | - |
| Seat Angle (°) | 74.5 | 74 | 74 | 74 | 73.5 |
| Head Tube Angle (°) | 71 | 72 | 72 | 72 | 72.3 |
| Head Tube Length | 109 | 126 | 150 | 176 | 203 |
| Fork Rake | - | - | - | - | - |
| Chainstay Length | 430 | 430 | 430 | 430 | 430 |
| Wheelbase | 1016 | 1022 | 1037 | 1051 | 1067 |
| Stack | 535 | 555 | 575 | 600 | 625 |
| Reach | 378 | 387 | 395 | 402 | 410 |

All measurements in mm unless otherwise stated.
Reviews
Shipping & Returns
Free UK delivery on orders over £50. Orders are dispatched within 1-2 working days and typically arrive 1-2 working days later.
Return unused items in their original packaging within 30 days of delivery. Return postage is £3.50.
Q & A
4 questions answered
Hi What are the typical range of the different assist levels? Thanks Alex
Hi Ale, I'm afraid due to outside factors we don't have this information to pass on, Many thanks Joe W
Hi can Orbea gain d50 be used as gravel bike with change of tires.
Hi Mike, This bike is recommended to be used on road only, Many thanks Joe W
Do you include Northern Ireland (UK) in your free bike delivery
Hi there, Yes this will be free shipping still, Many thanks Joe W
