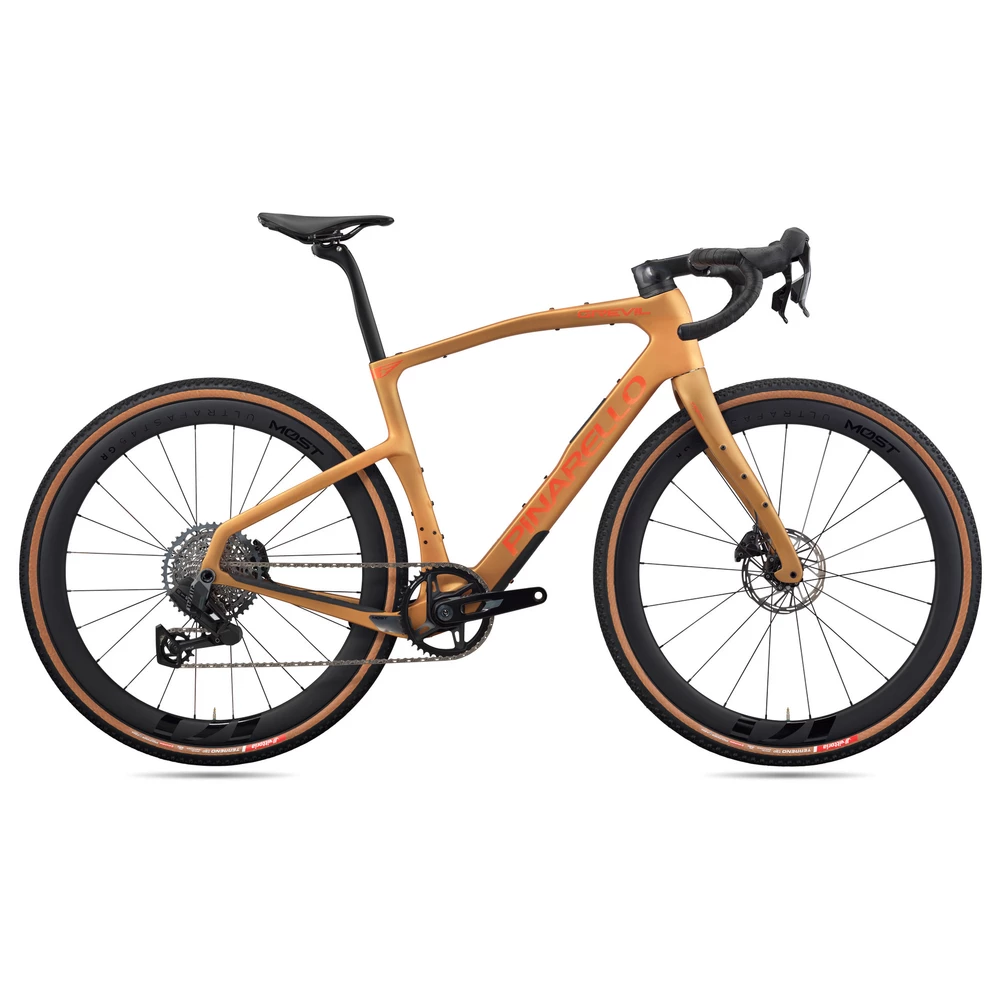

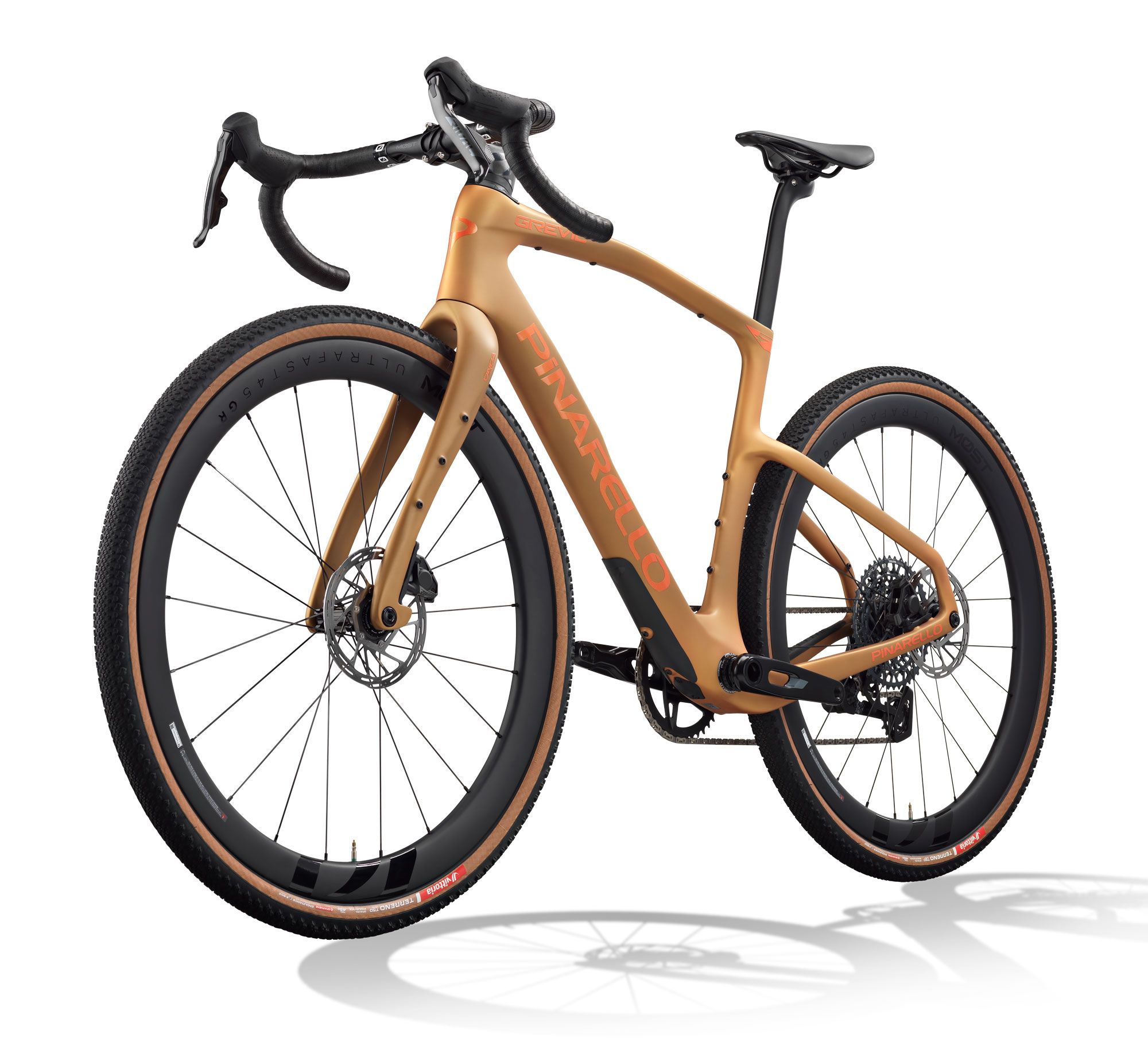

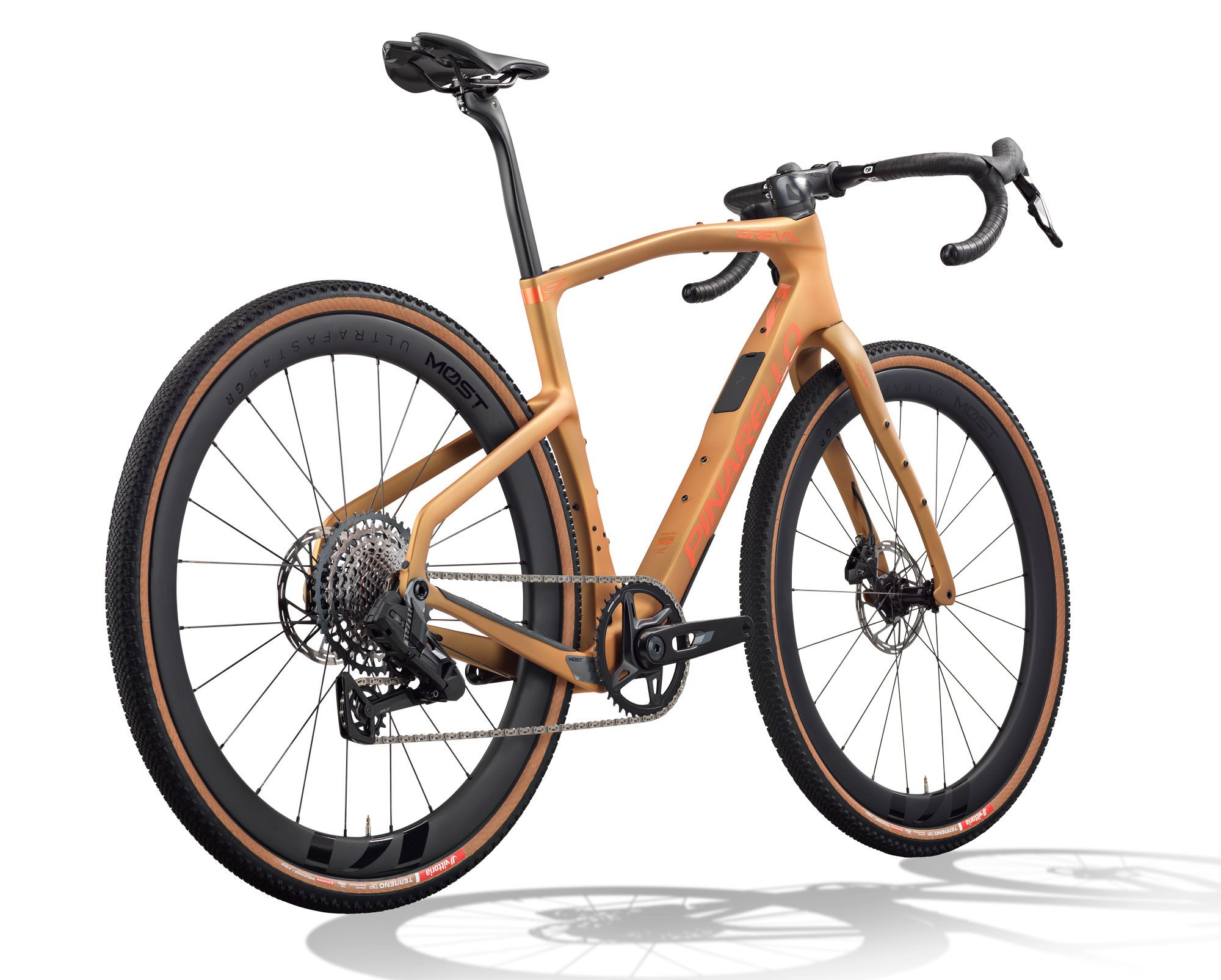

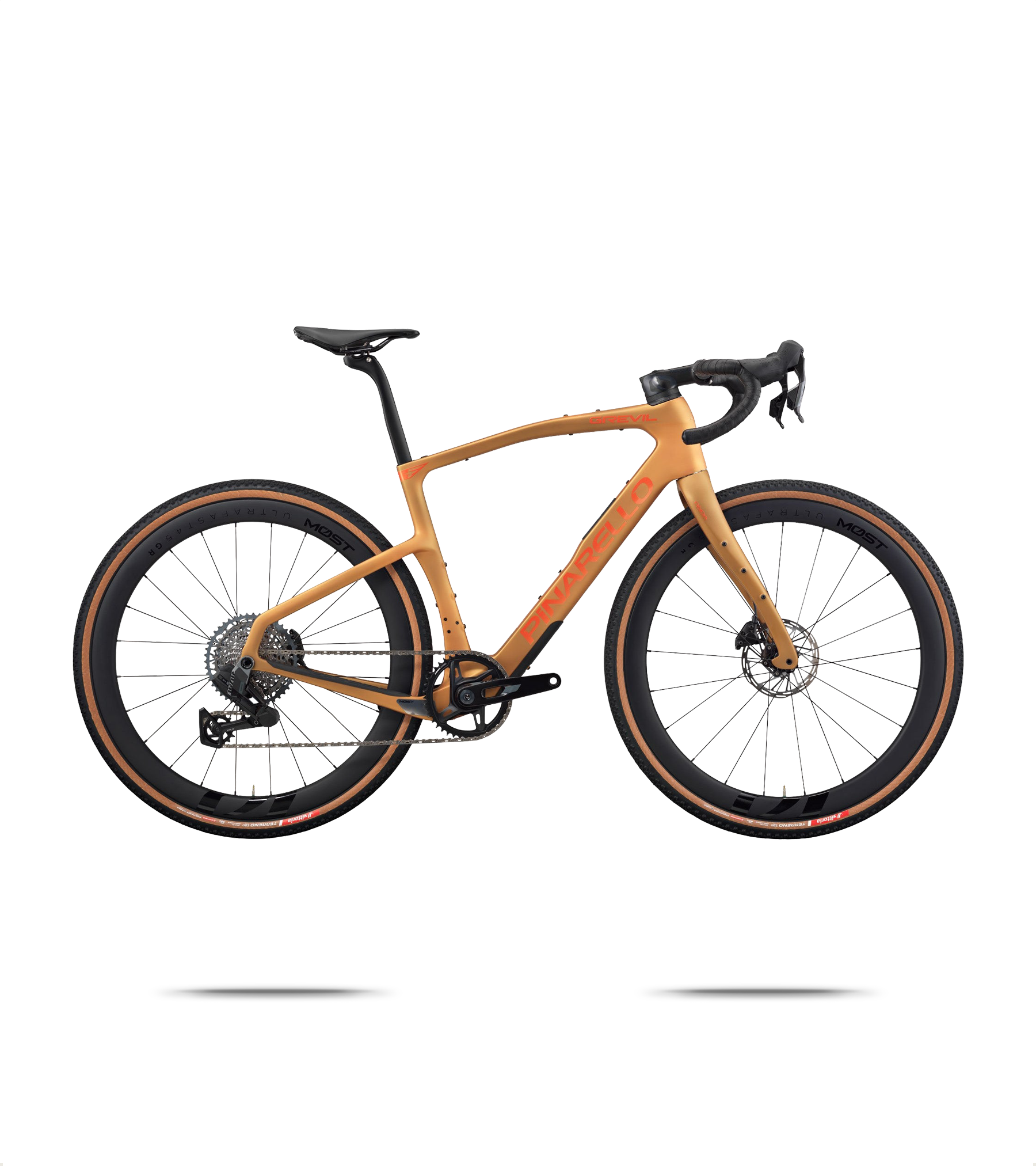

Pinarello Grevil F5 Rival AXS Gravel Bike
If you're a gravel cyclist seeking the ultimate combination of performance geometry and long-distance comfort, the Pinarello Grevil F5 Gravel Bike is built for you. Designed specifically for ultra-distance solo events, single- or multi-day adventures, and fast-paced off-road racing, the T700 UD carbon fibre frame delivers a harmonious balance of snappy responsiveness with excellent small-bump absorption. The SRAM Rival AXS XPLR 1 x 13 electronic groupset offers a brilliantly adaptable range of gears and fuss-free wireless shifts, keeping you pedalling smoothly over ever-changing terrain and contours.
Every Grevil F bike is equipped with Pinarello’s signature Flatback downtube for enhanced stiffness and integration, allowing easy access to larger bidons (up to 750ml) and compatibility with frame bags, perfect for long-haul riding. Features like the downtube tool port, TiCR internal cable routing, and Race Geometry+ ensure a clean, aerodynamic setup without sacrificing control. The adaptive seatpost and twin-armed seatstays absorb vibrations, while the ONDA fork and enhanced bottom bracket area provide exceptional handling and power transfer. With tyre clearance up to 50mm on 700c wheels, the Grevil F is ready for anything. From smooth tarmac to rugged trails, it makes the ideal gravel bike for serious cyclists seeking versatility, comfort, and podium-level performance.
Highlights
- Flatback Downtube: Redesigned for improved stiffness and better integration with larger bidons (up to 750ml) and frame bags.
- Downtube Port: Allows a toolbag to be seamlessly stored inside the frame.
- TiCR Integrated Cable Routing: Cleaner look and improved aerodynamics without limiting bar and stem options.
- Race Geometry+:Tuned for endurance rides (5+ hours) with a longer toptube and shorter stem for better off-road handling.
- Enhanced Bottom Bracket Area: Opened-up front triangle increases power transfer and pedalling stiffness.
- Versatile Tire Clearance: Fits a wide range of 700c tires—from 25mm road to 50mm off-road—for maximum adaptability.
- Adaptive Seatpost: Provides 10mm of flex to absorb vibrations while keeping weight low and efficiency high.
- ONDA Fork: Lighter, with improved damping and size-specific rake (50mm or 55mm) for optimal traction on rough terrain.
- Twin-Armed Seatstays: Works with the seatpost to enhance comfort and traction by absorbing vibrations.
Technical Specification
| Frame | Pinarello Grevil F, TiCR cable routing, thru-axle |
| T700 UD Carbon fibre - offering excellent responsiveness and performance, but with a greater capacity to dampen and absorb vibrations | |
| Fork | F Onda Fork with ForkFlap™, Tapered head tube |
| Bottom Bracket | SRAM BB DUB ITALIAN 70mm ROAD WIDE |
| Stem | Tiger Aluminium Aero TiCR |
| Handlebar | Jaguar XA GR TiCR |
| Front Brake | SRAM Rival 2 pistons, 160mm rotor |
| Rear Brake | SRAM Rival 2 pistons, 160mm rotor |
| Rear Derailleur | Rival AXS XPLR wireless |
| Brake/Shift Levers | Rival AXS XPLR wireless |
| Cassette | Rival XPLR AXS 13-speed - 10-46 tooth |
| Crankset | Rival XPLR 1 x - 40 tooth |
| Wheelset | Most Gravel Carbon 45 DB XDR |
| Front Tyre | Vittoria Terreno Gravel Endurance 700x45c |
| Rear Tyre | Vittoria Terreno Gravel Endurance 700x45c |
| Saddle | Most Lynx My26 |
| Seatpost | D-SHAPE seatpost |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
Size Guide
Pinarello Grevil F5 Rival 1x AXS XPLR Gravel Bike Sizing
