Product Details

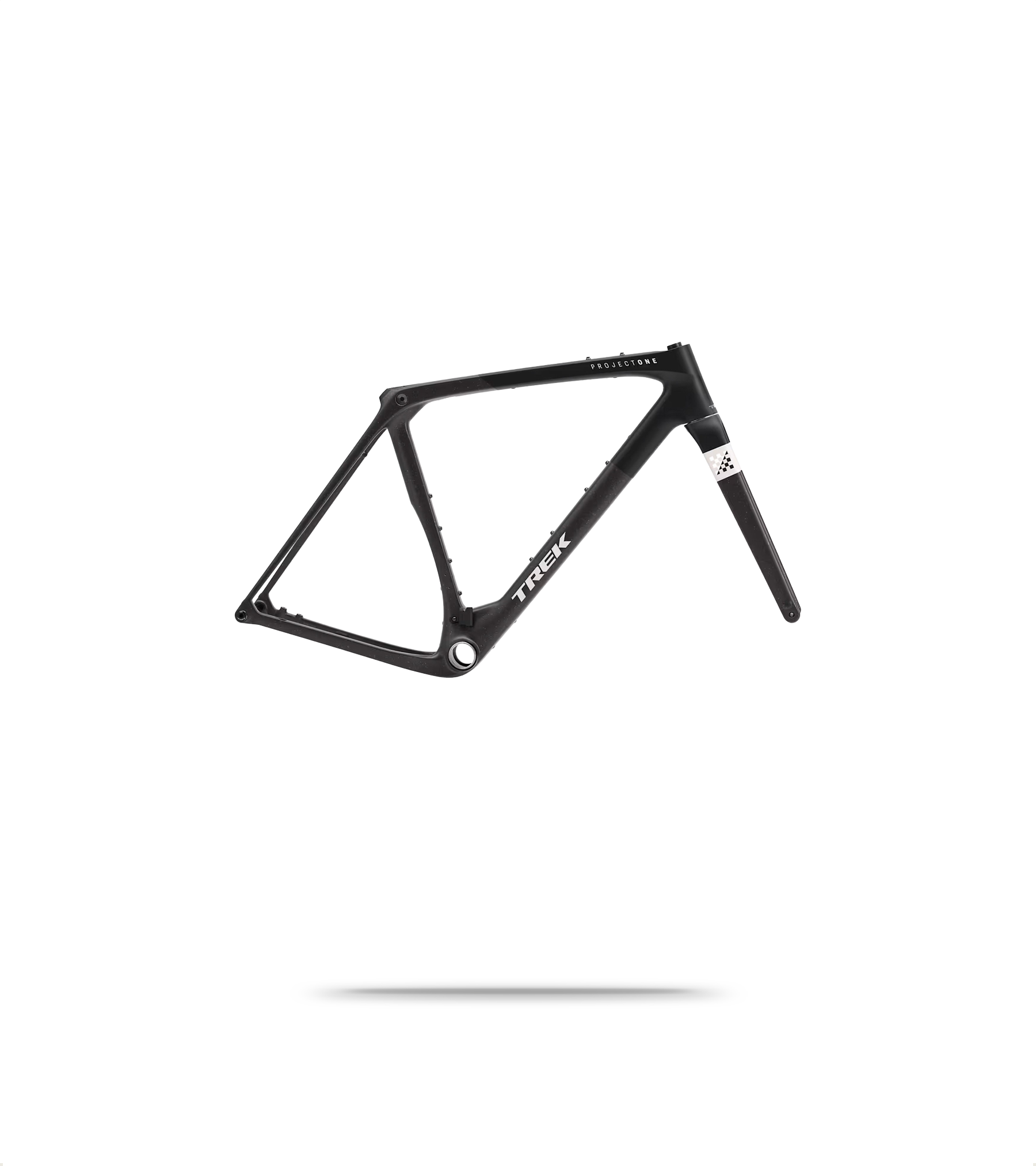

Trek Checkmate SLR Frameset

The Trek Checkmate SLR Frameset is a high-performance carbon gravel race frame built for speed, efficiency and all-terrain endurance. Designed to take on the toughest gravel events, it features a lightweight aerodynamic profile paired with IsoSpeed technology for a smoother, more controlled ride across rough surfaces.

The newly refined Gravel Race geometry keeps the rider in an aggressive yet sustainable position, ideal for maintaining momentum without draining energy over long distances. Integrated mounts accommodate bolt-on bags and accessories, allowing riders to tailor the setup for racing or adventure.

Whether aiming for the podium or exploring beyond the tarmac, the Checkmate SLR Frameset provides the responsive handling and race-ready design to meet every challenge head-on.

Features
  • Frame: 800 Series OCLV Carbon, IsoSpeed, hidden mudguard mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle
  • Fork: Checkmate SLR full carbon, tapered carbon steerer, hidden mudguard mounts, flat-mount disc, 12x100 mm thru axle
  • Claimed Weight: Frame (ML, painted) - 1,146g, Fork (painted) - 415g
  • Weight Limit: Maximum total weight (bike, rider, and cargo): 125kg / 275lb
  • Max tyre size: 45 mm without mudguards, 38 mm with mudguards
  • Max brake rotor sizes: 180 mm front and rear
Highlights
  • 800 Series OCLV Carbon Frameset
  • IsoSpeed
  • Invisible cable routing
Specifications
Model
Checkmate SLR Frameset
Bottom Bracket Standard
T47
Brakes [Kind]
Hydraulic Disc
Discipline Compatibility
Gravel
E-Bike
No
Family
Checkmate
Fenders Mounts
Yes
Fork [Axle Diameter]
12 mm
Fork [Axle Type]
Thru-Axle
Fork [Brake Type]
Disc
Fork [Maker]
Trek
Fork [Material]
Carbon
Fork [Model]
Checkmate SLR
Fork [Wheel Size]
700c
Frame [Hanger Standard]
UDH
Frame [Material]
Carbon
Frame [Tire Clearance]
45c mm
Frameset
Yes
Gearing [Kind]
Conventional
Gender
Unisex
Sub Family
Checkmate SLR
Suspension Configuration
Rigid
Wheels [Configuration]
Front+Rear
Product code
1928973 / 54293956690266
Size Guide
485154576063
Rider Height (Cm)158 - 163162 - 168167 - 174173 - 184184 - 191190 - 197
Seat Tube (ctr-top)440482512543573605
Seat Tube (ctr-ctr)------
Effective Top Tube520531543557583603
Actual Top Tube ------
Seat Angle (°)74.37473.873.57372.8
Head Tube Angle (°)69.5707171.871.872.3
Head Tube Length11512514160200320
Fork Rake525252525252
Chainstay Length450450450450450450
Wheelbase104110451048105210741086
Stack540551565587625655
Reach368373378383392400
Tail747165595956
Standover713741768794826854
Trek 520 Disc Size Guide 2020

*All measurements in mm unless otherwise stated

Reviews
Rating 5 out of 5
5
Value of Product
4
Quality of Product
5
Rating 5 out of 5
janm399,
Verified purchaser

A very solid gravel frame with fast-feeling geometry and very comfortable ride. The final build was straight-forward, but remember that it's bare frame-and-fork only, you need to bring your own seatpost and if you don't want to use integrated handlebars, a special cap for the hoses. Noteworthy points are that the seatpost is covered by a rubber seal that will stop too much water seeping in; the seatpost clamp also covered, yet easily accessible. Running 40mm tyres is completely fine with enough clearance even for 2-by 50-34 chainset.
