Product Details

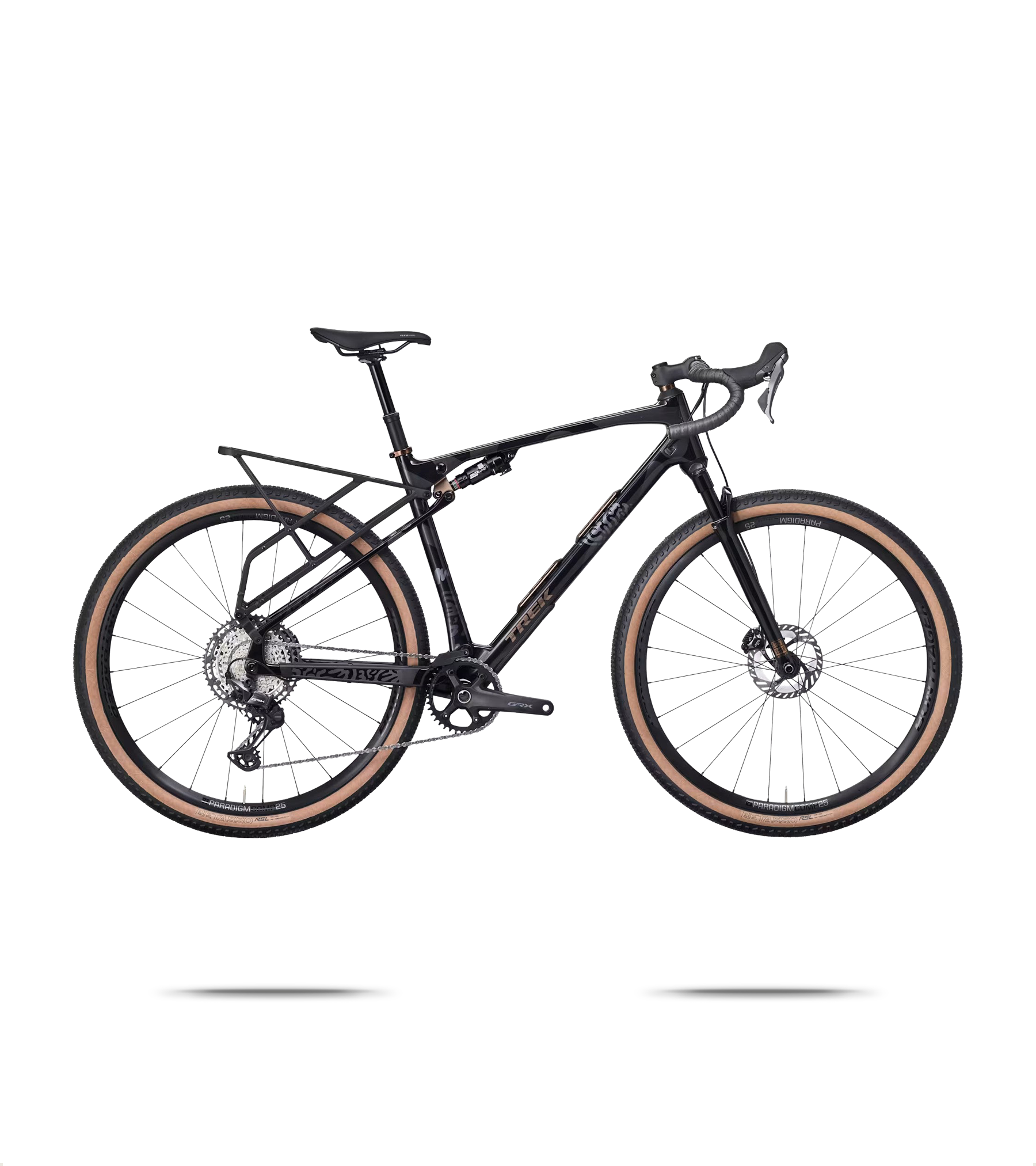

Trek Checkout SL 5 GRX Gravel Bike
The Trek Checkout SL 5 GRX Gravel Bike is built for riders who want to go far beyond the usual roads and tracks. Its full-suspension carbon frame delivers 55 mm of rear travel through a RockShox SIDluxe IsoStrut shock.
Trek's smooth control
A RockShox Rudy XL fork adds 60 mm of travel at the front, ensuring comfort and control on rough trails and demanding gravel routes.
Trek Checkout equipped to explore
With Bontrager Paradigm Comp wheels, a 12 speed Shimano GRX drivetrain and a TranzX dropper post, this bike comes fully prepared for long adventures and challenging terrain.
Features
- Frame: 500 Series OCLV Carbon, integrated frame bag mounts, integrated rack, T47, UDH, 142x12 mm chamfered thru axle, 55 mm travel
- Fork: RockShox Rudy XL Ultimate, Charger Race Day 2 Solo Air spring, tapered steerer, 45 mm offset, 12x100 mm thru axle, 60 mm travel
- Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb)
- Rear Derailleur: Shimano GRX RX822, 36T max cog
- Crank:
- Size - S, Shimano GRX RX610, 38T, 160 mm length
- Size - M, ML, Shimano GRX RX610, 38T, 170 mm length
- Size - XL, L, Shimano GRX RX610, 38T, 172.5 mm length
- Bottom Bracket: Praxis, T47 threaded, internal bearing
- Cassette: Shimano XT M8200, 10-51, 12 speed
- Chain: Shimano XT M8100, 12 speed
- Max chainring size: 1x: 38T
- Front Wheel: Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
- Rear Skewer: Bontrager Switch chamfered thru axle, removable lever
- Tyre: Bontrager Betasso RSL GX, Tubeless Ready, aramid bead, 60 tpi, 700x50 mm
- Tyre Part: Bontrager TLR sealant, 180 ml/6 oz
- Saddle: Verse Short Comp, steel rails, 145 mm width
- Seatpost: TranzX JD-YSI36, 100 mm travel, internal routing, 31.6 mm, 328 mm length
- Handlebar:
- Size - S, Bontrager GR Checkout, 42 cm
- Size - M, Bontrager GR Checkout, 44 cm
- Size - L, ML, Bontrager GR Checkout, 46 cm
- Size - XL, Bontrager GR Checkout, 48 cm
- Handlebar Tape: Bontrager Supertack Perf tape
- Stem:
- Size - S, M, Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 60 mm length
- Size - L, ML, Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 70 mm length
- Size - XL, Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 80 mm length
- Rotor size: Max brake rotor sizes: 180 mm front and rear
Specifications
- Model
- Checkout SL 5
- Bottom Bracket [Maker]
- praxis
- Bottom Bracket Standard
- T47
- Brakes [Kind]
- Hydraulic Disc
- Brakes [Maker]
- Shimano
- Cassette [Gearing]
- 10-51
- Cassette [Maker]
- Shimano
- Cassette [Model]
- XT M8200
- Chain [Maker]
- Shimano
- Chain [Model]
- XT M8100
- Chainring [Gearing]
- 38
- Crank [Maker]
- Shimano
- Crank [Model]
- GRX RX610
- Discipline Compatibility
- Gravel
- E-Bike
- No
- Family
- CheckOUT SL
- Fork [Axle Diameter]
- 12 mm
- Fork [Axle Type]
- 12x100mm Thru-Axle
- Fork [Brake Type]
- Disc
- Fork [Maker]
- RockShox
- Fork [Material]
- Carbon
- Fork [Model]
- Rudy XL Ultimate
- Fork [Rake]
- 45 mm
- Fork [Travel]
- 60 mm
- Fork [Wheel Size]
- 700c
- Frame [Hanger Standard]
- UDH
- Frame [Material]
- Carbon
- Frame [Tire Clearance]
- 50c mm
- Frame [Travel]
- 55 mm
- Frameset
- No
- Gearing [Configuration]
- 1x
- Gearing [Kind]
- Conventional
- Gender
- Unisex
- Handlebar [Kind]
- Drop
- Handlebar [Maker]
- Bontrager
- Handlebar [Material]
- Carbon
- Handlebar [Reach]
- 70 mm
- Handlebar [Shape]
- Drop bar
- R Hub [Maker]
- Bontrager
- R Hub [Model]
- Bontrager alloy CentreLock Rapid Drive 108
- Rack Mounts
- Yes
- RD [Maker]
- Shimano
- RD [Model]
- GRX RX822
- Rear Shock [Maker]
- RockShox
- Rear Shock [Model]
- SIDluxe Ultimate 3P
- Saddle [Maker]
- Trek
- Saddle [Width]
- 145 mm
- Seatpost [Diameter]
- 31.6
- Seatpost [Kind]
- Dropper
- Seatpost [Length]
- 328 mm
- Seatpost [Maker]
- tranzx
- Seatpost [Material]
- Aluminium
- Shifters [Maker]
- Shimano
- Shifters [Model]
- GRX RX820
- Shifting
- Mechanical
- Stem [Angle]
- 7 degree
- Stem [Clamp Diameter]
- 31.8
- Stem [Maker]
- Bontrager
- Stem [Material]
- Aluminium
- Sub Family
- Checkout SL
- Suspension Configuration
- Full Suspension
- Tires [Maker]
- Bontrager
- Tires [Width]
- 50 mm
- Wheels [Configuration]
- Front+Rear
- Wheels [Kinds]
- Tubeless Ready
- Wheelset [Inner Width]
- 25 mm
- Wheelset [Maker]
- Bontrager
- Wheelset [Material]
- Aluminium
- Wheelset [Model]
- Paradigm Comp 25
- Product code
- 1939178 / 54293897019738
Size Guide
| — | 48 | 51 | 54 | 57 | 60 | 63 |
|---|---|---|---|---|---|---|
| Rider Height (Cm) | 158 - 163 | 162 - 168 | 167 - 174 | 173 - 184 | 184 - 191 | 190 - 197 |
| Seat Tube (ctr-top) | 440 | 482 | 512 | 543 | 573 | 605 |
| Seat Tube (ctr-ctr) | - | - | - | - | - | - |
| Effective Top Tube | 520 | 531 | 543 | 557 | 583 | 603 |
| Actual Top Tube | - | - | - | - | - | - |
| Seat Angle (°) | 74.3 | 74 | 73.8 | 73.5 | 73 | 72.8 |
| Head Tube Angle (°) | 69.5 | 70 | 71 | 71.8 | 71.8 | 72.3 |
| Head Tube Length | 115 | 125 | 14 | 160 | 200 | 320 |
| Fork Rake | 52 | 52 | 52 | 52 | 52 | 52 |
| Chainstay Length | 450 | 450 | 450 | 450 | 450 | 450 |
| Wheelbase | 1041 | 1045 | 1048 | 1052 | 1074 | 1086 |
| Stack | 540 | 551 | 565 | 587 | 625 | 655 |
| Reach | 368 | 373 | 378 | 383 | 392 | 400 |
| Tail | 74 | 71 | 65 | 59 | 59 | 56 |
| Standover | 713 | 741 | 768 | 794 | 826 | 854 |
*All measurements in mm unless otherwise stated
