Trek Checkpoint SL 7 Force XPLR AXS Gen 3 Gravel Bike

£4,750.00

Delivery

Select size to see delivery options

Collect in Store

Cycle to Work – Save up to 42%

Spread the cost of your new bike and save up to 42% through the Cycle to Work scheme. We accept all major providers including Cyclescheme, Green Commute Initiative, Bike2Work and more. Check with your employer for eligibility.

Free Delivery on all bikes

Complimentary standard delivery on all bikes to UK mainland addresses. Orders typically arrive within 2–5 working days. A signature is required on delivery. When you receive your bike all you'll need to do is unpack it, attach your pedals, turn the handlebars and ride.

Premier Delivery

Upgrade to Premier Delivery at checkout for a nominated day, extended assembly and in-home handover by a trained technician. Available on eligible bikes across UK mainland.

Built, checked, tuned & tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Pedals & accessories

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team

You May Also Need

Specialized
Body Geometry Dual-Gel Mitts
£29.00
£30.00
Science in Sport
Clear Water Bottle
£6.00
Silca
Silca Ultimate Tubeless Sealant V2
£24.00

Product Details

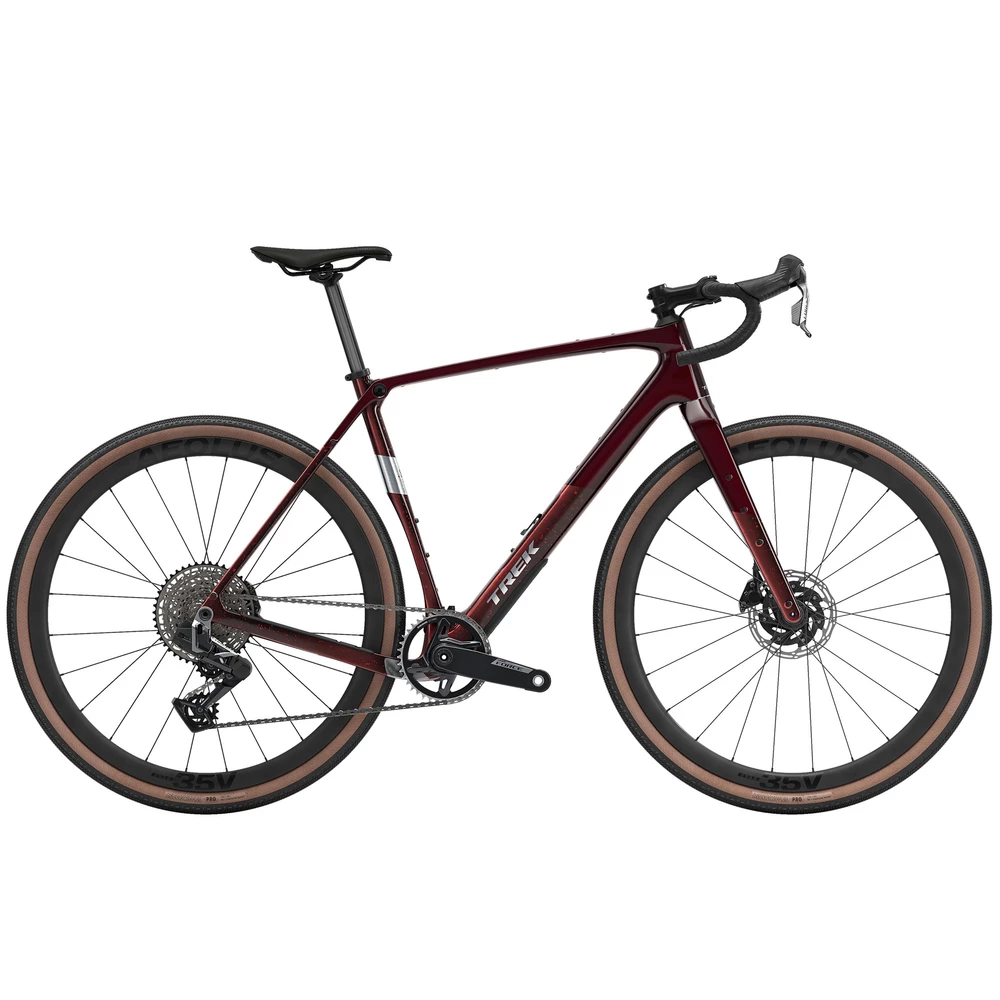

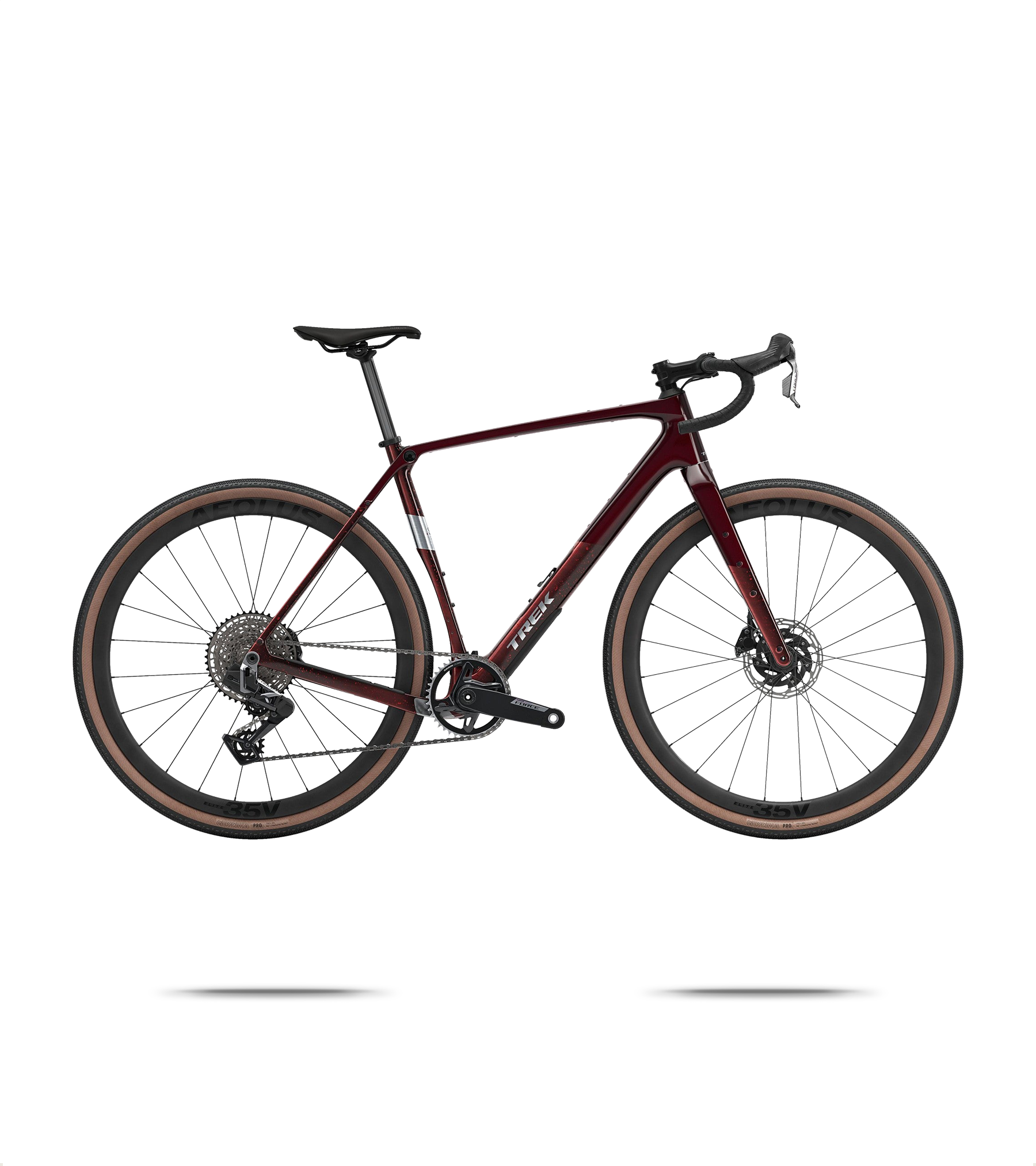

Trek Checkpoint SL 7 Force XPLR AXS Gen 3 Gravel Bike

The Trek Checkpoint SL 7 Force XPLR AXS Gen 3 Gravel Bike is a high-performance carbon gravel bike built for big miles and bold adventures. Its lightweight OCLV Carbon frame features Gravel Endurance geometry for confident, stable handling on rough terrain, with clearance for tyres up to 50 mm and plenty of mounts for gear, bags and bottles.

IsoSpeed frame technology smooths out vibrations from uneven surfaces, helping you ride longer with less fatigue. Equipped with SRAM Force AXS XPLR E1 13-speed groupset, carbon wheels and a carbon seatpost, it delivers precise shifting and a lightweight build that’s ready to go wherever the road or trail takes you.

Features

Frame: 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle
Max compatible fork travel: 40 mm (XS: compatible with rigid fork only)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb)
Battery: SRAM eTap battery pack (with charger)
Rear derailleur: SRAM Force XPLR AXS, 46T max cog
Cassette: SRAM Force XPLR XG-1371, 10-46, 13-speed
Max chainring size: 1x: 44, 2x: 46/30
Wheel front: Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, 100x12 mm thru axle
Wheel rear: Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, SRAM XD-R driver, 142x12 mm thru axle
Hub front: Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Skewer front: Bontrager Switch chamfered thru axle, removable lever
Skewer rear: Bontrager Switch chamfered thru axle, removable lever
Tyre: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
Tyre part: Bontrager TLR sealant, 180 ml / 6 oz
Rim strip: Bontrager TLR
Max tyre size: 50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
Saddle: Verse Short Elite, hollow magnesium rails, 145 mm width
Seatpost: Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
Handlebar:
Size - XS, S, Bontrager Pro Gravel, 40 cm width
Size - M, ML, Bontrager Pro Gravel, 42 cm width
Size - L, Bontrager Pro Gravel, 44 cm width
Size - XL, Bontrager Pro Gravel, 46 cm width
Handlebar tape: Bontrager Supertack Perf tape
Stem:
Size - XS, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size - S, M, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size - ML, L, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size - XL, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length

Highlights

500 Series OCLV Carbon Frame
SRAM Force AXS XPLR E1 13-speed Groupset
Bontrager Aeolus Elite 35V, OCLV Carbon Wheelset

Specifications

Model: Checkpoint SL 7 Force XPLR AXS Gen 3
Bottom Bracket [Maker]: SRAM
Bottom Bracket Standard: T47
Brakes [Kind]: Hydraulic Disc
Brakes [Maker]: SRAM
Brakes [Model]: Force AXS
Cassette [Gearing]: 10-46
Cassette [Maker]: SRAM
Cassette [Model]: Force XPLR XG-1371
Chain [Maker]: SRAM
Chain [Model]: Force E1
Chainring [Gearing]: 40
Crank [Maker]: SRAM
Crank [Model]: Force XPLR
Discipline Compatibility: Gravel
E-Bike: No
F Hub [Maker]: Bontrager
Family: Checkpoint+
Fenders Mounts: Yes
Fork [Axle Diameter]: 12 mm
Fork [Axle Type]: Thru-Axle
Fork [Brake Type]: Disc
Fork [Maker]: Trek
Fork [Material]: Carbon
Fork [Model]: Checkpoint
Fork [Rake]: 49 mm
Fork [Wheel Size]: 700c
Frame [Hanger Standard]: UDH
Frame [Material]: Carbon
Frame [Tire Clearance]: 50c mm
Frameset: No
Gearing [Configuration]: 1x
Gearing [Kind]: Conventional
Gender: Unisex
Handlebar [Kind]: Drop
Handlebar [Maker]: Bontrager
Handlebar [Shape]: Drop bar
Headset [SHIS]: rcs
R Hub [Maker]: Bontrager
Rack Mounts: Yes
RD [Maker]: SRAM
RD [Model]: Force XPLR AXS
Saddle [Maker]: Bontrager
Saddle [Width]: 145 mm
Seatpost [Diameter]: 27.2
Seatpost [Kind]: Rigid
Seatpost [Length]: 330 mm
Seatpost [Maker]: Bontrager
Seatpost [Material]: Carbon
Seatpost [Offset]: 8 mm
Shifters [Maker]: SRAM
Shifters [Model]: Force AXS E1
Shifting: Electronic
Stem [Angle]: 7 degree
Stem [Clamp Diameter]: 31.8
Stem [Maker]: Bontrager
Sub Family: Checkpoint SL
Suspension Configuration: Rigid
Tires [Maker]: Bontrager
Tires [Width]: 42 mm
Wheels [Configuration]: Front+Rear
Wheels [Kinds]: Tubeless Ready
Wheelset [Inner Width]: 35 mm
Wheelset [Maker]: Bontrager
Wheelset [Material]: Carbon
Wheelset [Model]: Aeolus Elite 35V
Product code: 1939595 / 54293866414426

Size Guide

—	48	51	54	57	60	63
Rider Height (Cm)	158 - 163	162 - 168	167 - 174	173 - 184	184 - 191	190 - 197
Seat Tube (ctr-top)	440	482	512	543	573	605
Seat Tube (ctr-ctr)	-	-	-	-	-	-
Effective Top Tube	520	531	543	557	583	603
Actual Top Tube	-	-	-	-	-	-
Seat Angle (°)	74.3	74	73.8	73.5	73	72.8
Head Tube Angle (°)	69.5	70	71	71.8	71.8	72.3
Head Tube Length	115	125	14	160	200	320
Fork Rake	52	52	52	52	52	52
Chainstay Length	450	450	450	450	450	450
Wheelbase	1041	1045	1048	1052	1074	1086
Stack	540	551	565	587	625	655
Reach	368	373	378	383	392	400
Tail	74	71	65	59	59	56
Standover	713	741	768	794	826	854

*All measurements in mm unless otherwise stated
