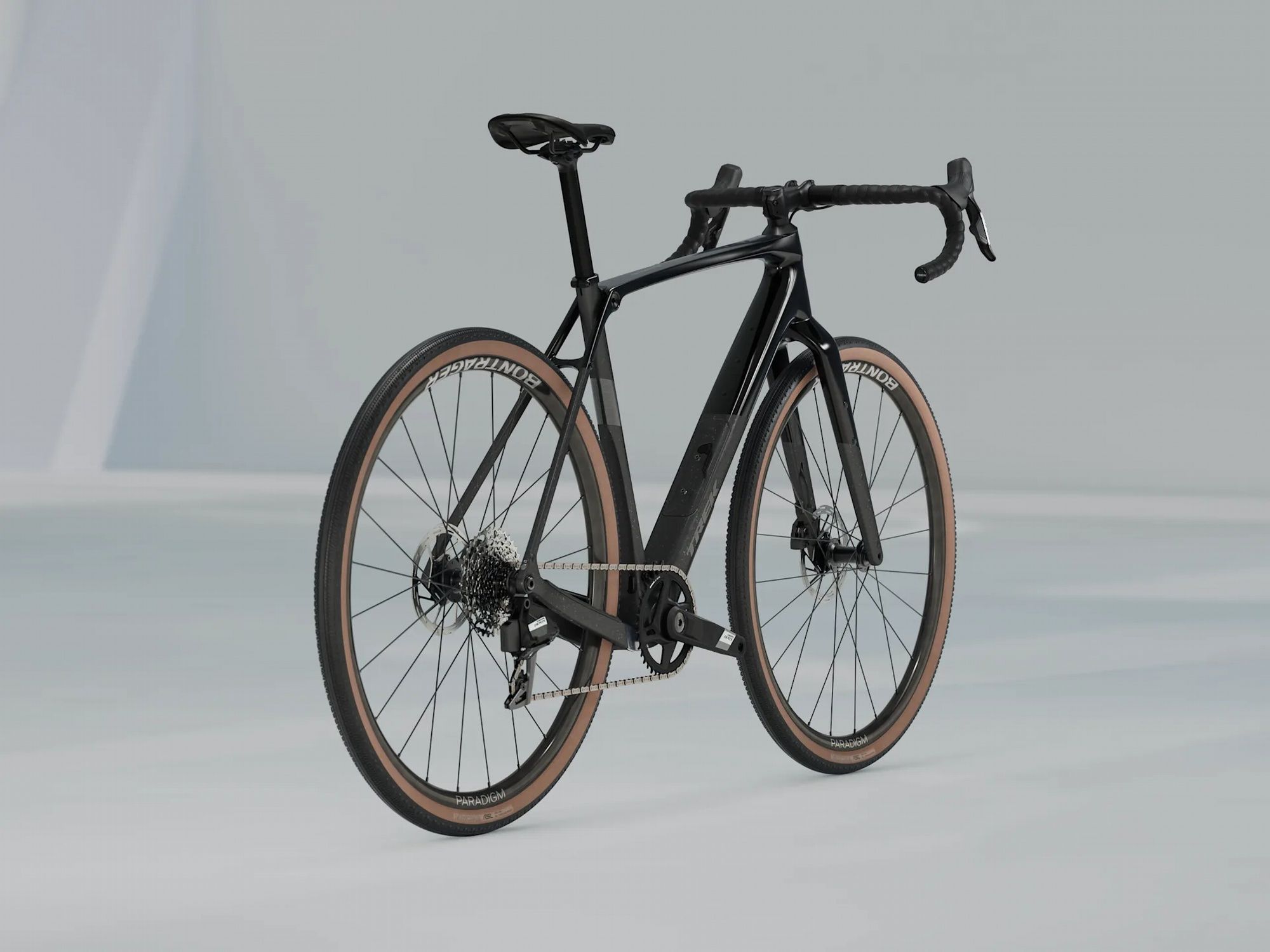

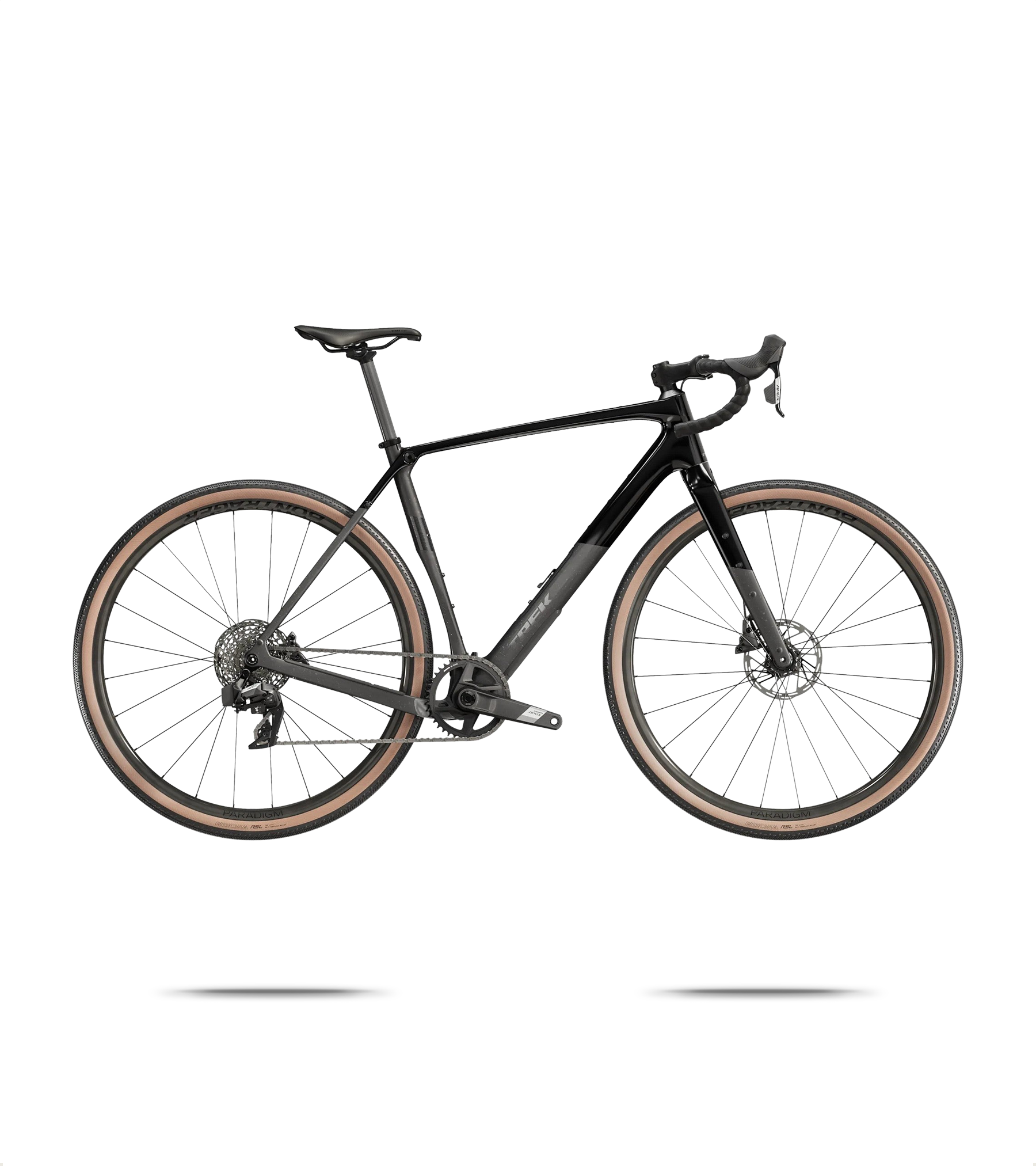

Trek Checkpoint SL 5 AXS Gravel Bike 2026

The Checkpoint SL 5 AXS Gen 3 is your go-to carbon gravel bike for epic adventures that take you far beyond the beaten path. Built with a lightweight carbon frame, this bike features comfort-focused geometry and ample clearance for 50 mm tires, ensuring a smooth and stable ride over rugged terrain. With multiple frame and fork mounts, it's designed to carry all your gear, making it perfect for long-distance explorations.

Equipped with IsoSpeed technology, the Trek Checkpoint SL 5 AXS Gen 3 absorbs road vibrations, allowing you to glide over rough surfaces with ease. The wireless 12-speed SRAM Apex XPLR AXS drivetrain provides a wide range of gears, ensuring you have the versatility to conquer any dusty road or trail ahead. This gravel bike is designed for riders who crave adventure and demand performance on every journey.

Features

Frame: 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle

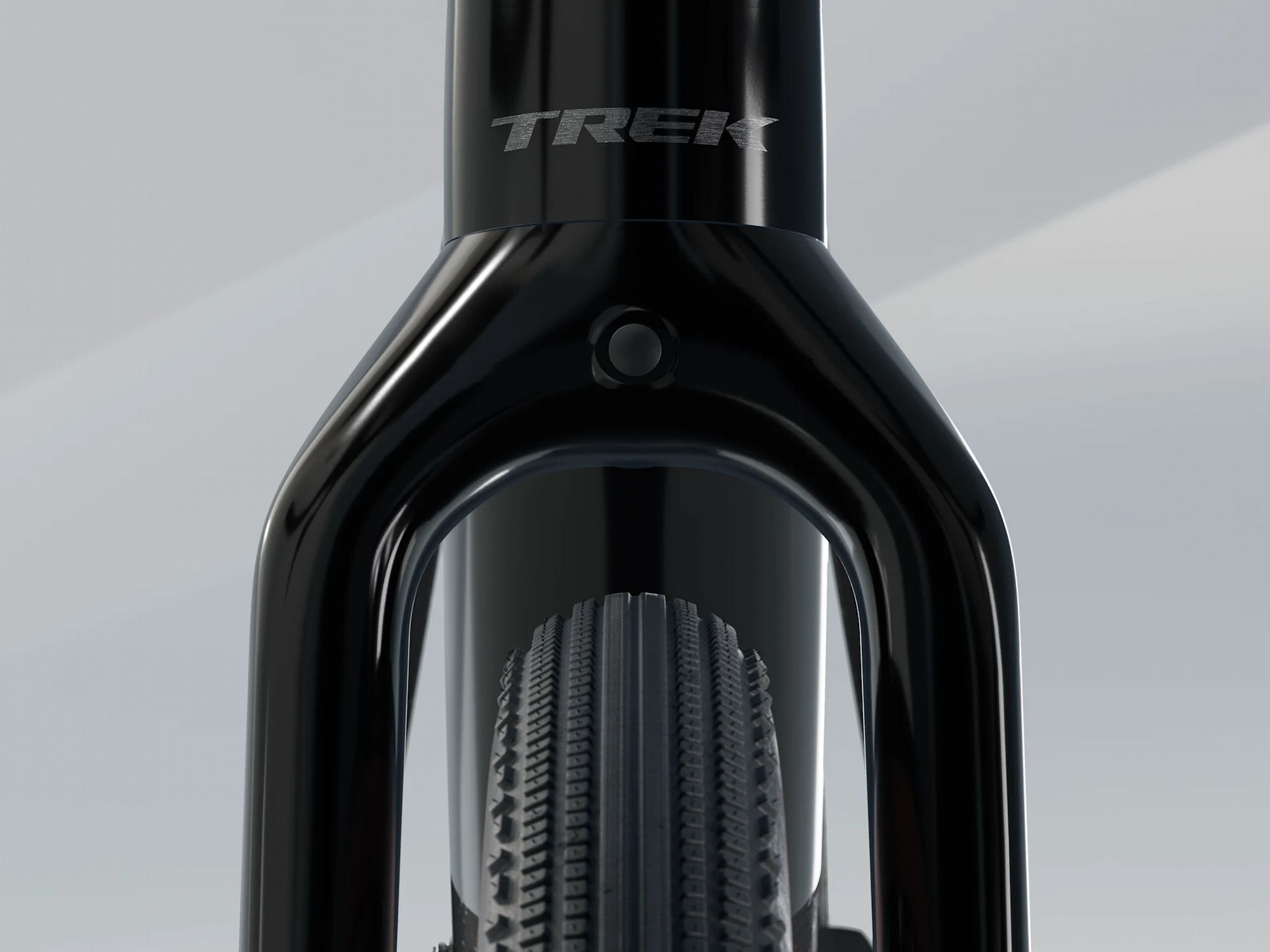

Fork: Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle
Max compatible fork travel: 40mm (XS: compatible with rigid fork only)
Weight: ML - 9.50 kg / 20.95 lbs (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 125 kg (275 lb).
Battery: SRAM eTap battery pack (with charger)

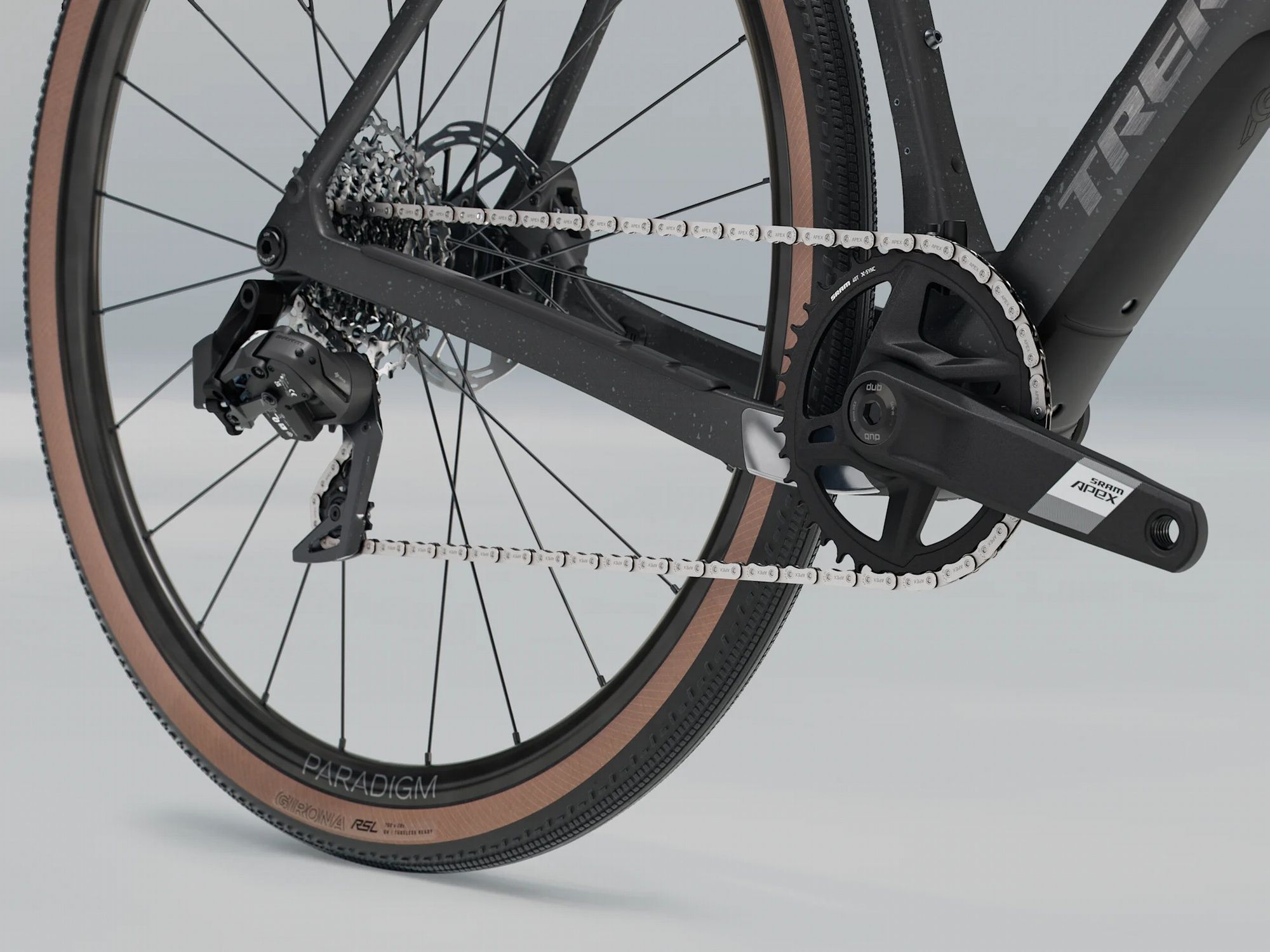

Rear derailleur: SRAM Apex XPLR eTap AXS, 44T max cog
Crank: SRAM Apex 1, 40T, DUB Wide,
Bottom bracket: SRAM DUB, T47 threaded, internal bearing
Cassette: SRAM XPLR PG-1231, 11-44, 12-speed
Chain: SRAM Apex, 12-speed
Max. chainring size: 1x 44 2x 46/30
Wheel front: Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 100x12 mm thru axle
Wheel rear: Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 142x12 mm thru axle
Hub front: Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Skewer front: Bontrager Switch chamfered thru axle, removable lever
Hub rear: Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear: Bontrager Switch chamfered thru axle, removable lever
Rim: Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Spokes: 14 g stainless steel, black
Tyre: Size XS, S, M, ML, L, XL Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm, Size XS, S, M, ML, L, XL Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42 mm
Tyre part: Bontrager TLR sealant, 180 ml/6 oz
Rim strip: Bontrager TLR
Max tyre size: 50 mm without mudguards, 42 mm with mudguards
Saddle: Verse Short Comp, steel rails,
Seatpost: Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length

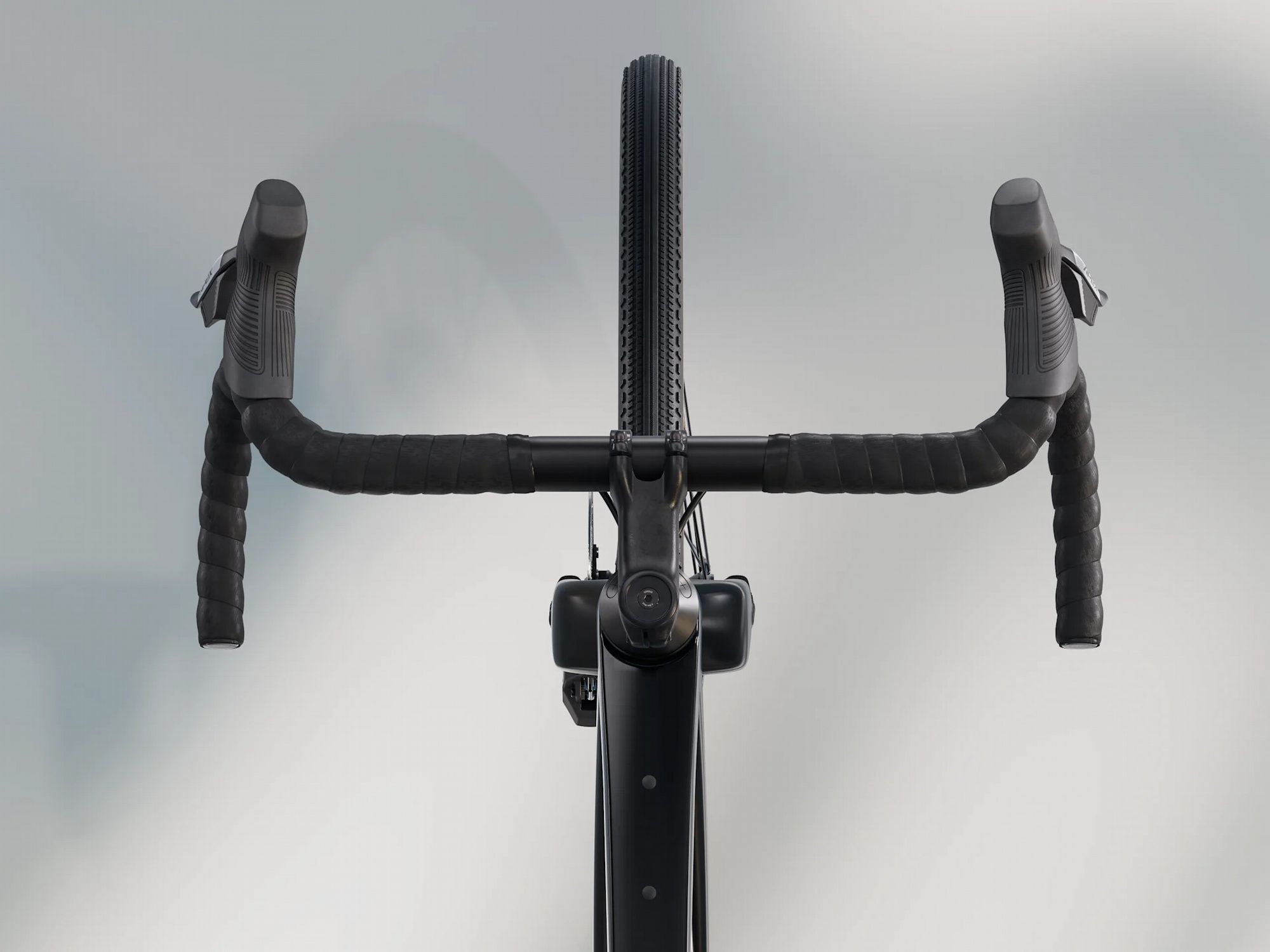

Handlebar: Bontrager Elite Gravel, alloy
Handlebar tape: Bontrager Supertack Perf tape
Stem: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree,
Brake rotor: SRAM Paceline, rounded, CentreLock, 160 mm
Rotor size: Max brake rotor sizes 180mm front and rear

Highlights

50 mm tire clearance adds extra traction and cushion for rough gravel roads.
Large internal frame storage and numerous mounts for hydration, racks, mudguards, and Adventure Bags.
Compatible with dropper posts and suspension forks (except size XS).

Specifications

Model: Checkpoint SL 5 AXS Gen 3
Bottom Bracket [Maker]: SRAM
Bottom Bracket Standard: T47
Brakes [Kind]: Hydraulic Disc
Brakes [Maker]: SRAM
Brakes [Model]: Paceline
Cassette [Gearing]: 11–44
Cassette [Maker]: SRAM
Cassette [Model]: XPLR PG-1231
Chain [Maker]: SRAM
Chain [Model]: Apex
Chainring [Gearing]: 40
Crank [Maker]: SRAM
Crank [Model]: Apex 1
Discipline Compatibility: Gravel
E-Bike: No
F Hub [Maker]: Bontrager
Family: Checkpoint+
Fenders Mounts: Yes
Fork [Axle Diameter]: 12 mm
Fork [Axle Type]: Thru-Axle
Fork [Brake Type]: Disc
Fork [Maker]: Trek
Fork [Material]: Carbon
Fork [Model]: Checkpoint
Fork [Wheel Size]: 700c
Frame [Hanger Standard]: UDH
Frame [Material]: Carbon
Frame [Tire Clearance]: 50c mm
Frame [Travel]: 0 mm
Frameset: No
Gearing [Configuration]: 1x
Gearing [Kind]: Conventional
Gender: Unisex
Handlebar [Kind]: Drop
Handlebar [Maker]: Bontrager
Handlebar [Material]: Aluminium
R Hub [Maker]: Bontrager
Rack Mounts: Yes
RD [Maker]: SRAM
RD [Model]: Apex XPLR eTap AXS
Saddle [Maker]: Bontrager
Saddle [Material]: Steel
Saddle [Width]: 155 mm
Seatpost [Diameter]: 27.2
Seatpost [Kind]: Rigid
Seatpost [Length]: 330 mm
Seatpost [Maker]: Bontrager
Seatpost [Material]: Carbon
Seatpost [Offset]: 8 mm
Shifters [Maker]: SRAM
Shifters [Model]: Apex AXS
Shifting: Electronic
Stem [Angle]: 7 degree
Stem [Clamp Diameter]: 31.8
Stem [Maker]: Bontrager
Sub Family: Checkpoint SL
Suspension Configuration: Rigid
Tires [Maker]: Bontrager
Tires [Width]: 42 mm
Wheels [Configuration]: Front+Rear
Wheels [Kinds]: Tubeless Ready
Wheelset [Inner Width]: 21 mm
Wheelset [Maker]: Bontrager
Wheelset [Material]: Aluminium
Wheelset [Model]: Paradigm SL
Product code: 1838524 / 54294439395674

Size Guide

—	48	51	54	57	60	63
Rider Height (Cm)	158 - 163	162 - 168	167 - 174	173 - 184	184 - 191	190 - 197
Seat Tube (ctr-top)	440	482	512	543	573	605
Seat Tube (ctr-ctr)	-	-	-	-	-	-
Effective Top Tube	520	531	543	557	583	603
Actual Top Tube	-	-	-	-	-	-
Seat Angle (°)	74.3	74	73.8	73.5	73	72.8
Head Tube Angle (°)	69.5	70	71	71.8	71.8	72.3
Head Tube Length	115	125	14	160	200	320
Fork Rake	52	52	52	52	52	52
Chainstay Length	450	450	450	450	450	450
Wheelbase	1041	1045	1048	1052	1074	1086
Stack	540	551	565	587	625	655
Reach	368	373	378	383	392	400
Tail	74	71	65	59	59	56
Standover	713	741	768	794	826	854

*All measurements in mm unless otherwise stated
