Orbea Bikes

• Lower mass reduced aerodynamic drag, and increased efficiency make the Orca the ultimate, all-round road racing machine
• The frame and forks are made from the highest grade of OMX carbon fibre
• A Dynamic Structure carbon lay-up pattern awards increased torsional stiffness and comfort
• The down tube, seat tube and seat stays are sculpted to reduce drag by 10%
• Aerodynamic, neat and rattle-free Internal Cable Routing format completely hides all cables and hoses
• Freeflow fork design spreads the legs away from the wheel to reduce air turbulence and drag
• Frame and fork clearance facilitate the use of tyres with a width of up to 32mm
• Orbea’s Orca Racing Geometry is aggressive but comfortable and promotes precise handling
• Vision 40 SC Disc Carbon wheels are light, wind tunnel verified and are compatible with tubeless-ready or standard clincher tyres
• Shimano Ultegra Di2 electronic 12-speed gears are precise and reliable
• Shimano R8170 hydraulic disc brakes offer powerful and controllable stopping power
• Orbea ICR stem internally routes all cables directly into the frame
• Orbea carbon handlebars are light, stiff and comfortable
• Orbea Orca seatpost offers an adjustable amount of setback between 0 and 25mm

• A highly developed, meticulously designed time trial and triathlon bike
• The design balances several key traits to be five watts faster than previous models
• The frameset uses the finest carbon fibre with an advanced laminating process to shave weight and keep lateral rigidity high
• The frameset’s tube sections have been honed via 2500 hours of aerodynamic studies to tremendously reduce drag
• The aerodynamic design factors in the frameset, brakes, wheels, handlebars, seatpost, bottles and storage compartment
• A tuned geometry affords more stability and control when in the aero riding position
• An ergonomic, highly adjustable cockpit allows any rider to find their ideal fit
• Fully-internal gear wires and brake hoses
• Integrated Aero storage box resides under the down tube
• An aerodynamic bottle and cage is included
• The frameset to tyre clearance is optimised for 25mm - 28mm wide tyres
• Vision 55 SC carbon wheels slice through the wind
• Shimano Ultegra R8000 2 x 11-speed gear set-up is reliable and precise
• Hydraulic disc brakes are powerful and easy modulated in all conditions

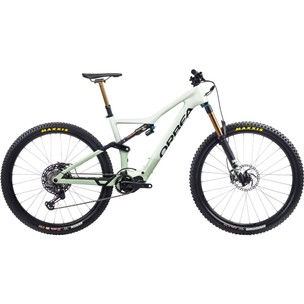

• Lightweight OMR carbon frame construction
• Sleek, integrated design
• Custom tuned Shimano EP8 RS motor system, Rider First firmware
• Modern long-reach geometry
• Optimised for a natural feel on the trail
• 360Wh battery, aftermarket 252Wh range extender available
• Fast-rolling 29" wheels
• 140mm of rear suspension, ideal for all-mountain use
• 150mm FOX 36 Float Factory fork, GRIP2 damper
• Full Shimano XTR 12-speed drivetrain
• Shimano XTR four-piston brakes
• Compatible with the Shimano E-Tube smartphone app

• A highly developed, meticulously designed time trial and triathlon bike
• The design balances several key traits to be five watts faster than previous models
• The frameset uses the finest carbon fibre with an advanced laminating process to shave weight and keep lateral rigidity high
• The frameset’s tube sections have been honed via 2500 hours of aerodynamic studies to tremendously reduce drag
• The aerodynamic design factors in the frameset, brakes, wheels, handlebars, seatpost, bottles and storage compartment
• A tuned geometry affords more stability and control when in the aero riding position
• An ergonomic, highly adjustable cockpit allows any rider to find their ideal fit
• Fully-internal gear wires and brake hoses
• Integrated Aero storage box resides under the down tube
• An aerodynamic bottle and cage is included
• The frameset to tyre clearance is optimised for 25mm - 28mm wide tyres
• Shimano R9250 C50 carbon wheels slice through the wind
• Shimano Dura-Ace Di2 2 x 12-speed gear set-up is highly reliable and responsive
• Hydraulic disc brakes are powerful and easy to control in all conditions

• Lightweight OMR carbon frame construction
• Sleek, integrated design
• Custom tuned Shimano EP8 RS motor system, Rider-First firmware
• Modern long-reach geometry
• Optimised for a natural feel on the trail
• 360Wh battery, aftermarket 252Wh range extender available
• Fast-rolling 29" wheels
• 140mm of rear suspension, ideal for all-mountain use
• 140mm FOX 34 Float Factory fork, FIT4 damper
• Full Shimano XTR 12-speed drivetrain
• Shimano XTR brakes
• Compatible with the Shimano E-Tube smartphone app

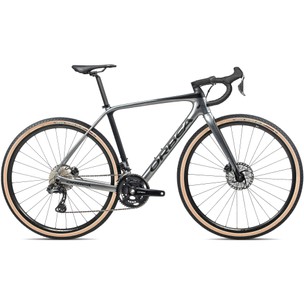

• A super-versatile gravel bike that also performs admirably on the road, in cyclocross, during winter training or when commuting
• Full Orbea monocoque carbon frameset is light, precise and durable
• Optimised frame tube shapes offer stiffness, compliance and comfort across any surface
• Wide tyre clearance allows the use of different tyre widths to suit the terrain
• Integrated mudguard mounts offer all weather protection
• Size-specific frame tube sections and a finely tuned geometry grant control and balance across dirt tracks, gravel paths and roads
• Fulcrum Rapid Red 900 wheelset is robust but reactive
• Shimano RD-RX815 11-speed gears are precise and reliable
• Double front chainring configuration offers a vast range of gear ratios
• Shimano BR-RX810 hydraulic disc brakes offer powerful and modulated stopping power

Highlights

• Orbea Rise OMR Carbon frame with FOX Float DPS Performance and140mm of travel
• FOX 34 Float Performance fork with 140mm of travel
• Shimano SLX drivetrain and M6100 hydraulic disc brakes
• Race Face AR 30c tubeless-ready wheels and Maxxis tyres
• Shimano EP8-RS motor and 360Wh battery

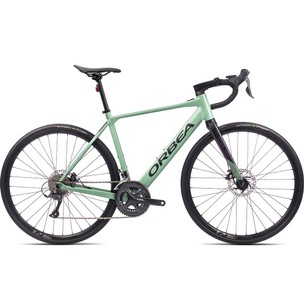

• The Ebikemotion X35 Plus motor improves your rides rather than dominates them
• The motor is located on the wheel axle, not the bottom bracket, so you’ll enjoy pedalling without resistance when the power assist is off
• ICR internal cable routing keeps the cockpit clean looking
• The integrated rear light draws power from the battery
• An Ebikemotion 248Wh battery is neatly housed in the downtube
• The Ebikemotion iWoc ONE interface displays battery and the assistance level as you ride
• Hydroformed Aluminium frame lightweight and robust
• Endurance geometry is perfect for all-day rides
• The Shimano Claris groupset is robust and simple to use
• Wide Hutchinson tyres are plush and grippy on the tarmac

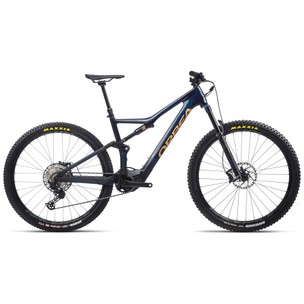

• Orbea Rise Hydro frame with FOX FLOAT X Performance shock and 140mm travel
• FOX 36 Float Performance 150 fork, 150mm travel
• Shimano EP8-RS motor and Orbea RS Internal 540Wh battery with three assist levels
• Tubeless-ready 29” Race Face wheels and 2.4” Maxxis Dissector and Rekon tyres
• Shimano XT / SLX 12-speed drivetrain
• Shimano M6100 hydraulic disc brakes
• Orbea OC MC20 Mountain Control Dropper seatpost

• Versatile gravel-specific geometry
• Orbea hydroformed, triple-butted aluminium frame is lightweight and responsive
• Full carbon fork damps vibration to reduce fatigue on rough terrain
• Wide tyre clearance allows the use of different tyre widths to suit the terrain
• Integrated mudguard mounts offer all weather protection
• 10-speed Shimano GRX groupset is reliable and supplies excellent chain retention
• Shimano RX400 hydraulic disc brakes offer powerful stopping power

• The Ebikemotion X35 Plus motor improve your rides rather than dominates them
• The motor is located on the wheel axle, not the bottom bracket, so you’ll enjoy pedalling without resistance when the power assist is off
• ICR Plus internal cable routing keeps the cockpit clean looking
• Integrated lights draw power from the main battery
• The Ebikemotion 248Wh battery is neatly housed in the downtube
• The Ebikemotion iWoc ONE interface displays battery and the assistance level as you ride
• The hydroformed aluminium frame is lightweight and robust
• Endurance geometry is perfect for all-day rides
• Shimano GRX 11-speed groupset is ideal for gravel riding
• Schwalbe G-ONE tyres are plush and comfortable off-road, providing plenty of grip on a range of surfaces

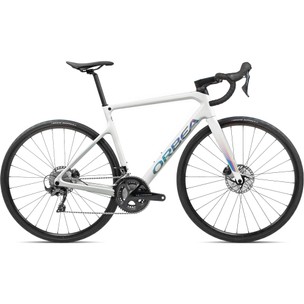

• A modern and versatile race bike that’s exciting and inspiring across any road terrain
• The full OMR carbon frameset is stiff and compliant, while keeping the weight low
• The carbon fork with alloy steerer is stiff, strong, and reduces road vibrations
• Hidden cable routing through the stem and frame grants a crisp aesthetic
• 35mm tyre clearance permits the use of plusher, grippier, and faster-rolling rubber
• Racing inspired geometry maximises power transfer and efficiency and gives precise and intuitive handling
• Orbea Ready 19 wheels have an alloy rim, are light, strong and are compatible with tubeless-ready or standard clincher tyres
• Shimano Ultegra 11-speed gears are precise and reliable
• Shimano Ultegra hydraulic disc brakes offer powerful and controllable stopping power

• A wind defying thoroughbred that is stiff and efficient for all high-speed road riding scenarios
• The monocoque frame and forks are made from the highest grade of OMX carbon fibre
• The headtube, downtube and chainstays resist twisting to deliver unrivalled power transfer
• The OMX carbon lay-up and cross-sections deliver class-leading stiffness to weight ratios
• Clean internal cable routing is low maintenance, aerodynamic and aesthetically pleasing
• Multiple bottle cage mounting points allow aerodynamics and centre of gravity to be fine-tuned
• Freeflow fork design spreads the legs away from the wheel to reduce air turbulence and drag
• An Orbea Aero Bottle, cage and Aero Accessory Container are included
• An aero seatpost reduces air turbulence, absorbs road surface vibrations and offers a variety of saddle fore and aft positions
• Fulcrum Racing 400 DB offer excellent all-round performance
• Shimano Ultegra 11-speed gears are precise and reliable
• Shimano Ultegra hydraulic disc brakes offer powerful and modulated stopping power
• Orbea ICR stem internally routes all cables directly into the frame

• Revised two-part linkage design boosts torsional stiffness for a precise feel
• 29” Carbon RaceFace wheels deliver instant engagement and rapid acceleration off the line
• The Shimano XTR groupset is unmatched in its shifting performance
• Top-spec FOX suspension provides supreme composure on the trail
• Contemporary geometry sees this model excel on all gradients, a true all-rounder
• Shimano XTR hydraulic disc brakes offer unparalleled performance to weight ratio
• Advanced moulding techniques and a high modulus carbon monocoque frame construction promote rigidity and compliance for a sublime trail-feel

• Lightweight Orbea Monocoque Race carbon frame
• Lower standover heights mean more control and more choice on frame sizing
• A 64° or 64.5º head angle is slack enough for the toughest courses without compromising agility
• A low bottom bracket gives great stability and you will be amazed at how it corners
• The lengthy reach offers stability when descending at speed
• Flip-chip adjustment allows for changes to be made to the bottom bracket height and head angle
• An included shock extender offers 27.5” rear wheel “mullet” compatibility
• Integrated frame storage and multi-tool permits backpack-free rides
• Shimano 12-speed SLX drivetrain and four-piston brakes
• 170mm FOX 38 Float Performance fork offers epic tracking in rough terrain
• Advanced Dynamics 160mm rear suspension is controlled by a FOX Float X Performance shock

• A modern and versatile race bike that’s exciting and inspiring across any road terrain
• The full OMR carbon frameset is stiff and compliant and ensures the weight is kept low
• Freeflow carbon fork design spreads the legs away from the turbulence created by the rotating wheel to lower aerodynamic drag
• Hidden cable routing through the stem and frame grants a crisp aesthetic
• 35mm tyre clearance permits the use of plusher, grippier, and faster-rolling rubber
• Race-inspired geometry maximises power transfer and efficiency and gives precise and intuitive handling
• Fulcrum Racing 600 DB wheels have an alloy rim, are light, strong and are compatible with tubeless-ready or standard clincher tyres
• Shimano Ultegra Di2 12-speed drivetrain offers state of the art shifting performance
• Shimano Ultegra hydraulic disc brakes offer powerful and modulated stopping power

• Revised two-part linkage design boosts torsional stiffness for a precise feel
• 29” RaceFace Turbine R30 wheels deliver fast rolling speeds and exceptional durability
• The Shimano XT groupset offers a wide gear range and tactile shifting
• FOX suspension provides burly performance on the trail and is ideal for those who prioritise descending
• The LT moniker sees this model feature 150mm of front and rear travel
• Contemporary geometry sees this model excel on all gradients, a true all-rounder
• Shimano hydraulic disc brakes offer excellent stopping power
• Advanced moulding techniques and a high modulus carbon monocoque frame construction promote rigidity and compliance for a sublime trail-feel

• Versatile gravel-specific geometry
• Orbea hydroformed, triple-butted aluminium frame is lightweight and responsive
• Full carbon fork damps vibration to reduce fatigue on rough terrain
• Wide tyre clearance allows the use of different tyre widths to suit the terrain
• Integrated mudguard mounts offer all weather protection
• 1 x 11-speed Shimano GRX groupset is highly durable and supplies excellent chain retention
• Shimano RX400 hydraulic disc brakes offer powerful stopping power

• Orbea Kemen Mid Bar frame with lights, mudguards and rack
• Marzocchi Bomber Z2 forks with 100mm of travel
• Shimano Link Glide 10-speed drivetrain
• Magura MT30 hydraulic disc brakes
• Shimano EP8 motor and 540Wh battery

• Versatile gravel-specific geometry
• Orbea hydroformed, triple-butted aluminium frame is lightweight and responsive
• Full carbon fork damps vibration to reduce fatigue on rough terrain
• Wide tyre clearance allows the use of different tyre widths to suit the terrain
• Integrated mudguard mounts offer all weather protection
• 2 x 11-speed Shimano GRX groupset is highly durable and supplies excellent chain retention
• Shimano RX400 hydraulic disc brakes offer powerful stopping power
