Product Details

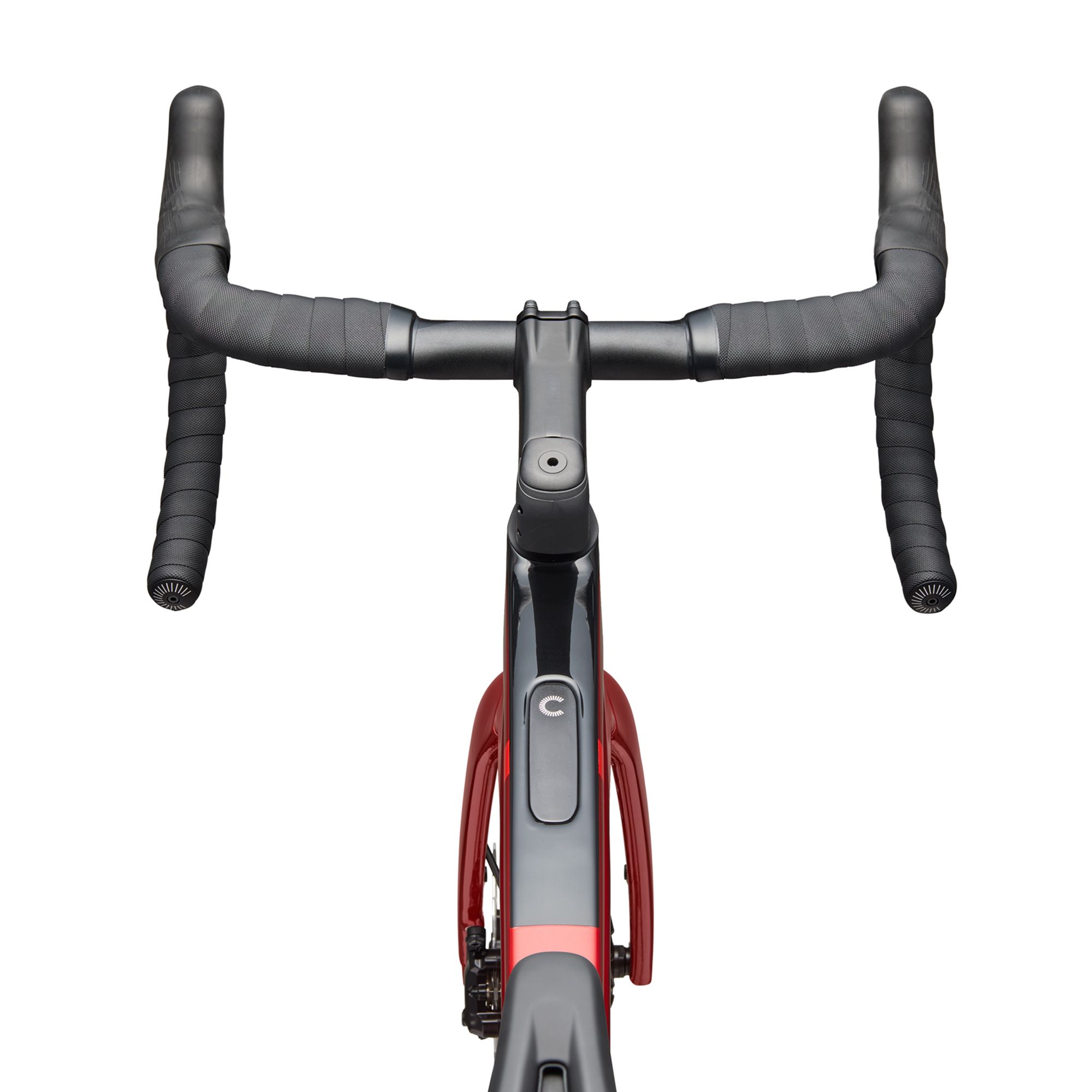

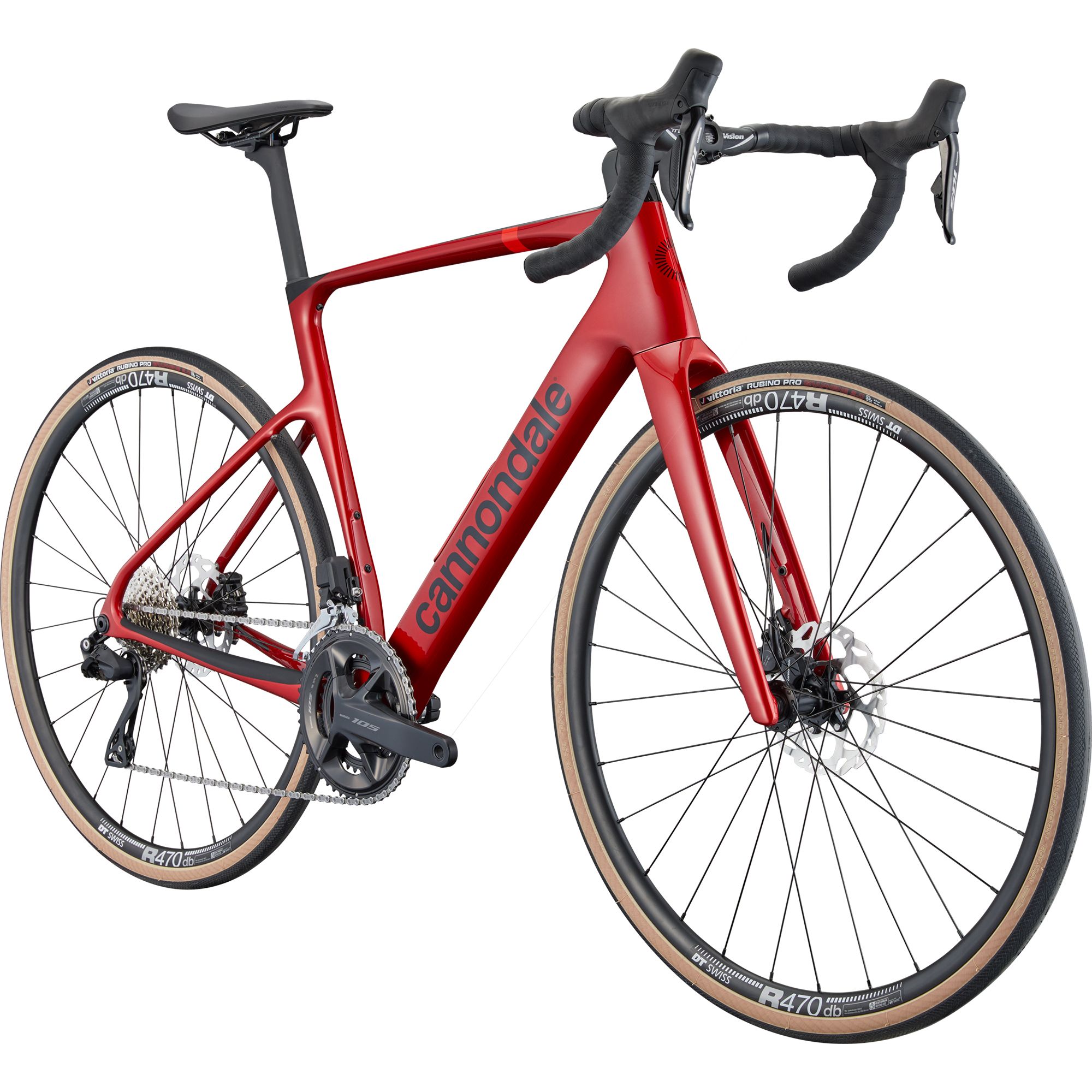

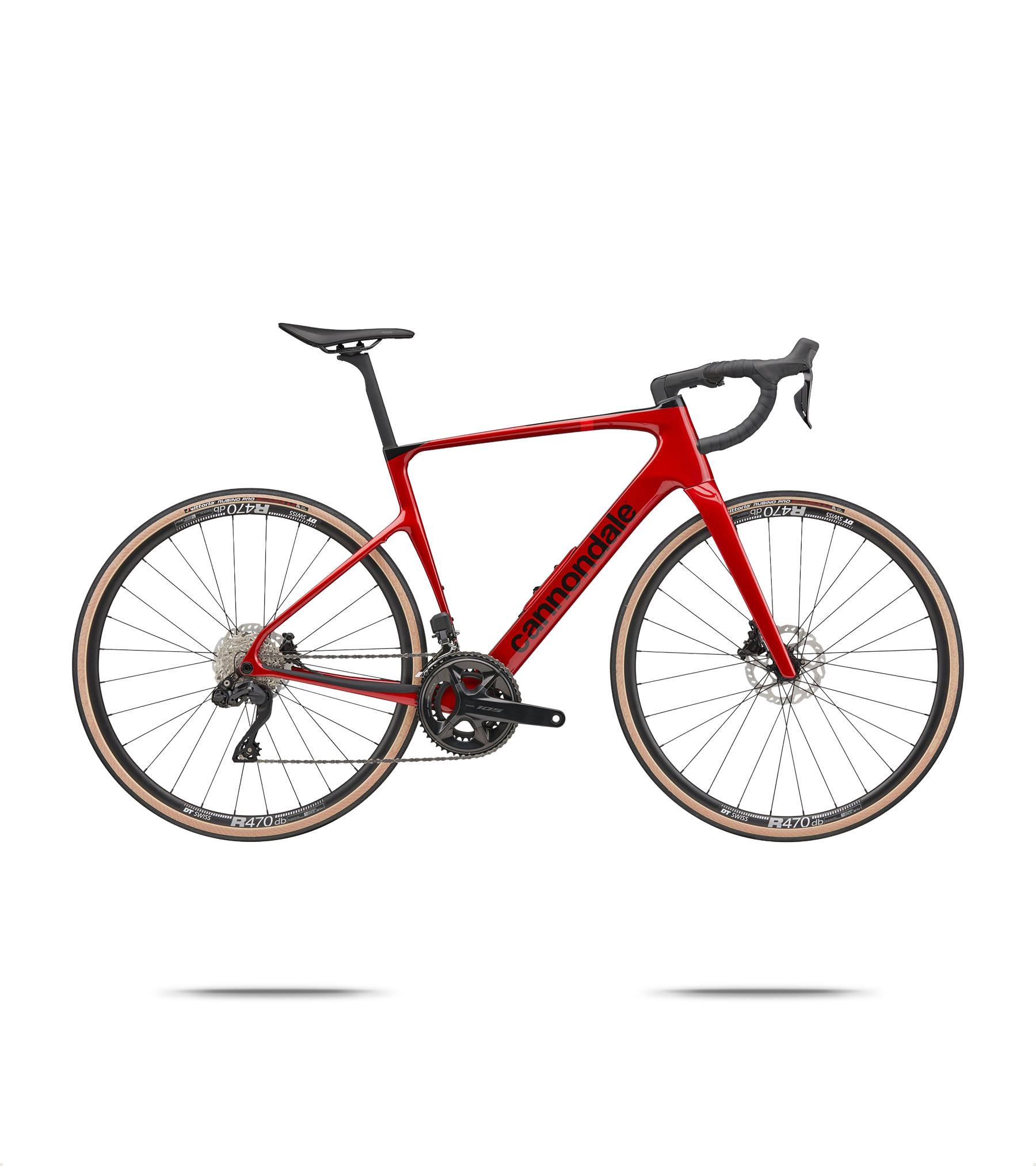

Cannondale Synapse Carbon 4 Road Bike

Cannondale’s Synapse changed the road cycling landscape 20 years ago, offering a lighter, more responsive bike that didn’t sacrifice comfort. Today, the sixth-generation Synapse Carbon Road Bike continues that tradition, with a completely reimagined frame designed for long-distance riders who demand both speed and stability.

Lighter than ever, the new frame weighs under 1150 grams thanks to a high-performance carbon layup that shaves weight without compromising stiffness or durability. A 20% boost in compliance ensures a smoother ride, while the D-shaped seatpost and Delta Steerer system enhance aerodynamics and comfort.

With space for up to 48 mm tyres at the front and 42 mm at the rear, the Synapse is built to explore everything from smooth tarmac to broken backroads. Hidden mounts for a top tube bag, the integrated StashPort tool storage system.

Features
  • Frame: Synapse Carbon, Proportional Response construction, integrated cable routing, downtube Stashport, 12x142 thru-axle, UDH, BSA 68mm threaded bottom bracket, flat mount disc, integrated seat binder, SmartSense Gen 2.0 compatible, fender mounts
  • Fork: Synapse Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/5" Delta steerer, 55mm offset, fender mounts
  • Headset: Integrated, 1-1/8" to 1-1/2"
  • Front Derailleur: Shimano 105 Di2 7150, braze-on
  • Rear Derailleur: Shimano 105 Di2 7150
  • Shifters: Shimano 105 Di2 R7170, wireless, 12 speed
  • Chain: Shimano 105 7100, 12 speed
  • Crankset: Shimano 105 7100, BSA, 50/34
  • Cassette: Shimano 105 7100, 11-34, 12 speed
  • Brakes: Shimano 105 7170 hydraulic disc, 160mm RT70 rotors
  • Brake Levers: Shimano 105 Di2 7170 hydraulic disc
  • Front Hub: Shimano RS470, 12x100mm, centrelock
  • Rear Hub: Shimano RS470, 12x142mm, centrelock
  • Rims: DT Swiss R470 db, 28h
  • Spokes: Stainless Steel, 14g
  • Tyres: Vittoria Rubino Pro IV, 700x32c
  • Handlebar: Vision Trimax Aero Alloy
  • Handlebar Tape: Cannondale Bar Tape, 3.5mm
  • Stem: Cannondale C1 Conceal, Alloy, 31.8, -6°
  • Saddle: Fizik Vento Argo X5, 140mm
  • Seatpost: Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (44–48cm), 20mm offset (51–61cm)
  • Extras: Large StashBag downtube storage
Highlights
  • Synapse Carbon Frame
  • Shimano 105 Di2 Groupset
  • DT Swiss Wheelset
  • Cannondale Wheel Sensor
  • StashPort Downtube Storage
Specifications
Model
Synapse Carbon 4
Bottom Bracket [Maker]
Shimano
Bottom Bracket Standard
BSA
Brakes [Kind]
Hydraulic Disc
Brakes [Maker]
Shimano
Brakes [Model]
105 7170
Cassette [Gearing]
11-34
Cassette [Maker]
Shimano
Cassette [Model]
105 7100
Chain [Maker]
Shimano
Chain [Model]
105 7100
Chainring [Gearing]
50/34
Crank [Maker]
Shimano
Crank [Model]
105 7100
Discipline Compatibility
Road
E-Bike
No
F Hub [Maker]
Shimano
F Hub [Model]
RS470
Family
Synapse
FD [Maker]
Shimano
FD [Model]
105 Di2 7150
Fenders Mounts
Yes
Fork [Axle Type]
12x100mm
Fork [Brake Type]
Disc
Fork [Maker]
Cannondale
Fork [Material]
Carbon
Fork [Model]
Synapse Carbon
Fork [Rake]
55 mm
Fork [Wheel Size]
700c
Frame [Hanger Standard]
UDH
Frame [Material]
Carbon
Frame [Tire Clearance]
48c mm
Frameset
No
Gearing [Configuration]
2x
Gearing [Kind]
Conventional
Gender
Unisex
Handlebar [Kind]
Drop
Handlebar [Maker]
Vision
Handlebar [Material]
Aluminium
Handlebar [Shape]
Drop bar
Headset [Maker]
Cannondale
R Hub [Maker]
Shimano
R Hub [Model]
RS470
Rack Mounts
No
RD [Maker]
Shimano
RD [Model]
105 Di2 7150
Saddle [Maker]
Fizik
Saddle [Width]
140 mm
Seatpost [Diameter]
27
Seatpost [Kind]
Rigid
Seatpost [Length]
330 mm
Seatpost [Maker]
Cannondale
Seatpost [Material]
Carbon
Shifters [Maker]
Shimano
Shifters [Model]
105 Di2 R7170
Shifting
Electronic
Stem [Angle]
-6 degree
Stem [Clamp Diameter]
31.8
Stem [Maker]
Cannondale
Stem [Material]
Aluminium
Sub Family
Synapse Carbon
Suspension Configuration
Rigid
Tires [Maker]
Vittoria
Tires [Width]
32 mm
Wheels [Configuration]
Front+Rear
Wheels [Kinds]
Clincher
Wheelset [Maker]
DT Swiss
Wheelset [Material]
Aluminium
Wheelset [Model]
R470
Product code
1898256 / 54294117122394
Size Guide
Cannondale SuperSix EVO 2023 onwards

All measurement in mm unless otherwise stated.

Reviews
Rating 4.8 out of 5
4.8
Value of Product
5
Quality of Product
5
Rating 5 out of 5
Roy63,
Verified purchaser

What a bike and what a fantastic service from the team at Sigma. I have a Supersix Evo but for myself at 63 this is as fast and more comfortable. I can pack all the spares in the storage and not a saddle bag in sight, don’t even mention the jersey pockets. The bike is not standard as I upgraded the wheels to Reserve 40/44, which are fabulous as well as the discs and bottom bracket to ultegra. All this was done by the team at Sigma, Joe who took the order and Zane at Oakham have been superb, thanks.

Rating 5 out of 5
Anonymous,
Verified purchaser
Shipping & Returns

Free UK delivery on orders over £50. Orders are dispatched within 1-2 working days and typically arrive 1-2 working days later.

Return unused items in their original packaging within 30 days of delivery. Return postage is £3.50.

Payment & deliveryReturns & exchanges
Q & A

1 question answered

  1. What is the system weight limit (bike, water bottles, head unit, rider etc) for the cannondale carbon 4 ?

    Asked by GC1 (North Yorks) —

    1. Hi there, This is 138kg Many thanks Joe W
