Product Details

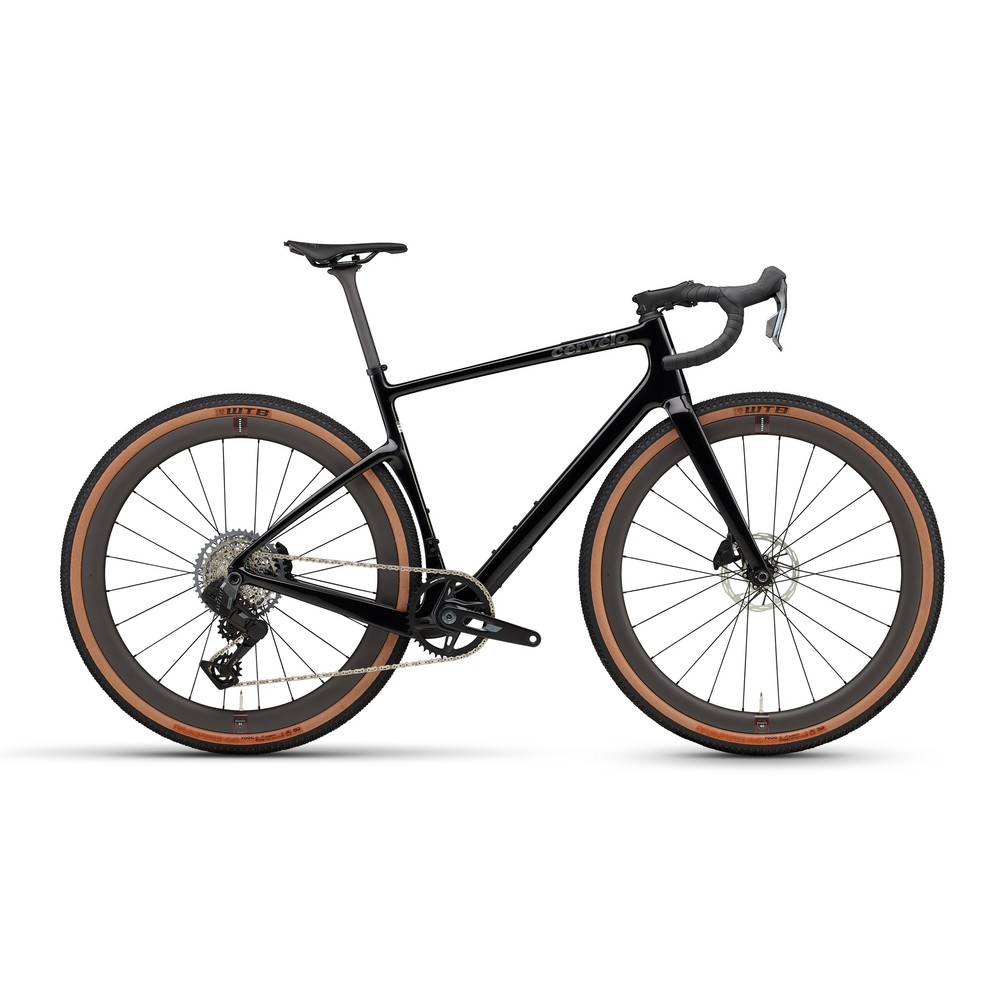

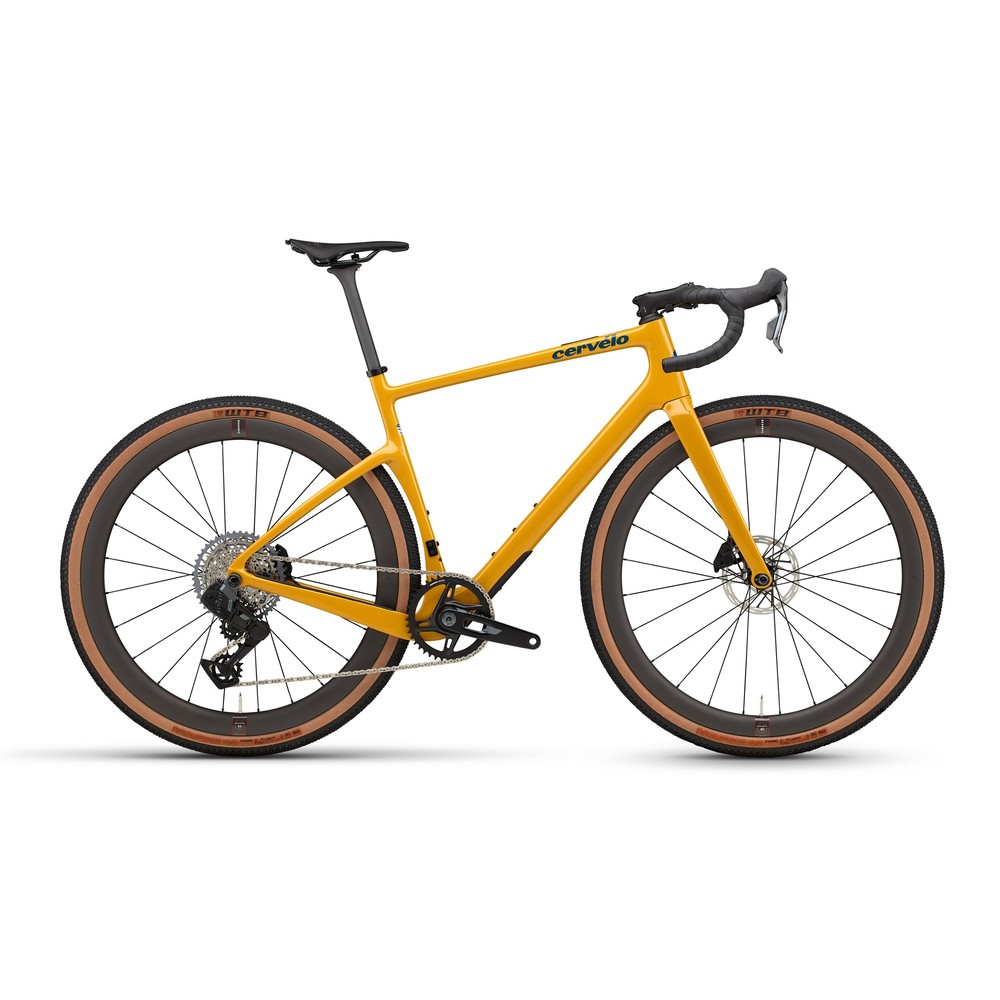

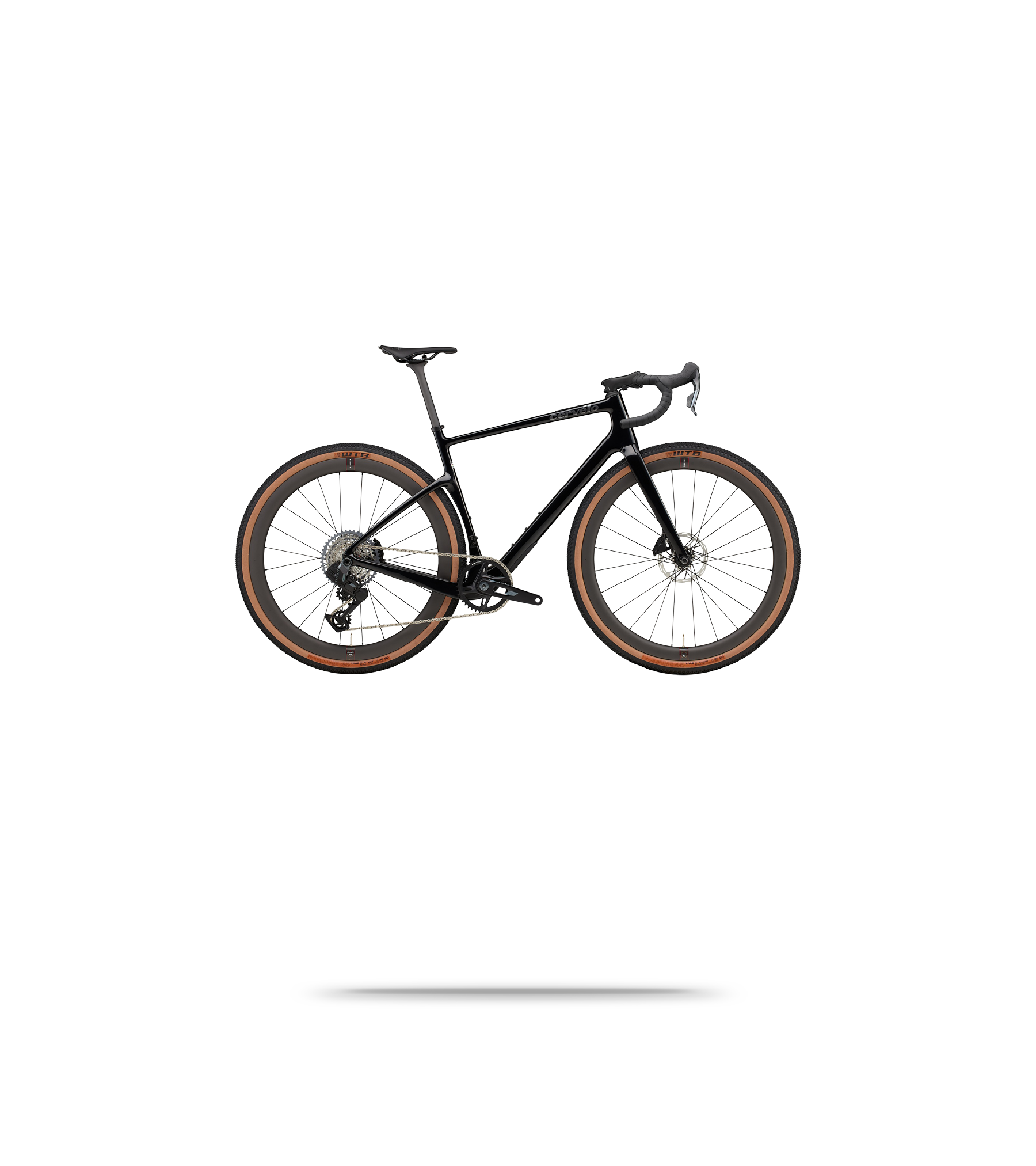

Aspero Rival XPLR AXS 1 Gravel Bike
Featuring the tried and tested gravel-ready Aspero carbon frame and forks with tuned geometry for a rapid but comfortable ride, the Aspero Rival XPLR AXS 1 Gravel Bike is made for the fun of off-road exploration. Tube profiles are tuned for smooth aerodynamics, saving energy for those big days in the saddle, while also being engineered to provide extra compliance over rough terrain, making the last miles of an epic day all the more comfortable.
Shifting gets an upgrade thanks to the latest 13-speed wireless SRAM Rival XPLR AXS groupset. With its wide-range 10-46 tooth cassette, you'll always get the sweetspot for gravel rides. And the wireless technology gives near instant gear shifts, keeping you pedalling smoothly as trails pitch up and down, round and round. The Rival XPLR hydraulic brakes are also confidence-inspiring. One-finger braking is now possible, with 80% less effort when braking from the hoods, and 33% less effort from the drops compared to the previous generation. Time to buckle up, get ripping and enjoy the ride.
Features
- Frame: Cervelo Aspero All-Carbon
- Fork: Tapered Aspero Fork - FSA IS2 1-1/4 x 1-1/2 headset
- Axles: Cervelo Aero Thru-Axles, 12 x 100 / 12 x 142
- Bottom Bracket: SRAM DUB Wide, T47 BBright
- Handlebar: Cervelo AB09F flared carbon handlebars
- Stem: Cervelo ST36 Alloy Stem
- Bar Tape: Cervelo
- Front Brake: SRAM Rival XPLR hydraulic disc - SRAM Paceline Centerlock Rotors
- Rear Brake: SRAM Rival XPLR hydraulic disc - SRAM Paceline Centerlock Rotors
- Brake and Shift Levers: SRAM Rival AXS E1
- Rear Derailleur: SRAM Rival XPLR AXS E1 wireless
- Chain: SRAM Rival E1 13-speed
- Cassette: SRAM Rival XPLR 13-speed 10-46T
- Crankset: SRAM Rival 1, 40T, DUB Wide
- Front Wheel: Reserve 40TA GR, DT Swiss 370, 12x100mm, 24H centerlock, tubeless compatible
- Rear Wheel: Reserve 44TA GR, DT Swiss 370,12x142mm, MS freehub, 24H, centerlock, tubeless compatible
- Tyres: WTB Vulpine TCS Light Fast Rolling Dual DNA SG 120tpi 700x45c
- Saddle: Prologo Nago R4 PAS LIGHTWEIGHT STN
- Seatpost: Cervélo SP19 Carbon 27.2
- Pedals: Available to be purchased separately
- Accessories: Cervélo Front Computer/Accessory Mount 810, Cervélo Rear Accessory Mount, Cervélo Smartpak Top Tube Storage Bag 400A
Specifications
- Model
- Aspero
- Bottom Bracket [Maker]
- SRAM
- Bottom Bracket Standard
- T47
- Brakes [Kind]
- Hydraulic Disc
- Brakes [Maker]
- SRAM
- Brakes [Model]
- Rival XPLR
- Cassette [Gearing]
- 10-46
- Cassette [Maker]
- SRAM
- Cassette [Model]
- Rival XPLR
- Chain [Maker]
- SRAM
- Chain [Model]
- Rival E1
- Chainring [Gearing]
- 40
- Crank [Maker]
- SRAM
- Crank [Model]
- Rival 1
- E-Bike
- No
- F Hub [Maker]
- DT Swiss
- F Hub [Model]
- 370
- Family
- Aspero
- Fork [Axle Type]
- 12mm Thru-Axle
- Fork [Brake Type]
- Disc
- Fork [Maker]
- Cervelo
- Fork [Material]
- Carbon
- Fork [Model]
- Aspero Fork
- Fork [Wheel Size]
- 700c
- Frame [Material]
- Carbon
- Frameset
- No
- Gearing [Configuration]
- 1x
- Gearing [Kind]
- Conventional
- Gender
- Unisex
- Handlebar [Kind]
- Drop
- Handlebar [Maker]
- Cervelo
- Handlebar [Material]
- Carbon
- Handlebar [Shape]
- Flared Drop
- Headset [Maker]
- FSA
- R Hub [Maker]
- DT Swiss
- R Hub [Model]
- 370
- RD [Maker]
- SRAM
- RD [Model]
- Rival XPLR AXS
- Saddle [Maker]
- Prologo
- Seatpost [Diameter]
- 27.2
- Seatpost [Kind]
- Rigid
- Seatpost [Maker]
- Cervelo
- Seatpost [Material]
- Carbon
- Shifters [Maker]
- SRAM
- Shifters [Model]
- Rival AXS E1
- Shifting
- Electronic
- Stem [Maker]
- Cervelo
- Stem [Material]
- Aluminium
- Suspension Configuration
- Rigid
- Tires [Maker]
- WTB
- Wheels [Configuration]
- Front+Rear
- Wheels [Kinds]
- Tubeless Ready
- Wheelset [Maker]
- Reserve
- Wheelset [Material]
- Carbon
- Wheelset [Model]
- Reserve 40TA/44TA GR
- Product code
- 1938869 / 54293823848794
Size Guide
| — | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| A | - | - | - | - | - | - |
| B | - | - | - | - | - | - |
| C | 515 | 531 | 548 | 565 | 581 | 597 |
| D | - | - | - | - | - | - |
| E | 73° | 73° | 73° | 73° | 73° | 73° |
| F | 70° | 70° | 71.1° | 71.5° | 71.5° | 71.5° |
| G | 108.9 | 138.3 | 155.8 | 180.1 | 207 | 231.2 |
| H | - | - | - | - | - | - |
| I | - | - | - | - | - | - |
| J | - | - | - | - | - | - |
| K | 352 | 362 | 372 | 382 | 391 | 400 |
| L | 527 | 549 | 572 | 595 | 618 | 641 |
If you fall between sizes, we recommend experienced riders selecting the smaller frame which will offer faster handling. A larger bicycle offers more stability.
Should you have any specific questions, please contact us for information and talk to one of our experienced members of staff.
A: Seat Tube (CTR-TOP)
B: Seat Tube (CTR-CTR)
C: Effective Top Tube
D: Actual Top Tube
E: Seat Arc Angle
F: Head Arc Angle
G: Head Tube
H: Fork Rake
I: Chainstay
J: Wheelbase
K: Stack
L: Reach
* All measurements in mm unless otherwise stated
