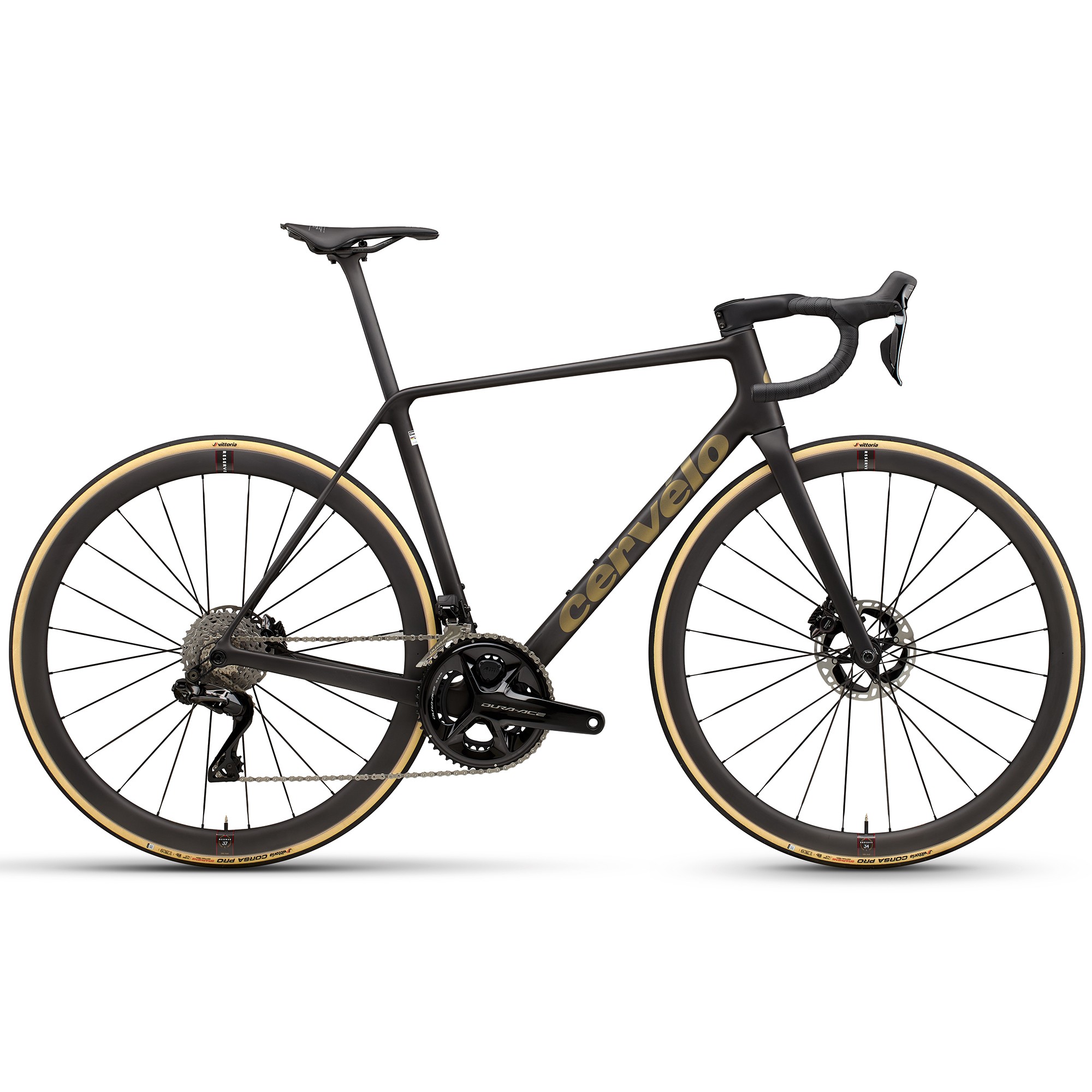

Cervelo R5 Dura Ace Di2 Carbon Road Bike 2026
The Cervelo R5 Road Bike is legendary. From the limits-shattering R5CA to Wout van Aert’s win on Mont Ventoux, the R5 has defined Cervelo for over two decades. The all-new R5 weighs just 5.97kg and is stiff enough to compete at the highest levels, as Pauline Ferrand-Prévot proved at this summer’s Tour de France Femmes.
Lightweight Cervelo R5 Frame
In size 56, the R5 weighs 5.97kg, 900 grams below the UCI minimum. The frame is 651 grams, the fork 298 grams, and refinements to every component cut a total of 326 grams across the bike.
Cervelo Race-Ready Fit Geometry
Handling geometry is largely unchanged, aside from a minor bottom bracket adjustment for 29mm tyres. Fit geometry now matches the S5, keeping riders in an optimal position for fast group rides.
Cervelo One-Piece Handlebar and Stem
The HB18 handlebar and stem drop 150 grams and improve aerodynamics by two Watts. Drawing on S5 insights, it delivers comfort, stiffness, and speed, ideal for long days and sprint finishes. All sizes remain UCI-legal.
Ultralight Wheelset
The Reserve 34 | 37 SL wheels save 60 grams while maintaining the strength and stiffness of the previous set, with a refined layup that reduces weight without sacrificing performance.
Features
- Frame: Cervelo All-Carbon
- Fork: Cervelo All-Carbon, Tapered R5 Fork
- Headset: FSA SL IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45°
- Thru Axles: Cervelo Aero Thru Axle Front, M12x1.5mm, 122mm length
- Rear Axle: Cervelo Aero Thru Axle Rear, M12x1.0mm, 169mm length
- Front Wheel: Reserve 34TA, DT Swiss 180, 12x100mm, 24H, centrelock, tubeless compatible
- Rear Wheel: Reserve 37TA, DT Swiss 180, 12x142mm, HG freehub 24H, centrelock, tubeless compatible
- Tyres: Corsa Pro Speed TLR 700x26
- Max Tyre Width: 34mm
- Crankset: Shimano Dura-Ace, R9200, 52/36T, 12-Speed
- Crankset Sizing: 48cm - 165mm / 51cm - 165mm / 54cm - 170mm / 56cm - 170mm / 58cm - 172.5mm / 61cm - 172.5mm
- Power Meter: 4iiii Precision Pro, GEN3+ Dual Sided
- Bottom Bracket: Ceramic Speed, BBright SL for 24mm spindle
- Chain: Shimano M9100, 12-Speed
- Front Derailleur: Shimano Dura-Ace, R9250, 12-Speed
- Rear Derailleur: Shimano Dura-Ace, R9250, 12-Speed, Direct Mount
- Cassette: Shimano Dura-Ace, 11-34, 12-Speed
- Shifters: Shimano Dura-Ace, R9270, 12-Speed
- Handlebar: Cervelo HB18 Carbon
- Handlebar Sizing: 48cm - 36cm / 51cm - 38cm / 54cm - 40cm / 56cm - 40cm / 58cm - 40cm / 61cm - 40cm
- Stem: 48cm - 80mm / 51cm - 90mm / 54cm - 100mm / 56cm - 100mm / 58cm - 110mm / 61cm - 120mm
- Brake Calipers: Shimano Dura-Ace, R9270
- Saddle: Prologo Nago R4 PAS LIGHTWEIGHT NACK
- Seatpost: Cervelo SP33 Carbon
- Seatpost Sizing: 48cm - 0mm / 51cm - 0mm / 54cm - 0mm / 56cm - 0mm / 58cm - 15mm / 61cm - 15mm
- Brake Rotor: Shimano CL900 Centrelock
- Accessories: Cervelo Front Computer/Accessory Mount 887 / Cervelo Rear Accessory Mount / Cervelo Front Computer/Accessory Mount 014
Specifications
- Model
- R5 Dura-Ace Di2
- Bottom Bracket [Maker]
- ceramic-speed
- Bottom Bracket Standard
- BBRight
- Brakes [Kind]
- Hydraulic Disc
- Brakes [Maker]
- Shimano
- Brakes [Model]
- Dura-Ace R9270
- Cassette [Gearing]
- 11-34
- Cassette [Maker]
- Shimano
- Cassette [Model]
- Dura-Ace
- Chain [Maker]
- Shimano
- Chain [Model]
- M9100
- Chainring [Gearing]
- 52–36
- Crank [Maker]
- Shimano
- Crank [Model]
- Dura-Ace R9200
- Discipline Compatibility
- Road
- E-Bike
- No
- F Hub [Maker]
- DT Swiss
- F Hub [Model]
- 180
- Family
- R5
- FD [Maker]
- Shimano
- FD [Model]
- Dura-Ace R9250
- Fenders Mounts
- No
- Fork [Axle Diameter]
- 12 mm
- Fork [Axle Type]
- Thru-Axle
- Fork [Brake Type]
- Disc
- Fork [Maker]
- Cervelo
- Fork [Material]
- Carbon
- Fork [Model]
- Tapered R5 Fork
- Fork [Wheel Size]
- 700c
- Frame [Material]
- Carbon
- Frame [Tire Clearance]
- 34c mm
- Frameset
- No
- Gearing [Configuration]
- 2x
- Gearing [Kind]
- Conventional
- Gender
- Unisex
- Handlebar [Kind]
- Drop
- Handlebar [Maker]
- Cervelo
- Handlebar [Material]
- Carbon
- Handlebar [Shape]
- Drop bar
- Headset [Maker]
- FSA
- Headset [Upper Headset Fit]
- IS 1-1/4
- Power Meter [Maker]
- 4iiii
- Power Meter [Model]
- Precision Pro
- R Hub [Maker]
- DT Swiss
- R Hub [Model]
- 180
- Rack Mounts
- No
- RD [Maker]
- Shimano
- RD [Model]
- Dura-Ace R9250
- Saddle [Maker]
- Prologo
- Seatpost [Kind]
- Rigid
- Seatpost [Maker]
- Cervelo
- Seatpost [Material]
- Carbon
- Shifters [Maker]
- Shimano
- Shifters [Model]
- Dura-Ace R9270
- Shifting
- Electronic
- Stem [Maker]
- Cervelo
- Stem [Material]
- Carbon
- Sub Family
- R5
- Suspension Configuration
- Rigid
- Tires [Maker]
- Vittoria
- Tires [Width]
- 26 mm
- Wheels [Configuration]
- Front+Rear
- Wheels [Kinds]
- Tubeless Ready
- Wheelset [Maker]
- Reserve
- Wheelset [Material]
- Carbon
- Wheelset [Model]
- 34/37 SL
- Product code
- 1953346 / 54293689565530
Size Guide
| Size | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height (cm) | 152 - 161 | 159 - 168 | 168 - 174 | 174 - 180 | 180 - 185 | 185 - 192.5 |
| Rider Height (ft. in.) | 5'0" - 5'3.5" | 5'2.5" - 5'6" | 5'6" - 5'8.5" | 5'8.5" - 5'11" | 5'11" - 6'1" | 6'1" - 6'4" |
| Seat Tube (ctr-top) | 480 | 510 | 540 | 560 | 580 | 610 |
| Seat Tube (ctr-ctr) | - | - | - | - | - | - |
| Effective Top Tube | 515 | 532 | 548 | 563 | 581 | 597 |
| Actual Top Tube | - | - | - | - | - | - |
| Seat Angle (°) | 73 | 73 | 73 | 73 | 73 | 73 |
| Head Tube Angle (°) | 71 | 72 | 73 | 73 | 73 | 73 |
| Head Tube Length | 89 | 110 | 133 | 159 | 188 | 214 |
| Fork Rake | 57 | 51 | 45 | 45 | 45 | 45 |
| Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 |
| Wheelbase | 972 | 974 | 973 | 993 | 1011 | 1027 |
| Stack | 505 | 530 | 555 | 580 | 605 | 630 |
| Reach | 360 | 369 | 378 | 387 | 396 | 405 |
All measurements in mm unless otherwise stated.
